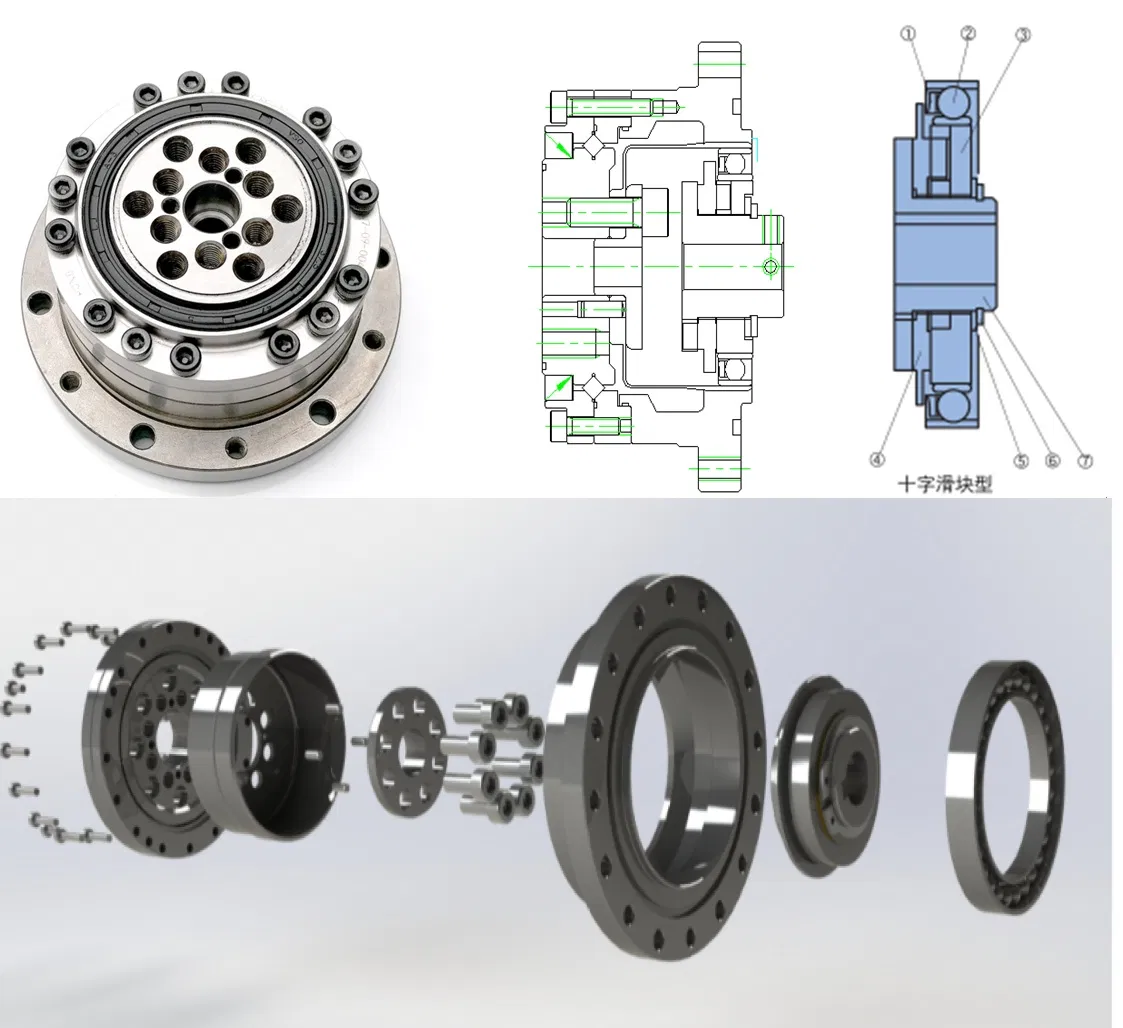

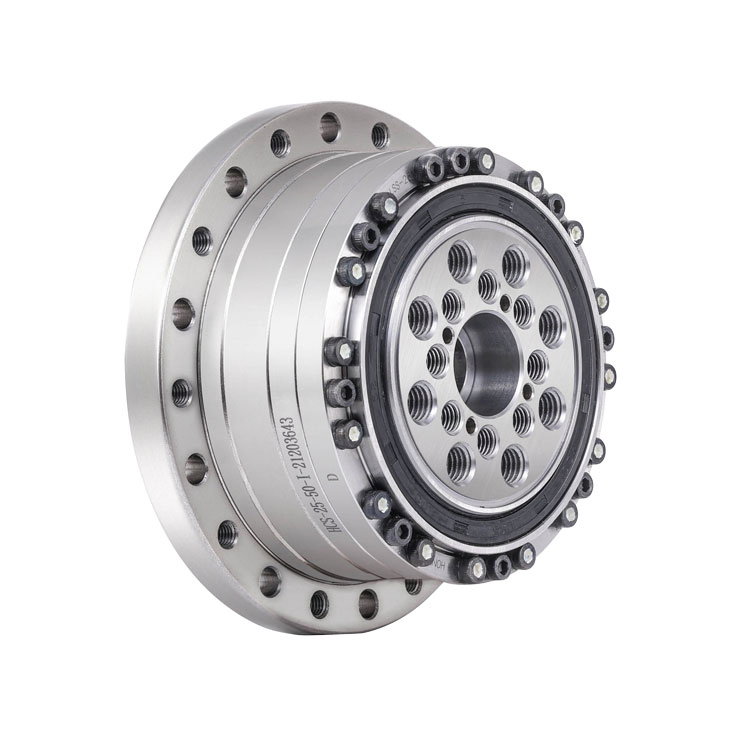

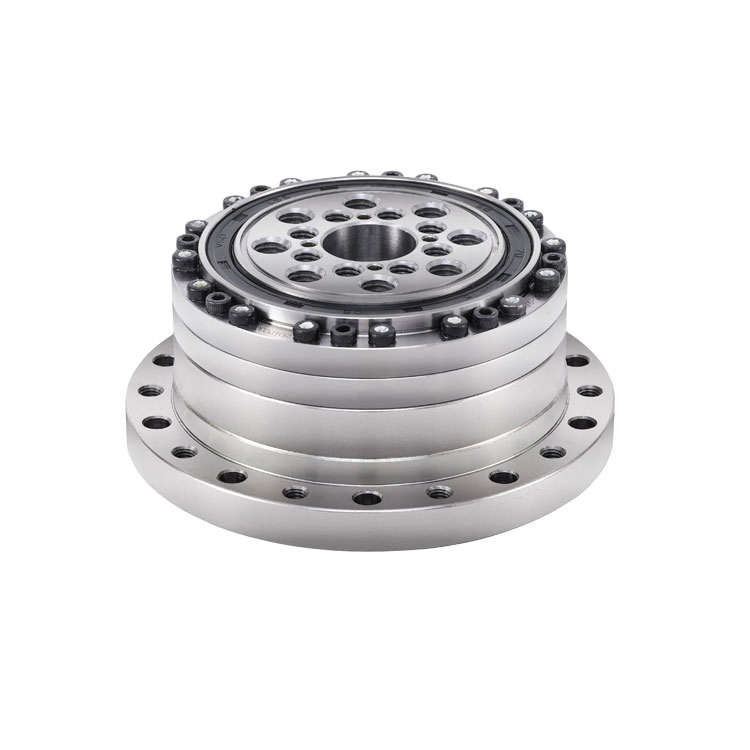

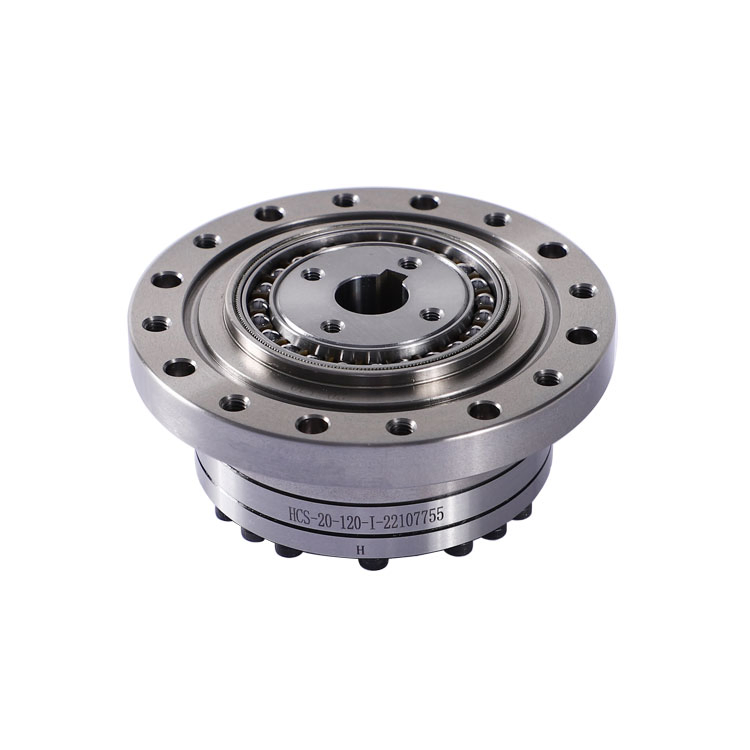

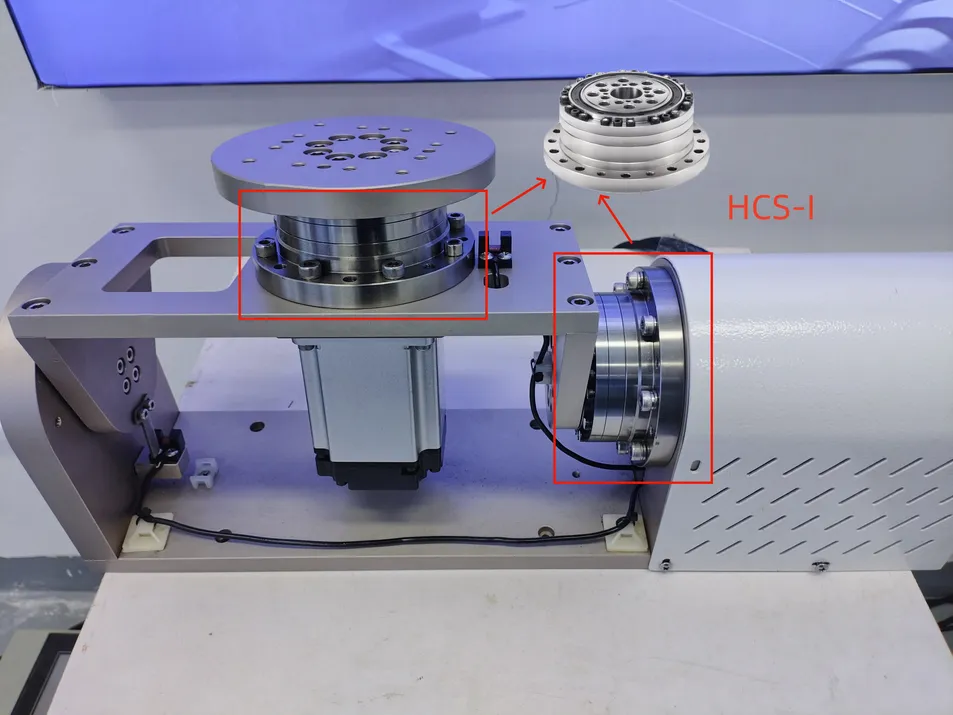

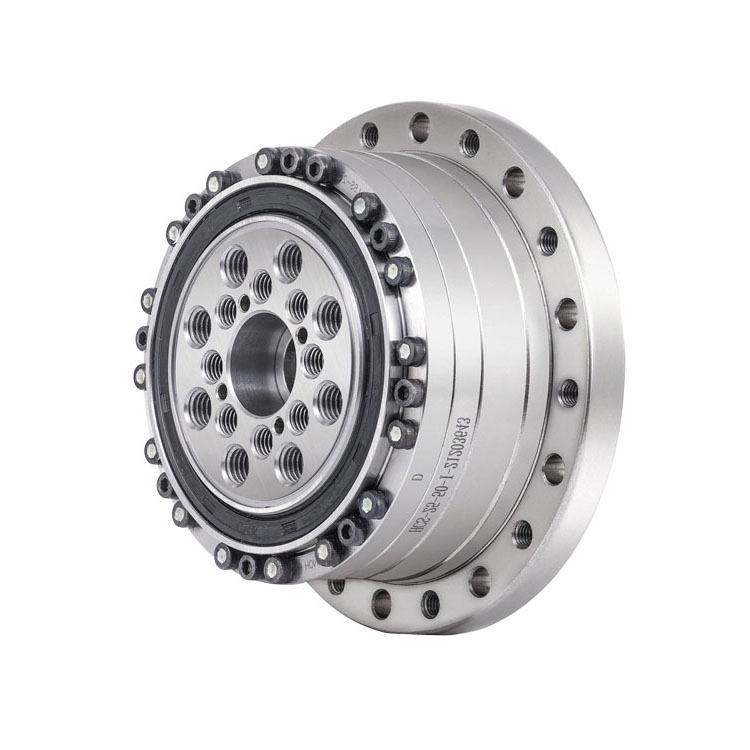

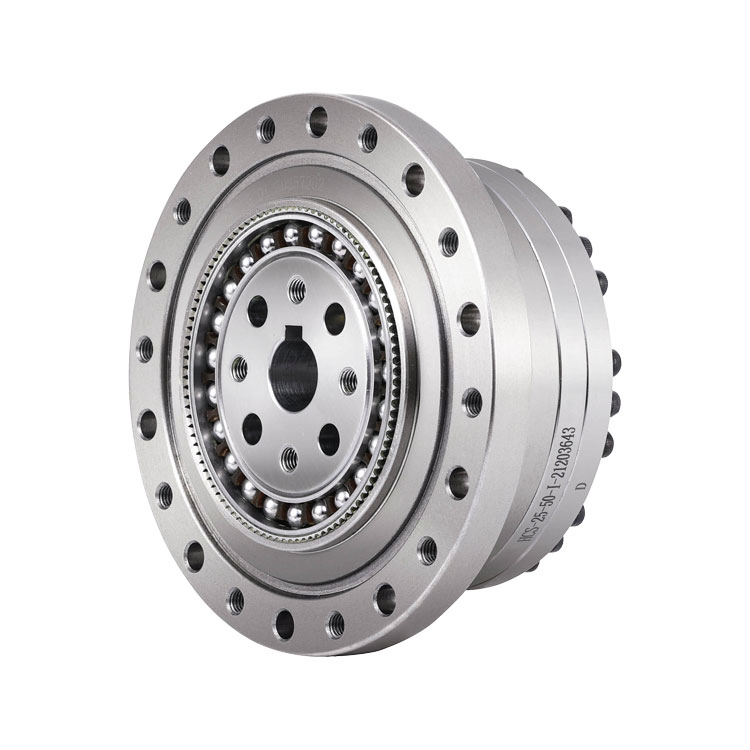

Harmonic Structure Type: The HCS-I series features a cup-type flexspline with a standard cylindrical configuration. The input shaft directly mates with the inner bore of the wave generator cam and is connected via a parallel key. This series is typically configured with the circular spline fixed and the flexspline serving as the output.

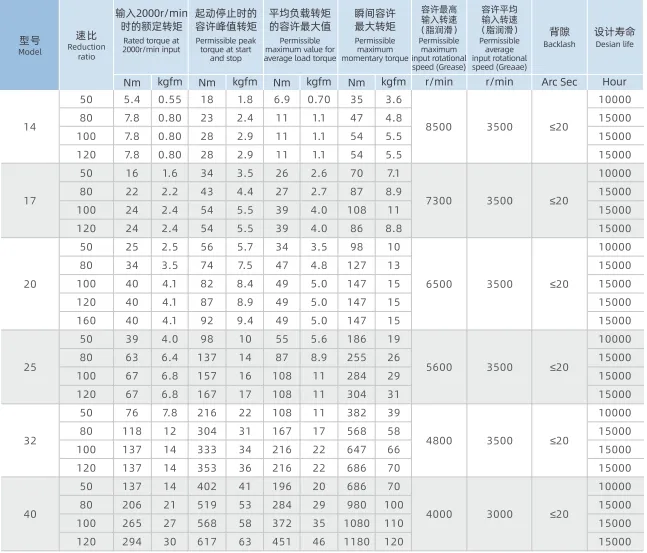

| Model | Size | Reduction Rate | Construction Code | Type | |||
|---|---|---|---|---|---|---|---|
| HST | 14 | 50 | 80 | 100 | — | U: Whole item C: Component |
I: Simple Standard II: Cross slide-bloke III: Hollow shaft IV: Input axial V: Customized |
| 17 | 50 | 80 | 100 | — | |||
| 20 | 50 | 80 | 100 | 120 | |||
| 25 | 50 | 80 | 100 | 120 | |||
| 32 | 50 | 80 | 100 | — | |||
| 40 | — | — | 100 | — | |||
Utilizes self-developed HM tooth profile technology, improving precision, strength, and service life compared to traditional profiles.
Small wave generator deformation reduces stress on bearings, allowing for a service life of 10,000-15,000h.
Number of gear bites reaches one third of total teeth, averaging errors for extremely high rotary accuracy.
Smooth operation with large tooth contact and small slip speed ensures low noise and no impact during use.

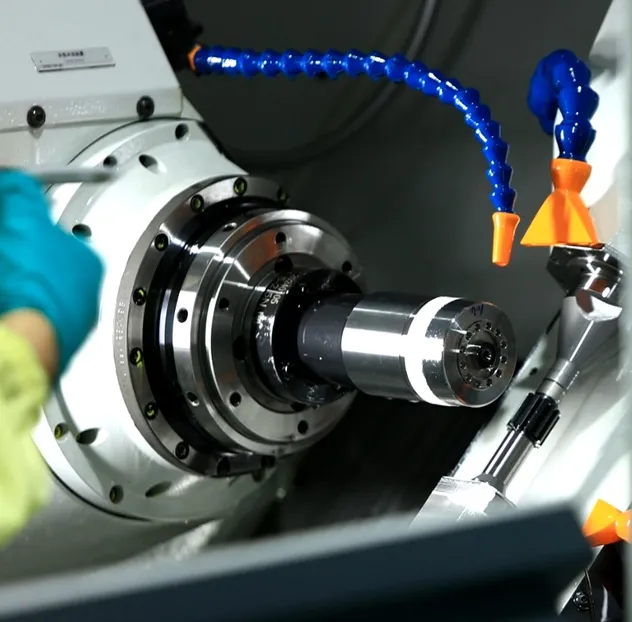

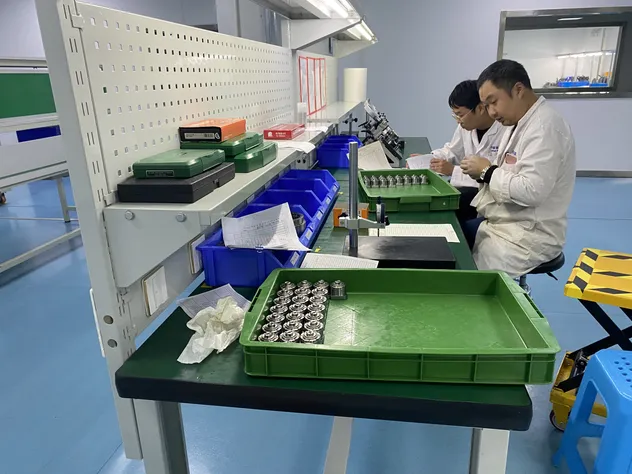

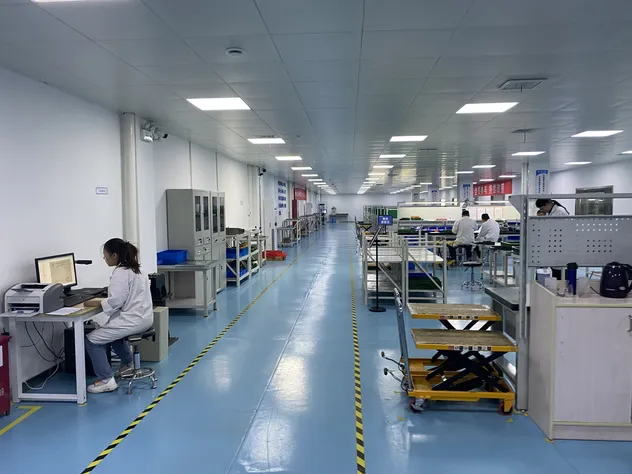

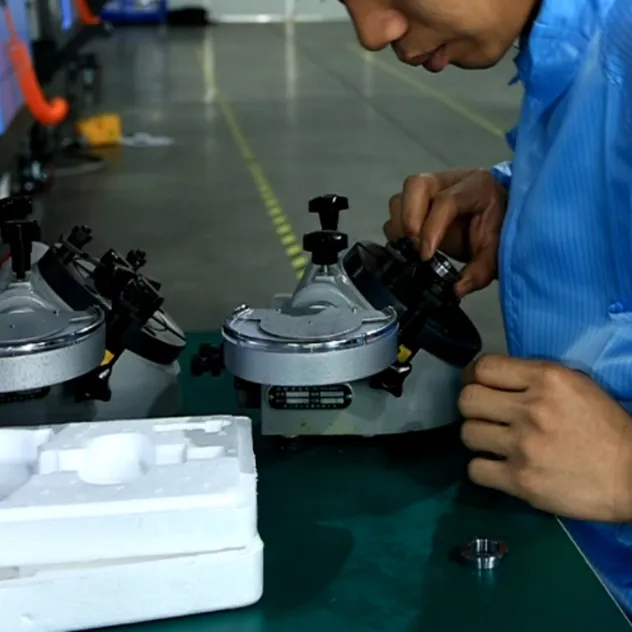

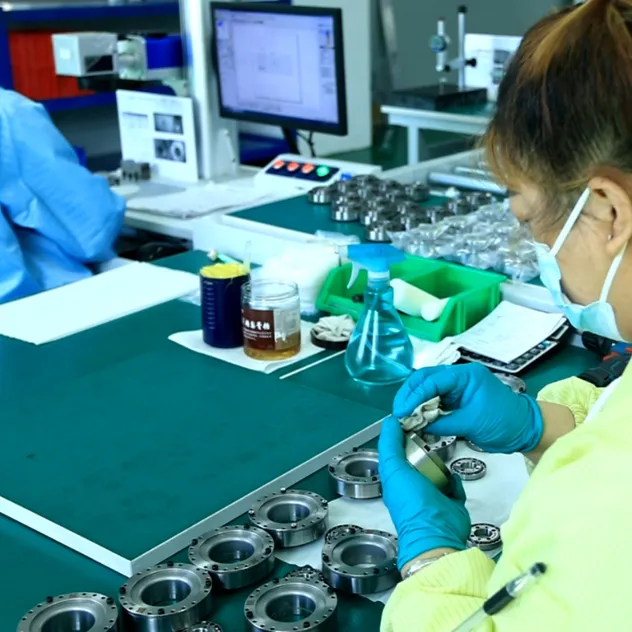

Committed to the R&D and manufacturing of high-precision transmission components, our annual production capacity reaches 100,000 sets of harmonic gearboxes. All processes from raw materials to finished products are strictly supervised to ensure premium quality for domestic and international markets.
