High Efficiency 14-40 Series Gear Motor for Industrial Use

1 / 5

High Efficiency 14-40 Series Gear Motor for Industrial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HMCG-I

Installation

Horizontal Type

Layout

Coaxial

Gear Shape

Cylindrical Gear

Step

Single-Step

Type

Gear Reducer

Reduction Ratio

50-120

Application

Industrial Robot / Aerospace

HS Code

84834020

Capacity

150,000 Per Year

🔍 Product Description

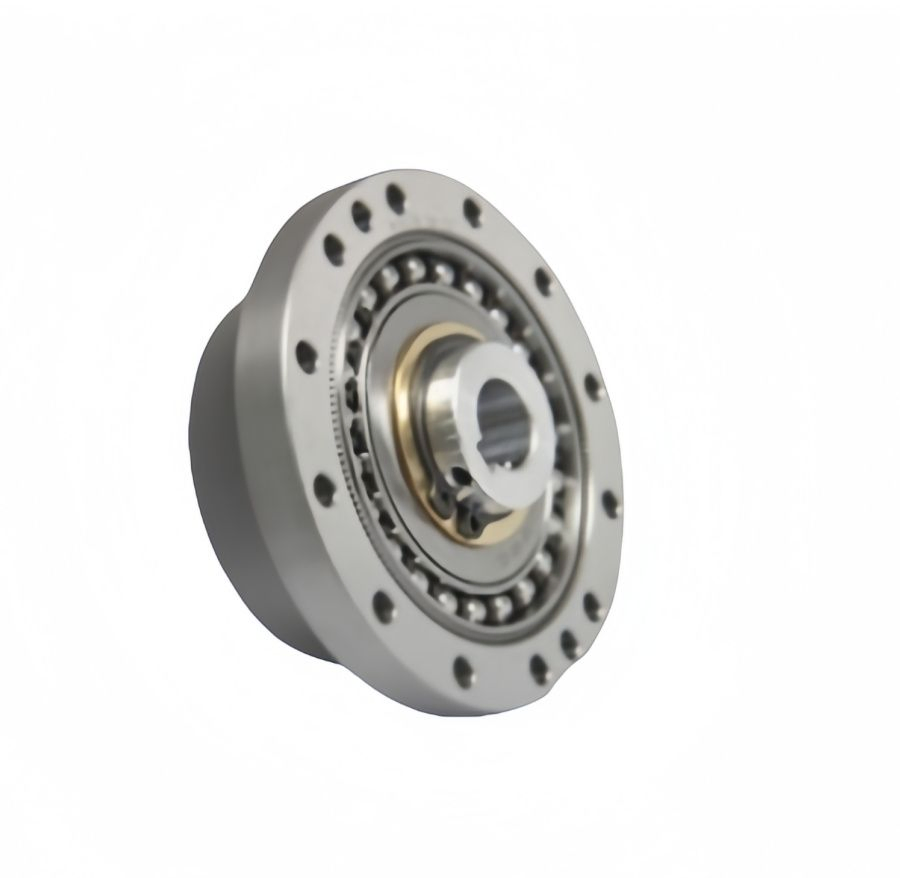

HMCG-I Series Harmonic Reducer

Introducing the HMCG-I Series Harmonic Reducer! Designed for aerospace, robotics, semiconductors, power inspection, and automation equipment.

Experience the Power of Harmonic Gear Transmission

Discover the cutting-edge transmission mode. The HMCG-I series utilizes elastic deformation for movement and power transmission, replacing traditional rigid components with flexibility for enhanced functionality.

Unleash the Deceleration Principle

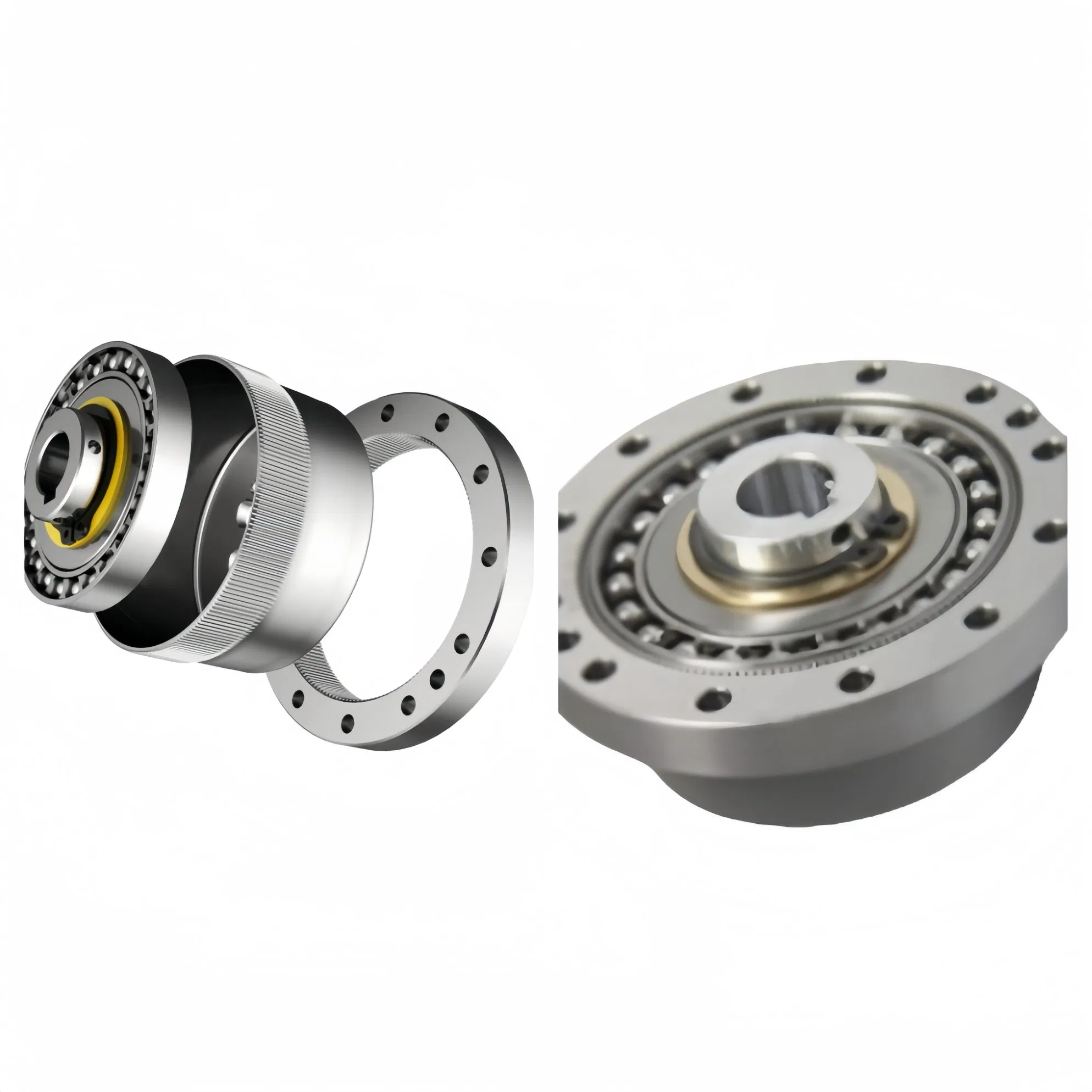

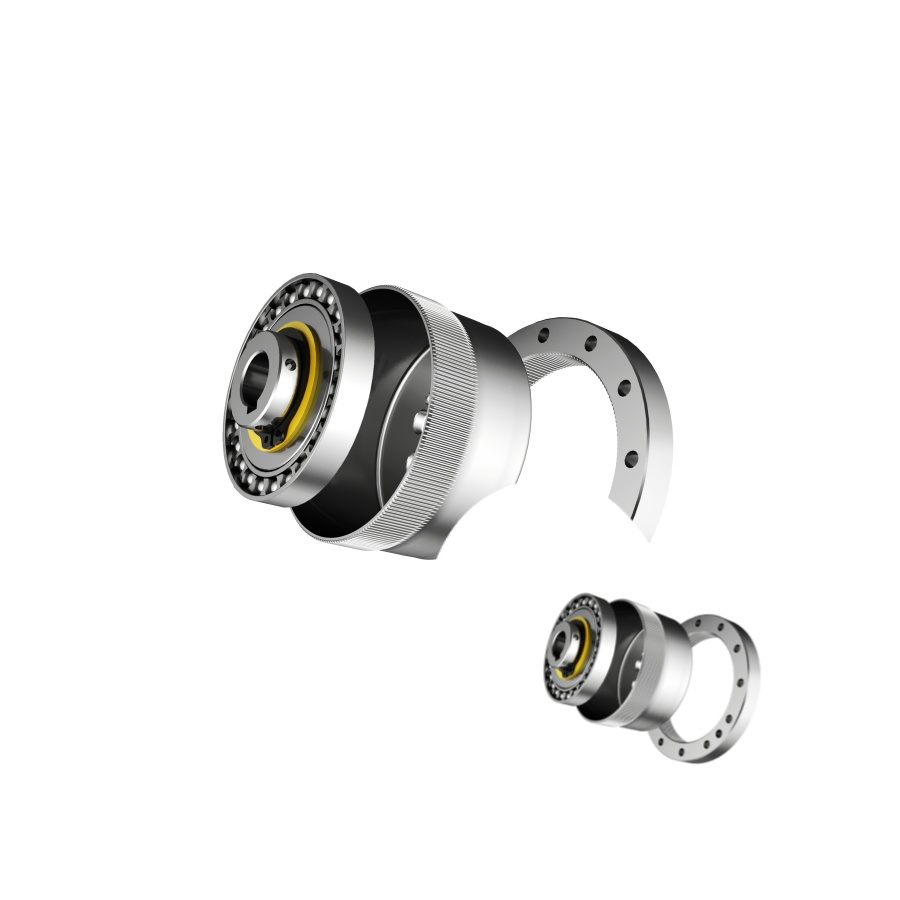

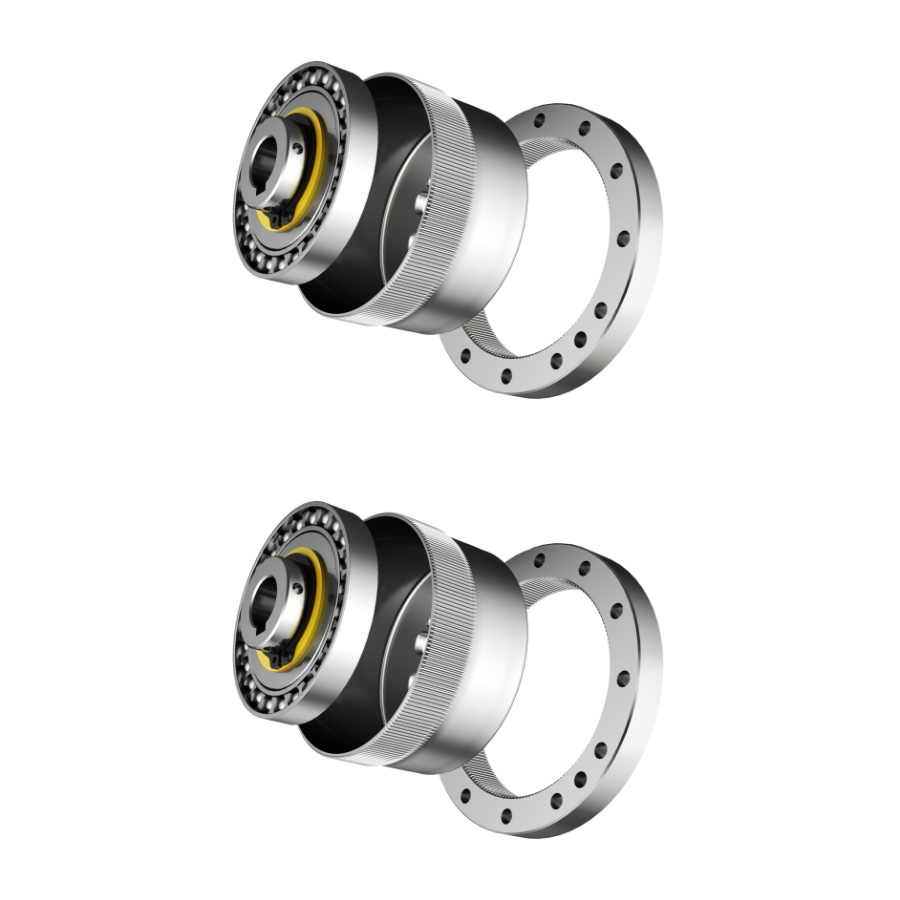

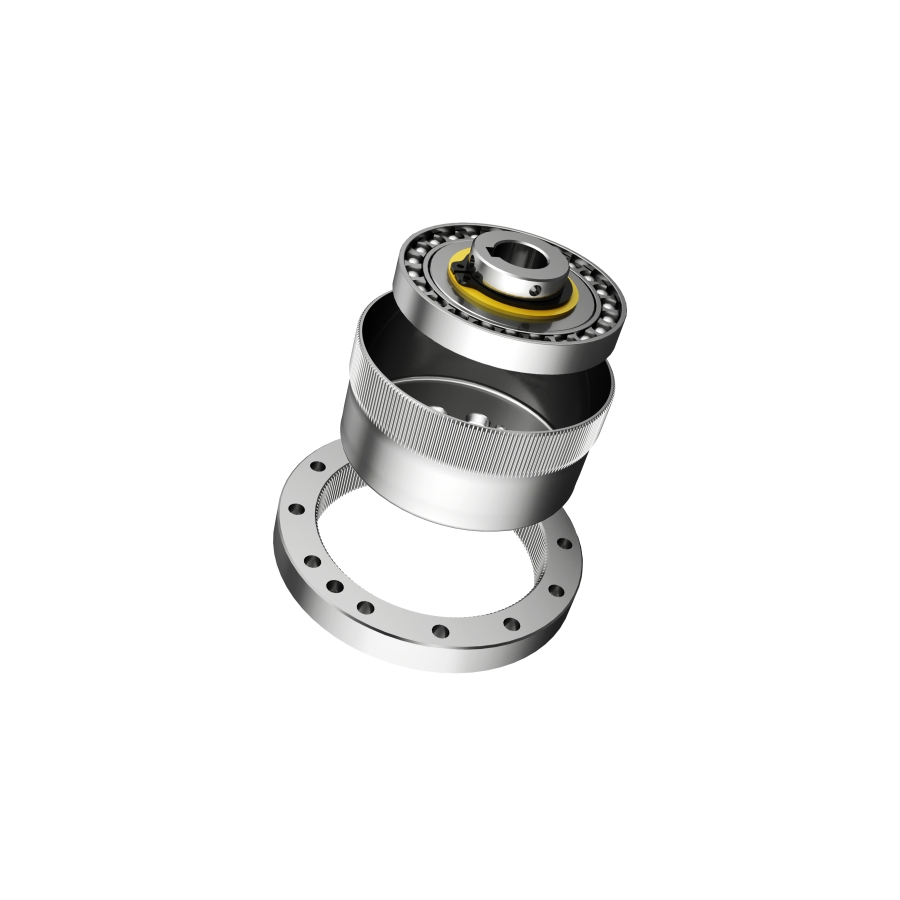

Harness the power of the deceleration principle with the HMCG-I series harmonic reducer. The flexwheel, rigid wheel, and wave generator work together seamlessly for precise and efficient movement transmission.

⚙ Product Specifications

✓Product Name: Industrial Robot Ultra-Thin Series Hmcg Harmonic Precision Reducer

✓Applicable Industries: Machinery, Agricultural Machinery, Car, Robot

✓Hardened Tooth Surface: Yes

✓Installation Type: Horizontal Type

📊 Product Parameters

Model	Reduction ratio	Rated torque at input 2000r/min	Permissible peak torque at start/stop	Permissible max. value of ave.load torque	Instantaneous permissible max.torque	Permissible max. input rotational speed	Permissible ave. input rotational speed	Backlash (arc sec)	Transmission accuracy(arc sec)
Model	Reduction ratio	Nm	Nm	Nm	Nm	r/min	r/min	≤	≤
14	50	7	23	9	46	8000	3500	20	90
	80	10	30	14	51			20	90
	100	10	36	14	70			10	90
17	50	21	44	34	91	7000	3500	20	90
	80	29	56	35	113			20	90
	100	31	70	51	143			10	90
20	50	33	73	44	127	6000	3500	20	60
	80	44	96	61	165			20	60
	100	52	107	64	191			10	60
	120	52	113	64	161			10	60

💡 Features & Benefits

Revolutionize your machinery with the cutting-edge technology of the Industrial Robot Ultra-Thin Series Hmcg Harmonic Precision Reducer. This product is designed to take your transmission components to the next level, providing unmatched performance and reliability.

Featuring a hardened tooth surface, this precision reducer ensures durability and longevity, making it perfect for CNC machine tools, packaging machinery, printing machinery, automation equipment, joint robots, medical equipment, and AGVs.

📷 Product Gallery

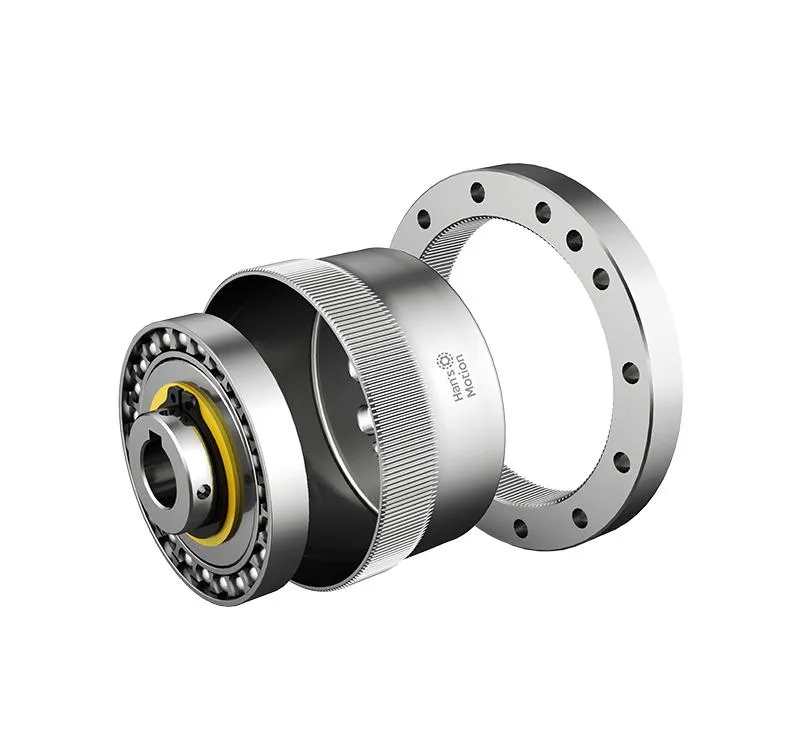

🔍 Detailed View

❓ Frequently Asked Questions

1. What are the primary applications for the HMCG-I harmonic reducer?

The HMCG-I series is specifically designed for high-precision fields including industrial robots, aerospace, semiconductor manufacturing, medical equipment, and automation machinery.

2. What makes the "Ultra-Thin" series advantageous?

The ultra-thin design allows for significant space savings in compact machinery and robotic joints without compromising on torque density or transmission accuracy.

3. What reduction ratios are available for this series?

The HMCG-I series offers a versatile range of reduction ratios, typically from 50:1 up to 120:1, depending on the specific model size (14 to 40).

4. Is the gear surface treated for durability?

Yes, the HMCG-I series features a hardened tooth surface to ensure exceptional durability, wear resistance, and a long operational lifespan under industrial conditions.

5. Can this reducer be used in high-speed applications?

While designed for precision torque transmission, the units can handle maximum input speeds up to 8000 r/min (model 14), with average permissible speeds around 3000-3500 r/min.

6. What is the transmission accuracy of the HMCG-I series?

The series provides high precision with transmission accuracy ratings as low as 60 to 90 arc seconds, ensuring reliable performance in robotic joint movements.
