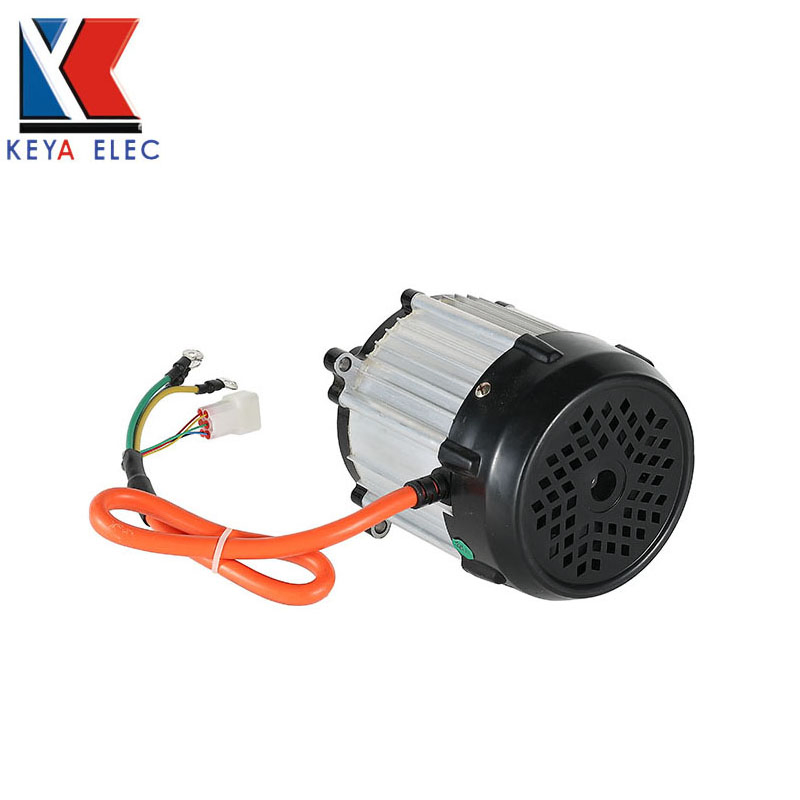

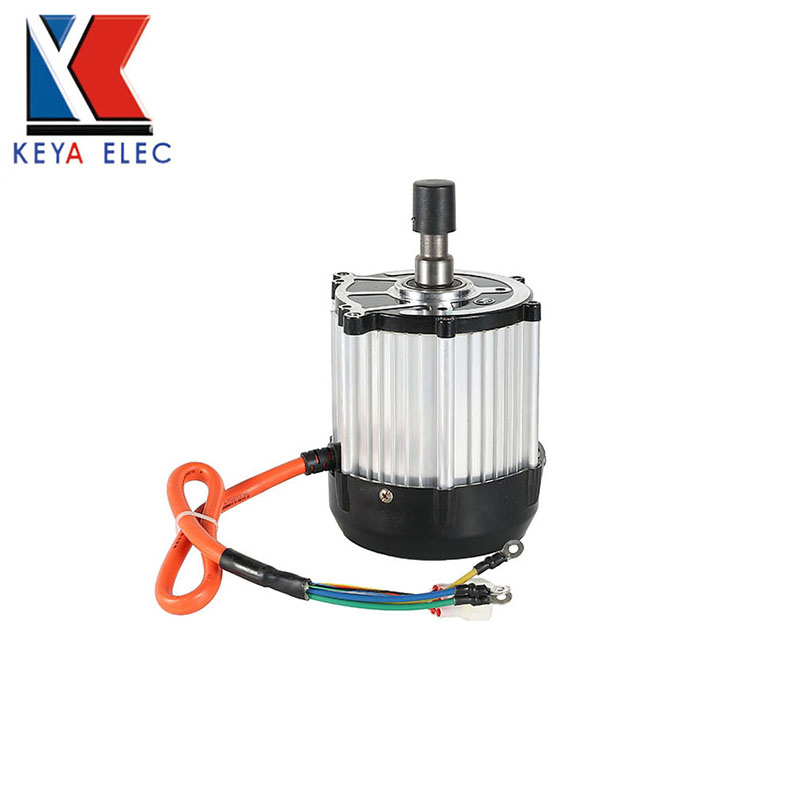

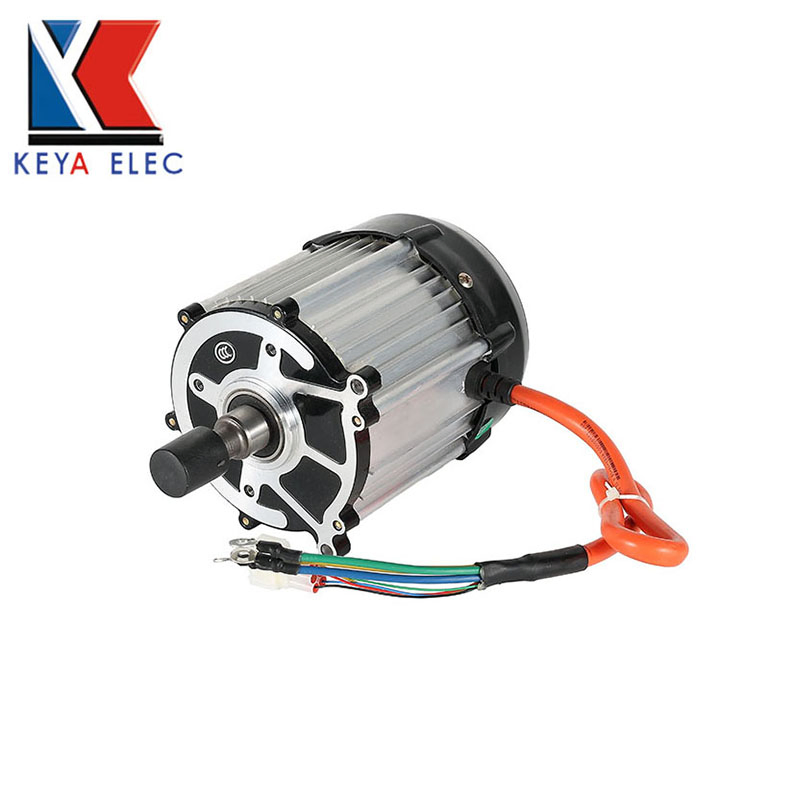

High Efficiency 1000W BLDC Motor 48V/60V/72V 4800rpm Low Power Electric Motor

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.:120 BLDC Motor 1000W 50H
Function:Driving
Structure:Brushless
Certification:ISO9001, CCC
Rated Voltage:48V/60V/72V
Rated Power:1000W
Motor Diameter:120mm
Rotor Height:50h
IP Grade:IP54
Sensor:Hall Sensor
Rated Speed:2400rpm
Max Torque:28n.M
Product Introduction
BLDC Motor Overview
⚙️

The use of electronic commutators eliminates the need for mechanical commutators, resulting in higher efficiency, lower maintenance requirements and longer service life. They are usually quieter than brushed motors because there is no noise from contact wear. Better speed and torque control can be provided due to their advanced design.

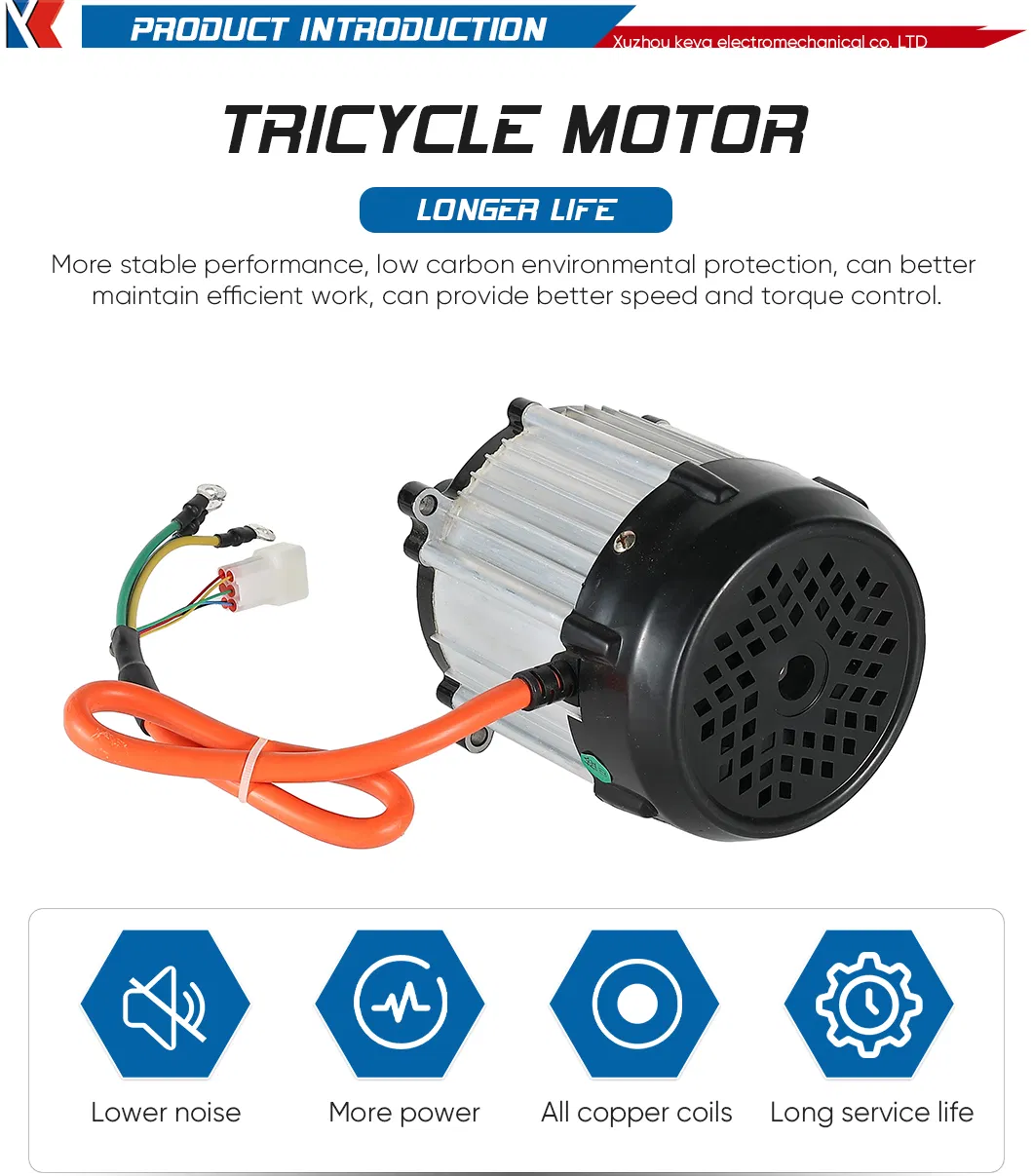

High Efficiency Motor Detail
🛡️

Durable & Reliable: Because there is no carbon brush, the brushless DC motor is more suitable for working in harsh environments such as high dust and high humidity. This enables stable operation in a variety of complex environments, improving adaptability and application range.

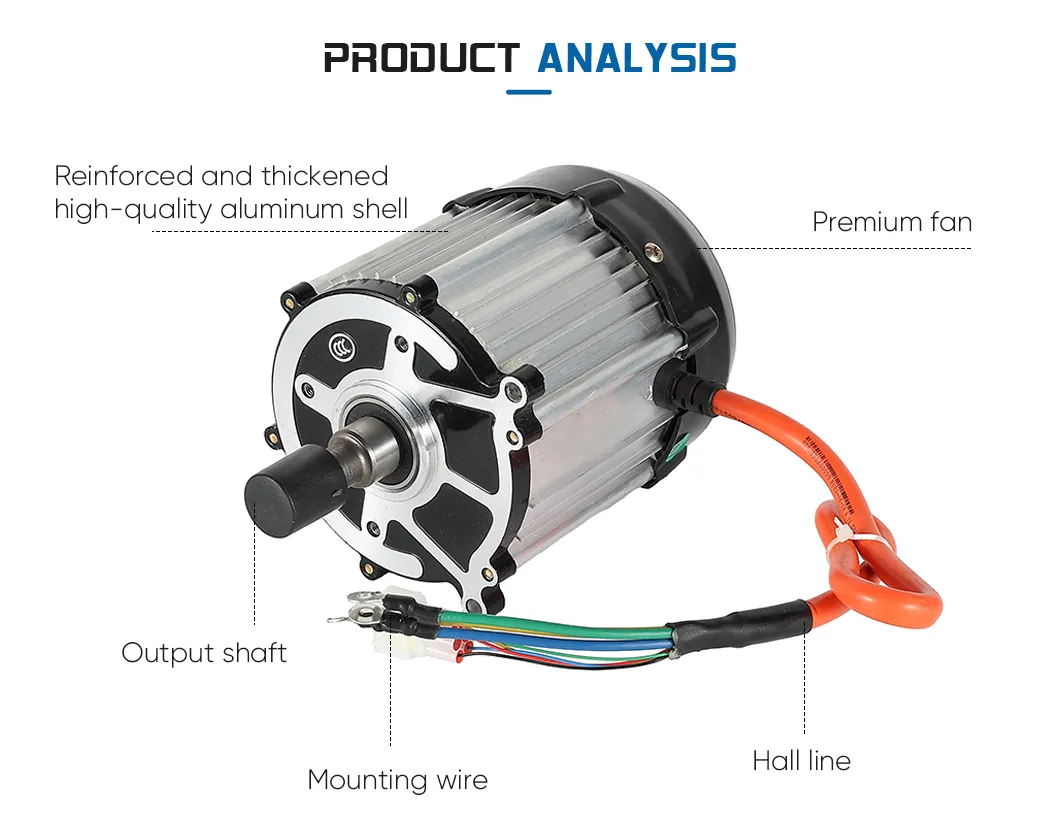

Pure Copper Core
💎

Premium Materials: 100% pure copper core with high-temperature 180-degree copper wire. Features high-temperature 155-degree magnetic steel for superior overload capacity and durability. Certified under IATF 16949:2016 quality systems.

Key Benefits
Mechanical Power

Output more mechanical power to improve endurance.

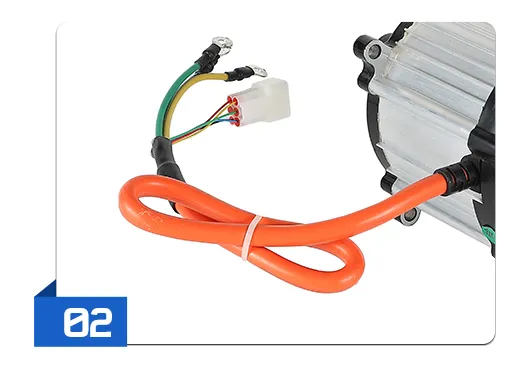

Longer Life

No carbon brush wear means longer motor life.

Simple Structure

Simple structure with low failure rate in harsh conditions.

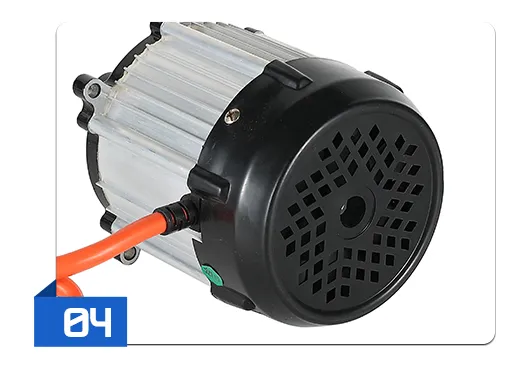

Low Noise

Low noise and vibration for a comfortable experience.

Technical Parameters
Product Name120 BLDC Motor
Rated Voltage48V/60V/72V
Rated Power1000W
Motor Diameter120mm
Rotor Height50H
Magnetic Steel Grade38H
IP GradeIP54
SensorHall Sensor
Package Size42*31*24CM
Gross Weight6.0kgs
Motor Dimension Chart
Product Gallery
Product view 1
Product view 2
Product view 3
Product view 4
Product view 5
Product view 6
Product view 7
Product view 8
Frequently Asked Questions
What are the available voltage options for this BLDC motor?
This motor is designed to be compatible with 48V, 60V, and 72V power systems.
Is the motor waterproof?
Yes, the motor has an IP54 protection rating, making it resistant to dust and water splashes.
What kind of applications is this motor suitable for?
It is ideal for electric bicycles, electric tricycles, home appliances, and other electric drive systems.
Does this motor require a controller with a Hall sensor?
Yes, this motor is equipped with a Hall sensor for precise speed and torque control.
What are the advantages of using a brushless motor over a brushed one?
Brushless motors offer higher efficiency, longer service life, lower maintenance due to the absence of carbon brushes, and quieter operation.
What is the maximum torque this motor can provide?
The motor provides a rated torque of 3.2n.M and a maximum peak torque of 28n.M.
