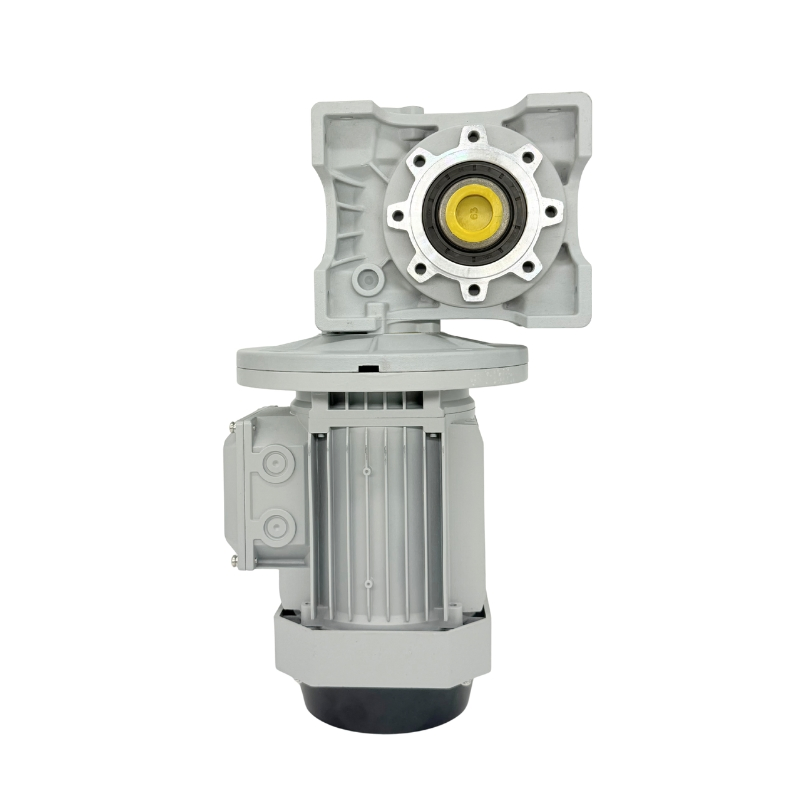

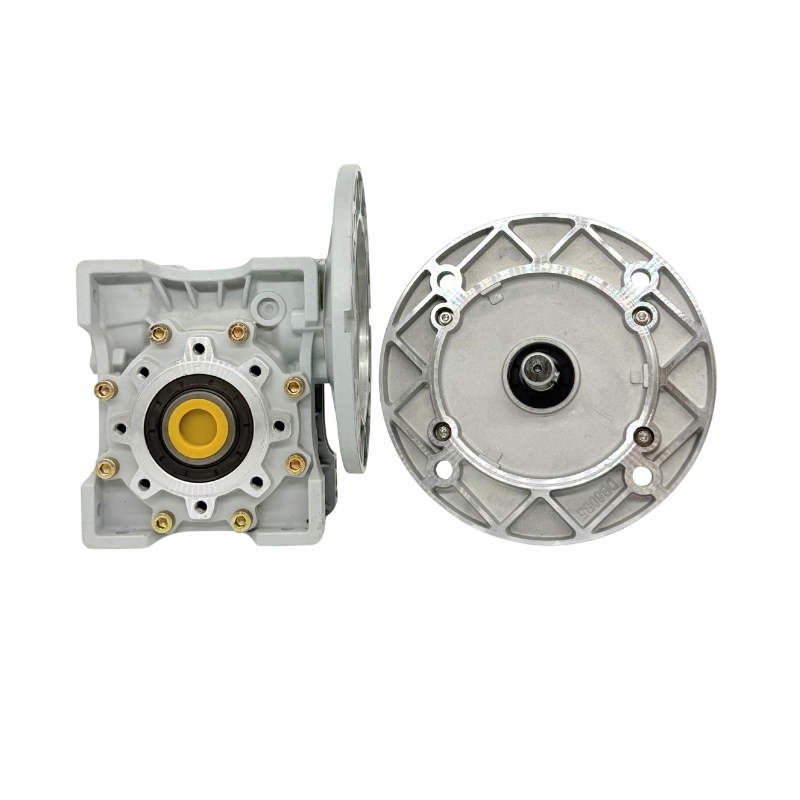

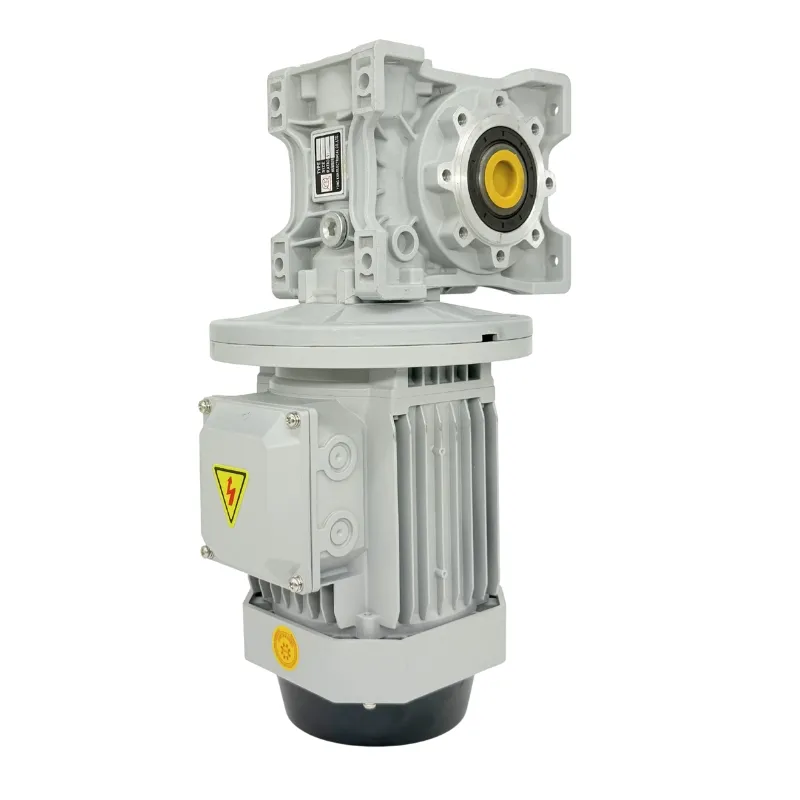

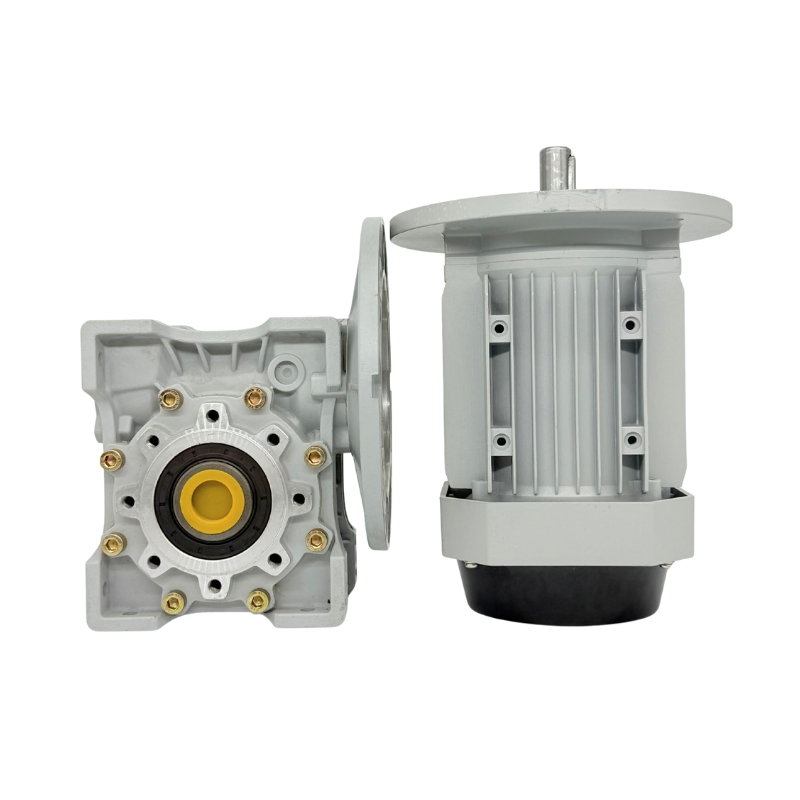

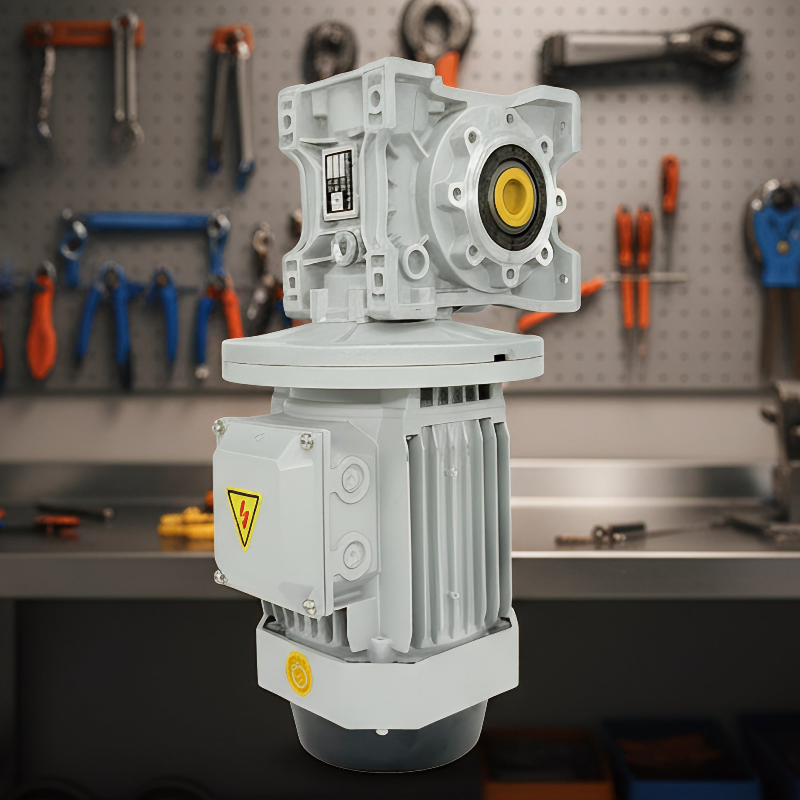

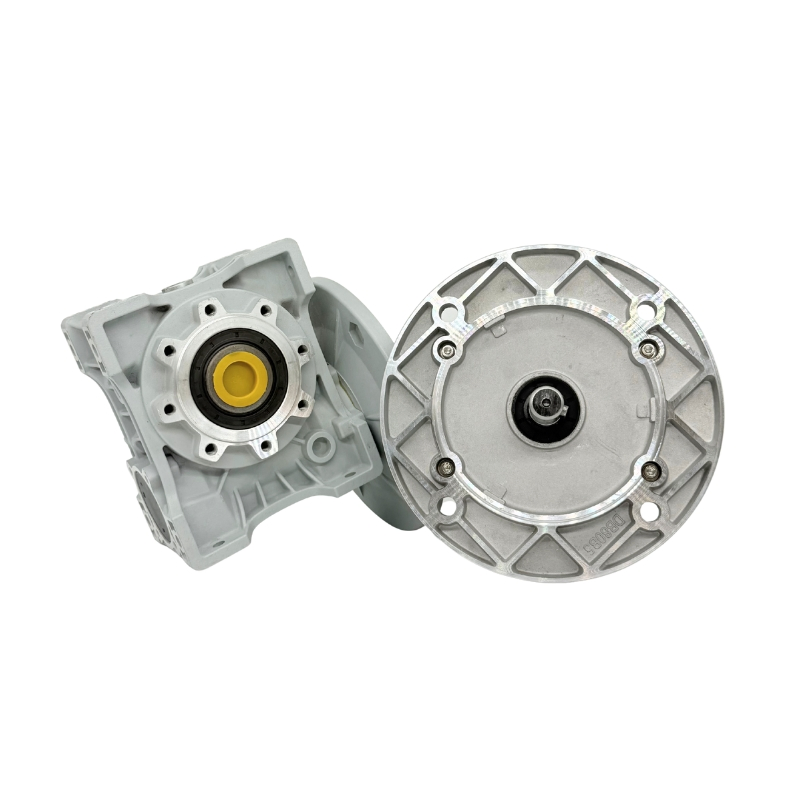

Single Step Worm Gear Reducer: Made of aluminium alloy diecasting box with light and beauty appearance. Compact in structure, rust-proofing on surface and small volume to save mounting space. Good radiating characteristic leads to safe and high efficiency for using. The strong capacity of loading and overload ensure stable transmission, making less vibration and noise.
Varies of connecting structure for power input and torque output meet different requirements. The design of box outline and the set of foot hole is adapt to many kind of installation method. The small and middle box are full enclose structure, High sealing performance, making the lubricants of gear box not easy getting lost or going bad. Free maintenance.
Double Step Worm Gear Reducer: It is combined by two single step reducers and has all the virtues of them. You can get a better ratio with it. Usually the combination models are 25/30, 25/40, 30/40, 30/50, 30/63, 40/75, 40/90, 50/110, 63/130, 63/150.

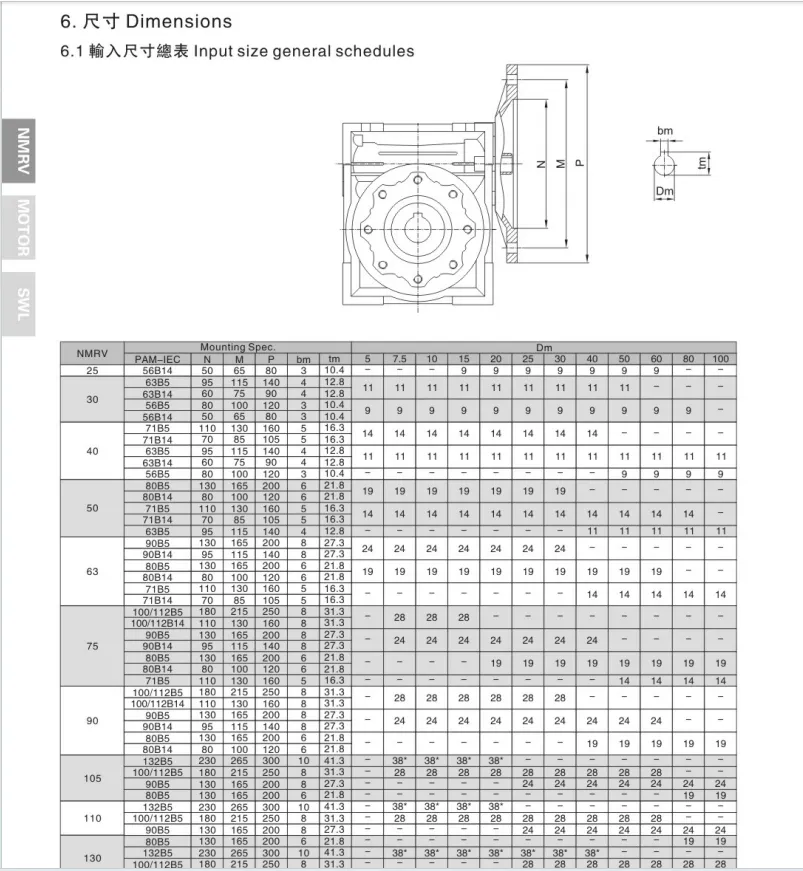

| Designation | ||||||
| NMRV | vs | 040 | 20 | -140 | /11 | + FA |
| Input code | Output code | Size | Reduction ratio | Input flange | Shaft diameter | Output flange |
| NMRV / NRV | VS / AB / AS | 025 - 150 | 5 - 100 | 80 - 350 | 9 - 42 | FA - FE |
MATERIAL HANDLING & CONVEYOR SYSTEMS: Drive belt conveyors, roller conveyors, and sorting equipment with precise speed control.
PACKAGING MACHINERY: Power filling machines, sealing equipment, labeling systems, and carton erectors.
AUTOMATED MANUFACTURING: Enable robotic arms, assembly line automation, CNC tool changers, and positioning systems.
GENERAL INDUSTRIAL: Reliable power source for pumps, compressors, agitators, and torque multiplication equipment.
