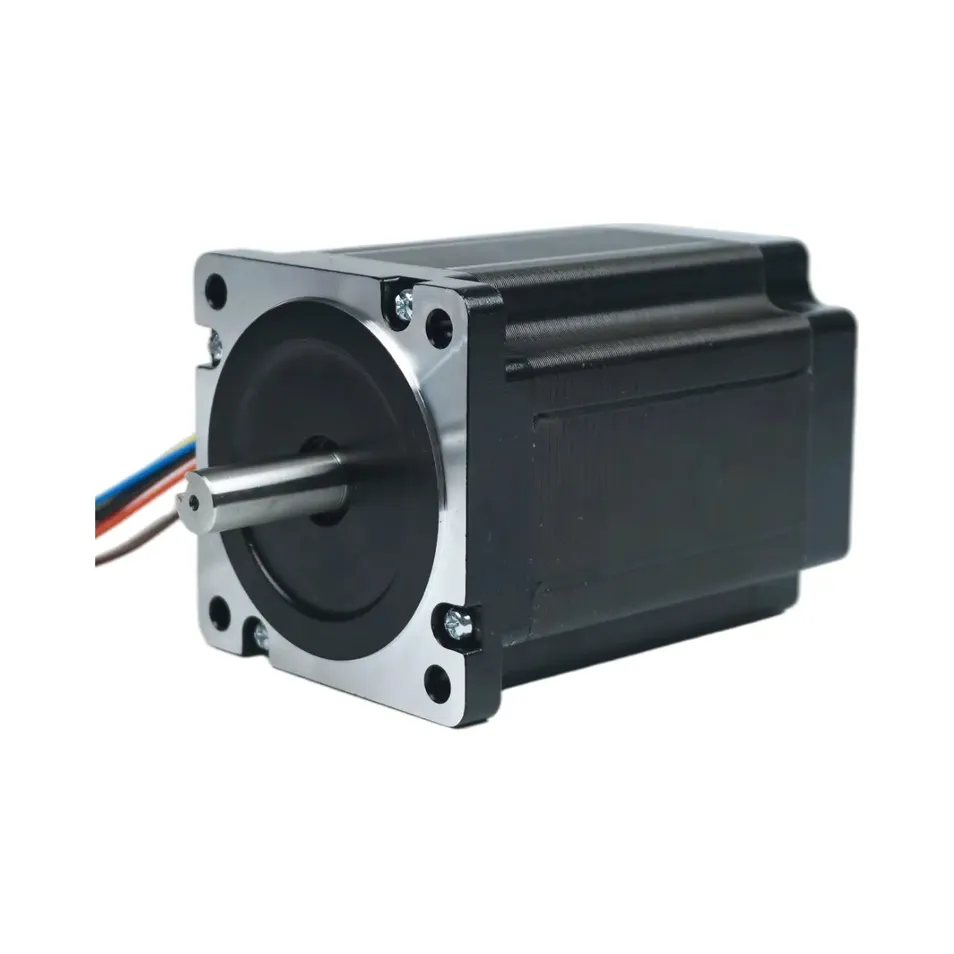

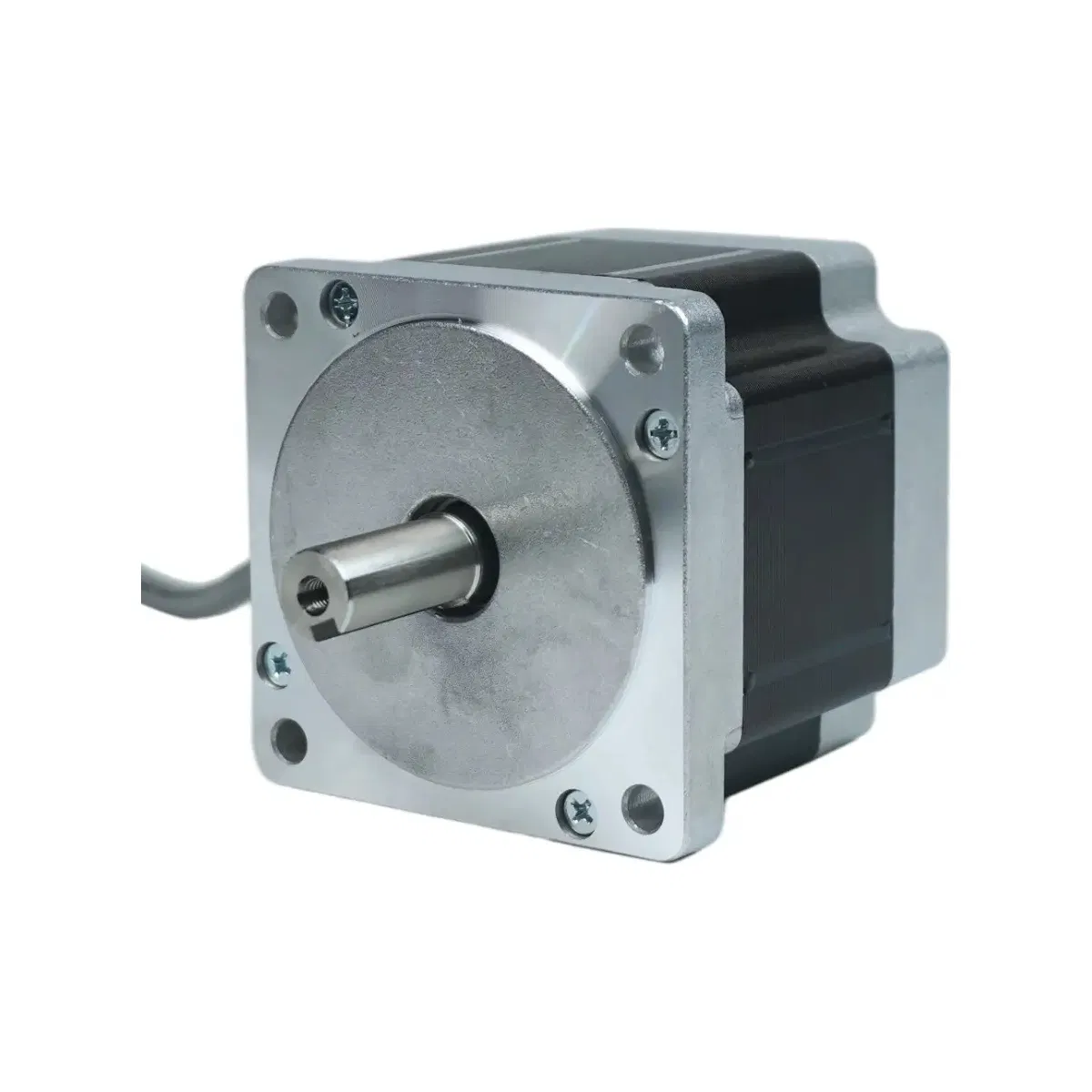

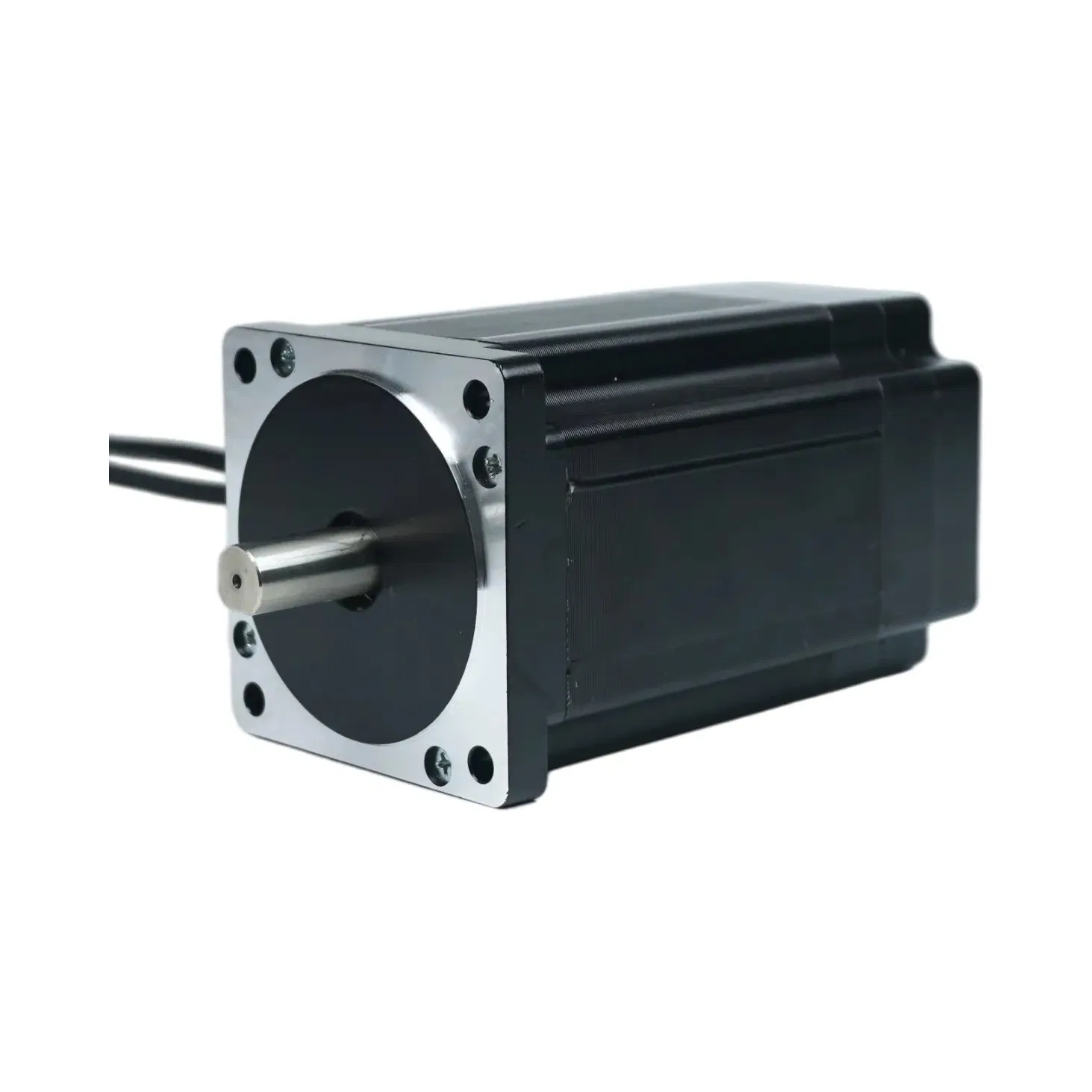

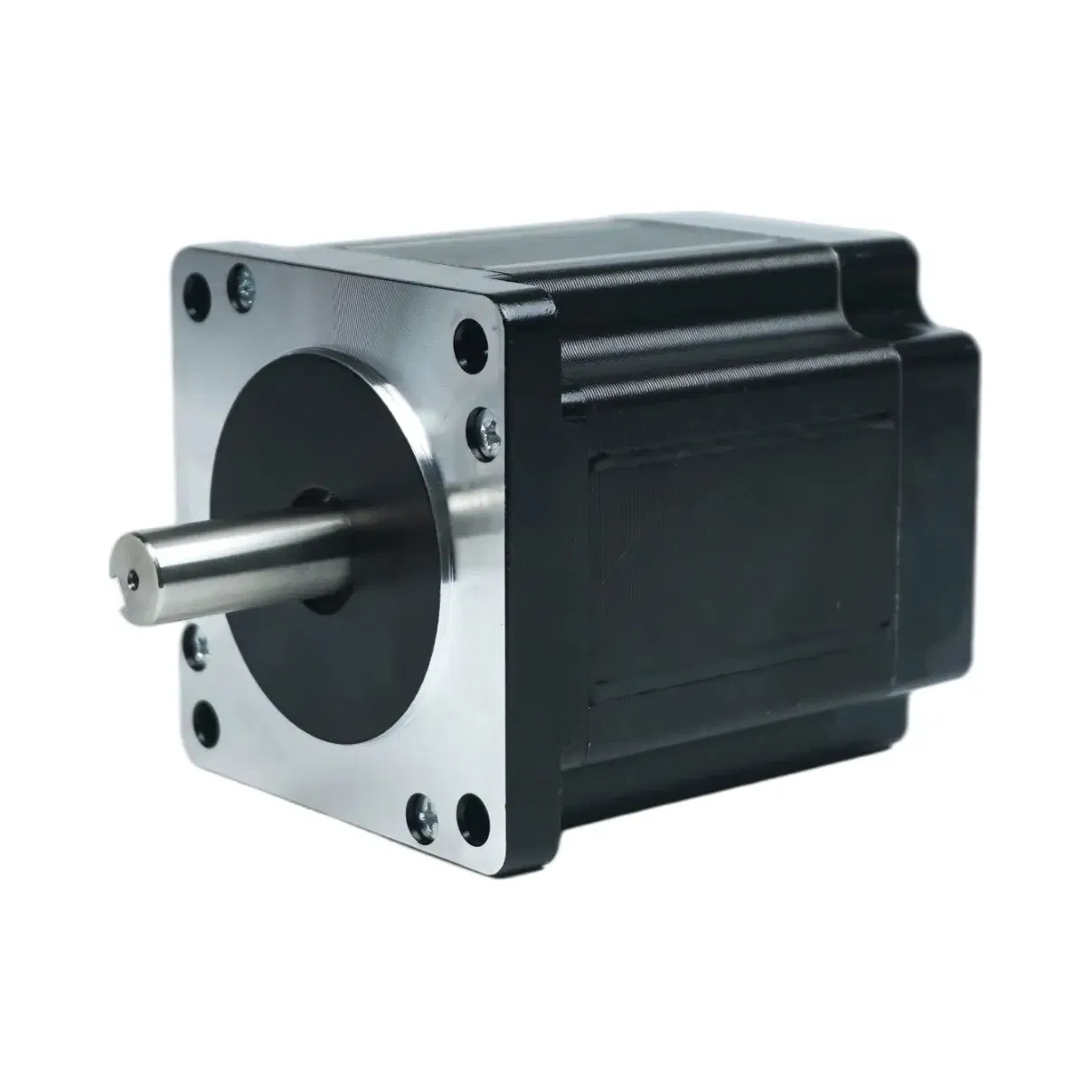

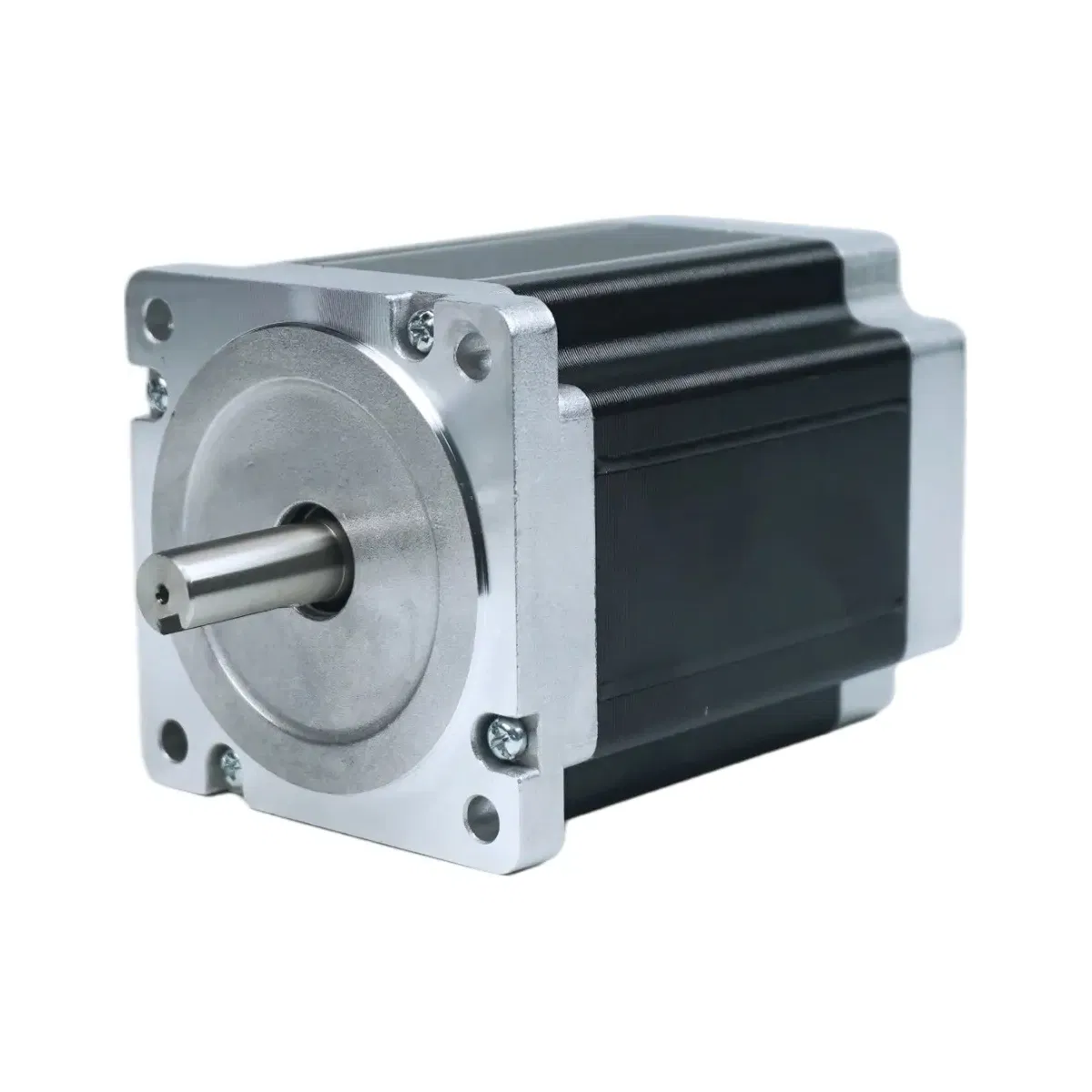

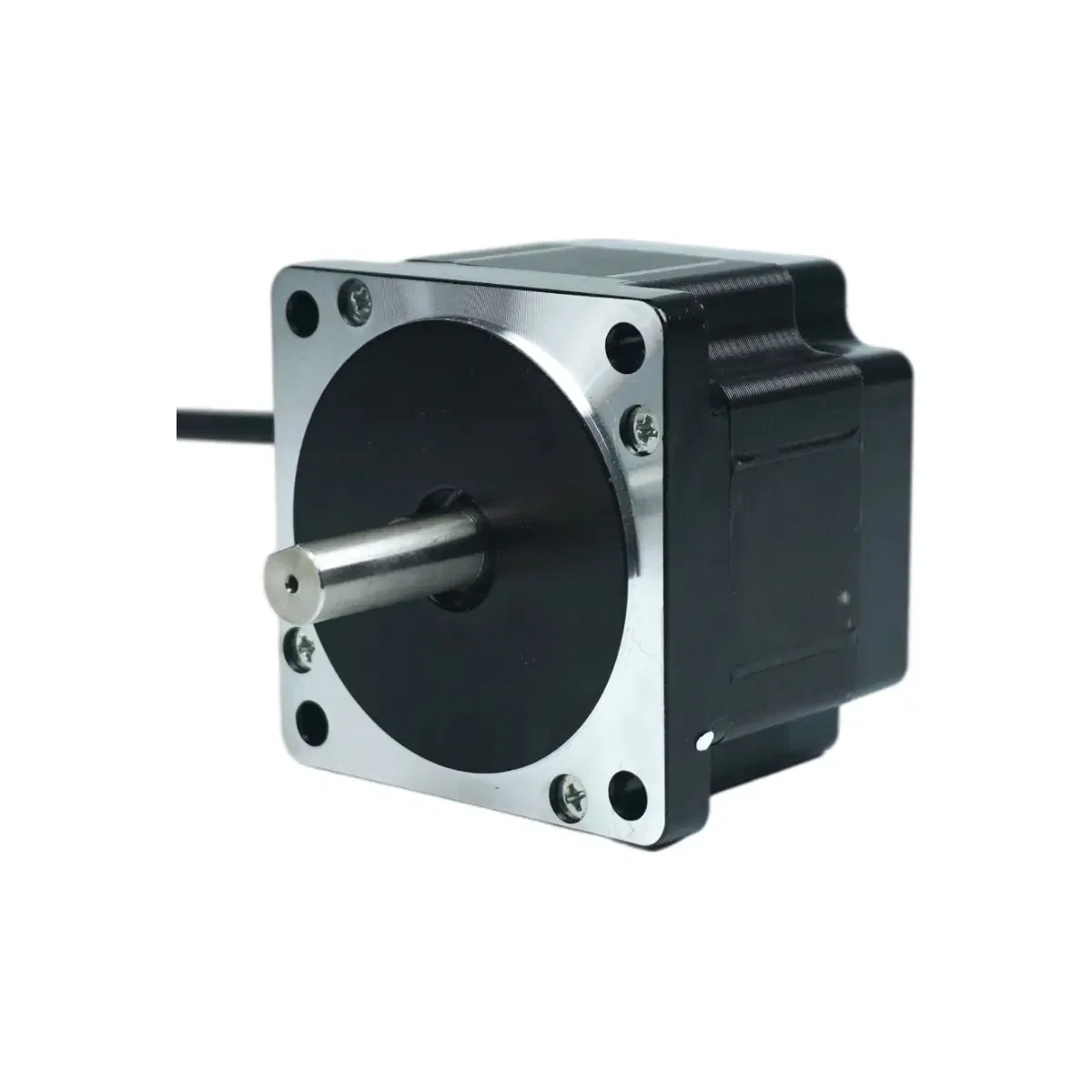

86mm (NEMA 34) Brushless DC Motor 750W 48V

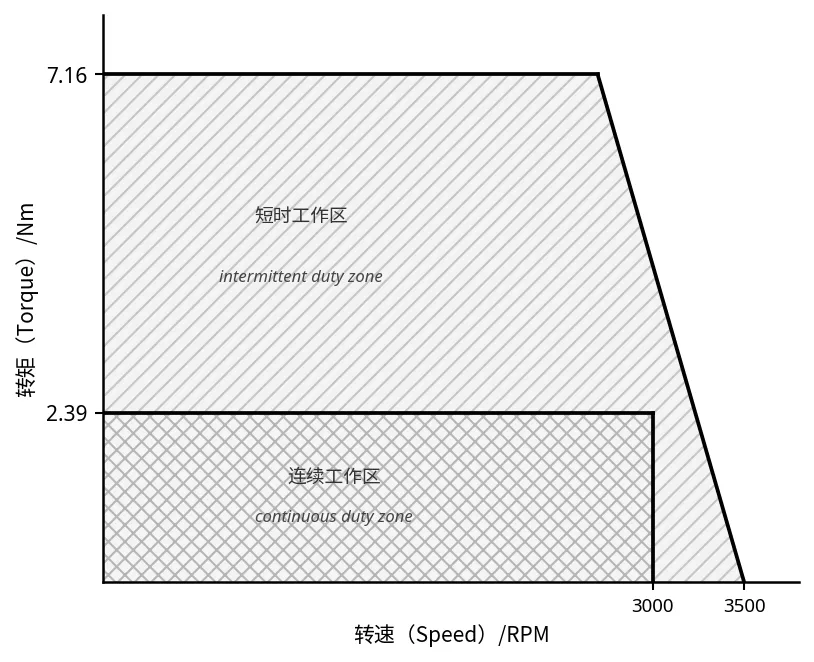

The CW86BL-750W-48V-CV is a robust 86mm brushless DC motor delivering 750W at 48V DC, designed for medium-to-heavy industrial conveyor lines, packaging automation, and textile machinery. With a rated torque of 2.39 N·m and peak torque of 7.16 N·m, it provides the power needed for continuous high-throughput production.
| PARAMETER | VALUE |
|---|---|
| Rated Voltage | 48V DC (24V / 36V / 72V customizable) |
| Rated Power | 750 W |
| Rated Speed | 3,000 RPM |
| Rated Torque | 2.39 N·m |
| Peak Torque | 7.16 N·m |
| Rated Current | 19.5 A |
| No-load Speed | 3,300 RPM |
| Efficiency | ≥ 85% |

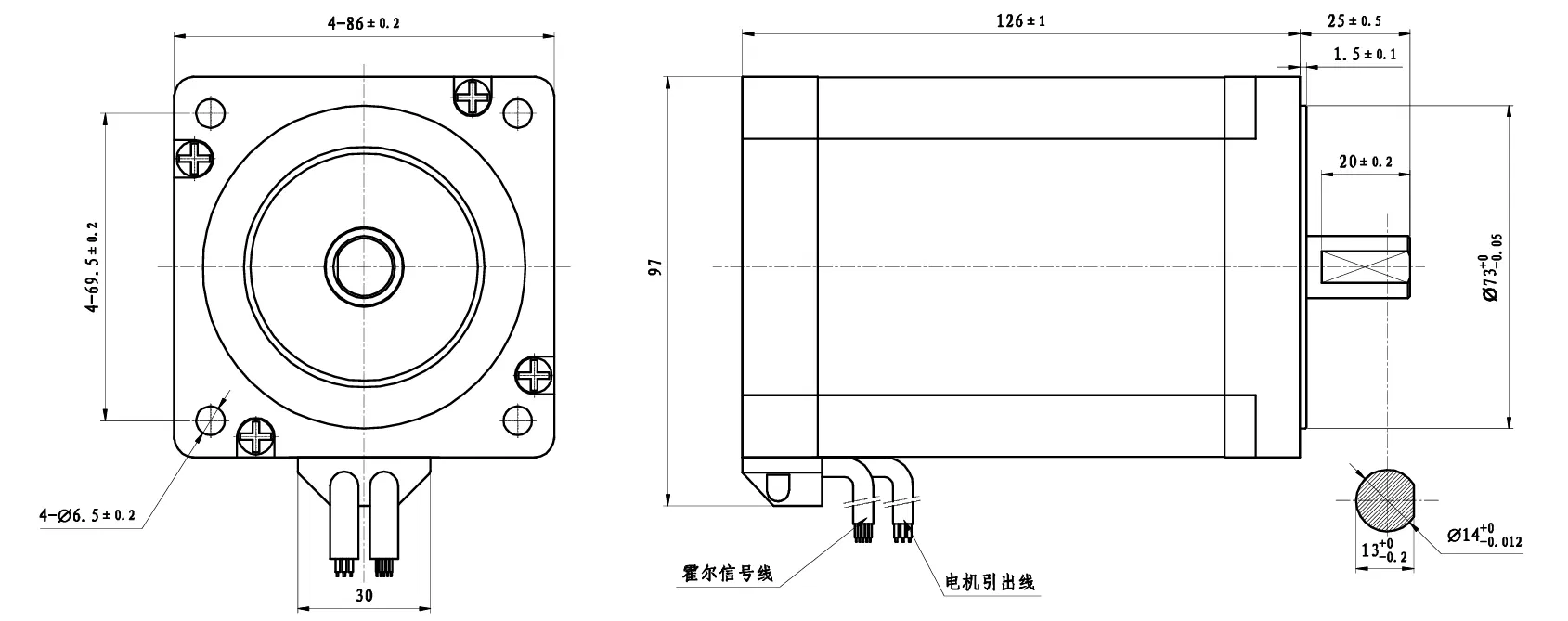

| Flange Size | 86 × 86 mm |
| Shaft Diameter | 14 mm (customizable) |
| Motor Length | 125 mm (customizable) |
| Weight | Approx. 2.8 kg |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP54 |
| Feedback | Hall Sensor (encoder optional) |
| Operating Temp. | -20°C ~ +50°C |
With over 30 years of production experience in the industrial motor field, we serve 1800+ industrial clients worldwide. Our core strength is OEM customization: we work directly with equipment manufacturers and automation engineers to design motors that match exact application requirements.

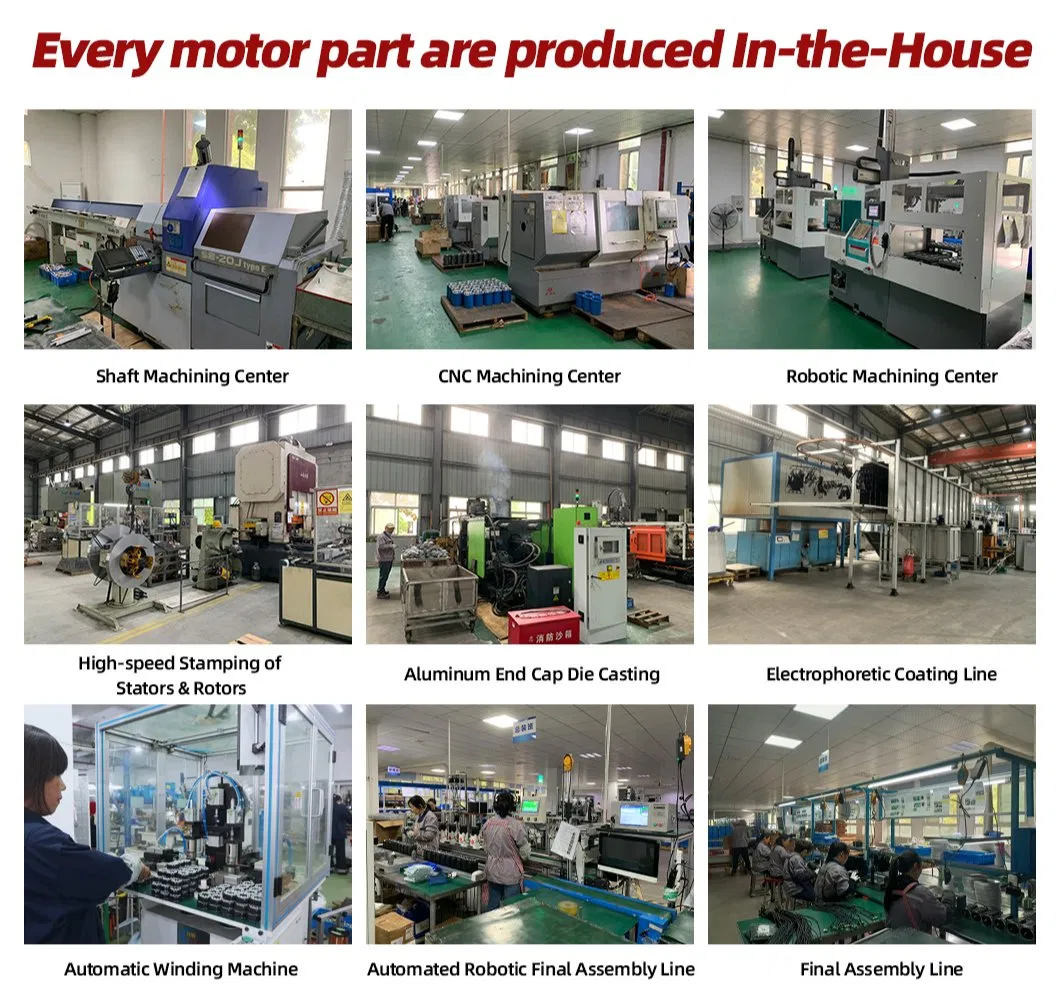

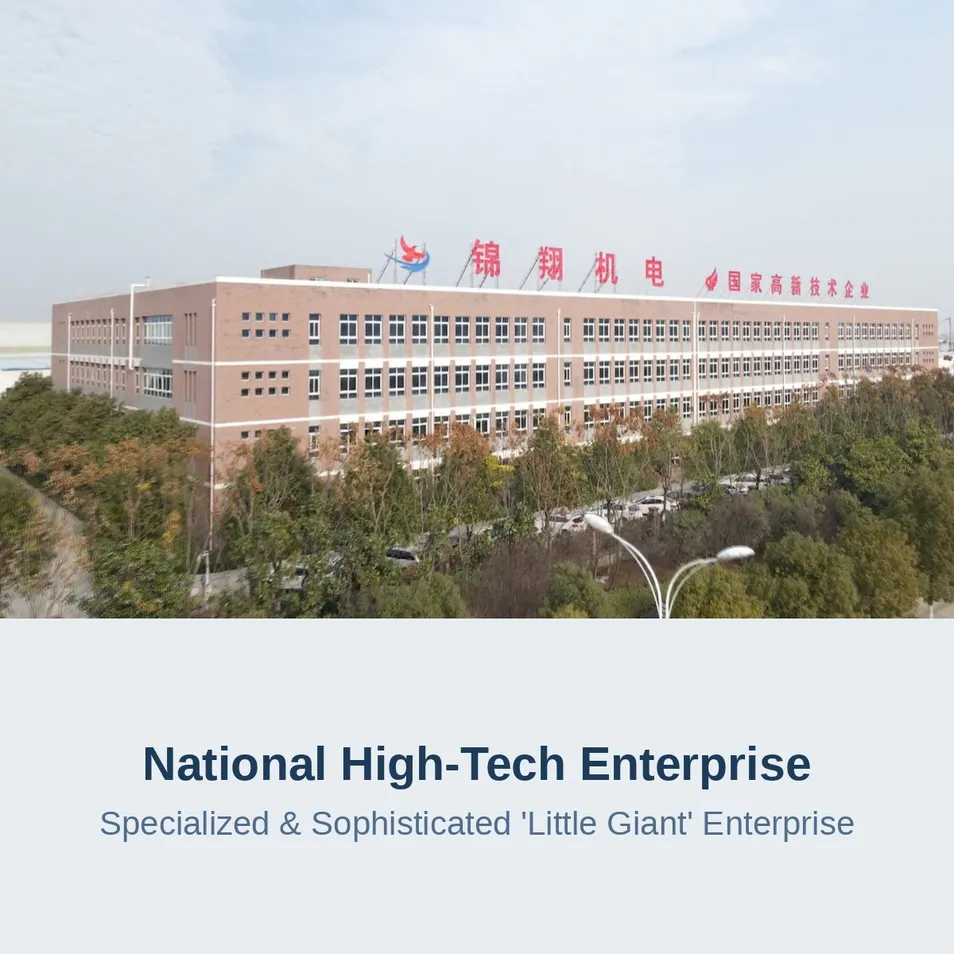

Since all motor components are manufactured in our own facility, we have the capability to carry out comprehensive development based on customer needs. We are equipped to support both single-unit prototypes and high-volume production runs.
