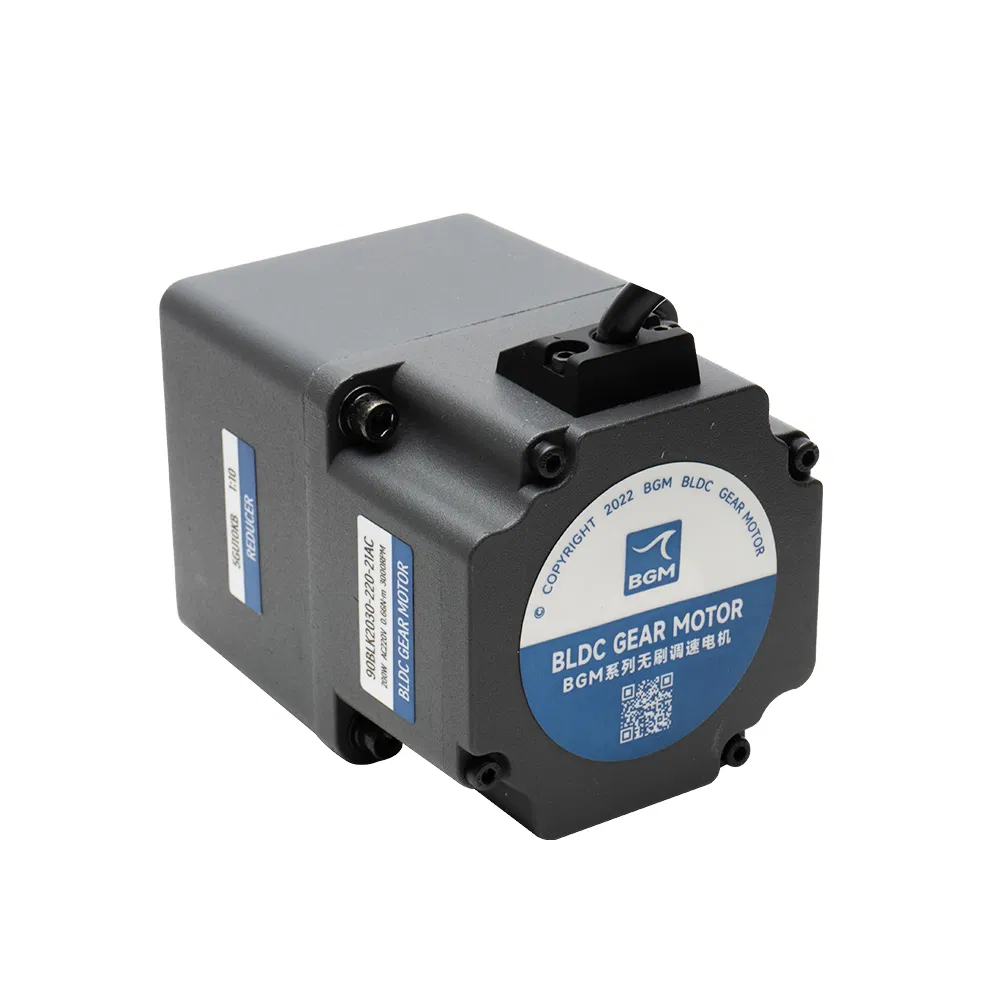

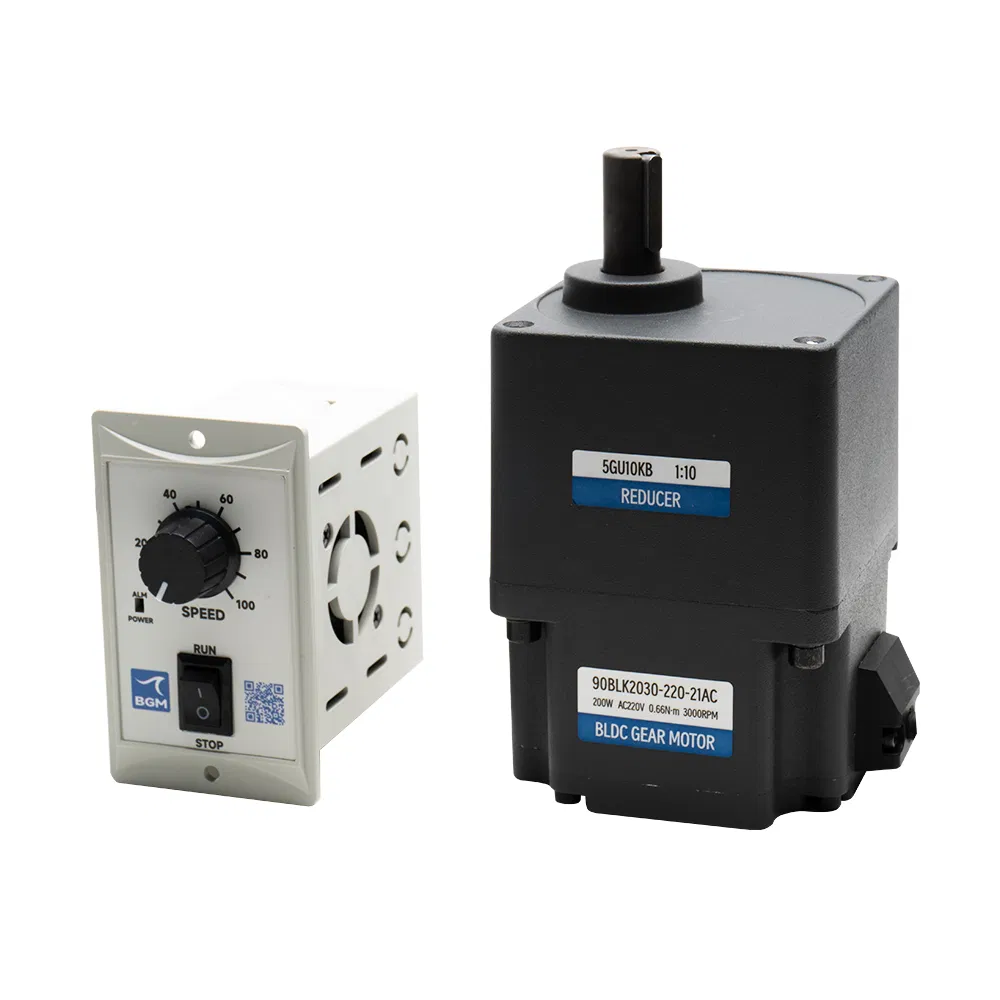

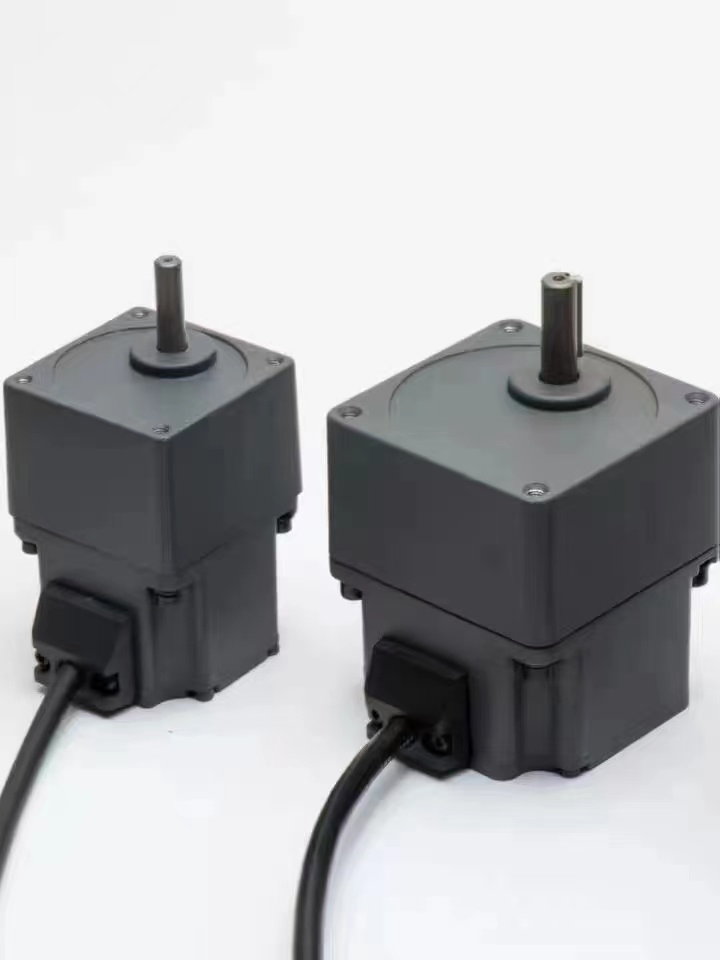

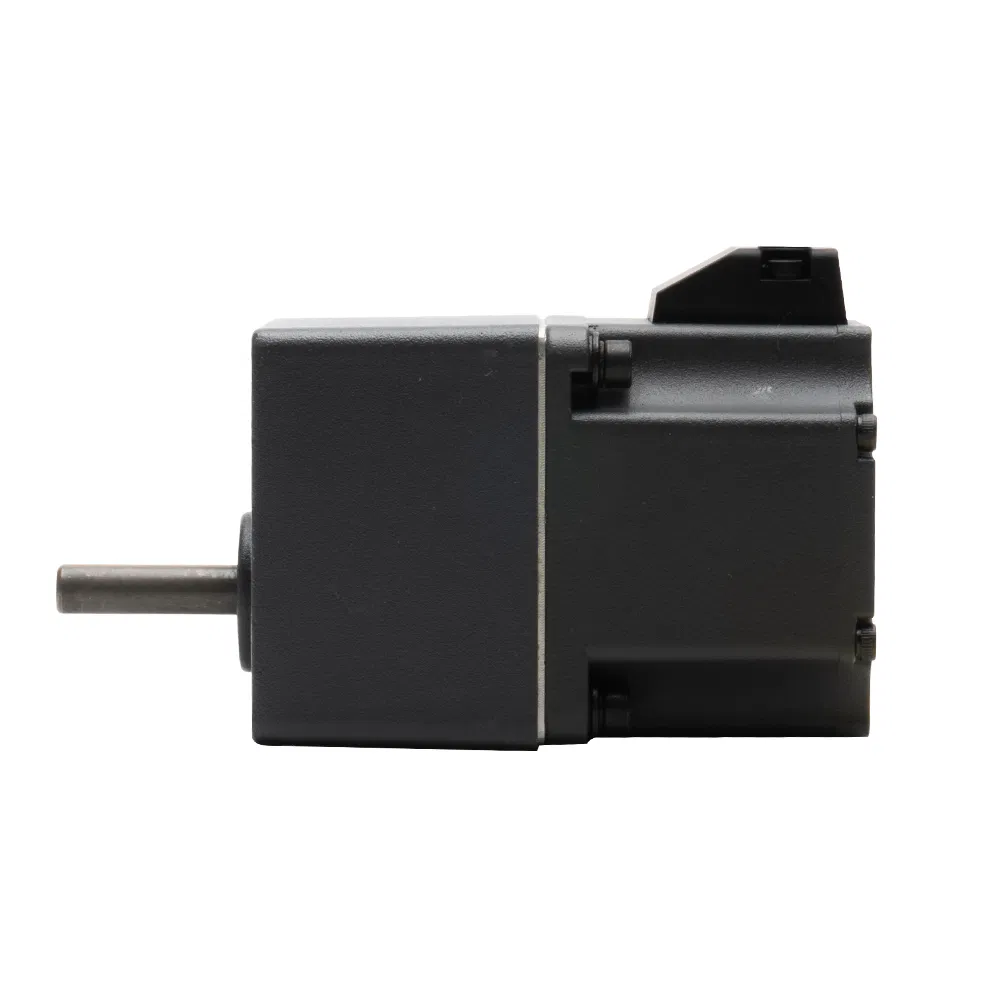

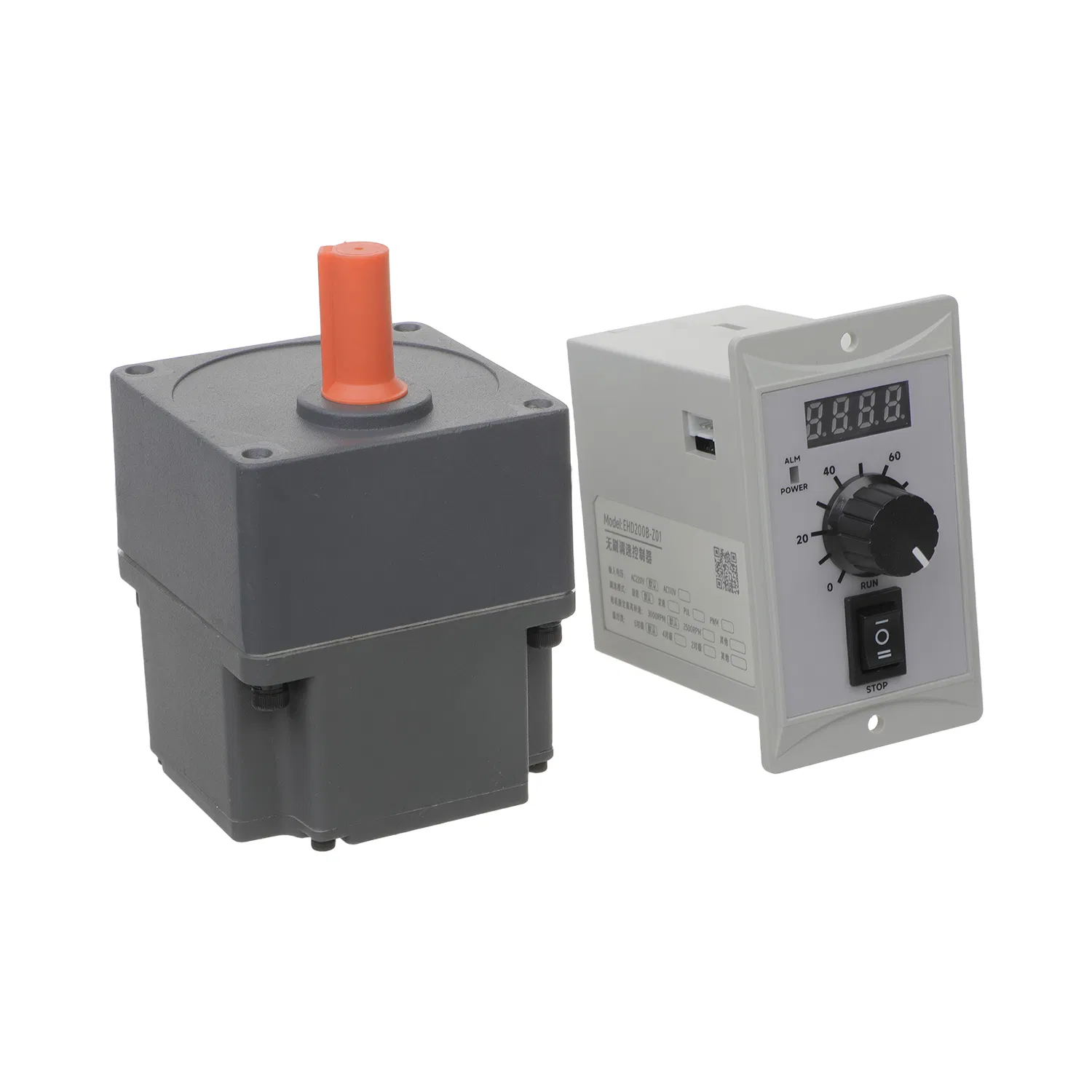

High torque 60mm 80mm 90mm 104mm 24V 48V 110VAC 220VAC 30w-750W bldc geared motor
Brushless DC Gear Motor combine high performance DC brushless motors and motor drivers to offer excellent energy savings, high torque and speed stability as well as a wide speed control range. With brushless DC motors you can downsize your application as the motors have slim bodies and provide high power due to permanent magnets being used in the rotor.
High Torque at Low Speed
Space Saving Design
Energy Saving Efficiency
DC brushless motors maintain steady high torque at low speeds compared to AC motors. The slim body design provides high power output due to permanent magnets, reducing secondary rotor loss and decreasing power consumption by up to 35% compared to frequency conversion control induction motors.
| Motor Model | Rated Voltage (V) | Power (W) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (Nm) | Max Gear Ratio | Weight (Kg) | Matched Driver |
|---|---|---|---|---|---|---|---|---|
| 2GNXK-60BLK0330-24-21AC | DC 24V | 30 | 1.3 | 3000 | 0.1 | 40 | 0.5 | ELD120A/BLR60A |
| 2GNXK-60BLK0630-24-21AC | DC 24V | 60 | 2.5 | 3000 | 0.2 | 20 | 0.5 | ELD120A/BLR60A |
| 2GNXK-60BLK0330-220-21AC | AC 220 | 30 | 0.1 | 3000 | 0.1 | 40 | 0.5 | EH200A/EHD200B |
| 2GNXK-60BLK0630-220-21AC | AC 220 | 60 | 0.2 | 3000 | 0.2 | 20 | 0.5 | EH200A/EHD200B |
| Motor Model | Rated Voltage (V) | Power (W) | Rated Current (A) | Rated Speed (RPM) | Rated Torque (Nm) | Max Gear Ratio | Weight (Kg) | Matched Driver |
|---|---|---|---|---|---|---|---|---|
| 4GNXK-80BLK0630-24-21AC | DC 24V | 60 | 2.5 | 3000 | 0.2 | 60 | 0.75 | ELD120A/BLR120A |
| 4GNXK-80BLK0930-24-21AC | DC 24V | 90 | 3.8 | 3000 | 0.3 | 40 | 0.75 | ELD120A/BLR120A |
| 4GNXK-80BLK1230-24-21AC | DC 24V | 120 | 5.0 | 3000 | 0.4 | 25 | 0.75 | ELD120A/BLR120A |
Round Shaft BLDC Motor
Right Angle BLDC Motor

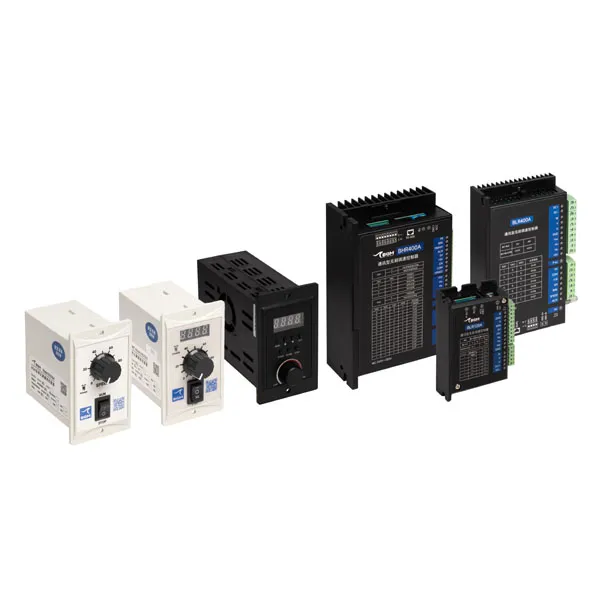

BLDC Motor Driver
Planetary Brushless Motor

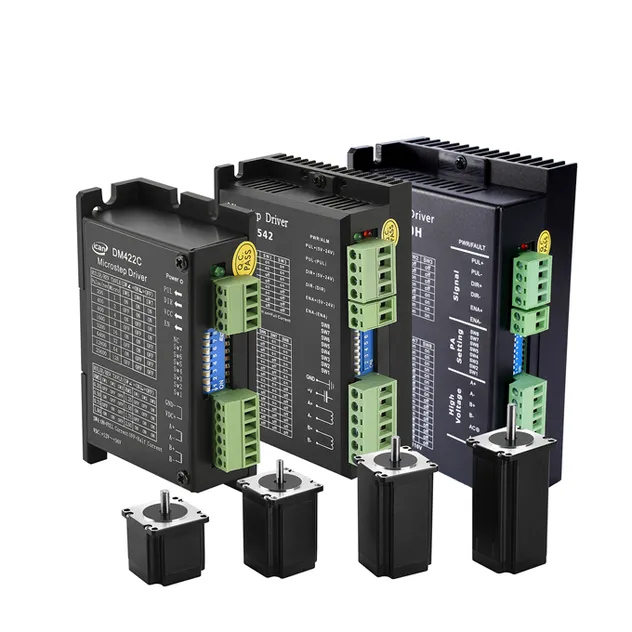

Hybrid Stepper Motor

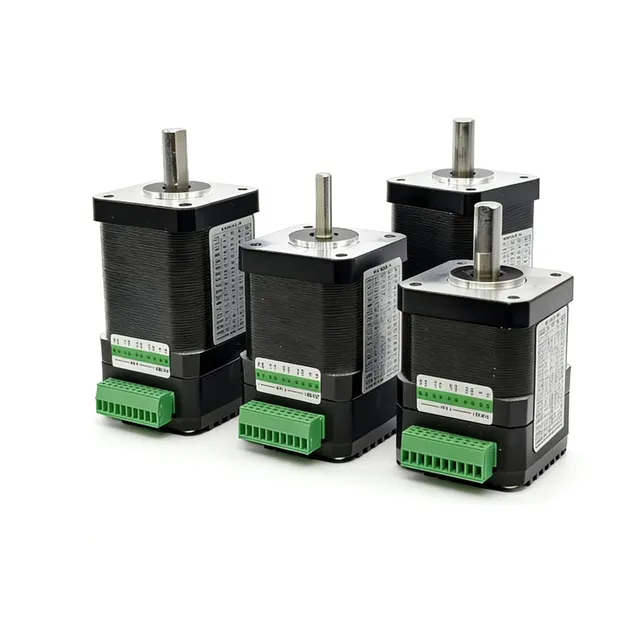

Integrated Stepper Motor
Customization Available: We offer options for voltage, shaft length, power, torque, gearboxes, waterproofing, encoders, brakes, drivers, and more.
Standard Warranty: 18 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
