| Model NO. | 1FL6032-2AF21-1MA1 | Number of Stator | 3-Phase AC |
| Casing Protection | IP65 Housing with Oil Seal | Number of Poles | 8 |
| Starting Mode | Electronic Start Via Servo Drive | Certification | ISO9001, CE |
| Specification | 100mm × 60mm × 60mm | Origin | Germany |
| Trademark | Siemens | HS Code | 85015100 |

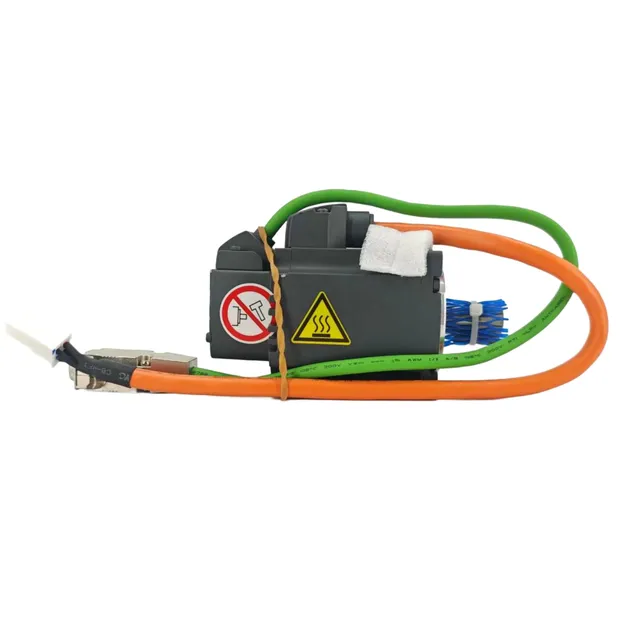

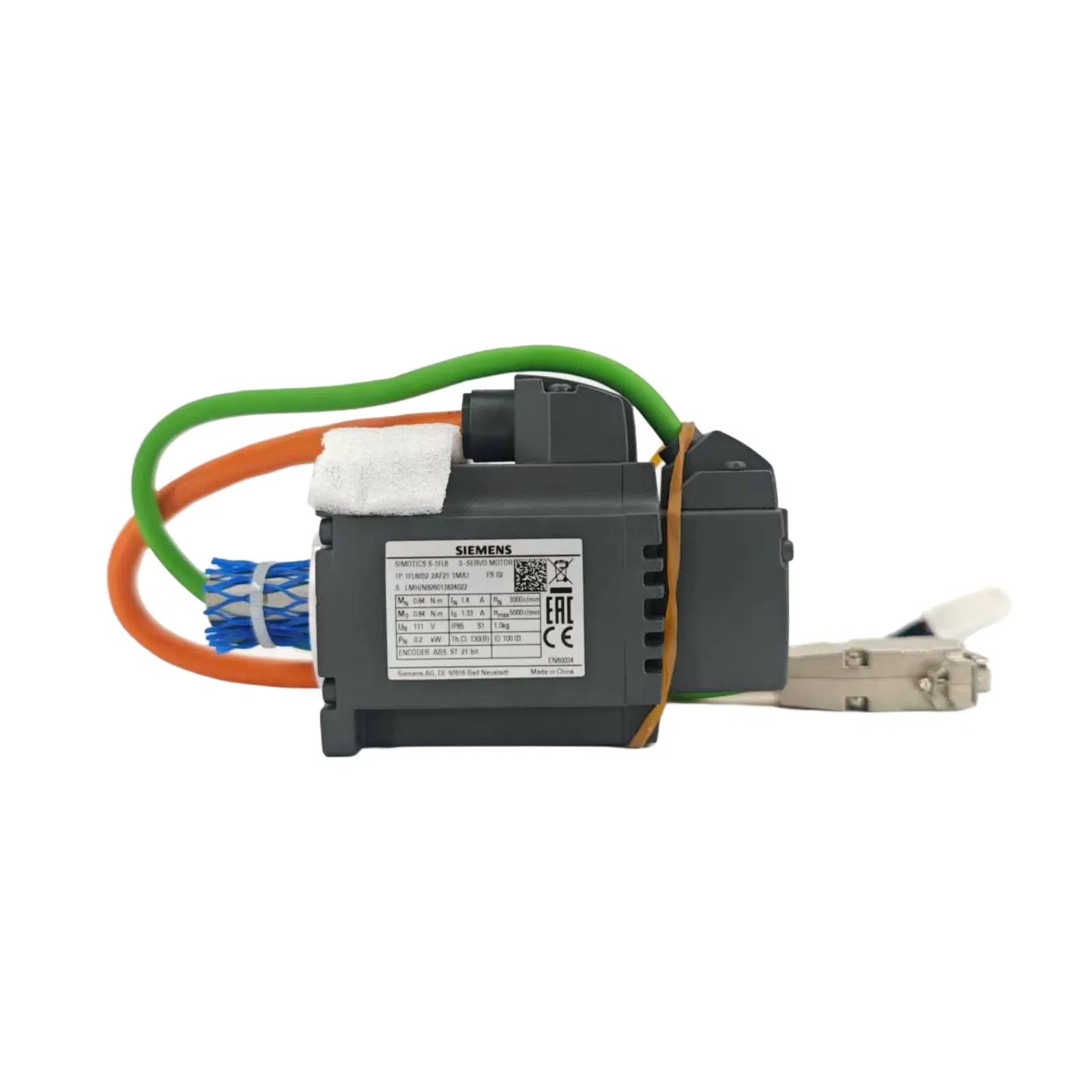

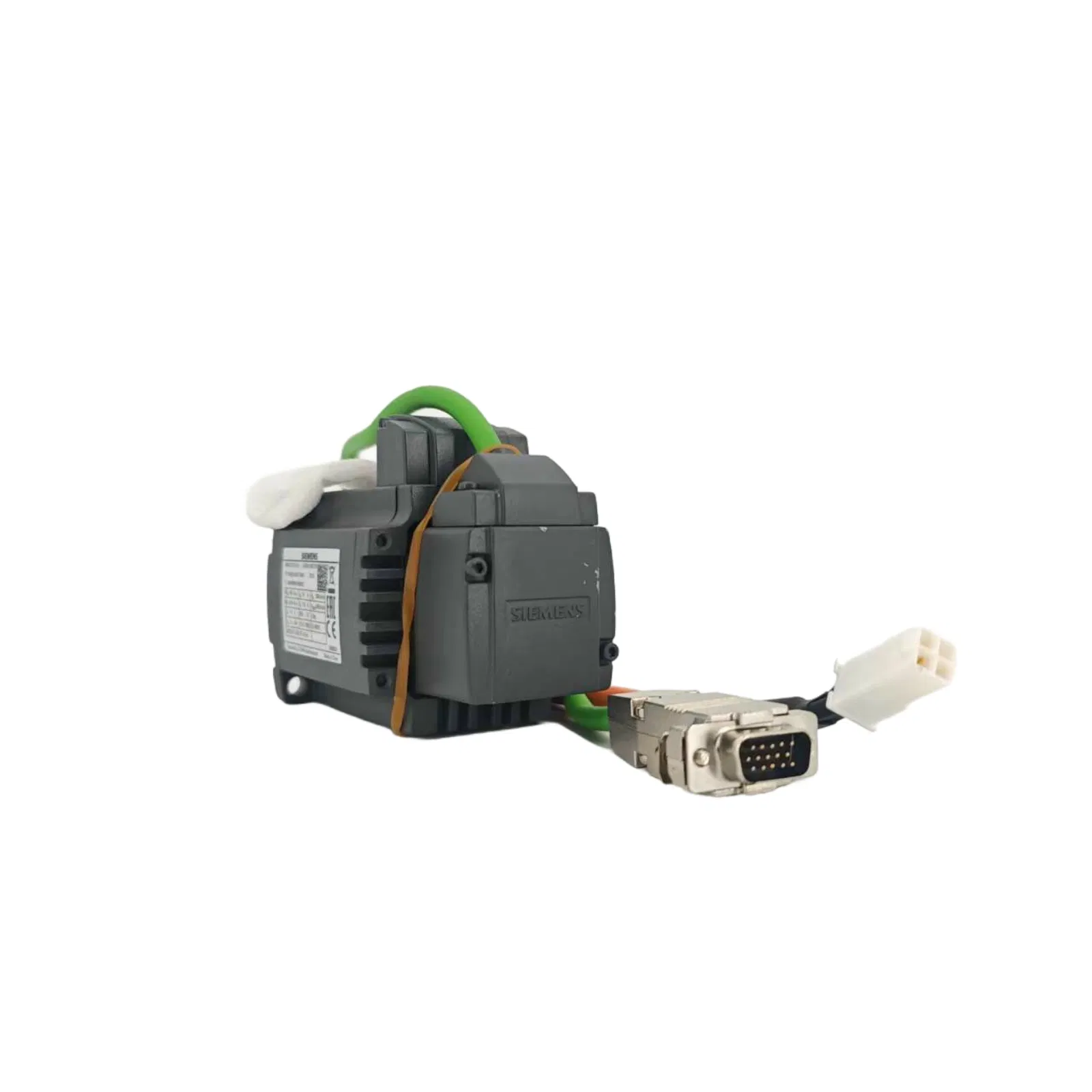

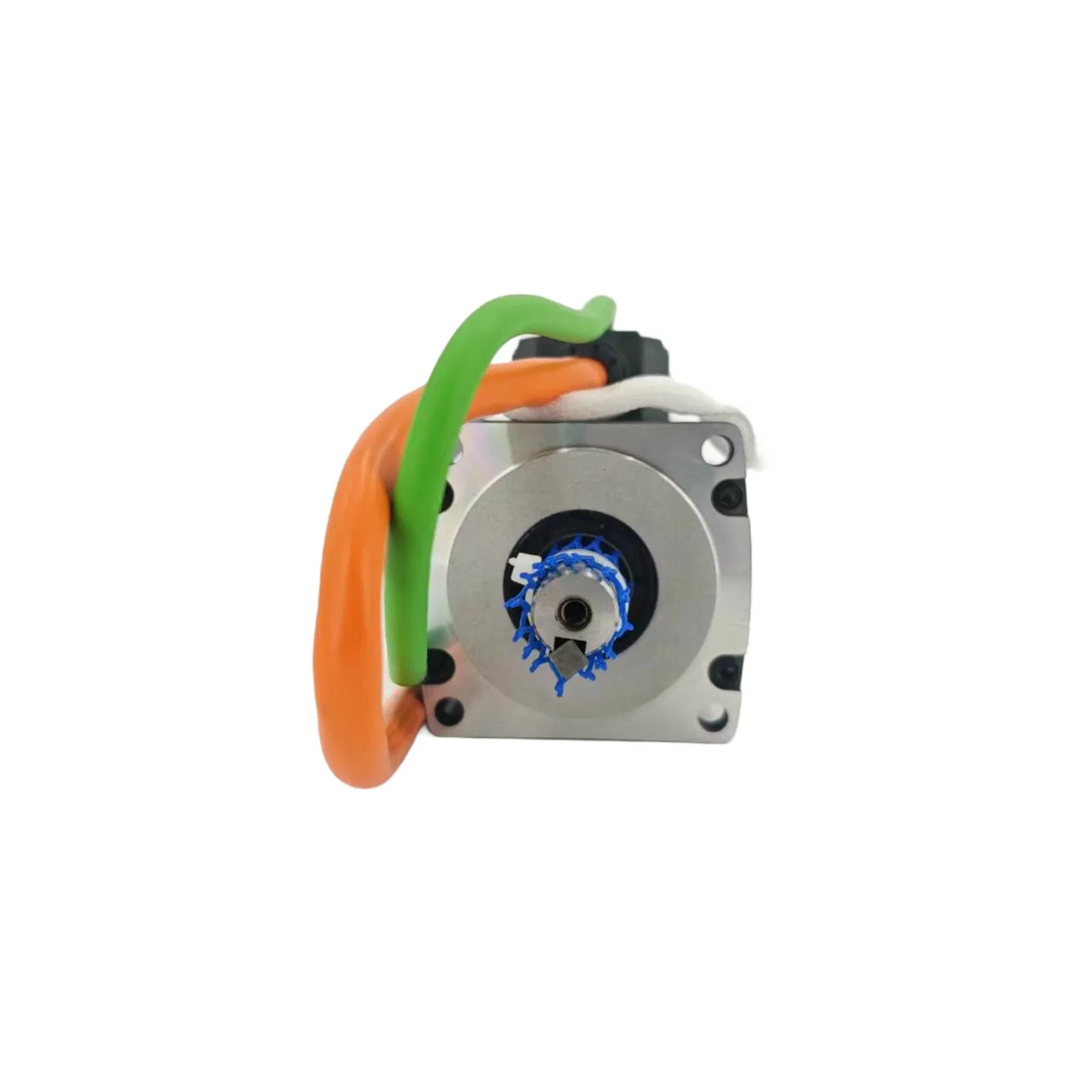

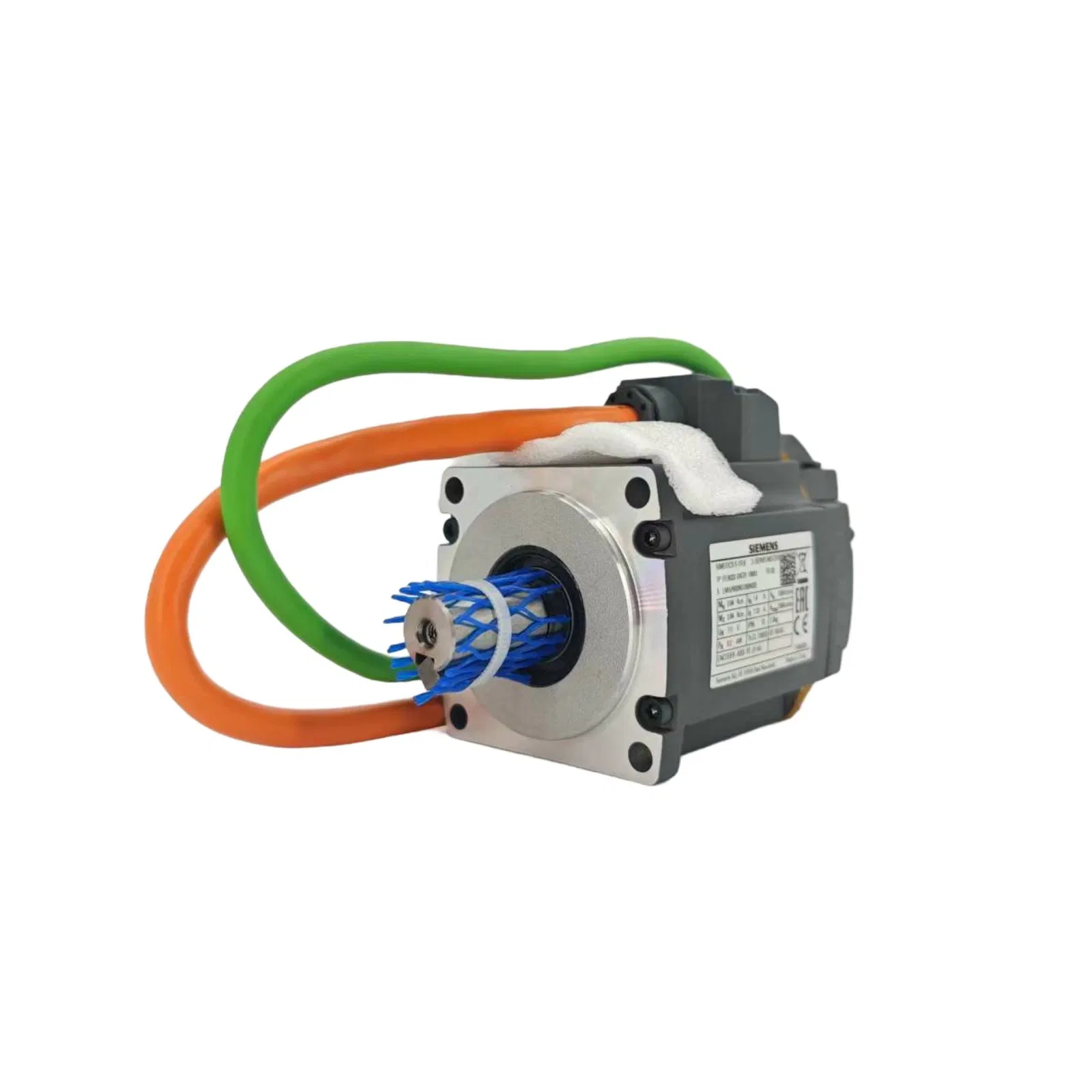

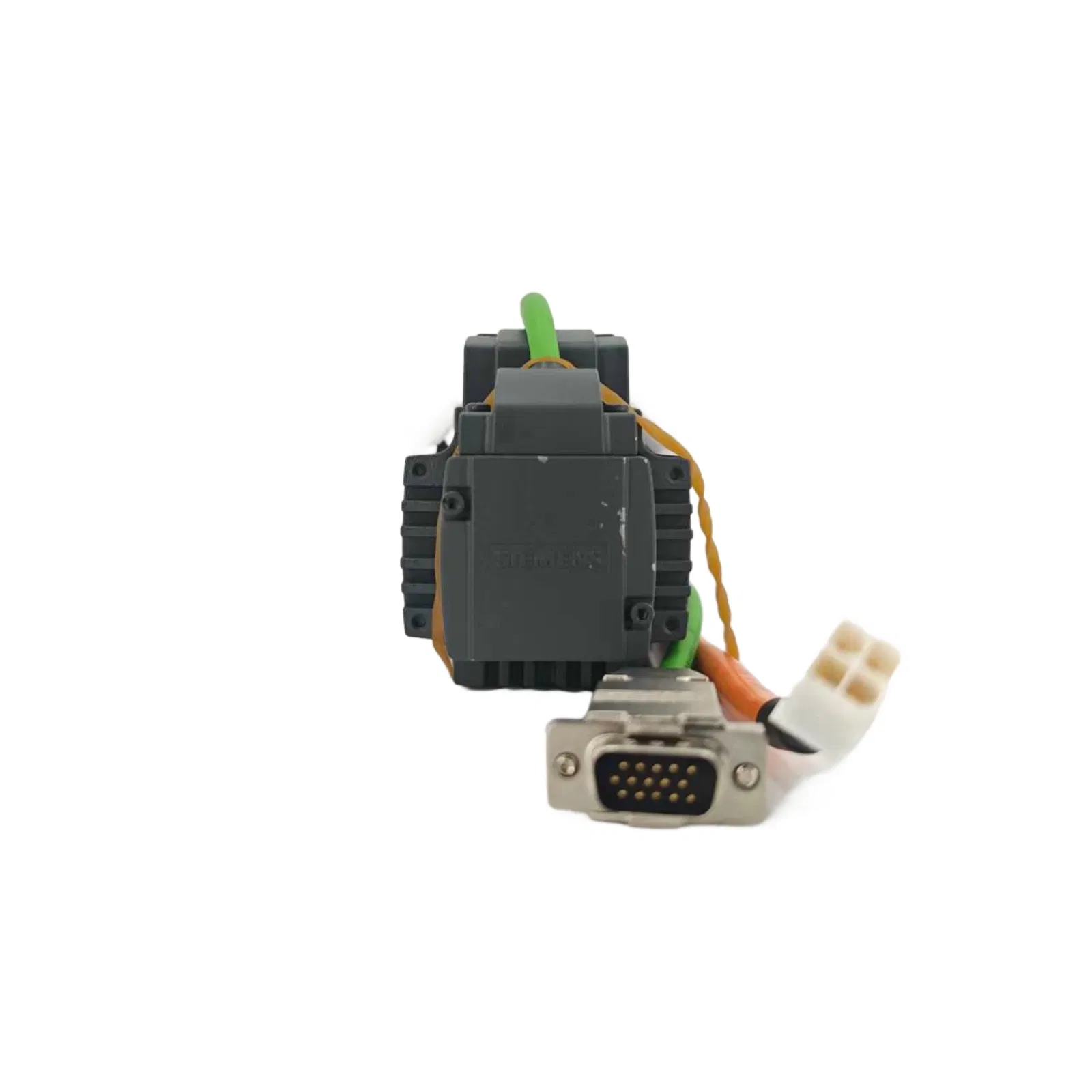

About SIMOTICS S-1FL6 1FL6032-2AF21-1MA1:
The Siemens SIMOTICS S-1FL6 1FL6032-2AF21-1MA1 is a high-performance permanent magnet synchronous servo motor designed for demanding industrial automation. It operates at 230V three-phase AC, with a rated output power of 0.2kW, rated speed of 3000rpm, and rated torque of 0.64Nm, offering reliable motion control with high precision.
The motor integrates a 21-bit single-turn absolute encoder for accurate feedback, ensuring excellent positioning performance in CNC machines, robotics, packaging, and textile equipment. Built with IP65 protection and an oil seal, it withstands harsh environments. Its lightweight 1.02kg body and compact shaft height of 30mm make installation easy in space-restricted systems. Supporting speeds up to 5000rpm and peak torque of 1.91Nm, the motor combines efficiency with durability.
CNC machines, industrial robots, packaging machinery, textile equipment, automation lines
Rated Torque: 0.64 Nm
Maximum Torque: 1.91 Nm
Rated Power: 0.2 kW (200 W)
Rated Voltage: 230 V AC (3-phase)
Maximum Speed: 5000 rpm
Rated Current: 1.4 A
Moment of Inertia: 0.214 kg·cm²

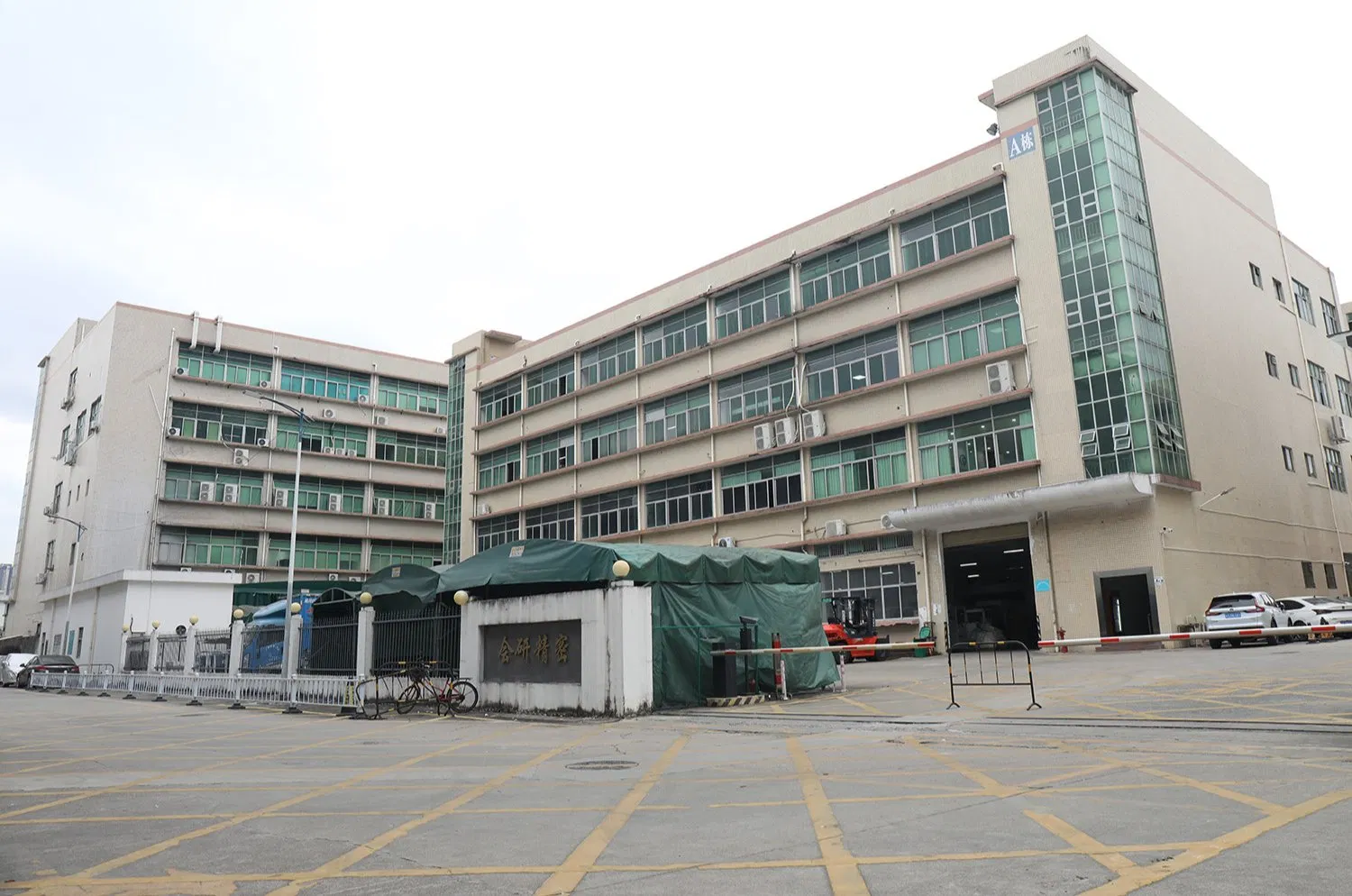

With an international vision, our facilities focus on providing full-chain industrial production solution services for manufacturing equipment. From equipment matching to precise visual systems and industrial data services, we maintain professional teams with rich industry experience and close cooperative relationships with global leaders in automation.
