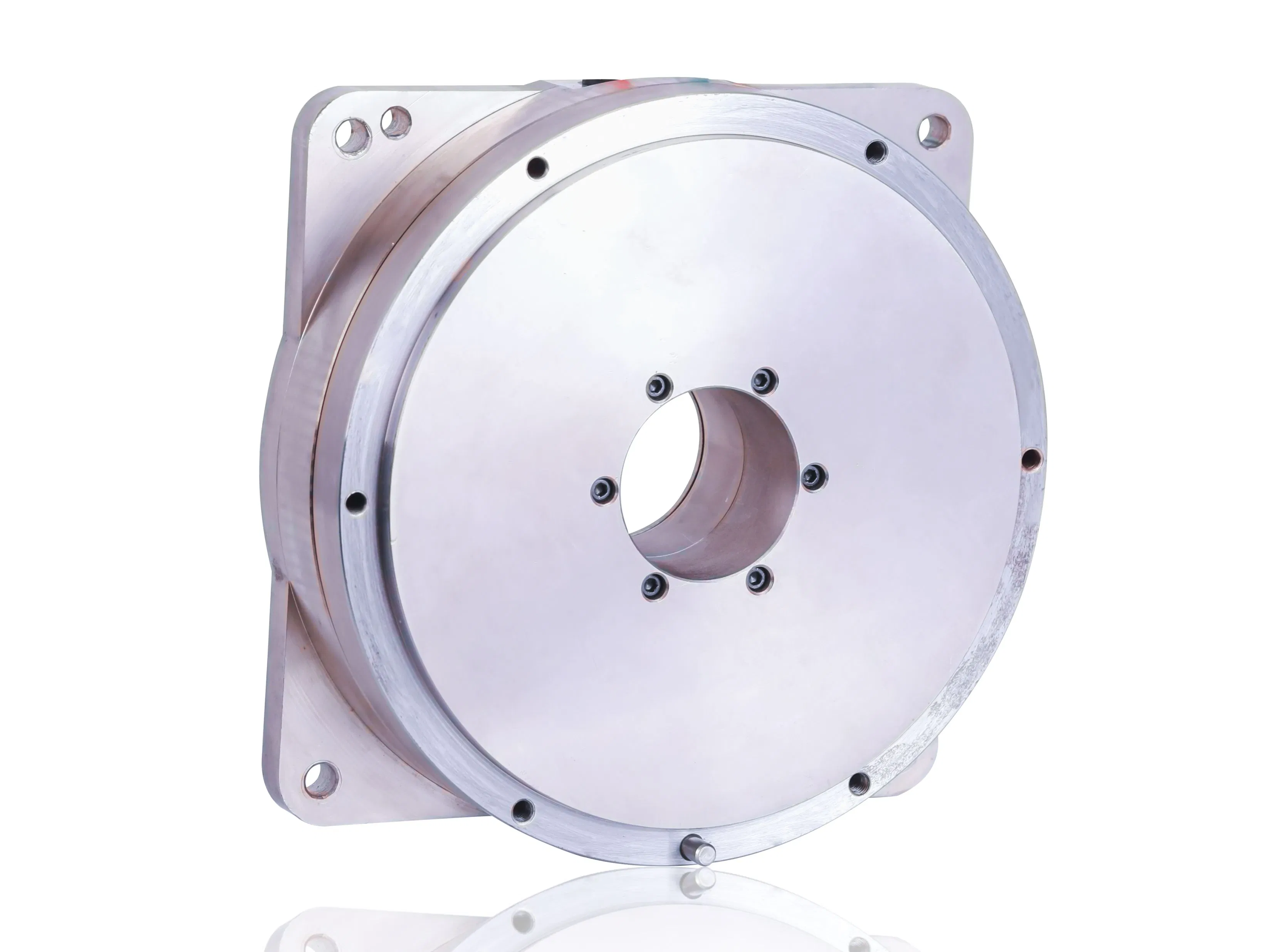

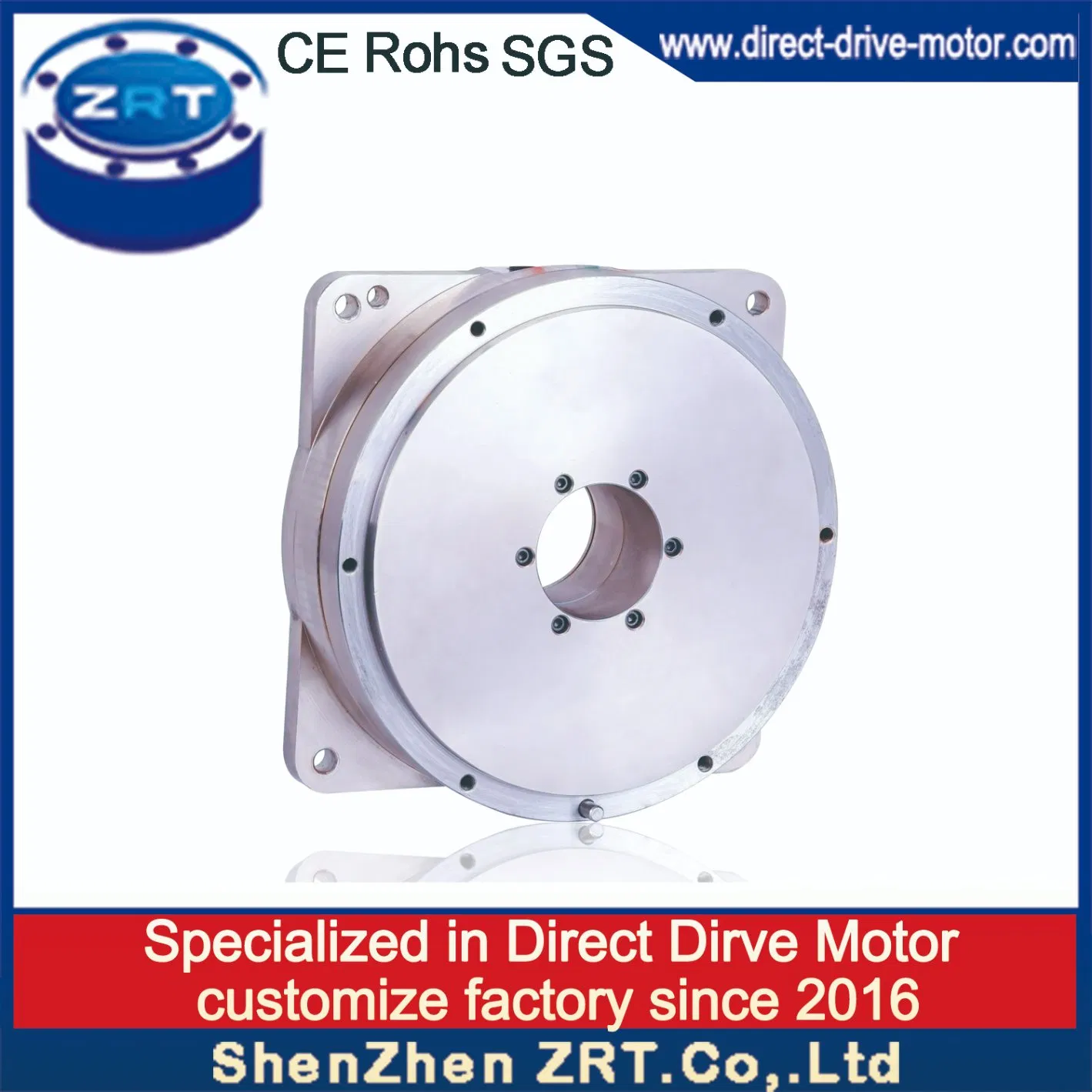

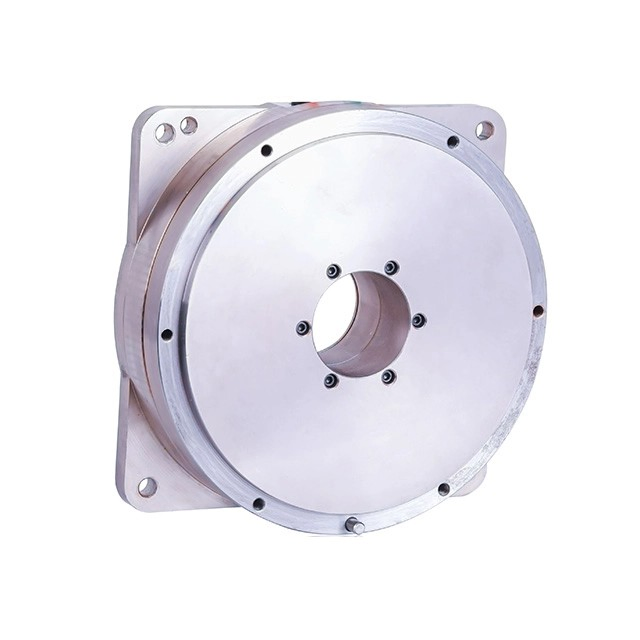

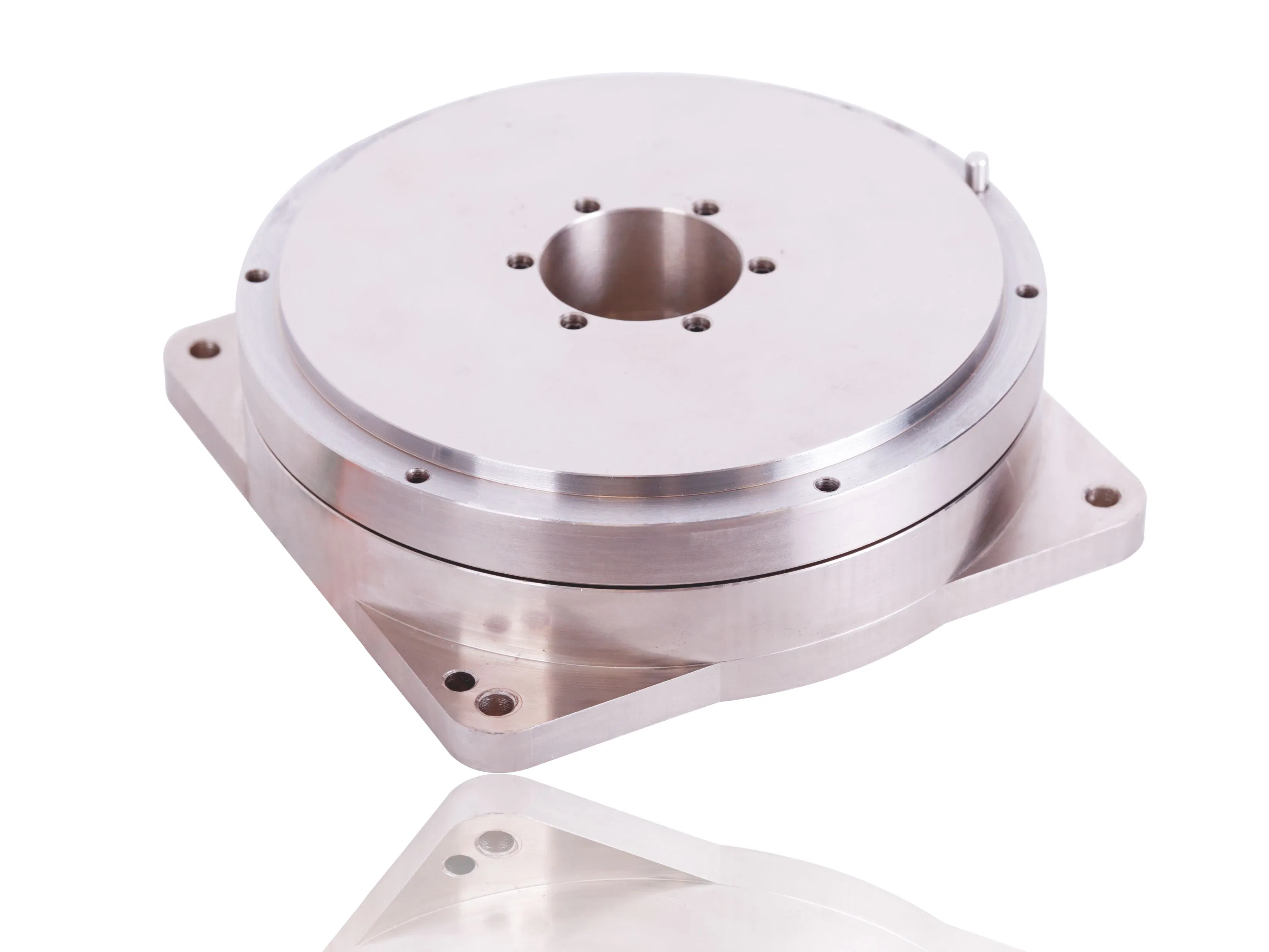

The torque motor is a versatile product used in a wide range of industries, from semiconductor manufacturing to automotive assembly. It is crucial in processes such as precision CNC machine tools, LCD production, and medical device manufacturing.
This motor is designed to provide accurate and reliable torque control, offering exceptional performance and efficiency. Its consistent torque output is perfect for applications requiring high levels of precision and repeatability. With its strong build and advanced technology, the torque motor ensures smooth operation and durability.

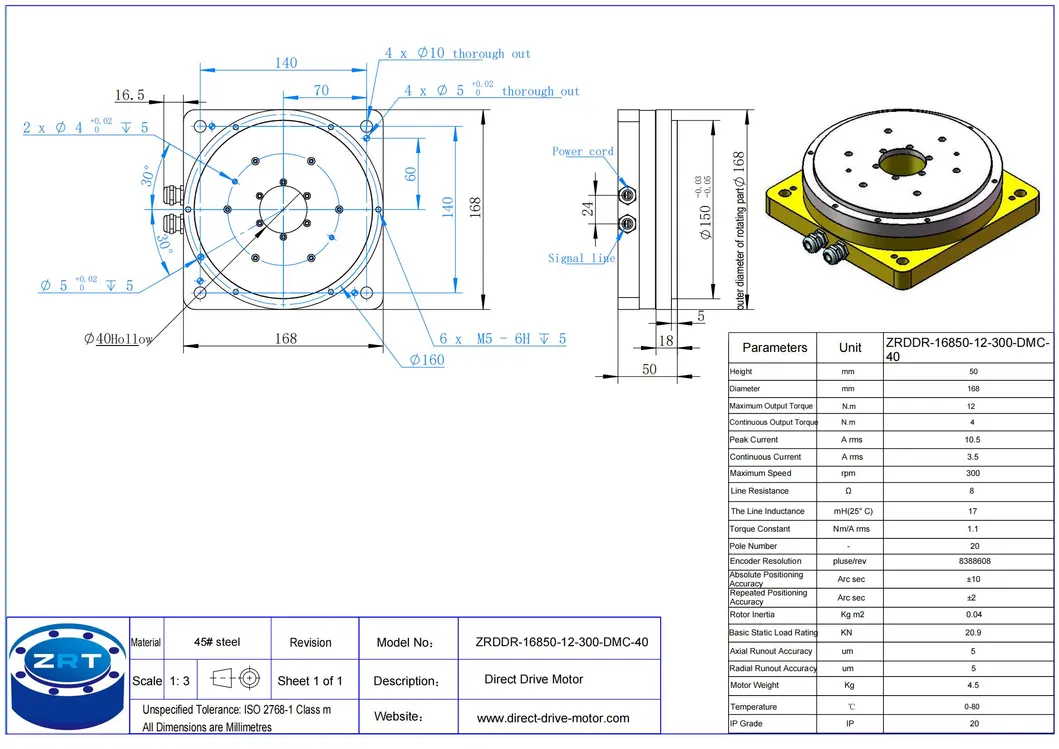

| Parameters | Unit | ZRDDR-16850-12-300-YD-40 |
|---|---|---|
| Height | mm | 50 |
| Diameter | mm | 168 |
| Maximum output torque | N.m | 12 |
| Continuous output torque | N.m | 4 |
| Peak current | A rms | 10.5 |
| Continuous current | A rms | 3.5 |
| Maximum speed | rpm | 300 |
| Line resistance | Ω | 8 |
| Line inductance | mH | 17 |
| Torque constant | Nm/A rms | 1.1 |
| Pole Number | - | 20 |
| Absolute positioning accuracy | Arc sec | ±10 |
| Repeated positioning accuracy | Arc sec | ±2 |
| Rotor inertia | Kg m2 | 0.04 |
| Motor weight | Kg | 4.5 |
| IP Grade | IP | 20 |
Torque motors are commonly utilized in various industries such as semiconductor production, optical media, precision CNC machine tools, automotive assembly and testing, liquid crystal manufacturing, screen plying-up devices, lithium battery manufacturing, high-end printing, and medical equipment for micro precision manufacturing.
