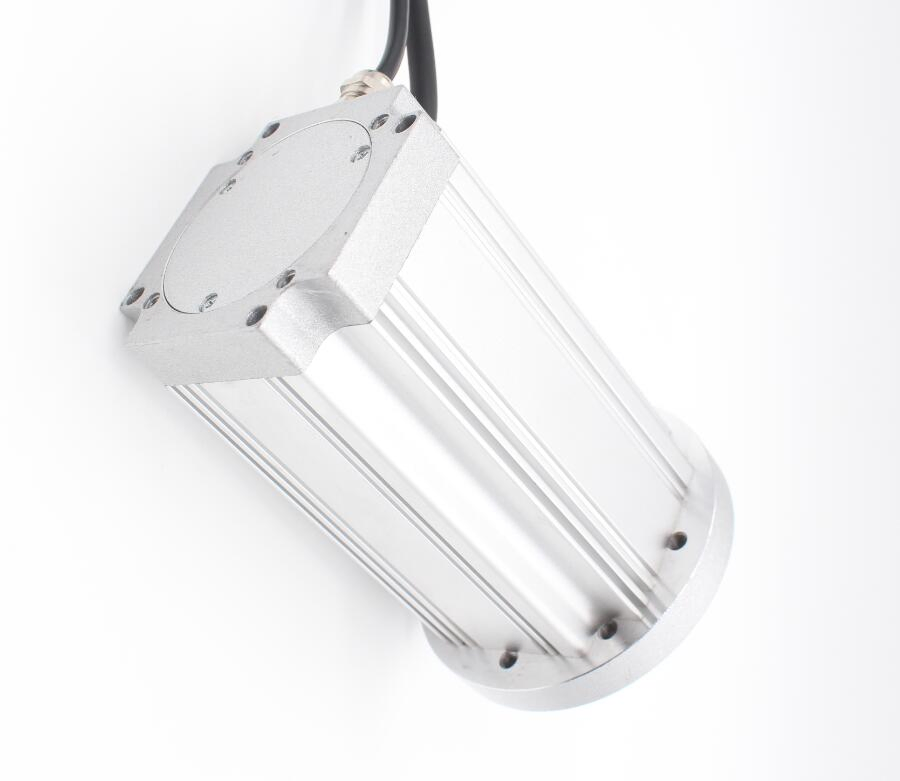

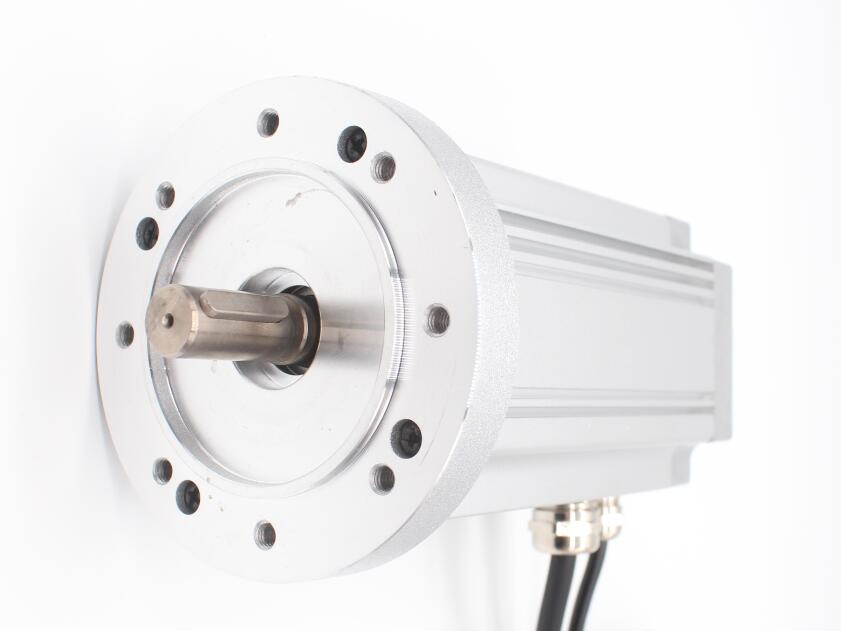

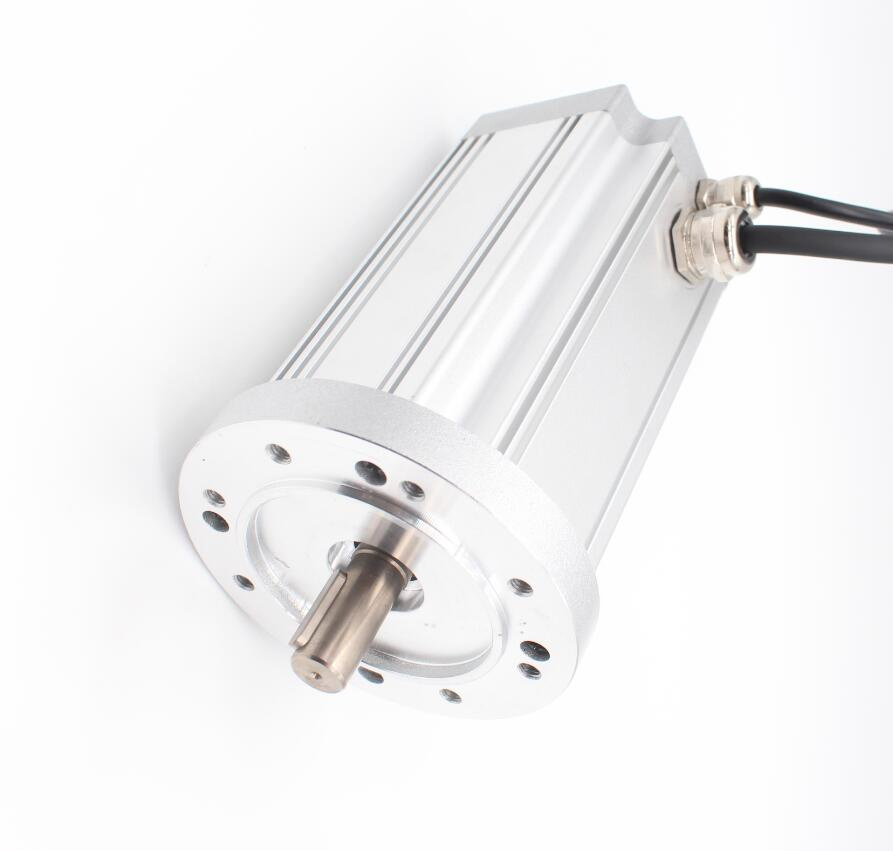

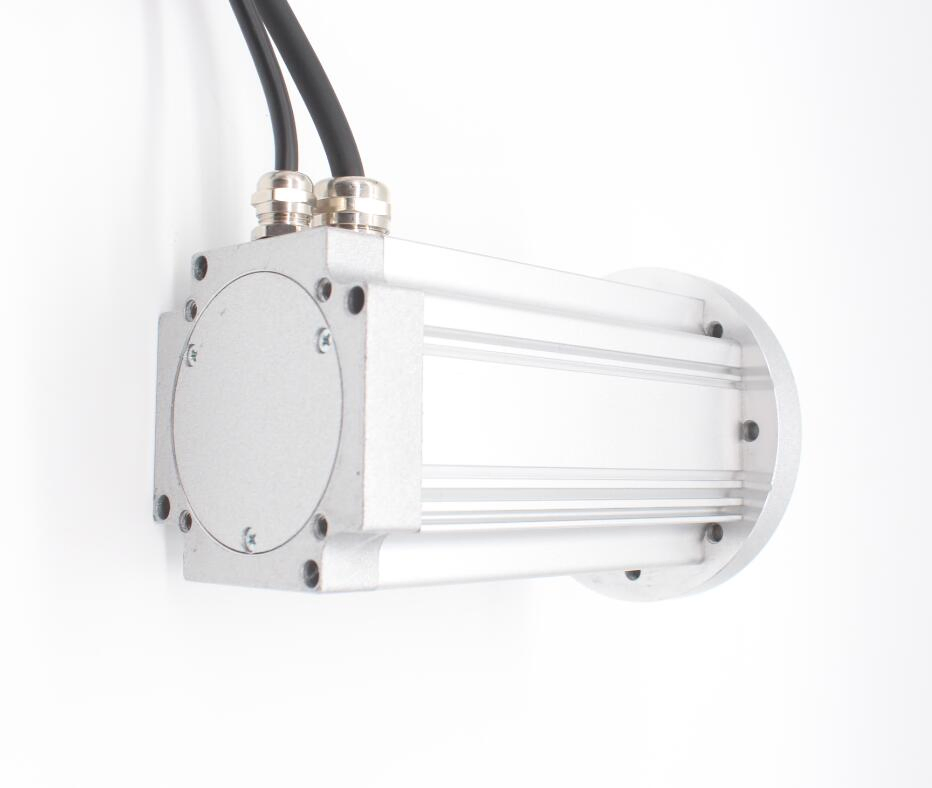

12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
1 / 5
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake
12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake

12V Motor High Precision Long Lifespan DC Brushless Servo Motor with Hall Sensor Brake

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
DR80BLR-D
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
8
Structure
Brushless
Certification
ISO9001, CCC, CE, RoHS
Name
BLDC Motor
Speed
3000rpm or Customized
Voltage
24VDC
Power
250W
Rated Torque
0.8n.M
Capacity
8000PCS/Month
Specification
80mm*80mm
★

Product Features

Features of Dia.80mm Brushless DC Motor:

  • Medium power and high torque density
  • Excellent heat dissipation performance
  • Strong overload capacity
  • Stable performance under continuous operation
  • Typical applications: industrial automation, machine tools, packaging machinery

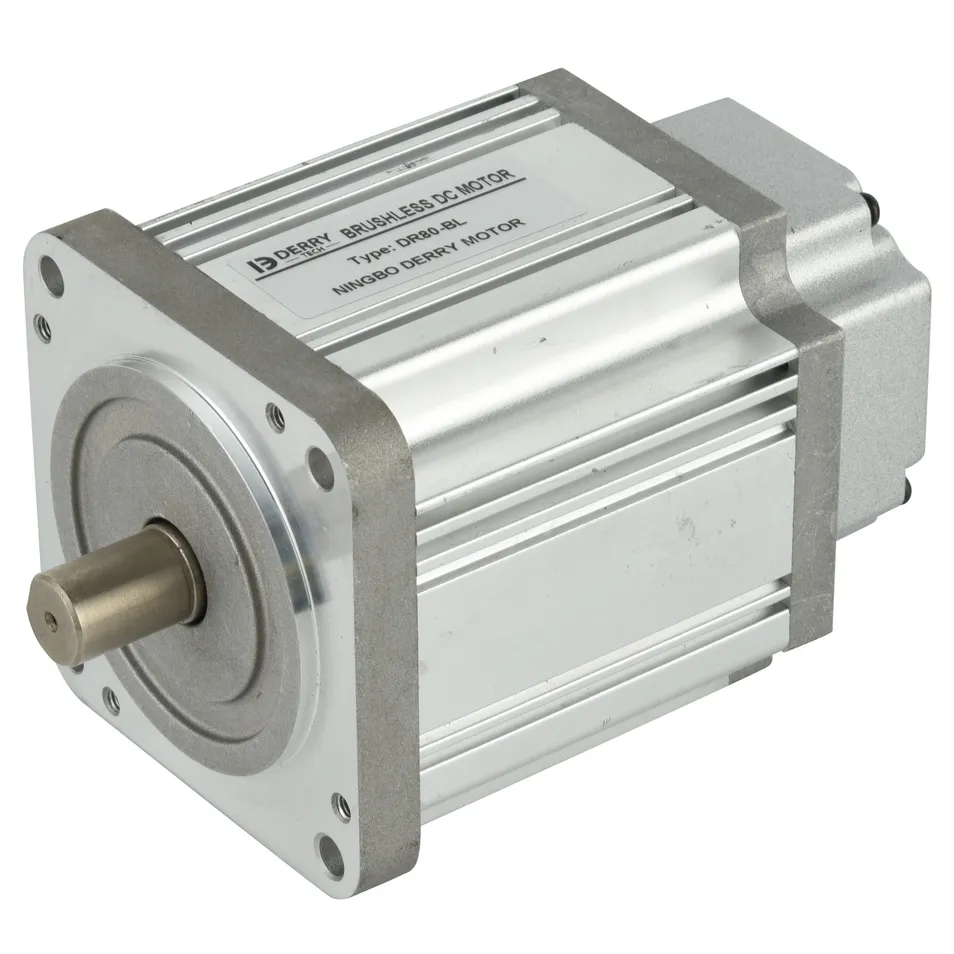

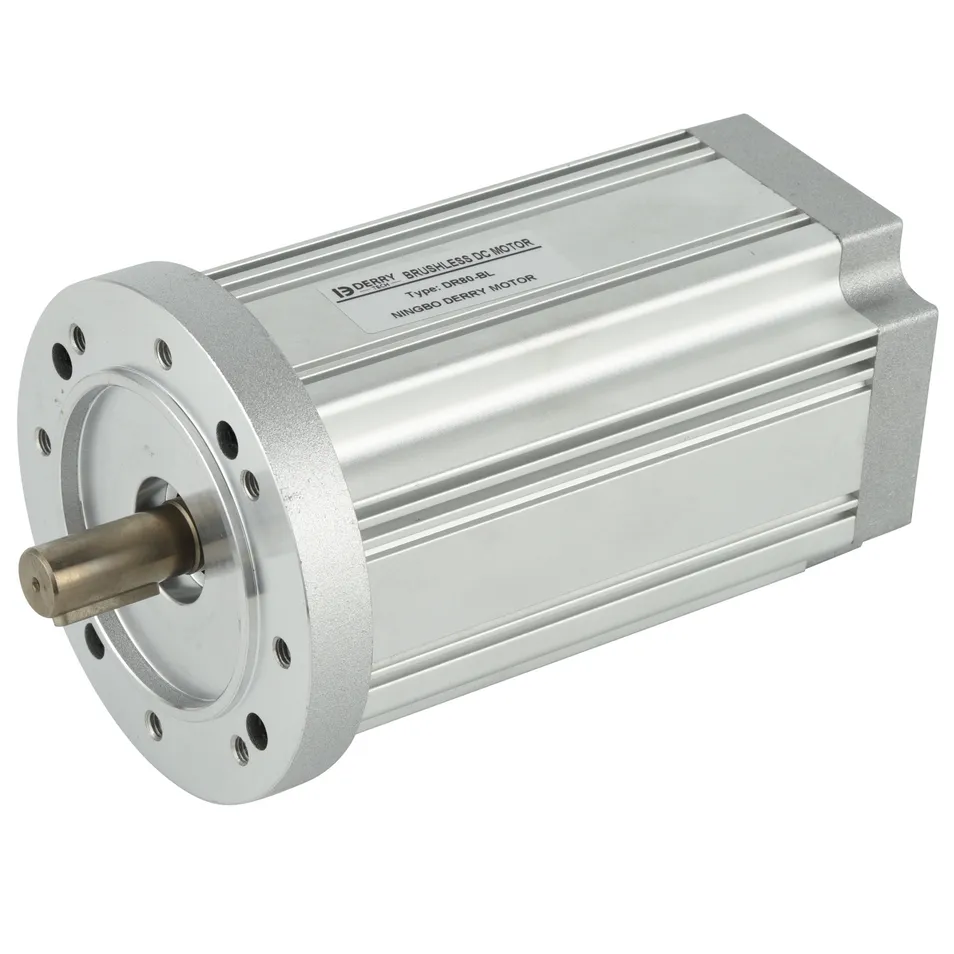

BLDC Motor
BLDC Motor
⚙

Technical Specifications

Note: Voltage, speed, power, and torque can be customized.

Parameter Specification
Voltage24VDC
Rated Power250w
Rated Speed3000rpm
Rated Current14A
Rated Torque0.8Nm
Ke(RPMS)4.25V/Krpm
Number of Poles4

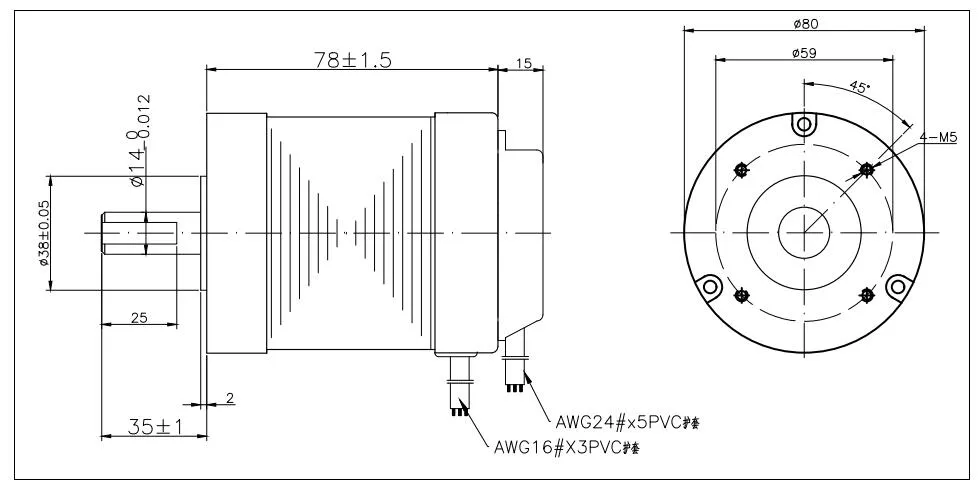

Technical Drawing
📦

Related Product Series

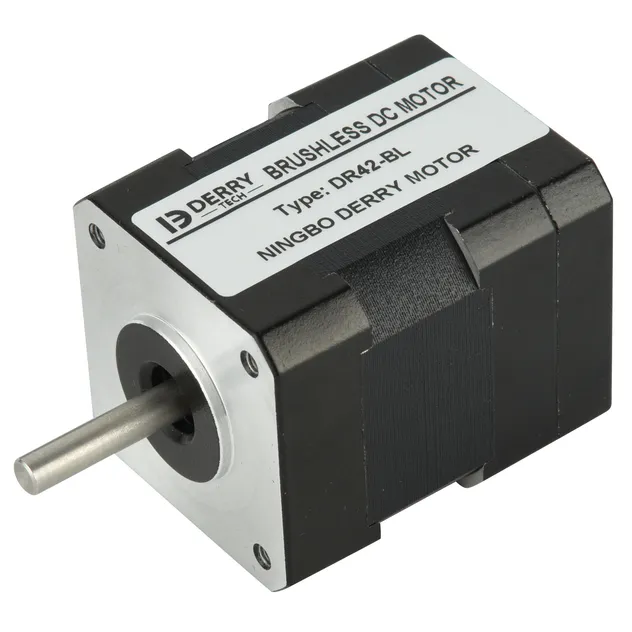

42mm BLDC
42mm BLDC Motor

Compact, low noise, high efficiency for precision instruments.

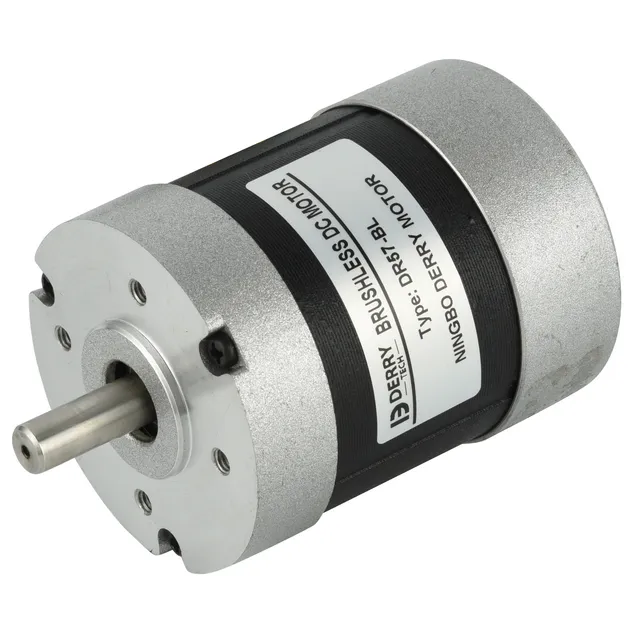

57mm BLDC
57mm BLDC Motor

General-purpose standard size with high cost-performance.

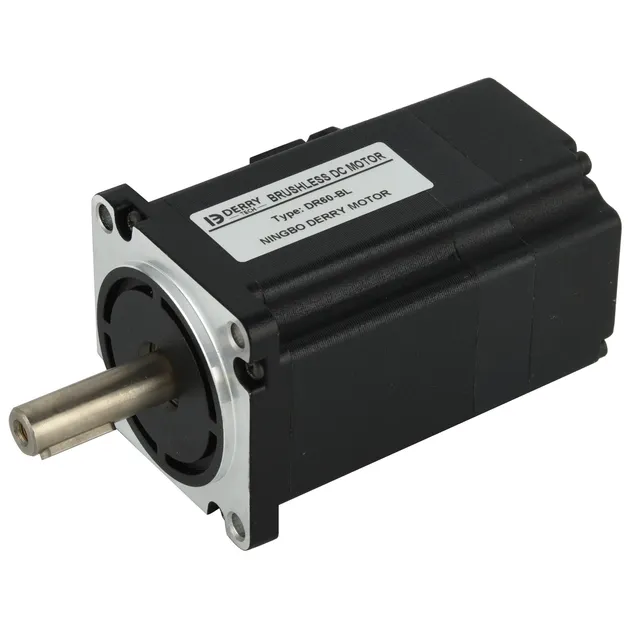

60mm BLDC
60mm BLDC Motor

Balanced performance for precision transmission.

80mm BLDC
80mm BLDC Motor

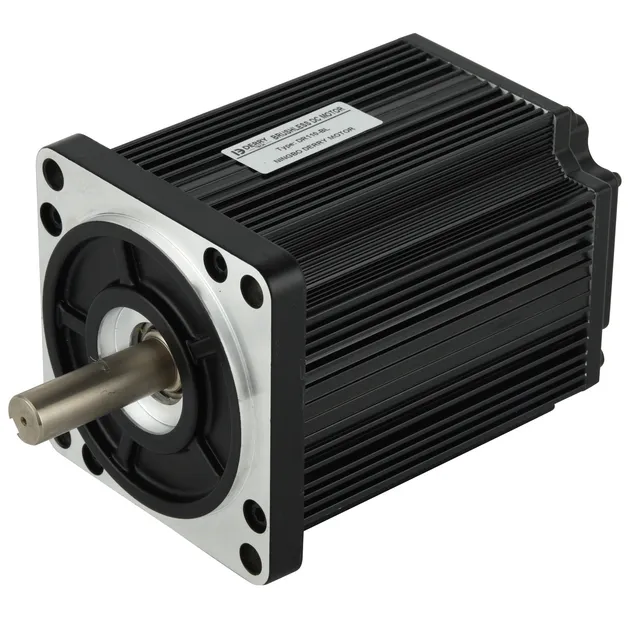

110mm BLDC
110mm BLDC Motor

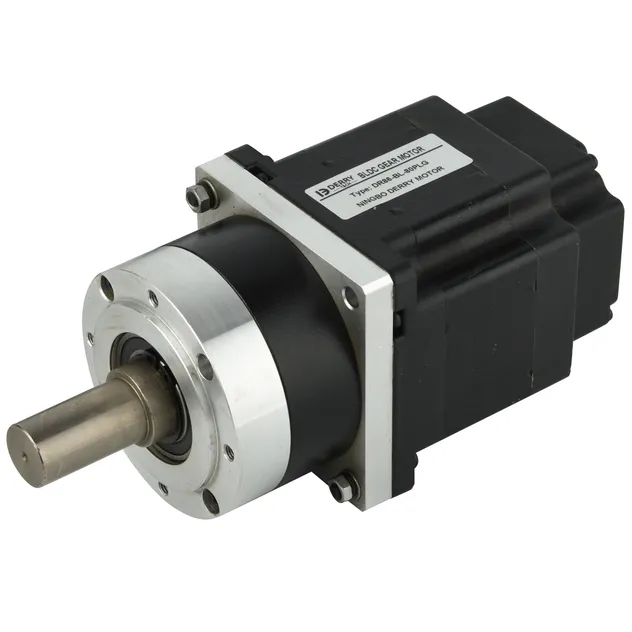

Gearbox BLDC
BLDC Motor with Gearbox
M

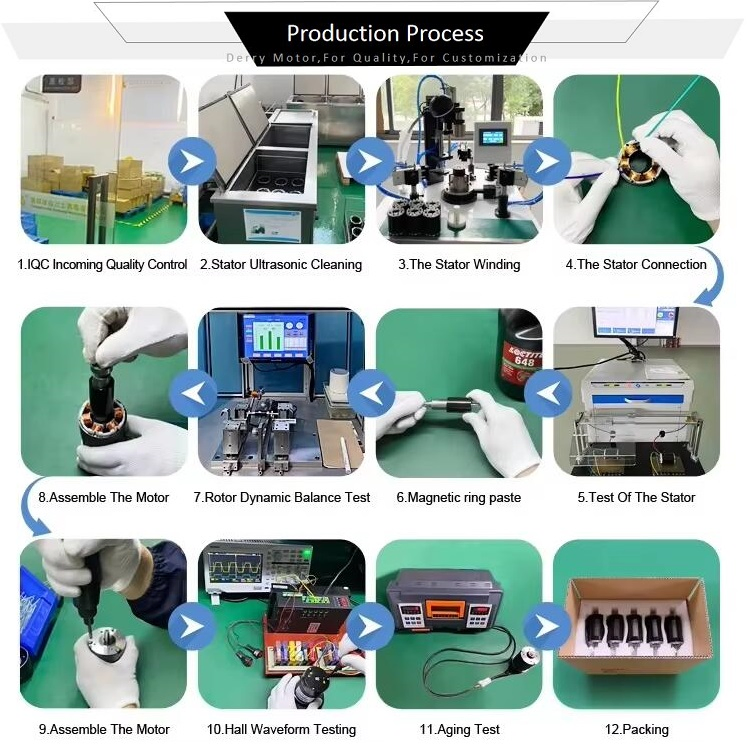

Manufacturing Overview

Specializing in high-quality brushless DC motors (BLDC motors) in a full range of sizes, including 42mm to 130mm models. We offer reliable, efficient and cost-effective motor solutions for industrial automation, power tools, and intelligent equipment.

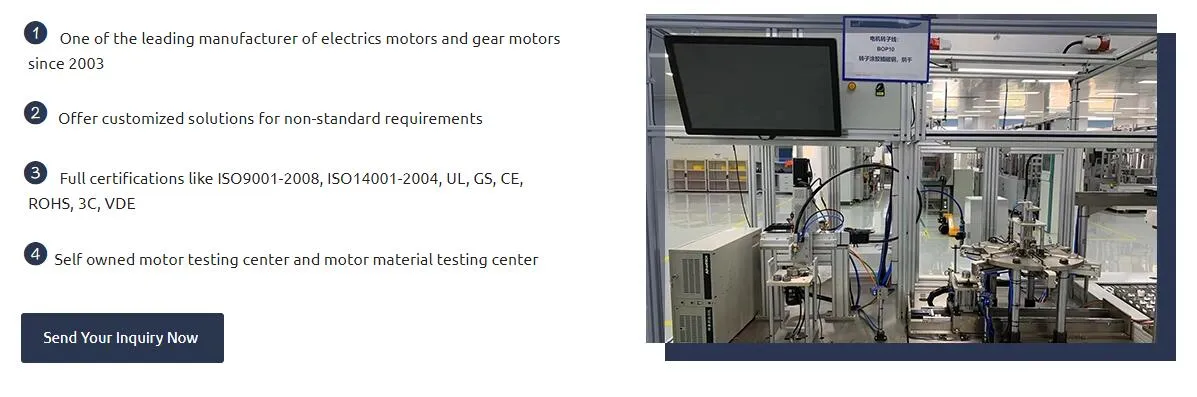

Factory Overview

Frequently Asked Questions

1. What is the standard voltage range for your motors?
Standard options include 12V, 24V, 48V, and 220V. Other specific voltages can be customized according to requirements.
2. What are the typical speed and torque specifications?
Speeds range from 1000 to 15000rpm, and torque ranges from 0.05 to 30N·m, depending on the specific motor model.
3. What is the protection class and expected service life?
Our motors come standard with IP54 protection (IP65 optional). The service life is typically 3000-8000 hours under rated operating conditions.
4. What is the Minimum Order Quantity (MOQ)?
We support sample orders of 1-10pcs. Bulk order MOQs are negotiable based on the project requirements.
5. What is the standard lead time for delivery?
Samples are usually ready in 3-7 working days, while bulk production orders typically take 15-30 working days.
6. Do you support global shipping and various trade terms?
Yes, we support global shipping via express, air, and sea, including FOB, CIF, and DDP terms.
