KPR Motor
1 / 5

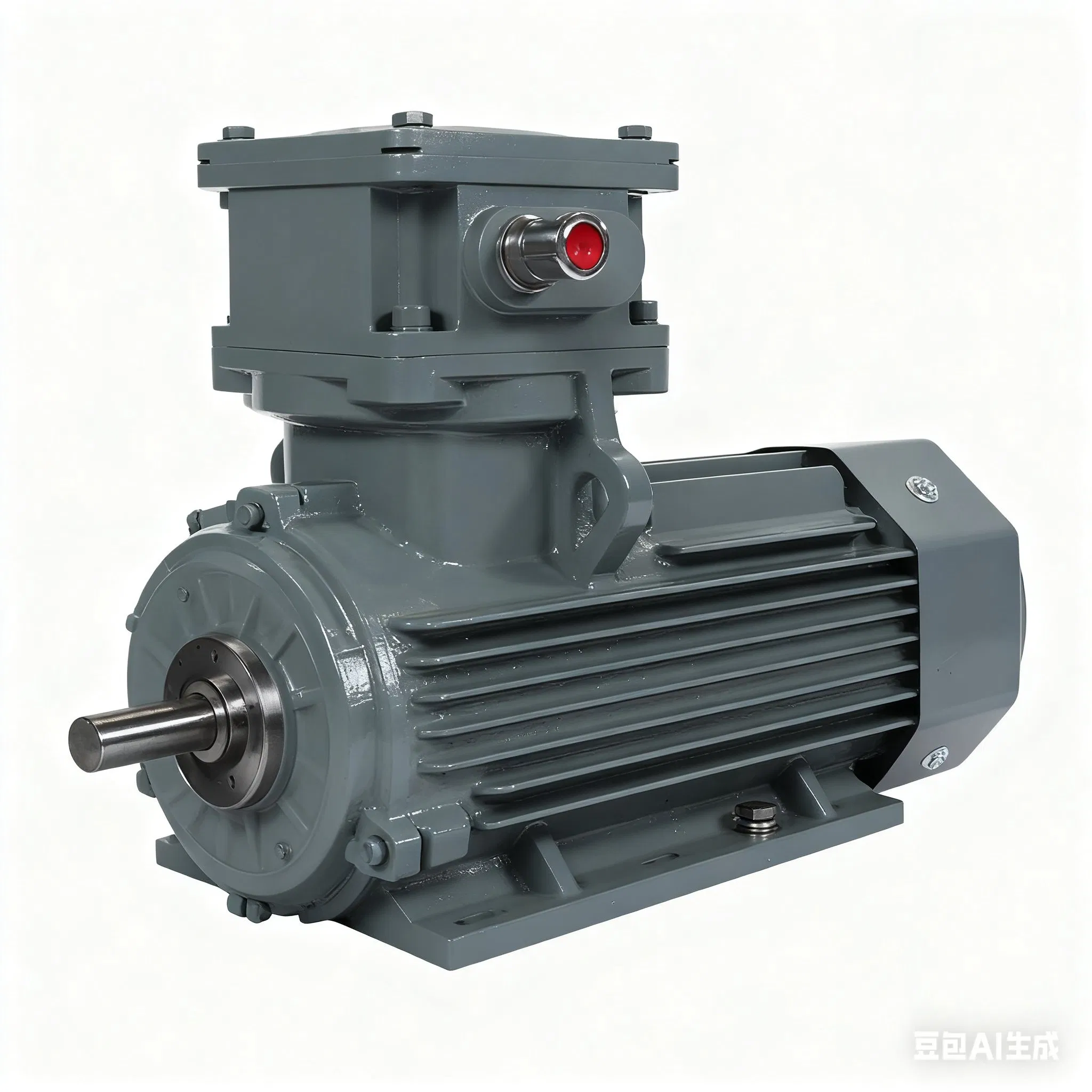

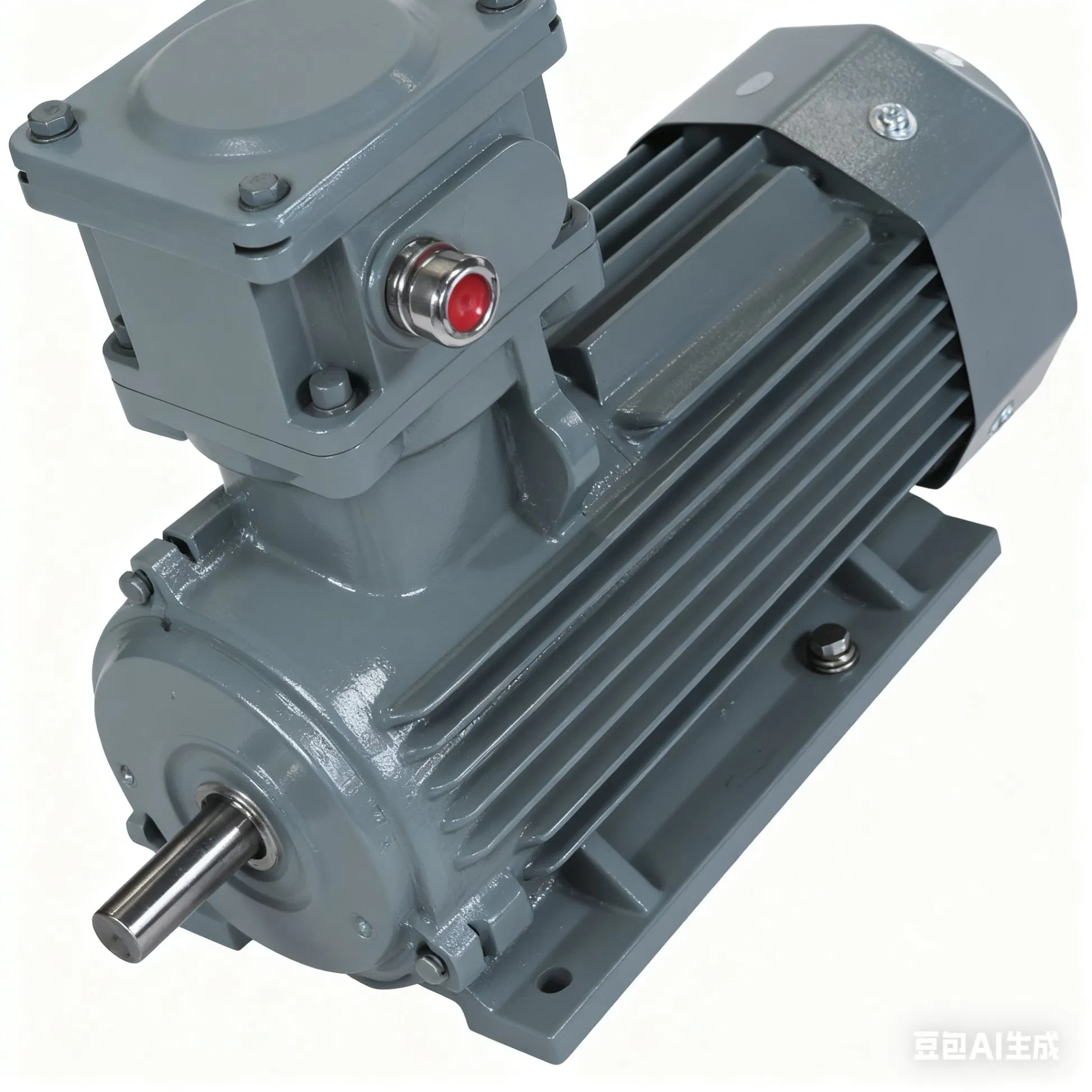

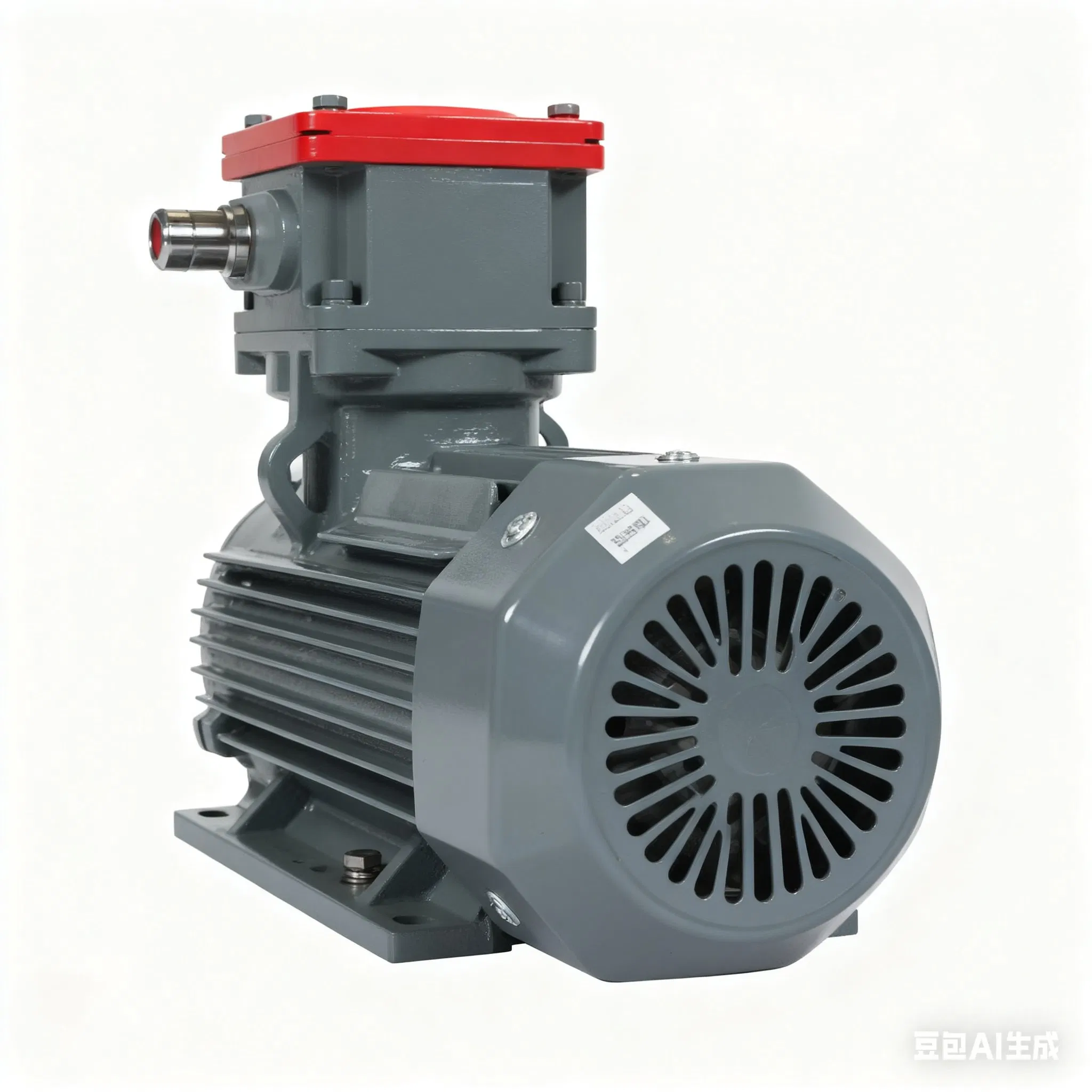

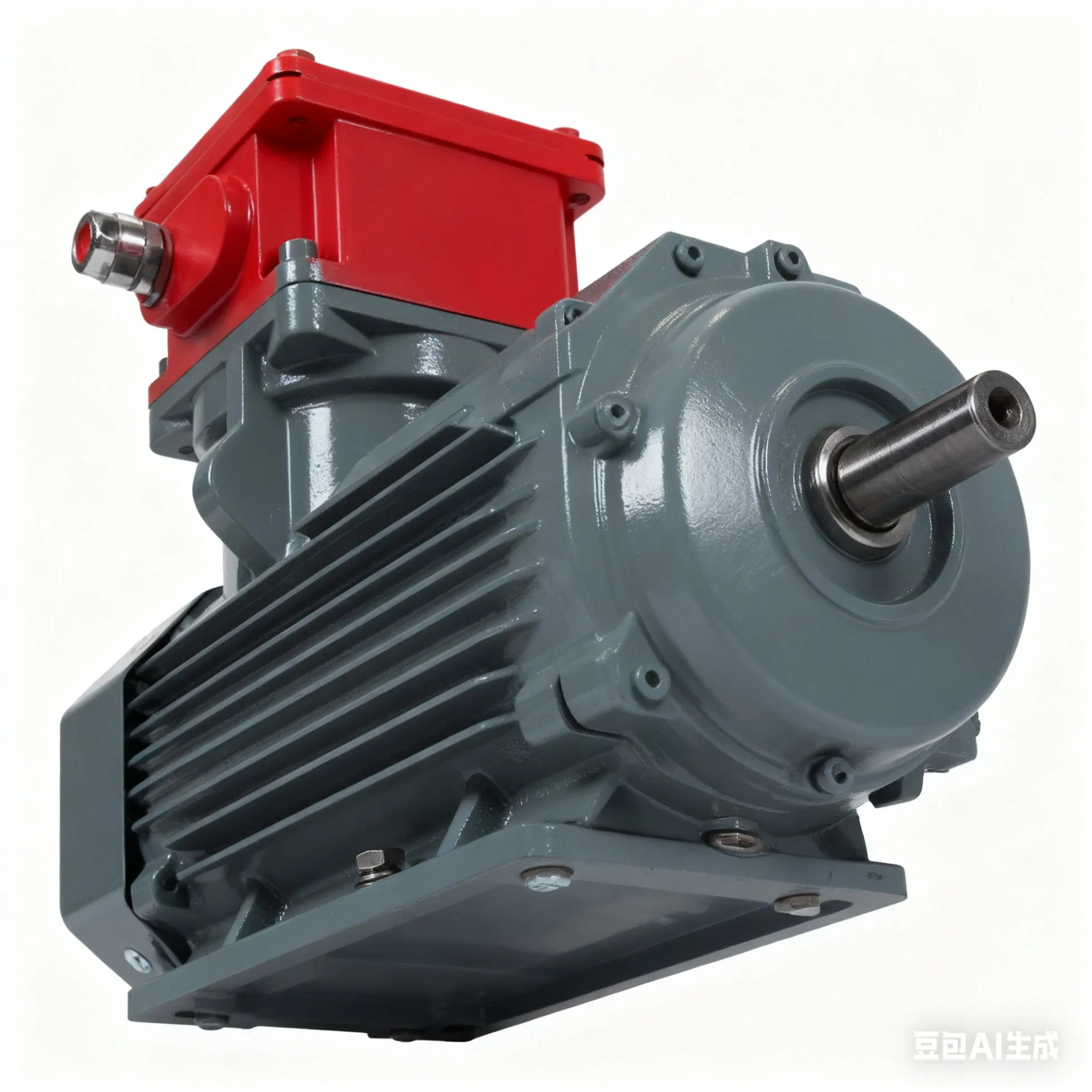

Ideal for environments such as coal mines where methane and coal dust may be present (Ex dI) and hazardous explosion areas (Ex dIIAT4, dIIBT4) involving flammable gases from class IIA and IIB with temperature groups T1~T4.
| Model | Output (kW) | FLA | RPM | Eff. η% | PF | FLT (N.m) | LRT/FLT | LRA/FLA | BDT/FLT |
|---|---|---|---|---|---|---|---|---|---|
| YBX3-80M1-2 | 0.75 | 1.7 | 2870 | 80.7 | 0.83 | 2.50 | 2.2 | 7.0 | 2.3 |
| YBX3-90S-2 | 1.5 | 3.2 | 2880 | 84.2 | 0.84 | 4.97 | 2.2 | 7.6 | 2.3 |
| YBX3-112M-2 | 4 | 7.8 | 2915 | 88.1 | 0.88 | 13.1 | 2.2 | 8.3 | 2.3 |
| YBX3-160M1-2 | 11 | 20.6 | 2950 | 91.2 | 0.89 | 35.6 | 2.0 | 8.1 | 2.3 |
| YBX3-250M-2 | 55 | 98.5 | 2975 | 94.3 | 0.90 | 177 | 2.0 | 7.7 | 2.3 |
| Frame Size | B3 | B5 | B35 | V1 | B14 | B34 |
|---|---|---|---|---|---|---|
| 80~112 | √ | √ | √ | √ | √ | √ |
| 132~160 | √ | √ | √ | √ | - | - |
| 180~280 | √ | √ | √ | √ | - | - |
| 315~355 | √ | - | √ | √ | - | - |
