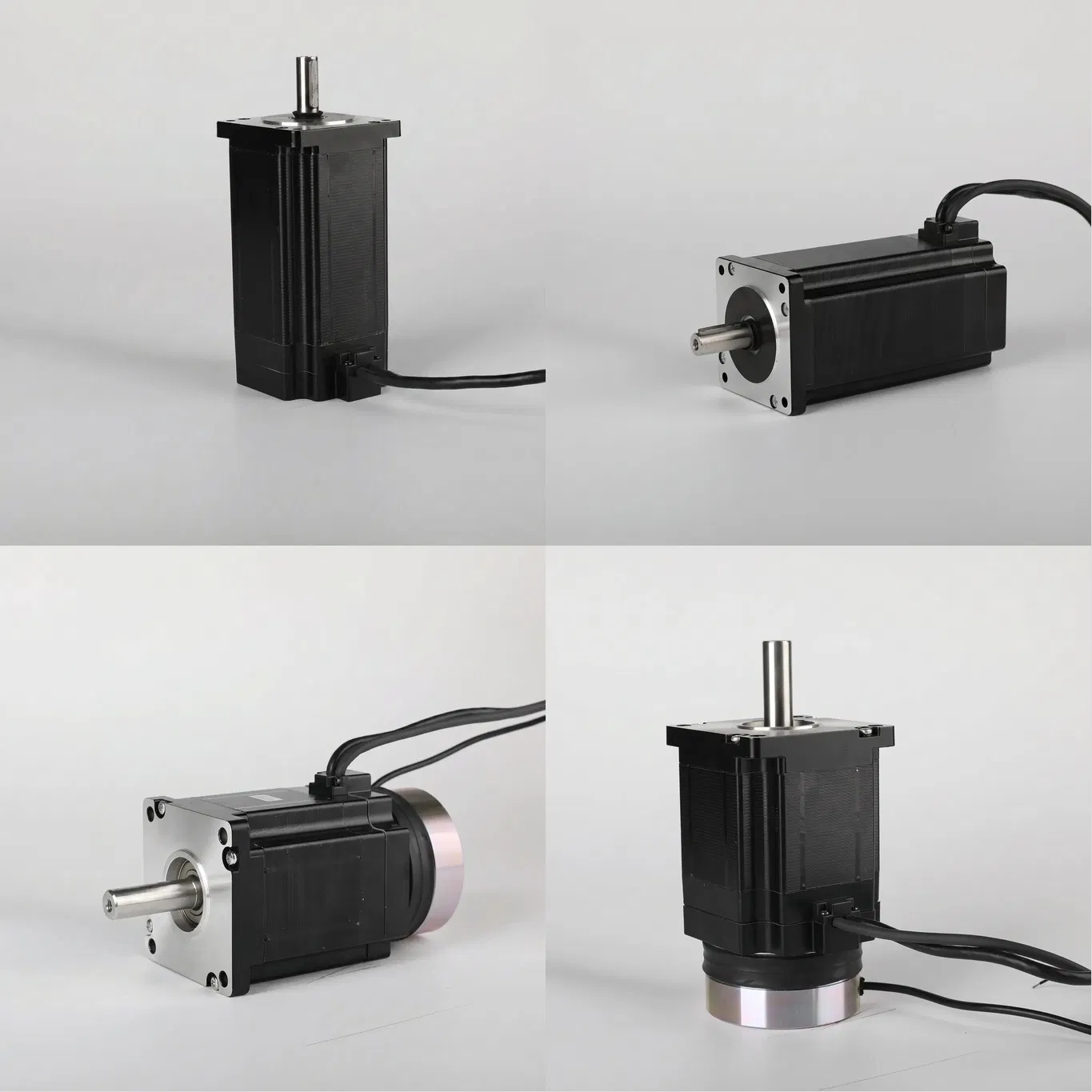

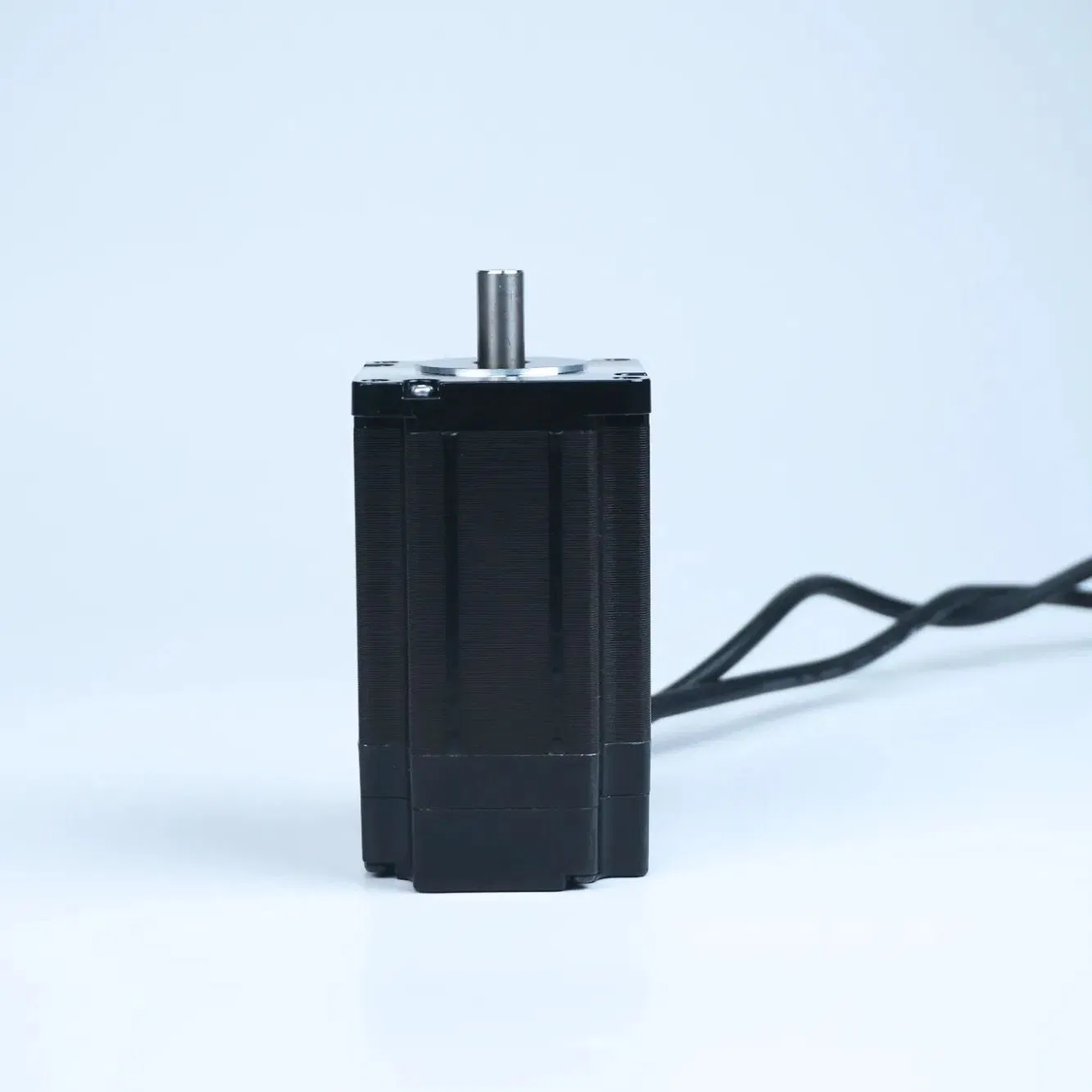

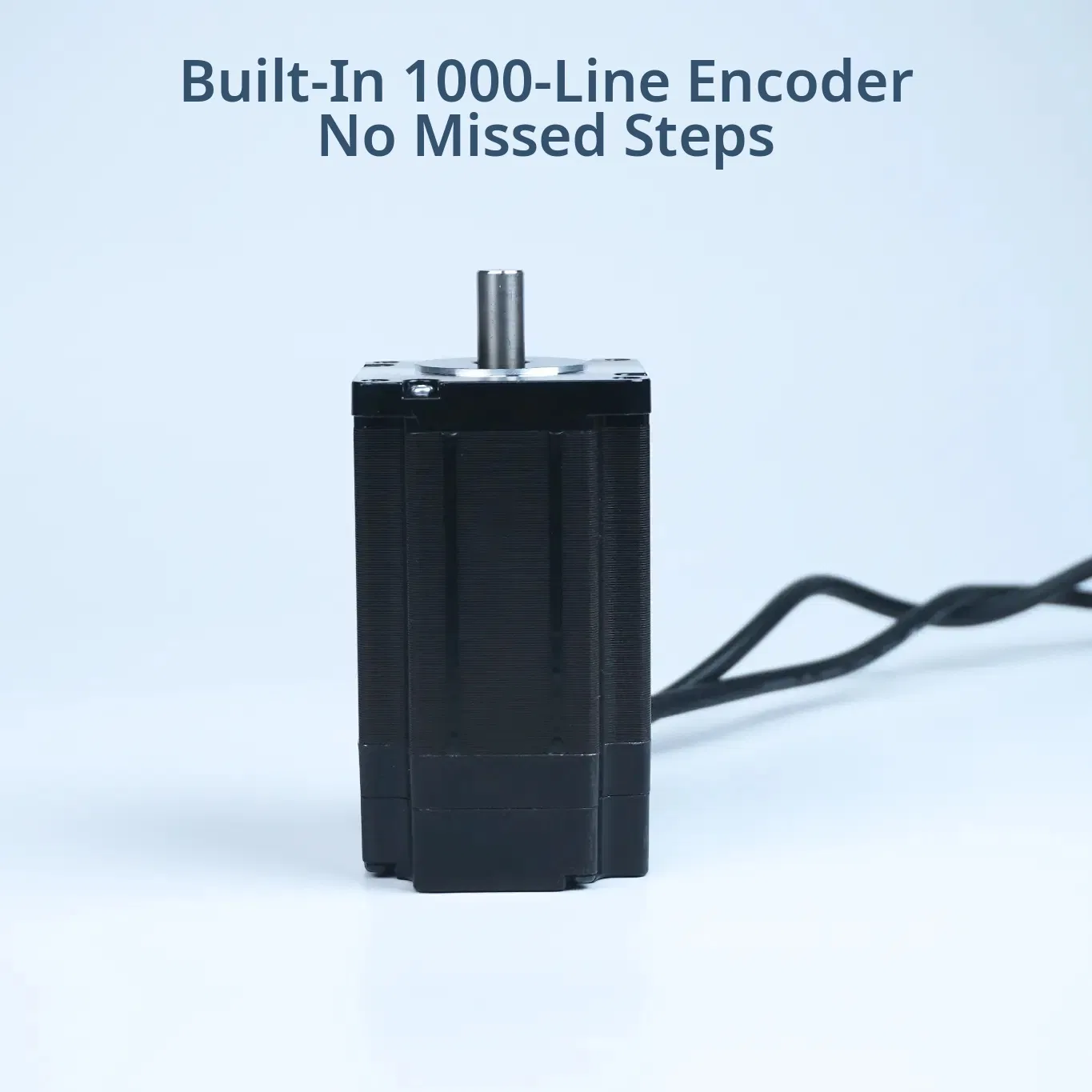

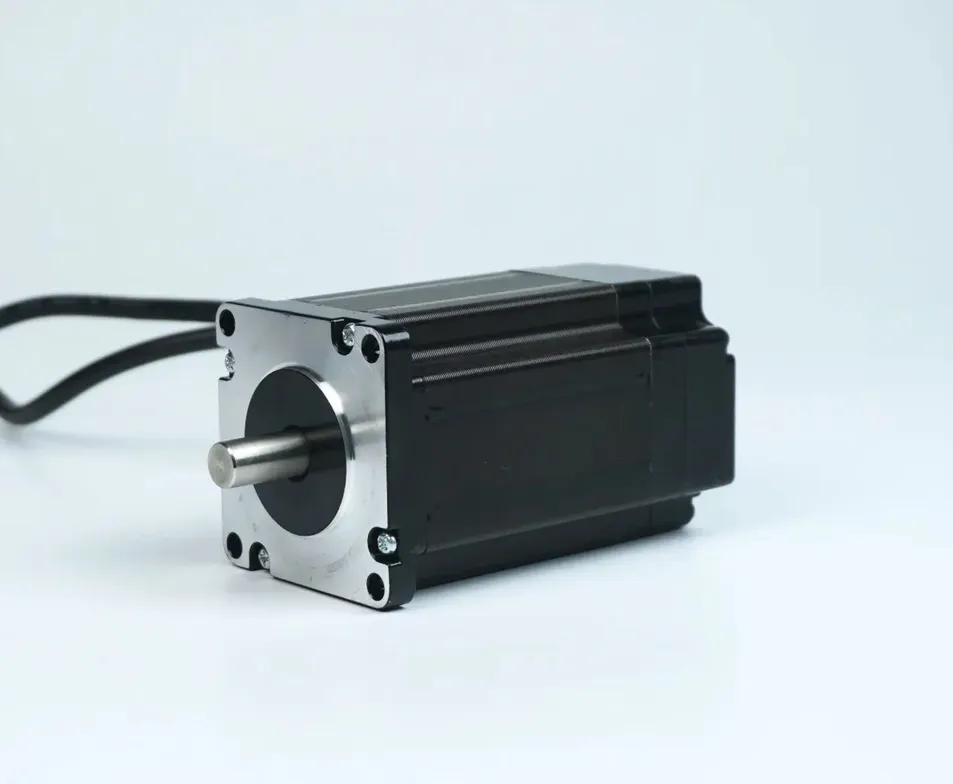

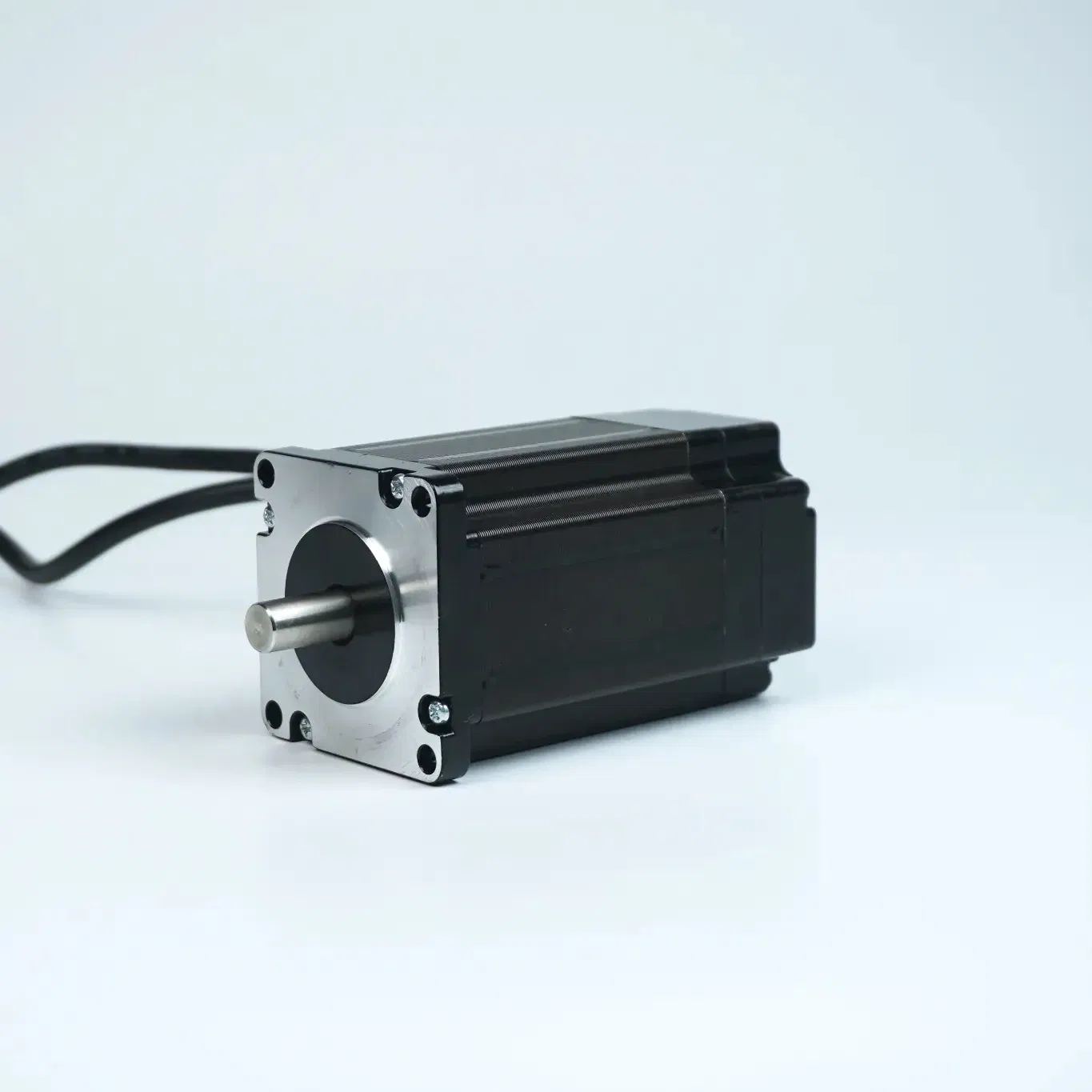

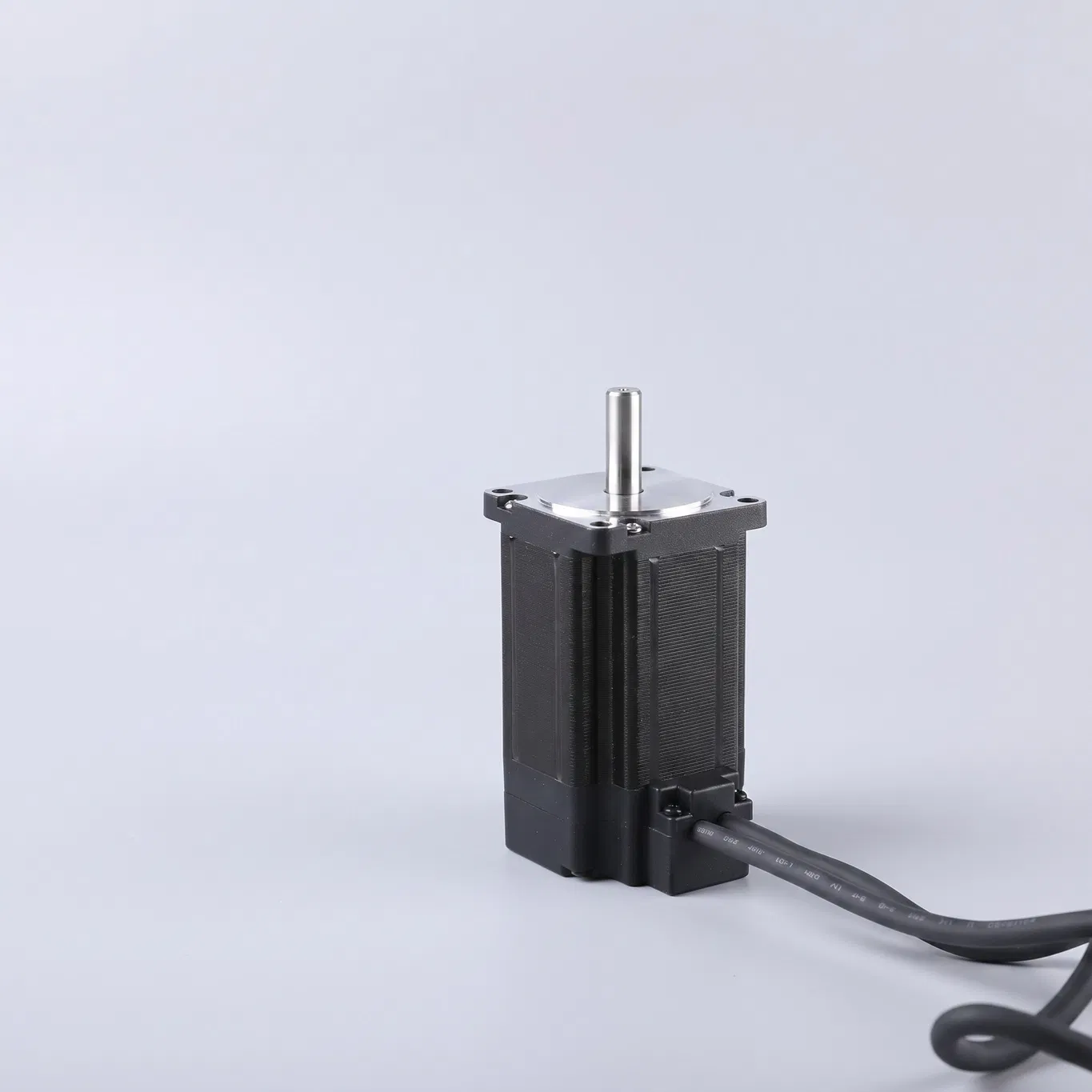

The 60BHH86-452-20Ep is a high-performance 60mm (NEMA 24) 2-phase hybrid closed-loop stepper motor featuring an integrated 1000-line encoder. By delivering a robust 2.45 N·m (25 kg·cm) holding torque at 4.5A, this motor merges the simplicity of stepper technology with the precision of closed-loop feedback. It effectively eliminates missed steps and ensures superior high-speed performance, especially when integrated with professional closed-loop drivers like the CWDS660.
| PARAMETER | VALUE |
|---|---|
| Step Angle | 1.8° ± 5% |
| Holding Torque | 2.45 N·m (25 kg·cm) |
| Rated Current | 4.5 A/Phase |
| Rated Voltage | 2.03 VDC |
| Phase Resistance | 0.45 Ω ± 10% |
| Phase Inductance | 2.0 mH ± 20% |
| No. of Phases | 2 |
| No. of Leads | 4 |

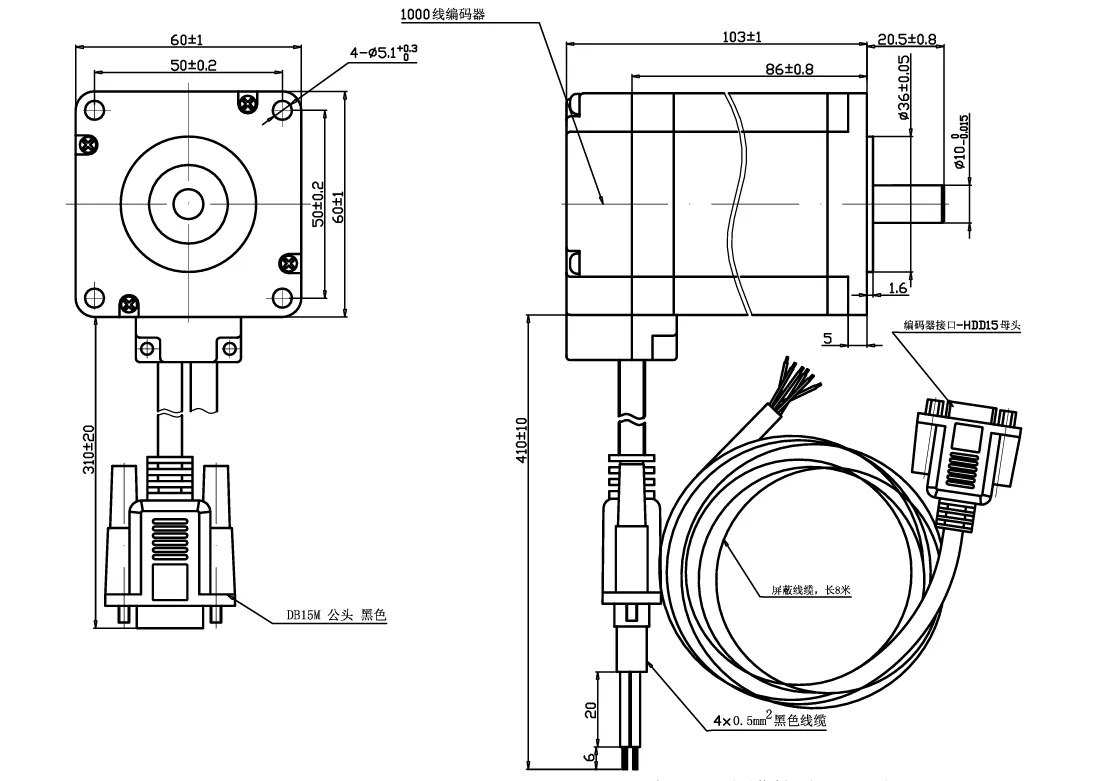

| Shaft Diameter | 10 mm |
| Frame Size | 60 mm (NEMA 24) |
| Body Length | 86 mm |
| Insulation Class | Class B (130°C) |
| Encoder Type | Incremental encoder (1000 lines/rev) |
| Connector Type | DB15M with 8m Cable |
| Recommended Driver | CWDS660 |
With over 30 years of specialized experience in industrial motor production, we serve as a premier OEM manufacturer for motion control solutions globally. Our expertise caters to over 1,800 industrial clients across North America, Europe, and Southeast Asia.

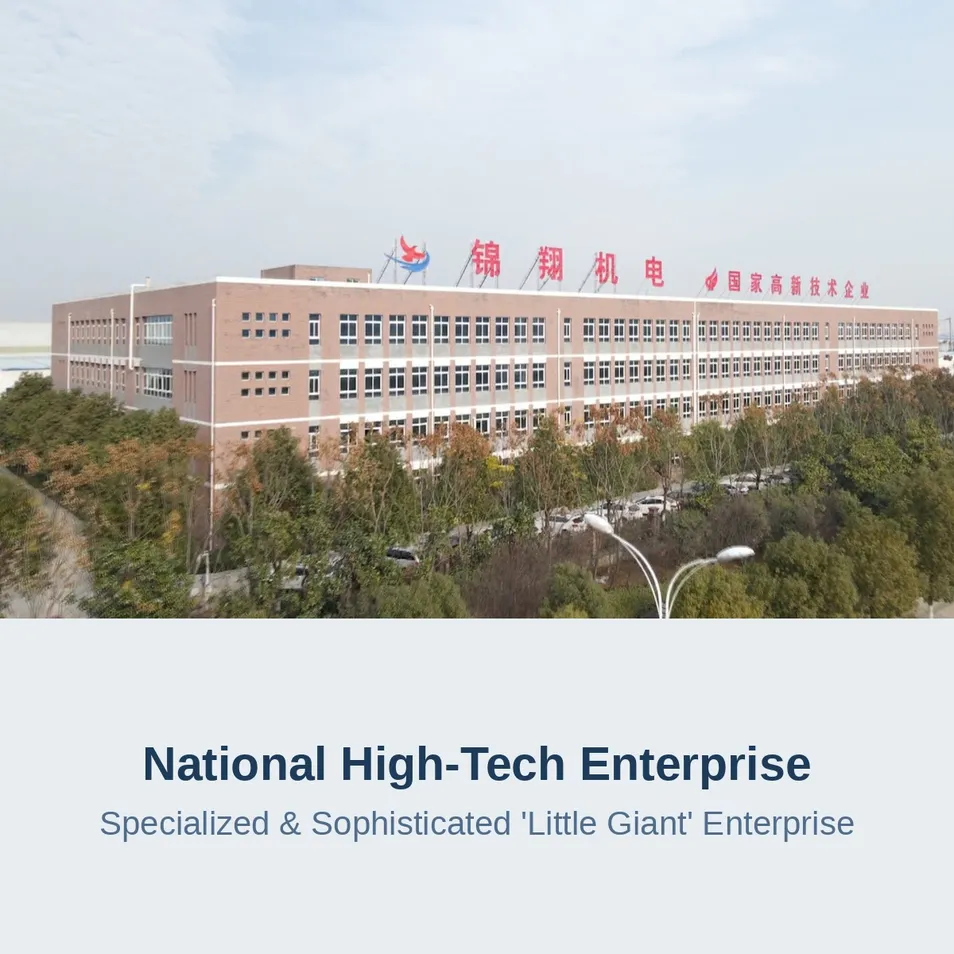

Our core strength lies in OEM customization. We collaborate directly with equipment manufacturers and automation engineers to develop motors tailored to specific requirements, including custom shaft dimensions, winding specifications, encoder types, and connector configurations. By managing the entire production process in-house with large-scale machinery, we ensure rigorous quality control and technical flexibility.
