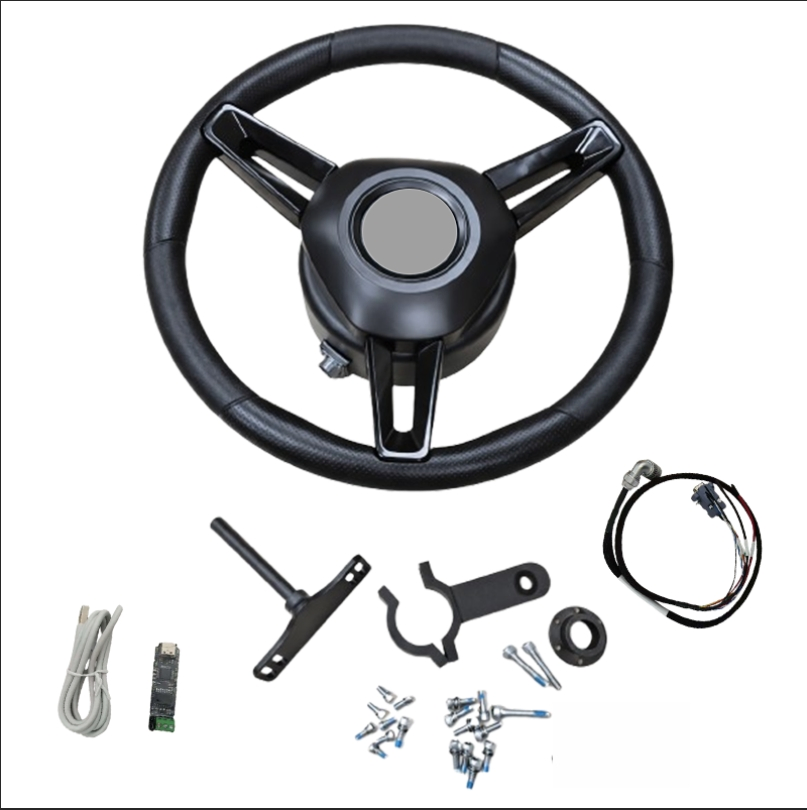

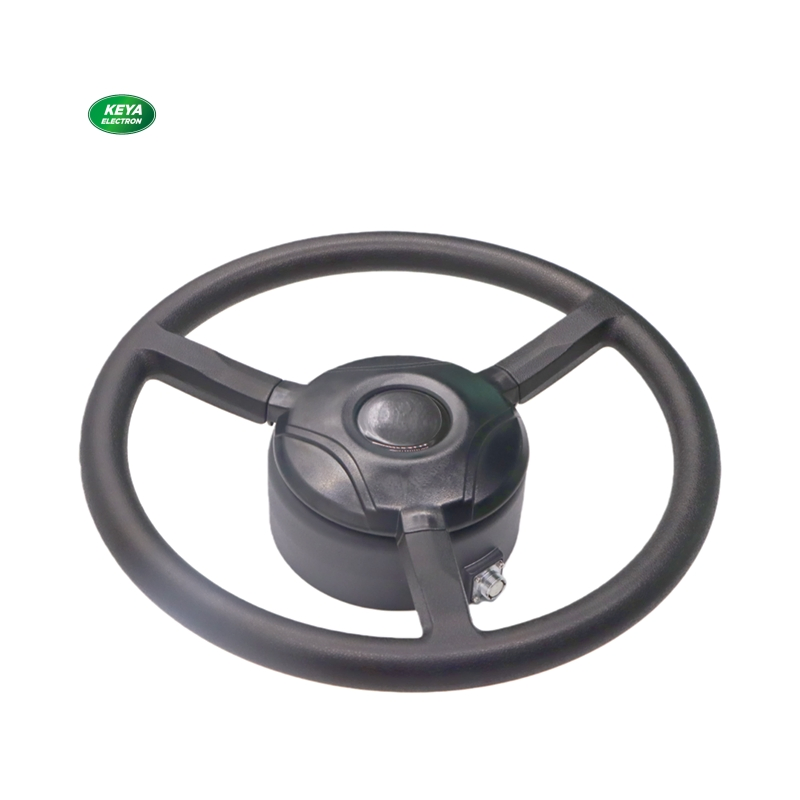

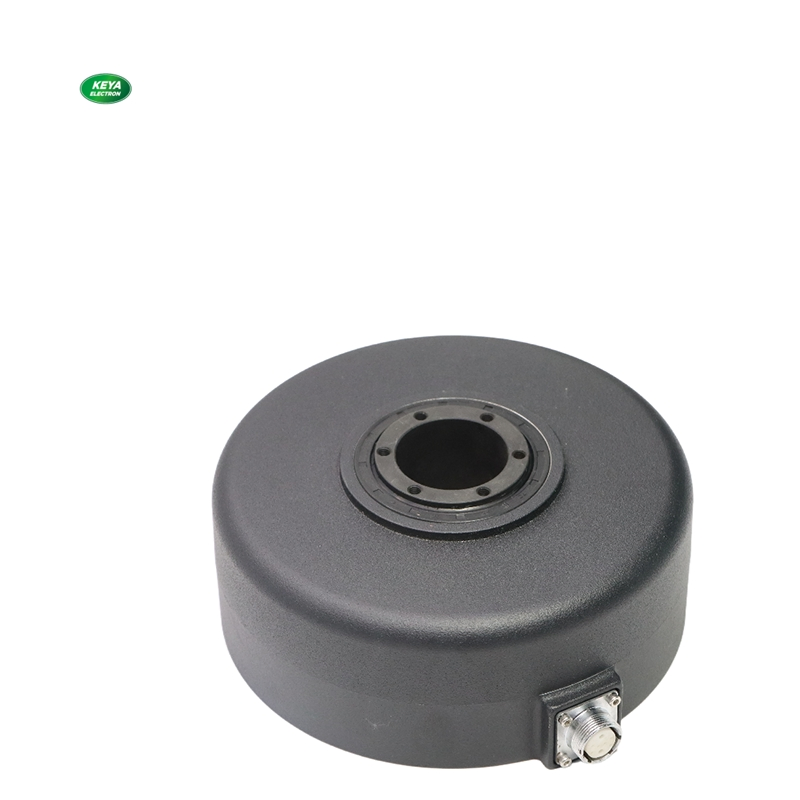

MODEL: KY173DD01005-08-HC

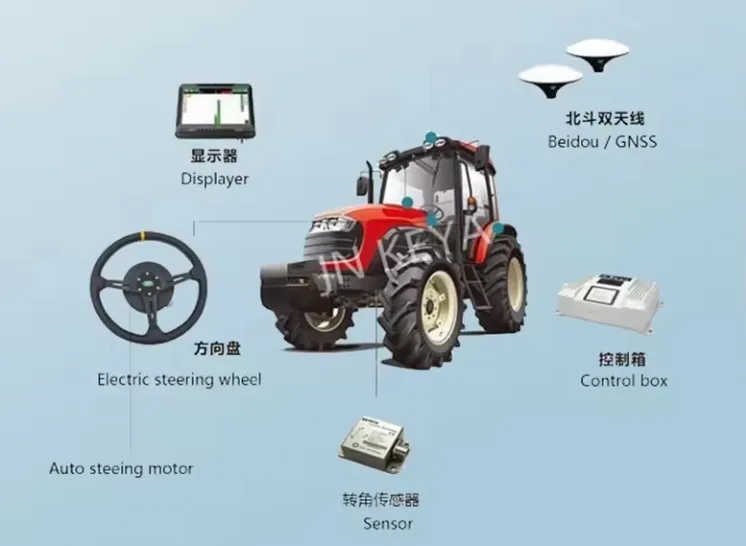

This electric motor adopts a direct drive motor scheme design. The rated speed is 100rpm, allowing for direct installation to the steering wheel shaft. It features a built-in controller and supports CAN control. With a rated voltage of 12V and rated torque of 7N.m (peak torque up to 13N.m), it is widely used in electric power steering systems for self-driving robot tractors, precision agriculture, and digital farming.
The development of this direct drive servo motor is tailored for agricultural machinery steering and driverless systems. It provides an effective way to realize sustainable agriculture with high quality, high yield, and low consumption. It enables fast, high-precision automatic operation across large arable lands for tasks like land leveling, sowing, harvesting, and pesticide spraying.
2

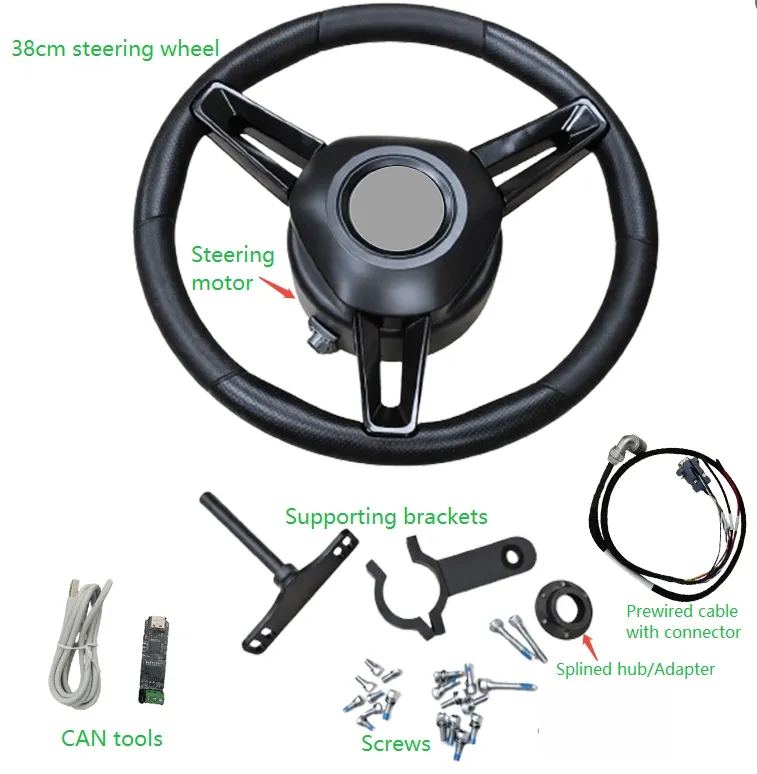

Key Technologies & Innovations
- Low moment of inertia and fast dynamic response.
- Multi-pole logarithm rotor permanent magnet with low torque fluctuation coefficient (> 3%).

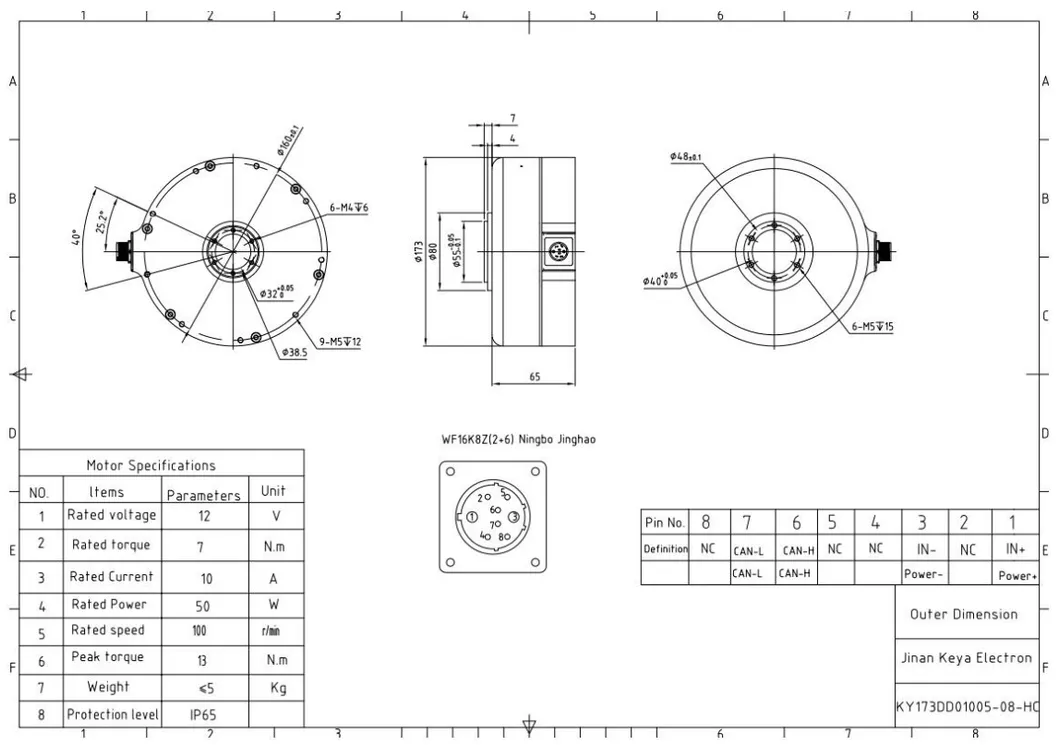

- Compact volume (∅ 180 * 85, including integrated controller).

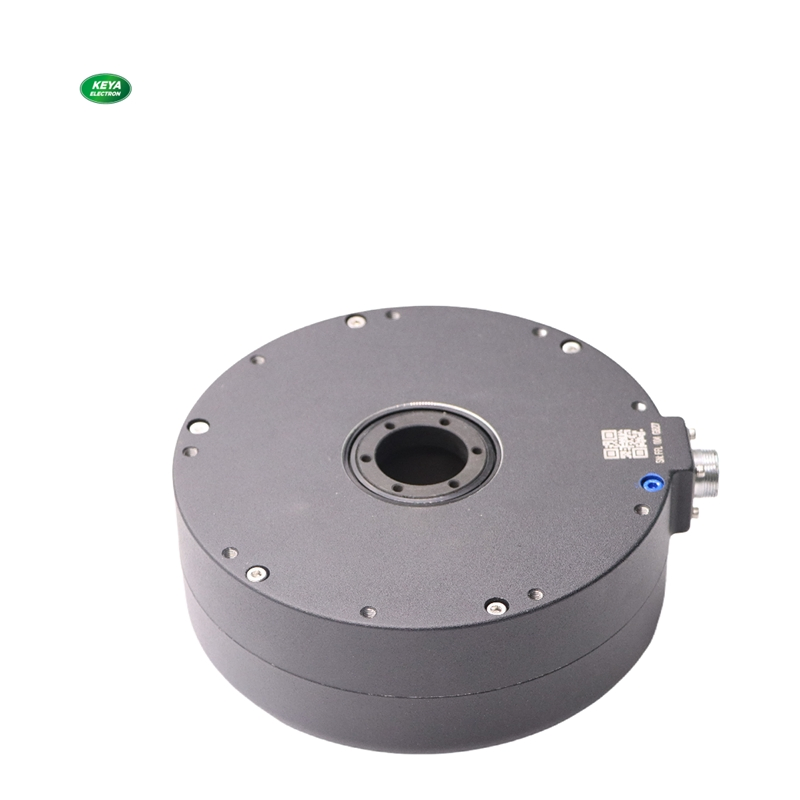

- Hollow shaft interface for quick connection and installation with agricultural steering wheels.
- Smooth low-speed operation, significantly improving system accuracy and reducing noise.
3

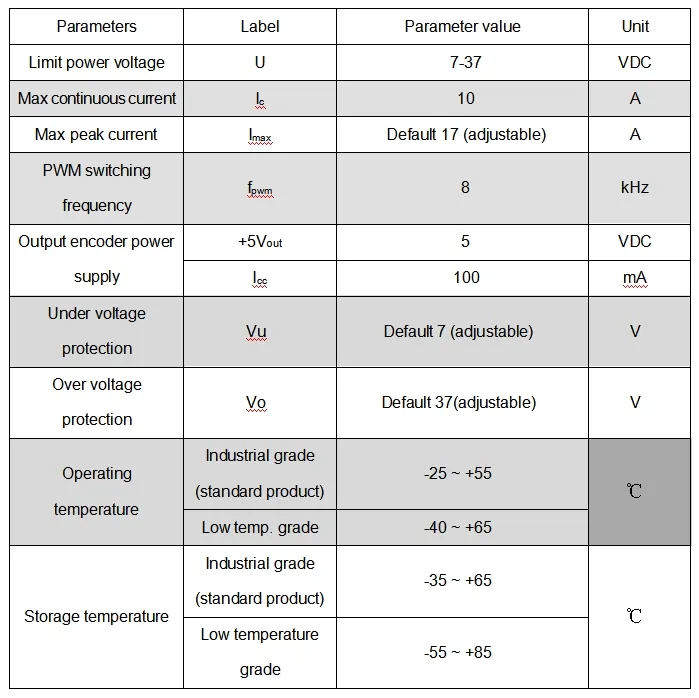

Technical Specifications
| Specification for KY173DD01005-08HG |
| Rated voltage | DC12V |
| Rated power | 50W |
| Rated speed | 100rpm |
| Rated current | 10A |
| Rated torque | 7N.m |
| Instantaneous max torque | 13N.m |
| Instantaneous max current | 20A |

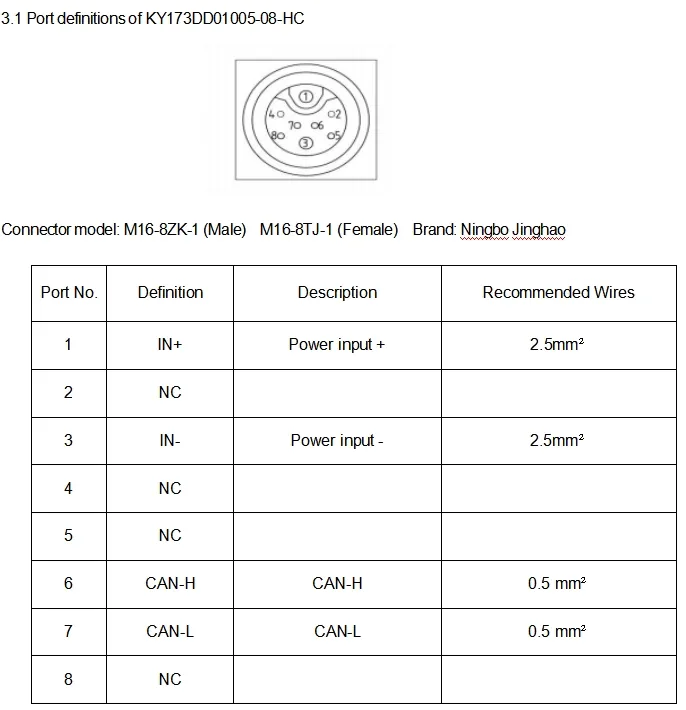

| Control mode | CAN |
| Protection level | IP65 |
| Working temperature | -25 - +55ºC |
| Working mode | Speed mode / Position mode |
5

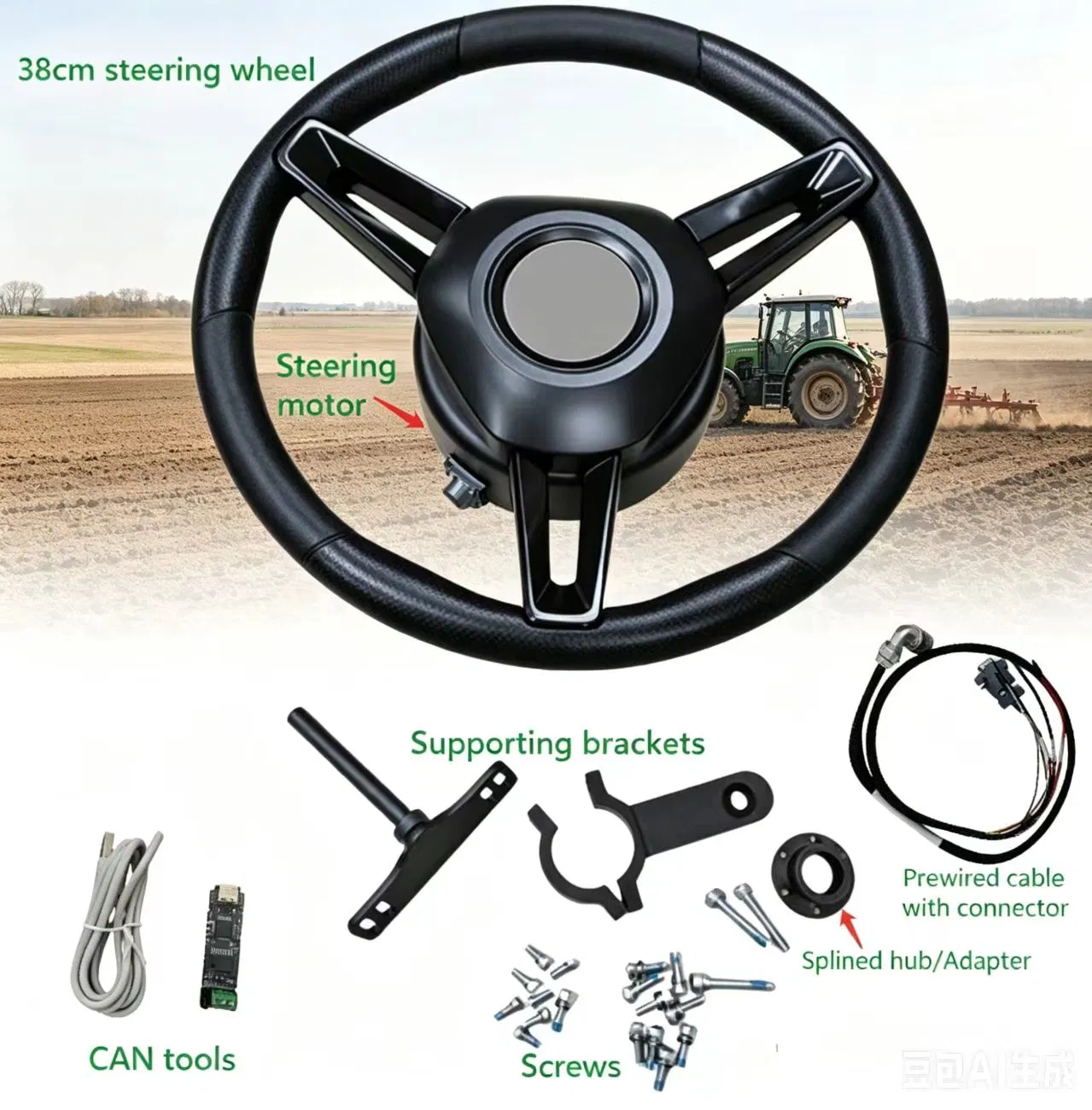

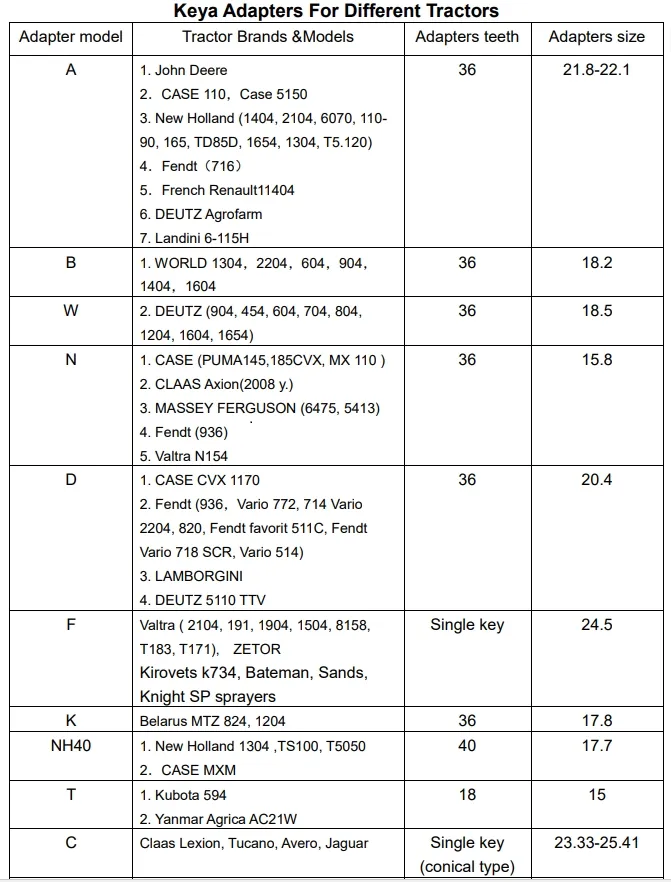

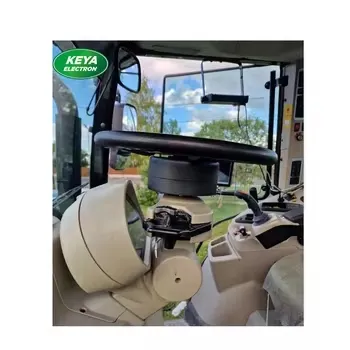

Adapter Models & Customization
7

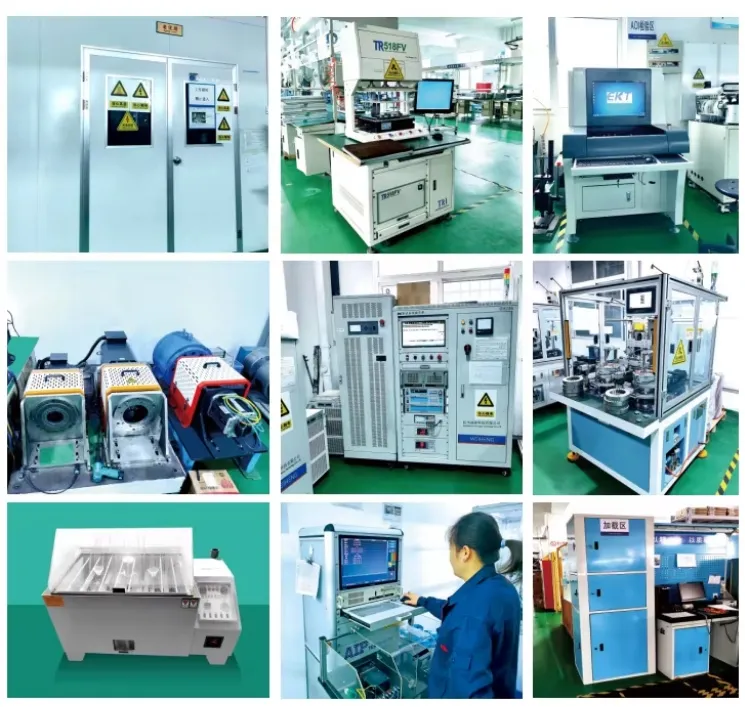

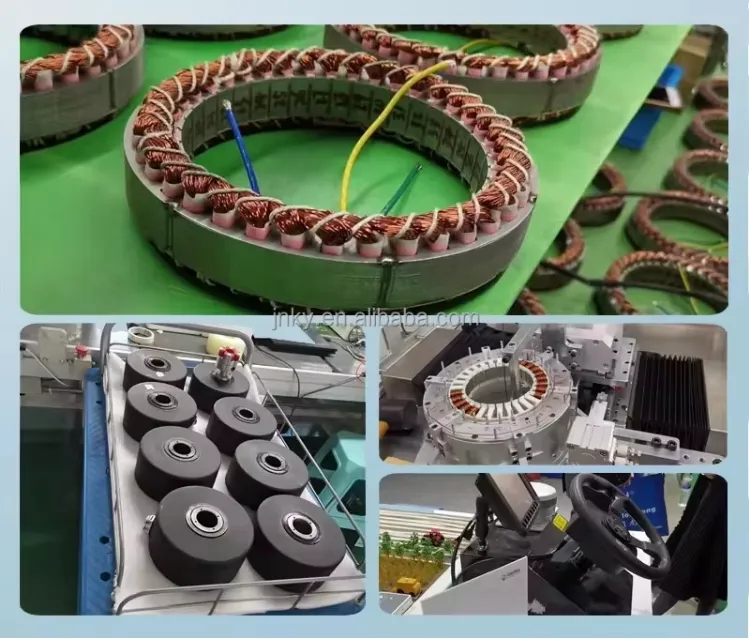

Packing & Quality Testing
?
Frequently Asked Questions
Q1: What are your main products?
A: We specialize in BLDC SERVO MOTOR & DRIVER.
Q2: How long have you been in this field?
A: We have more than 15 years of experience in this field.
Q3: Do you have your own R&D team?
A: Yes. R&D is our core competitiveness, and we continuously innovate. Some of our engineers have over 20 years of industry experience.
Q4: How soon can you deliver the goods?
A: It depends on the model. For regular products, we usually have units in stock and can deliver within 3 working days.
Q5: Can you make products according to customer's requirements?
A: Yes, we welcome custom-made products and support customization.
Q6: What is your payment term?
A: You can pay by TT, Paypal, or Western Union.
