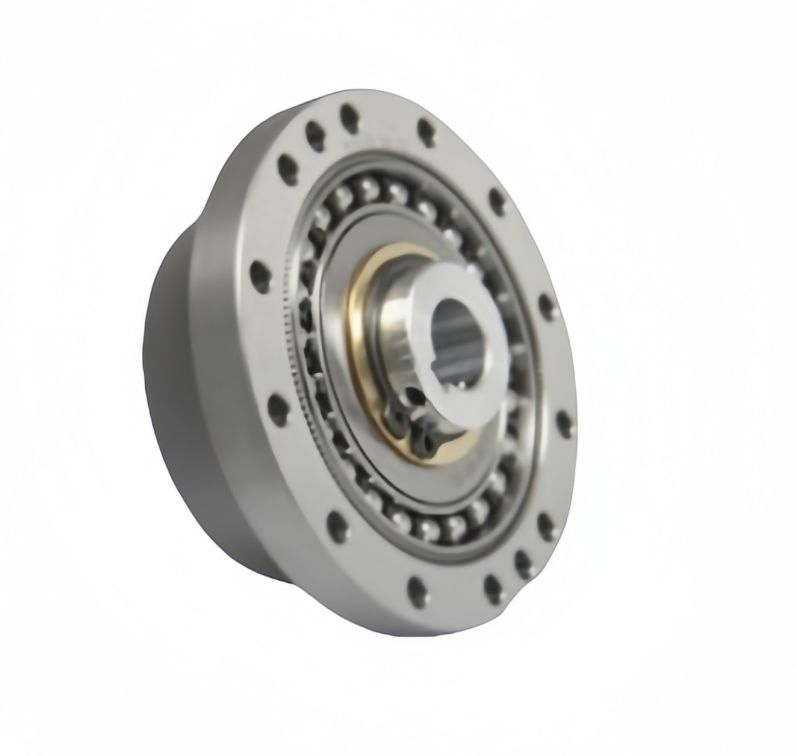

High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
1 / 5
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission
High Torque Precision Gear Motor for Reliable Transmission

High Torque Precision Gear Motor for Reliable Transmission

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

● Basic Information
Model NO.
HMCG-I
Installation
Horizontal Type
Layout
Coaxial
Gear Shape
Cylindrical Gear
Step
Single-Step
Type
Gear Reducer
Reduction Ratio
50-120
Application
Aerospace & Industrial Robot
Production Capacity
150,000 Per Year
● Product Description

HMCG-I Series Harmonic Reducer

Designed for aerospace, robotics, semiconductors, power inspection, and automation equipment.

Experience the Power of Harmonic Gear Transmission

Discover the cutting-edge transmission mode utilizing elastic deformation for movement and power transmission, replacing traditional rigid components with flexibility for enhanced functionality.

Unleash the Deceleration Principle

Harness the power of the deceleration principle with the HMCG-I series harmonic reducer. The flexwheel, rigid wheel, and wave generator work together seamlessly for precise and efficient movement transmission.

Product Specifications

Product Name: Industrial Robot Ultra-Thin Series Hmcg Harmonic Precision Reducer

Applicable Industries: Machinery, Agricultural Machinery, Car, Robot

Hardened Tooth Surface: Yes

Installation Type: Horizontal Type

● Product Parameters
Model Ratio Rated Torque (2000r/min) [Nm] Peak Torque Start/Stop [Nm] Max. Ave. Load Torque [Nm] Max. Inst. Torque [Nm] Max. Input Speed [r/min] Ave. Input Speed [r/min] Backlash (arc sec)
1450/80/1007 - 1023 - 369 - 1446 - 7080003500≤10-20
1750/80/10021 - 3144 - 7034 - 5191 - 14370003500≤10-20
2050-12033 - 5273 - 11344 - 64127 - 19160003500≤10-20
2550-12051 - 87127 - 21772 - 140242 - 39555003500≤10-20
3250-12099 - 178281 - 459140 - 281497 - 89245003500≤10-20
4050-120178 - 382523 - 802255 - 586892 - 153040003000≤10
● Detailed Photos

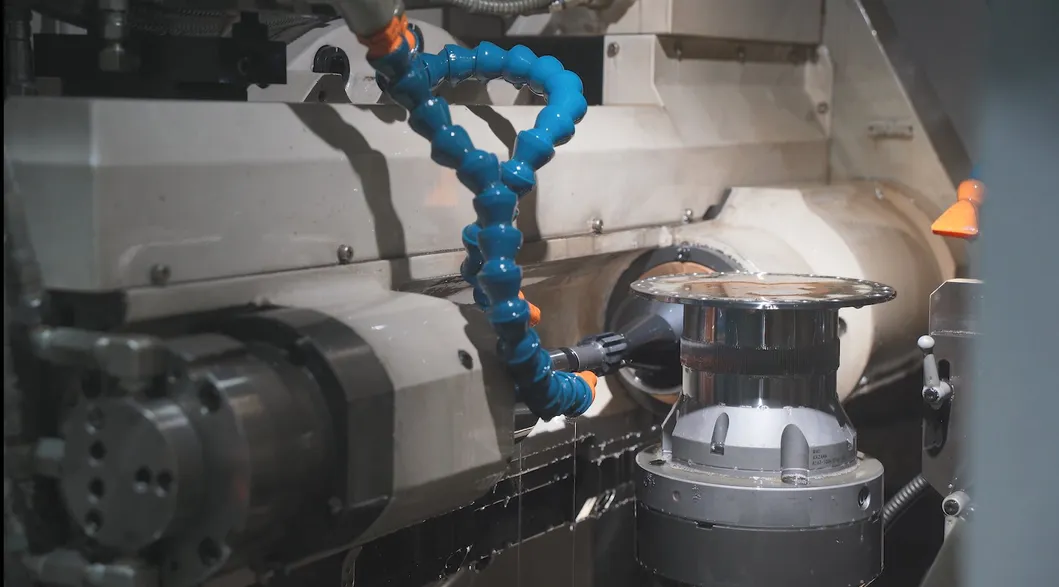

High Torque Precision Gear Motor

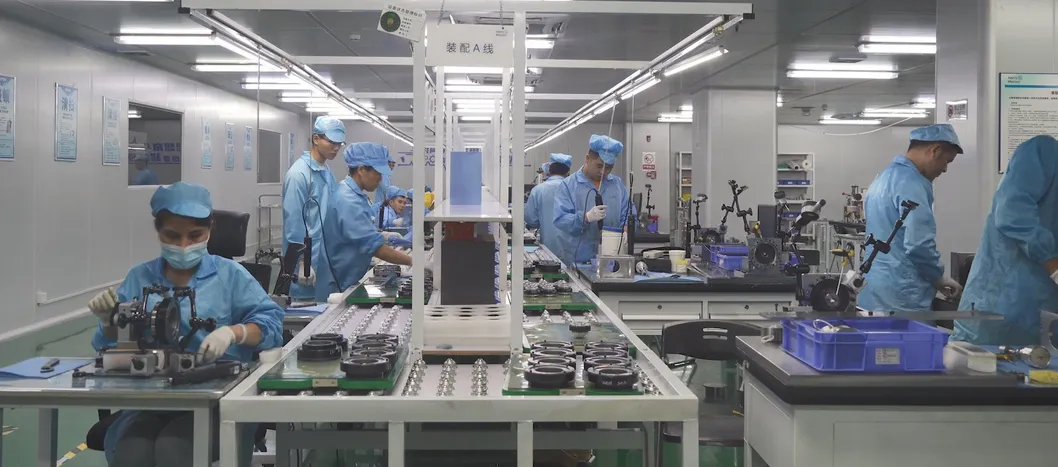

Precision Gear Transmission Component
Harmonic Reducer Technical View

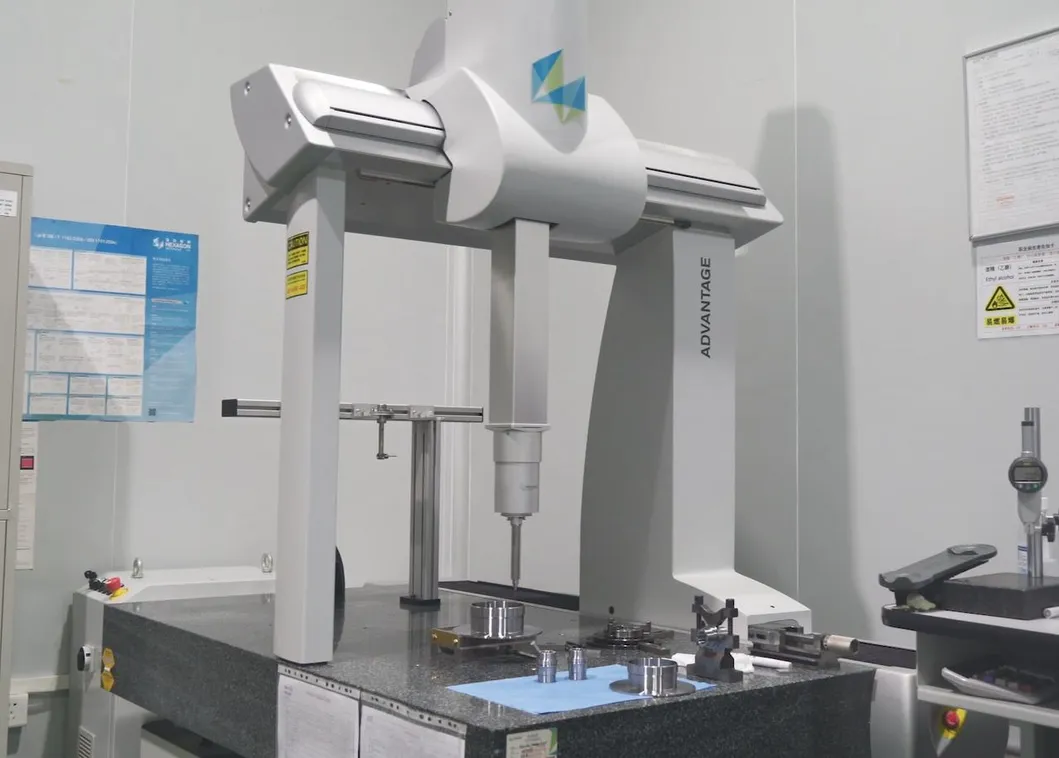

Industrial Robot Reducer Series

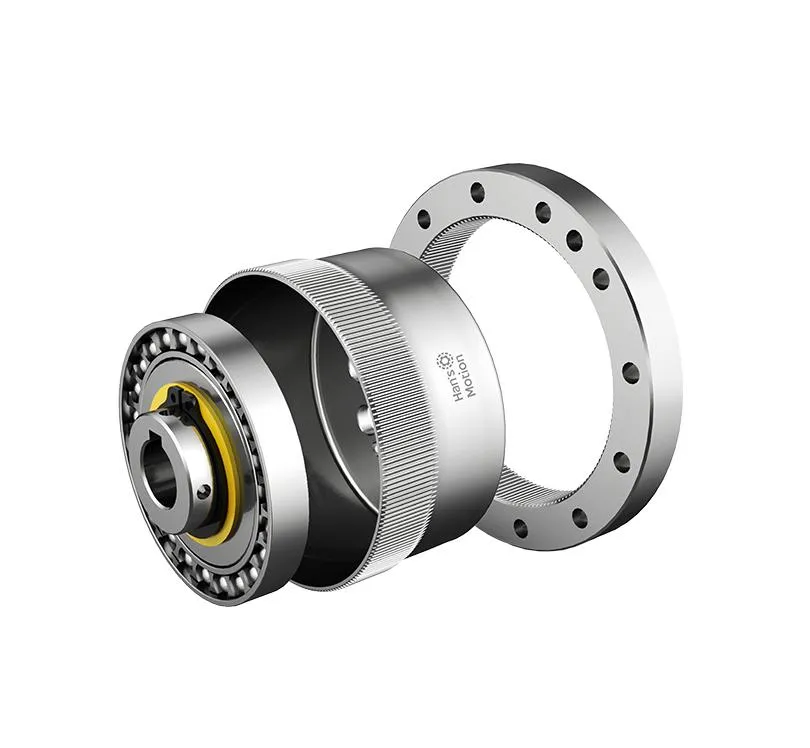

Detailed Reducer Construction
● Frequently Asked Questions
What is the main advantage of the HMCG-I Series Harmonic Reducer?
The HMCG-I series utilizes an ultra-thin design and harmonic gear transmission, which uses elastic deformation to achieve high precision and smooth movement in a compact form factor.
What industries are these precision reducers suitable for?
These units are ideal for industrial robots, aerospace applications, semiconductor manufacturing, AGVs, medical equipment, and automation machinery.
Does the reducer feature a hardened tooth surface?
Yes, the HMCG-I series is built with a hardened tooth surface to ensure durability, longevity, and reliable performance under high-torque conditions.
What are the available reduction ratios for this series?
Depending on the specific model (from size 14 to 40), the reduction ratios typically range from 50 to 120, catering to various speed and torque requirements.
What is the standard installation type for the HMCG-I series?
The standard design is a horizontal type, which allows for easy integration into existing robotic joints and automation systems.
What is the transmission accuracy of these units?
The series maintains high transmission accuracy with very low backlash, typically ranging from 10 to 20 arc seconds depending on the model size.
