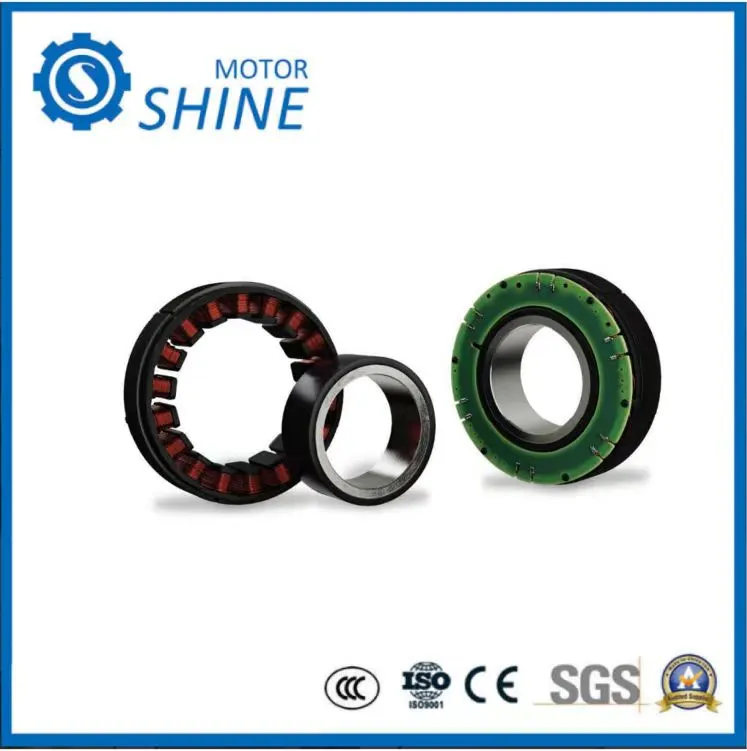

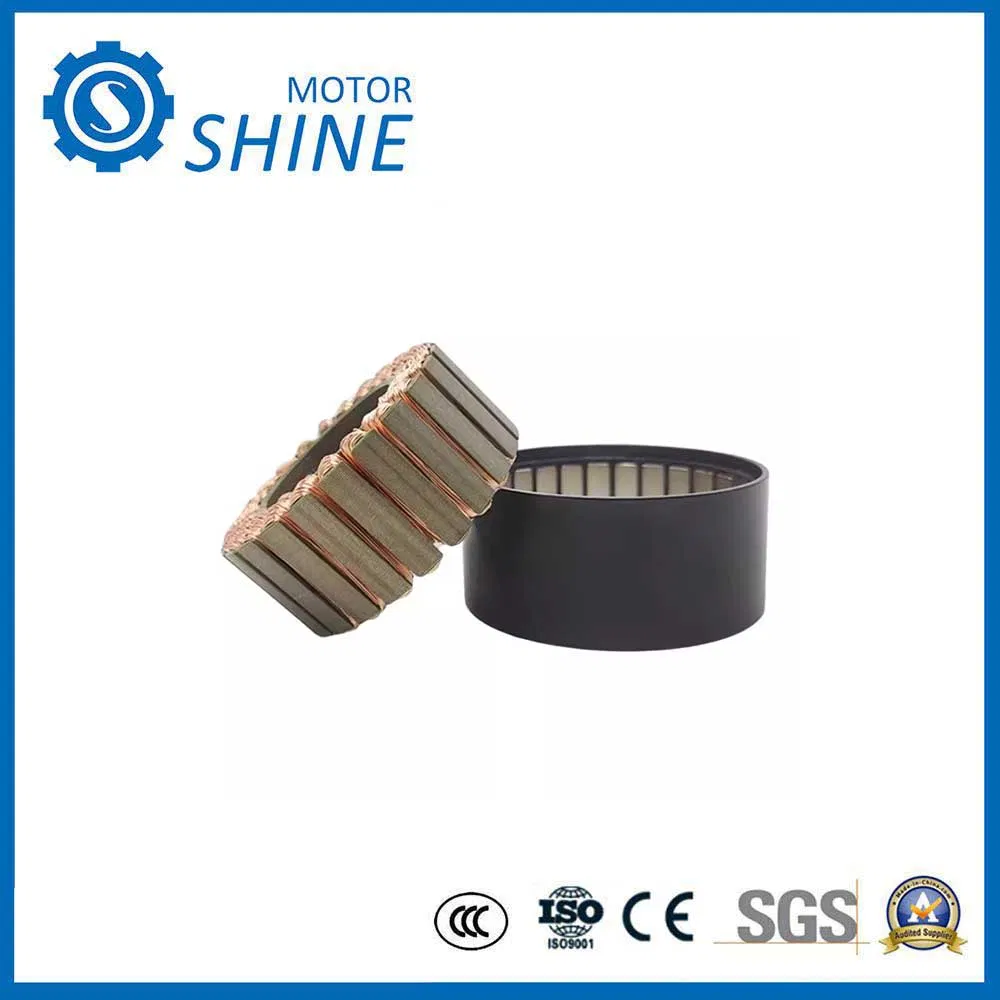

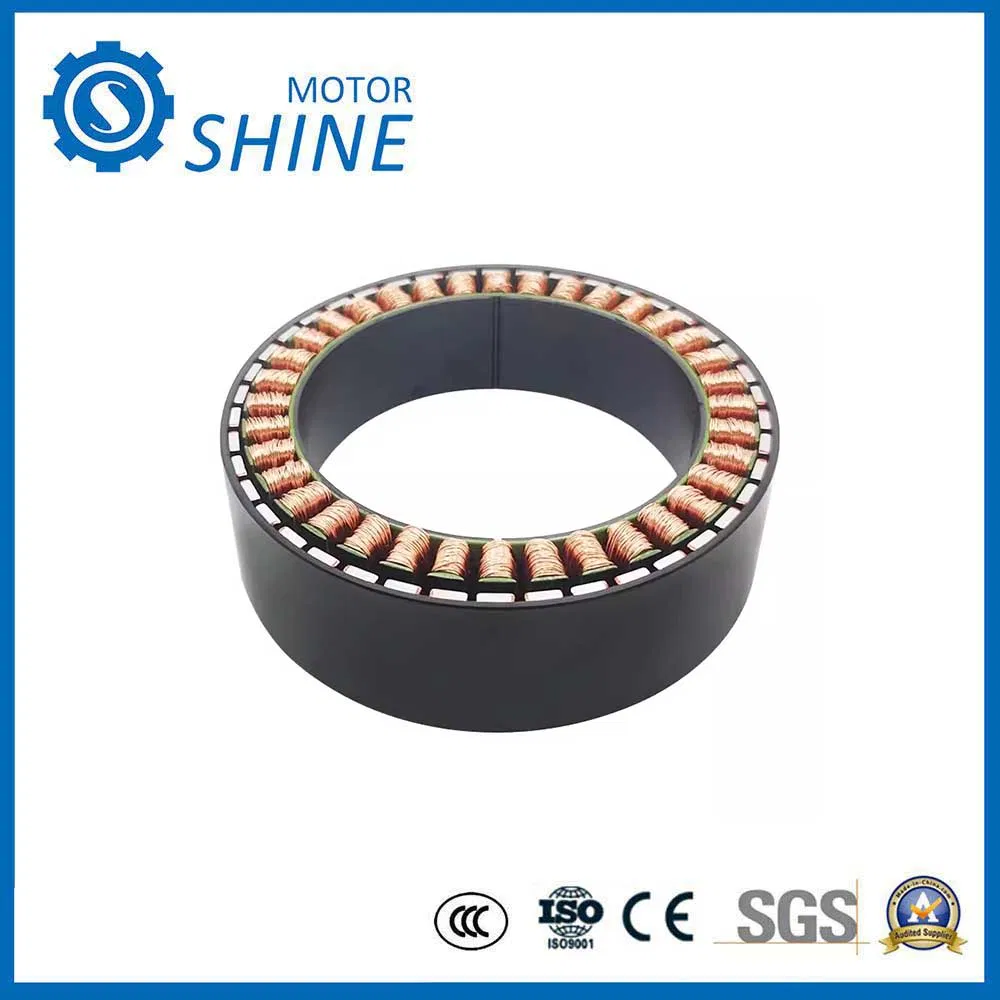

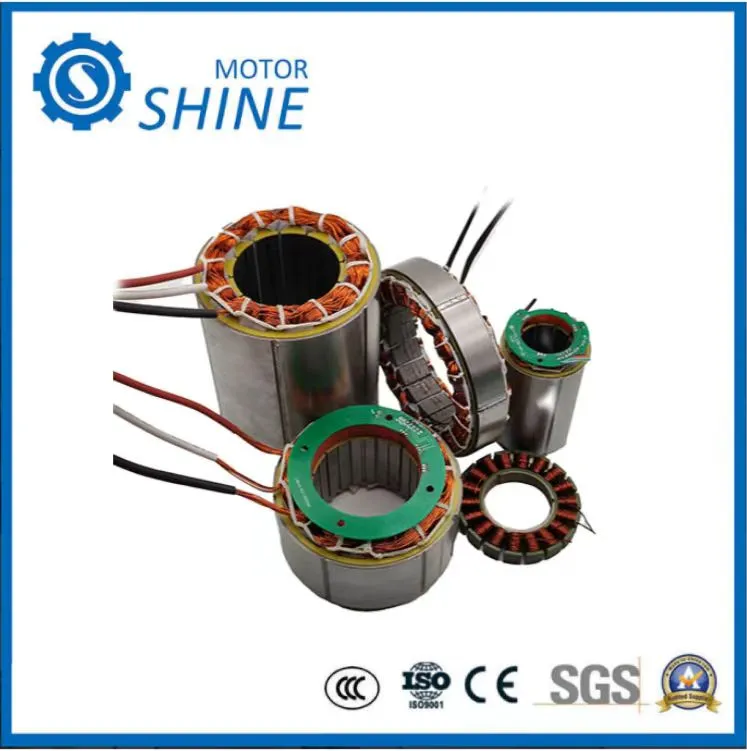

Frameless BLDC motors allow for maximum integration with your assembly. These frameless DC motors reduce waste and redundancy by eliminating the need for additional mounting supports, plates, or brackets. Our frameless brushless DC motor range is available in various sizes and rated torque options.

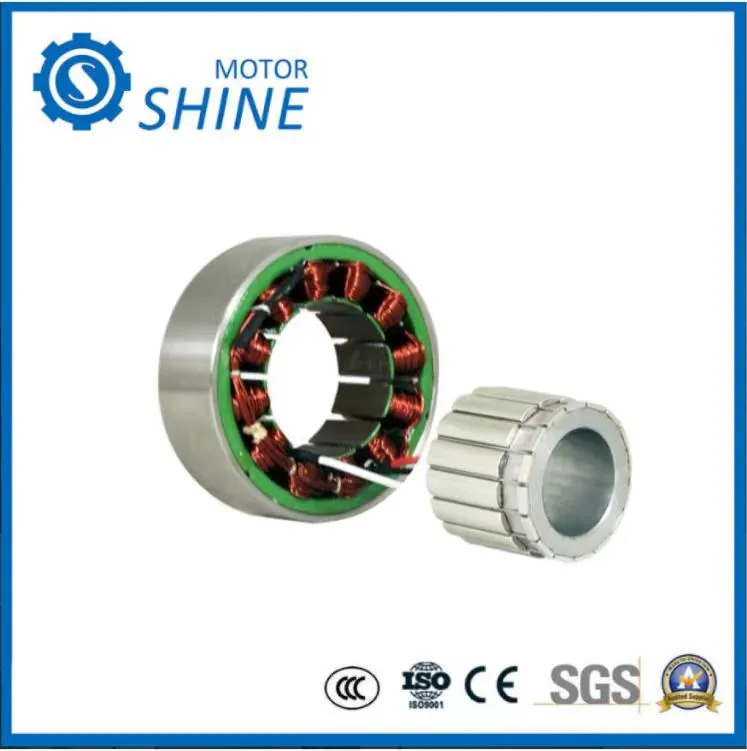

One of the latest additions to our range, the 50BLF series, provides exceptional power density. These motors are engineered for robotics and precision automation where space is at a premium and high performance is critical.

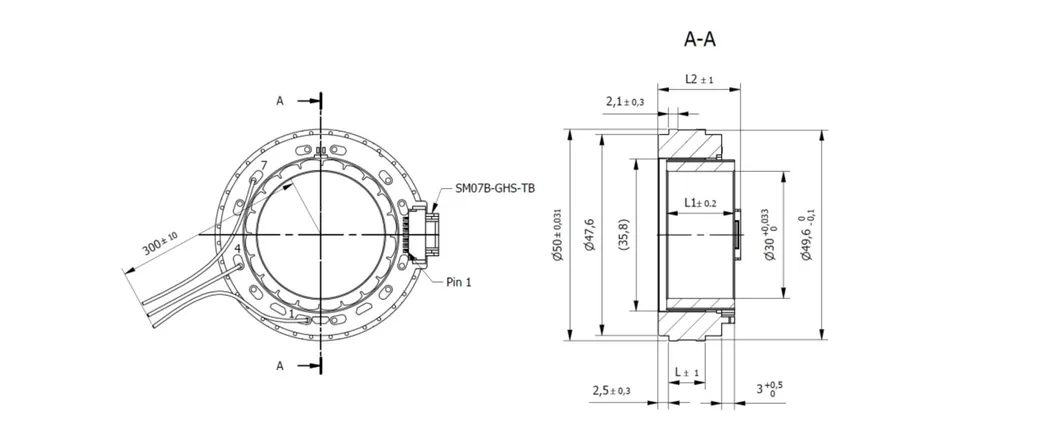

| Size | 50 mm | Length (L) | 20 mm |
| Rated Voltage | 48 Vdc | Rated Torque | 0.3 Nm |
| Rated Speed | 5000 rpm | n° of Pole | 20 |
| n° of Phase | 3 | Max. Peak Torque | 0.96 Nm |
| Torque Constant | 0.09 Nm/A | Rated Current | 3.6 A |
| Line to Line Resistance | 0.93 Ohm | Line to Line Inductance | 0.45 mH |
| Weight | 0.096 Kg | Operating Temperature | -20°C to +50°C |
| Size | 50 mm | Length (L) | 26 mm |
| Rated Voltage | 48 Vdc | Rated Torque | 0.5 Nm |
| Rated Speed | 3500 rpm | Max. Peak Torque | 1.5 Nm |
| Torque Constant | 0.12 Nm/A | Rated Current | 4.8 A |
| Rotor Inertia | 93 gcm² | Weight | 0.147 Kg |
| Insulation Class | Class B | Dielectric Strength | 1000 VAC |
