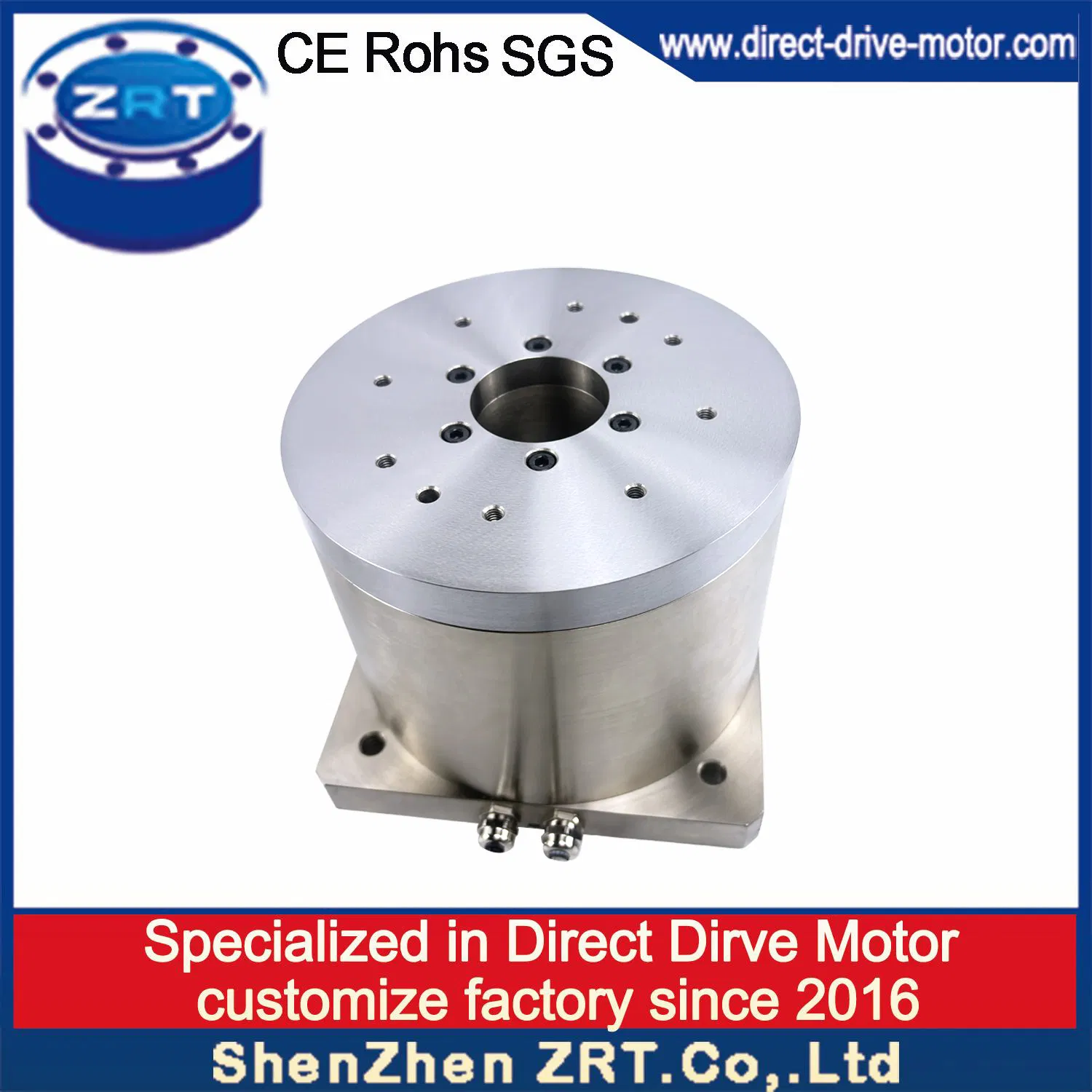

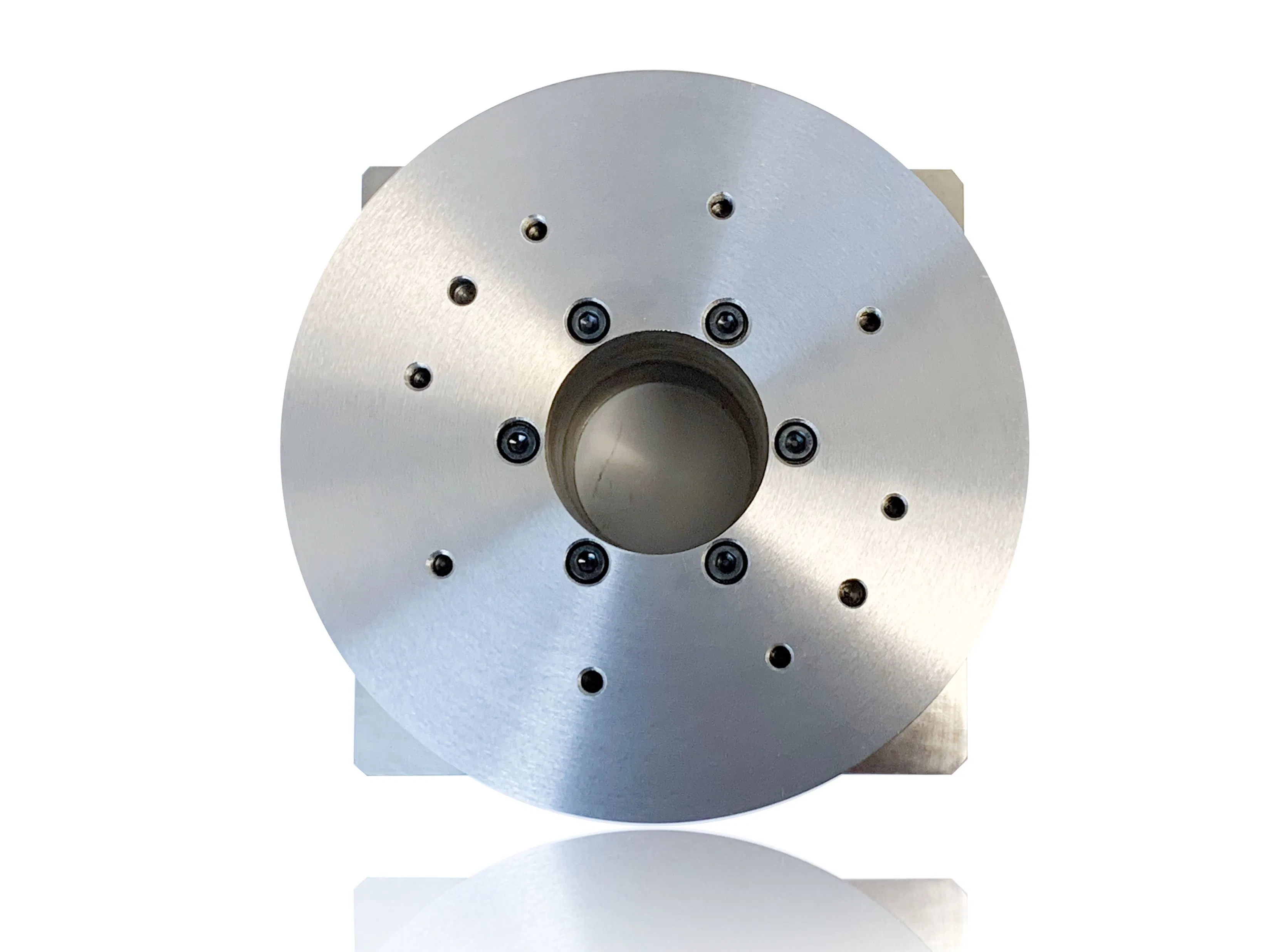

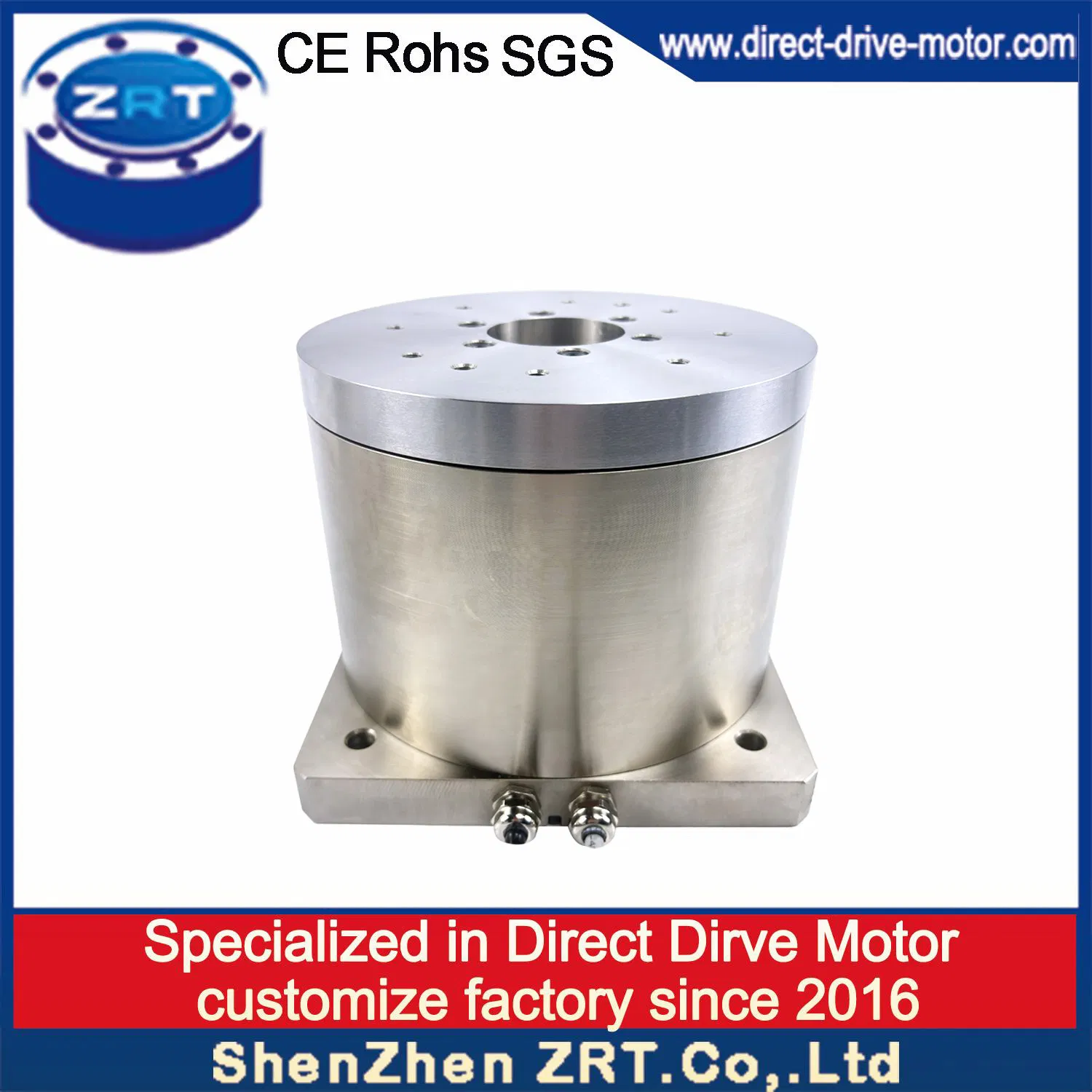

KPR Motor
1 / 5
The direct drive motor is a top-performing servo solution that requires no maintenance. This motor comes in two different structures - inner rotor and outer rotor - to cater to a variety of application needs. With diameters ranging from 60mm to 500mm and continuous torque from 10N.m to 6000N.m, there are over a dozen sizes available to choose from. The motor offers high precision, rigidity, and low axial radial runout, with absolute accuracy up to ± 6arc-sec and repeated positioning up to ± 1arc-sec.

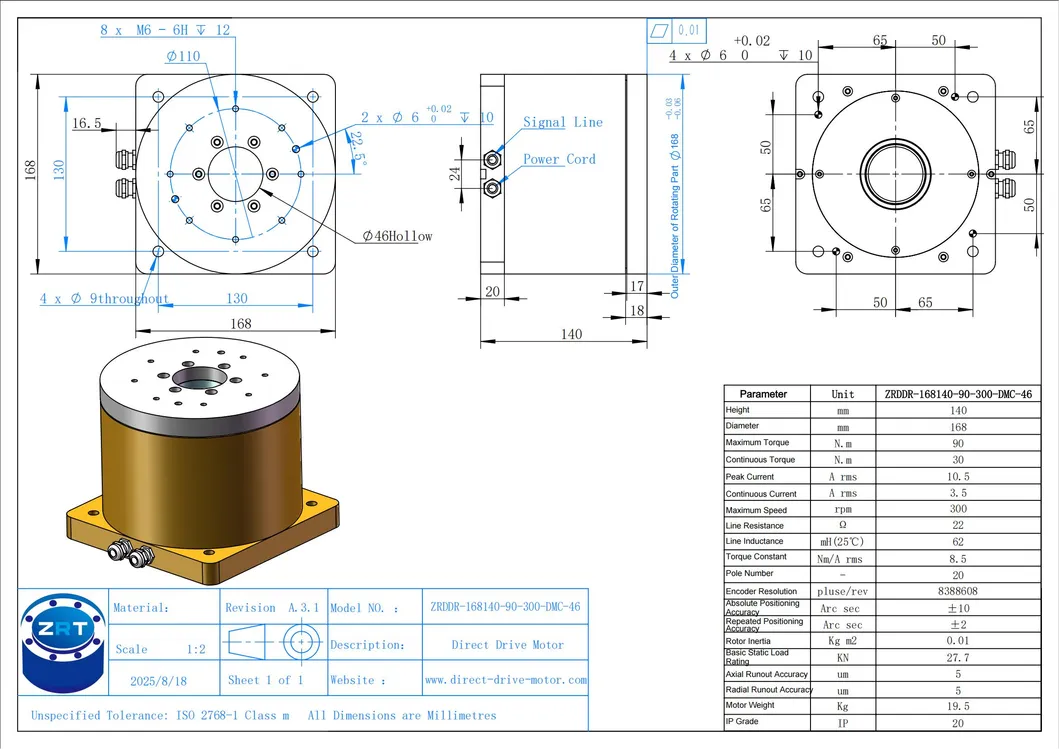

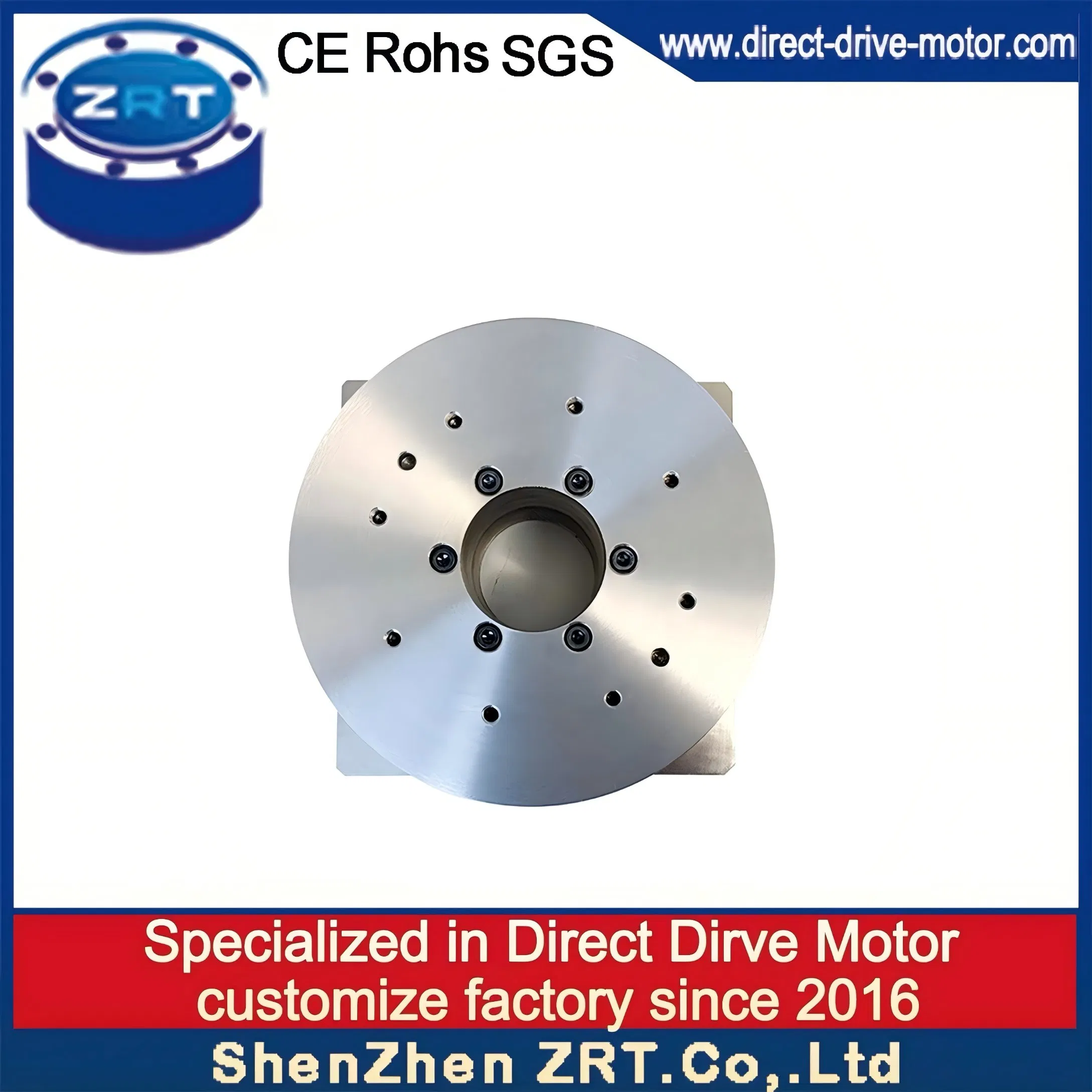

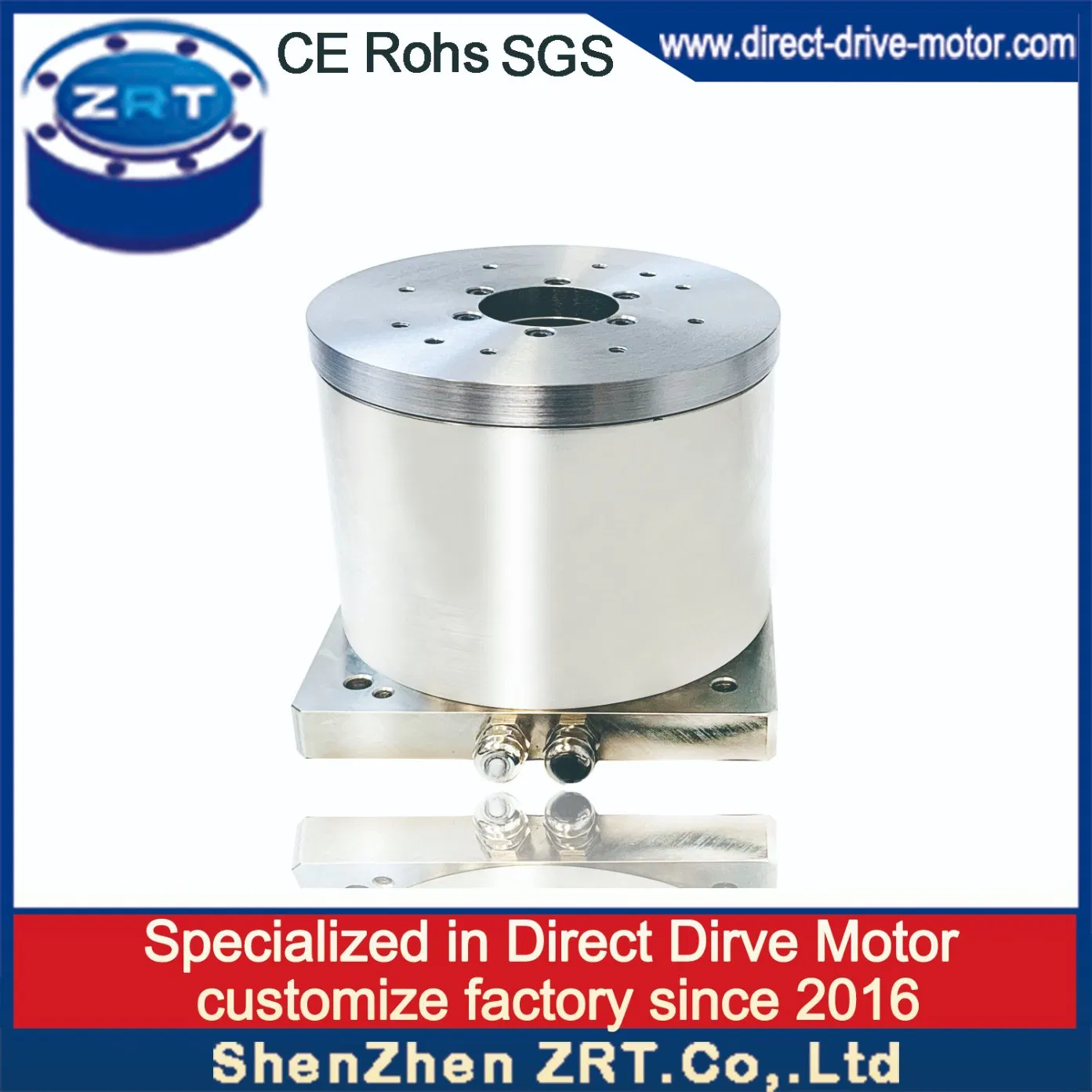

| Parameters | Unit | ZRDDR-168140-90-300-DMC-46 |
|---|---|---|
| Height | mm | 140 |
| Diameter | mm | 168 |
| Maximum output torque | N.m | 90 |
| Continuous output torque | N.m | 30 |
| Peak current | A rms | 10.5 |
| Continuous current | A rms | 3.5 |
| Maximum speed | rpm | 300 |
| Line resistance | Ω | 22 |
| The line inductance | mH(25°C) | 62 |
| Torque constant | Nm/A rms | 8.5 |
| Pole Number | - | 20 |
| Encoder resolution | pluse/rev | 8388608 |
| Absolute positioning accuracy | Arc sec | ±10 |
| Repeated positioning accuracy | Arc sec | ±2 |
| Motor weight | Kg | 19.5 |
| IP Grade | IP | 20 |

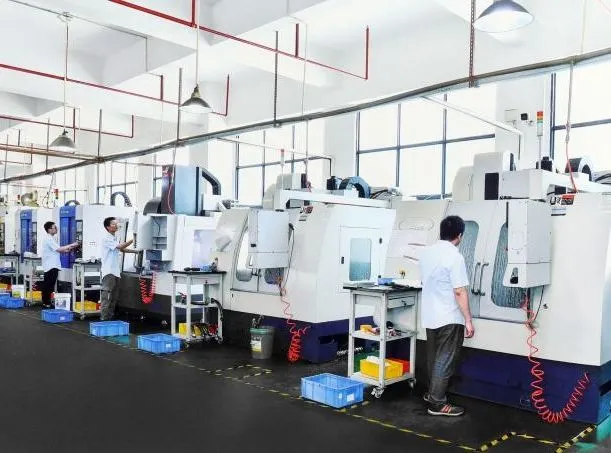

Workpiece Production

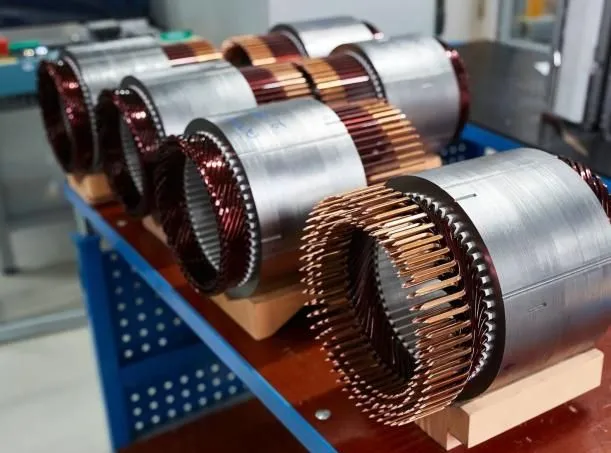

Stator Production
Our torque motors are widely utilized in semiconductor production, optical media, precision CNC machine tools, car assembly and testing, liquid crystal manufacturing, lithium battery manufacturing, high-end printing equipment, and medical devices.
