Product Description

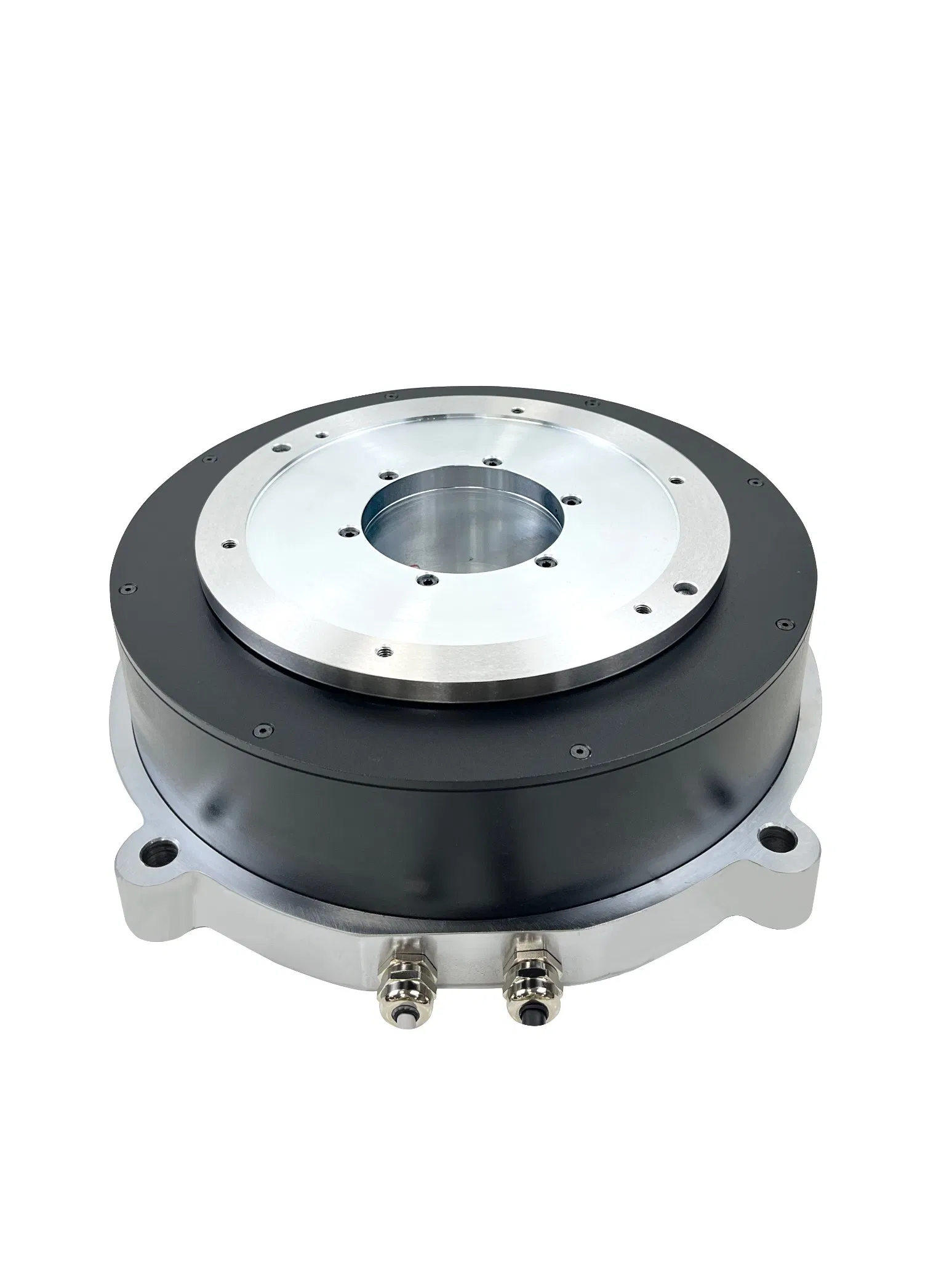

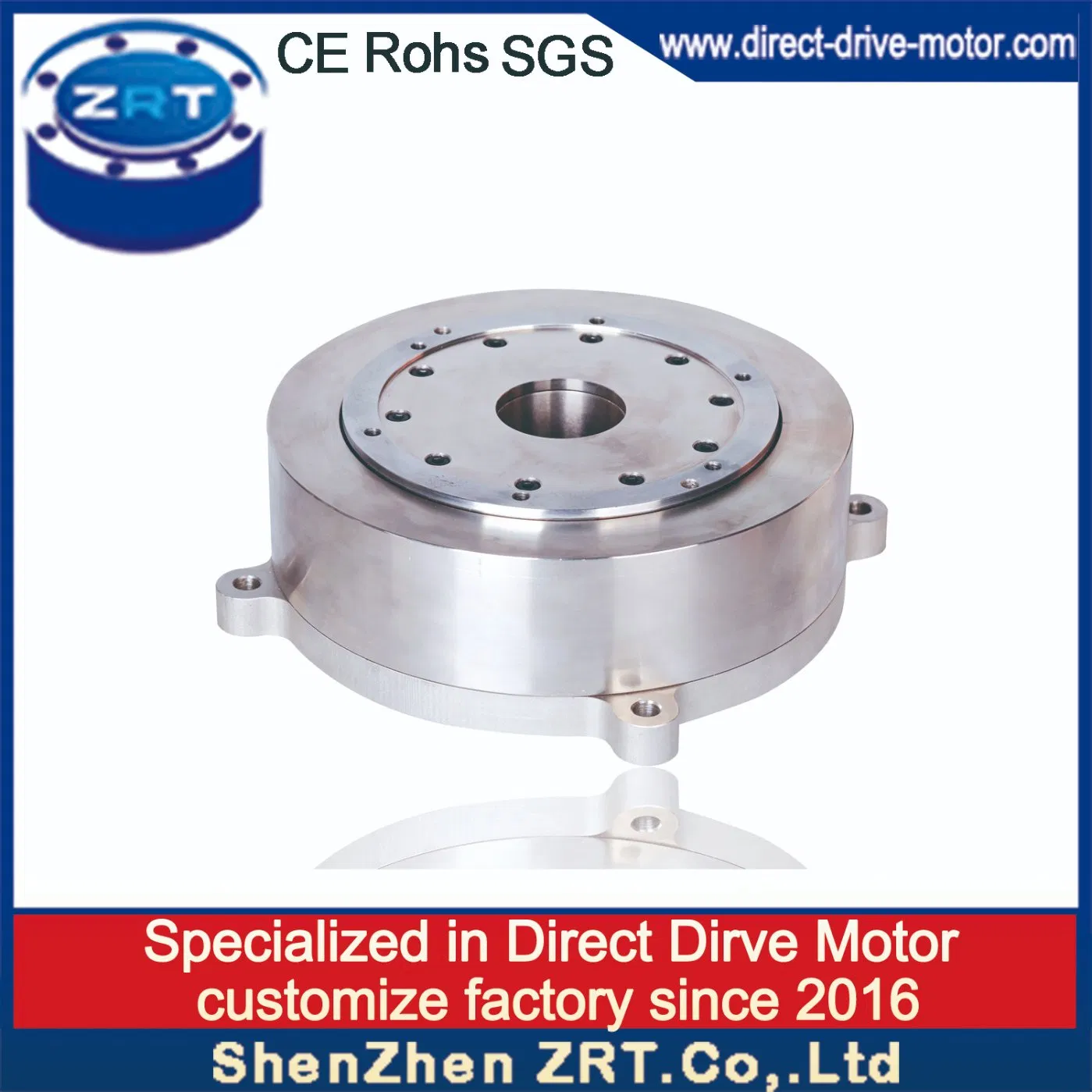

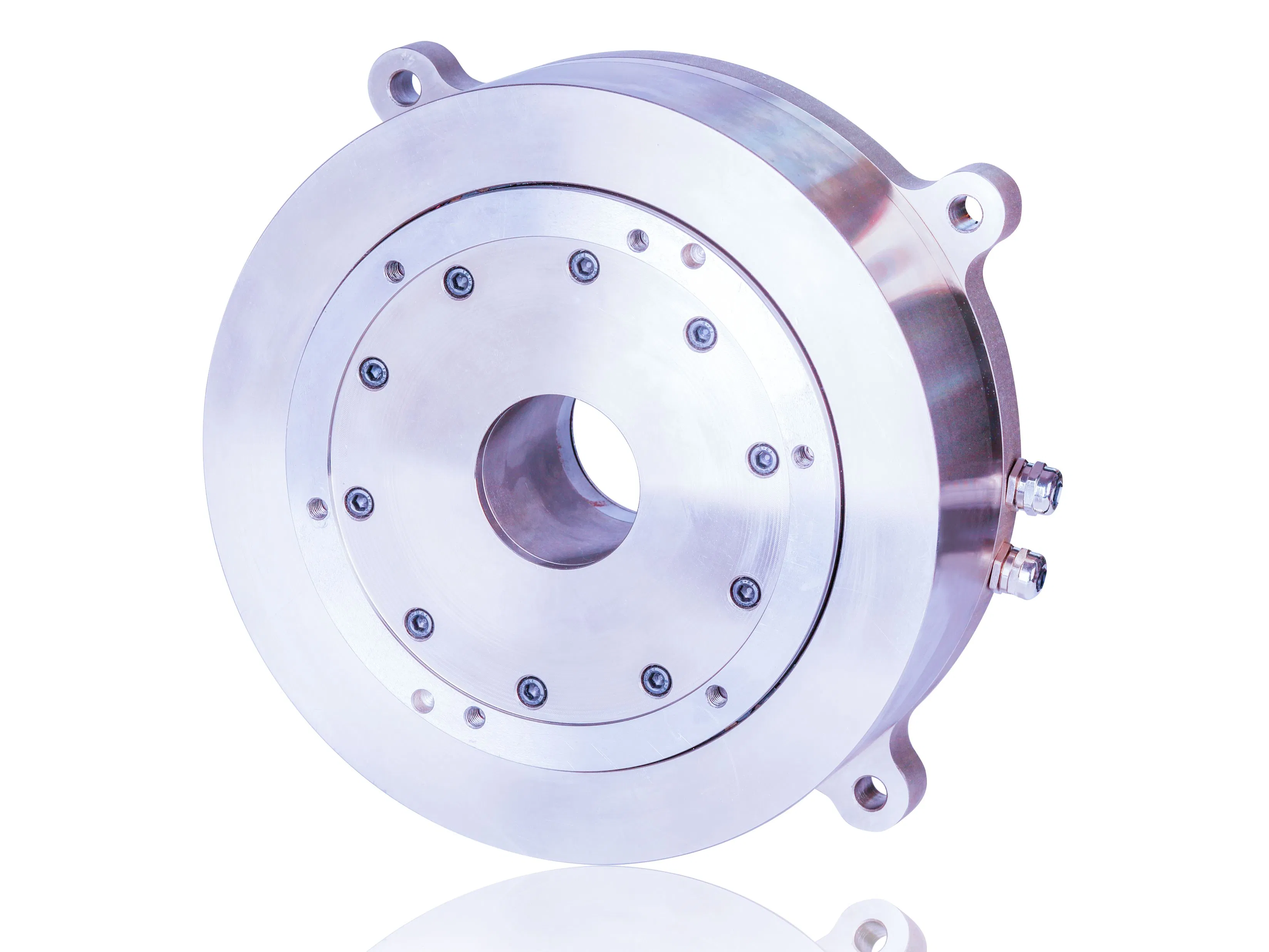

Direct drive rotary motors, also known as torque motors, are specifically engineered to power loads directly without the use of any transmission components like gears or belts. These motors utilize powerful permanent magnets to produce significant torque. A wide range of DDR options and custom motors are available to meet specific requirements. All direct drive rotary motors come with optical encoders, ensuring precise performance in even the most demanding applications with enhanced resolution through interpolation.
3

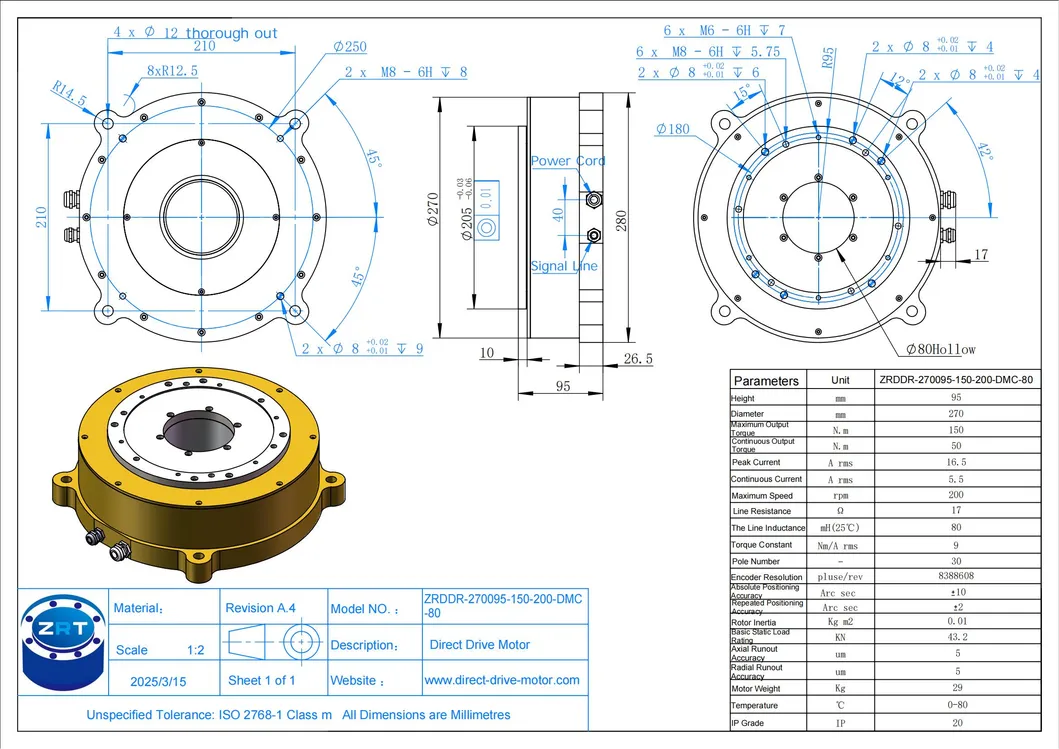

Technical Parameters
| Parameters |
Unit |
ZRDDR-270095-150-200-DMC-80 |
| Height | mm | 95 |
| Diameter | mm | 270 |
| Maximum output torque | N.m | 150 |
| Continuous output torque | N.m | 50 |
| Peak current | A rms | 16.5 |
| Continuous current | A rms | 5.5 |
| Maximum speed | rpm | 200 |
| Line resistance | Ω | 17 |
| The line inductance | mH(25°C) | 80 |
| Torque constant | Nm/A rms | 9 |
| Pole Number | - | 30 |
| Encoder resolution | pluse/rev | 8388608 |
| Absolute positioning accuracy | Arc sec | ±10 |
| Repeated positioning accuracy | Arc sec | ±2 |
| Rotor inertia | Kg m2 | 0.01 |
| Basic static load rating | KN | 43.2 |
| Axial runout accuracy | um | 5 |
| Radial runout accuracy | um | 5 |
| Motor weight | Kg | 29 |
| Temperature | ºC | 0-80 |
| IP Grade | IP | 20 |
4
Certification and Quality
5
Our Advantages
- Continuous torque 5~1500 N-m, widely used
- Up to 6000RPM for most high-torque, low-speed applications
- Power up to 3000W meets the high power requirements
- High resolution sinusoidal encoder feedback provides extremely high accuracy below 2 arcsec
- Direct load connection eliminates maintenance of gearbox, belt or pulley
- Zero back backlash and load compliance for improved system performance
- Single and double bearing designs reduce static friction
- Protection class IP65 and IP67 sealed, dustproof
- CE and ROHS certified
- Built-in temperature controller, overheat protection
- Coupling components are eliminated and the machine size is reduced
- Full customization support based on specific project needs
6
Manufacturing Excellence

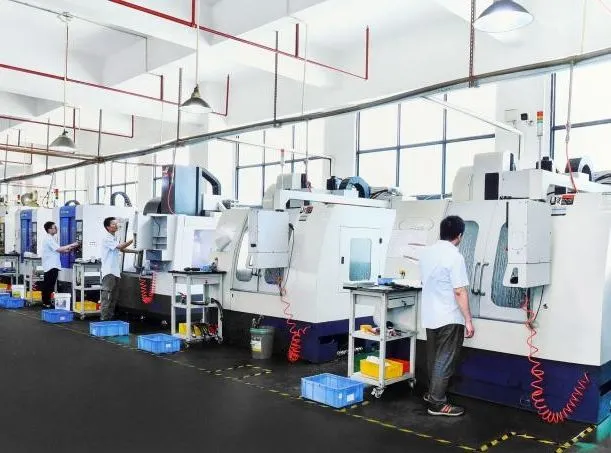

Workpiece production

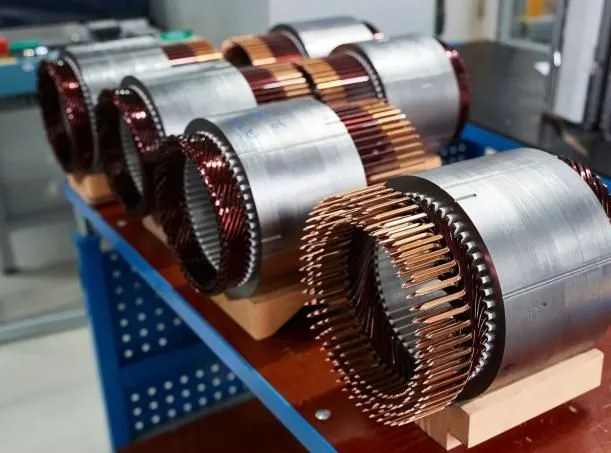

Stator production
R&D Design
Professional Team
Incoming Quality Control (IQC)

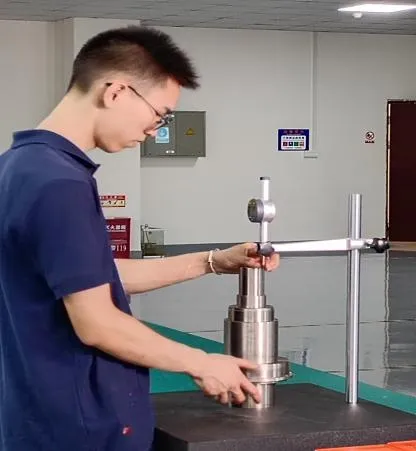

Measure of Precision

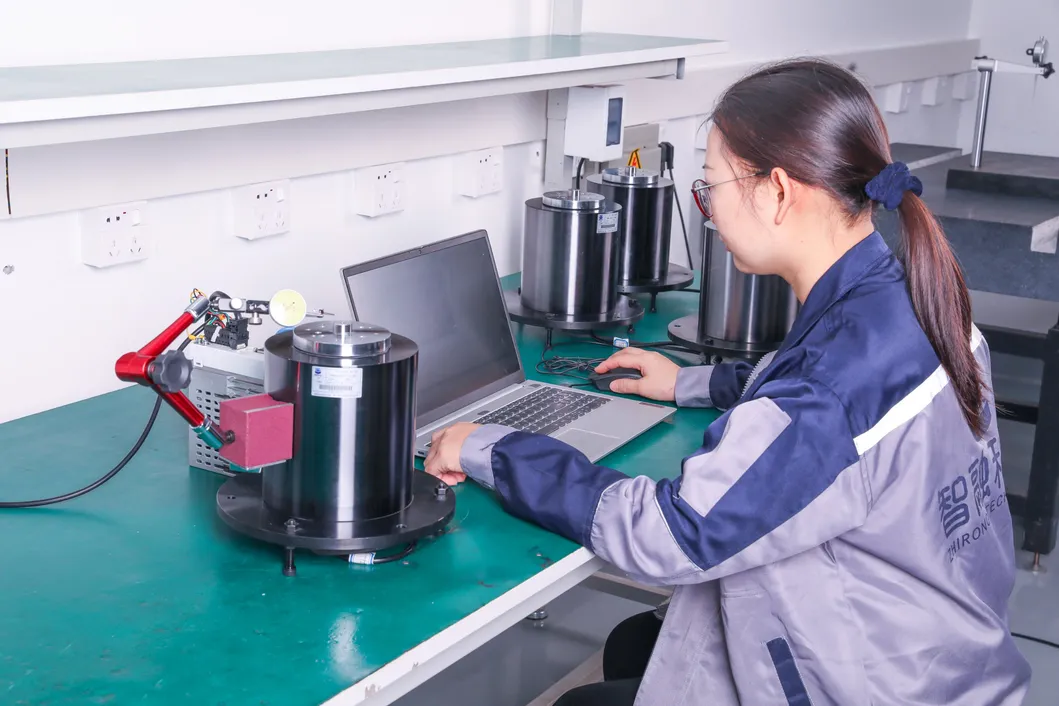

Whole machine parameter inspection (QA)
Laser interferometer inspection
8
Product Applications
Torque motor products are widely used in micro-precision high-end manufacturing fields, including semiconductor production equipment, optical media, optical alignment, position detection, precision CNC machine tools, car assembly/testing, liquid crystal manufacturing equipment, screen plying-up devices, lithium battery manufacturing equipment, high-end printing equipment, and medical equipment.
9
Frequently Asked Questions
Q: Do you offer Direct Drive Rotary motor custom services?
A: Yes, we provide DDR motor customized services to ensure the technical specifications meet your exact application requirements.
Q: Do you have matching drives available?
A: Yes, we can offer compatible drives or design the motors to work specifically with your preferred driver brand.
Q: What certificates do your products have?
A: Our products have passed ISO9001, are audited by SGC, and have obtained CE/ROHS Certification and 3A Credit certification.
Q: What is the warranty period and after-sale support?
A: We offer a 24-month warranty. Technical support is permanent, and replacement parts can be provided at any time.
Q: What is the typical lead time for orders?
| Quantity (sets) | 1 - 10 | 11 - 50 | 51 - 100 | > 100 |
| Lead time (days) | 20 | 25 | 30 | Negotiated |
Q: How are the motors packaged for shipment?
A: Each motor is packed in a high-quality carton box. If required, we can also use plywood cases for additional protection during transit.
KPR Motor
