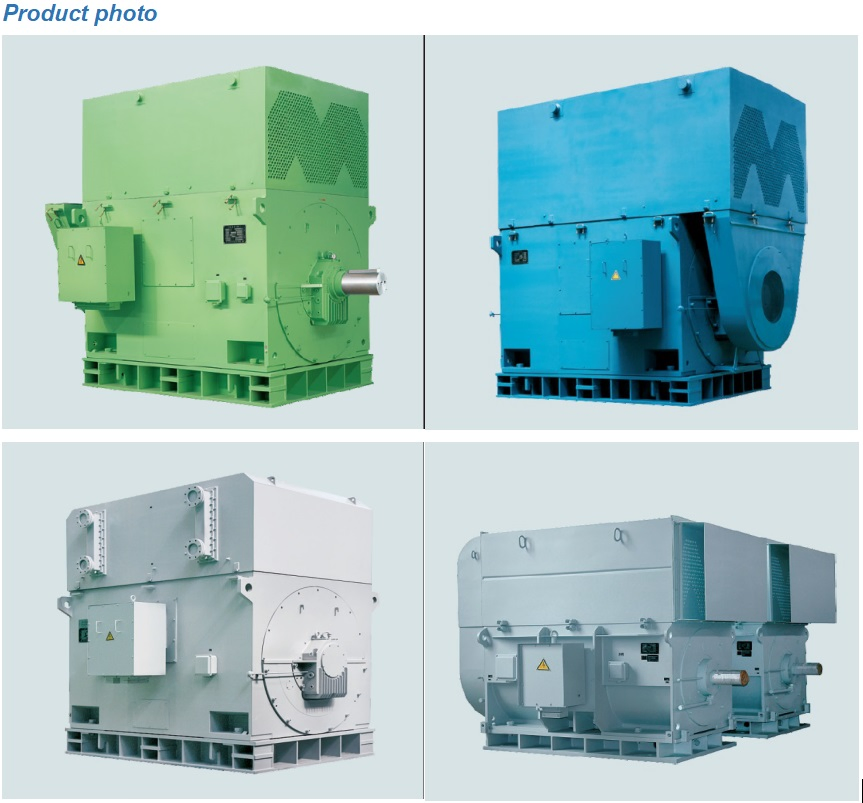

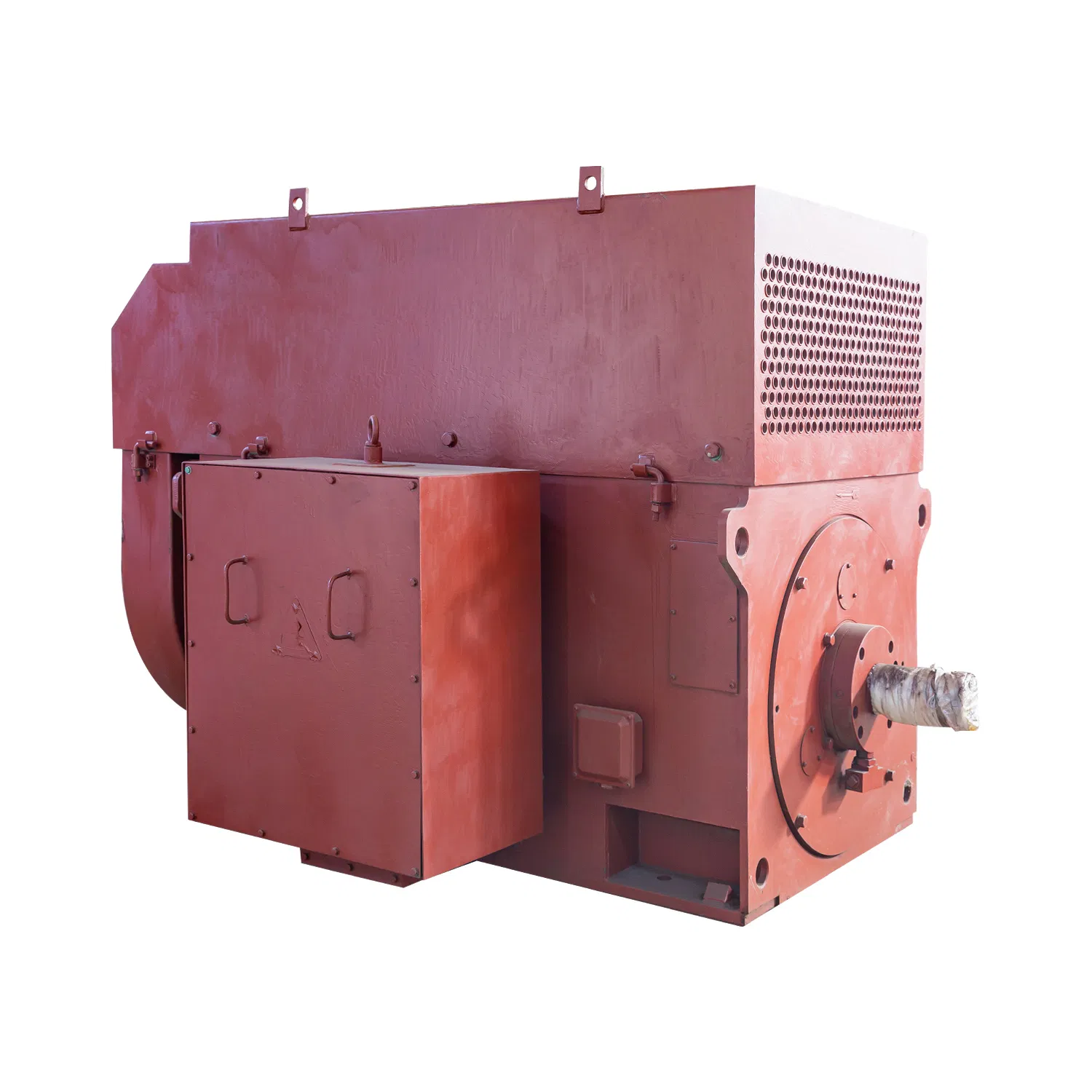

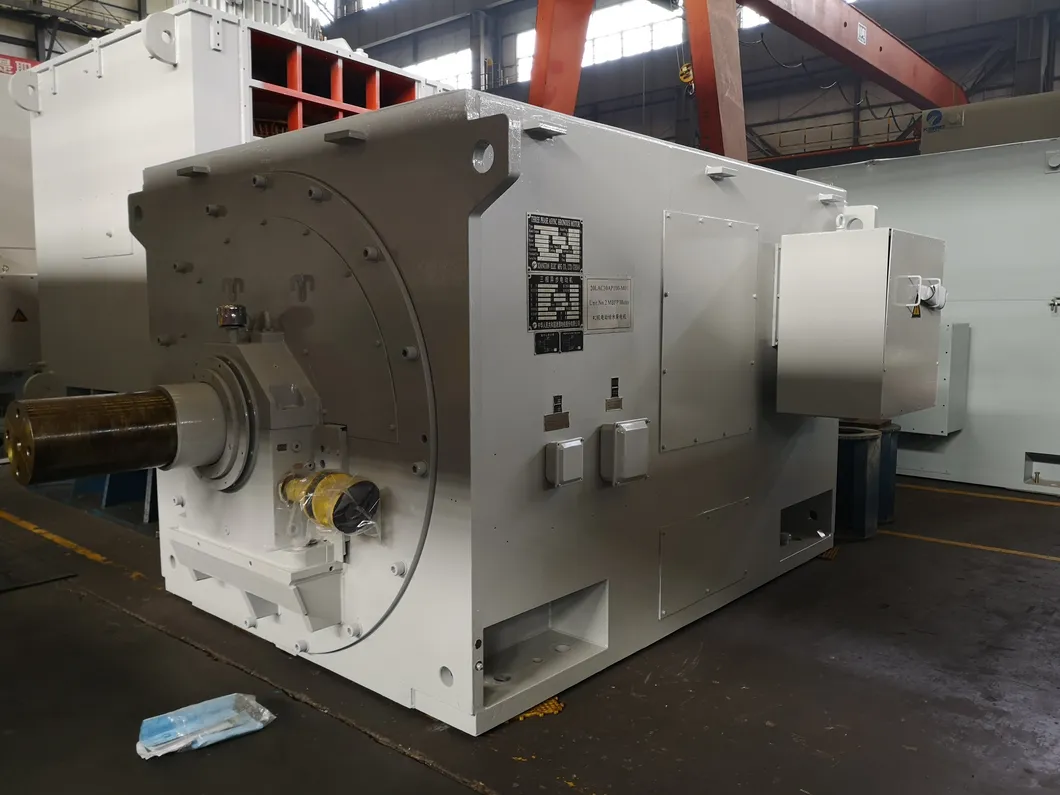

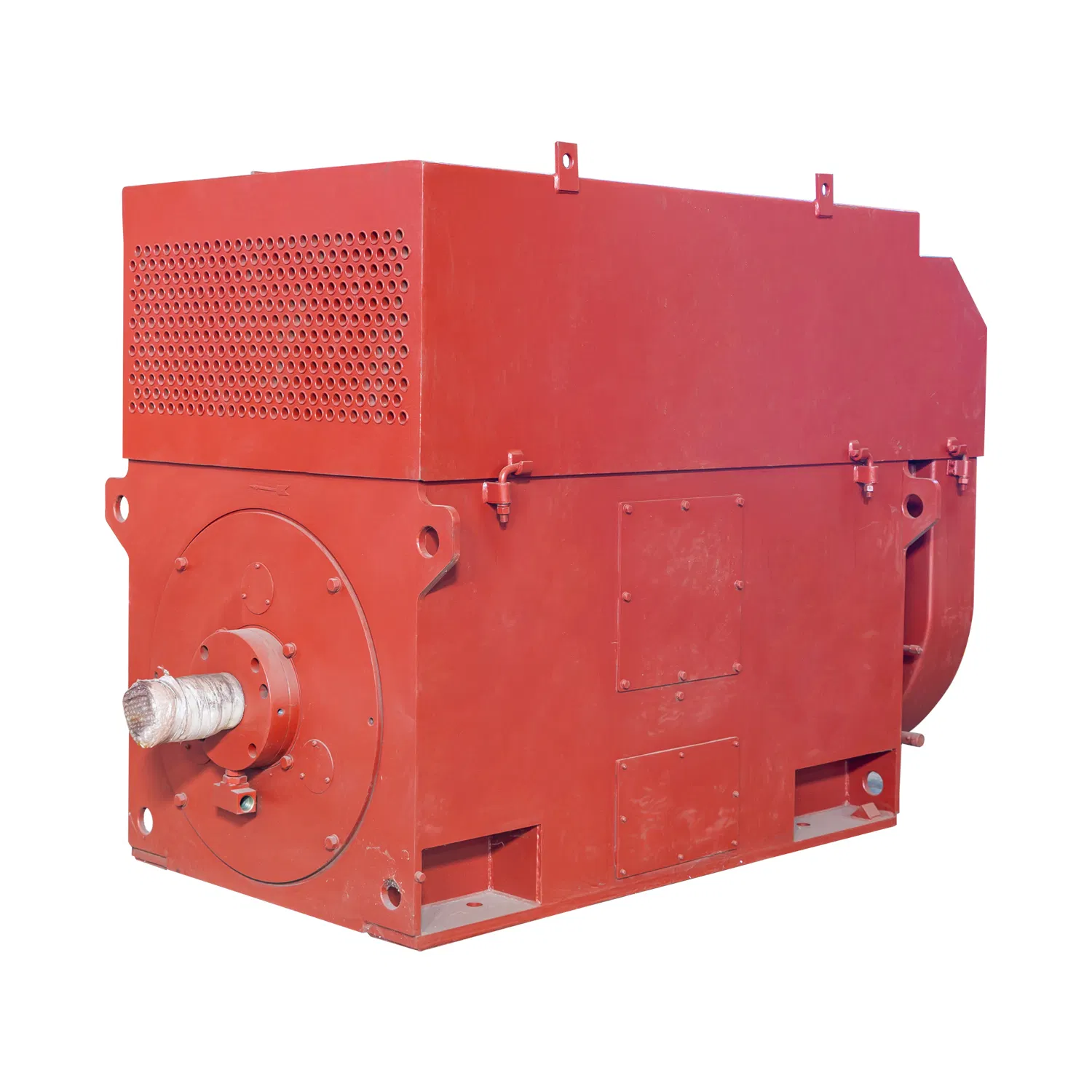

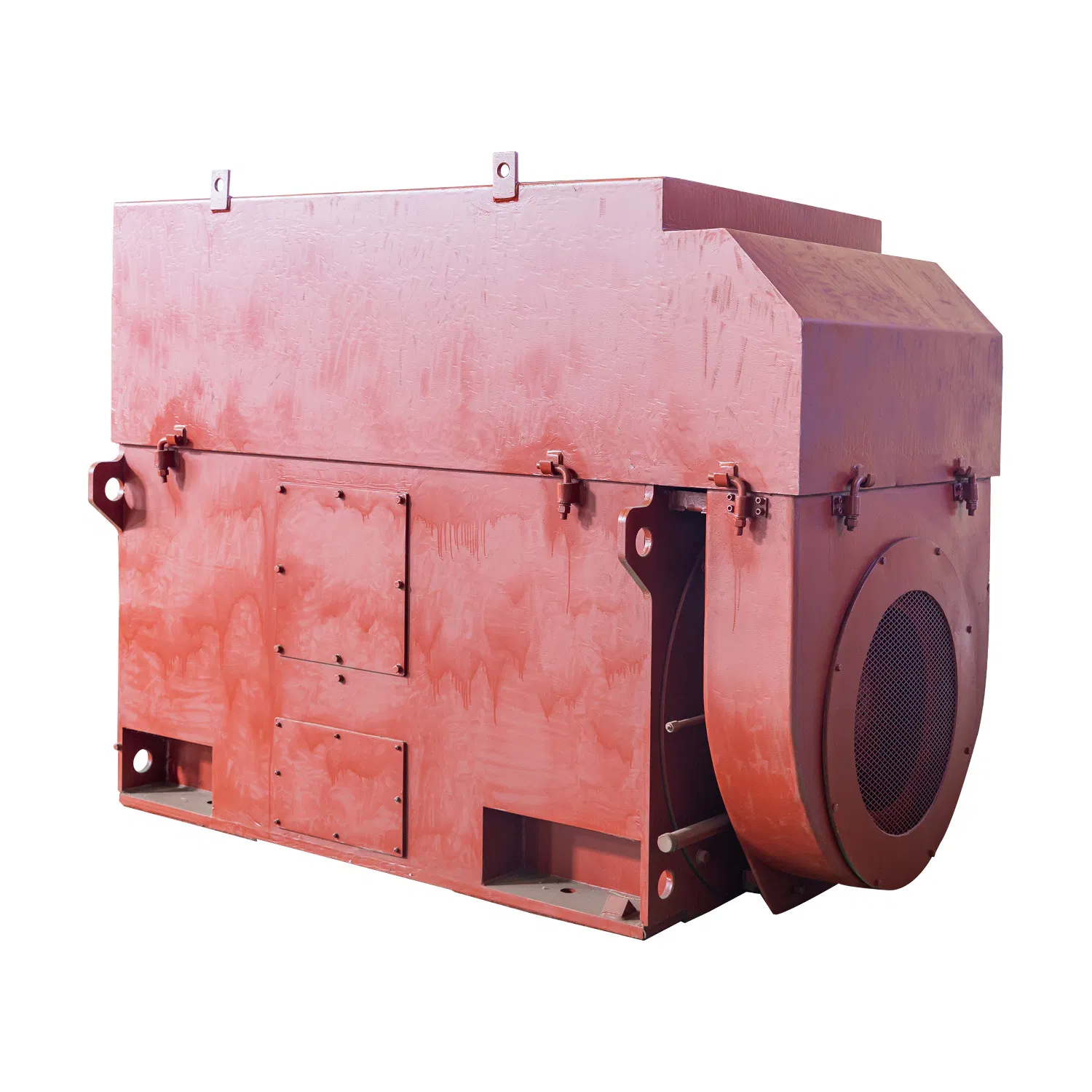

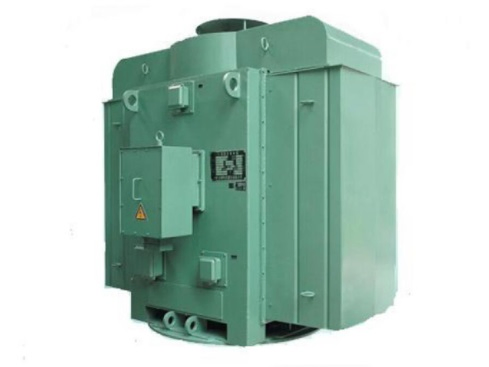

Y Asynchronous Synchronous AC Electric Motor
This series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
🚀 Performance & Efficiency
Efficiency level: High efficiency energy-saving
Rated output: 150~8000 kW
Duty Cycle: S1 (Continuous)
⚡ Electrical Parameters
Rated voltage: 3000V - 10000V options
Frequency: 50Hz / 60Hz available
Poles: 2P to 18P
🛡️ Construction & Protection
Frame Material: Welded steel plate
Protection Class: IP44, IP54, IP55
Insulation Class: F (155ºC)
Frequently Asked Questions
What are the primary applications for the Y series AC motors?
These motors are primarily designed as prime movers for large-scale thermal power equipment, including various fans, exhaust fans, induced draft fans, and blowers.
What voltage options are available for these electric motors?
The Y series supports a wide range of rated voltages, including 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, and 10000V, catering to different industrial power requirements.
What cooling method does the Y series use?

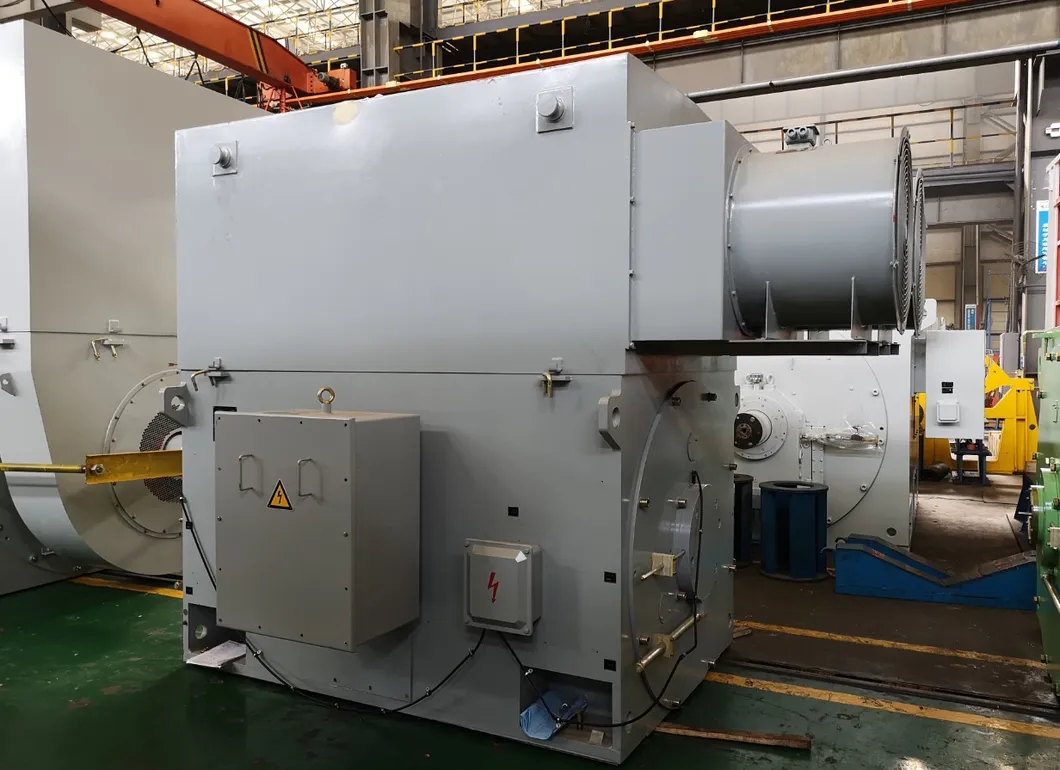

It utilizes the IC611 cooling method, which features a self-ventilated system with an air-to-air heat exchanger mounted on top of the motor for efficient thermal management.
Is the motor suitable for harsh outdoor environments?
Yes, with protection ratings of IP44, IP54, or IP55 and a fabricated welded steel plate frame, the motor is built to provide reliable protection against dust and water ingress.
What is the insulation class and temperature rising standard?
The motors are designed with Insulation Class F (up to 155ºC) and follow a temperature rising standard of ΔT=80°K, ensuring long-term durability under continuous S1 duty.
Can the motor color and specifications be customized?
Yes, the color can be customized according to client requirements, and specifications are adjusted based on the specific type and application needs.
