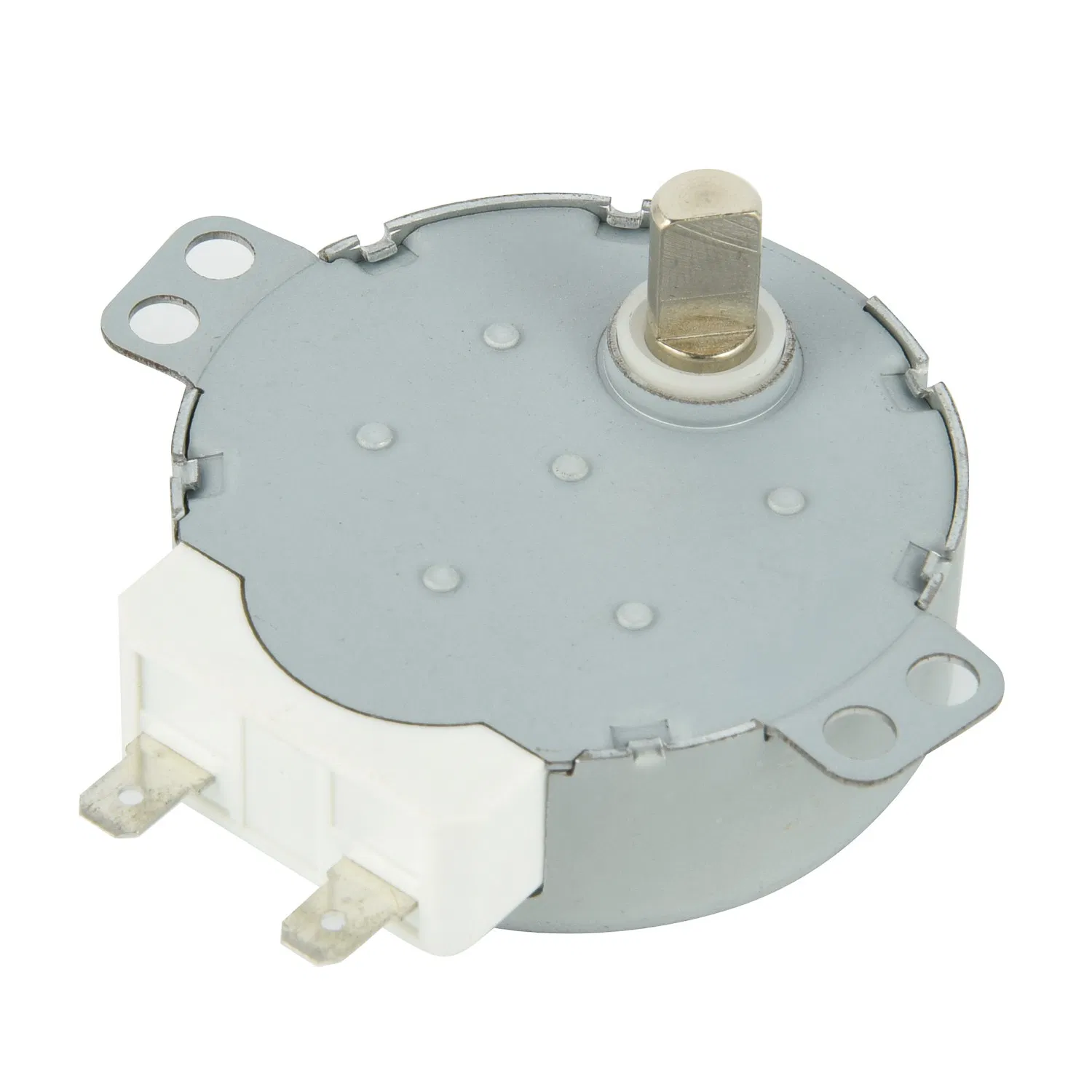

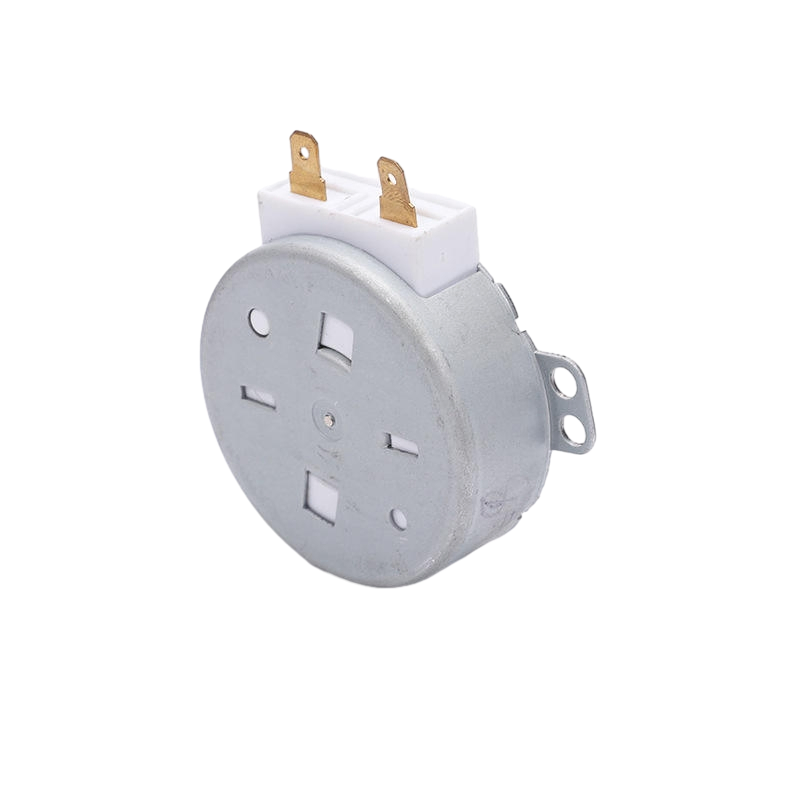

2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
1 / 5
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven
2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven

2.5-6rpm Speed Electronic Starter Efficient Synchronous Motor for Microwave Oven

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
49TYZ
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving, Control
Structure
Rotating Pole Type (Armature Fixed)
Number of Poles
4
Certification
CCC, ISO9001, VDE, RoHS
Rotation Speed
2.5-6rpm
Voltage
AC12/24V, AC110V/220V
Rated Power
4W
Weight
70g
HS Code
8501109990

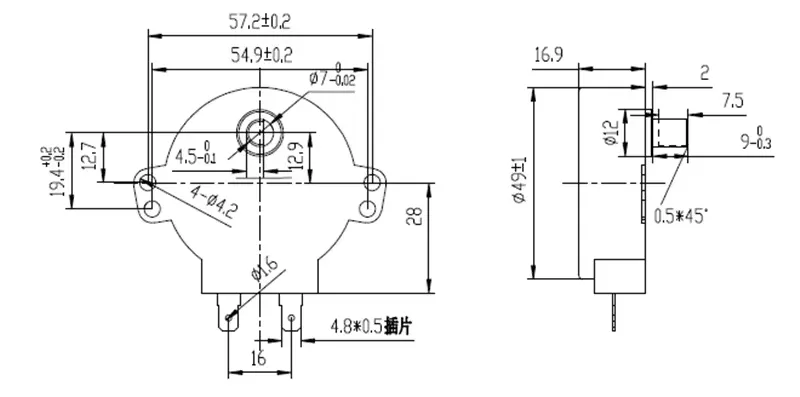

Product Drawing
Product Drawing
Product Overview

Integrated by a permanent magnet and reduction gearbox, this Synchronous motor features:

  • Slim Design and Stable Performance
  • Low Power Consumption and Constant Rotation Speed
  • Low Noise and High Torque
  • Small Size and Light Weight
  • No Drive Circuit required and easy to use

At rated frequency, the rotation speed is not affected by voltage. If overload or stall when loaded, the motor coil will not burn. Three rotation direction options: CW, CCW and CW/CCW.

Note: If CW/CCW is selected and load exceeds rated torque, direction automatically reverses. If CW or CCW is selected, the direction remains fixed.

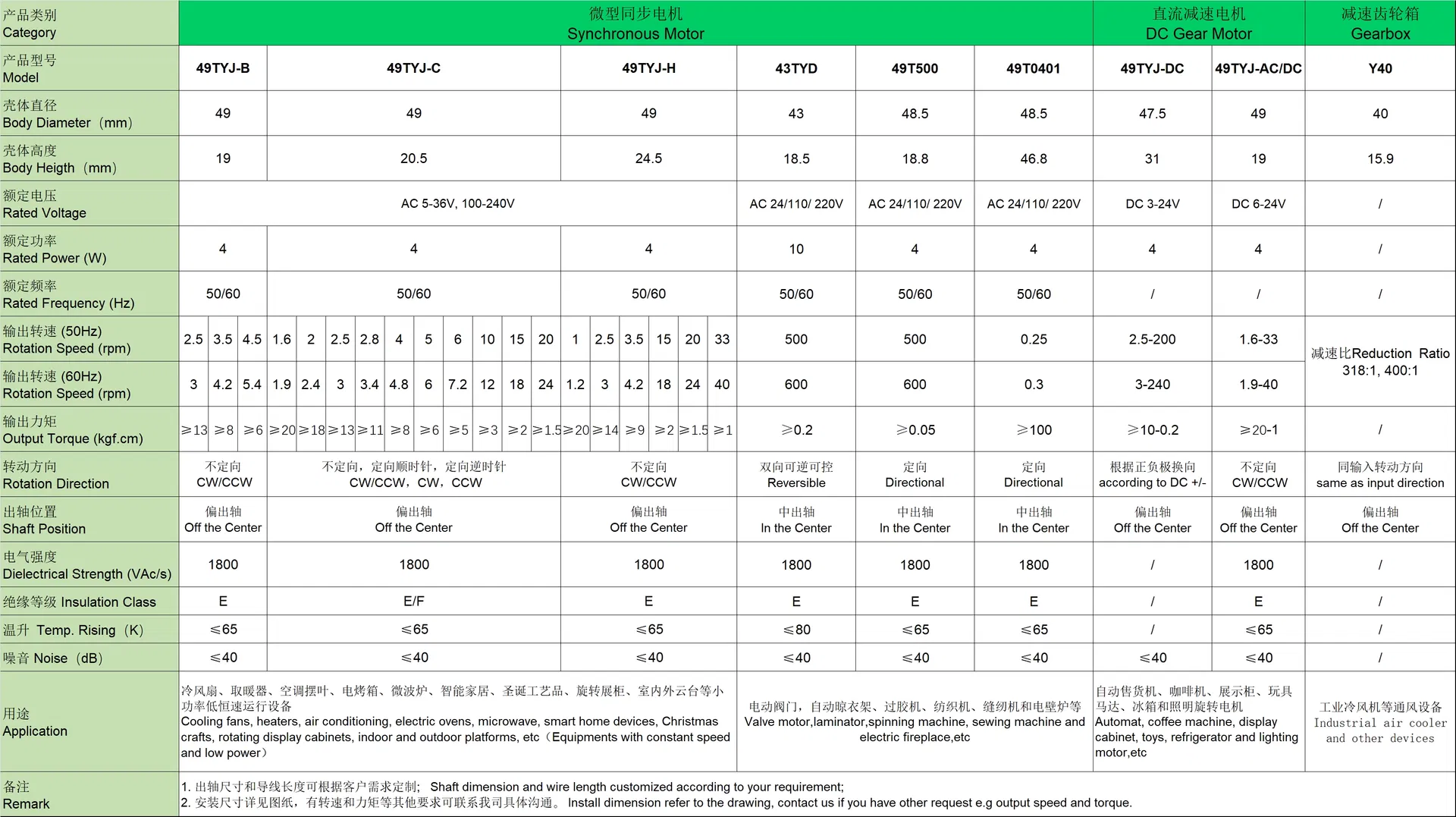

Product Parameters
Product Parameters
Component Details

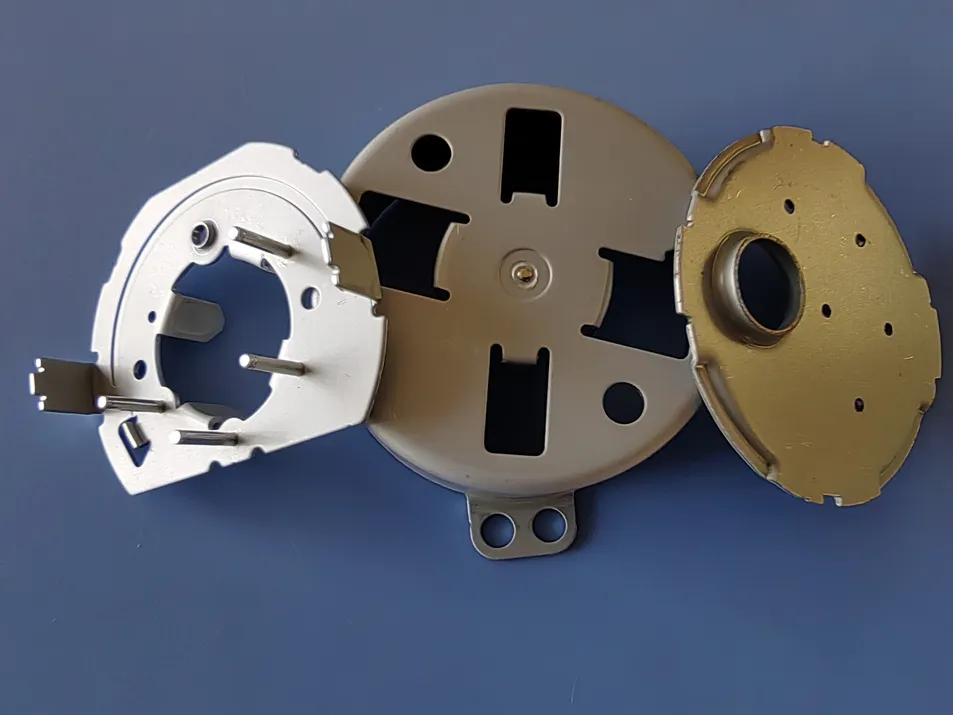

Shell
Shell

Made from High quality galvanized sheet, excellent anti-corrosion performance ensures a longer service life.

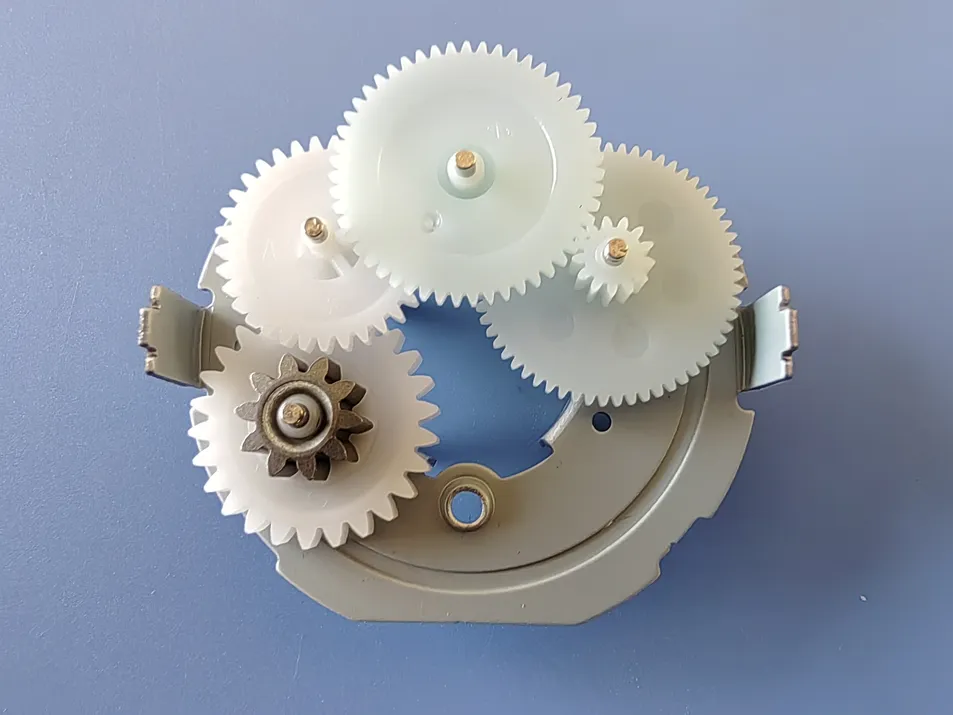

Gear
Gear

POM, PA66 and Metal construction; high abrasion resistant, precise, stable, and low noise.

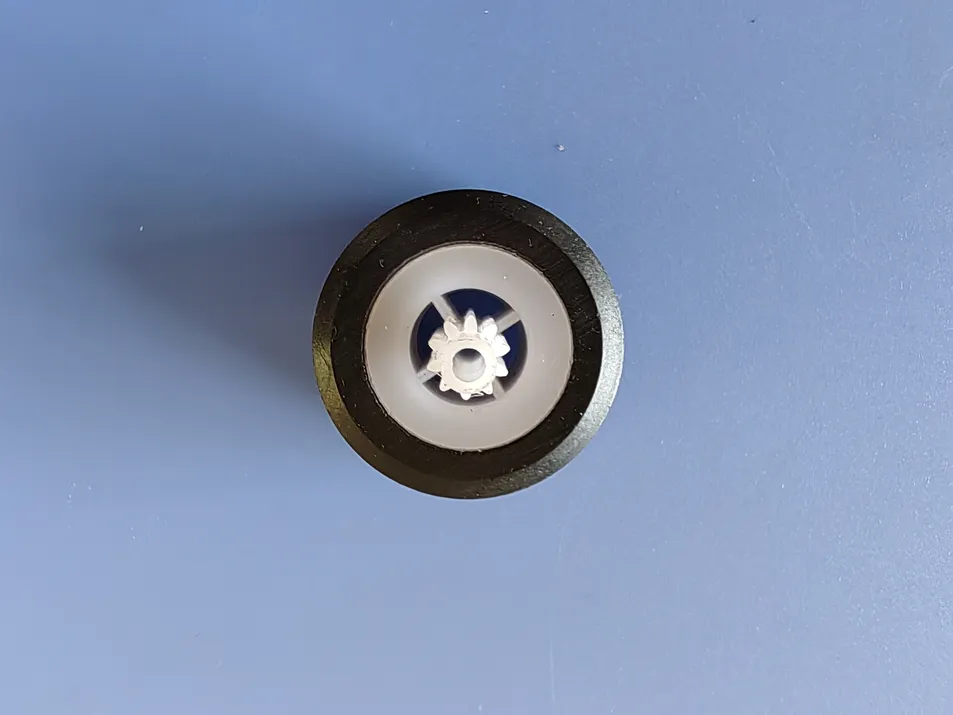

Magnetic Core
Magnetic Core

Made of Ferrite, effectively improves the magnetic field and rotor performance.

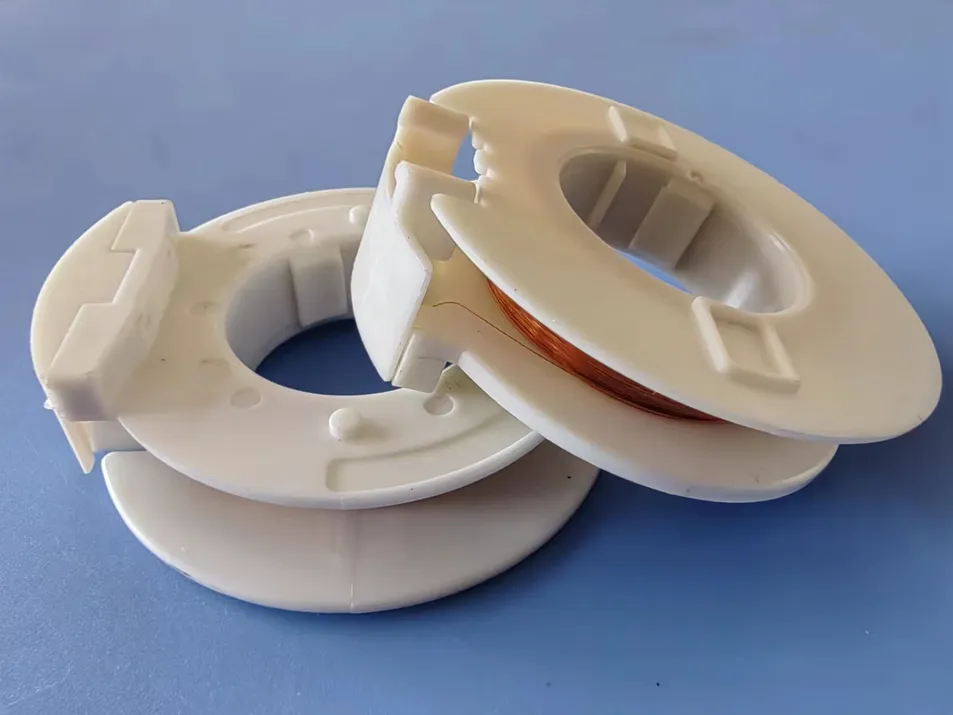

Coil
Coil

Pure copper enameled wire with uniform arrangement for stable performance and better heat dissipation.

Product Gallery
Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
Motor View 7
Motor View 8
Motor View 9
Motor View 10
Manufacturing Capacity
Main ProductsSynchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
CertificationsCCC, VDE, CB, RoHS and ISO9001-2015
OEM ServiceAccepted
Production Capacity10,000 units per Day
Frequently Asked Questions
1. Is the motor speed adjustable?
No, the rotation speed is constant at a rated frequency and is not affected by voltage fluctuations. It typically ranges between 2.5 to 6 rpm depending on the specific model selected.
2. Can I customize the shaft and wire length?
Yes, we can customize various shafts, speeds, torque ratings, and wire lead lengths according to your specific requirements.
3. What happens if the motor stalls under overload?
The motor is designed such that the coil will not burn out if it stalls or encounters an overload situation during operation.
4. What rotation directions are available?
There are three options: CW (Clockwise), CCW (Counter-Clockwise), and CW/CCW (Auto-reversing when encountering resistance).
5. What are the common applications for this motor?
This type of synchronous motor is commonly used in microwave ovens, electric starters, driving controls, and other appliances requiring stable, low-speed rotation.
6. What materials are used for the internal gears?
The gears are made from a combination of high-quality POM, PA66, and Metal for optimal abrasion resistance and low noise levels.
