KPR Motor
1 / 5

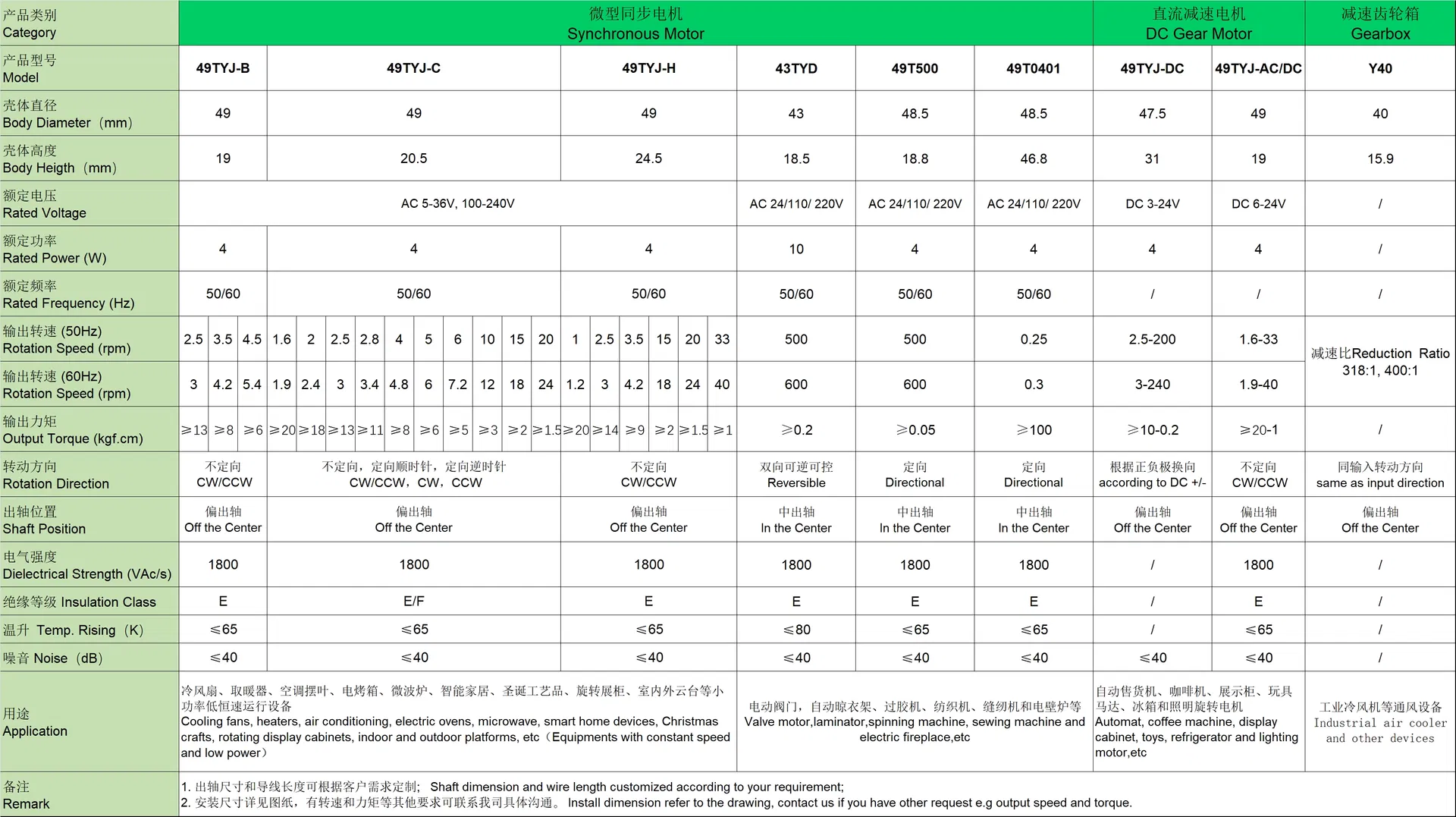

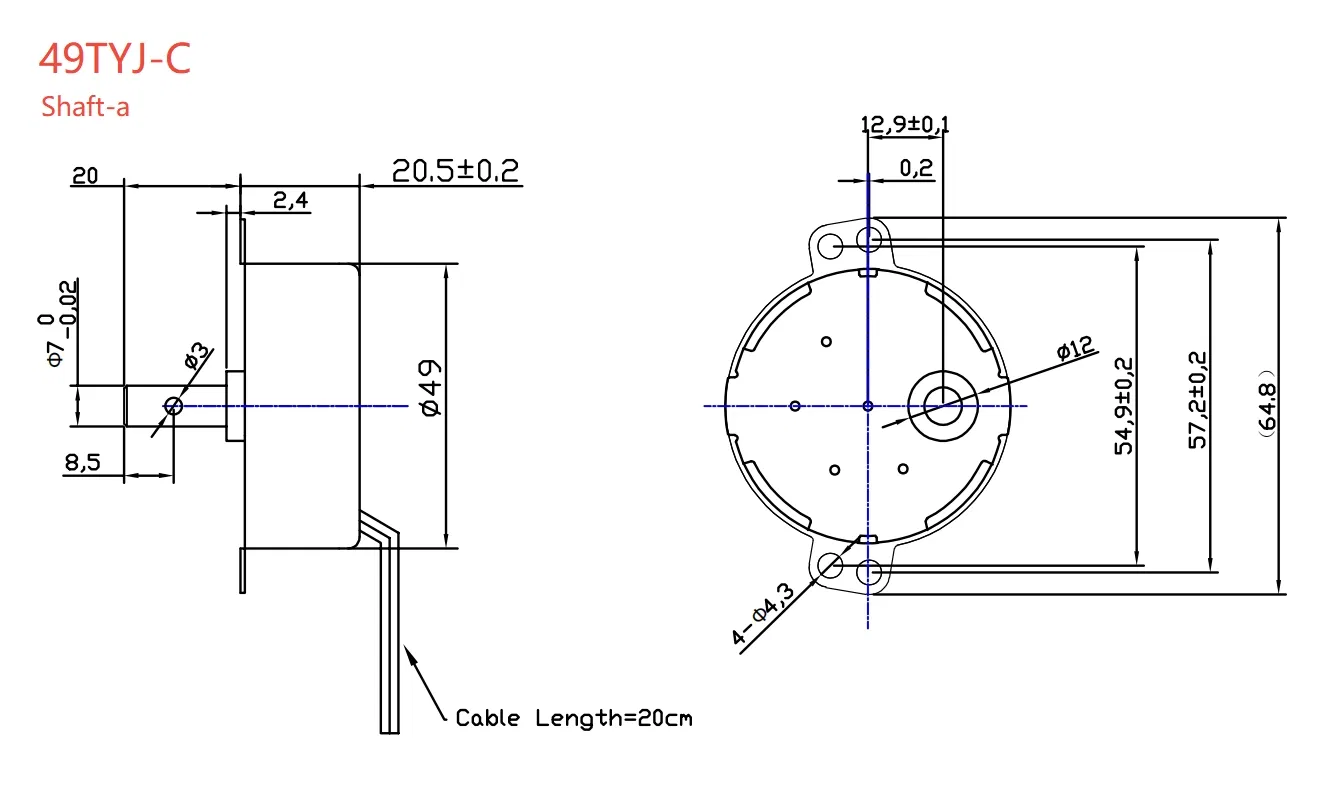

| Model NO. | 49TYJ-C | Operation Mode | Electric Motor |
| Magnetic Structure | Permanent Magnet | Function | Driving, Control |
| Structure | Rotating Pole Type | Number of Poles | 4 |
| Rotation Speed | 1.6/2/2.5/2.8/4/5/6/10/15/20 Rpm | Rated Voltage | AC5-36V, 100-240V |
| Rated Power | 4W | Material | Metal and POM |
| Certification | CCC, ISO9001, VDE, RoHS | Phase | Single Phase |
| Package Size | 27.00cm * 27.00cm * 18.00cm | Gross Weight | 9.000kg |

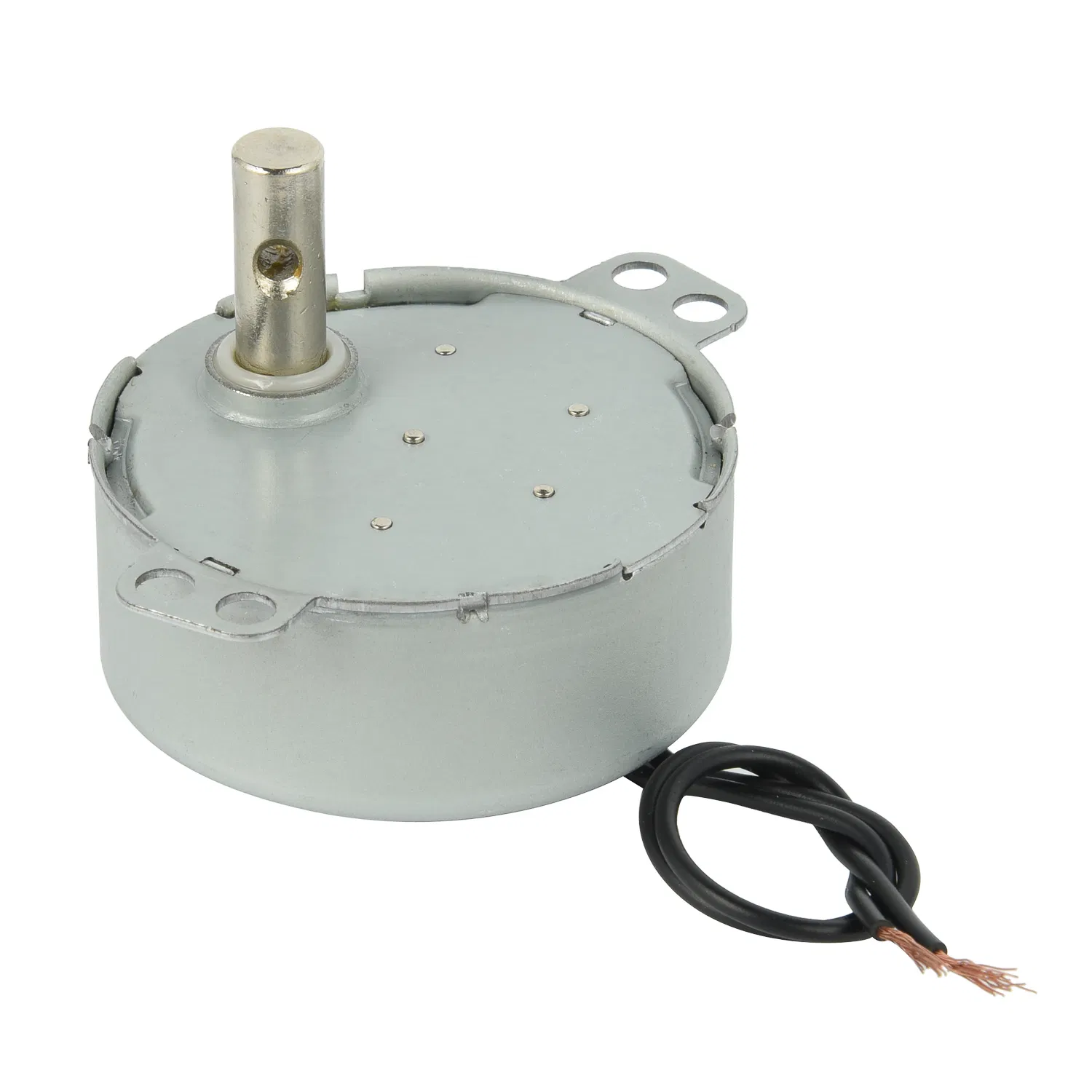

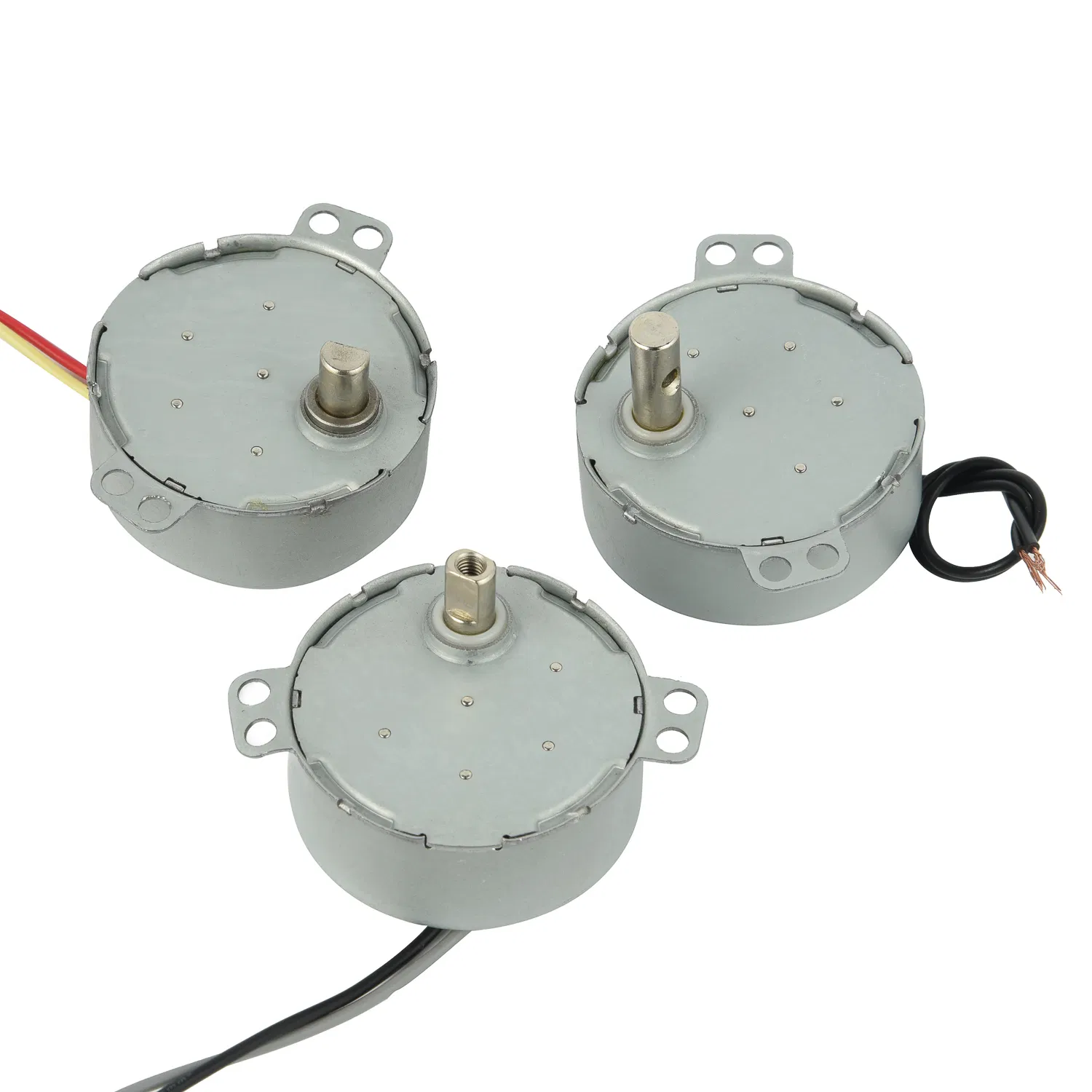

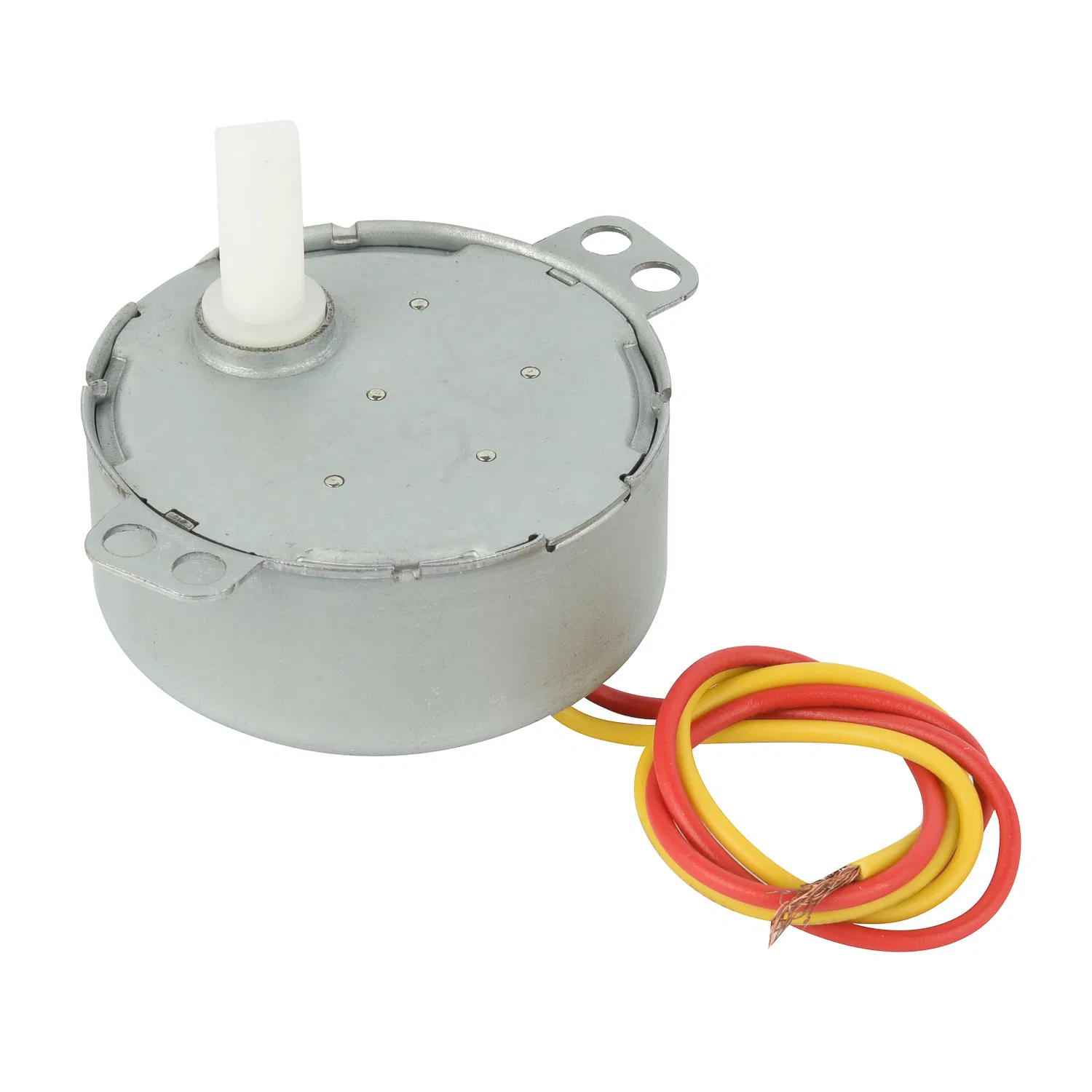

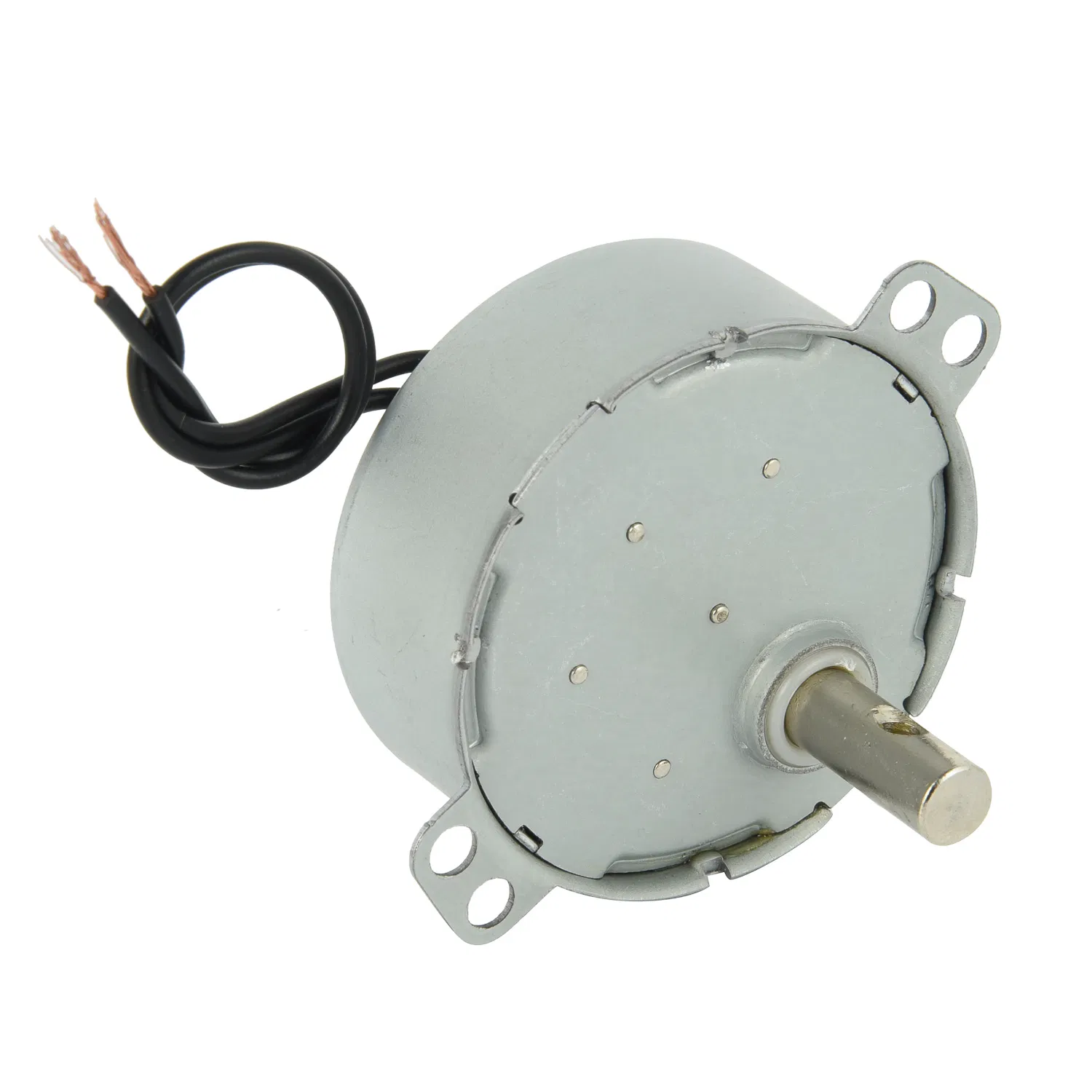

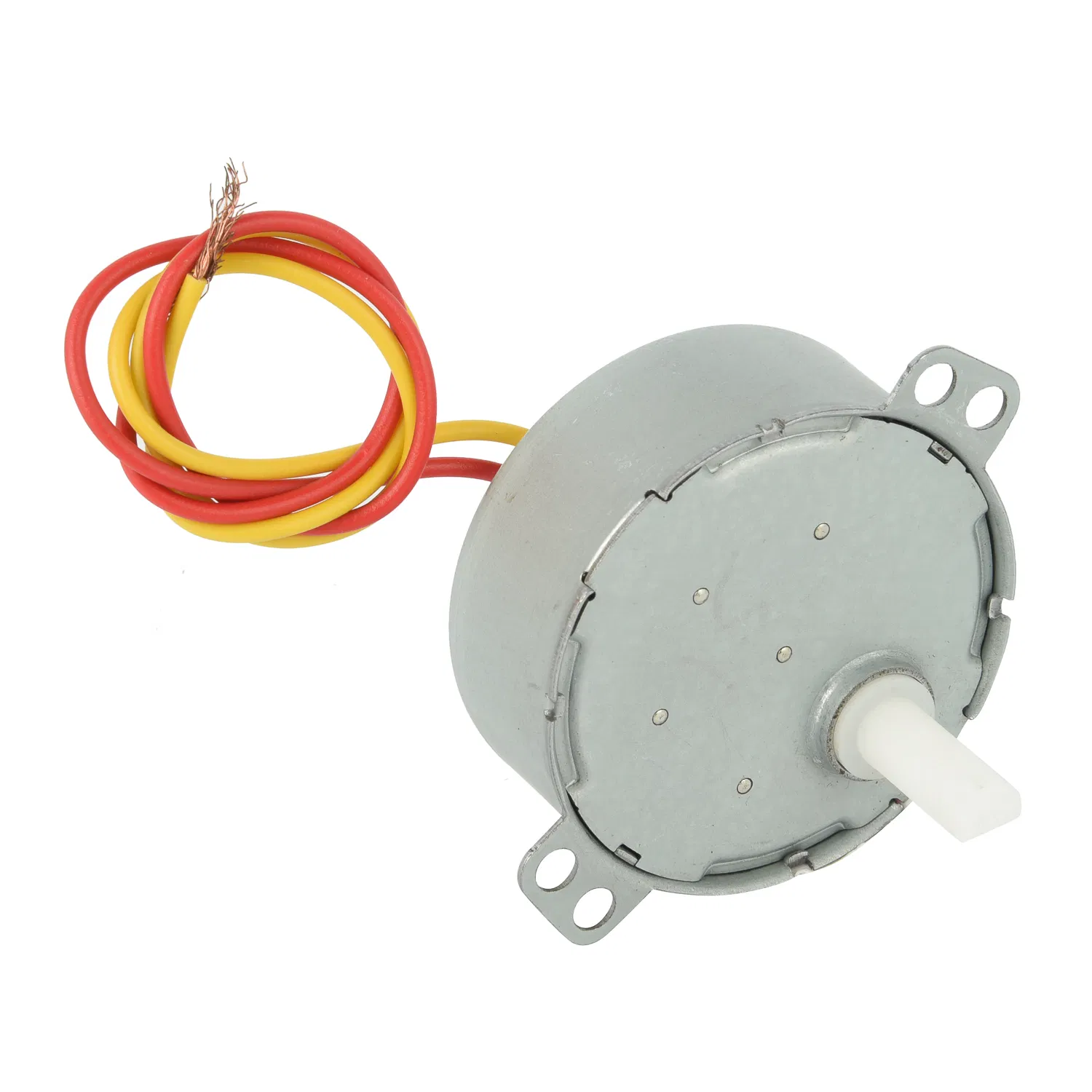

Integrated by a permanent magnet and reduction gearbox, this Synchronous motor features:
At rated frequency, the rotation speed is not affected by voltage. If overload or stall occurs when loaded, the motor coil will not burn. Three options of rotation direction are available: CW, CCW, and CW/CCW.
Note: If CW/CCW is selected and load exceeds rated torque, the direction reverses automatically. For fixed CW or CCW, the motor maintains its direction.

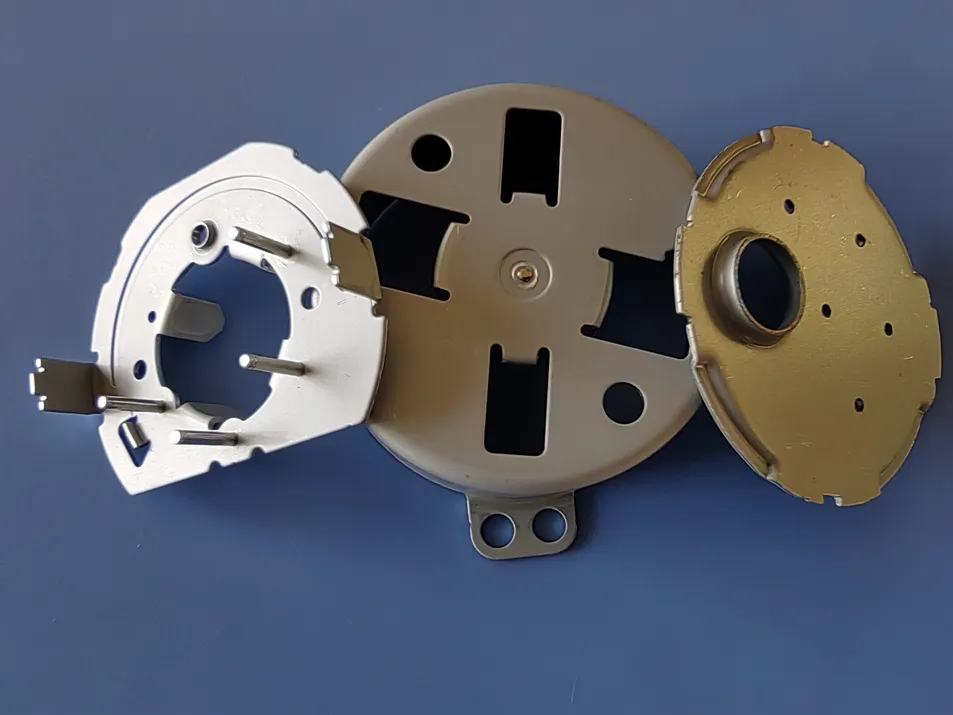

Shell
Made from High quality galvanized sheet, providing excellent anti-corrosion performance for a longer service life.

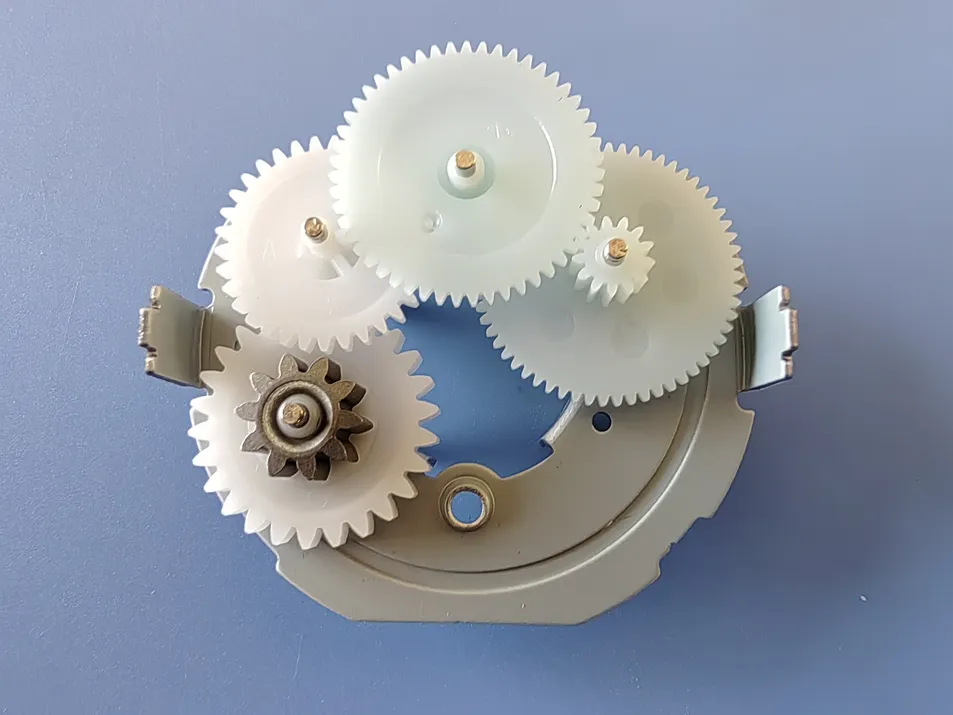

Gear
POM, PA66 and Metal construction ensures high abrasion resistance, precise operation, and low noise.

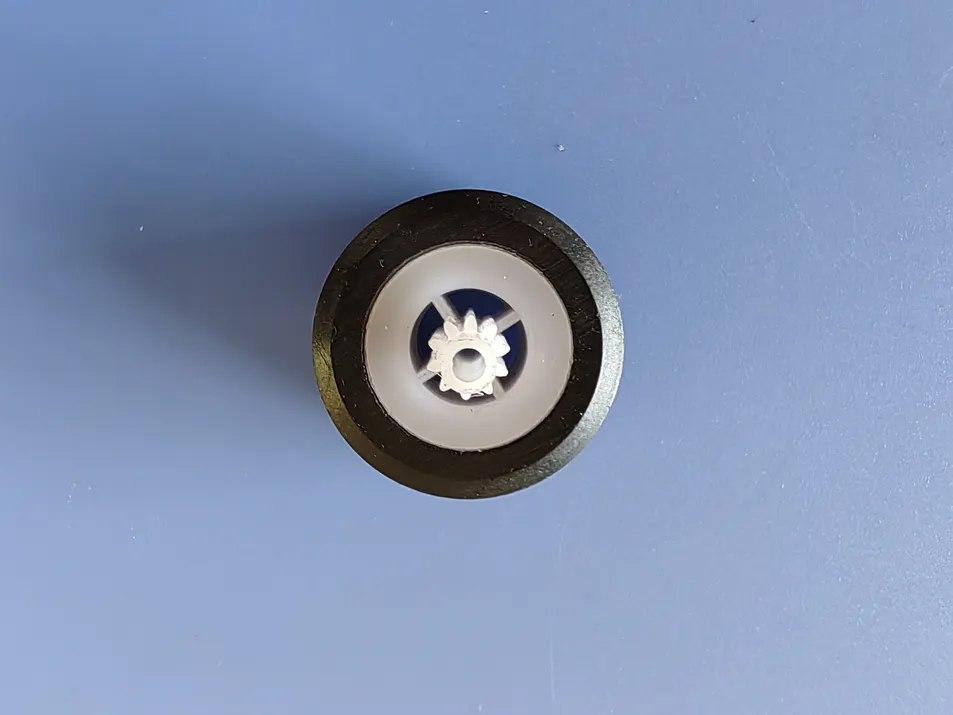

Magnetic Core
Made of Ferrite to effectively improve the magnetic field and boost the performance of the rotor.

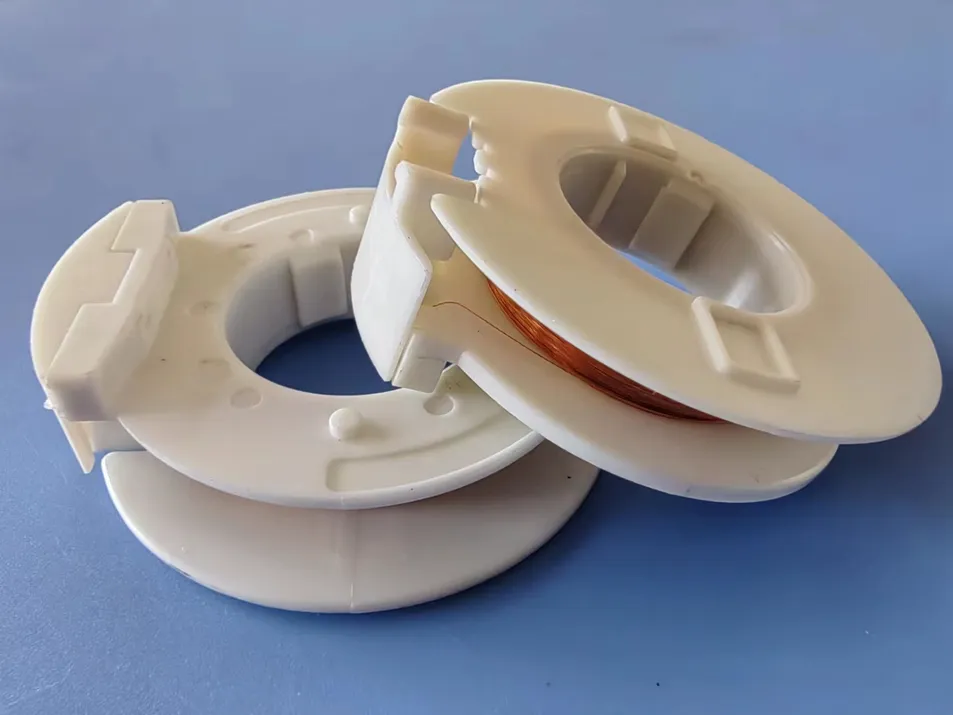

Coil
Pure copper enameled wire with uniform arrangement for stable performance and superior heat dissipation.
