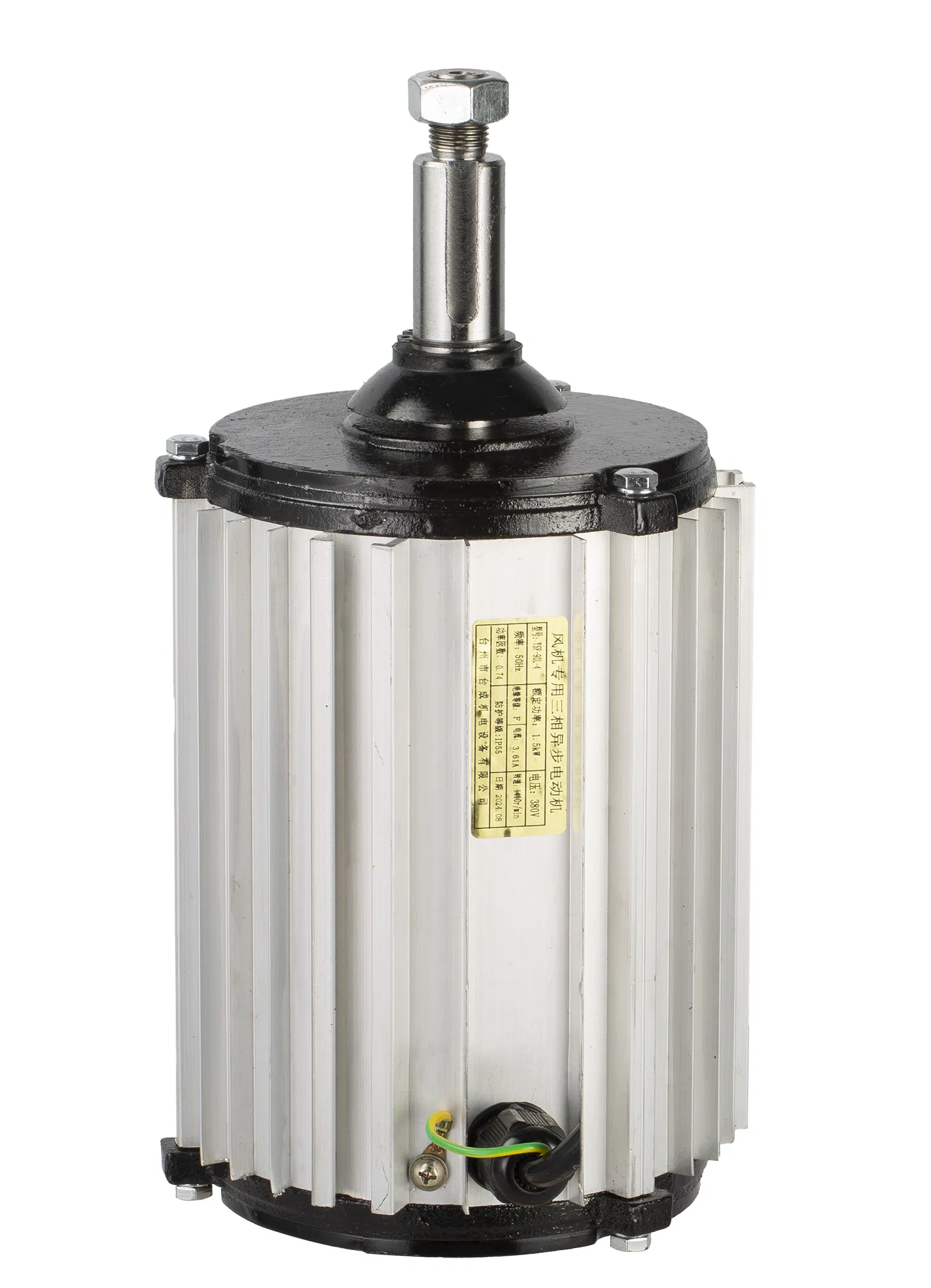

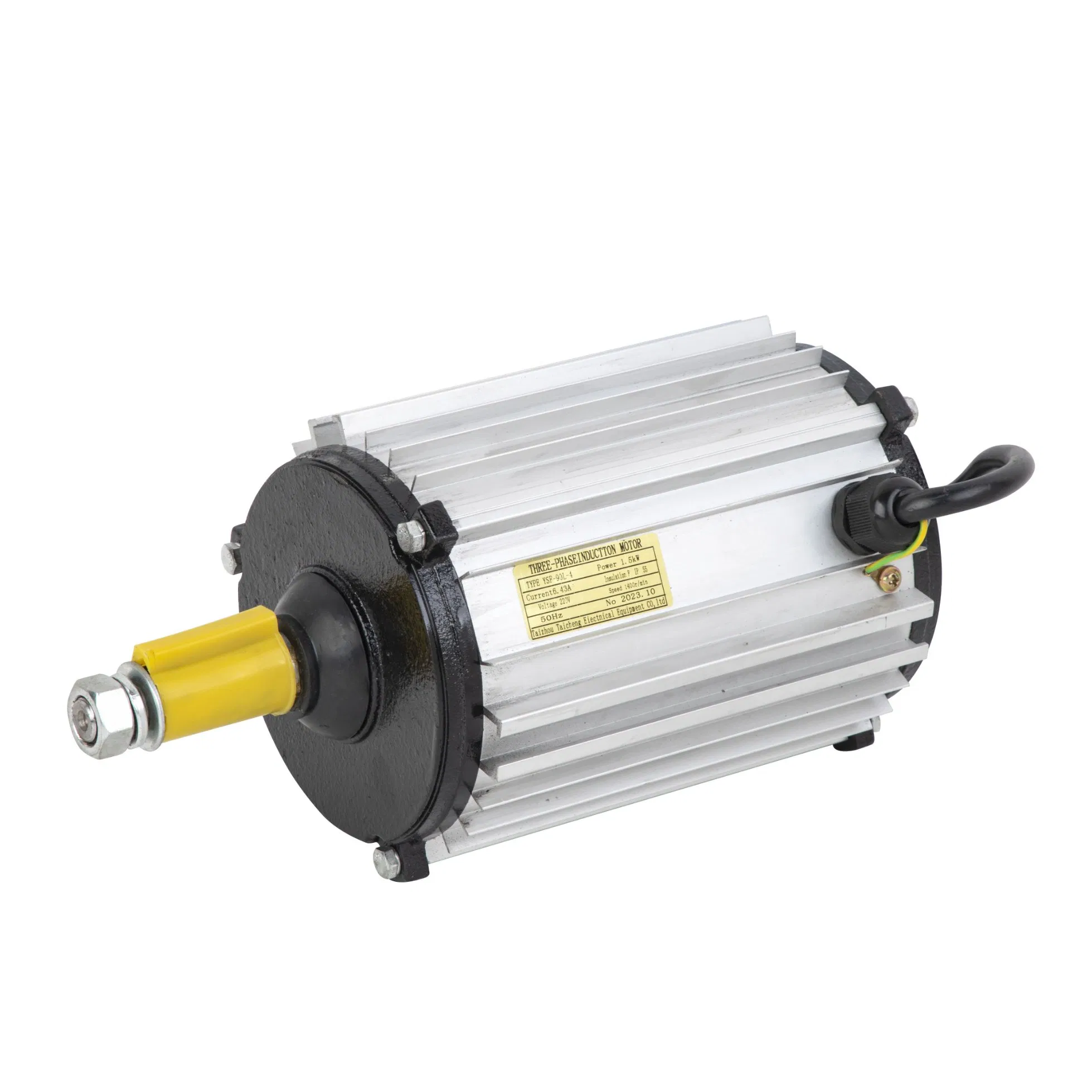

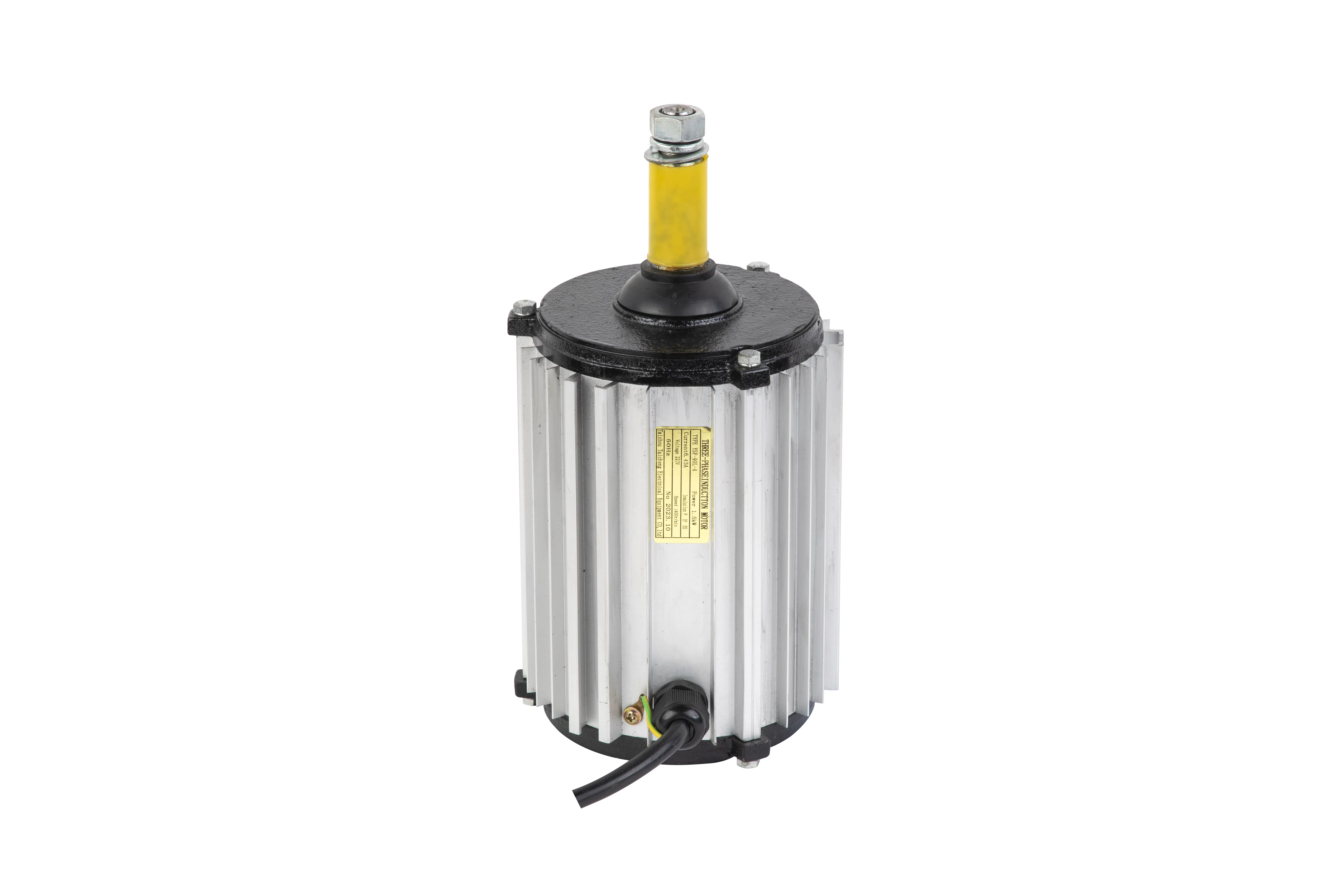

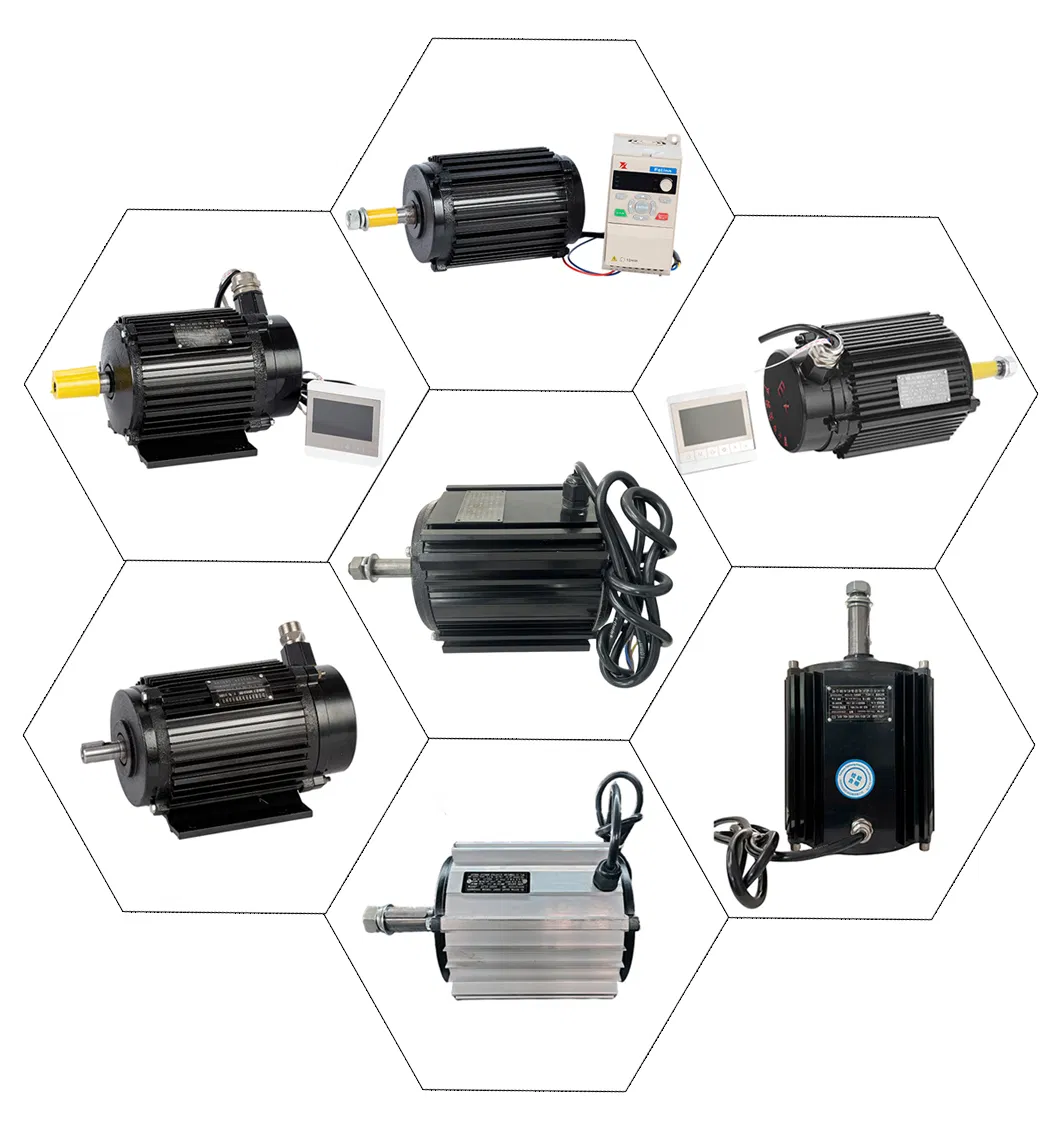

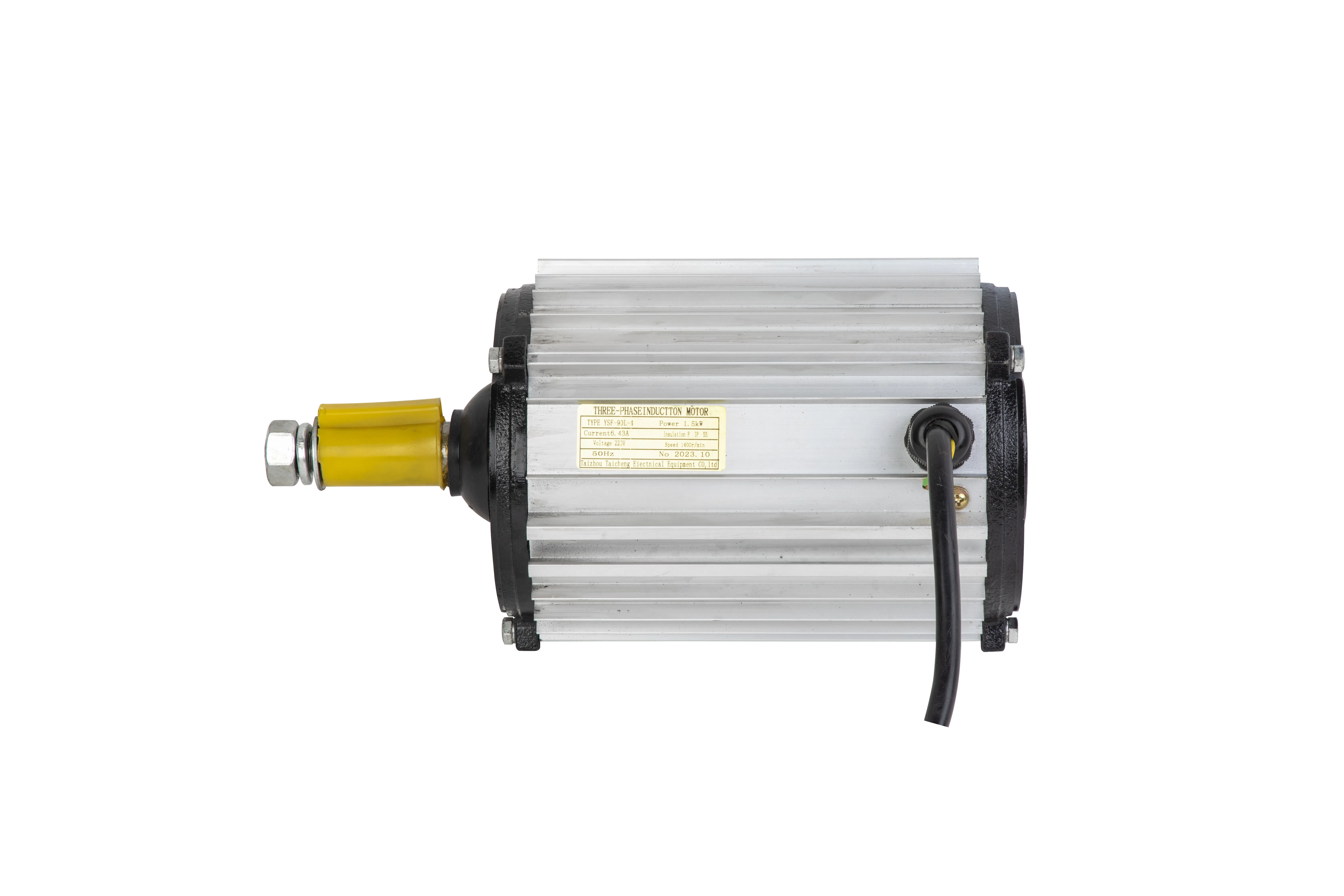

The TYJX series is a masterpiece of engineering brilliance in high-efficiency rare earth permanent magnet synchronous motors. Expertly designed for the fan industry, this fully enclosed, air-cooled motor represents the zenith of energy conservation, exceeding GB30253-2013 Class 1 benchmarks.
Utilizing powerful rare earth permanent magnets, these motors eliminate the need for external excitation, creating an intensely powerful magnetic field. This results in superior efficiency, compact design, operational reliability, and reduced weight. The seamless fusion of permanent magnet technology with state-of-the-art electronic control systems heralds a new era in smart motor performance.
Surpasses national first-class standards, achieving compliance with the national IE5 energy efficiency benchmark.
Achieves a power factor exceeding 0.95, eliminating the need for reactive power compensation.
Unlocks a comprehensive power saving rate ranging from 15% to 30% compared to asynchronous motors.
Design ensures no copper loss in the rotor, resulting in a temperature rise 20k lower than standard motors.
| Motor Model | Power | Voltage | Speed (RPM) | Insulation | Power Factor | Protection |
|---|---|---|---|---|---|---|
| TYJX-90L | 1.1kW | D220V/50Hz | 500 | F | 0.95 | IP55 |
| TYJX-90L | 0.6kW | D220V/50Hz | 650 | F | 0.95 | IP55 |
| TYJX-90L | 0.75kW | D220V/50Hz | 650 | F | 0.95 | IP55 |
| TYJX-100L | 1.5kW | D220V/50Hz | 530 | F | 0.95 | IP55 |
| TYJX-100L | 2.2kW | D220V/50Hz | 1440 | F | 0.95 | IP55 |
| TYJX-112M | 1.1kW | S380V/50Hz | 450 | F | 0.95 | IP55 |
Principle: Our permanent magnet synchronous motor's rotor uses rare earth materials to create a robust magnetic field. The stator's rotating field propels the rotor into synchronous motion, maximizing energy efficiency without needing excitation current.
