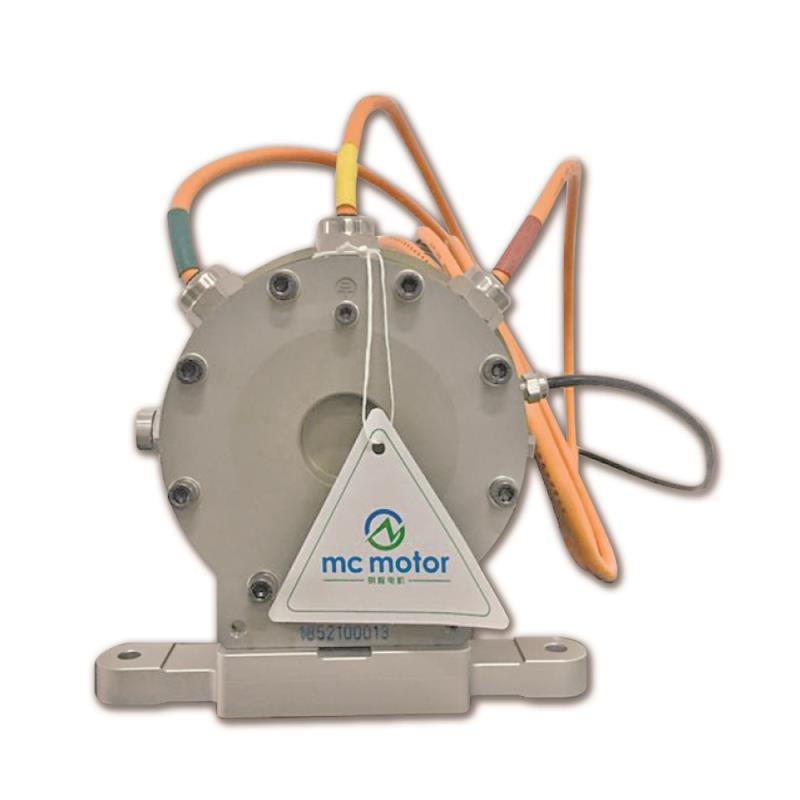

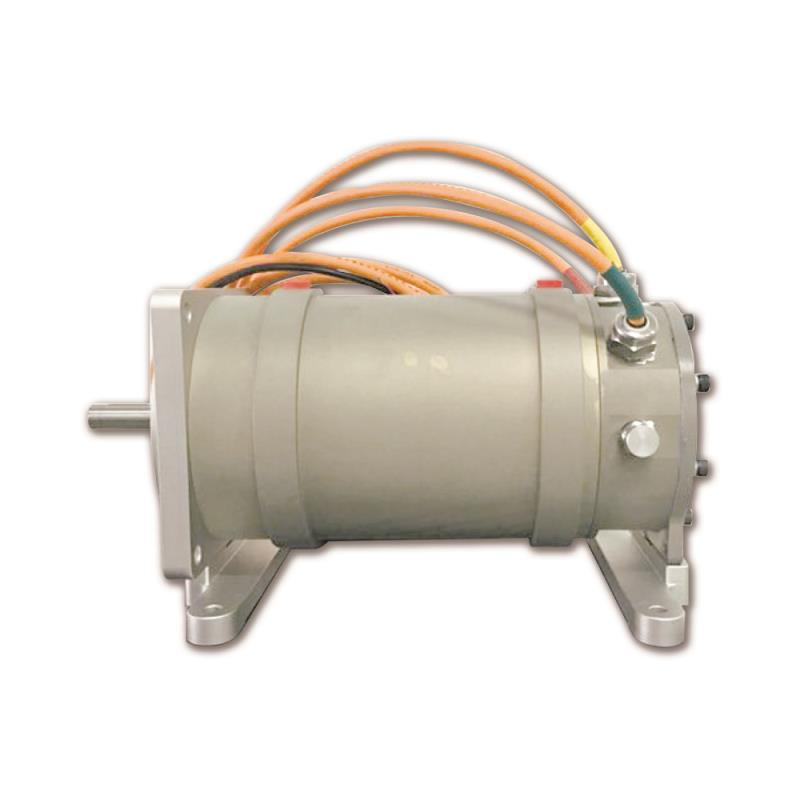

20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
1 / 5
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry
20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry

20kw 24000rpm High Speed Synchronous Pmsm Electric Motor Industry

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
SRPM112H4W20
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving
Number of Poles
8
Certification
ISO9001, CE, RoHS
Efficiency
94.7%
Rated Power
20kw
Rated Speed
24000rpm
IP Level
IP54, IP65
Cooling Method
Water / Air Cooling Optional
Usage
Fans, Pumps, Compressors
P

Product Description

High efficiency air / water cooling 380V AC 7.5kw-30kw 12000rpm-24000rpm Brushless PM Electric Motor High Speed Synchronous Motor

Motor designs are available in both water cooling and air cooling. Customization is available according to specific project requirements.

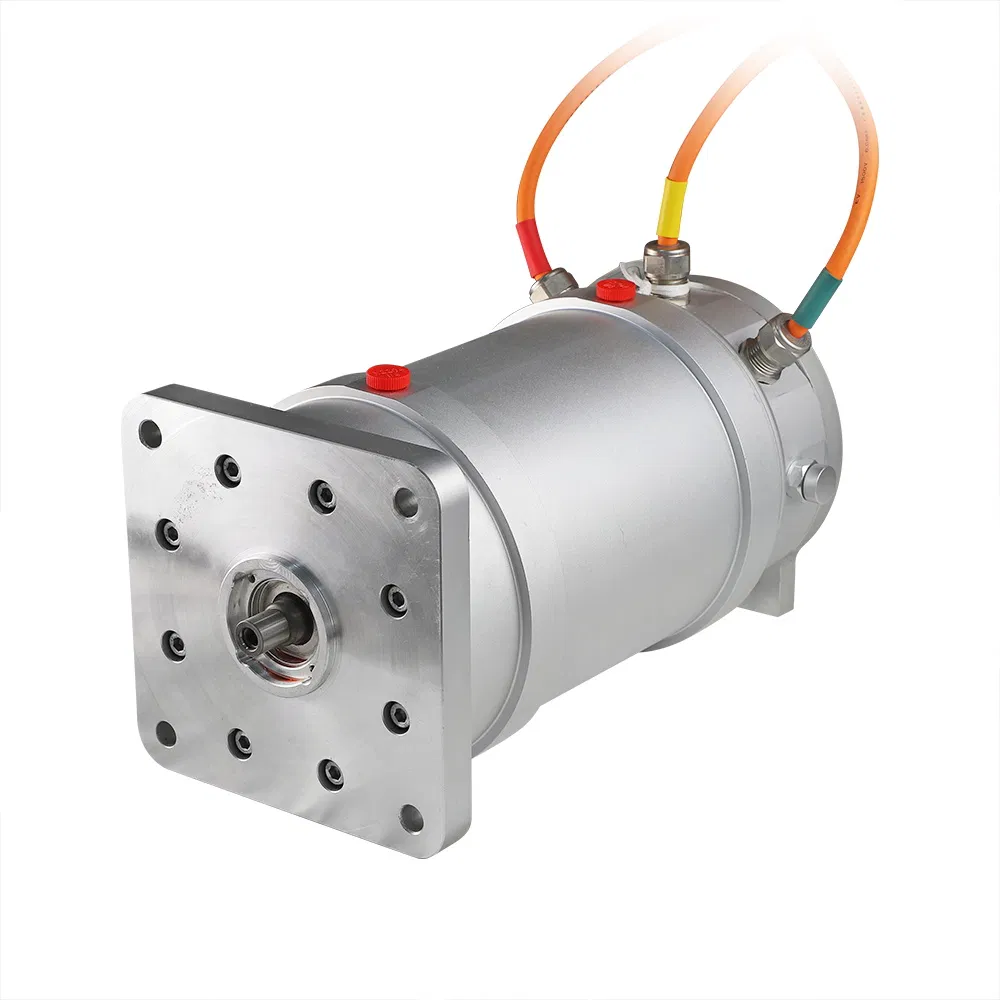

High Speed Synchronous Motor 1

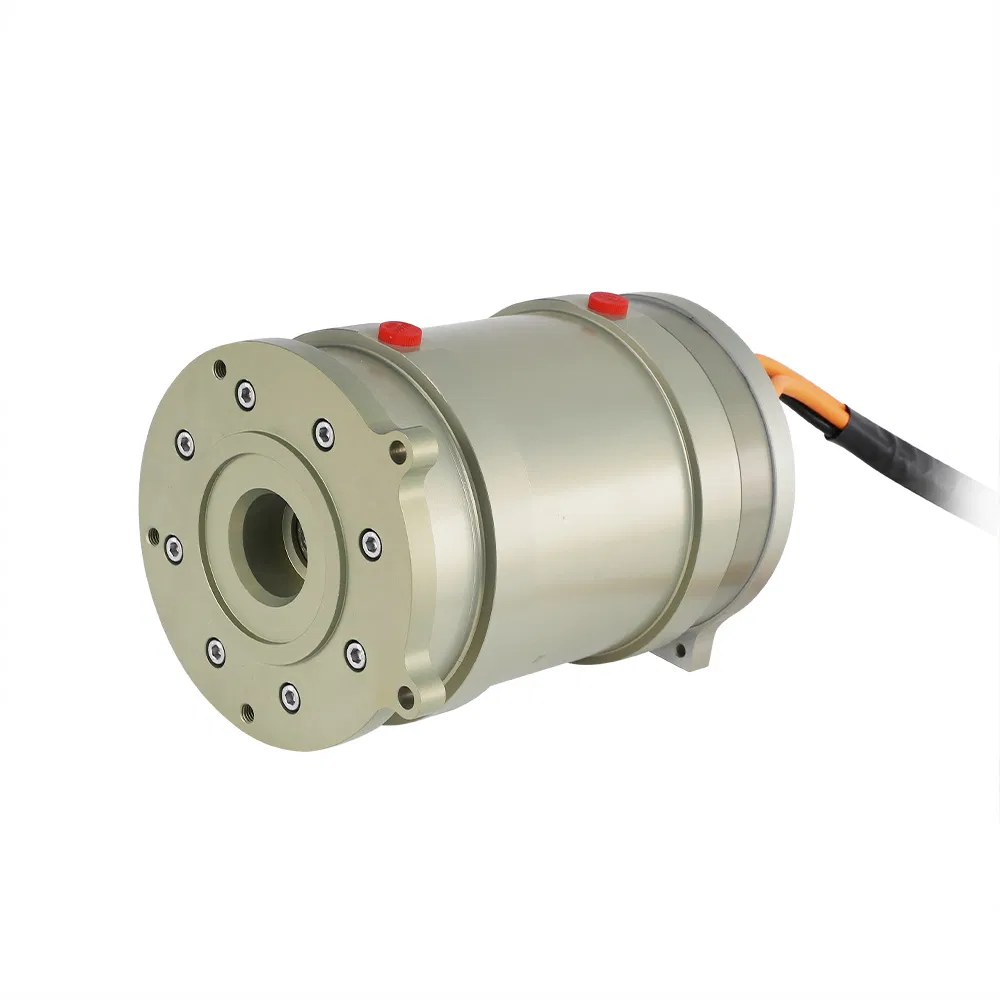

High Speed Synchronous Motor 2

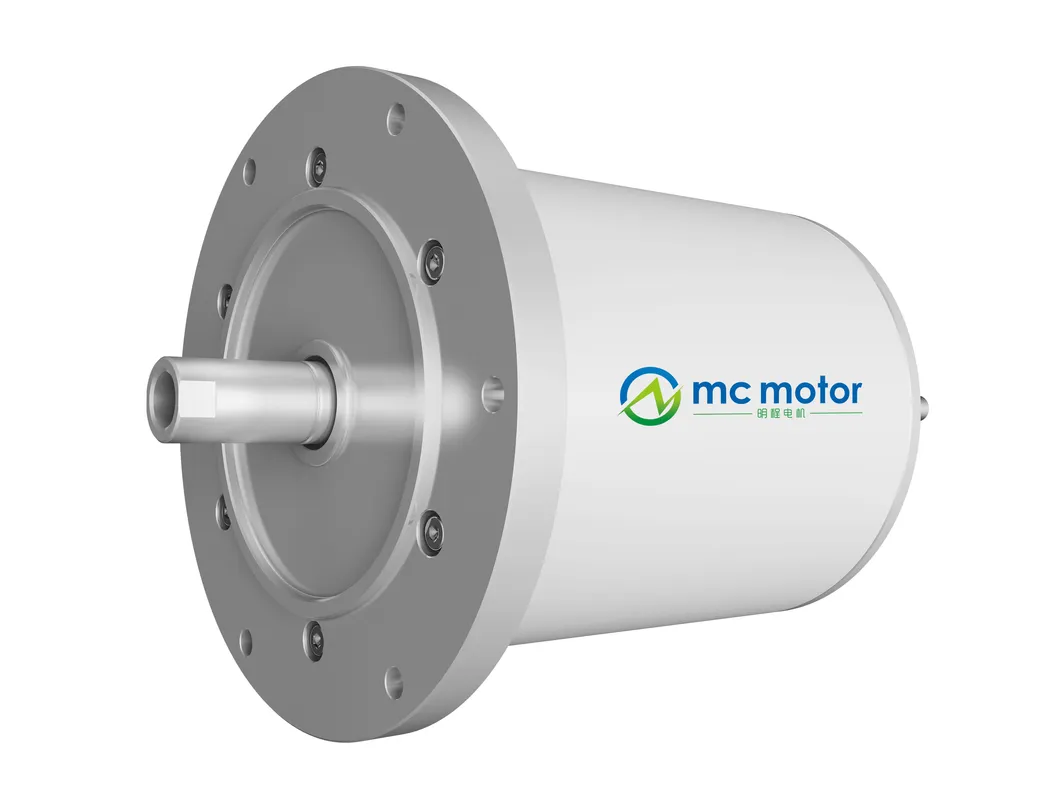

High Speed Synchronous Motor 3

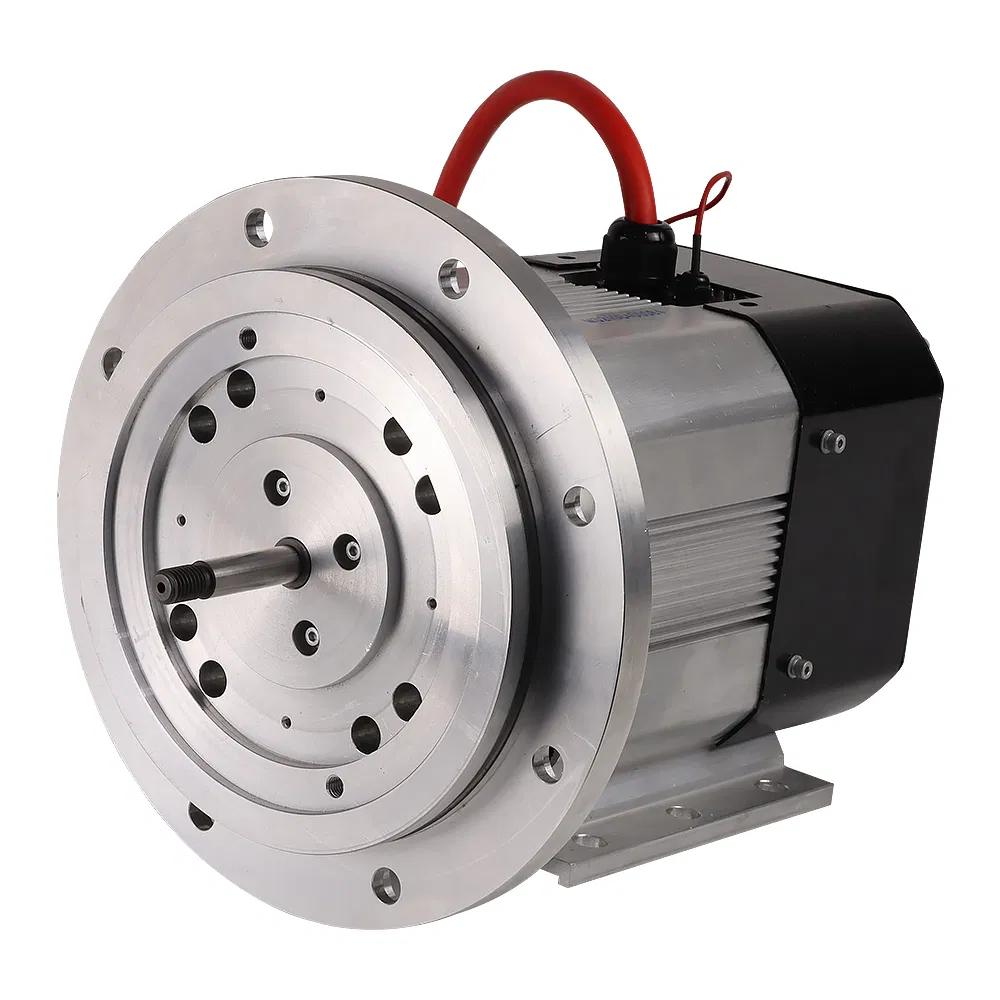

High Speed Synchronous Motor 4

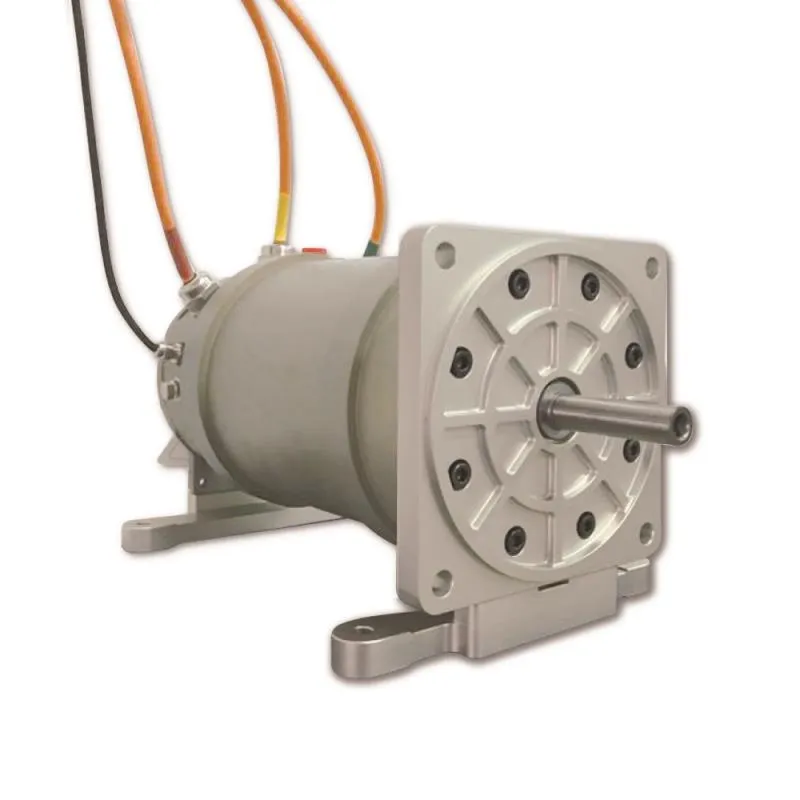

High Speed Synchronous Motor 5

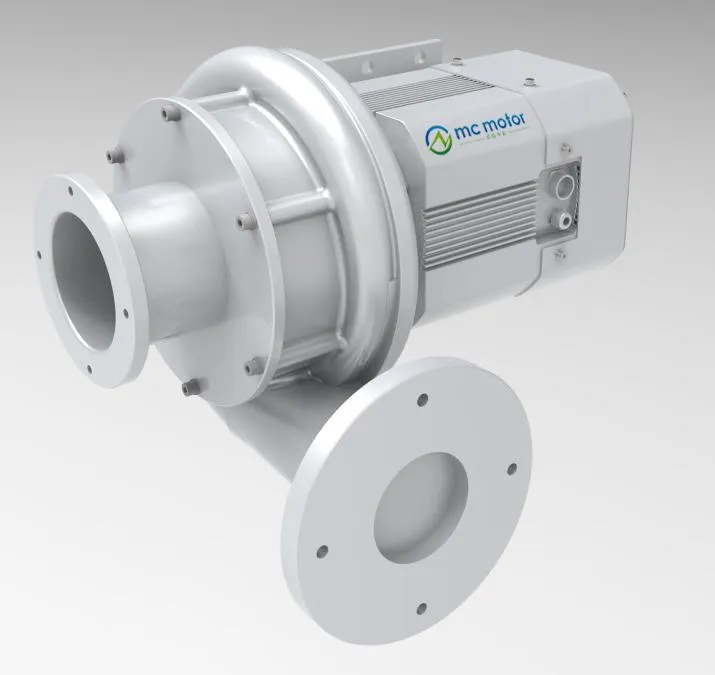

High Speed Synchronous Motor 6
F

Product Features & Specifications

  • Suitable for 24000rpm rated speed
  • High power & high torque
  • High efficiency
  • Small size & small footprint
  • Low noise & low vibration
  • Patented cooling structure
  • Easy maintenance & long life time
  • Durable and reliable design

Model: SRPM112H4W20
Voltage: 380V AC
Rated Power: 20KW
Rated Speed: 24000rpm
Isolation: H/F
Protection: IP54 (IP67 option)
Installation: B35

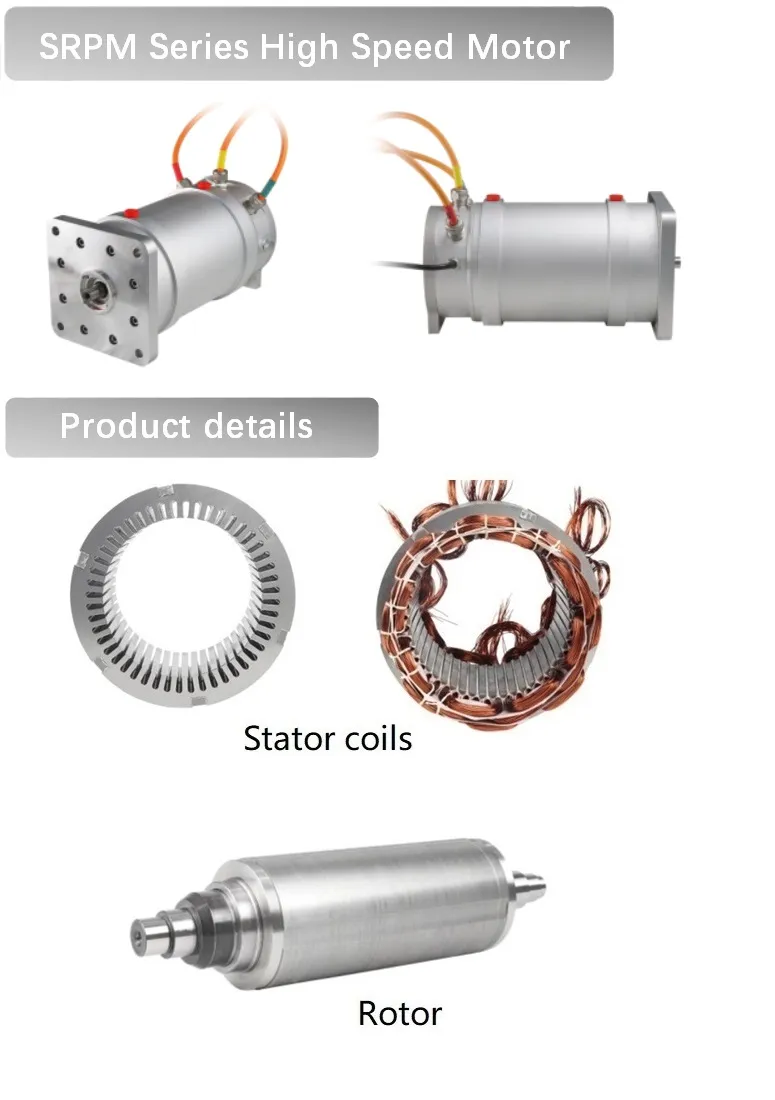

Specifications Diagram 1

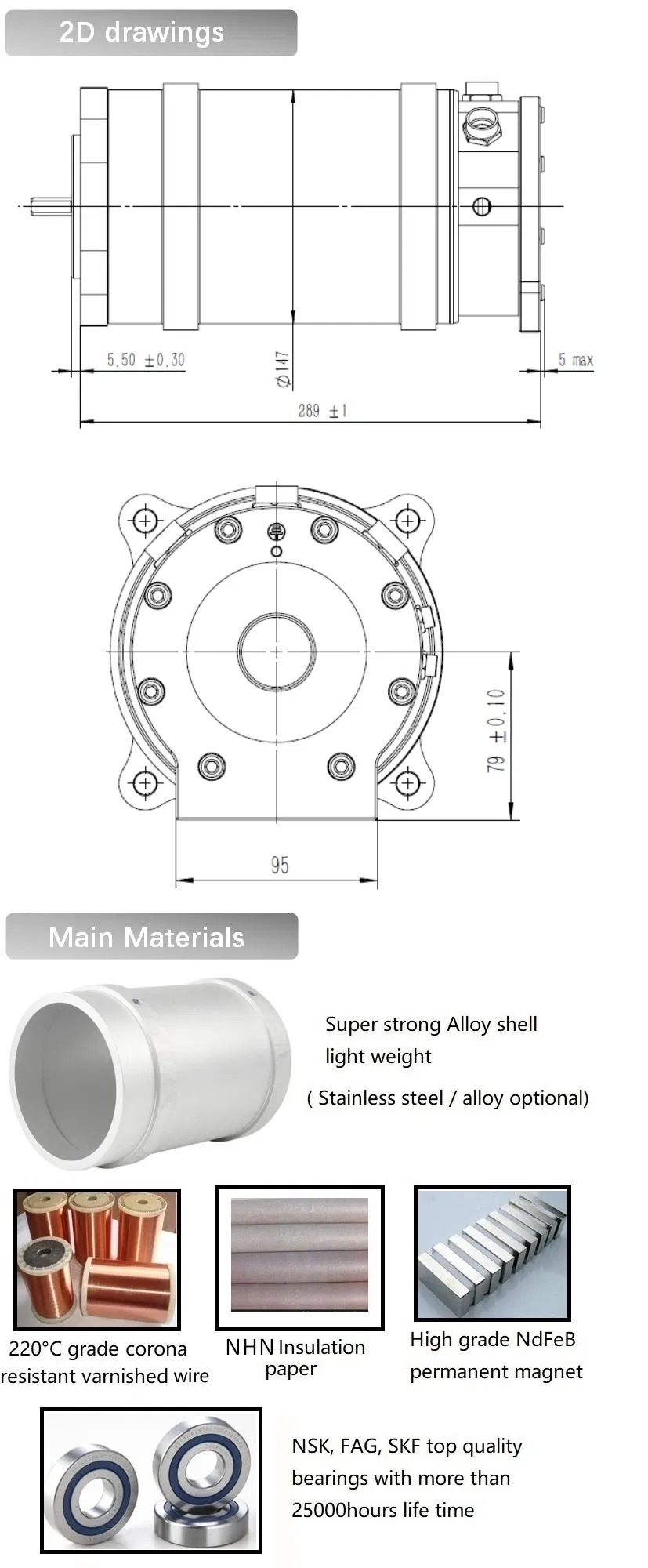

Specifications Diagram 2
A

Applications

Widely used in High-speed Compressors, Fans, and Pumps.

Application Scenario
T

Technical Parameters

Motor Type Voltage (V AC) Power (kW) Torque (N.m) Speed (rpm) Efficiency Protection Cooling
SRPM112H4F7.5C3807.53.42100095%IP54Air
SRPM112H4F15F3801562400095%IP54Air
SRPM112H4W203802082400096.5%IP54Water
SRPM130H4F373803719.631800095%IP54Air
SRPM210M4W75C3807571.61000096.5%IP54Water
?

Frequently Asked Questions

Can a permanent magnet synchronous motor be used as a generator?
Yes, it can. Due to its working principle, if it runs CW as a motor, it can run CCW as a generator. Note that a suitable controller with AFE function is required for generator operation.
Why can't I directly use a three-phase AC supply to start this motor?
Because the rotor has high inertia and the magnetic fields spin very fast; a static rotor cannot immediately synchronize with the fast-moving magnetic field without assistance.
Are there specific VFD requirements for this motor?
Yes, it requires a vector control VFD with specialized software, such as those from Siemens, Yaskawa, or ABB. Compatible series are available to match these motors.
How is the permanent magnet rotor protected from failure?
Each rotor undergoes corrosion resistance, high-temperature demagnetization, and consistency tests. The demagnetization index is strictly kept within 2%.
What are the typical applications for these motors?
These motors are primarily used in variable frequency speed applications, especially for high-speed industrial compressors, fans, and pumps.
What protection levels are available for harsh environments?
Standard protection is IP54, but higher levels like IP67 are optional for environments with significant oxidative corrosion or dust.
