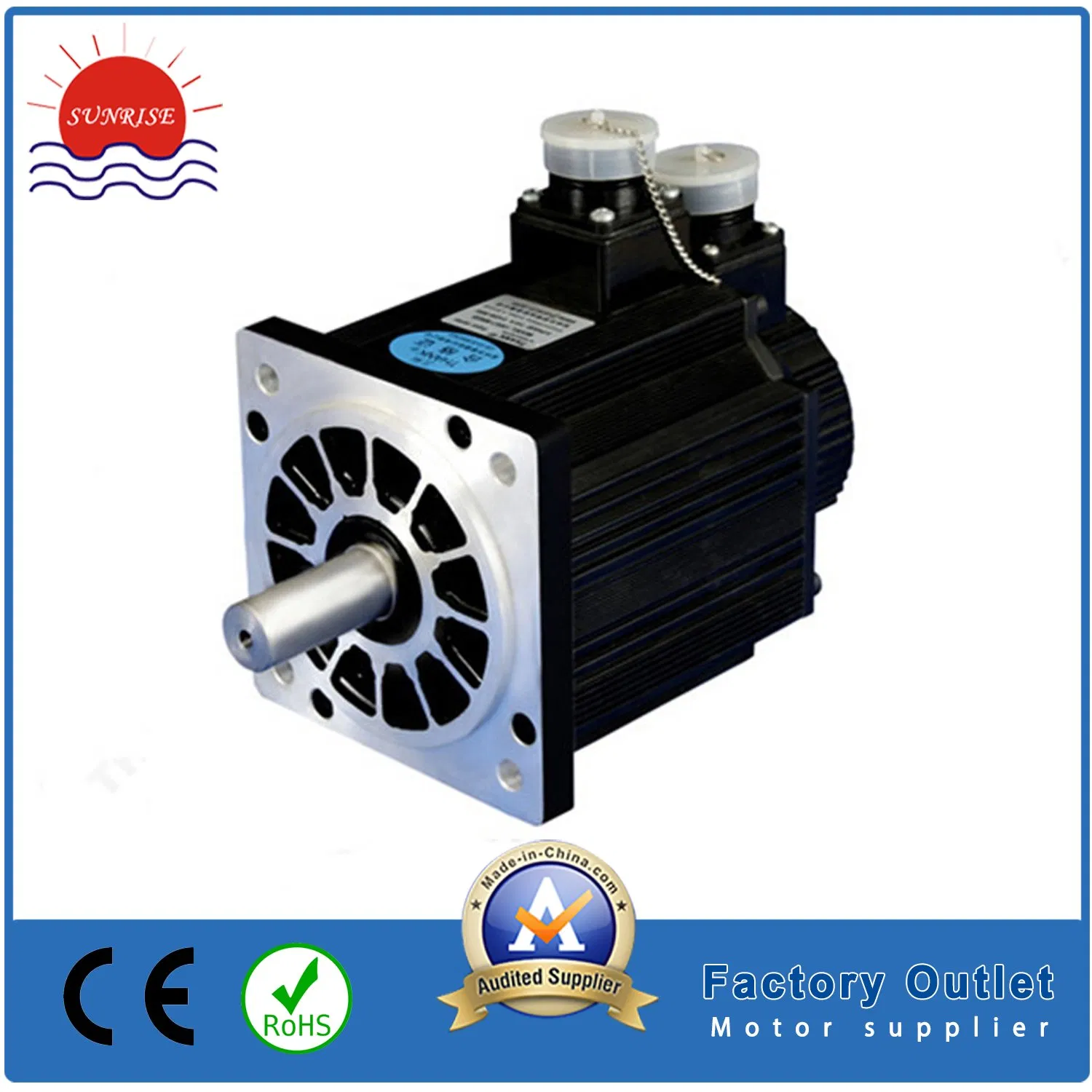

130st-M7525 1963W 7.5A Brushless AC Servo Motor

Basic Specifications

Model NO.

130ST-M7525

Function

Driving

Casing Protection

Closed Type

Certification

ISO9001, CCC, SGS

Transport Package

Carton, Pallet

Specification

130ST-M7525

Origin

China

HS Code

85013100

Production Capacity

30000PCS/Year

Technical Parameters

Brushless Servo Motor Series 130ST-M
Specification	Unit		130ST-M4025	130ST-M5025	130ST-M6025	130ST-M7525	130ST-M10025	130ST-M15025
Rated voltage	U	V	220VAC -15%-+10% 50/60Hz (300VDC)
Rated output power	P out	W	1047	1300	1571	1963	2618	3927
Rated speed	n N	rpm	2500	2500	2500	2500	2500	2500
Rated current	I N	A	4	5	6	7.5	10	15
Rated torque	T N	N.m	4	5	6	7.5	10	15
Peak current	I P	A	12	15	18	22	30	45
Peak torque	T p	N.m	12	15	18	22.8	30	39
Rotor inertia	J	Kg.cm 2	11	12	13.3	18.2	24	35
Encoder	CPR		2500	2500	2500	2500	2500	2500
IP Code			IP65	IP65	IP65	IP65	IP65	IP65
Winding class			Class F Continuous
Motor weight	Kg		6.1	7.1	7.6	8.4	10.8	14

Lead-wires' Spec To Encoder
Color	BLU	BLU/BLK	GRN	GRN/BLK	YLW	YLW/BLK	BRN	BRN/BLK	GRY	GRY/BLK	WHT	WHT/BLK	RED	BLK	Shield
Description	A+	A-	B+	B-	Z+	Z-	U+	U-	V+	V-	W+	W-	Vcc	GND	Shield
Plug Pin#	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15

To Motor Wiring
Color	RED	YLW	BLU	YLW/GRN
Description	U	V	W	GND
Plug Pin#	1	2	3	4

Product Display

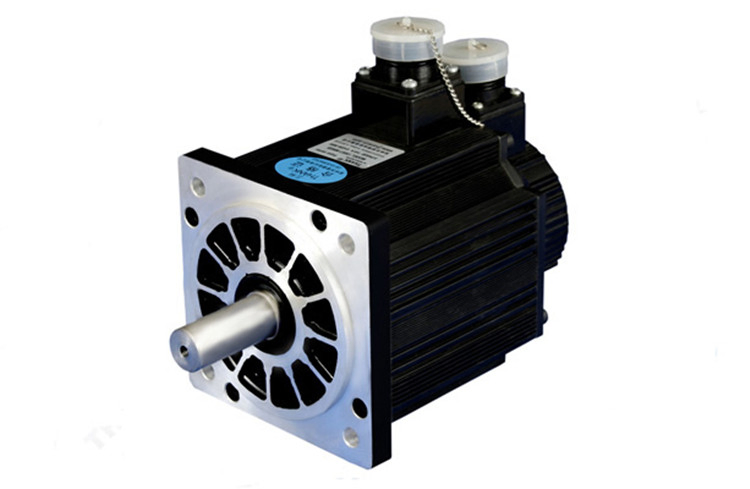

130st-M7525 Brushless AC Servo Motor Detail
