KPR Motor
1 / 5

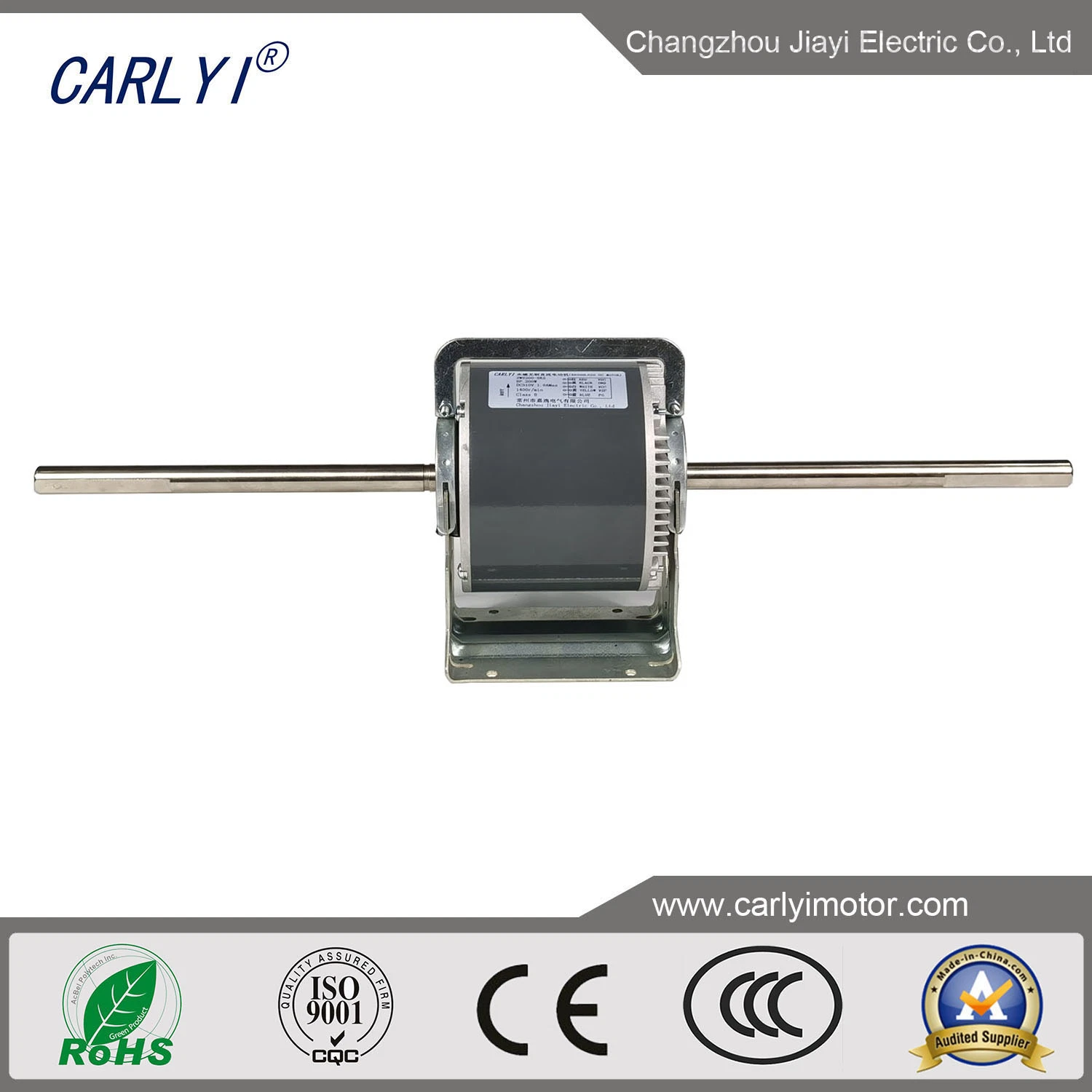

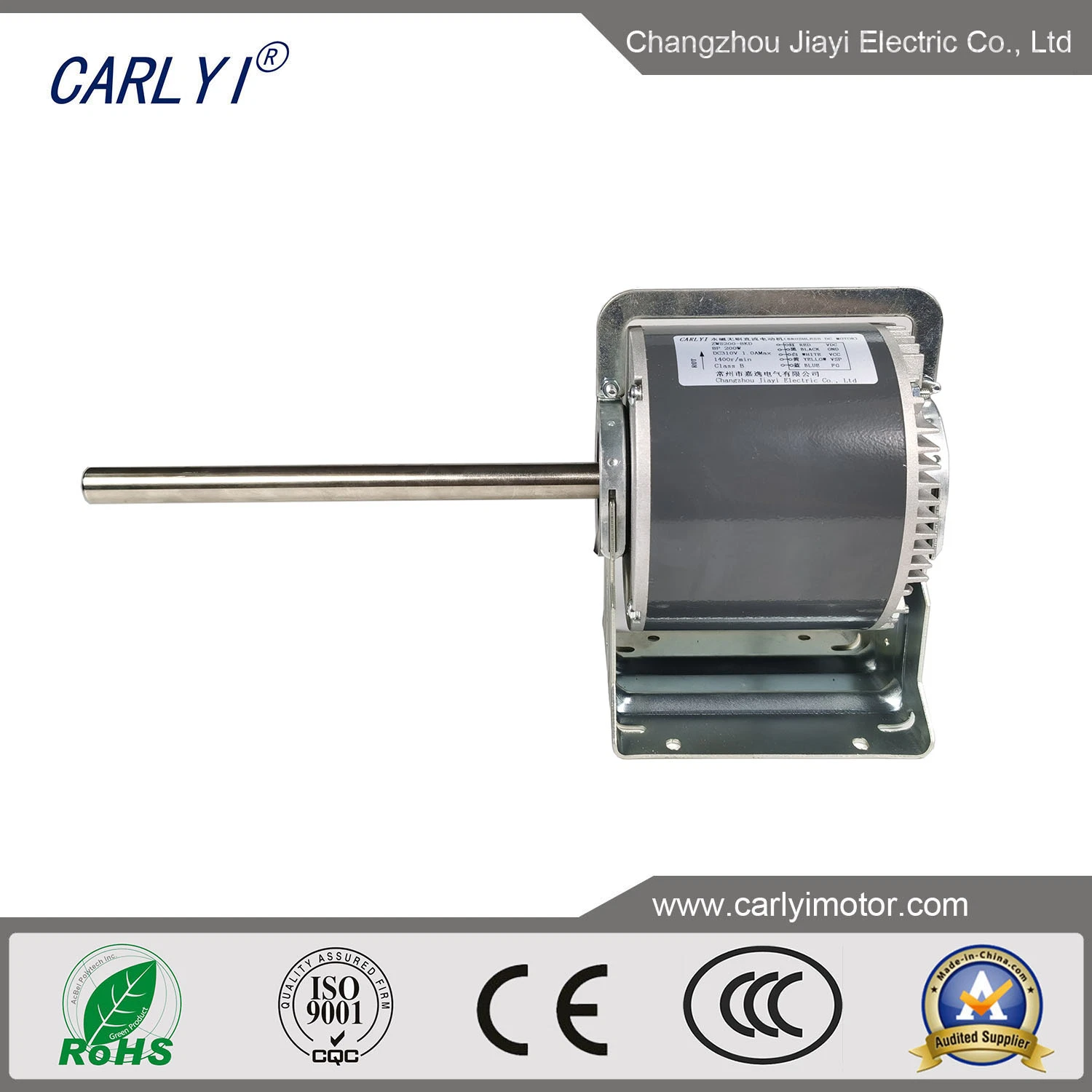

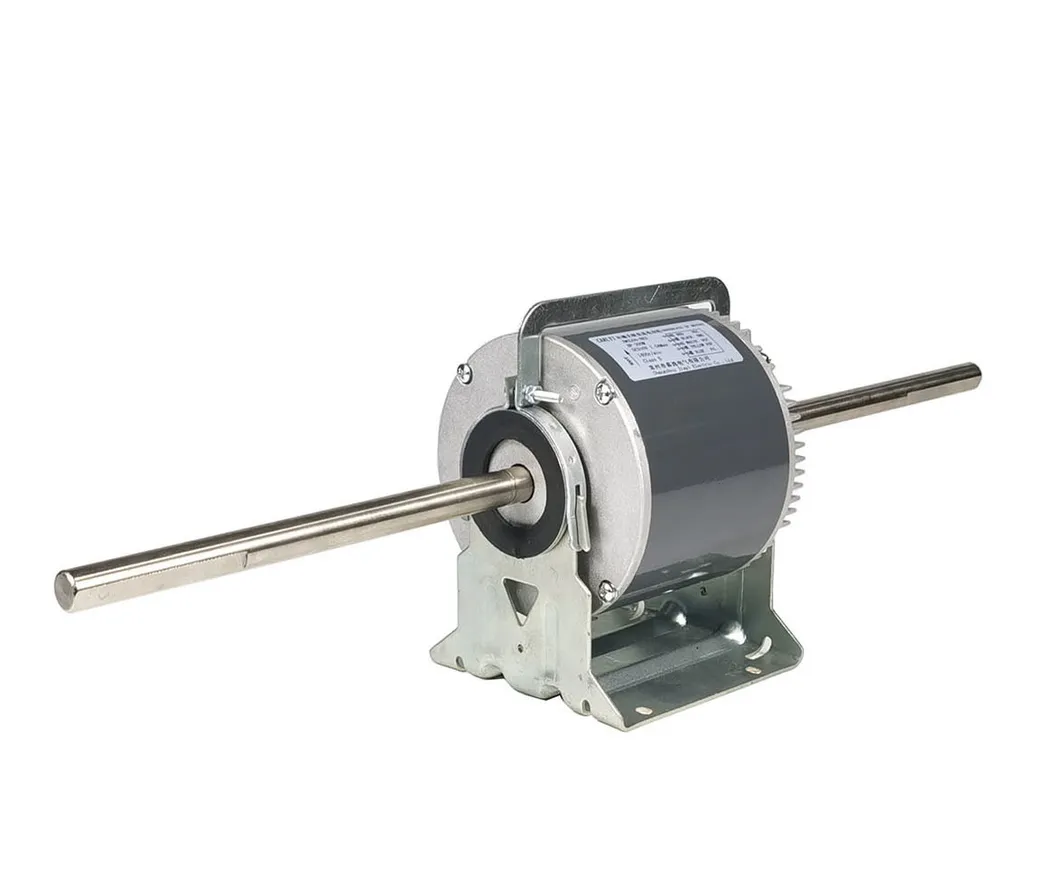

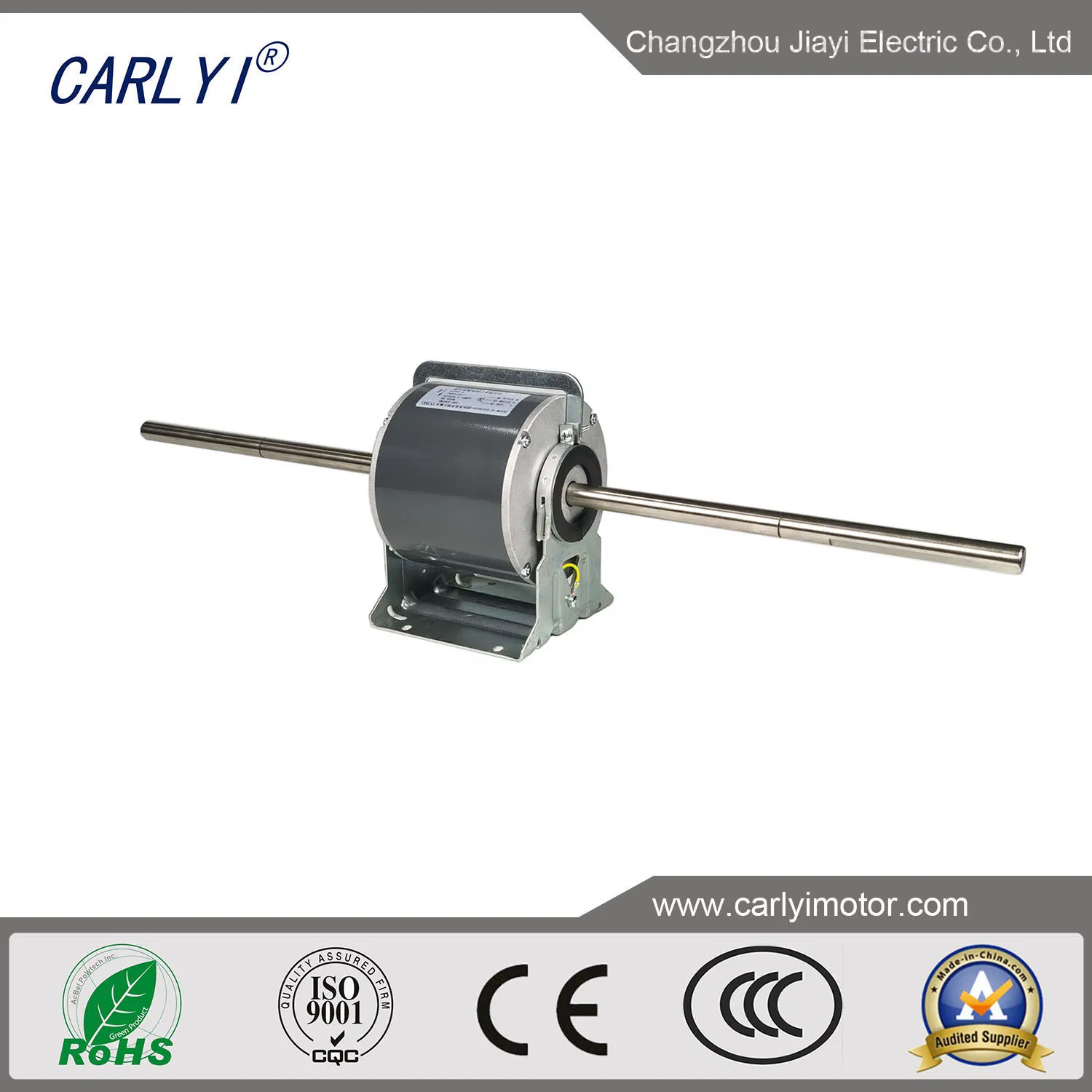

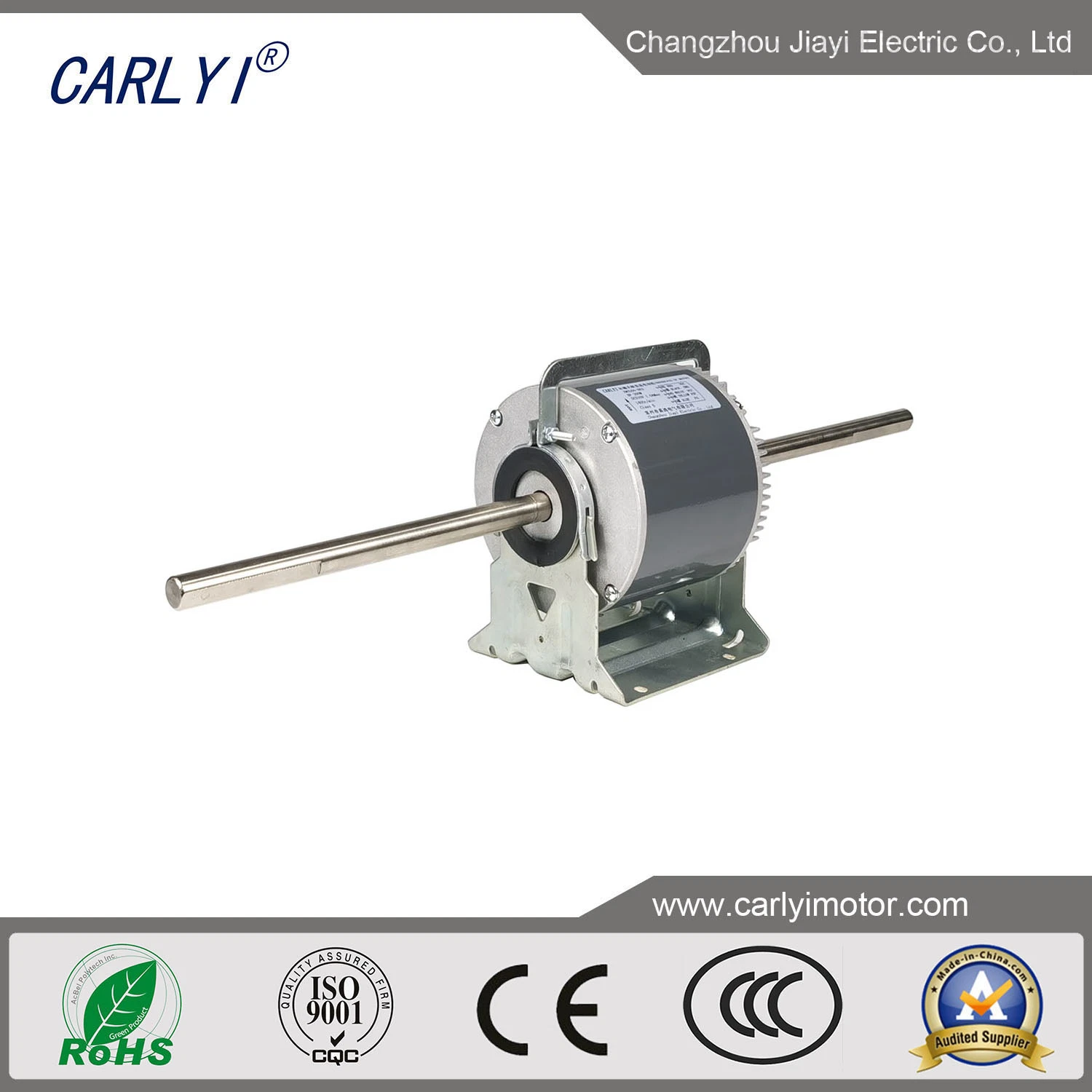

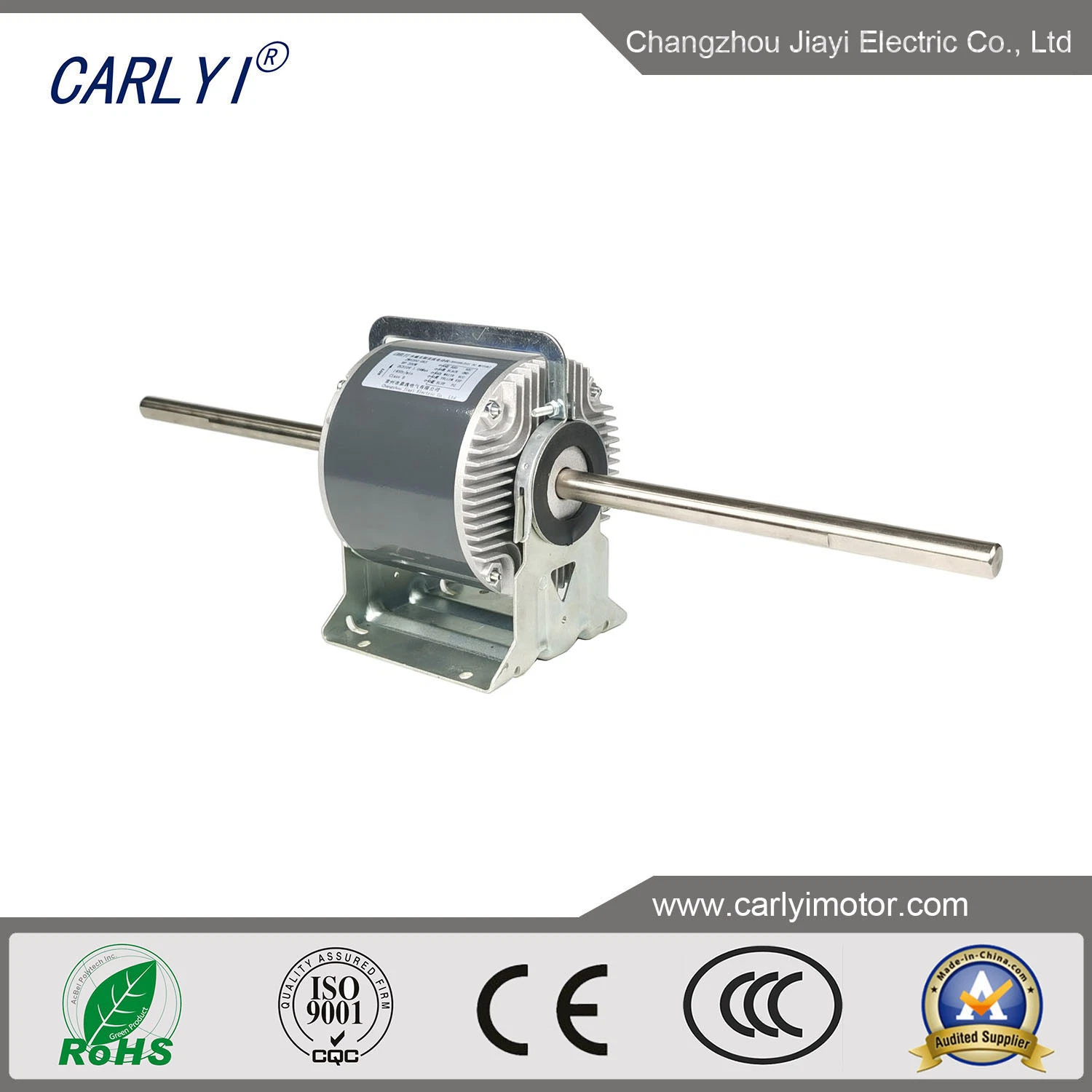

Specially designed for Ducted Direct Drive Air Conditioner Fan Coil Units. These motors are engineered for maximum efficiency and minimum noise.
Primary Use: Ducted Direct Drive Air Conditioner Fan Coil Units.
Our motors are adaptable and can be designed according to specific customer requirements for various HVAC applications.
| Model | Voltage (V) | Current (A) | Speed (r/min) | Output (W) | Input (W) | Insulation |
|---|---|---|---|---|---|---|
| ZWS200-8KS | Vdc 310-360 | 0.8 | 300-1500 | 200 | 245 | B |
| ZWS400-8ES | Vac 220-240 | 2.3 | 300-1500 | 400 | 500 | B |
| ZWS560-8ES | Vac 220-240 | 3.1 | 300-1500 | 560 | 680 | B |
| ZWS750-8ES | Vac 220-240 | 4.1 | 300-1500 | 750 | 900 | B |
| ZWS1000-8ES | Vac 220-240 | 5.5 | 300-1500 | 1000 | 1200 | B |

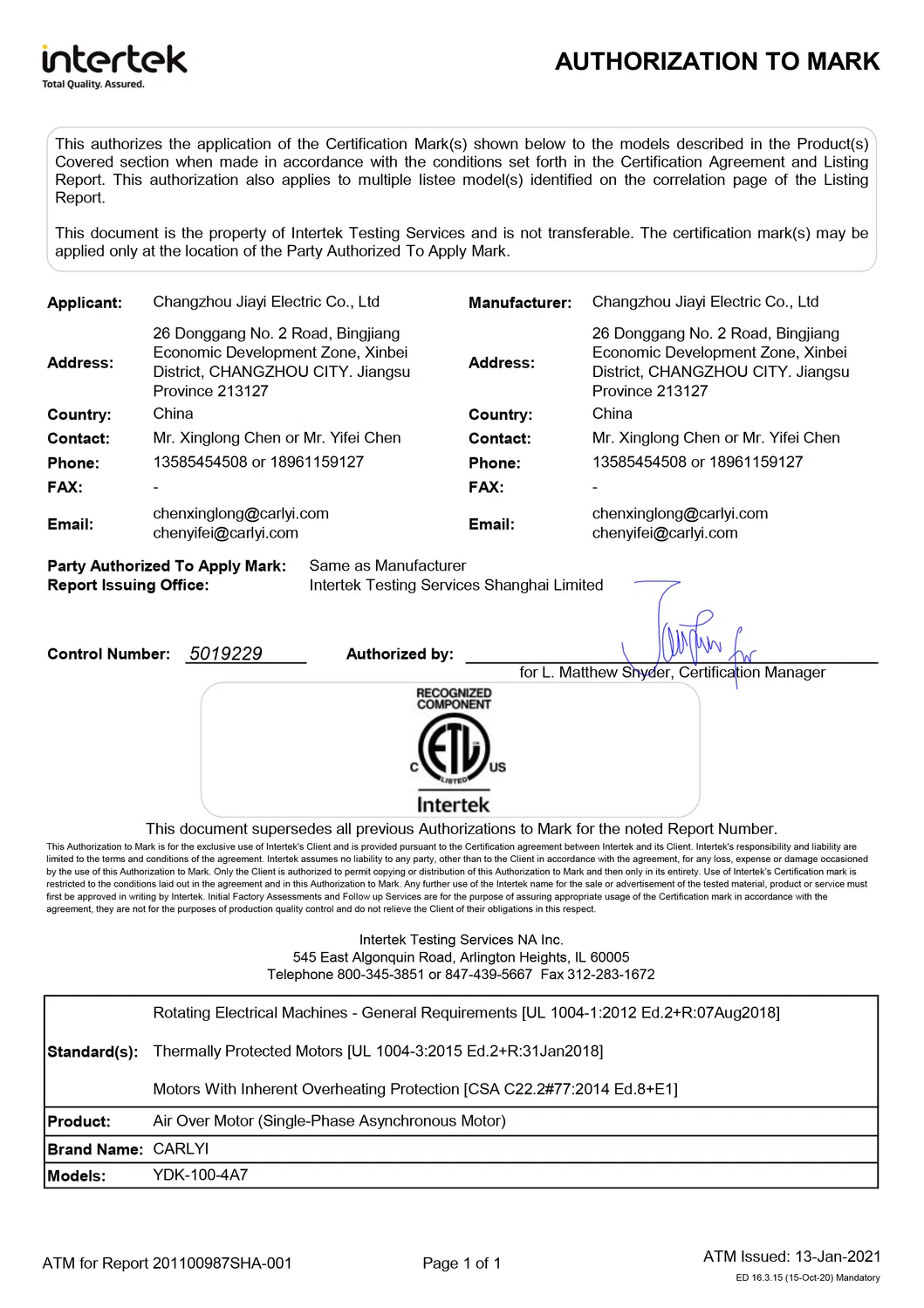

ETL Certificate

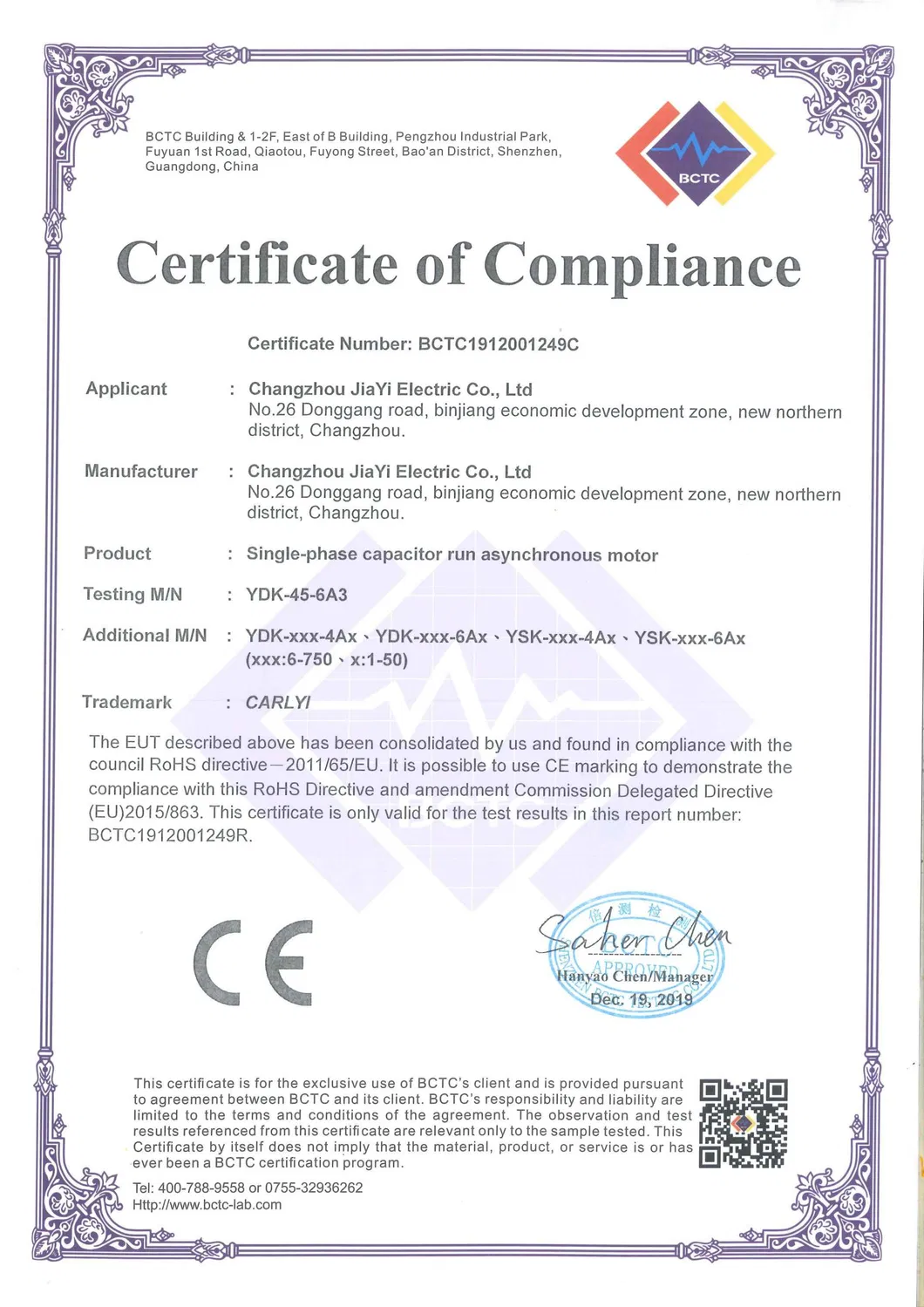

CE Certificate
| Model | Voltage (V) | Speed (r/min) | Output (W) | Insulation |
|---|---|---|---|---|

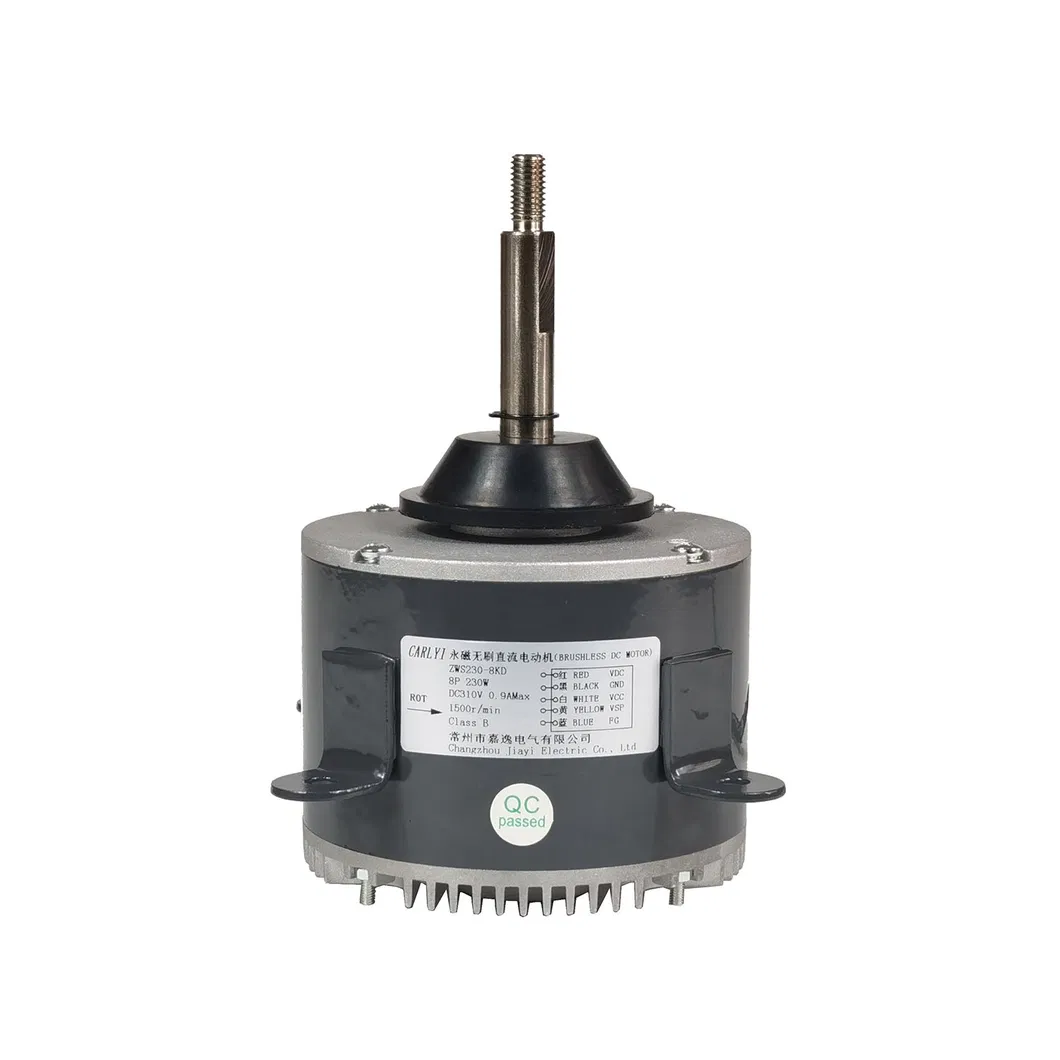

| ZWS80-8KD | Vdc 310-360 | 300-1500 | 80W | B |
| ZWS150-8KD | Vdc 310-360 | 300-1200 | 150W | B |
| ZWS230-8KD | Vdc 310-360 | 300-1200 | 230W | B |

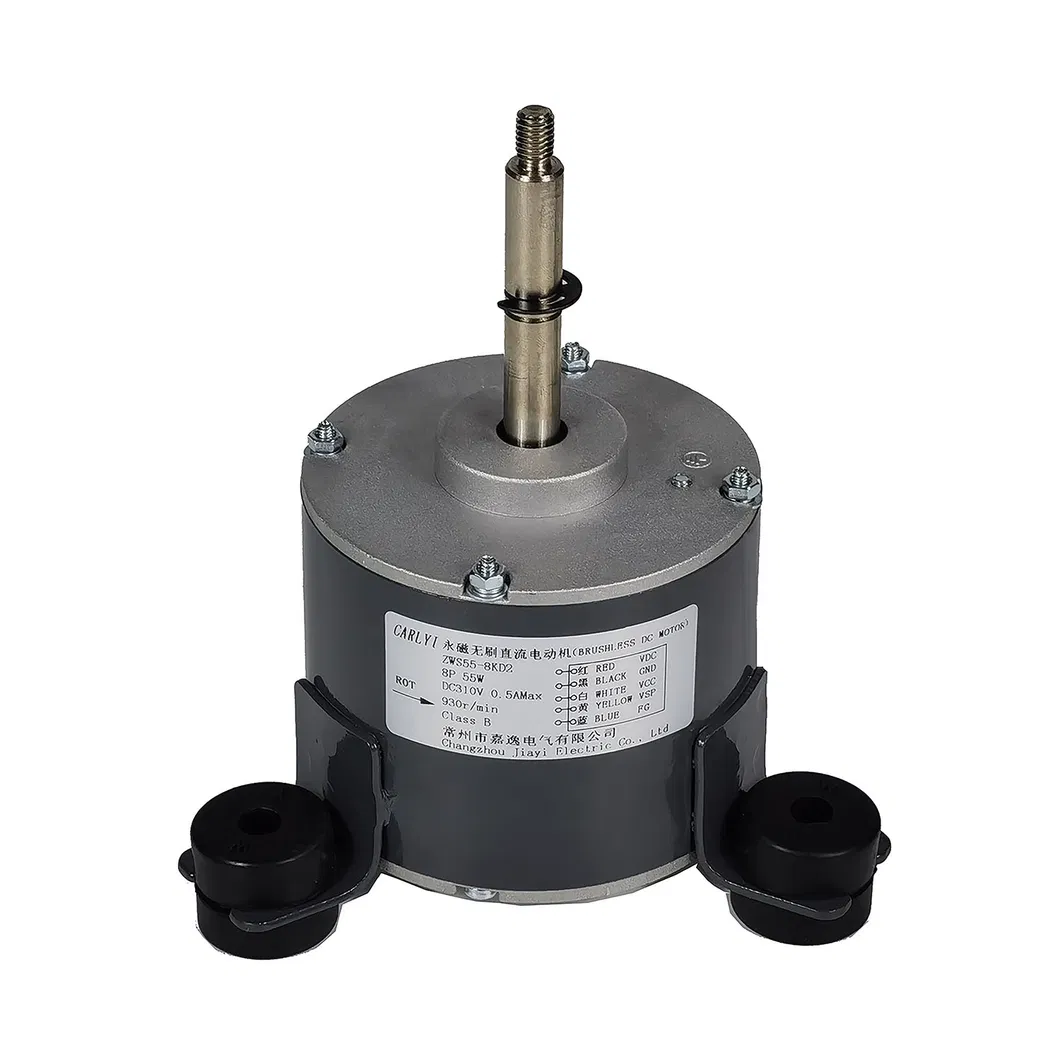

| ZWS55-8KD | VDC 310-360 | 300-1500 | 55W | B |

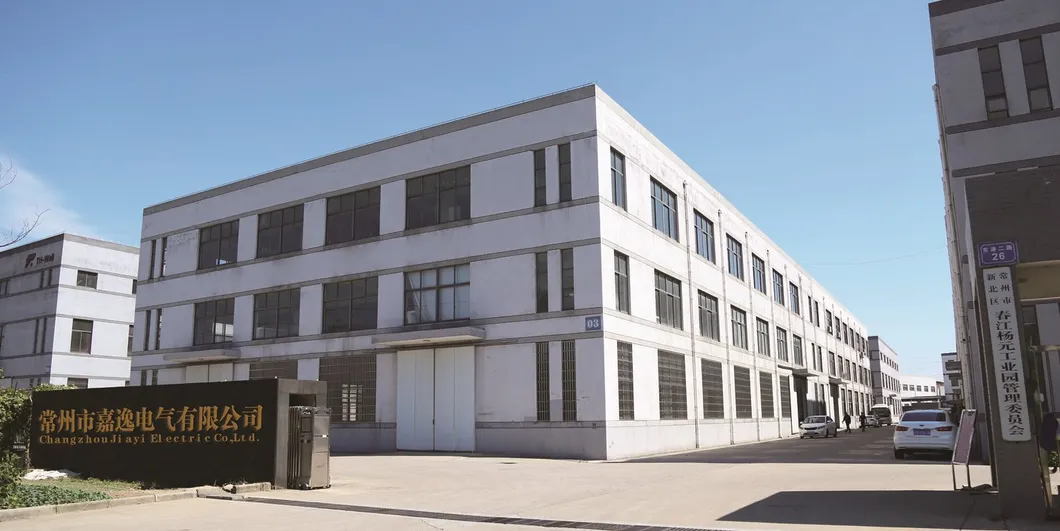

Established in 2013, we are a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries.
With an annual output of 1 million motors, our BLDC and EC motors use unique high flux and shock absorption designs combined with NSK bearings for superior torque and reliability.
