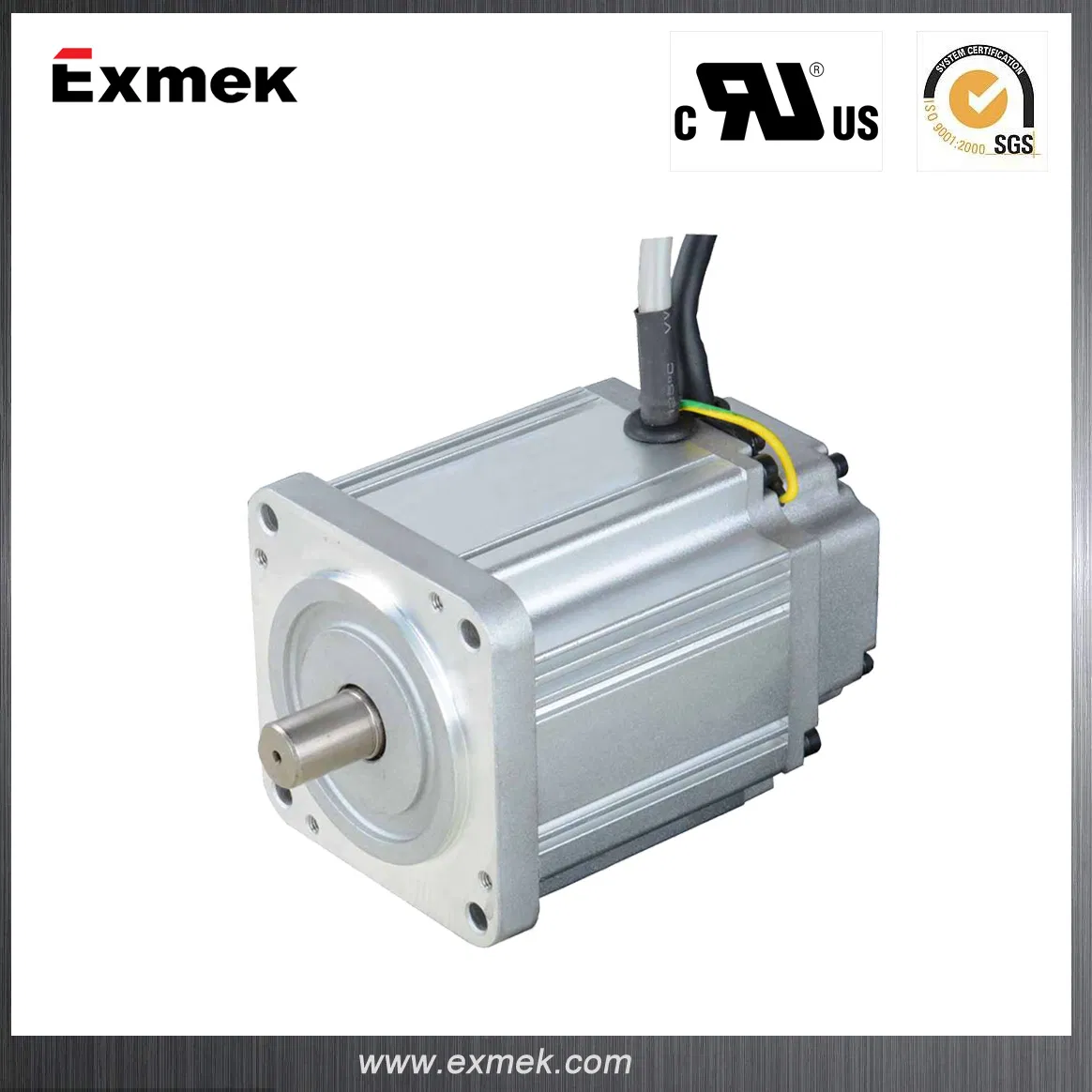

80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
1 / 5
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)
80mm DC Brushless Motor (ME080AS100)

80mm DC Brushless Motor (ME080AS100)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ME080AS100
Excitation Mode
Excited
Function
Control
Casing Protection
Closed Type
Number of Poles
8
Structure
Brushless
Certification
ISO9001, CE, RoHS
Production Capacity
400,000 PCS/Year
Product Description
General Information
  • 8 poles with three phase design
  • 15 slots distribution winding design for low cogging
  • 6 slots for automatic winding efficiency
  • Insulation class B (Higher classes available on request)
  • High-performance Sintered Neo Magnet
  • Multiple lines of encoder options available
  • Lower voltage configurations available

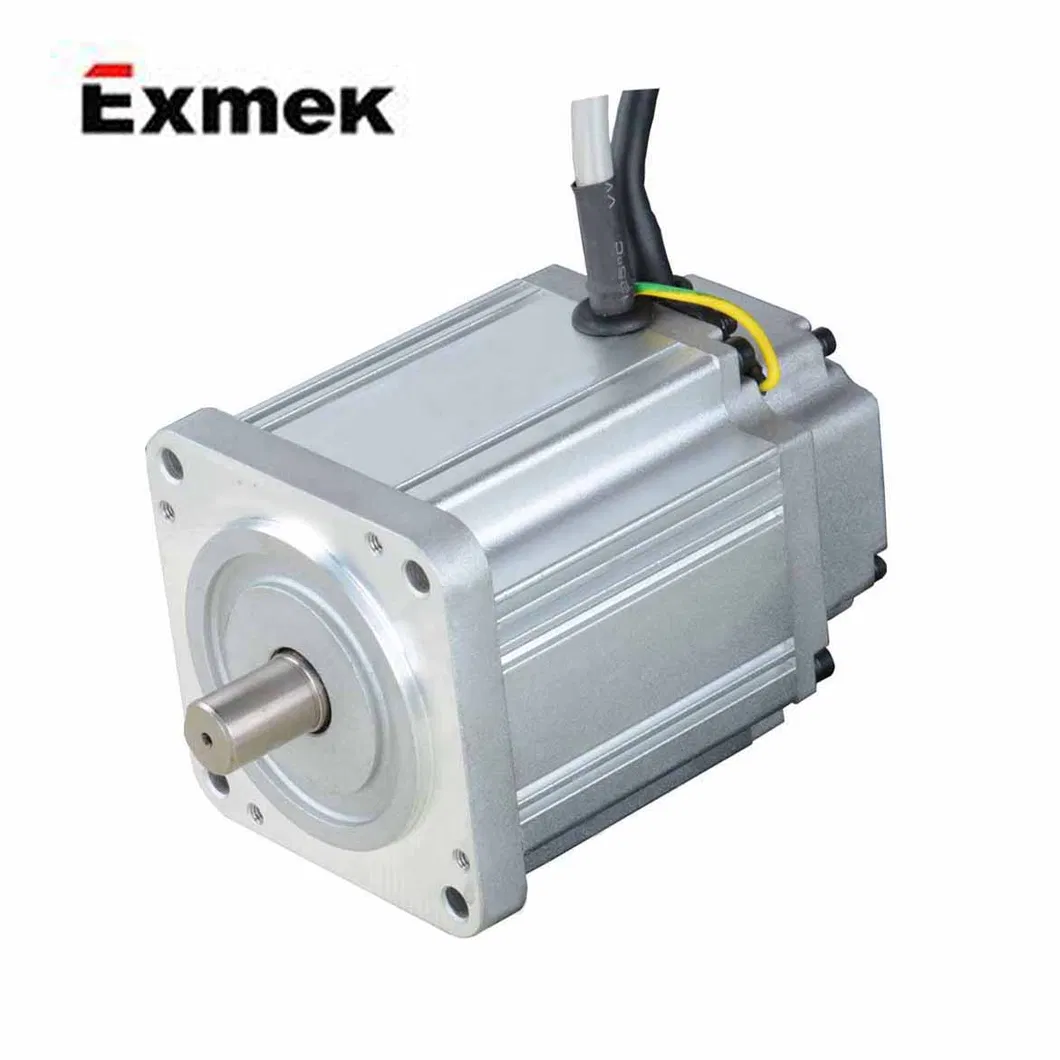

80mm DC Brushless Motor ME080AS100

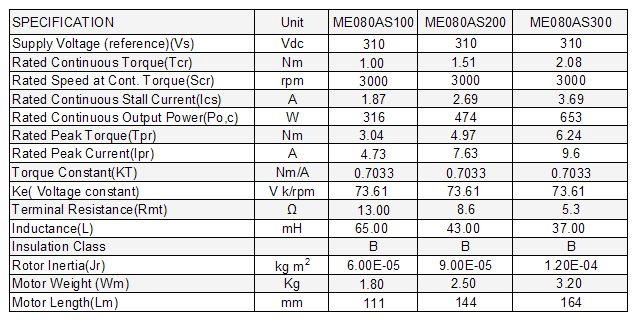

Technical Specifications
Supply Voltage (Reference)310 (VDC)
Rated Continuous Torque1 (Nm)
Rated Speed at Cont. Torque3000 (rpm)
Rated Continuous Stall Current1.87 (A)
Rated Continuous Output Power316 (W)
Rated Peak Torque3.04 (Nm)
Rated Peak Current4.73 (A)
Torque Constant0.7033 (Nm/A)
Ke (Voltage Constant)73.61 (V/krpm)
Terminal Resistance13 (Ω)
Inductance65 (mH)
Insulation ClassB
Rotor Inertia6.00E-05 (Kg. M²)
Weight1.8 (Kg)
Length111 (mm)
Mechanical & Performance Diagrams

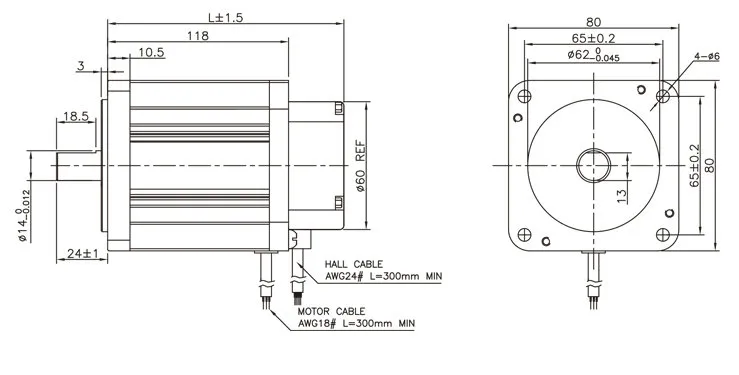

Mechanical Drawing

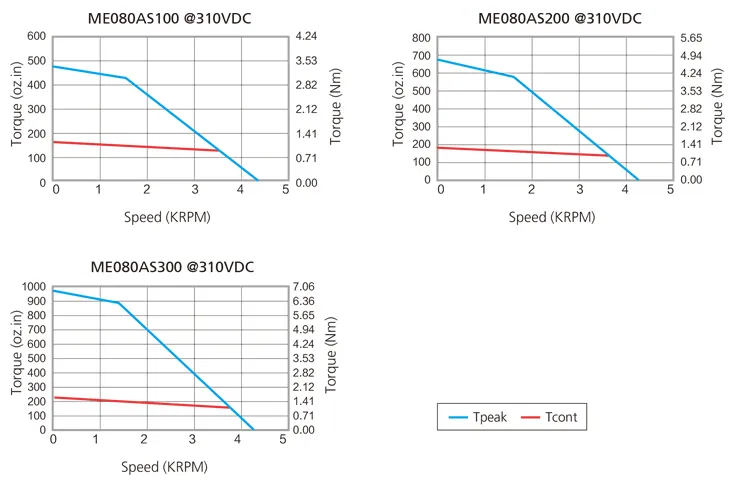

Characteristic Diagram
Technical Dimensions
Technical Specifications Drawing
Packaging & Shipping
📦 1. Waterproof plastic bag packed in foam box and carton as outer packing.
🚢 2. Export wooden box packaging for high-security transit.
Packaging Detail
Professional Capabilities
Manufacturing Excellence
  • Modern Motor Design and Manufacture
  • Part Set Design and Manufacture
  • Magnetic Design Software Utilization (Motorsolver)
  • Custom Molding Capabilities
  • Global Shipping Infrastructure
  • UL, CE, RoHS, ISO 9001, and ISO 14000 Certification
Why Choose Our Solutions
  • Talented team of engineers providing innovative technical solutions
  • One-stop supplier for complete sub-systems
  • Quality products provided at competitive low cost
  • Substantially reduced time to market
  • Reliable on-time delivery and fast return/repair service
Applications

Our motors are widely utilized in various sectors including:

#Industrial Automation | #Automotive | #Medical Equipment | #Semiconductor | #Swimming Pool Systems | #Power Tools | #Office Automation | #OEM Applications
Frequently Asked Questions
What are the main advantages of the ME080AS100 model?
It features an 8-pole three-phase design with 15 slots for extremely low cogging, utilizing high-grade sintered Neo magnets for superior performance and efficiency.
Can the insulation class be customized?
Yes, while the standard is Class B, higher insulation classes can be provided upon specific request to meet your application requirements.
Is this motor compatible with encoders?
Absolutely. Multiple lines of encoders are available to be integrated with the motor for precise motion control.
What is the rated power and speed of this brushless motor?
The ME080AS100 has a rated continuous output power of 316W and a rated speed of 3000 rpm at continuous torque.
What certifications do your motors hold?
Our products are fully certified with UL, CE, and RoHS standards, and our manufacturing processes follow ISO 9001 and ISO 14000 guidelines.
Do you support international shipping?
Yes, we have a robust global logistics network capable of shipping our motion control products to customers worldwide with secure export packaging.
