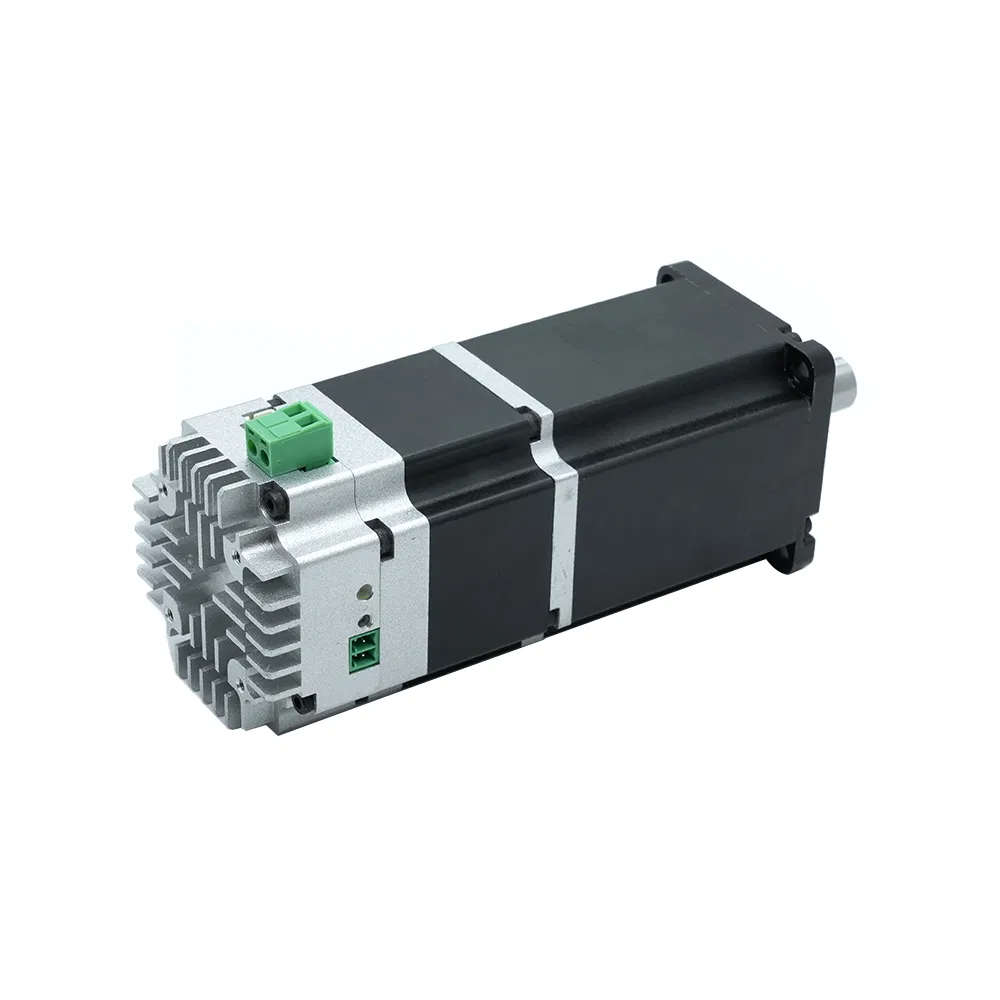

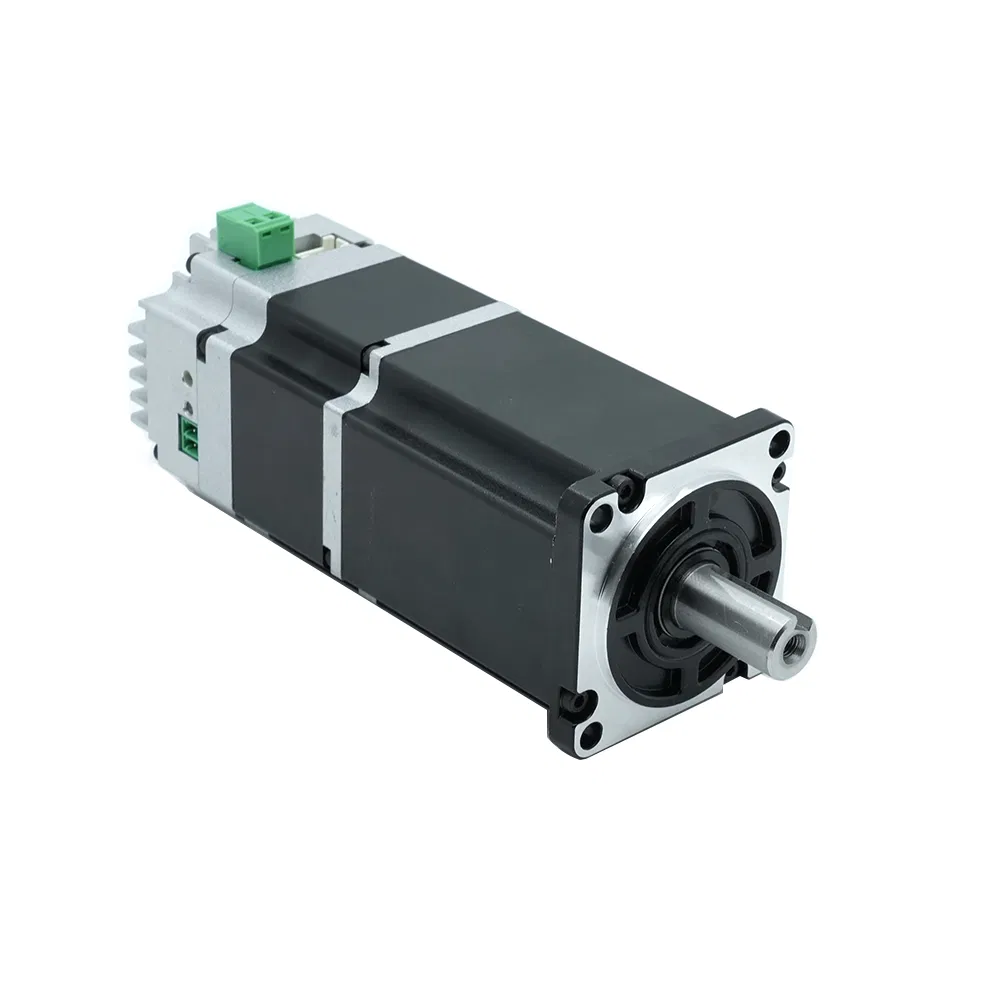

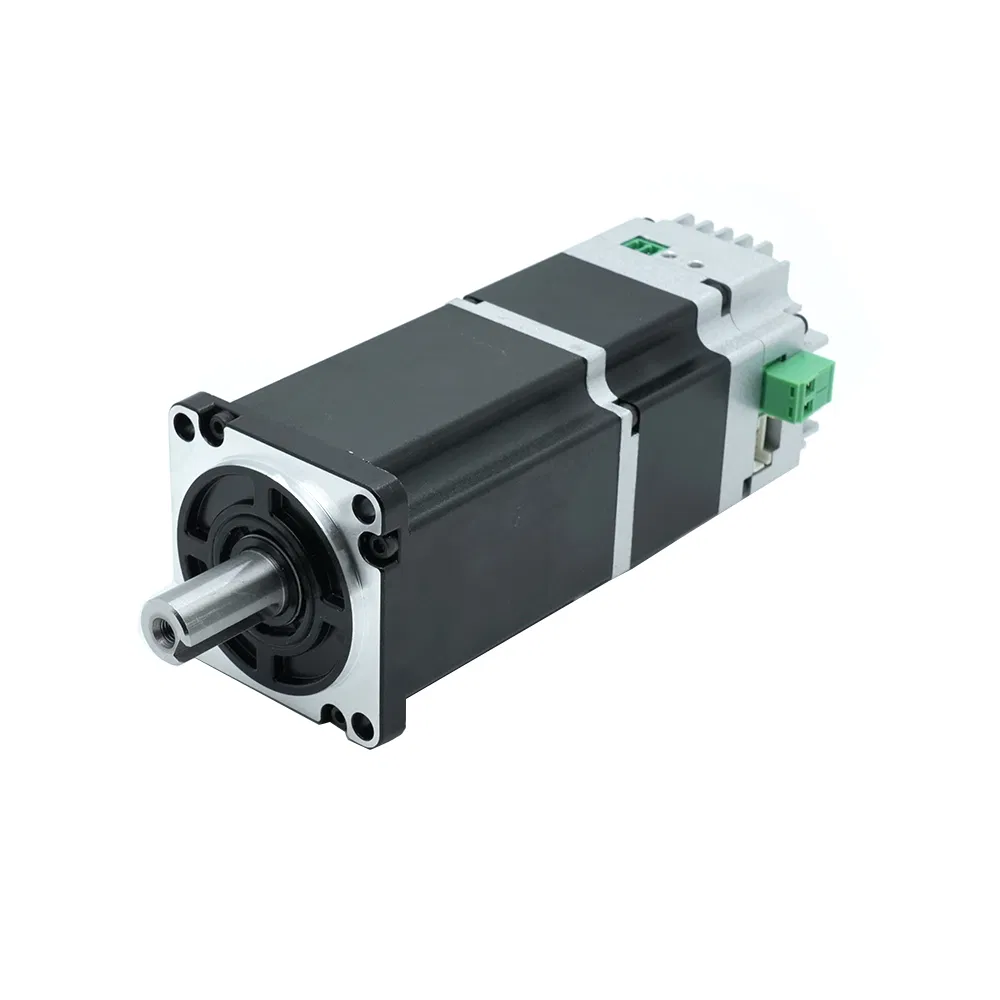

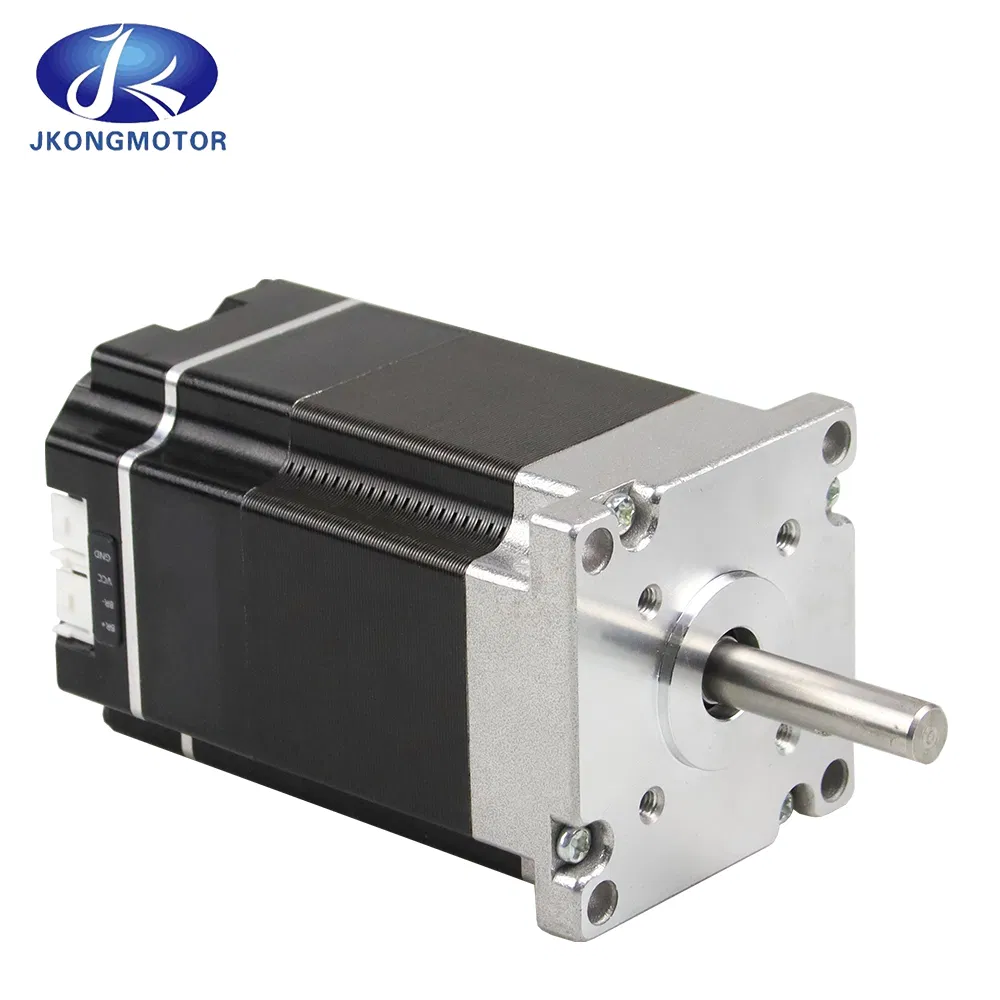

China Factory Jkids60-P01A 60mm 0.64nm 24V Brushless DC Servo Motor 200W 48V Integrated DC Servo Motor with High Performance

1 / 5

China Factory Jkids60-P01A 60mm 0.64nm 24V Brushless DC Servo Motor 200W 48V Integrated DC Servo Motor with High Performance

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.

JKIDS60-P01A

Excitation Mode

Shunt

Function

Integrated Servo Motor

Number of Poles

Working Principle

Brushless

Type

Integrate Driver

Certification

ISO9001, RoHS, Reach, CE, ISO14001

Voltage

48V

Power

400W

Control Method

Pulse / RS485 / CANopen

Encoder Type

17bit

Protection Level

IP30, IP54, IP65 Optional

Product Description

Model naming rules for low voltage integrated DC servo motor

1. Abbreviation: Company name abbreviation.

2. IDS Series: Refers to Integrated DC Servo.

3. Frame Number: 42/57/60/80mm dimensions.

4. Control: P (Pulse), R (RS485), C (CANopen).

5. Motor Model: Numerical model designation.

6. Encoder: A represents a 17-bit single-turn absolute encoder.

Key Characteristics

Compact Design: Integrated drive motor for easy installation, small footprint, and simple wiring.

Motion Modes: Supports CiA402 standard, including relative/absolute position, speed, torque, and origin regression.

Low Power Consumption: Adopts low internal resistance MOS for excellent torque utilization and heat reduction.

Safe & Reliable: Built-in alarm outputs for over-differential, voltage, and temperature detection.

Integrated vs. Traditional Solution

Precision control integrated solution:

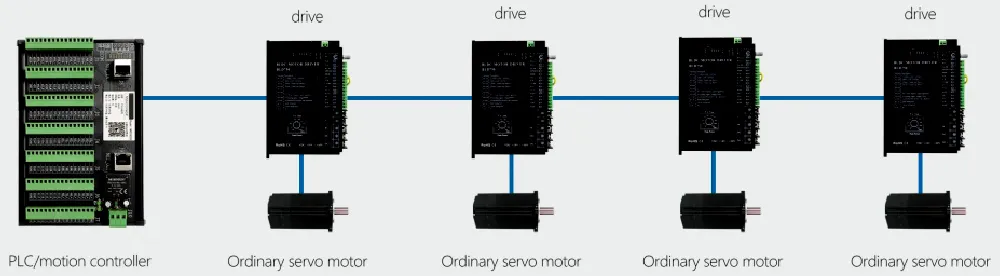

Traditional split solution:

Product Parameters

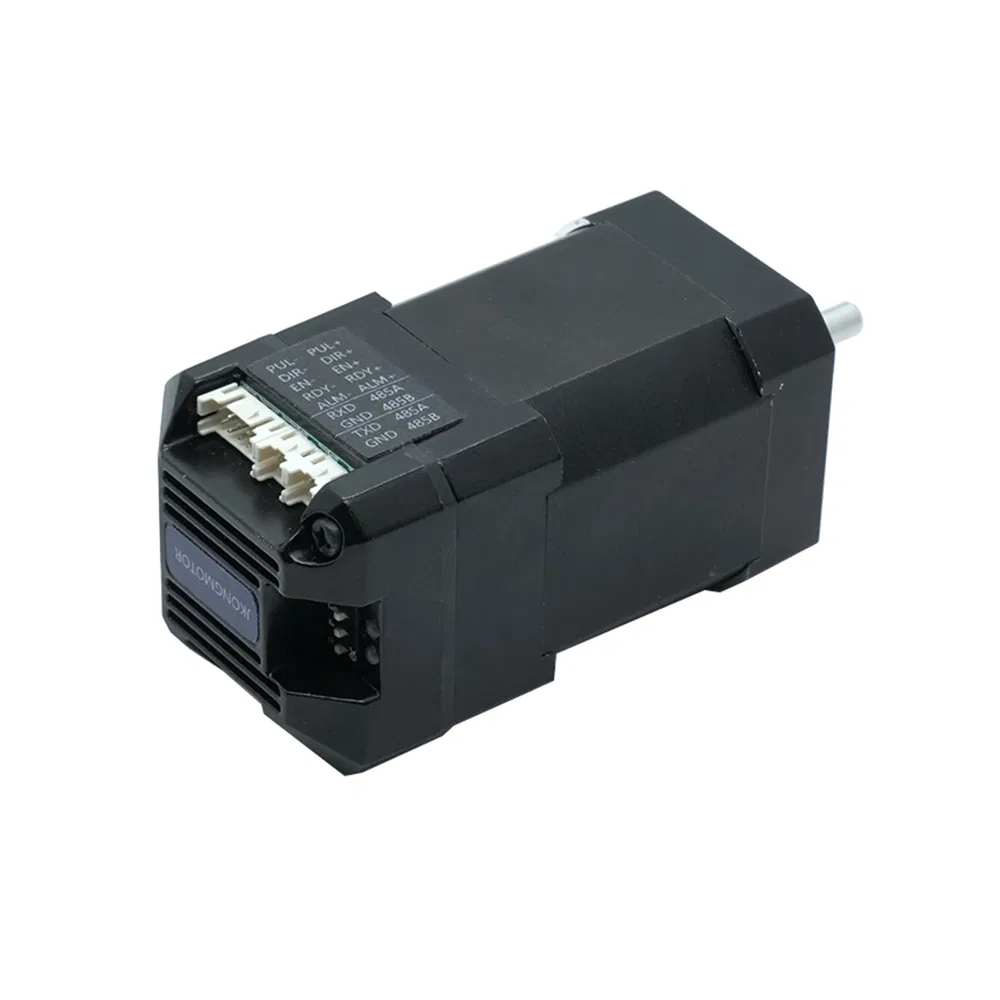

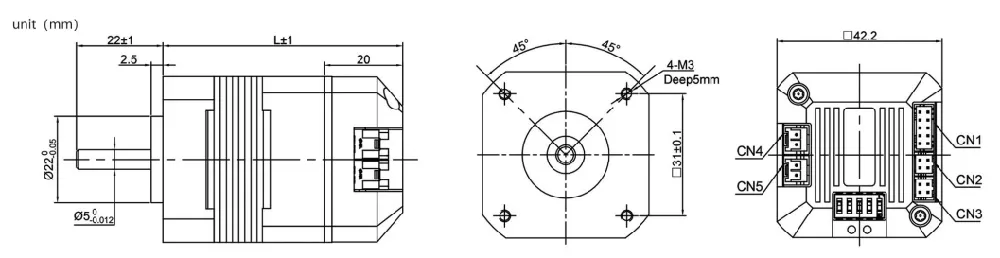

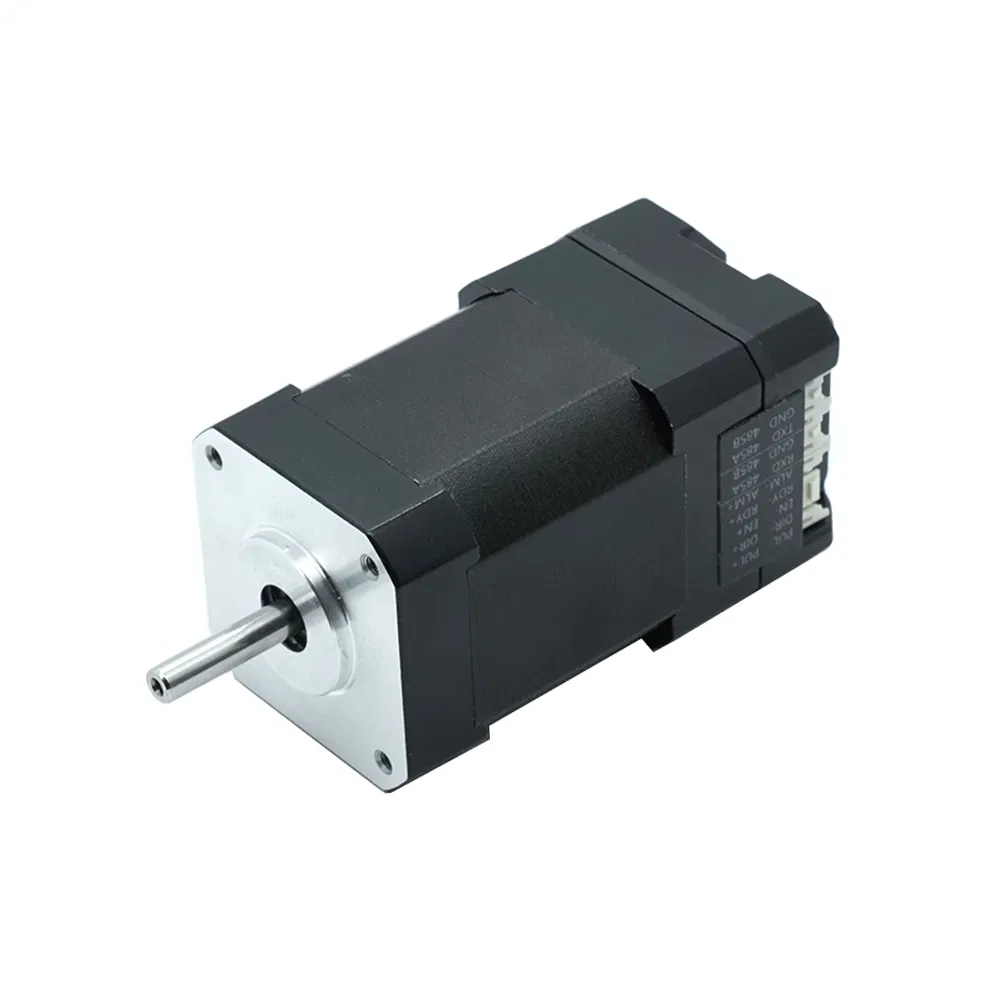

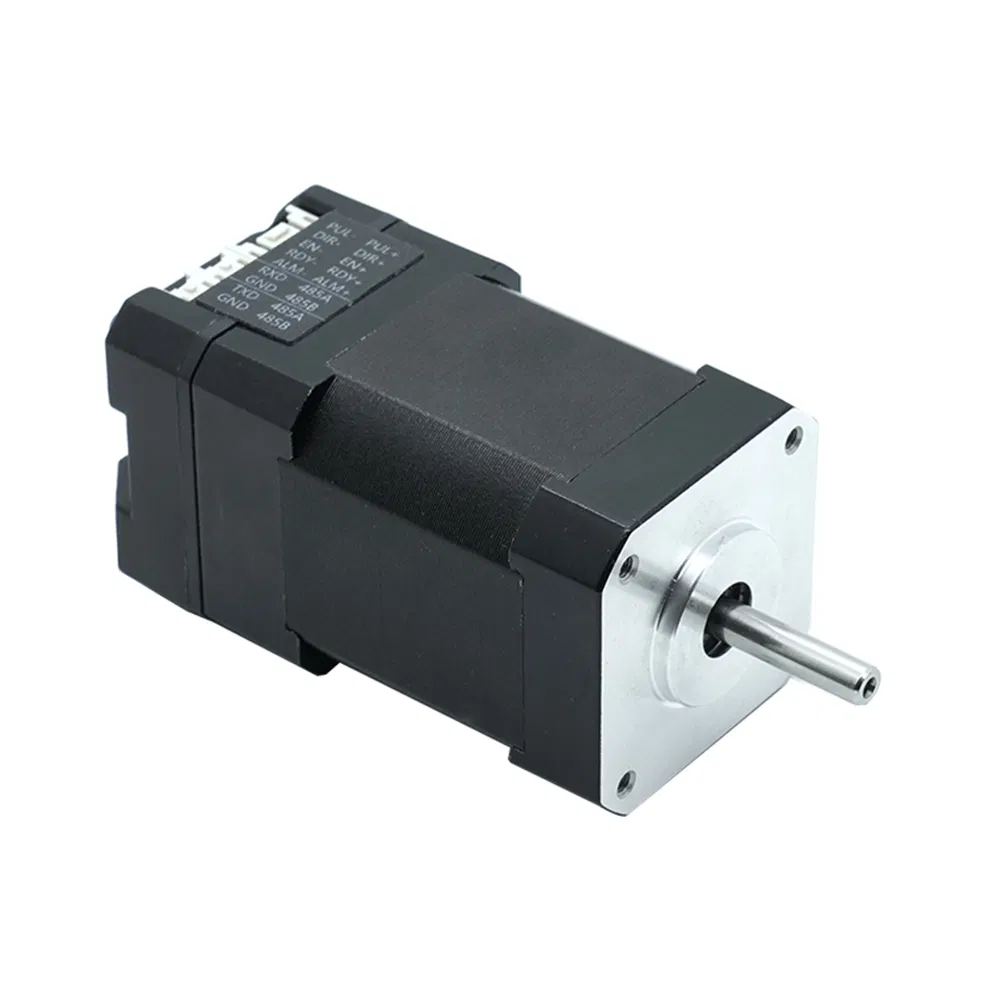

42mm Integrated Servo Motor Series

Model	Power(W)	Voltage(VDC)	Current(A)	Speed(rpm)	Torque(N.m)	Height(mm)	Encoder	Control
JKIDS42-P01A	26	24	1.8	4000	0.0625	61	17bit	Pulse/RS485/CAN
JKIDS42-P02A	53	24	3.3	4000	0.125	81	17bit	Pulse/RS485/CAN
JKIDS42-P03A	78	24	4.5	4000	0.185	101	17bit	Pulse/RS485/CAN
JKIDS42-P04A	78	24	4.5	3000	0.25	120	17bit	Pulse/RS485/CAN

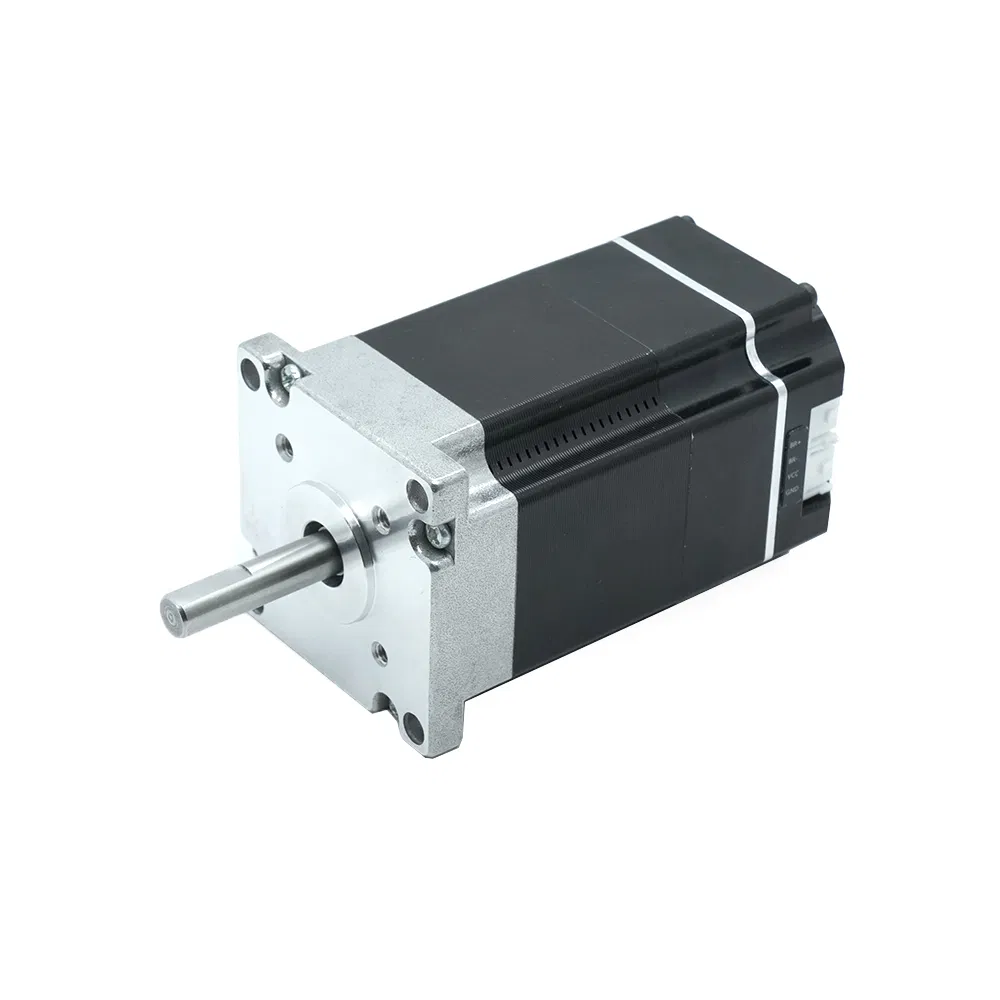

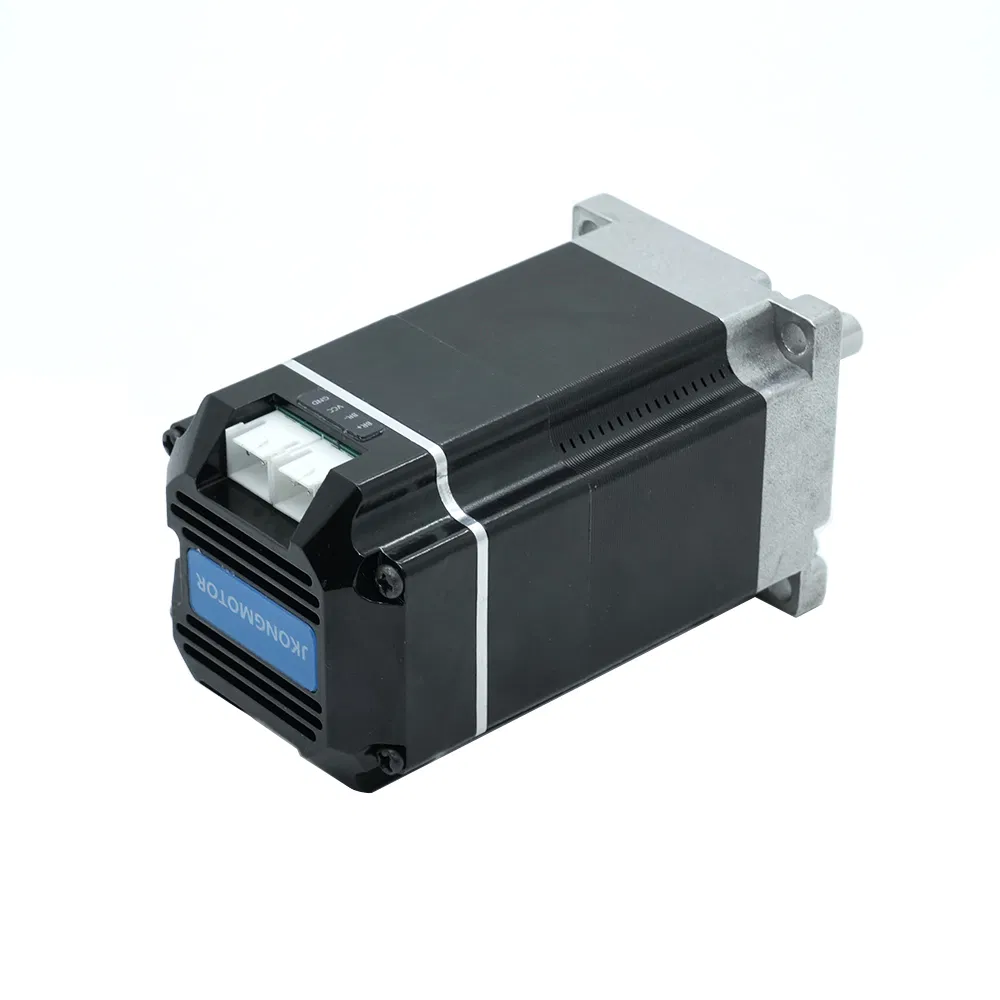

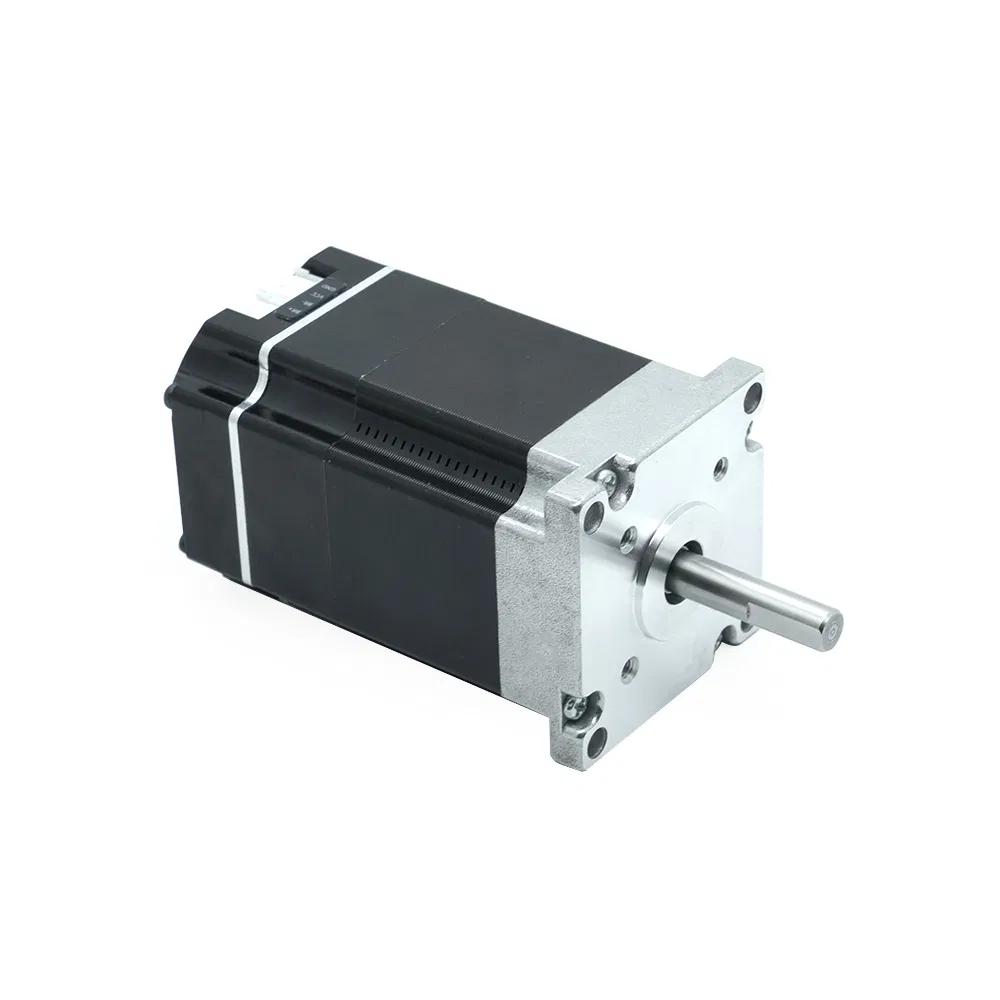

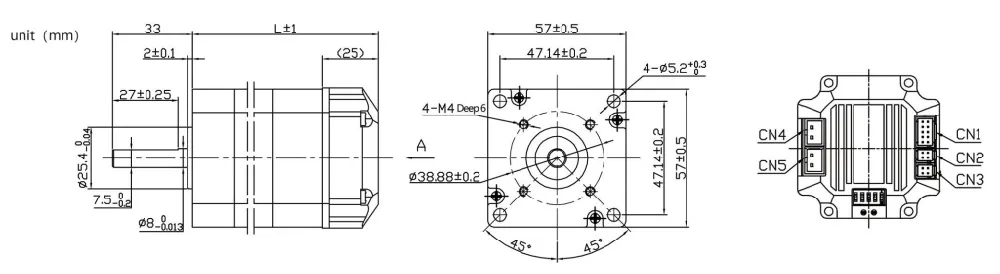

57mm Integrated Servo Motor Series

Model	Power(W)	Voltage(VDC)	Current(A)	Speed(rpm)	Torque(N.m)	Height(mm)	Encoder	Control
JKIDS57-P01A	91	24/36	3.5	3000	0.29	101	17bit	Pulse/RS485/CAN
JKIDS57-P02A	140	24/36	5.4	3000	0.45	121	17bit	Pulse/RS485/CAN
JKIDS57-P03A	200	36/48	7.5	3000	0.64	141	17bit	Pulse/RS485/CAN

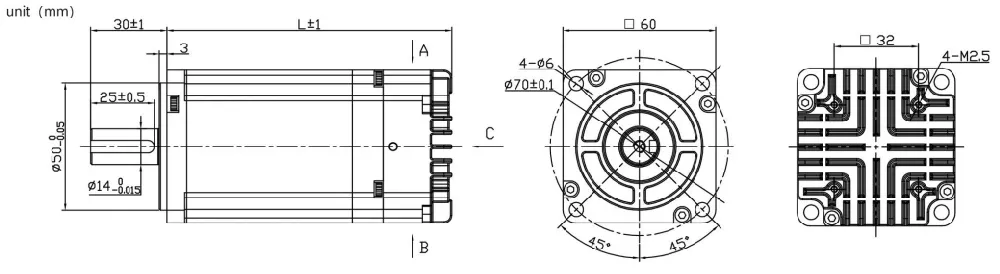

60mm Integrated Servo Motor Series

Model	Power(W)	Voltage(VDC)	Current(A)	Speed(rpm)	Torque(N.m)	Height(mm)	Encoder	Control
JKIDS60-P01A	200	24	12	3000	0.64	94	17bit	Pulse/RS485/CAN
JKIDS60-P02A	400	48	11	3000	1.27	112	17bit	Pulse/RS485/CAN

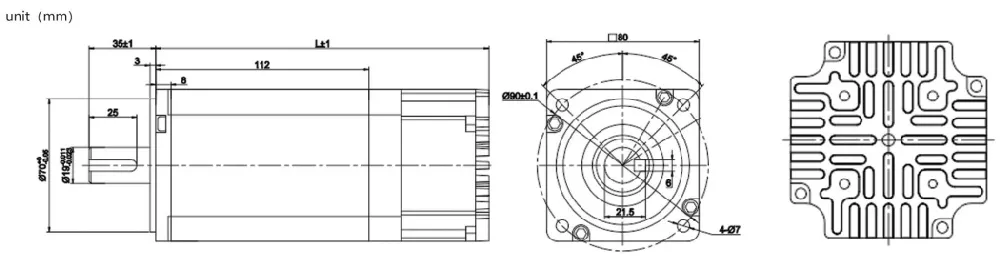

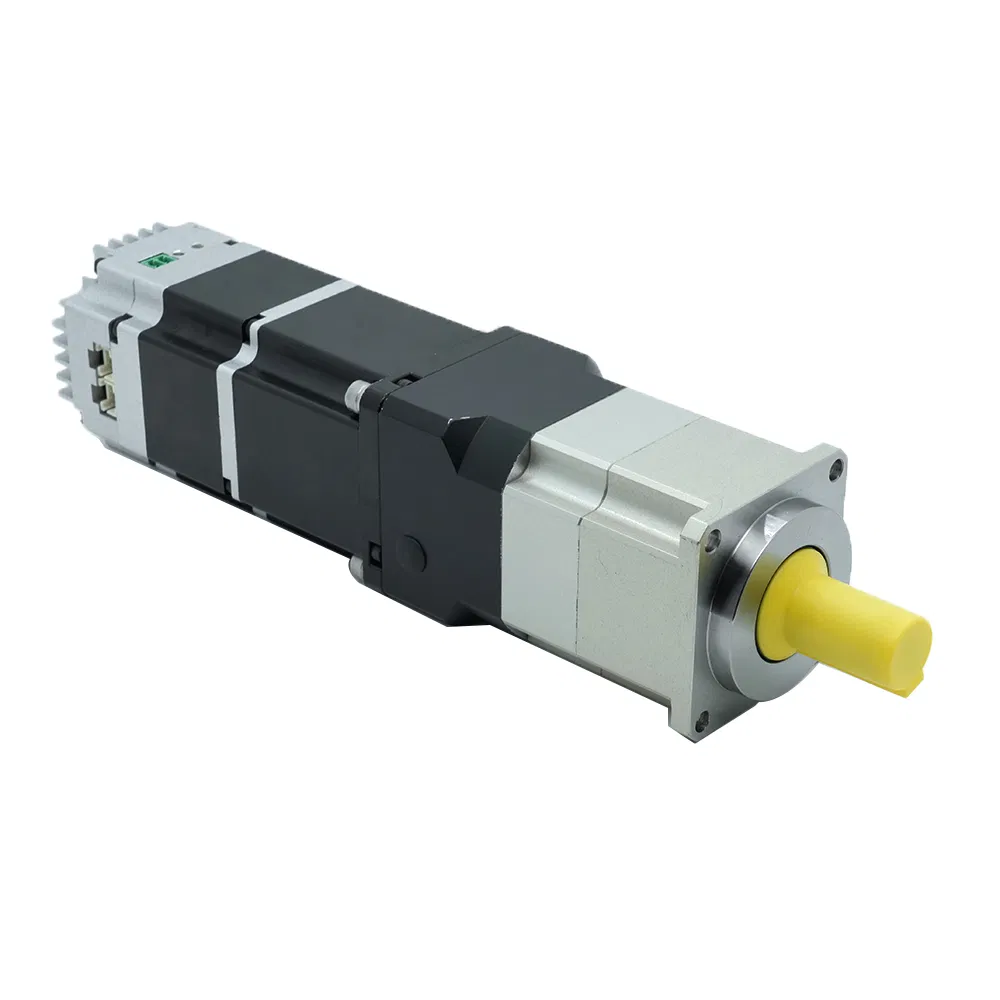

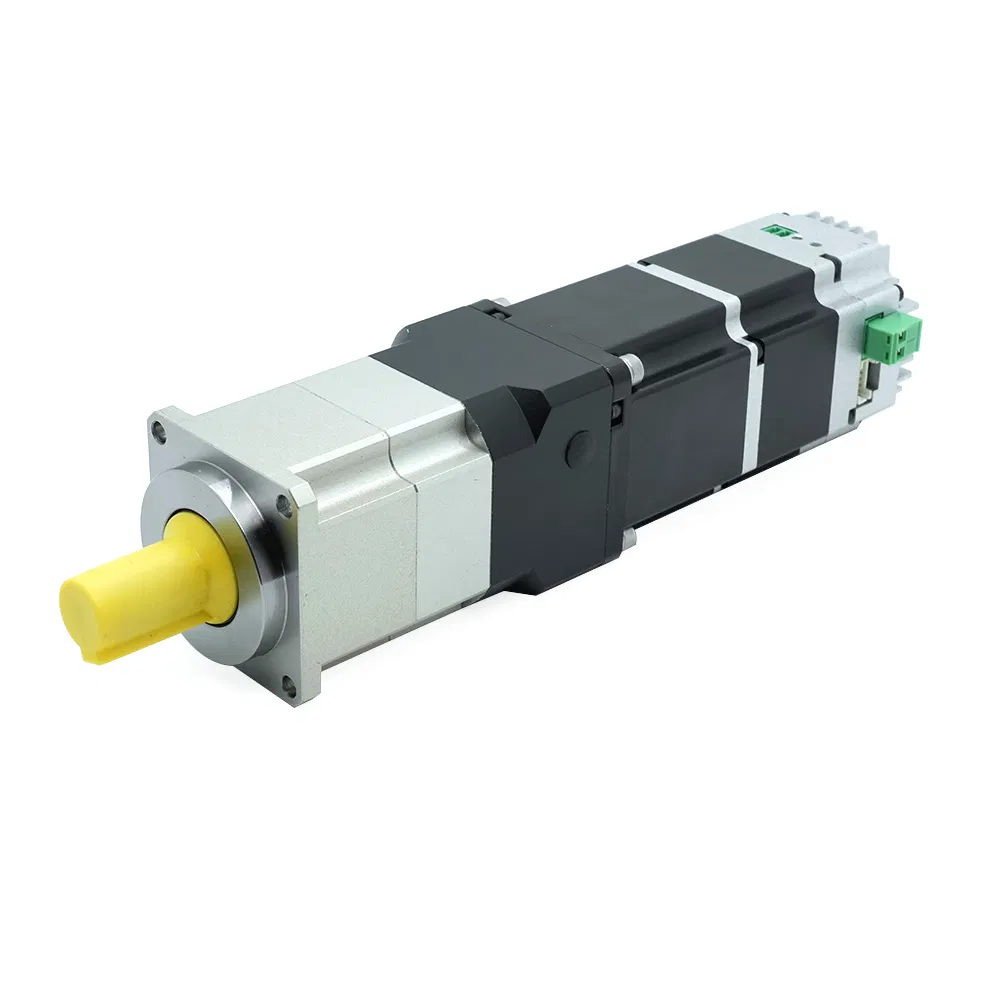

80mm Integrated Servo Motor Series

Model	Power(W)	Voltage(VDC)	Current(A)	Speed(rpm)	Torque(N.m)	Height(mm)	Encoder	Control
JKIDS80-P01A	750	48/72	19/12	3000	2.4	155	17bit	Pulse/RS485/CAN
JKIDS80-P02A	1000	72	17	3000	3.2	175	17bit	Pulse/RS485/CAN

Manufacturing & Application

Products are widely used in medical equipment, logistics transportation, industrial automation, textile machinery, laser cutting, and precision drawing.

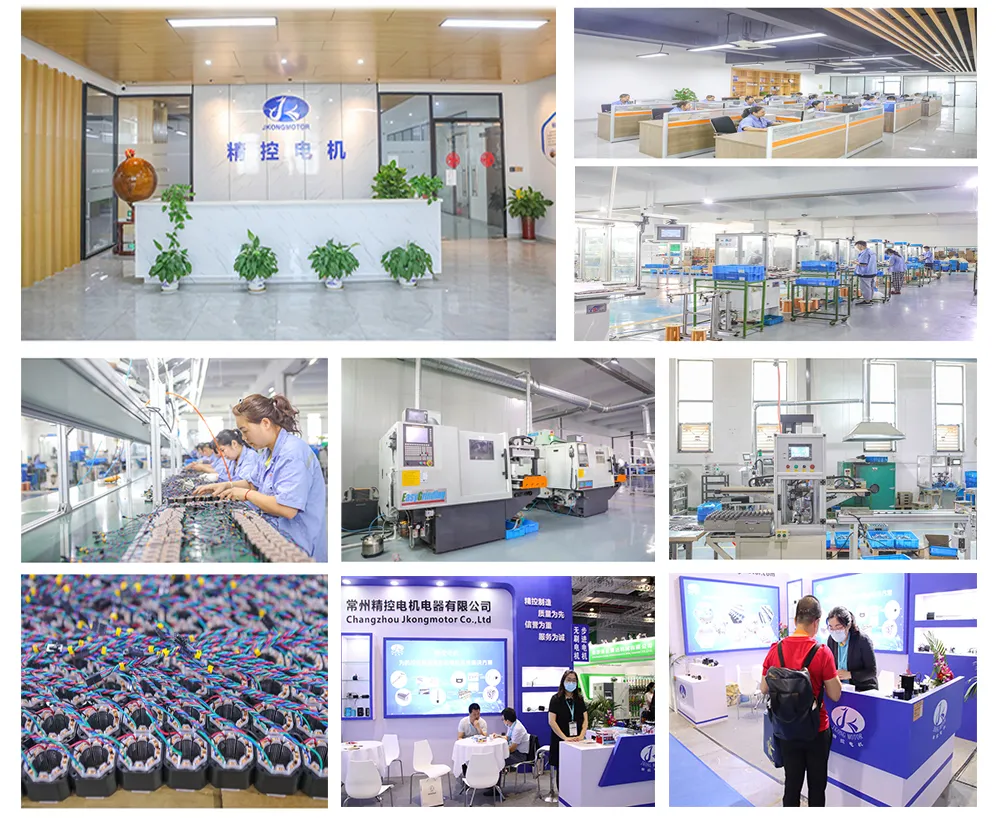

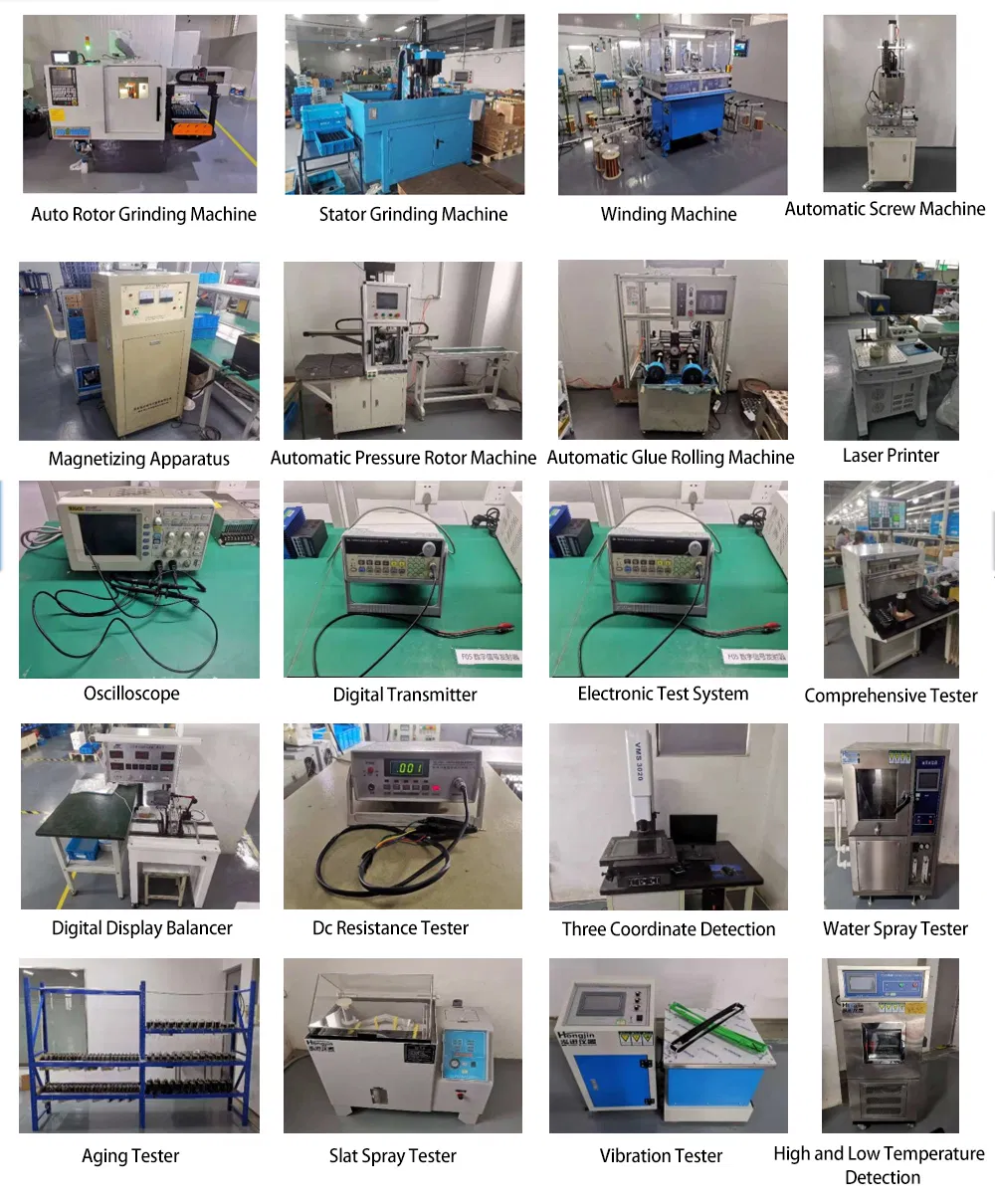

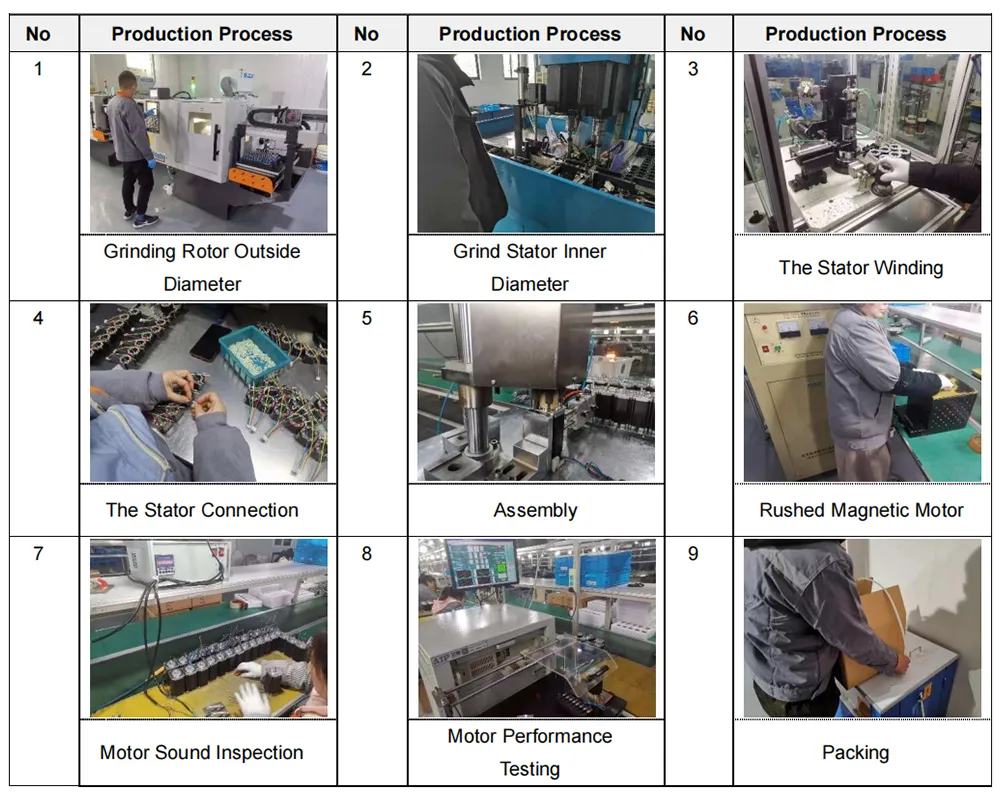

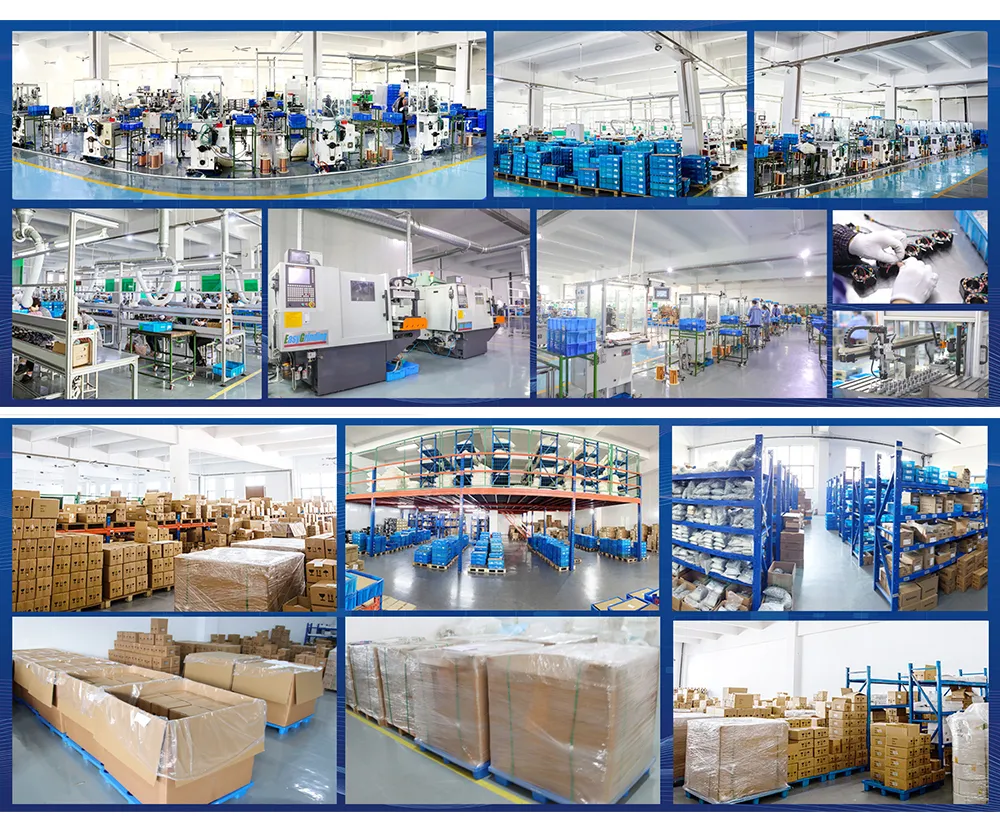

The manufacturing facility is located in a high technology industry zone, specialized in OEM & ODM collaborations. We prioritize reputation and sustainable development, ensuring high-quality standards through modern production flows and certifications.

Certifications

Frequently Asked Questions

What are the advantages of an integrated DC servo motor over a traditional split solution?

The integrated design combines the motor and drive into one unit, which significantly reduces wiring complexity, saves installation space, and ensures better compatibility between the motor and the driver.

Which communication protocols do these integrated motors support?

Our integrated servo motors support Pulse control, RS485 (Modbus RTU), and CANopen bus communication, allowing for flexible integration into various industrial networks.

What is the significance of the 17-bit single-turn absolute encoder?

The 17-bit encoder provides high resolution for precision control, ensuring stable torque characteristics and high speed accuracy across the entire operating range.

Can these motors handle harsh industrial environments?

Yes, we offer different protection levels including IP30, IP54, and IP65. This makes them suitable for applications ranging from clean labs to environments requiring water and dust resistance.

What safety features are built into the integrated driver?

The driver includes built-in protection against overcurrent, overvoltage, undervoltage, over-temperature, and over-differential conditions, ensuring safe and reliable operation.

Are custom options like gearboxes or brakes available?

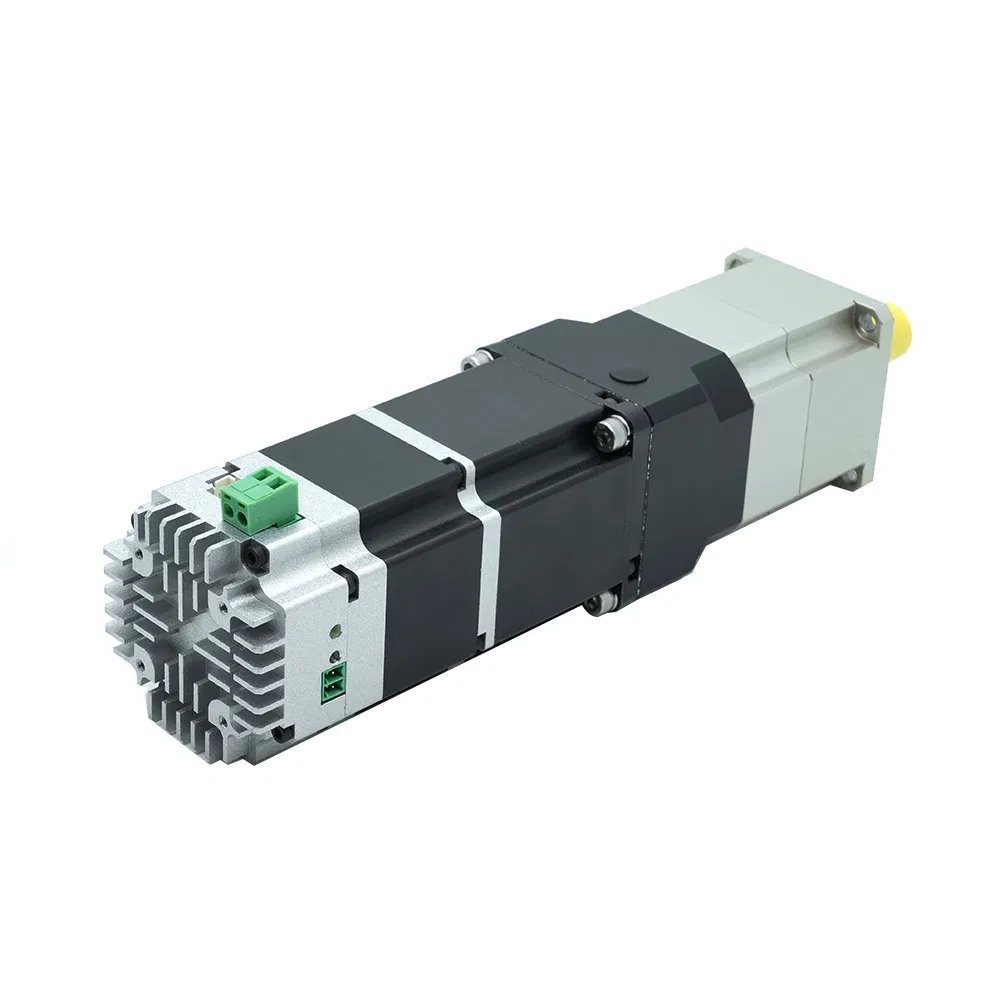

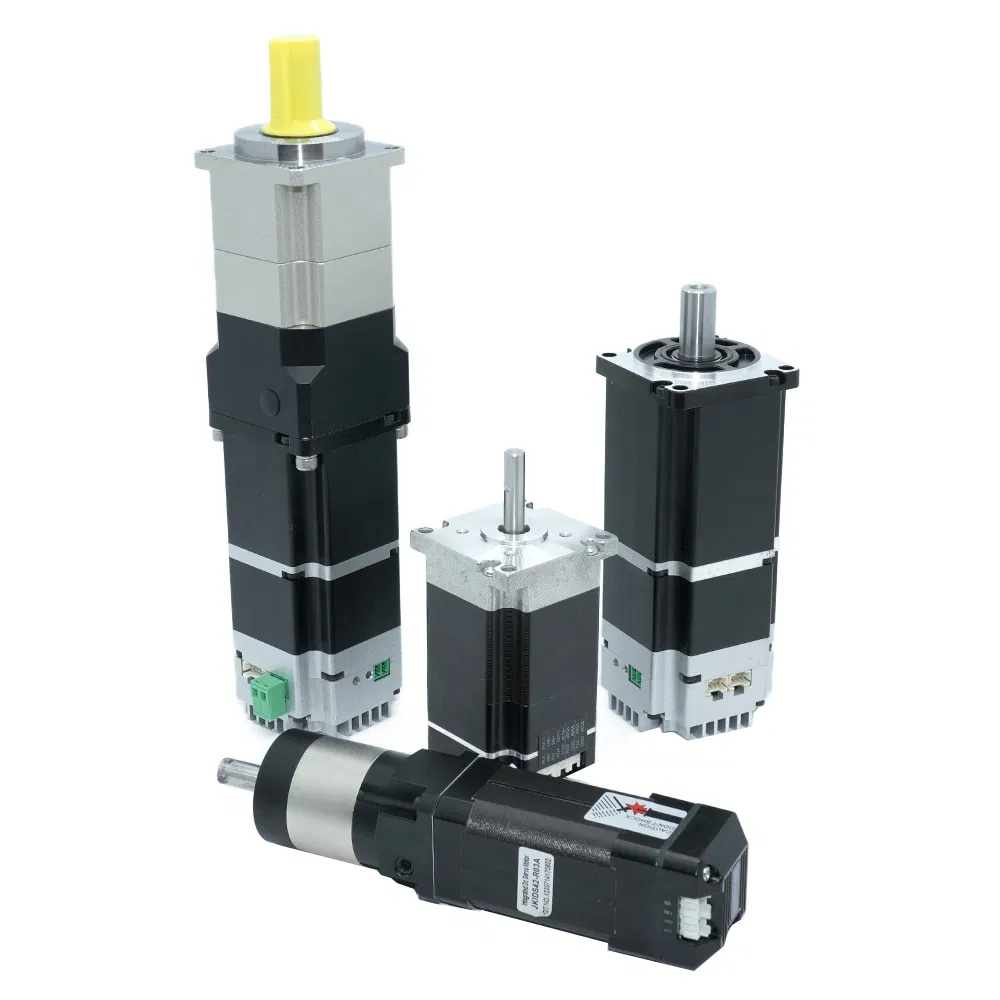

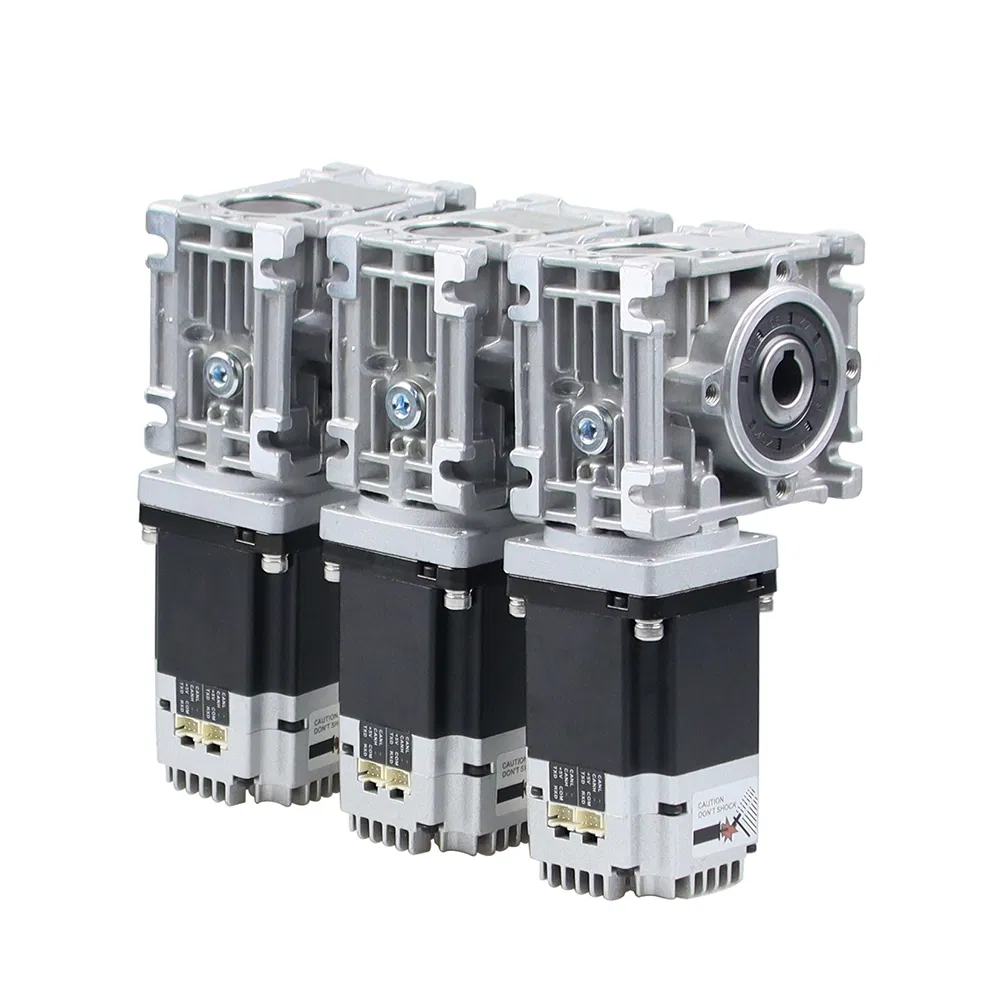

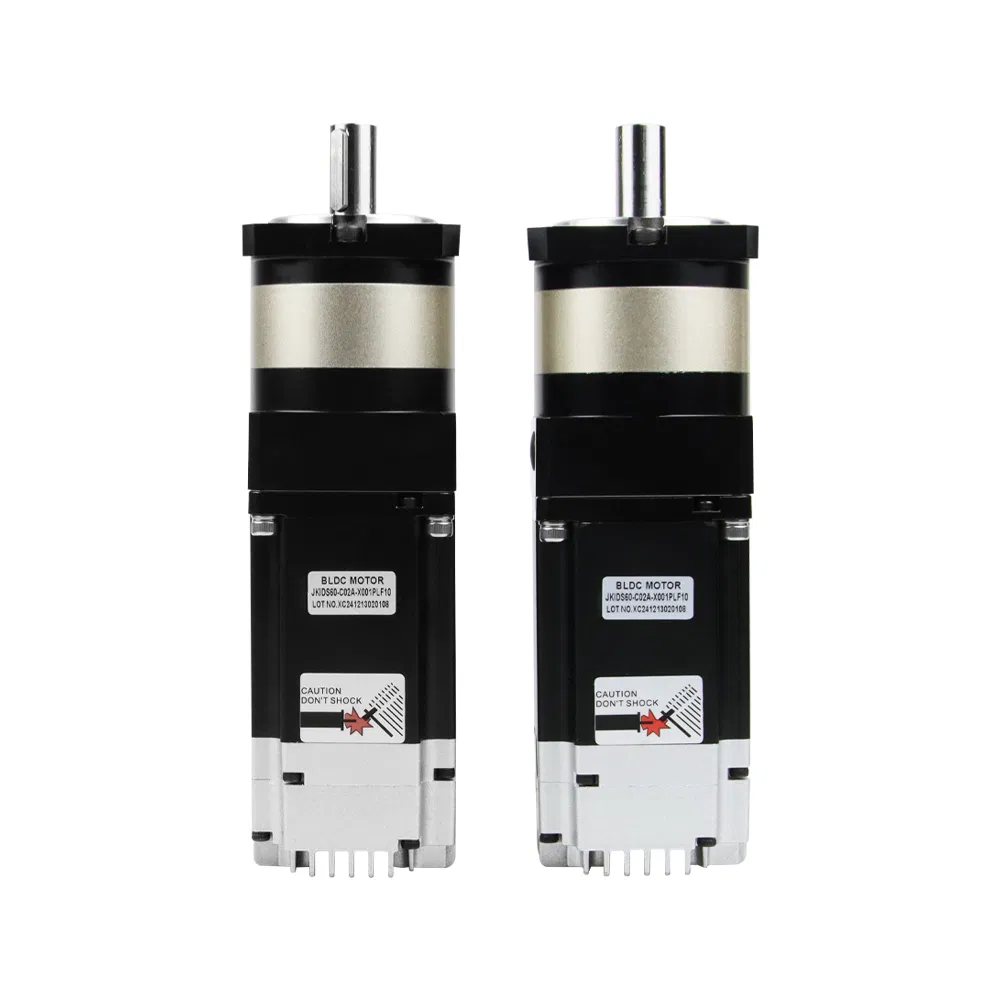

Yes, depending on the frame size (42/57/60/80mm), we offer optional gearboxes, electromagnetic brakes, and cooling fans to meet specific application requirements.
