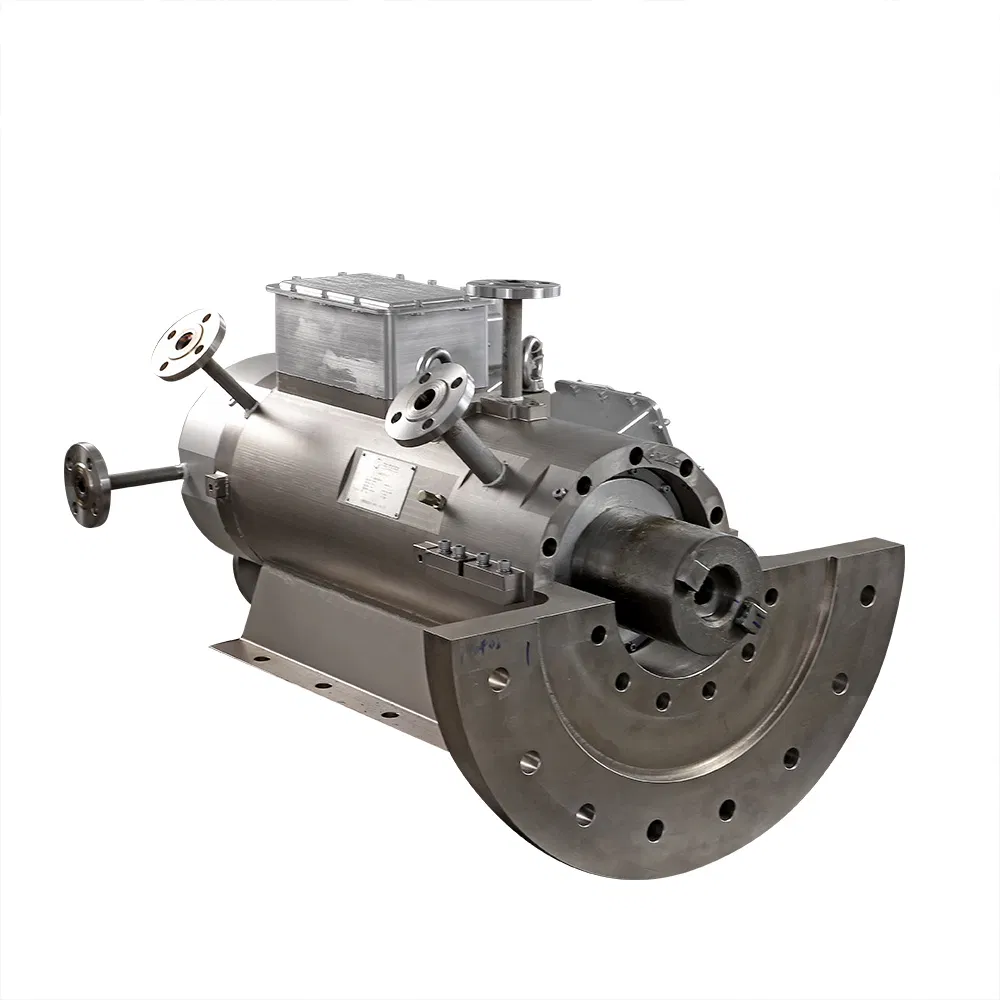

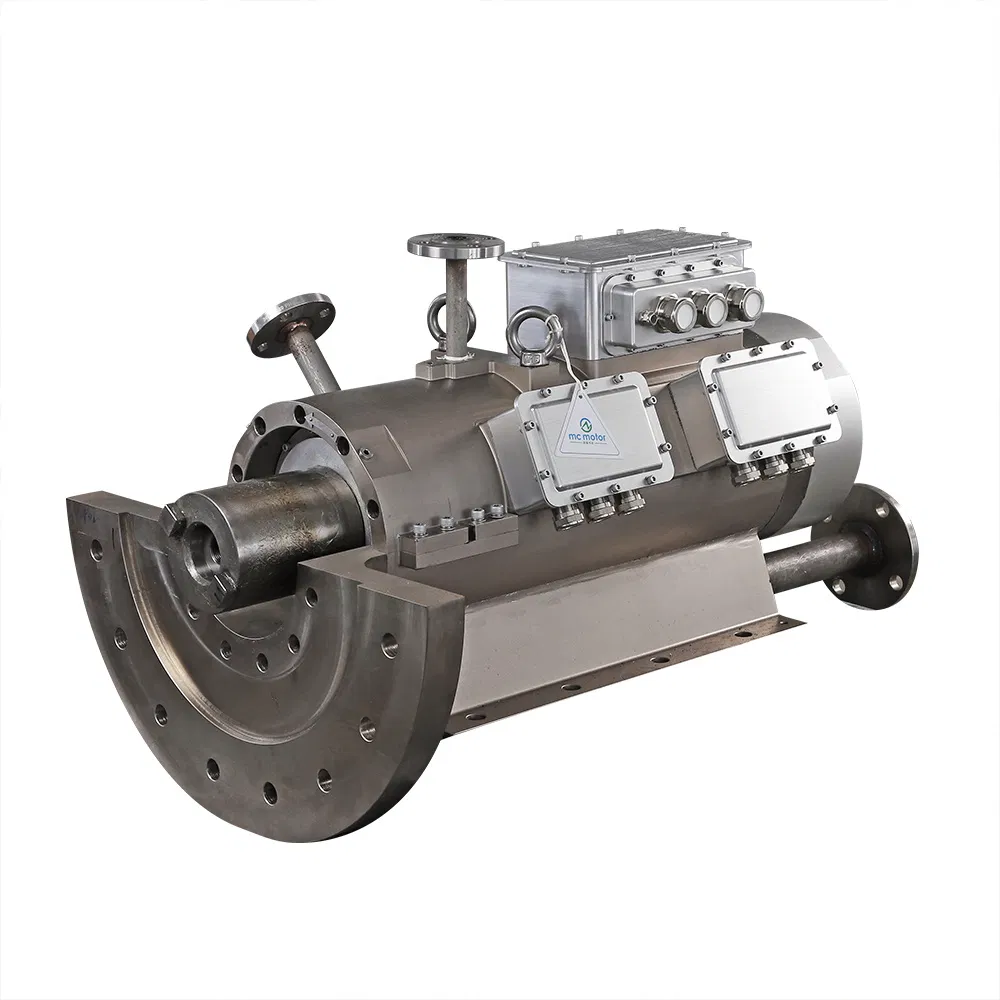

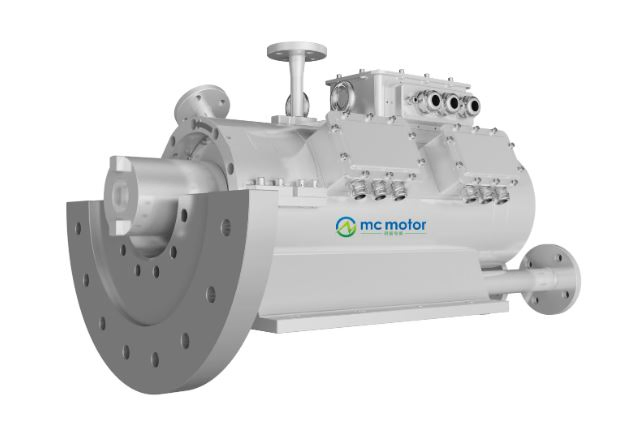

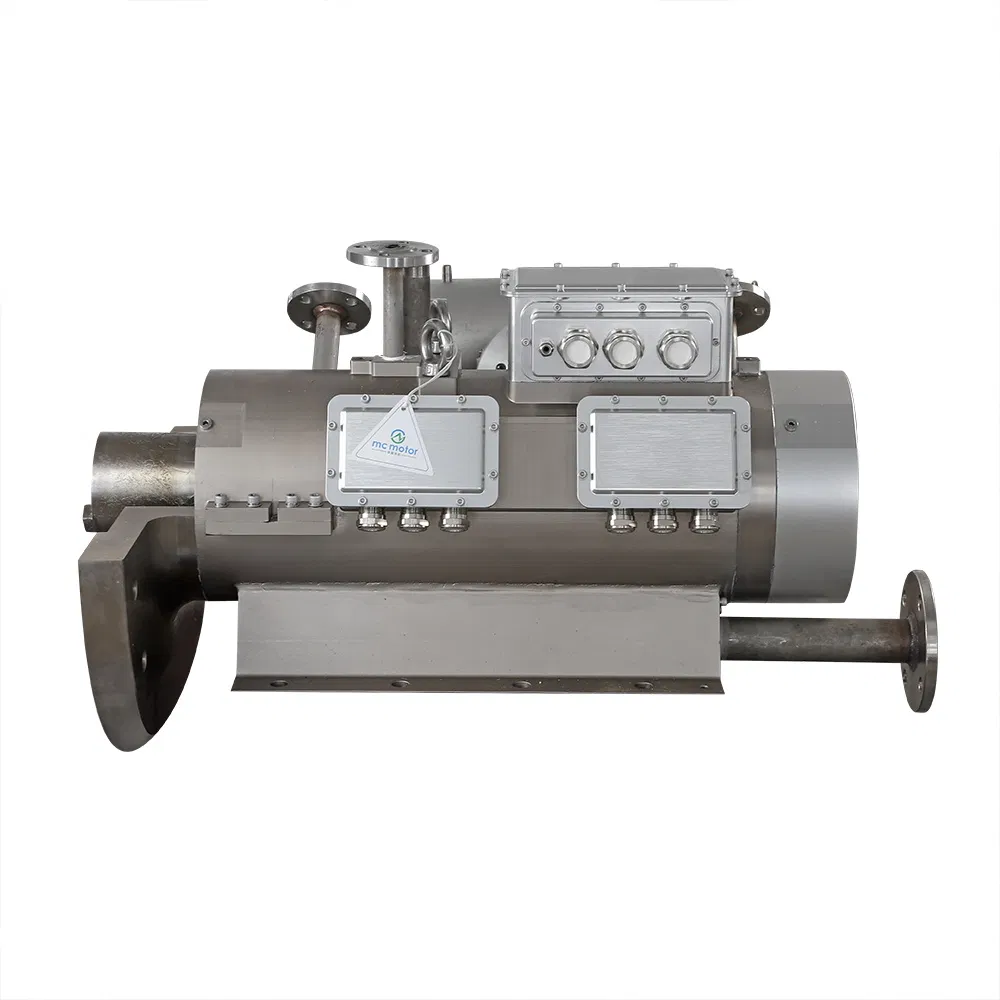

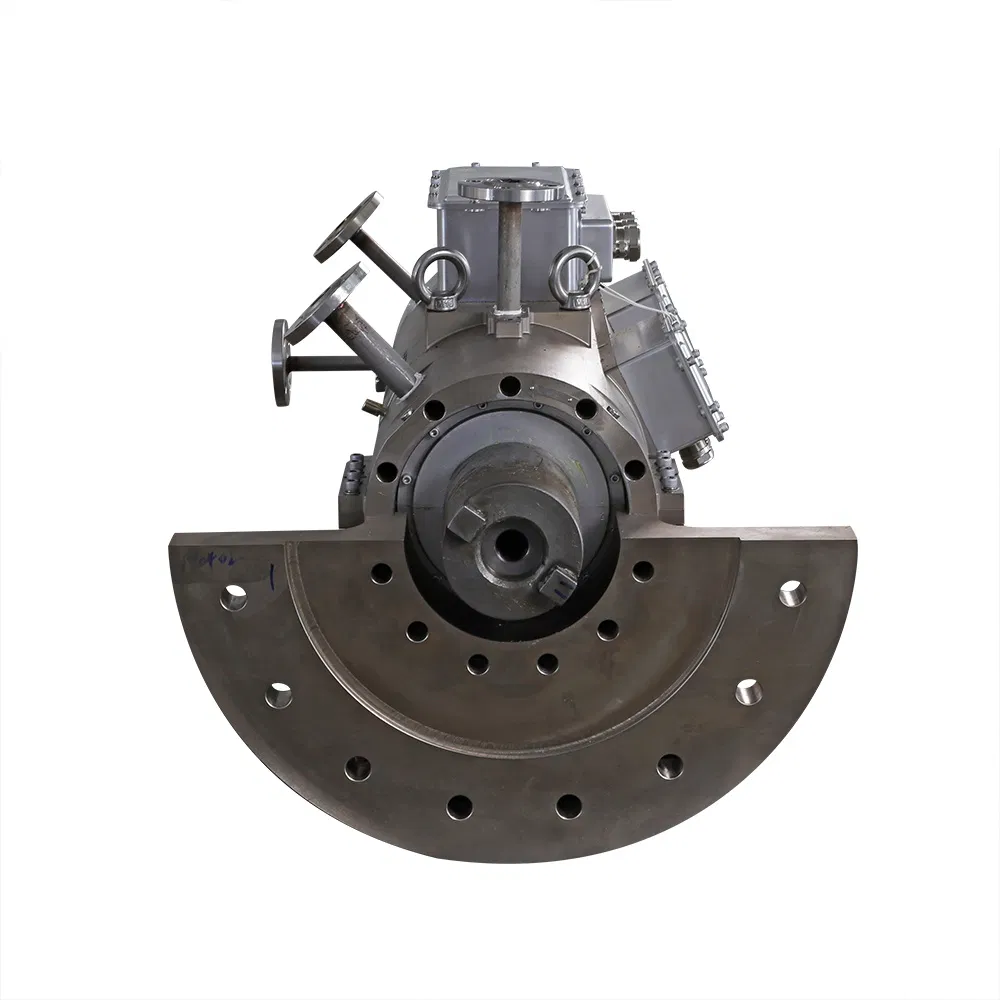

75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
1 / 5
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize
75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize

75kw to 220kw 15000rpm High Speed Pmsm Synchronous Electric Brushless Motor Customize

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚡ Basic Information
Model NO.
SRPM165H4O75
Function
Driving
Rotating Speed
15000rpm-24000rpm
Power
50kw - 350kw
Structure
Brushless Permanent Magnet
Cooling Method
Oil Cooling
Certification
ISO9001, CE, RoHS
Efficiency
95.5%
IP Level
IP54 / IP65
Weight
65kgs-320kgs
📦 Product Overview

High Speed Permanent Magnet Motor for High Speed Compressor/Fan/Pump Oil Cooling Customize

High Speed Motor
PMSM Motor

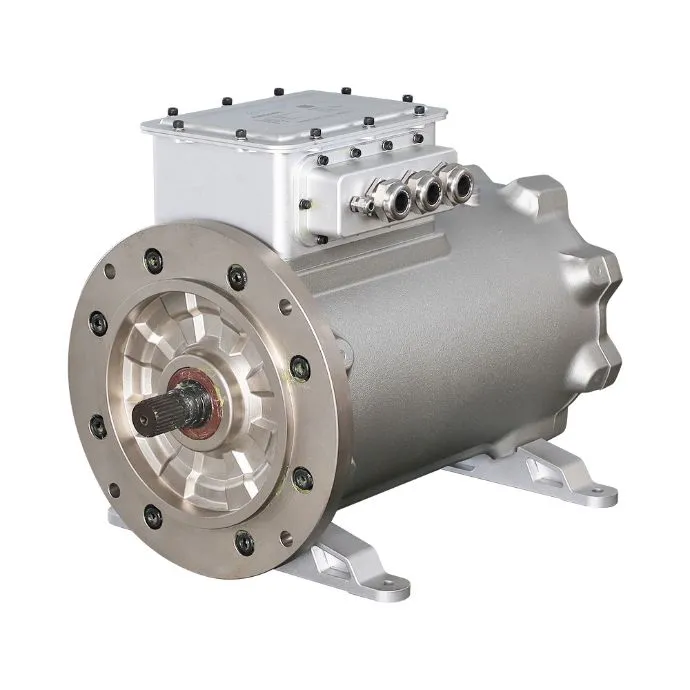

Synchronous Motor

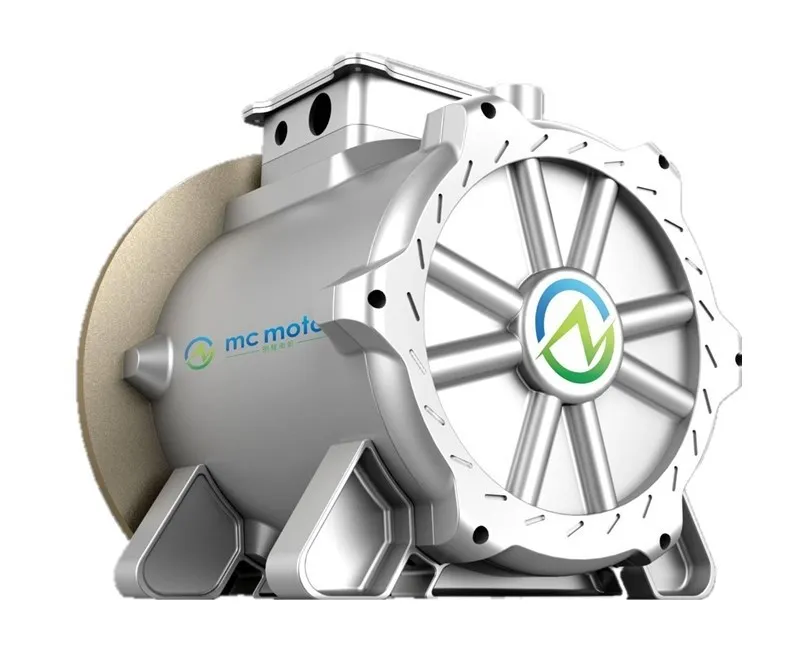

Electric Brushless Motor
Key Features
✓ Suitable for 10,000rpm to 24,000rpm rated speed
✓ High power & High torque output
✓ Autonomous patented cooling structure
✓ Low noise and low vibration performance
✓ Compact size with high efficiency
⚙️ Technical Specifications
Voltage
380V AC-460V AC (DC Available)
Rated Power
50kw-350kw
Rated Speed
6000rpm-24000rpm
Isolation Class
H
Duty Type
S1 (Continuous)
Installation
B3, B5, B35
Main Application Areas:

High speed compressors, industrial fans, specialized pumps, and high-pressure blowers.

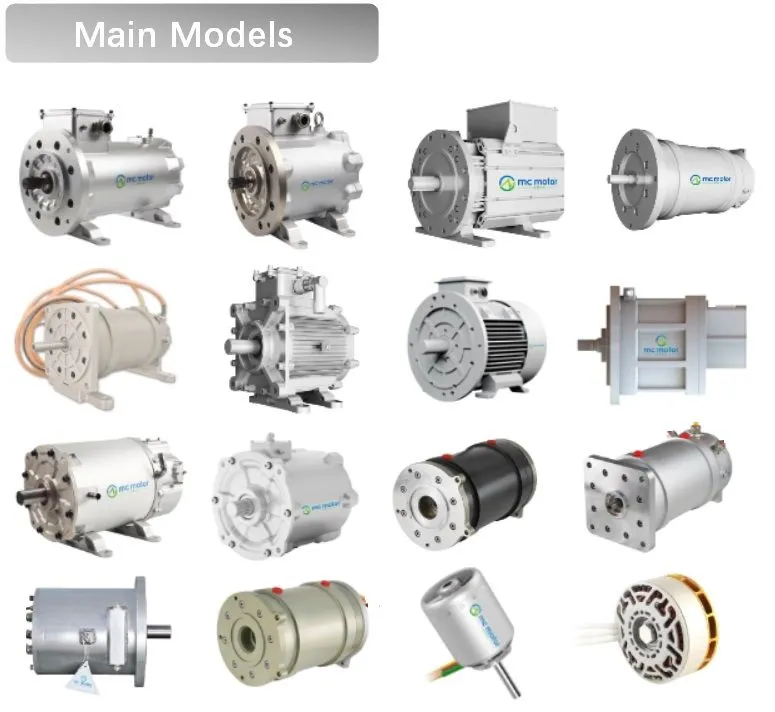

Main Products
📊 Application Cases

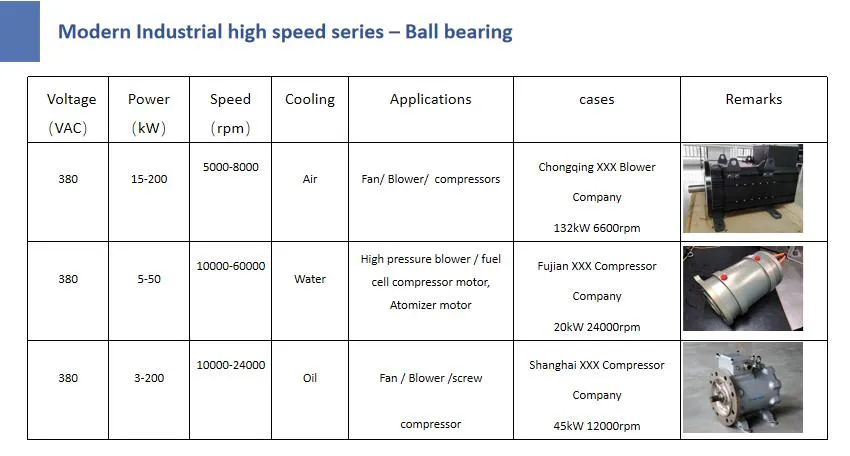

Customer Case 1

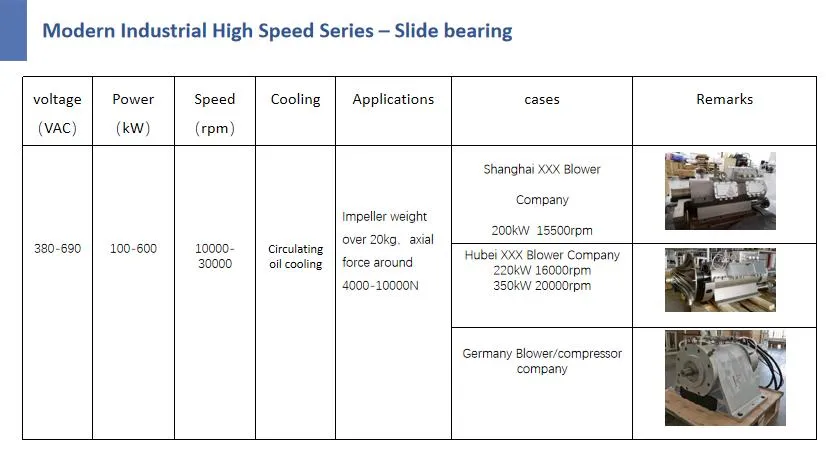

Customer Case 2

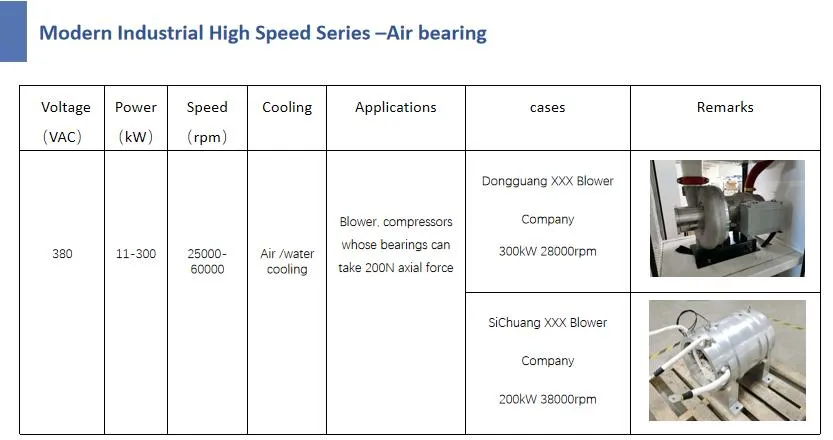

Customer Case 3
🏢 Profile Overview

A leading high-tech enterprise focusing on the design, research, and manufacture of new generation high-speed permanent magnet motors. These products are widely utilized in industrial, agricultural, mining, building services, water treatment, automotive, and emerging high-tech sectors.

★ Over 100 core technologies with worldwide intellectual property rights.
★ Developed 50+ high-speed PM motors from 8KW to 200KW.
★ International standard QC management: ISO9001-2015, IATF16949, ISO14001.
Production line

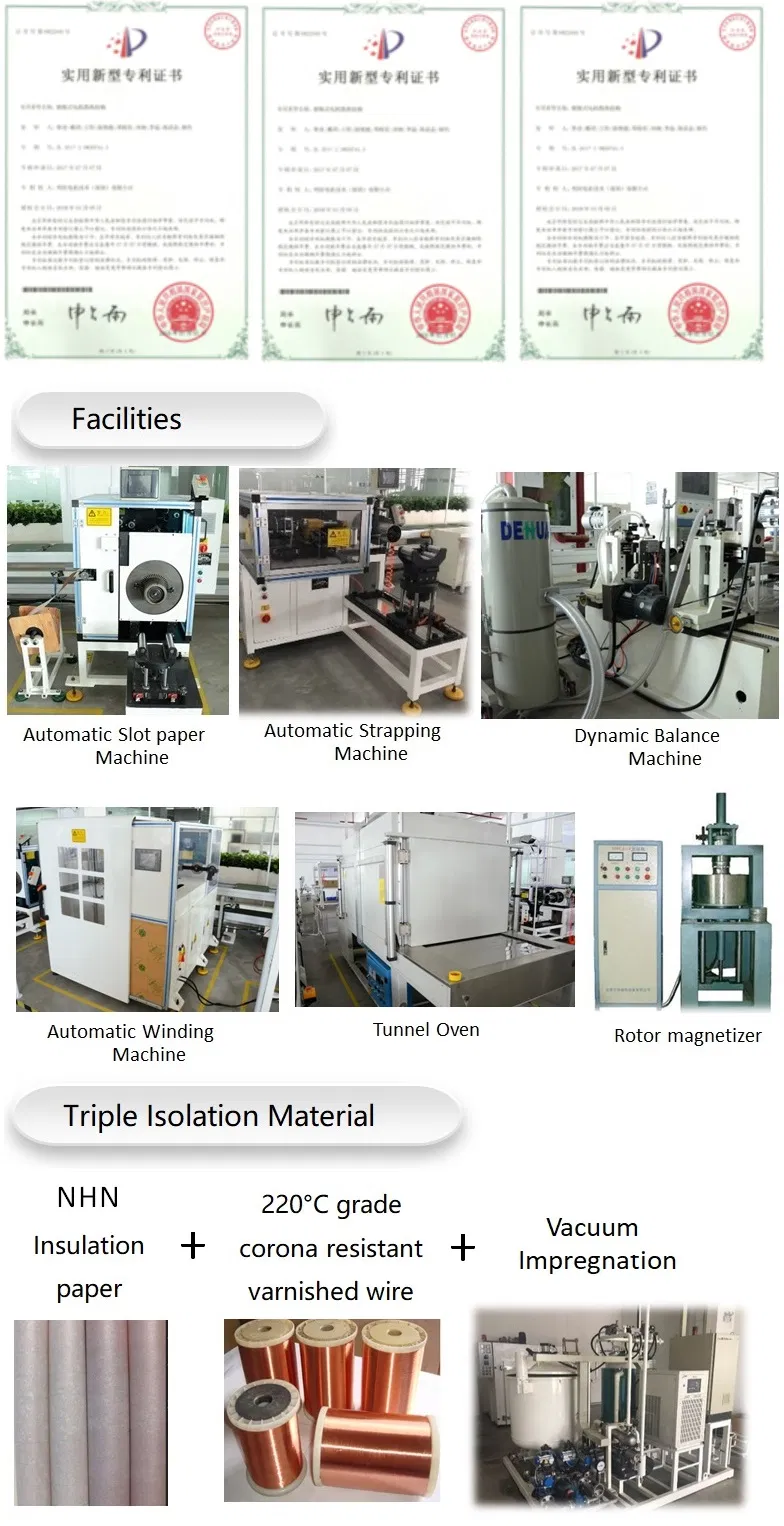

Quality Control
🔍 Detailed Product Views

Type 1 Series:

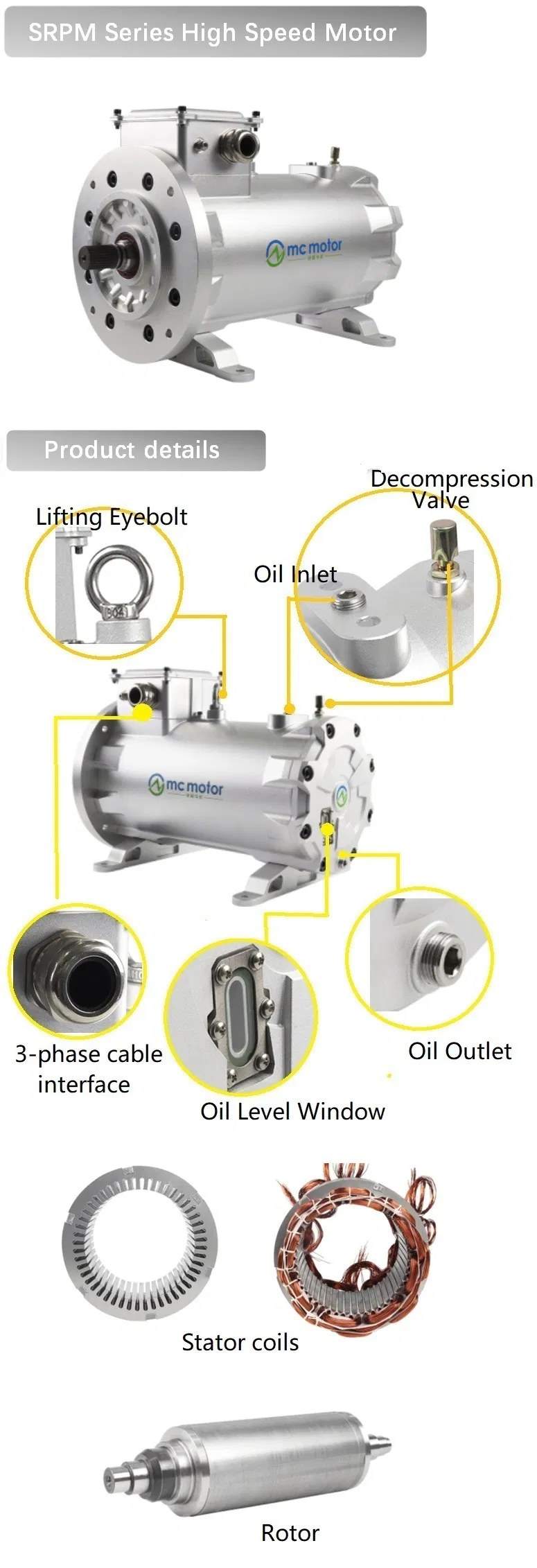

Motor Type 1

Type 2 Series:

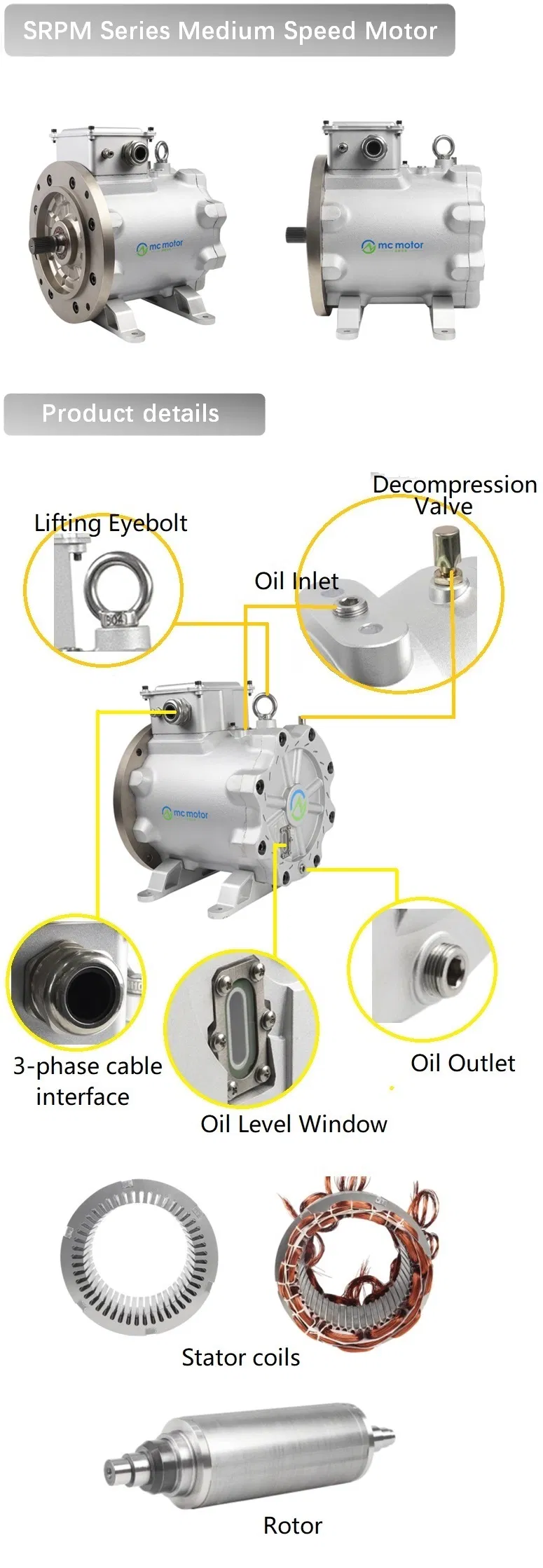

Motor Type 2A

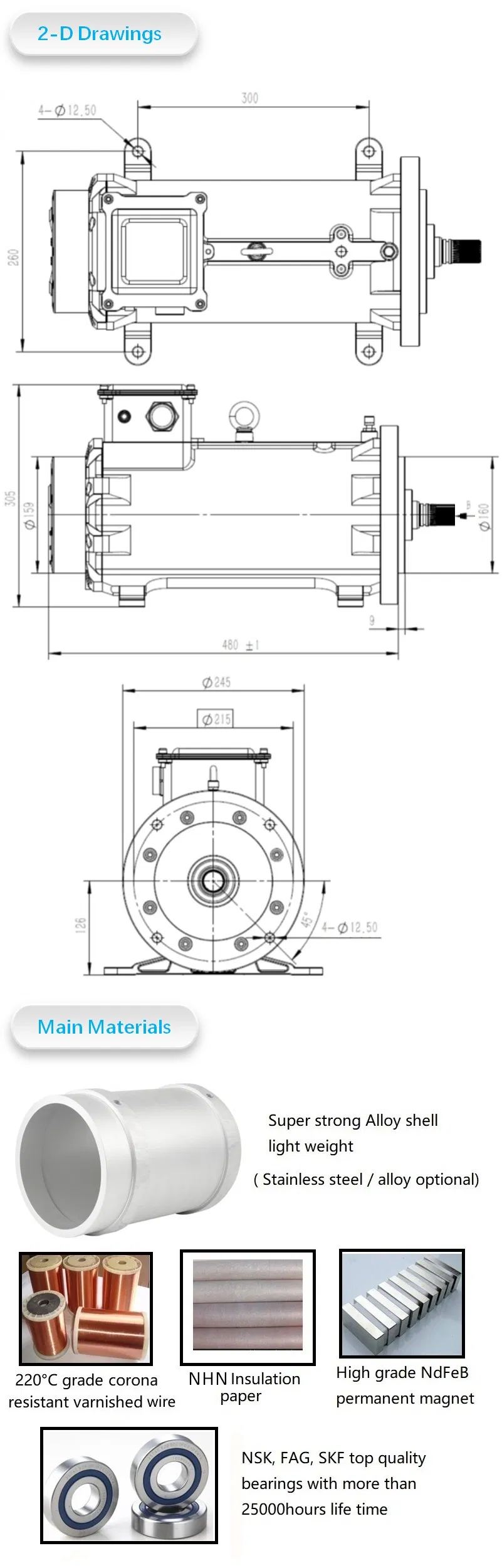

Motor Type 2B

Type 3 Series:

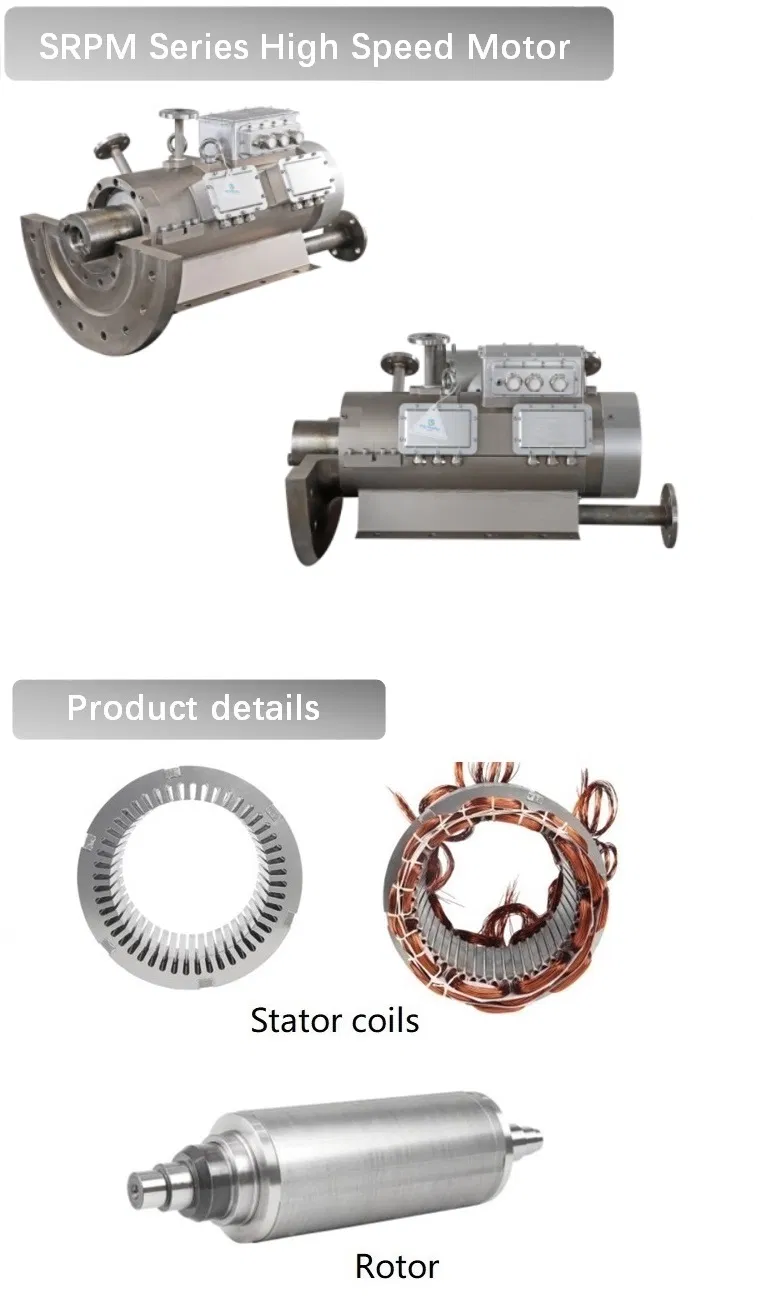

Motor Type 3
🛡️ Our Advantages

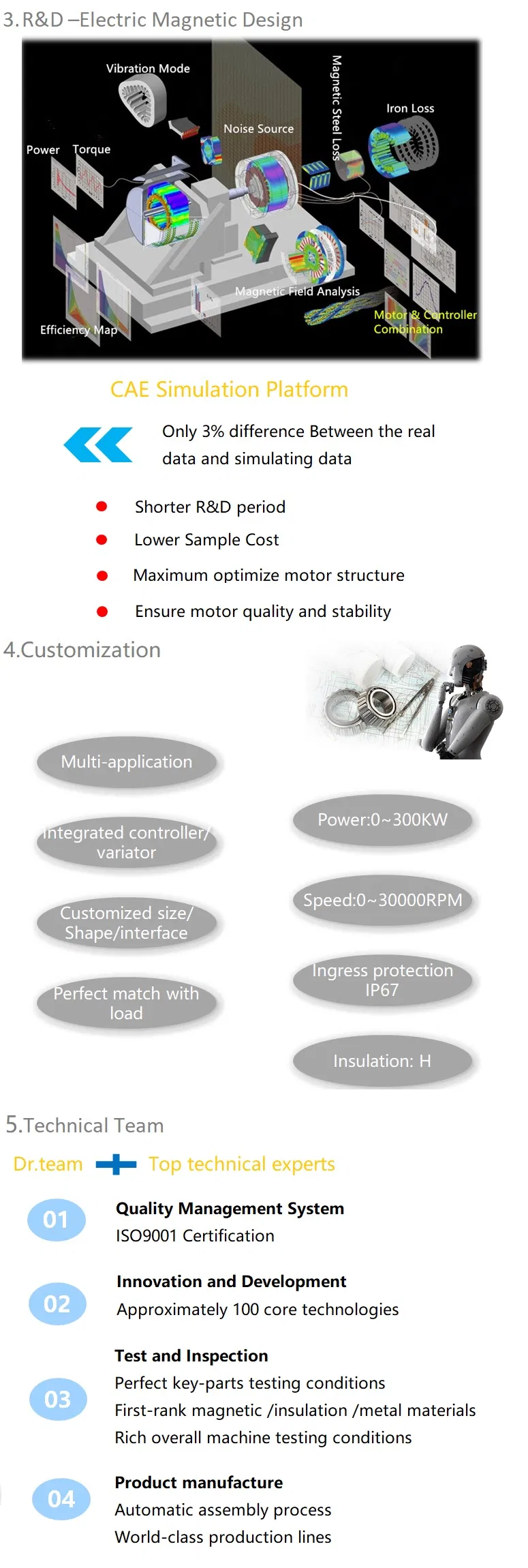

Core Advantages
🚢 Packaging & Shipping
Shipping Logistics
📋 Product Selection Matrix
Motor Type Voltage (V AC) Power (kW) Speed (rpm) Efficiency Cooling Weight (kg) Protection
SRPM General3805.5-11010k-80k95%Water19-112IP54/67
SRPM Air Series3804-3715k-24k95%Air14-100IP54/67
SRPM Oil Series38037-35012k-24k95%Oil14-250IP54/67
SRPM112H4F7.5C3807.52100095%Air12IP54
SRPM214H4O75380752400095%Oil120IP54/67
SRPM290H4O3503803502000095.5%Oil530IP67
❓ Frequently Asked Questions
Can permanent magnet synchronous motors be used as generators?
Yes. They can work as generators due to their special operating principles. If it runs clockwise as a motor, it can run counter-clockwise as a generator. Note that generator operation requires a suitable motor controller with AFE (Active Front End) functionality.
Why can't I use a direct three-phase AC supply to start these motors?
Because the rotor has high inertia and the magnetic fields spin so fast that a static rotor cannot synchronize with the magnetic field instantly. A dedicated driver is required for startup.
What are the technical requirements for the VFD driver?
The driver should be a vector control VFD with specialized internal software. Compatible series include Siemens 6SE70, Yaskawa CR5, Mitsubishi A740, and B&R P84/P74. Our MH300 series VFD is specifically optimized for these motors.
How is the permanent magnet rotor protected from failure?
Each rotor undergoes rigorous testing, including corrosion resistance, consistency, high-temperature demagnetization, and linear demagnetization tests. The demagnetization index is strictly kept within 2%.
In what scenarios are these motors typically used?
These motors are primarily used in variable frequency speed applications where high efficiency, high speed, and compact power density are required, such as in advanced aeration blowers and high-speed compressors.
What are the benefits of the patented cooling structure?
The autonomous patented cooling structure allows for superior thermal management, ensuring the motor maintains peak efficiency during continuous S1 duty cycles while reducing noise and vibration levels.
