| Model NO. | CW57BL-200W-24V | Function | Control, Driving |
|---|---|---|---|
| Structure | Brushless | Certification | ISO9001, CE, RoHS |

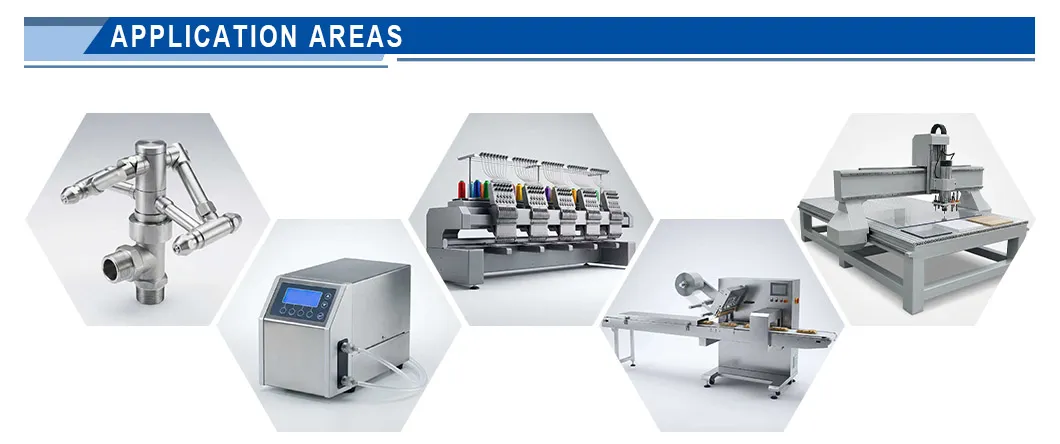

| Usage | Conveyor Systems, Packaging Machinery, Pharmaceutic, Food & Beverage, Bottling System | ||
| Origin | China | HS Code | 85013100 |

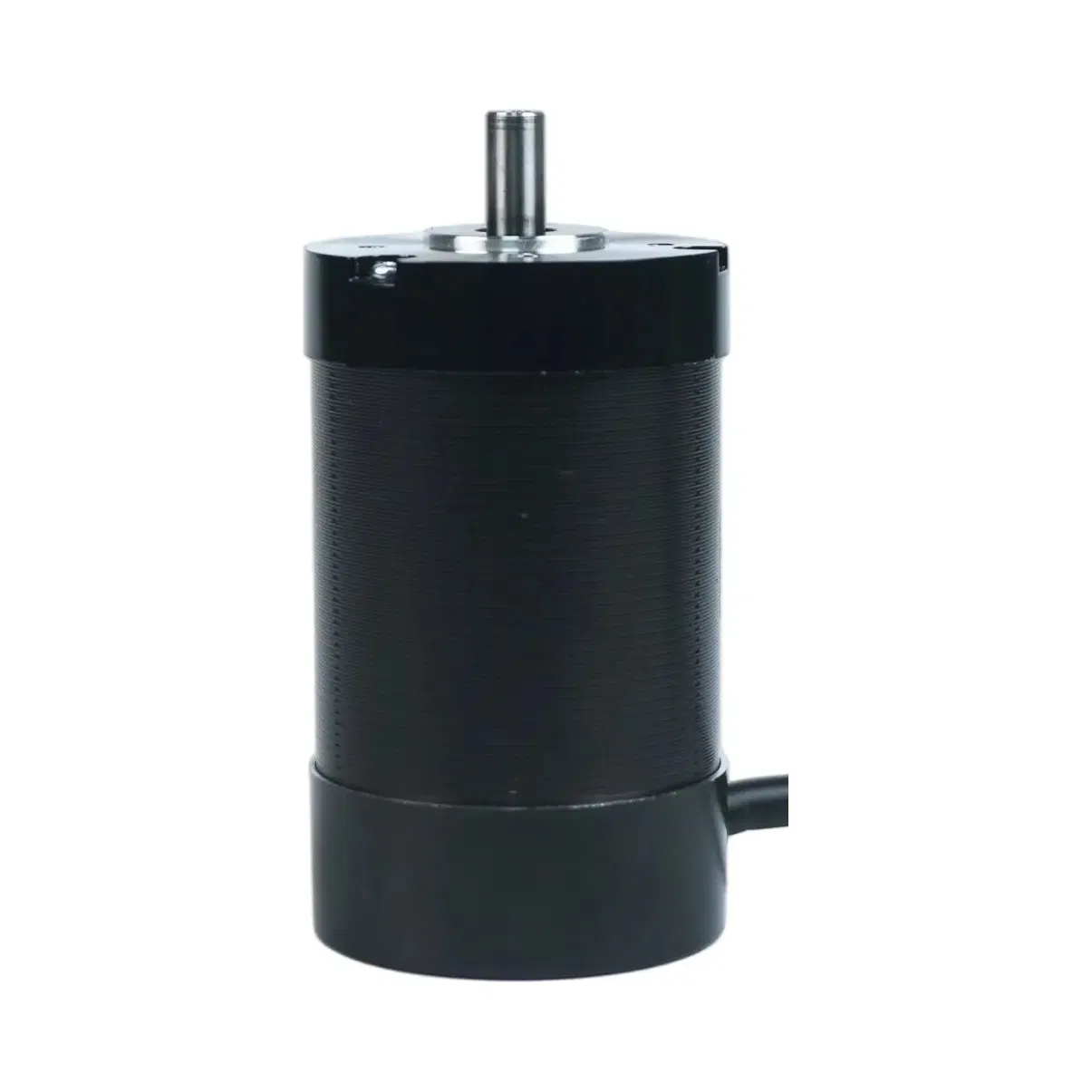

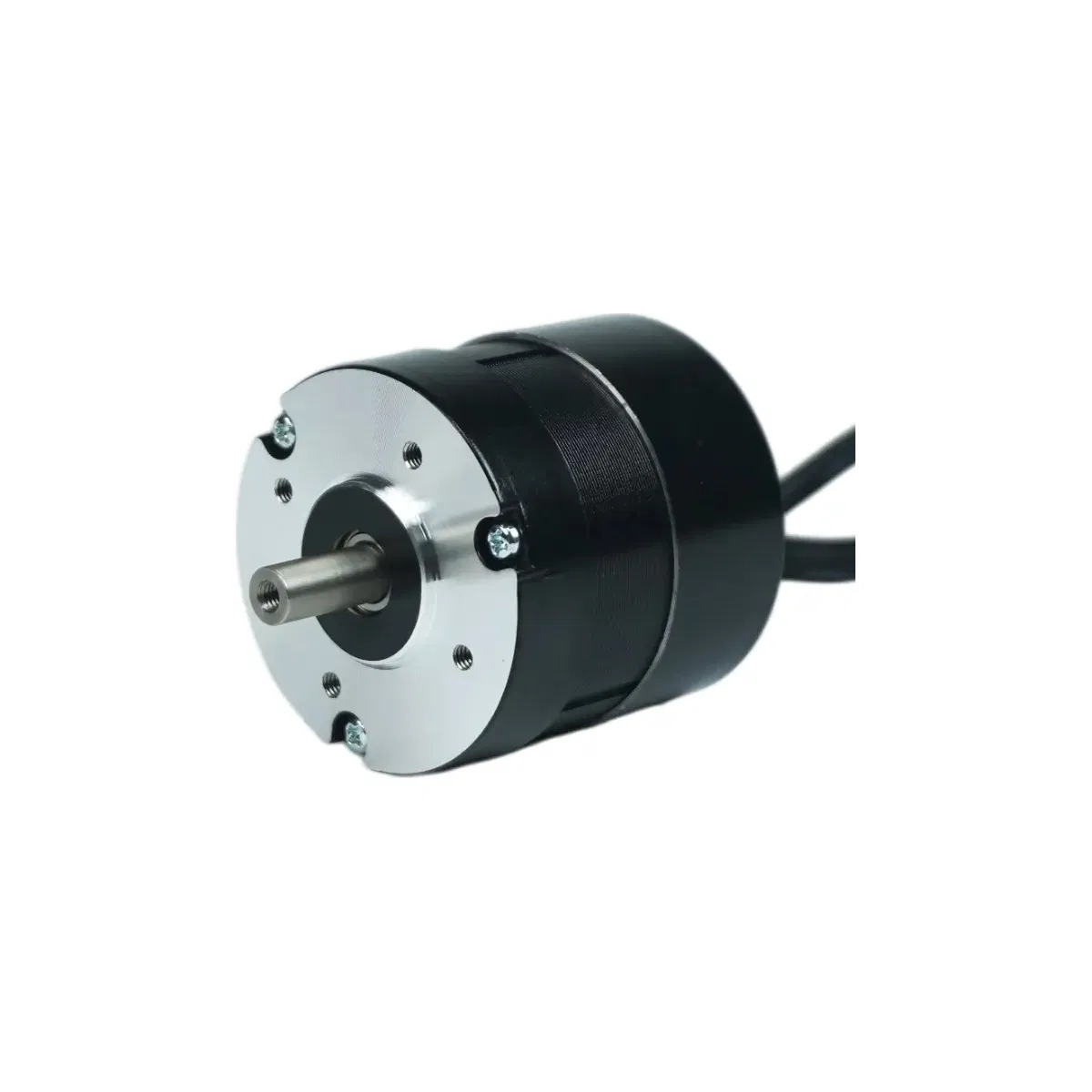

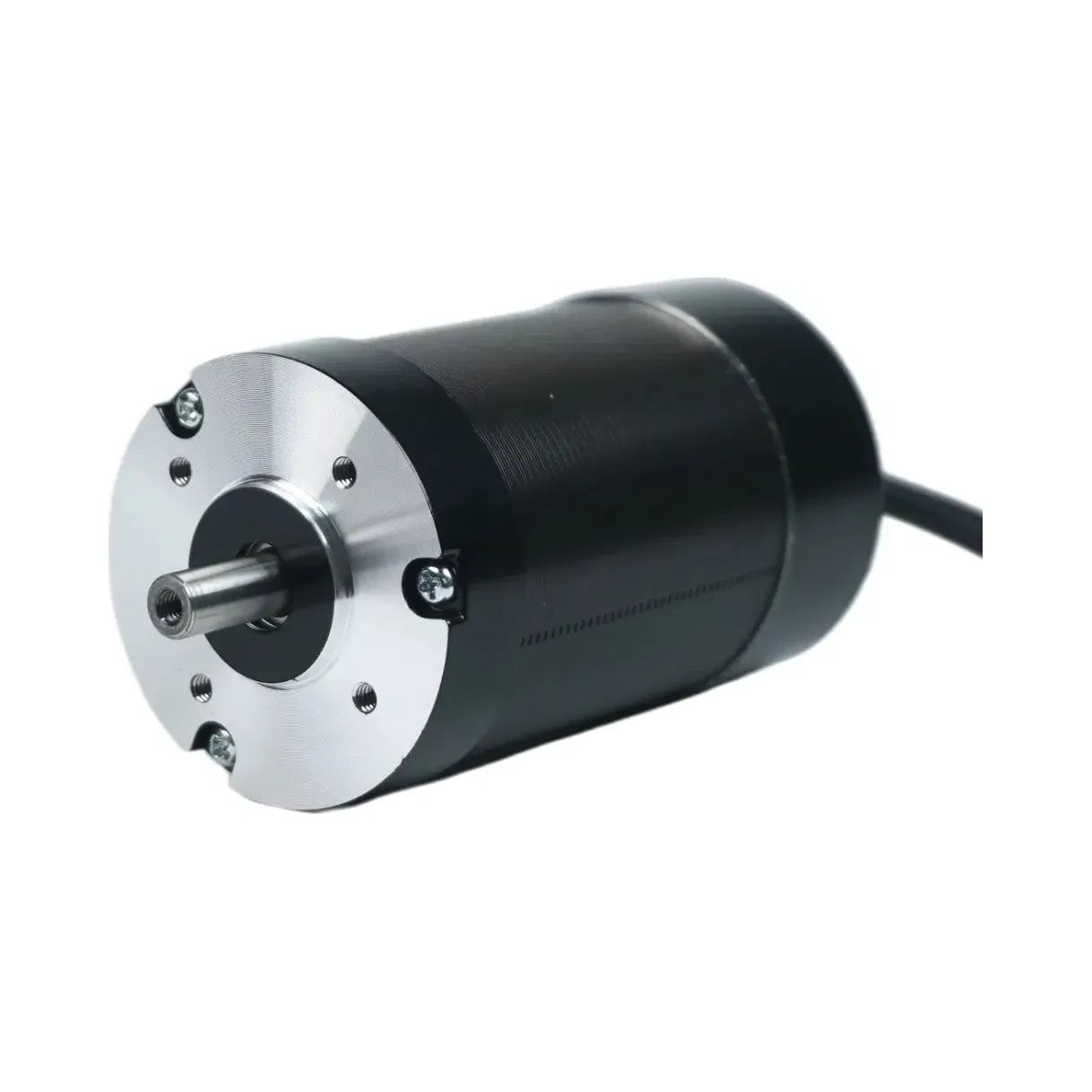

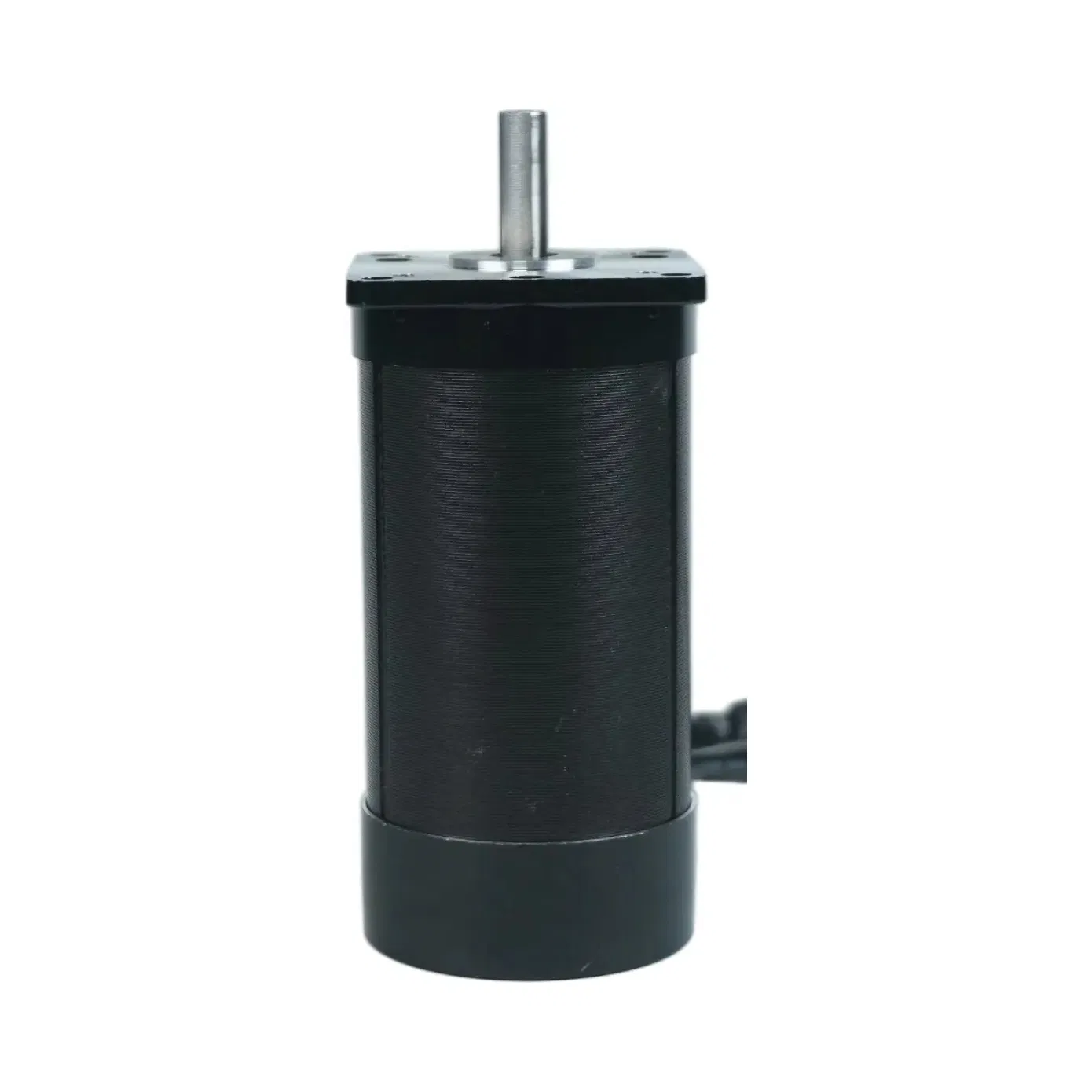

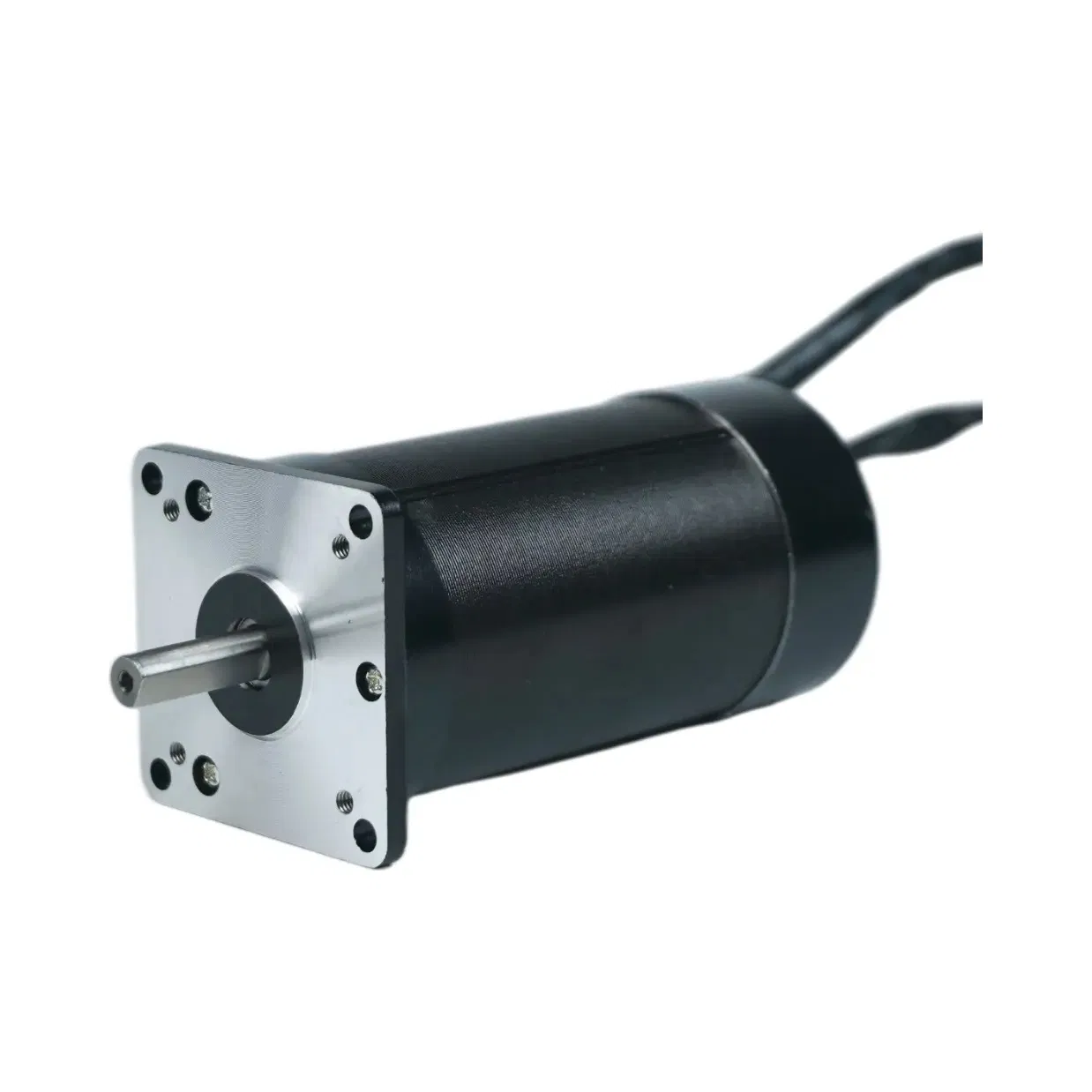

The CW57BL-200W is a compact 57mm (NEMA 23) brushless DC motor optimized for conveyor systems, packaging machinery, labeling machines, and light industrial automation. Operating at 24V DC with a rated output of 200W and rated torque of 0.64 N·m, this motor delivers smooth, low-noise operation essential for precision packaging lines. Its small footprint and standardized NEMA 23 flange make it a direct drop-in replacement for stepper and brushed DC motors in existing equipment.
Ideal for food packaging and pharmaceutical environments where quiet operation is critical.
Standardized 57mm flange fits existing conveyor and packaging machine mounts directly.
Compatible with standard 24V and 48V industrial power systems for flexible integration.
Brushless design eliminates carbon dust and reduces maintenance requirements significantly.
Hall sensor feedback enables precise speed regulation ranging from 10 to 3,000 RPM.
Custom shaft, winding, and connector options available to meet specific application needs.
| PARAMETER | VALUE |
|---|---|
| Rated Voltage | 24V DC (48V customizable) |
| Rated Power | 200 W |
| Rated Speed | 3,000 RPM |

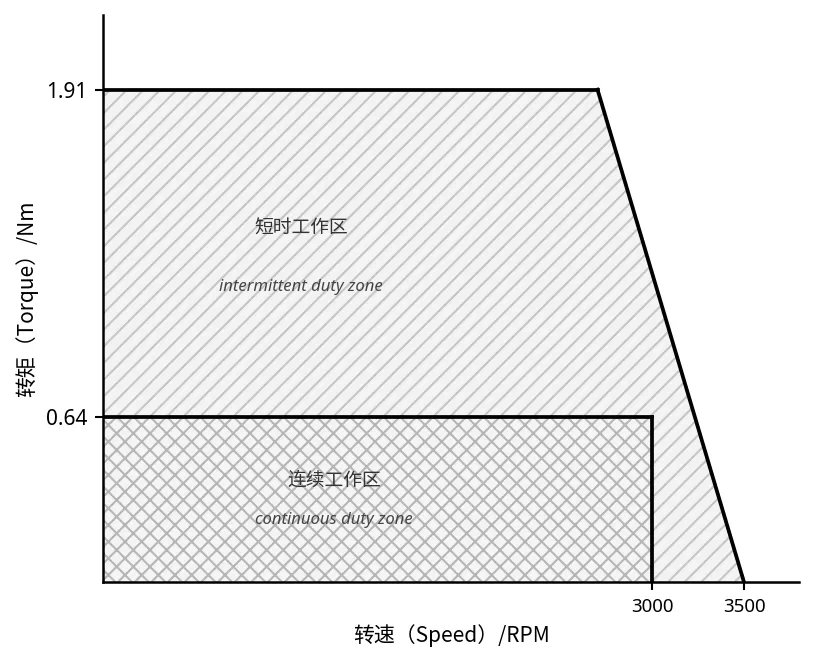

| Rated Torque | 0.64 N·m |
| Peak Torque | 1.91 N·m |
| Rated Current | 10 A |
| Efficiency | ≥ 82% |

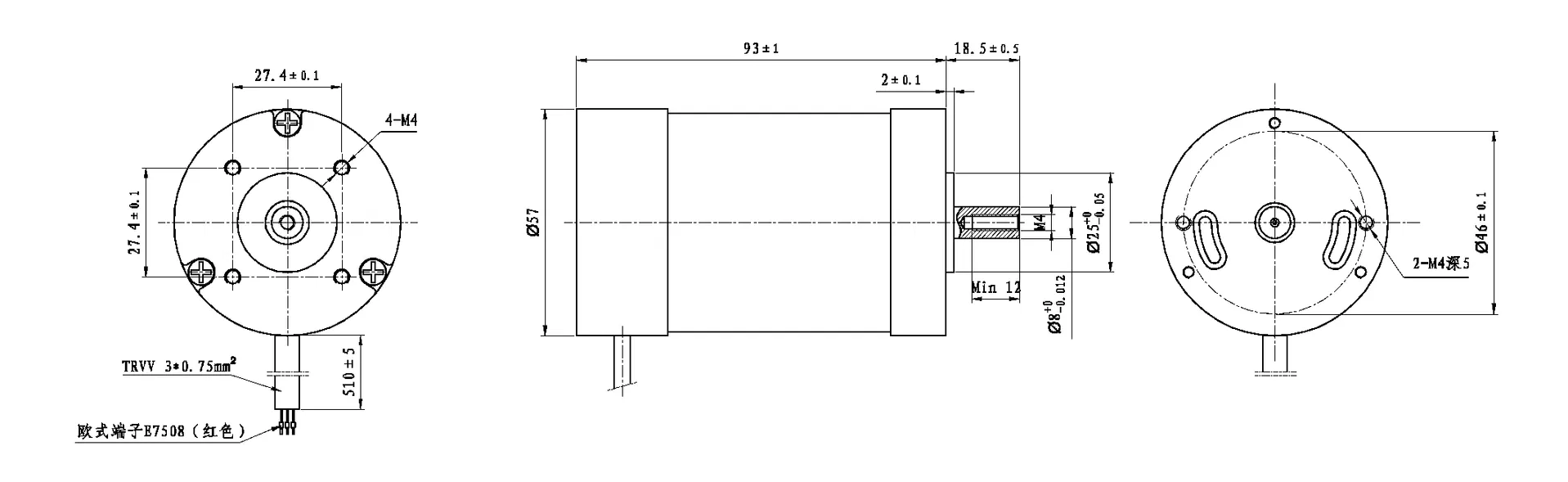

| Flange Size | 57 mm (NEMA 23) |
| Shaft Diameter | 8 mm (customizable) |
| Motor Length | 92 mm |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP40 (IP54 optional) |
| Feedback | Hall Sensor |
| Noise Level | < 55 dB |

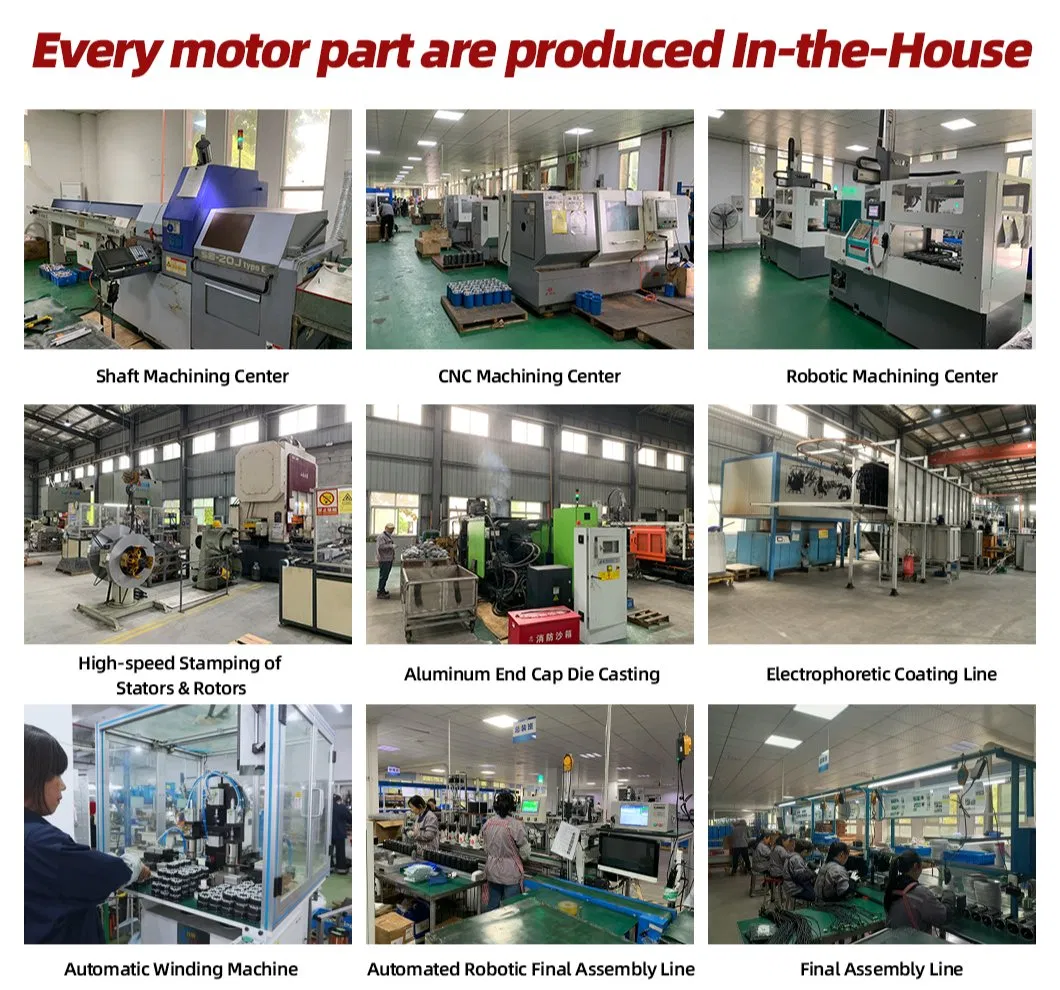

With over 30 years of industrial motor expertise, we specialize in providing motion control solutions for global clients. Our facility handles the entire production process internally, from component manufacturing to final assembly. This allows for deep customization—from shaft dimensions and winding specs to encoder types and connector configurations—supporting both rapid prototyping and high-volume production.
