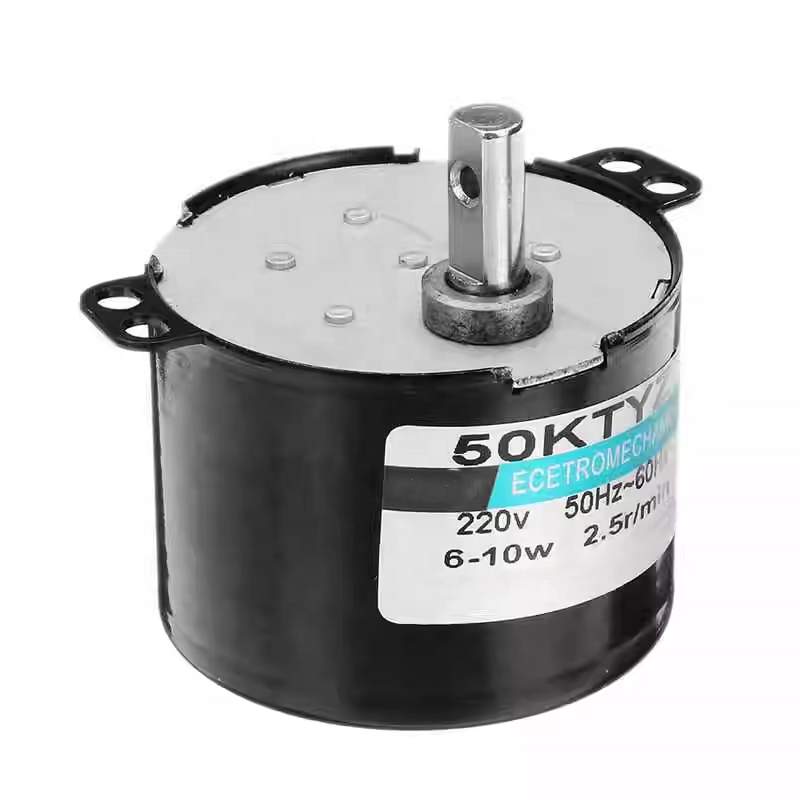

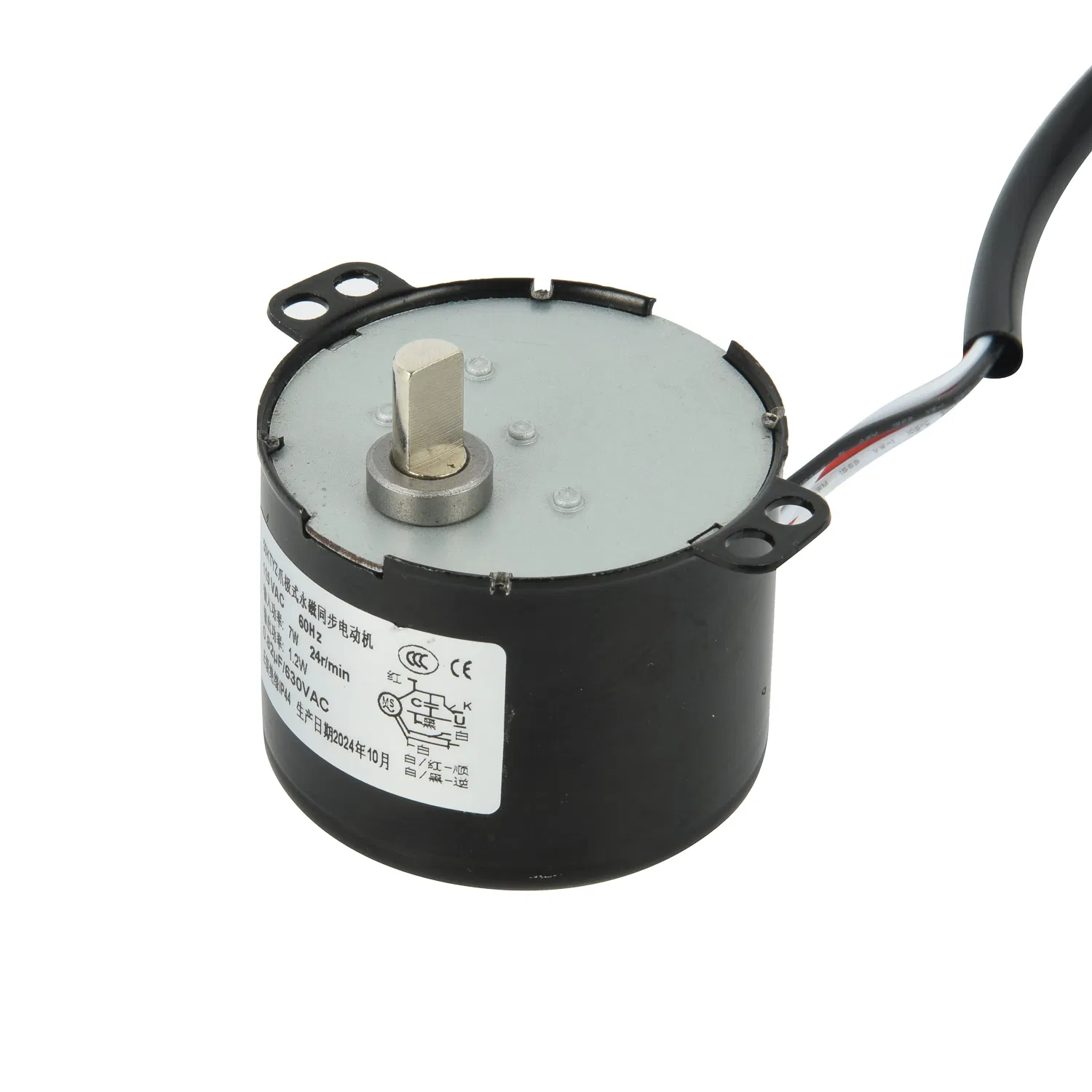

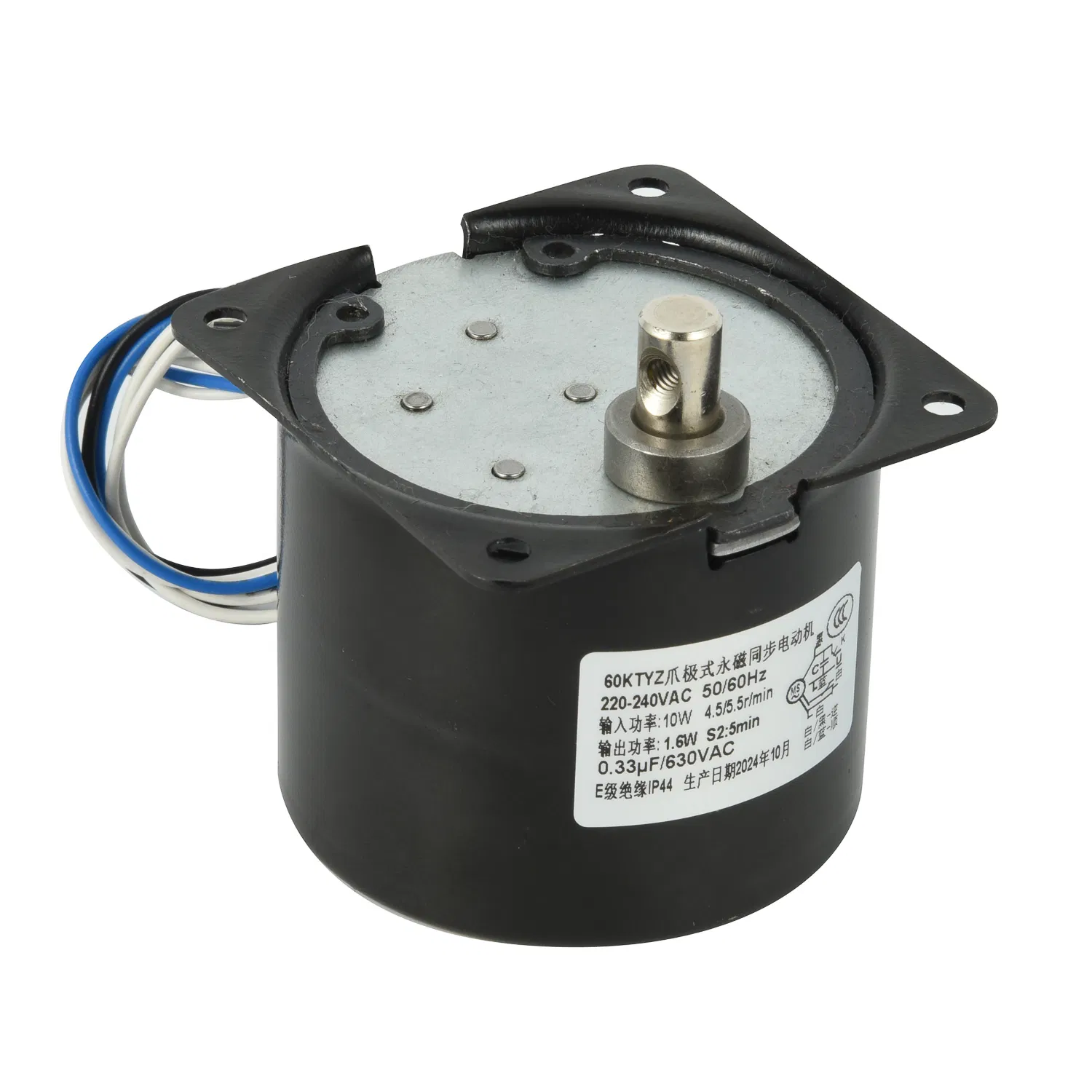

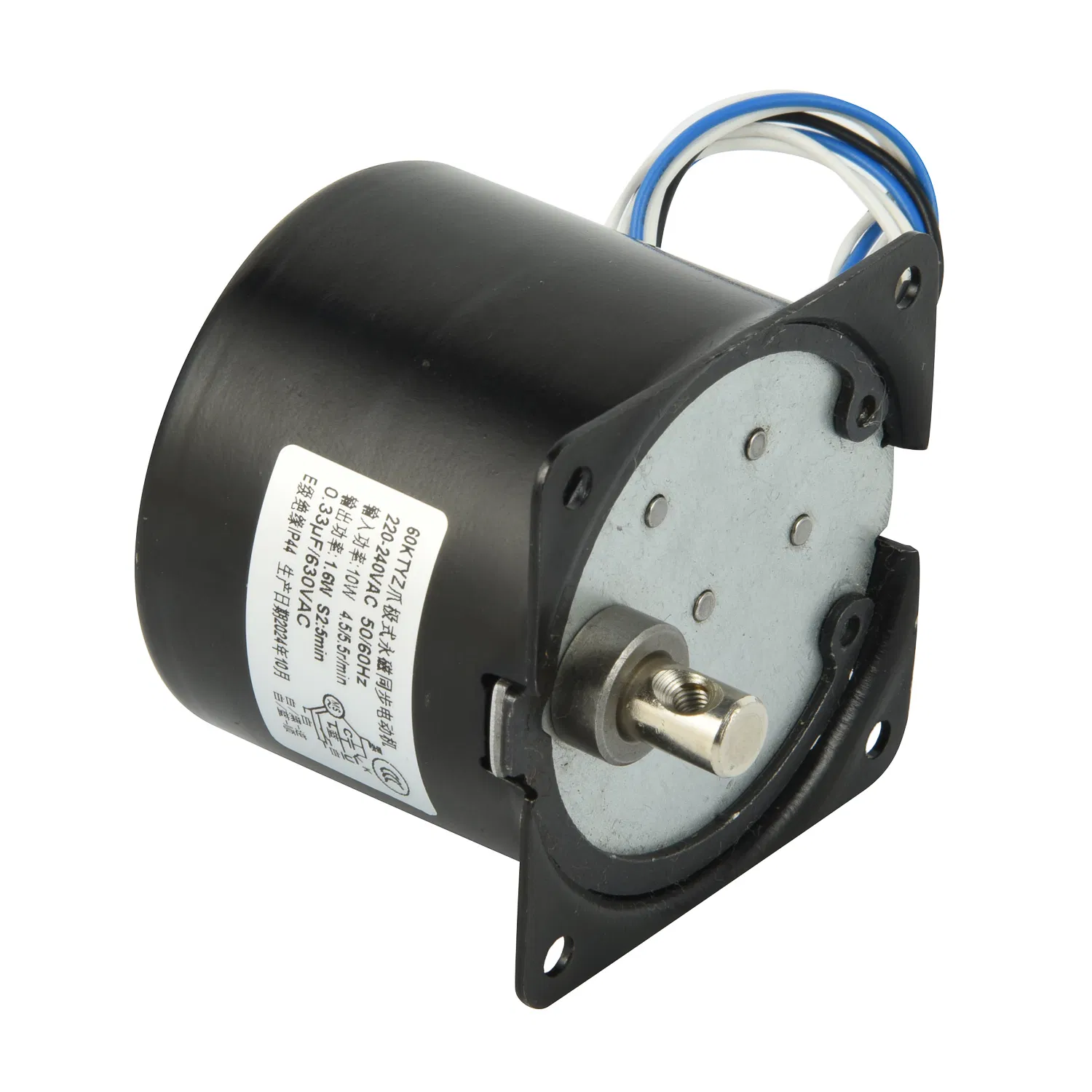

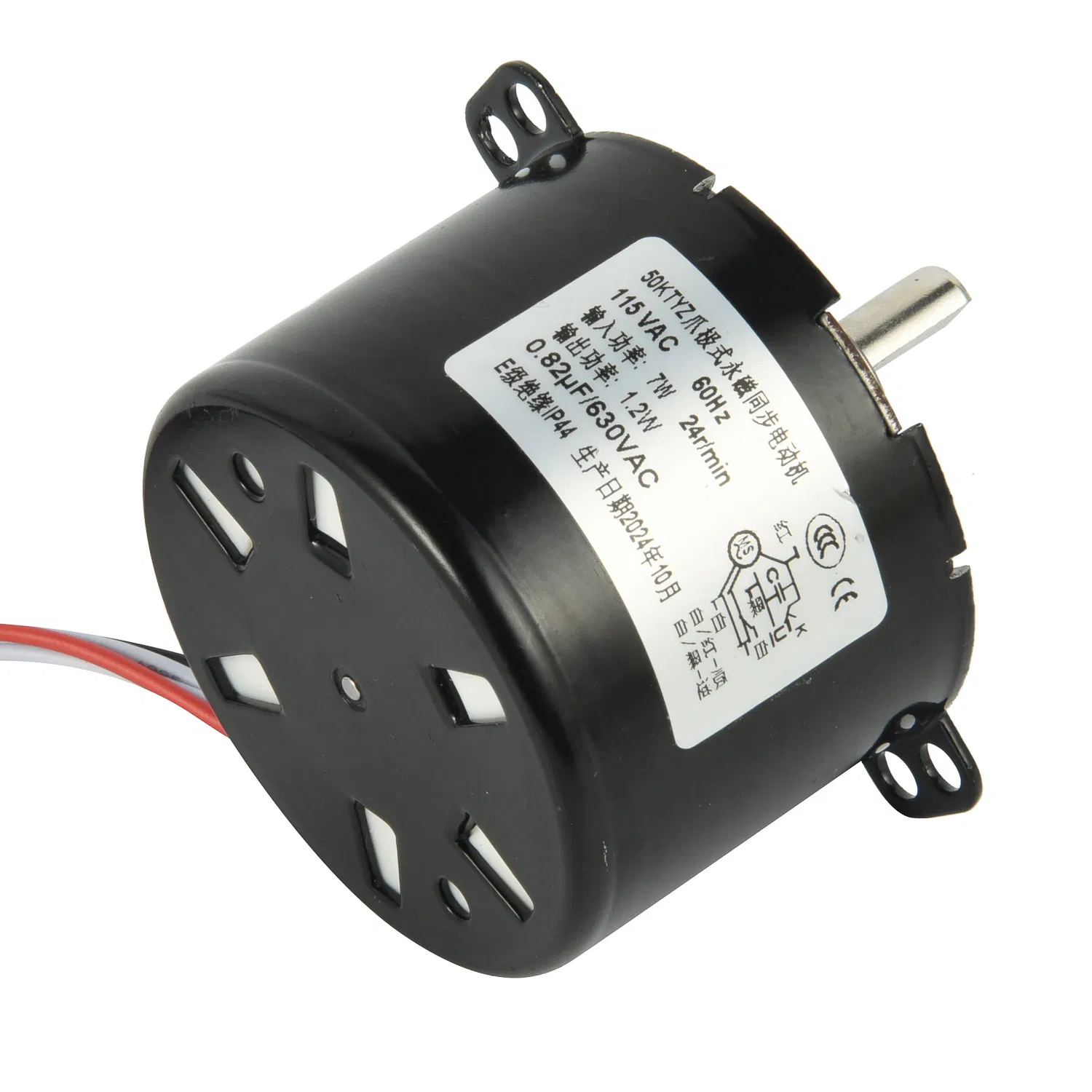

50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
1 / 5
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation

50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
50KTYZ
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving, Control
Structure
Rotating Pole Type
Number of Poles
6
Certification
CCC, ISO9001, VDE, RoHS
Rotation Speed
1/2.5/5 to 100 Rpm
Voltage
AC 110V / 220V
Rated Power
6W
Insulation Class
E
Specification
Dia 50mm * H 37.5mm
📐 Product Drawing

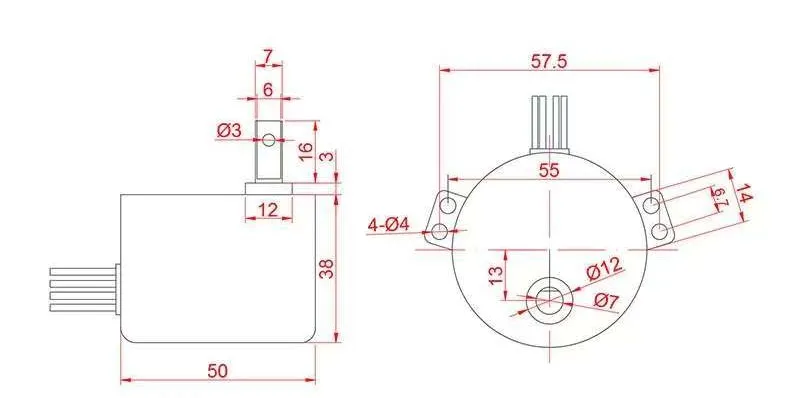

50KTYZ Product Drawing

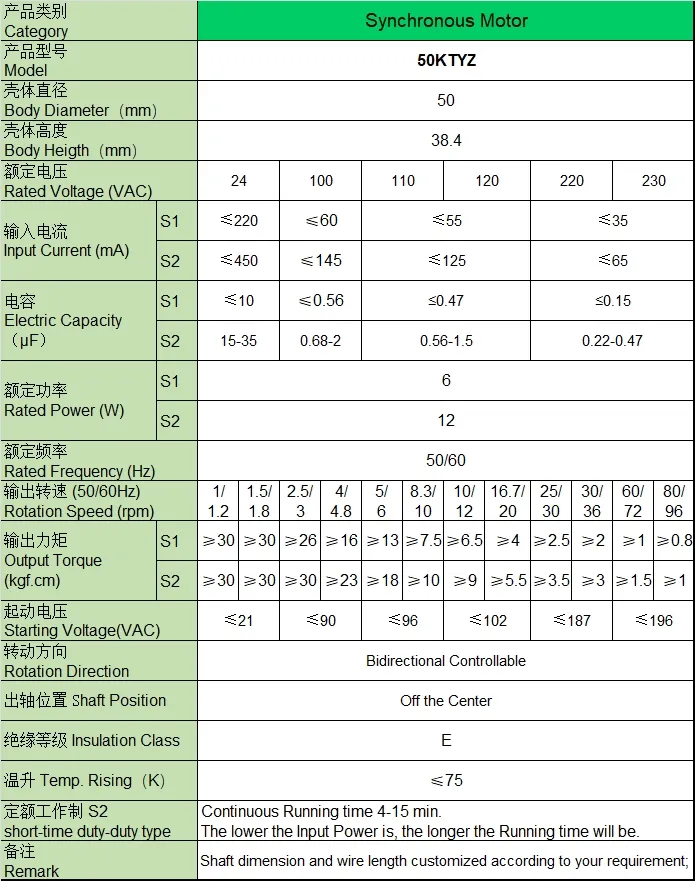

50KTYZ Dimensions

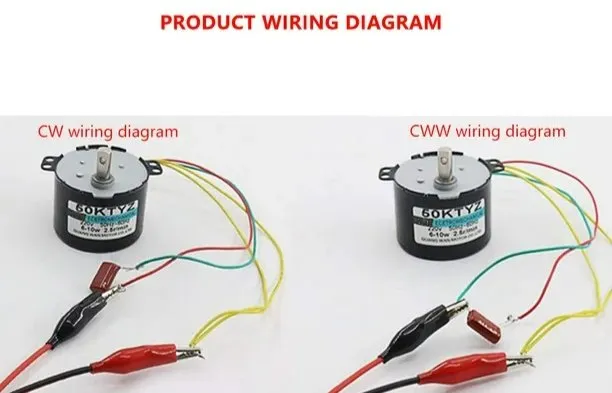

50KTYZ Technical View
🔍 Product Overview

Integrated by a permanent magnet and reduction gearbox, this Synchronous motor offers reliable and efficient performance for various automation needs.

  • Slim Design and Stable Performance
  • Low Power Consumption and Constant Rotation Speed
  • Low Noise and High Torque
  • Small Size and Light Weight
  • No Drive Circuit required and easy to use

At rated frequency, the rotation speed is not affected by voltage. If overload or stall occurs when loaded, the motor coil will not burn, ensuring safety and durability.

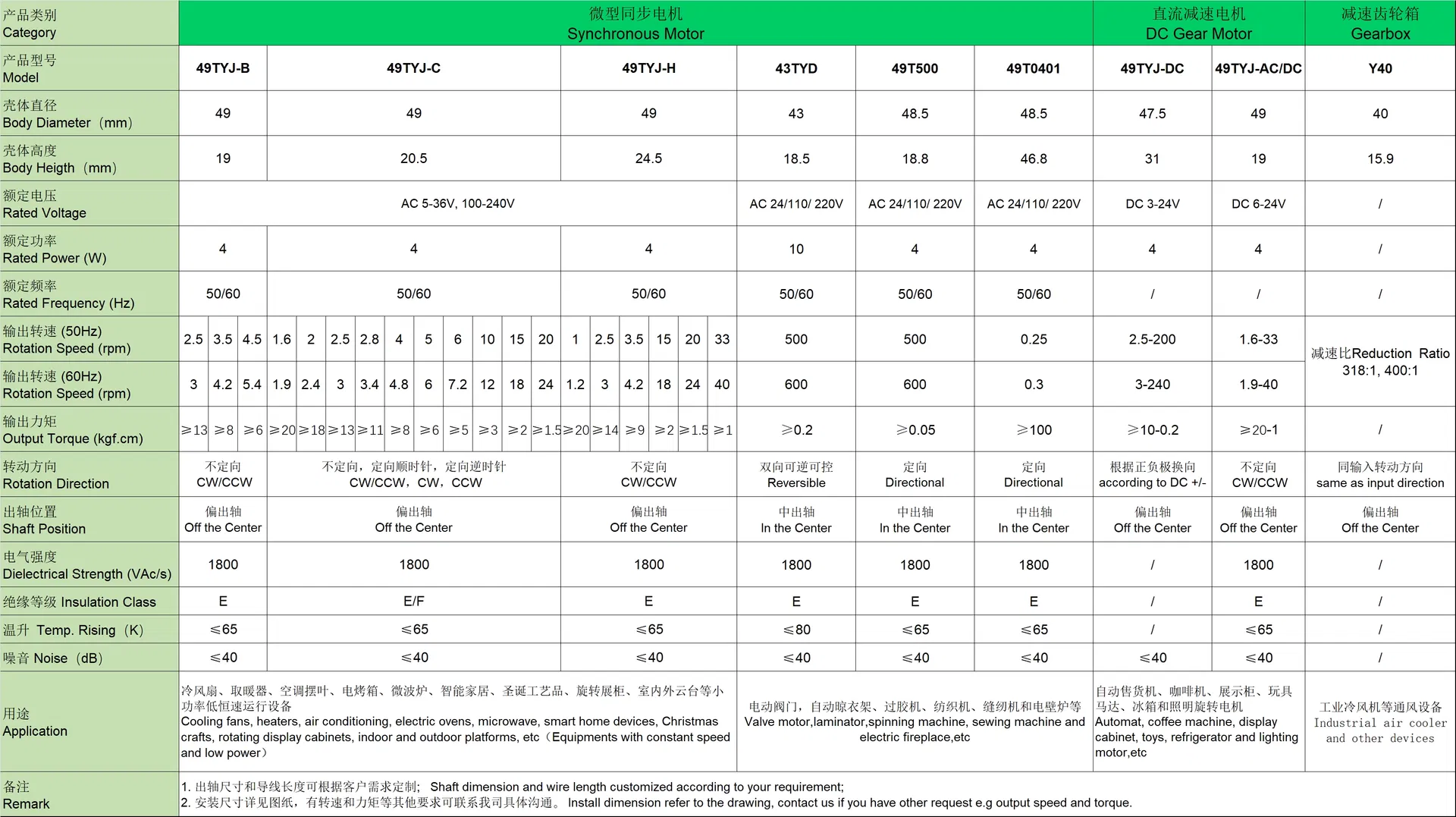

Product Parameters Overview
🛠️ Components & Details

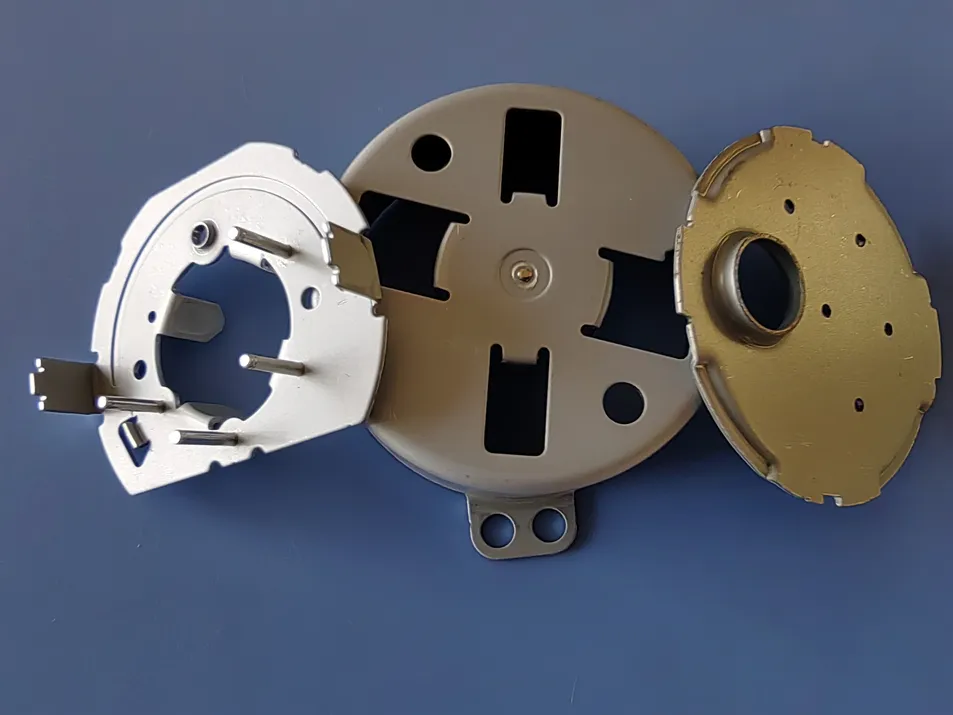

Shell Detail

Shell

Made from high-quality galvanized sheet with excellent anti-corrosion performance, ensuring a longer service life.

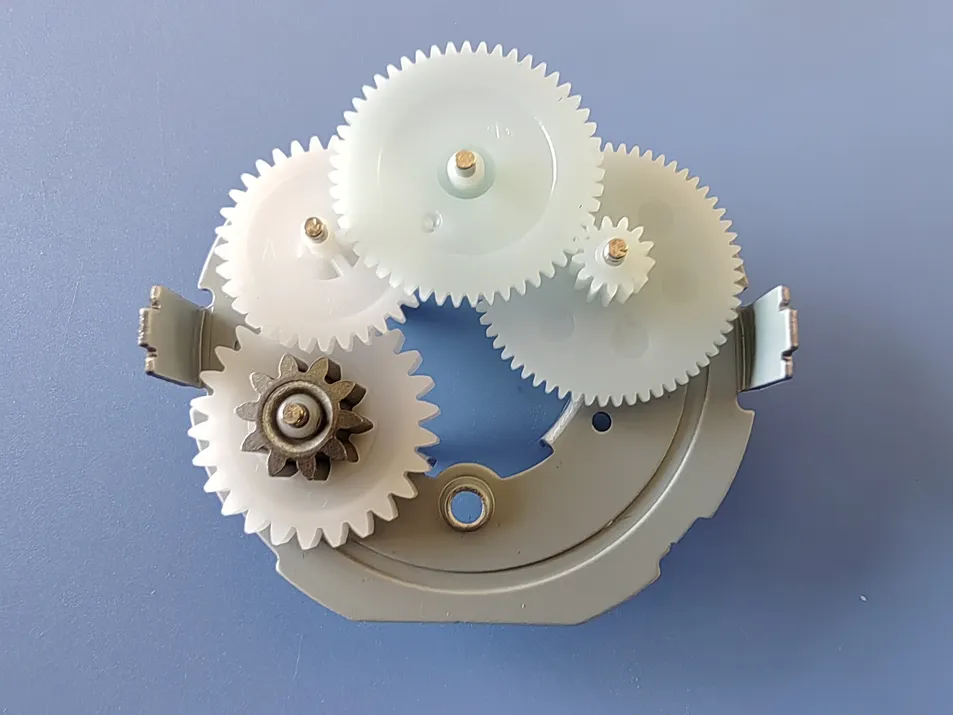

Gear Detail

Gear

Constructed from POM, PA66, and Metal for high abrasion resistance, precision, and low noise operation.

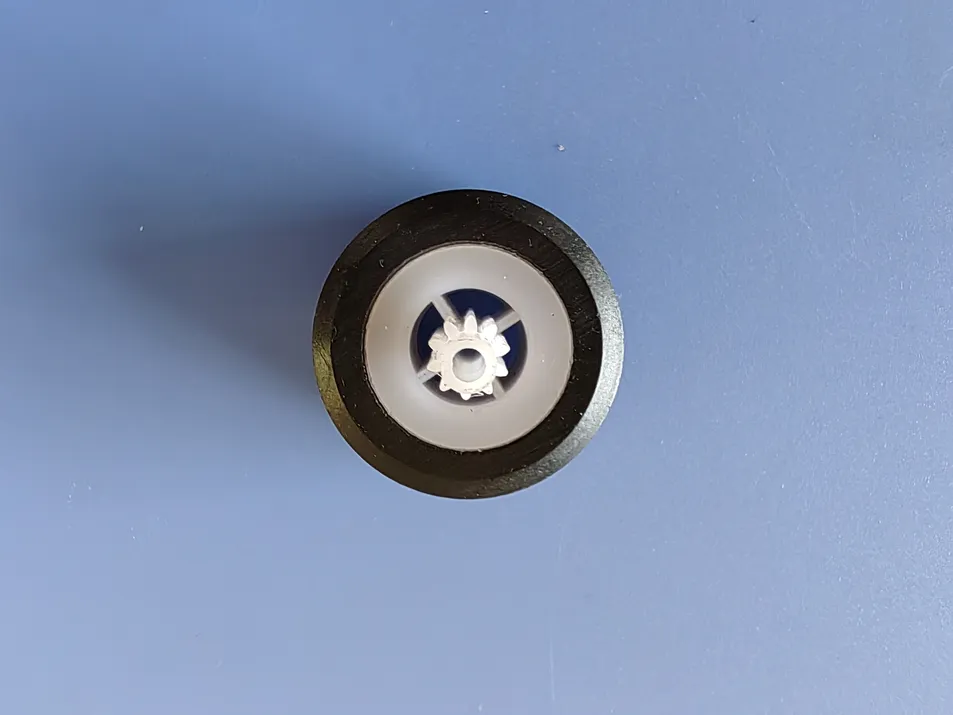

Magnetic Core

Magnetic Core

Made of Ferrite to effectively enhance the magnetic field and improve the performance of the rotor.

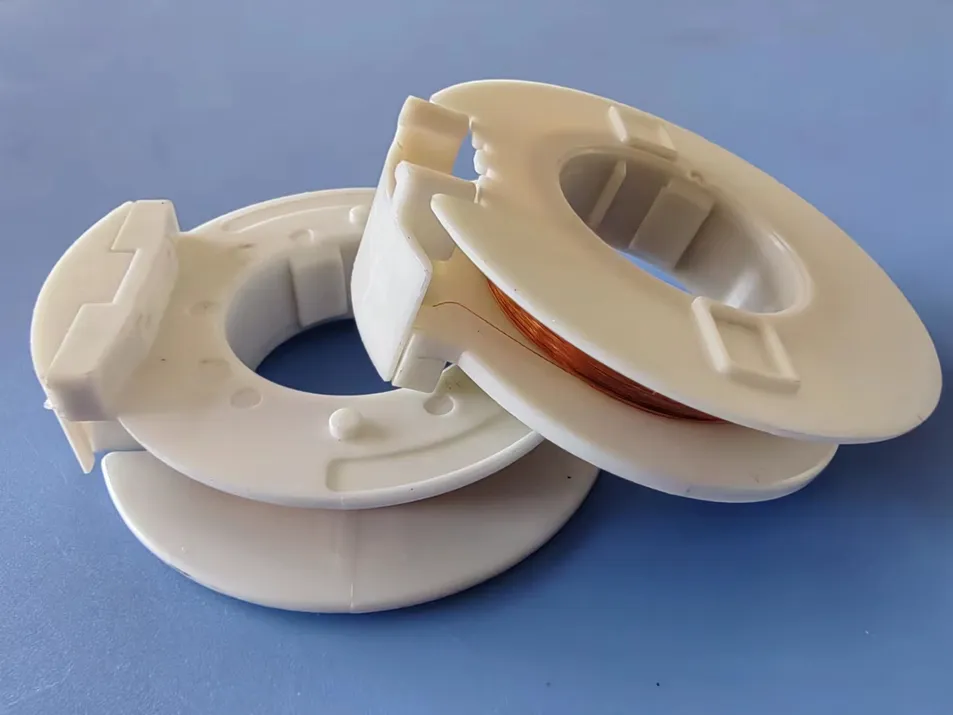

Coil Detail

Coil

Features pure copper enameled wire with uniform arrangement for stable performance and superior heat dissipation.

🖼️ Product Gallery
Gallery 1
Gallery 2
Gallery 3

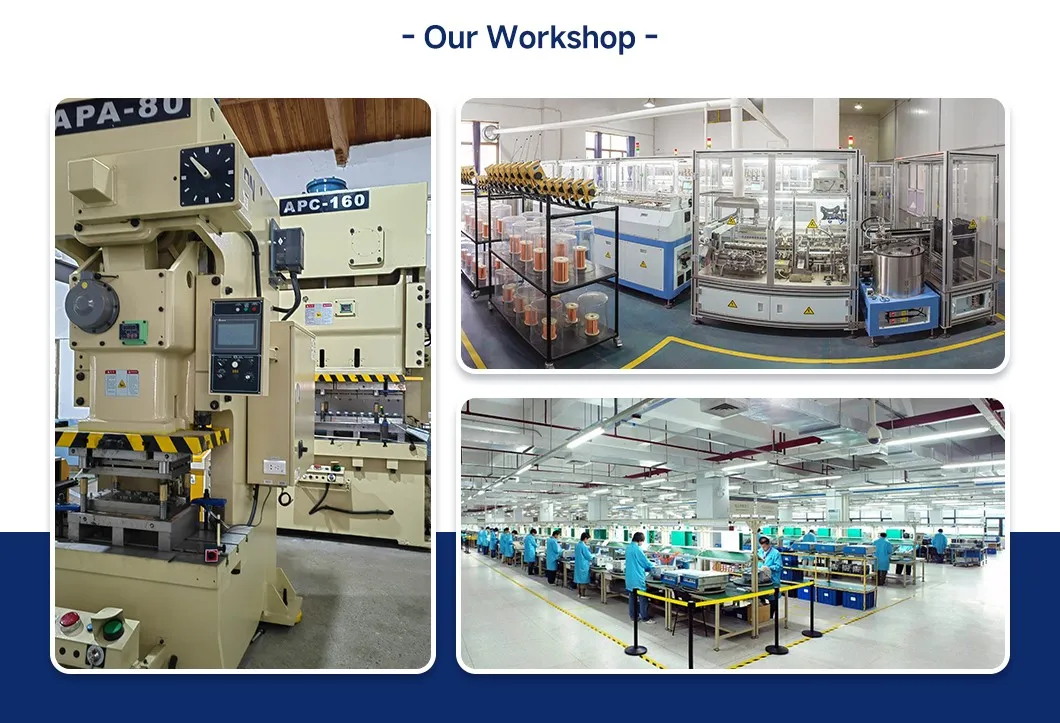

Gallery 4
Gallery 5
Gallery 6
📦 Specifications Summary
Main ProductsSynchronous Motor, DC Gear Motor, BLDC Motor and Water Pump
CertificationsCCC, VDE, CB, RoHS and ISO9001-2015
Package Size10.00cm * 15.00cm * 20.00cm
Package Gross Weight0.260kg
Production Capacity2000 units / Day
❓ Frequently Asked Questions
Does the motor burn if it stalls under heavy load?
No, the 50KTYZ synchronous motor is designed so that the coil will not burn even if it stalls or is overloaded.
Is the rotation speed affected by voltage fluctuations?
At the rated frequency, the rotation speed remains constant and is not affected by changes in voltage.
What rotation directions are available for this motor?
You can choose from three rotation options: CW (Clockwise), CCW (Counter-Clockwise), or Reversible CW/CCW.
What materials are used for the internal gears?
The gears are made of a combination of POM, PA66, and Metal to ensure high abrasion resistance and low noise.
What are the primary applications for the 50KTYZ motor?
It is commonly used for BBQ grills, electric valves, home automation devices, and other low-speed high-torque driving controls.
Are customization options available for this motor?
Yes, various shaft types, speeds, torques, and wire lengths can be customized based on specific requirements.
