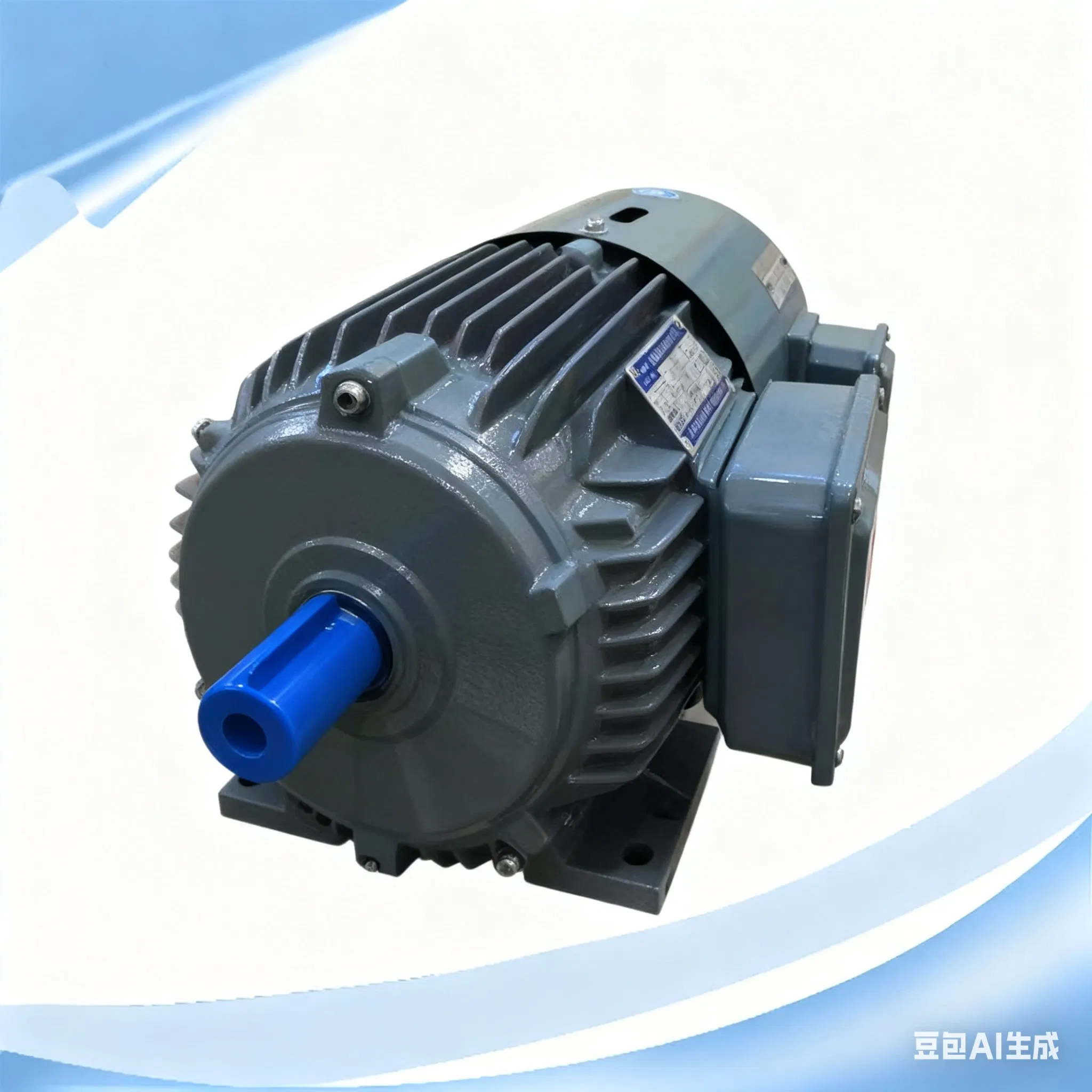

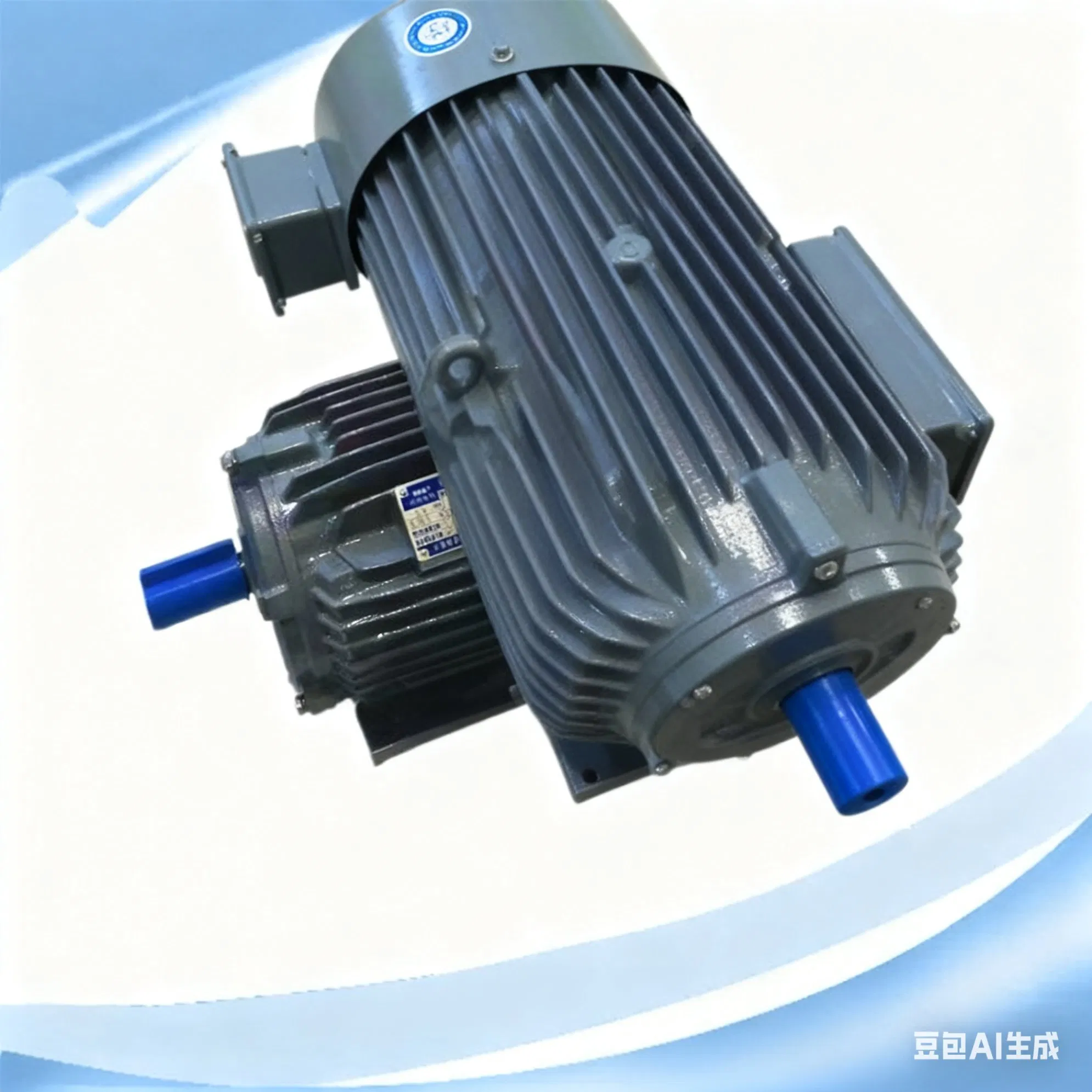

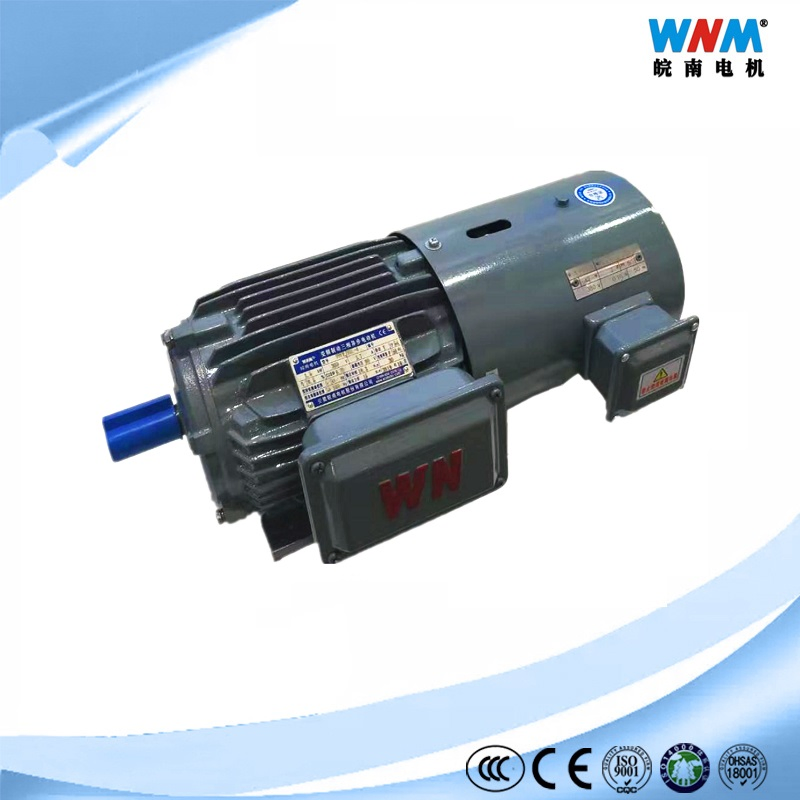

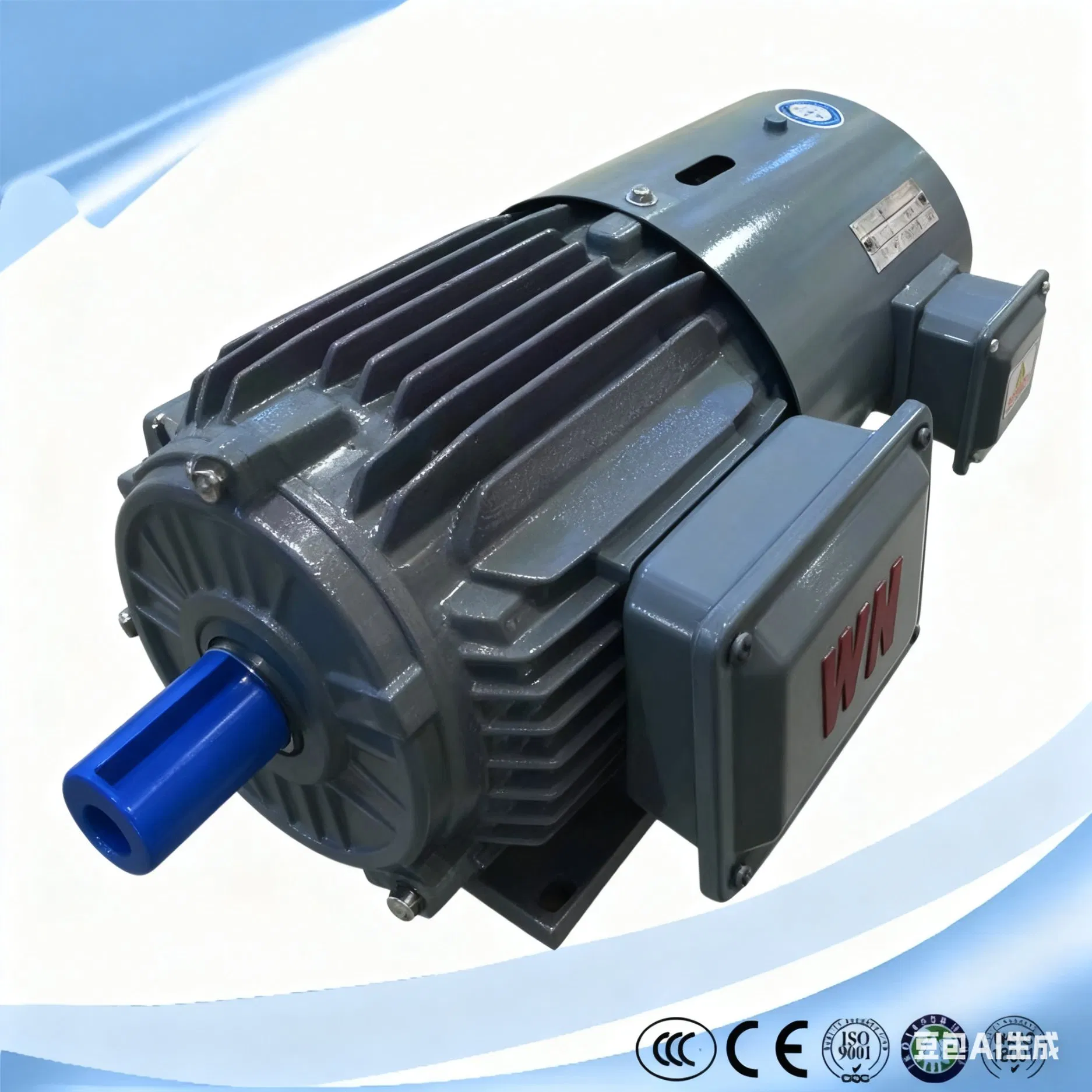

YXVF IEC Three Phase Induction AC Electric Frequency Variable Inverter Duty Motor
This series is specifically designed for applications requiring adjustable speed control. It is an ideal power source for fans, pumps, and blowers across various industrial sectors.
Applications
Widely applied in metallurgy, chemistry, textile, pharmacy, printing, packing, and food industry on machines or equipment where adjustable speed is essential, such as fans, pumps, numerical control machines, and machining centers.
General Description
- Frame sizes: 80 to 355
- Rated output: 0.37 to 375kW
- Insulation class: F
- Voltage: 380V
- Efficiency levels: IE2, IE3
- Frequency range for 2P: 5-100Hz (Frame 80-250), 5-70Hz (Frame 280), 5-60Hz (Frame 315-355)
- Frequency range for 4, 6, 8, 10P: 5-100Hz
Key Features
- Stepless speed regulation in a wide range
- Excellent performance and energy-saving capabilities
- High-grade insulation material to withstand high frequency pulse impact
- Equipped with a separated fan for forced-ventilation
Optional Features
⚡ Electrical:
- Insulation Class: H
- Thermal Protection: PTC Thermistor, Thermostat, or PT100
⚙️ Mechanical:
- Various mounting configurations
- Protection Degree: IP56, IP65
- Sealing: Lip seal, Oil seal
- Space Heater and Drain Hole options
Specifications of Cooling Blower and Brake
| Motor Frame |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
355 |
| Power (W) |
30 | 42 | 52 | 55 | 55 | 80 | 80 | 150 | 200 | 230 | 320 | 700 | 700 |
| Current (A) |
0.09 | 0.16 | 0.18 | 0.18 | 0.19 | 0.26 | 0.30 | 0.6 | 0.6 | 0.6 | 1.1 | 1.8 | 1.9 |
| Voltage |
Standard 380V (Customized voltages available upon request) |
| Encoder |
Incremental Encoder (Optional) |
Mounting Type Data
| Frame |
B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 |
| 80~112 |
√ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 132~160 |
√ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - |
| 180~280 |
√ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - |
| 315~355 |
√ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - |
* Terminal box standard position is at the right side of the frame unless otherwise specified.

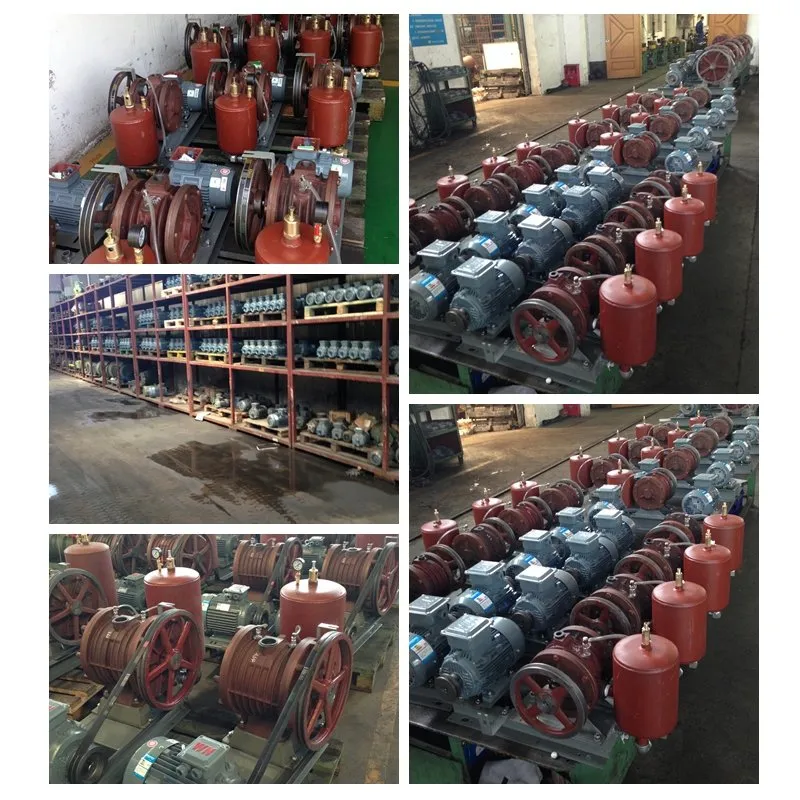

Visual Overview & Facility

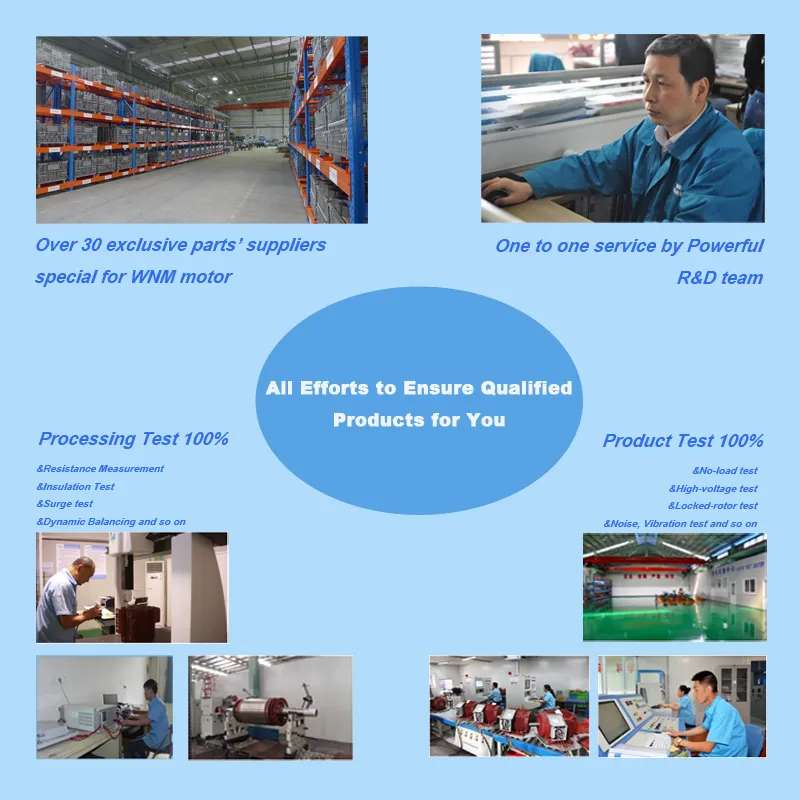

Certificates & Quality Control

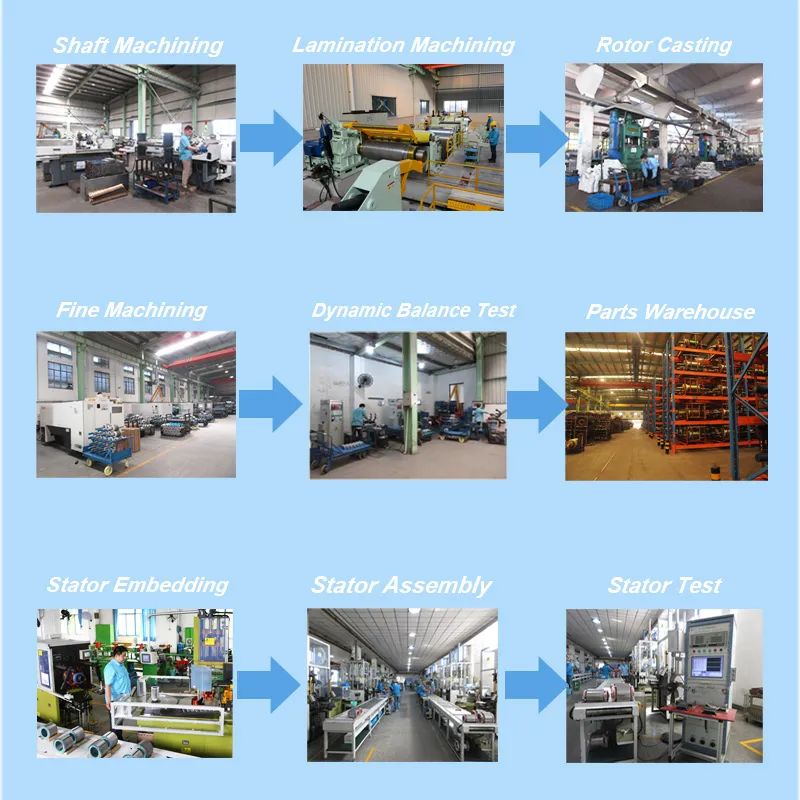

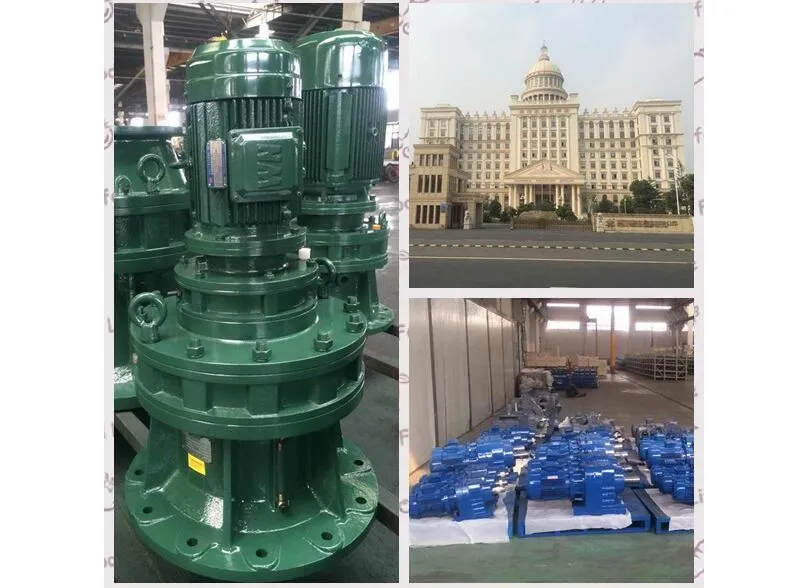

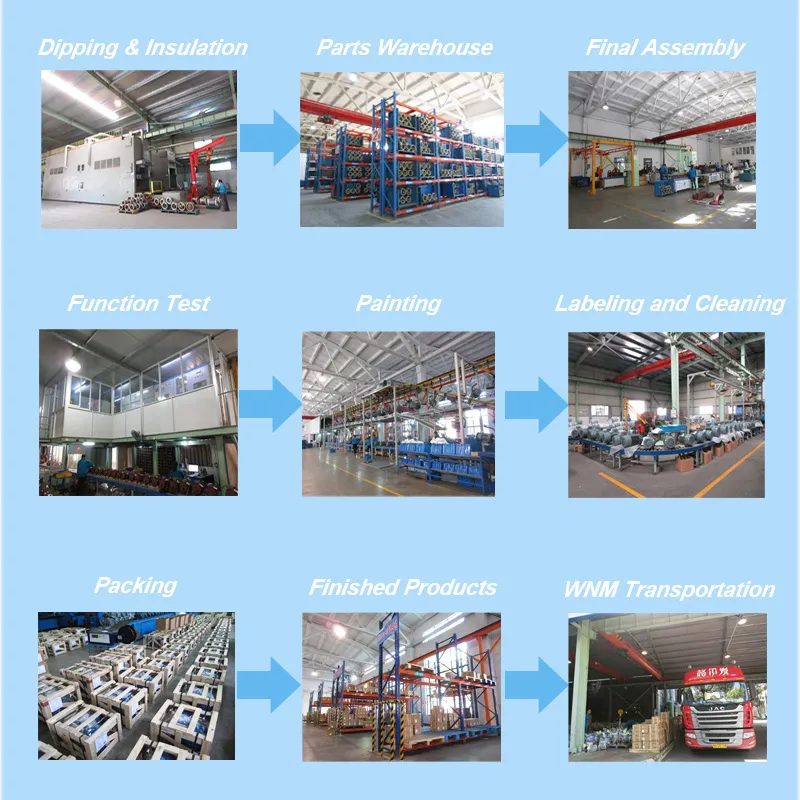

Production Workshop
Frequently Asked Questions
Q1: What industries are YXVF series motors best suited for?
A: These motors are widely used in metallurgy, chemical, textile, pharmaceutical, printing, and food industries, specifically for equipment like fans, pumps, and CNC machines.
Q2: What is the frequency range for the 4-pole motor models?
A: For models with 4, 6, 8, and 10 poles, the frequency range is typically between 5Hz and 100Hz.
Q3: Does the motor support thermal protection?
A: Yes, optional thermal protection features include PTC Thermistors, Thermostats, or PT100 sensors.
Q4: Can the cooling blower voltage be customized?
A: The standard voltage is 380V, but the cooling blower can be customized to other voltages based on specific user requirements.
Q5: What are the available insulation classes?
A: The standard insulation class is F, with an optional upgrade to Class H available for specific electrical needs.
Q6: Are incremental encoders available for these motors?
A: Yes, incremental encoders are offered as an optional feature to enhance precision in variable speed applications.
