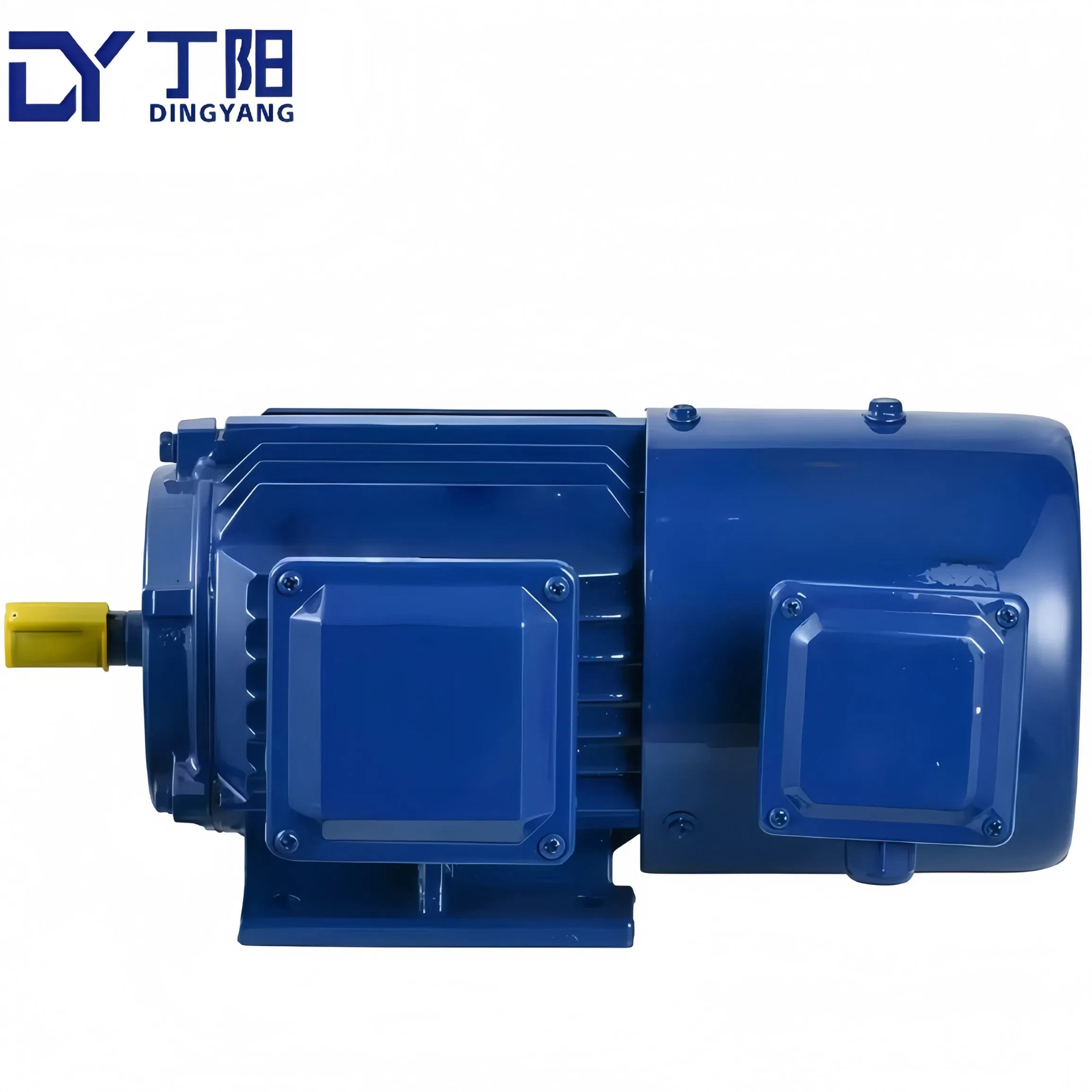

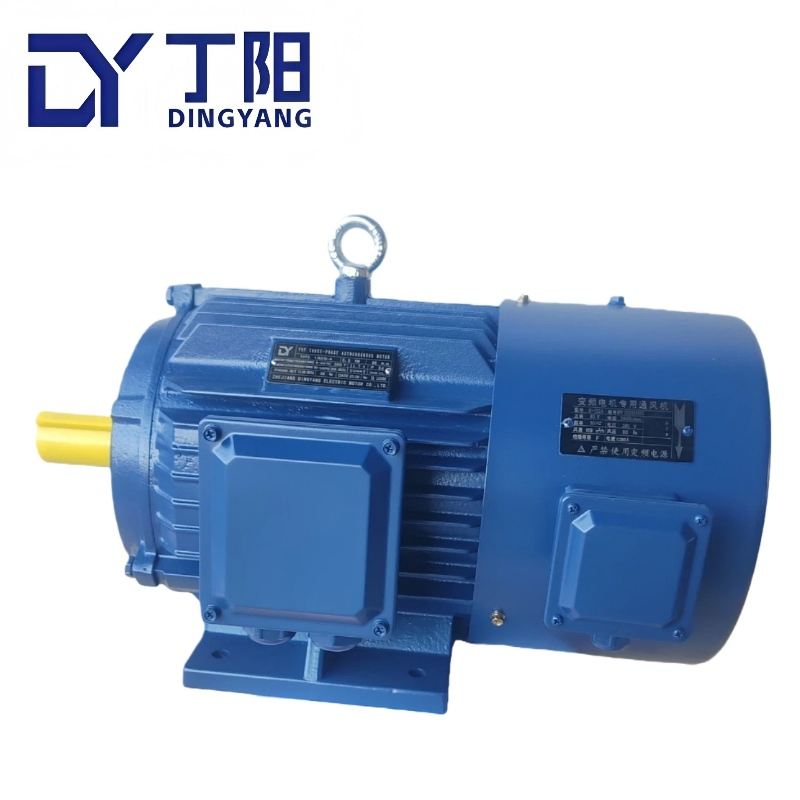

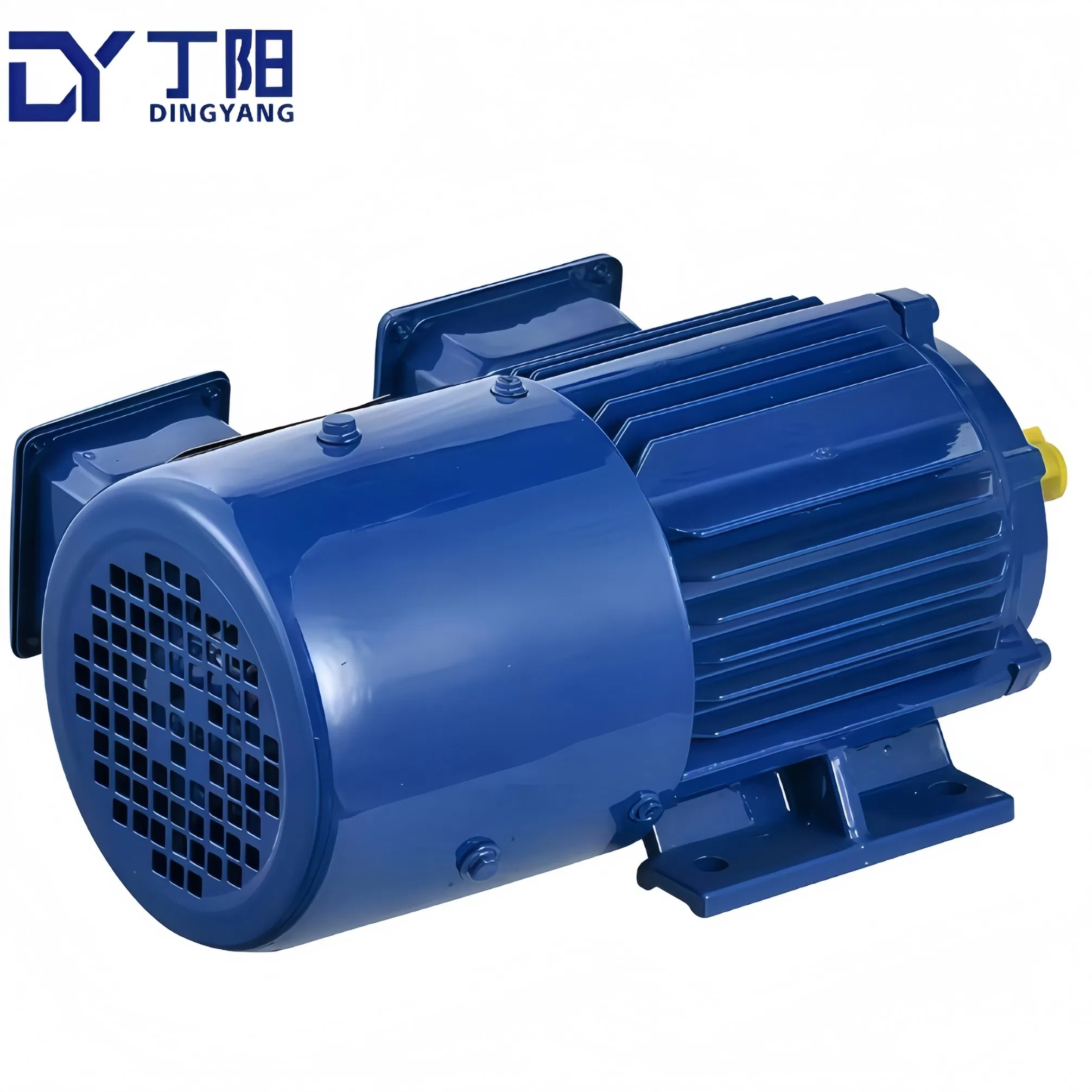

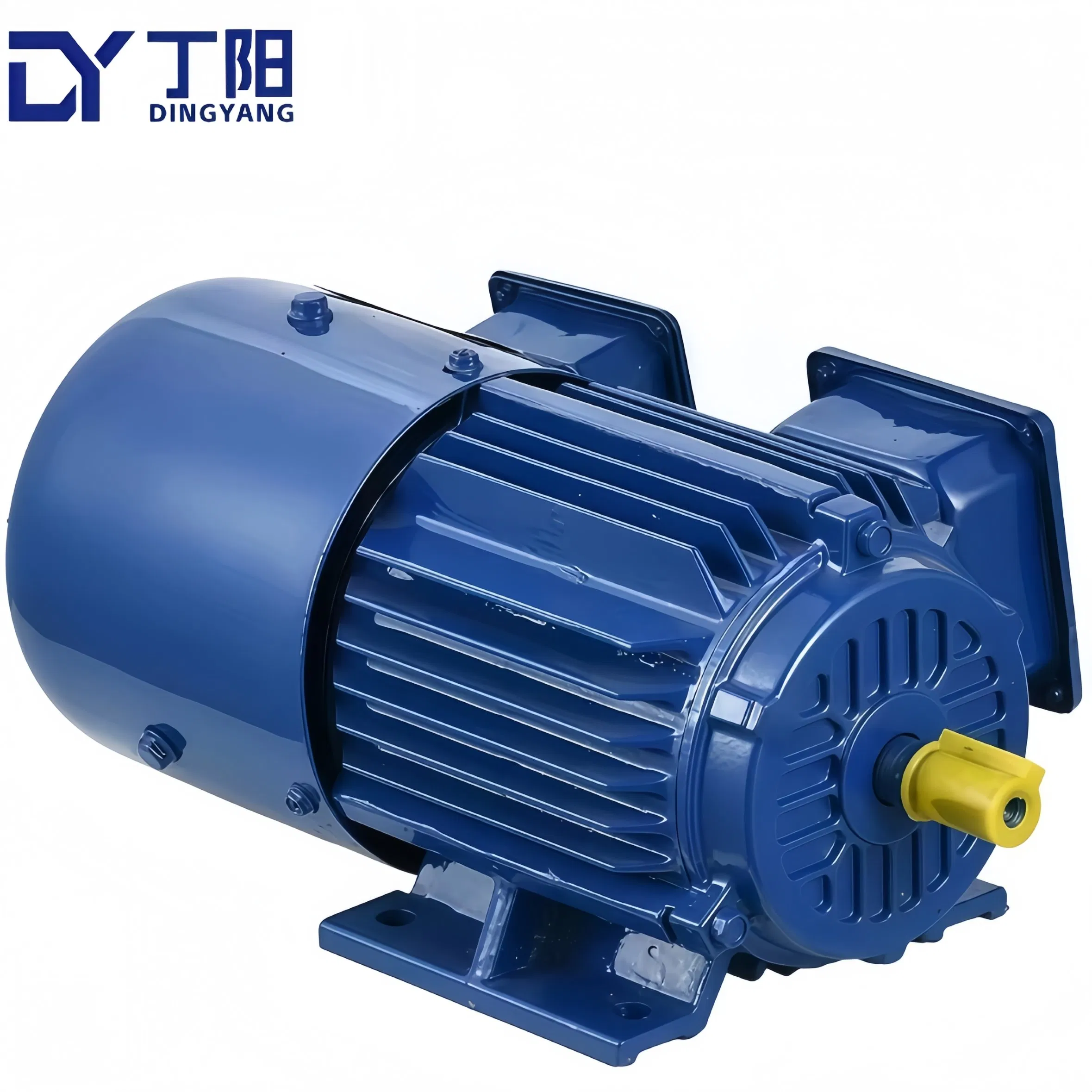

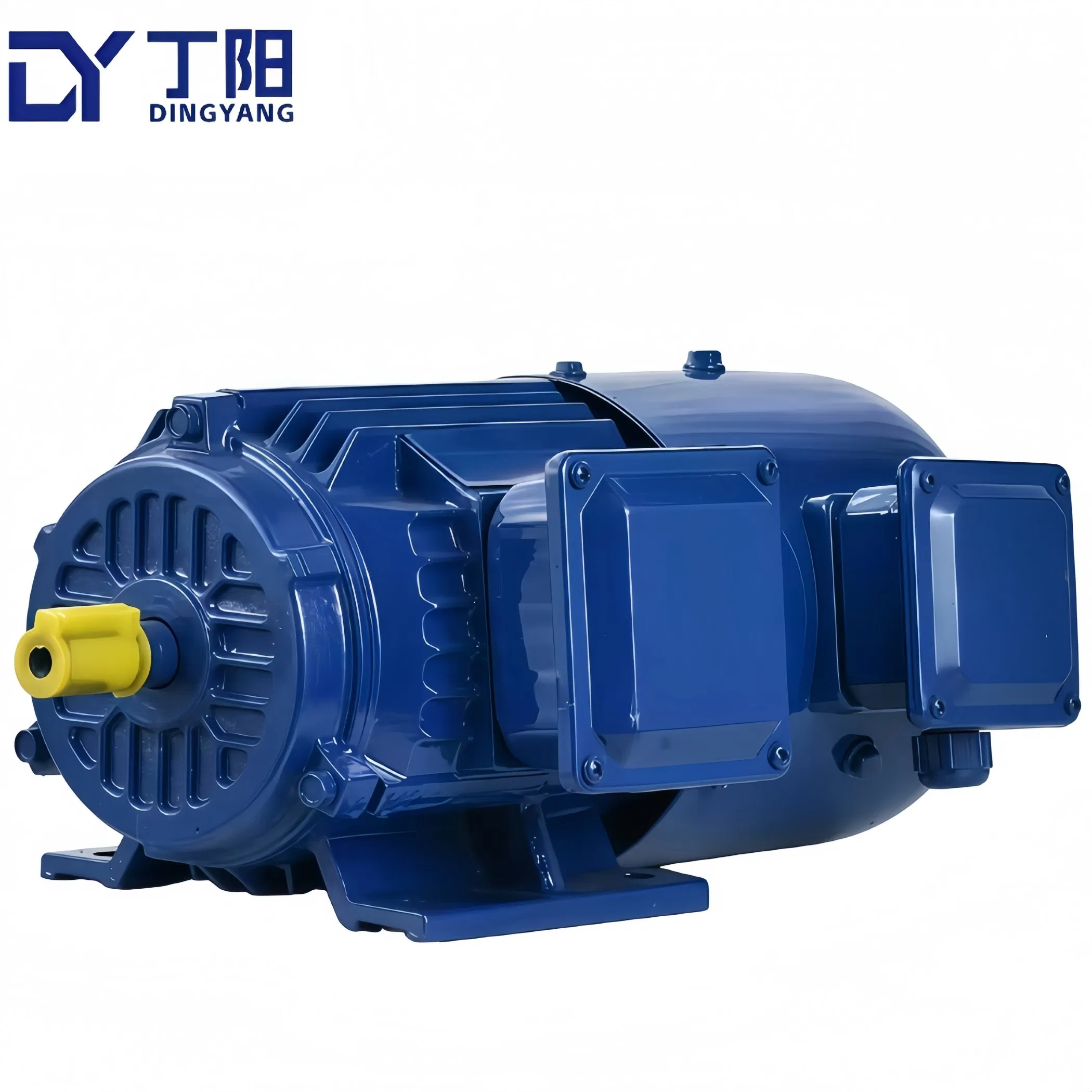

Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency

ℹ Basic Info.

Model NO.

YVF2-132S-4

Number of Stator

Three-Phase

Species

YVP Series Frequency Control

Rotor Structure

Winding Type

Casing Protection

Closed Type

Number of Poles

2.4.6.8.10.12

Starting Mode

Variable Frequency Starting

Certification

ISO9001, CCC

Protection Level

IP44, IP54, IP55

Voltage

380V±5%

Frequency

50/60Hz

Production Capacity

50000PCS Per Year

📦 Packaging & Delivery

Package Size

52.50cm * 33.50cm * 27.00cm

Package Gross Weight

68.000kg

⭐ Our Advantages

ELECTRIC MOTOR FEATURES

Electric motor frame from 80 - 355, output range from 0.5HP to 430HP
Multiple mounting types: B3, B35, B5, B14, B34
Optional voltage: 110V, 120V, 220V, 240V, 220/380V, 380V/660V
Protection types IP44, IP54, IP55 available on request
High strength cable and strong cast iron frame options
Shaft key and protector supplied with superior paint finish
Class F insulation (standard) and Class H (optional)
Compliance with ISO9001, CE, UL, CCC, GS, GOST, RoHS and IEC standards
High performance with IE3, IE4, IE5 efficiency levels

📊 Product Parameters

MOTOR TYPES: YE3, YE4, YE5, YX3, YVF, YVP, YEJ, YBX3, YBX4, YL, YS

Type	Output (kW)	Output (HP)	Voltage (V)	Current (A)	Torque (N.m)	Weight (kg)
YVF2-80M1-2	0.75	1	380	1.9	2.4	16
YVF2-90S-2	1.5	2	380	3.51	4.8	21
YVF2-100L-2	3	4	380	6.4	9.6	32
YVF2-132S1-2	5.5	7.5	380	11.2	17.5	66
YVF2-160M2-2	15	20	380	28.9	47.8	118
YVF2-200L1-2	30	40	380	56.5	95.5	225
YVF2-250M-2	55	75	380	102	175.1	404
YVF2-315S-2	110	150	380	199	350.2	924

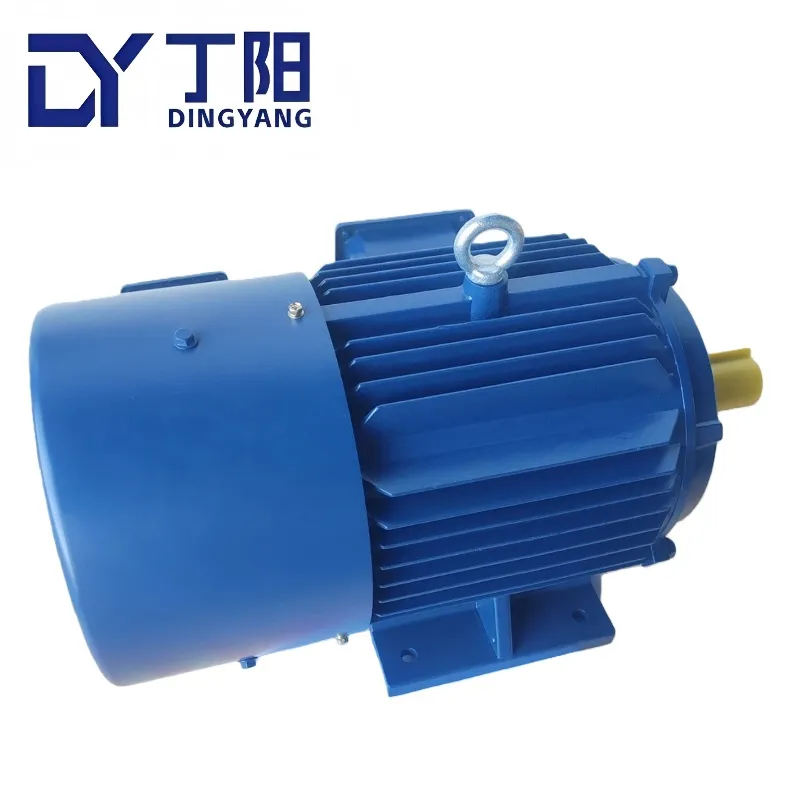

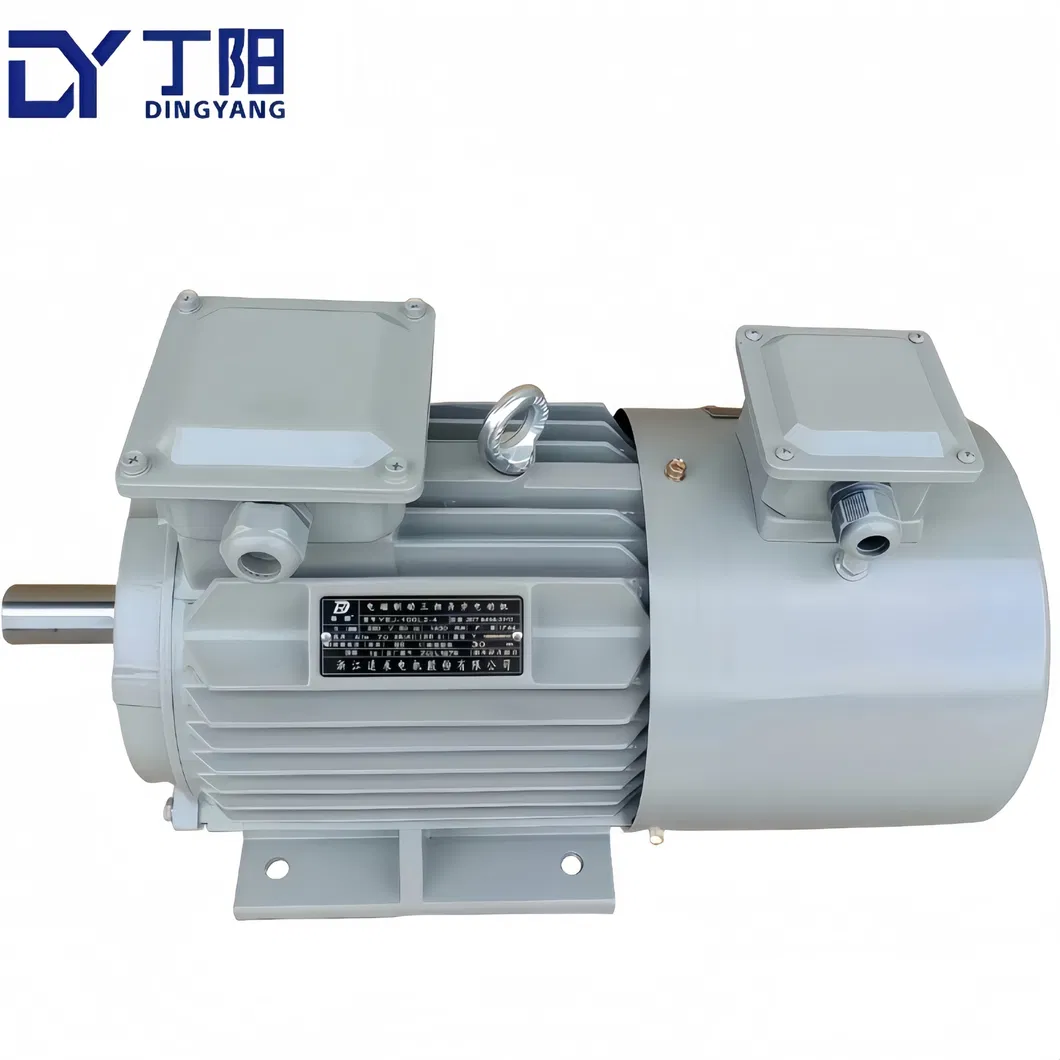

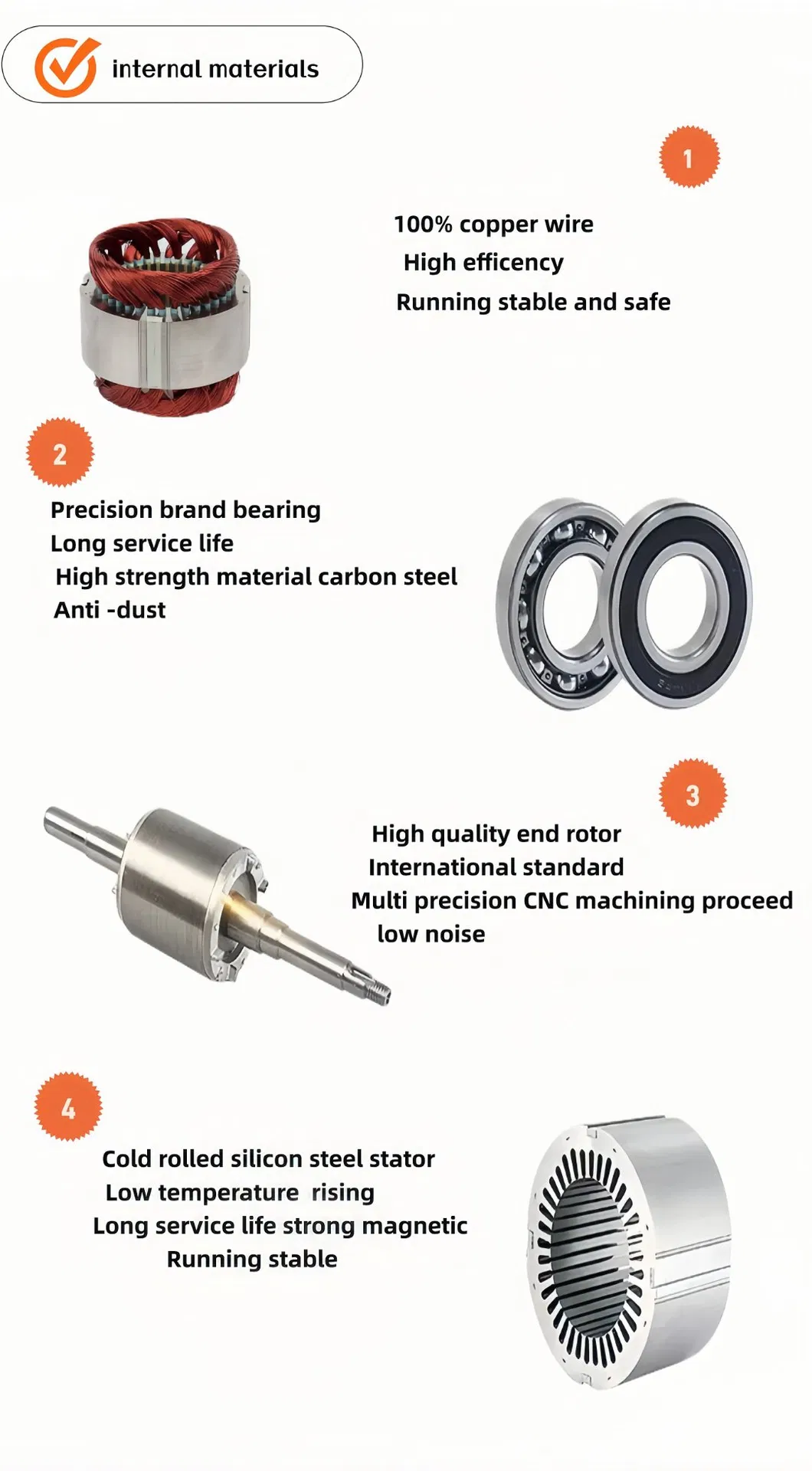

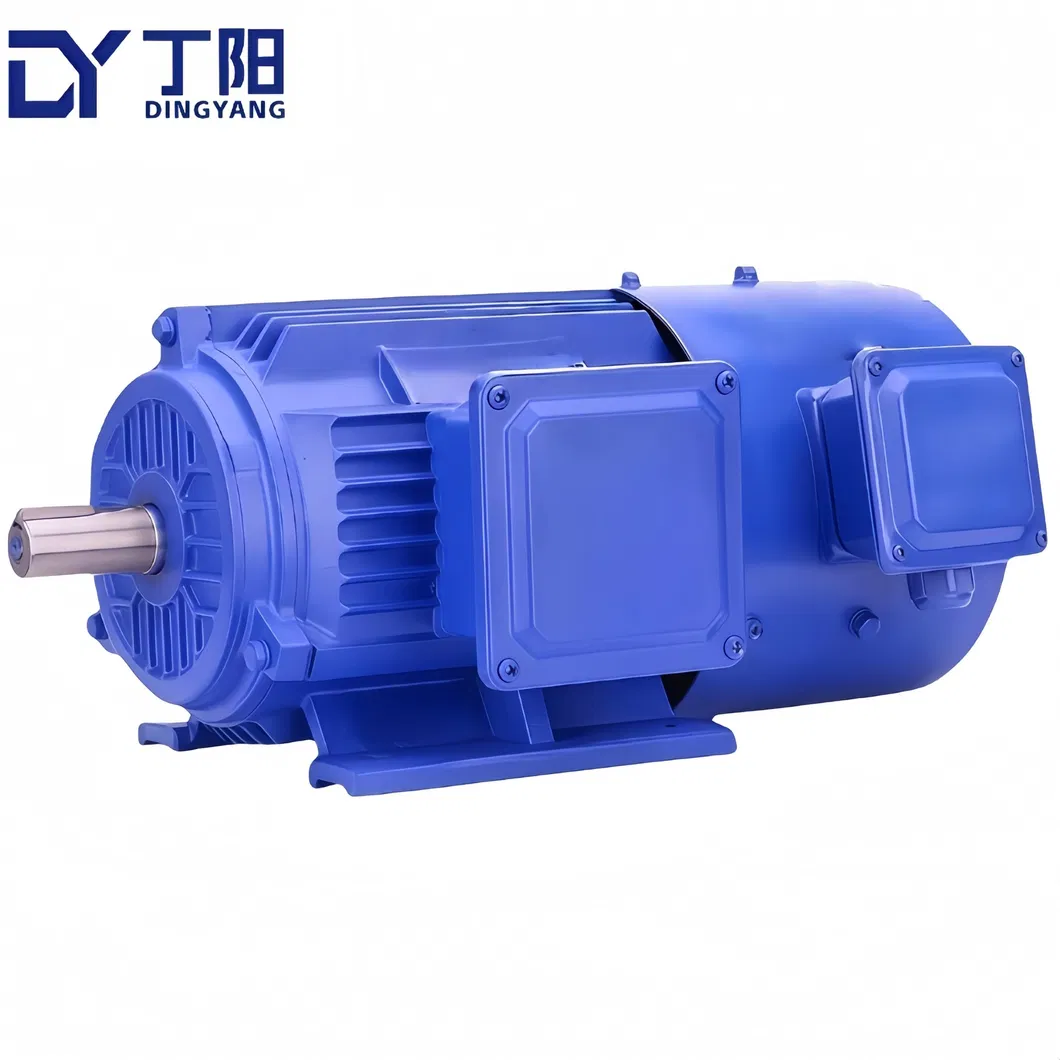

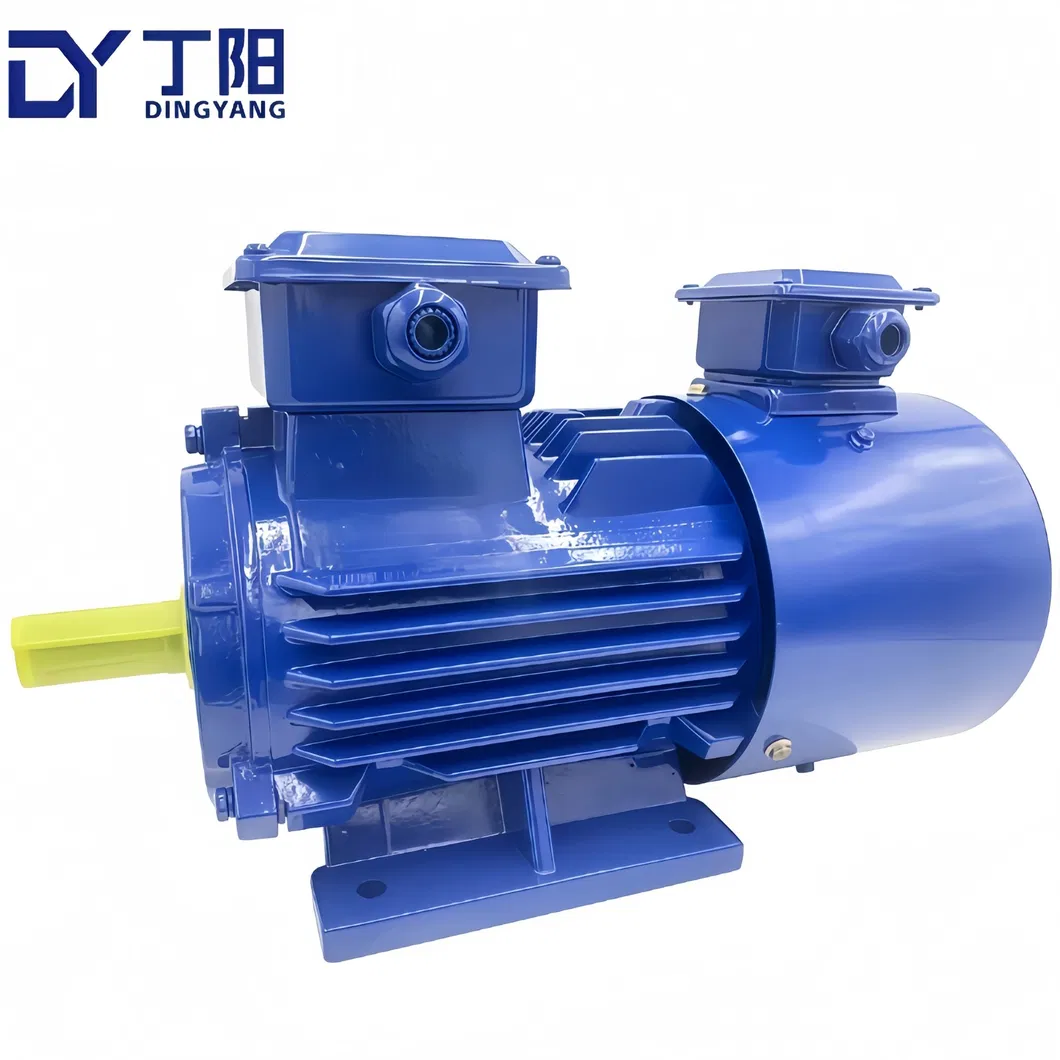

📷 Detailed Photos

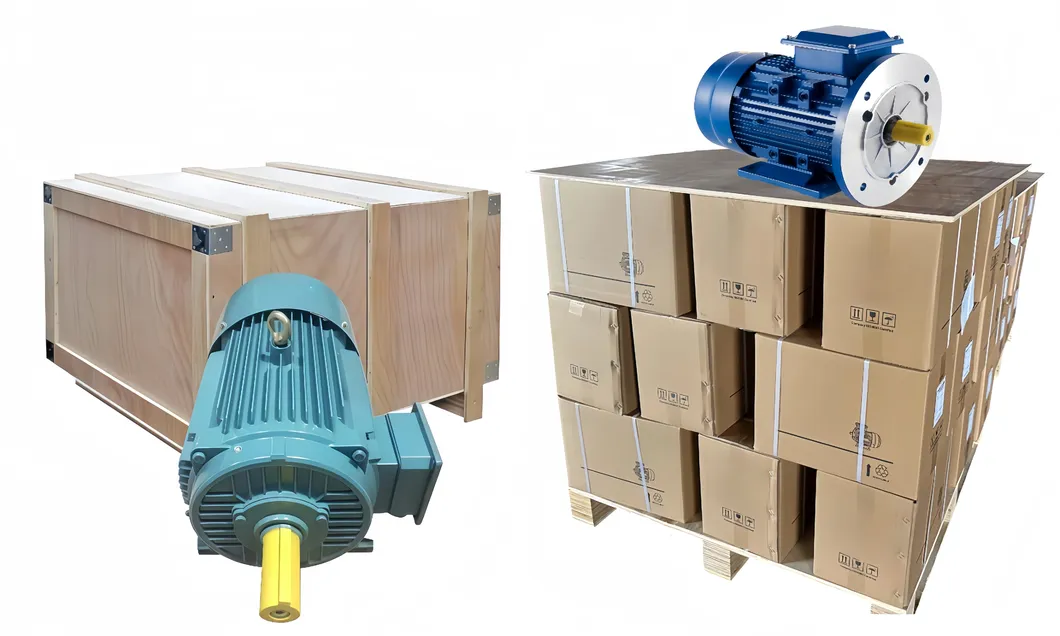

🚢 Packaging & Shipping

❓ FAQ

Are you a trading company or manufacturer?

We are a specialized manufacturer of high-quality electric motors.

How long is your delivery time?

Standard products in stock can be shipped within three days. For customized orders, the timeline depends on the actual production requirements.

Can you provide samples?

Yes, we can provide samples for quality verification.

What is the shipping cost?

Shipping costs are calculated based on your delivery address, zip code, and the total volume/weight of the order.

What protection levels do your motors offer?

Our motors are available with IP44, IP54, or IP55 protection ratings depending on your needs.

What insulation classes are supported?

Class F insulation is our standard, while Class H is available as an optional upgrade for specialized applications.
