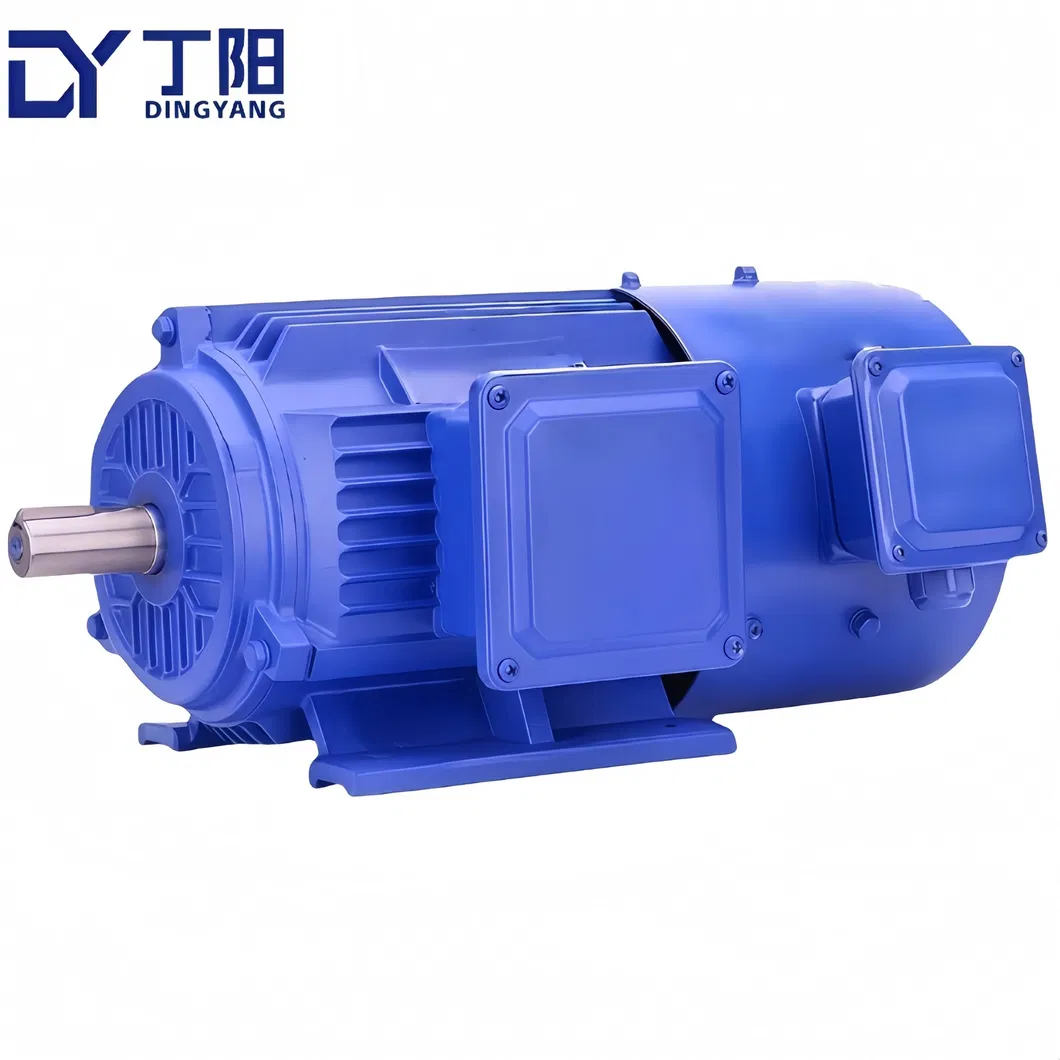

Dingyang Yvf/Yvp Series Yvf132m Three-Phase Speed Control AC Induction Electric Motor Variable Frequency IP54/IP55

1 / 5

Dingyang Yvf/Yvp Series Yvf132m Three-Phase Speed Control AC Induction Electric Motor Variable Frequency IP54/IP55

Send Inquiry

Product Description

🏆 Our Advantages

Why Choose Our Electric Motors?

✔ Frame sizes from 80 - 355, output range from 0.5HP to 430HP.

✔ Multiple mounting types: B3, B35, B5, B14, B34.

✔ Optional voltages: 110V to 660V (50Hz or 60Hz).

✔ Protection ratings: IP44, IP54, IP55 available on request.

✔ Premium build: Aluminum or strong cast iron frames with superior paint finish.

✔ High-grade components: 45# steel or stainless steel shafts.

✔ Insulation Excellence: Class F/H insulation with vacuum impregnation.

✔ Global Standards: Compliant with ISO9001, CE, UL, CCC, GS, GOST, RoHS, and IEC.

✔ Efficiency Options: High performance IE3, IE4, and IE5 efficiency ratings.

📊 Product Parameters

MOTOR TYPE

YE3, YE4, YE5, YX3, YVF, YVP, YEJ, YBX3, YBX4, YL, YS

INSULATION CLASS

CLASS B / F / H

VOLTAGE

110V - 660V (Wide range available)

COOLING METHOD

IC411, IC416, IC01, IC611

DUTY CYCLE

S1 (24H Continuous Working), S4

AMBIENT TEMP.

-15°C ≤ 0 ≤ 40°C

ALTITUDE

Not exceeding 1000M

APPLICATION

Reducer, Air Compressor, Water Pump, Oil Pump, Packaging, and Food Machinery etc.

Technical Parameters of YVF2 Series Motors

Type	Output (kW/HP)	Nominal Voltage (V)	Current (A)	RT (N.m)	Constant Torque Range (Hz)	Weight (kg)
YVF2-80M1-2	0.75 / 1	380	1.9	2.4	5-50	16
YVF2-80M2-2	1.1 / 1.5	380	2.68	3.5	5-50	17
YVF2-90S-2	1.5 / 2	380	3.51	4.8	5-50	21
YVF2-100L-2	3 / 4	380	6.4	9.6	5-50	32
YVF2-160M2-2	15 / 20	380	28.9	47.8	5-50	118
YVF2-355M1-2	220 / 300	380	391	700.3	5-50	1560

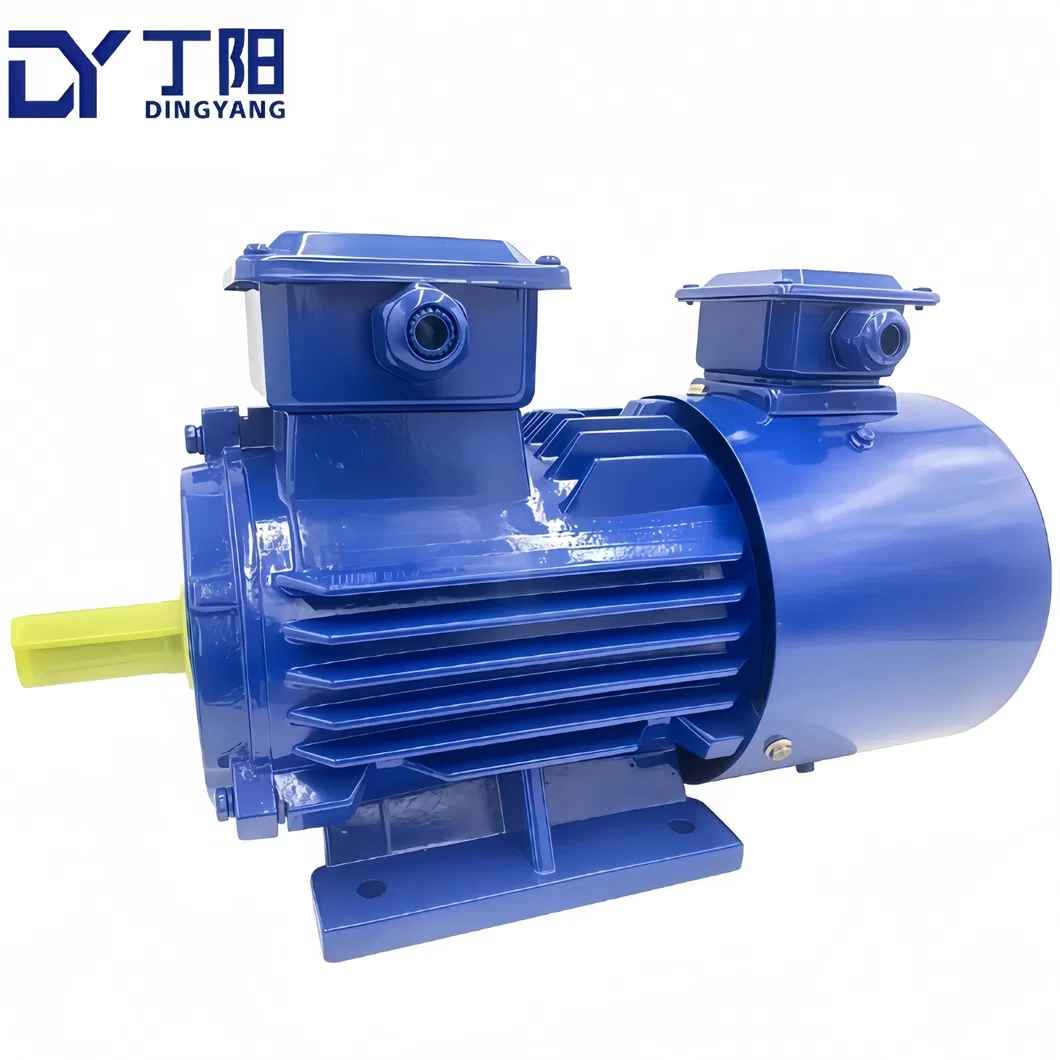

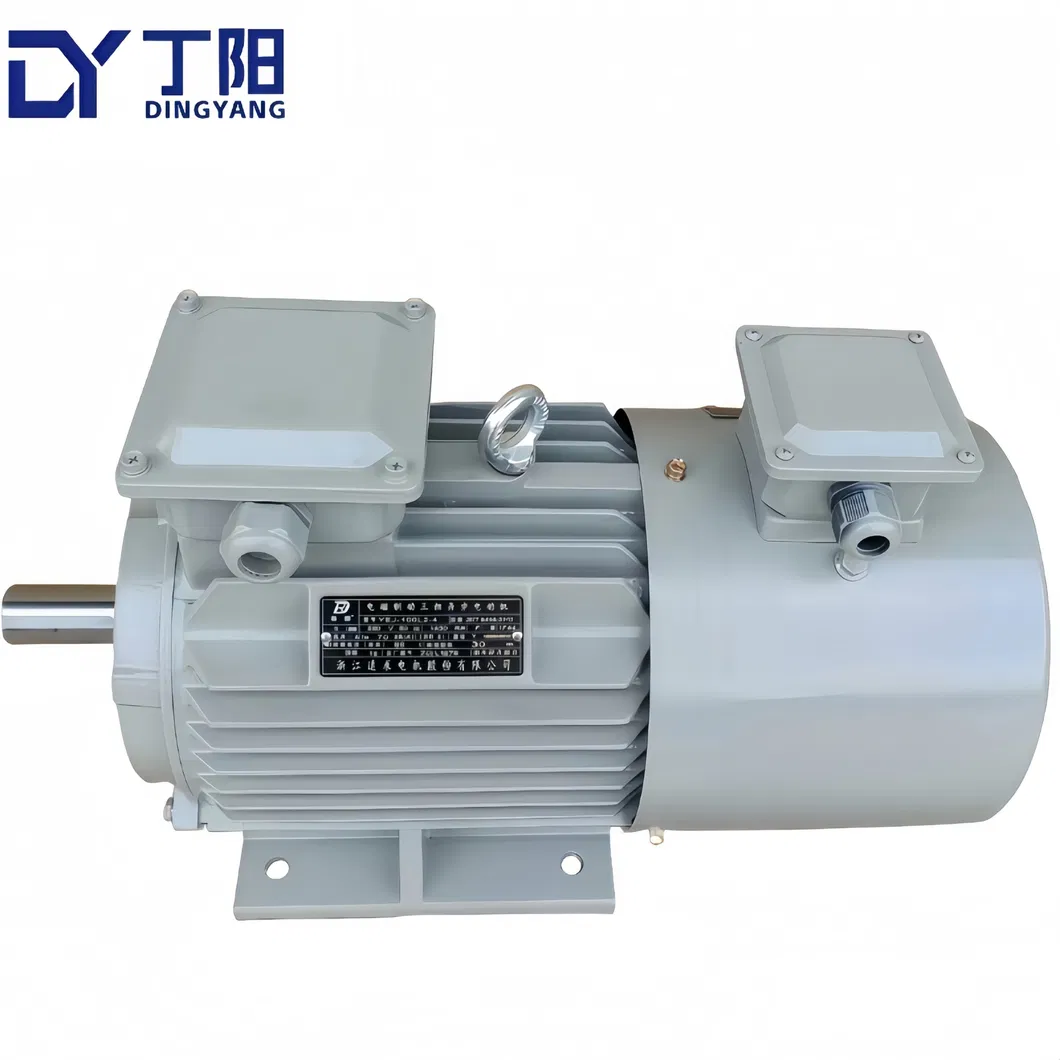

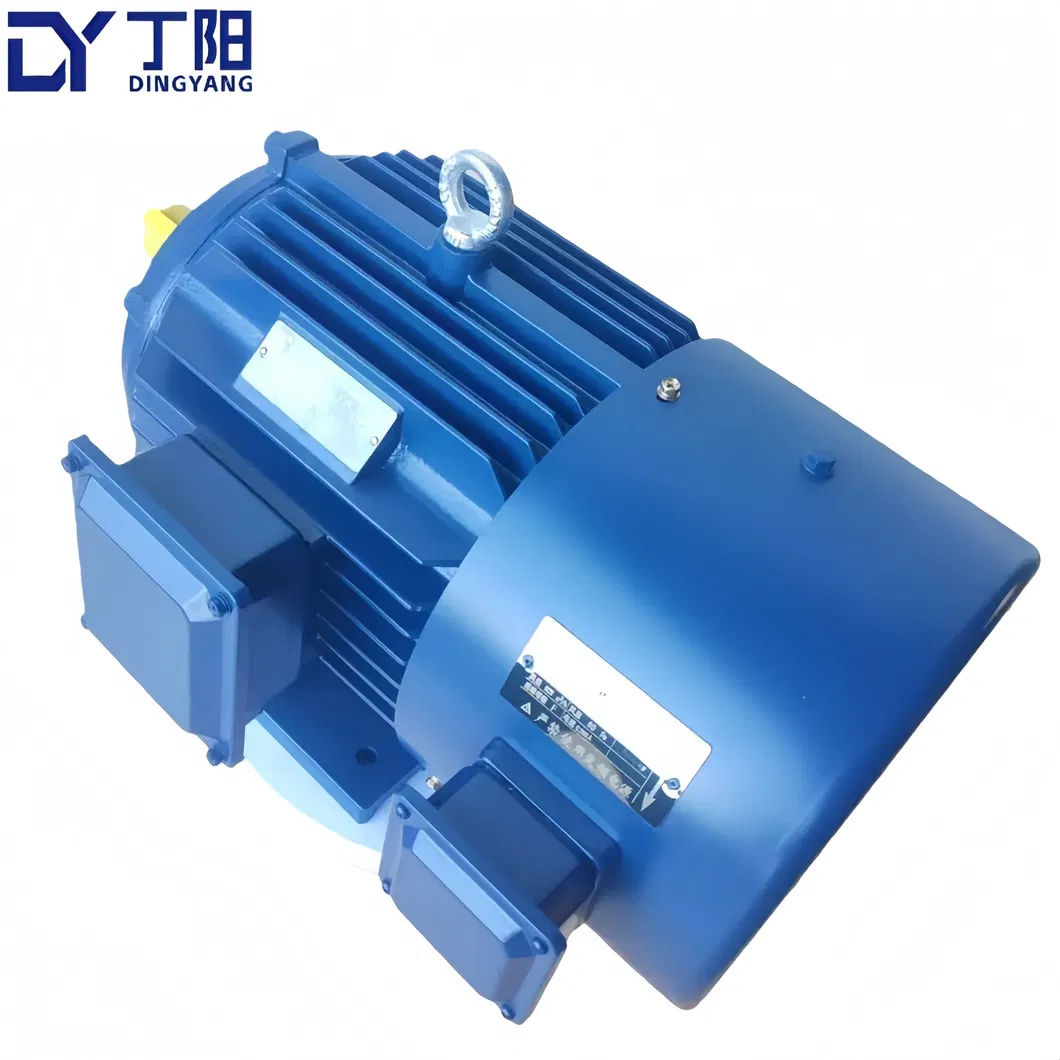

📷 Detailed Photos

📦 Packaging & Shipping

❓ Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional manufacturer specialized in high-performance electric motors.

How long is your delivery time?

Generally, if the products are in stock, they can be shipped within 3 days. For customized orders, delivery depends on the specific requirements and current production status.

Can you provide samples for testing?

Yes, we can provide samples to ensure the motor meets your specific application requirements.

What are the shipping costs?

Shipping costs are calculated based on your delivery address, zip code, and the total volume and weight of the goods. We will provide a specific quotation upon request.

What insulation classes do you offer?

Our standard electric motors use Class F insulation, with Class H insulation available as an option for special requirements.

What global standards do your products follow?

All products are manufactured according to ISO9001, CE, UL, CCC, GS, GOST, RoHS, and IEC standards to ensure global compatibility.
