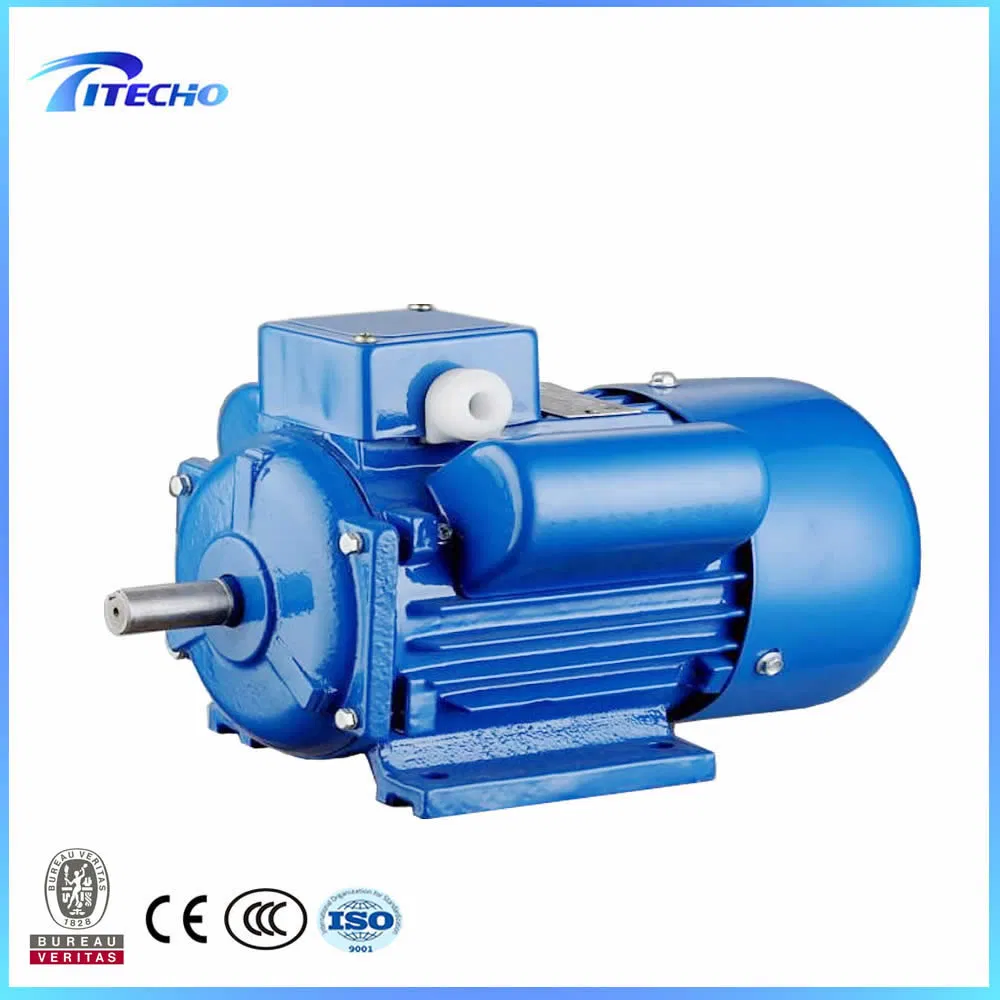

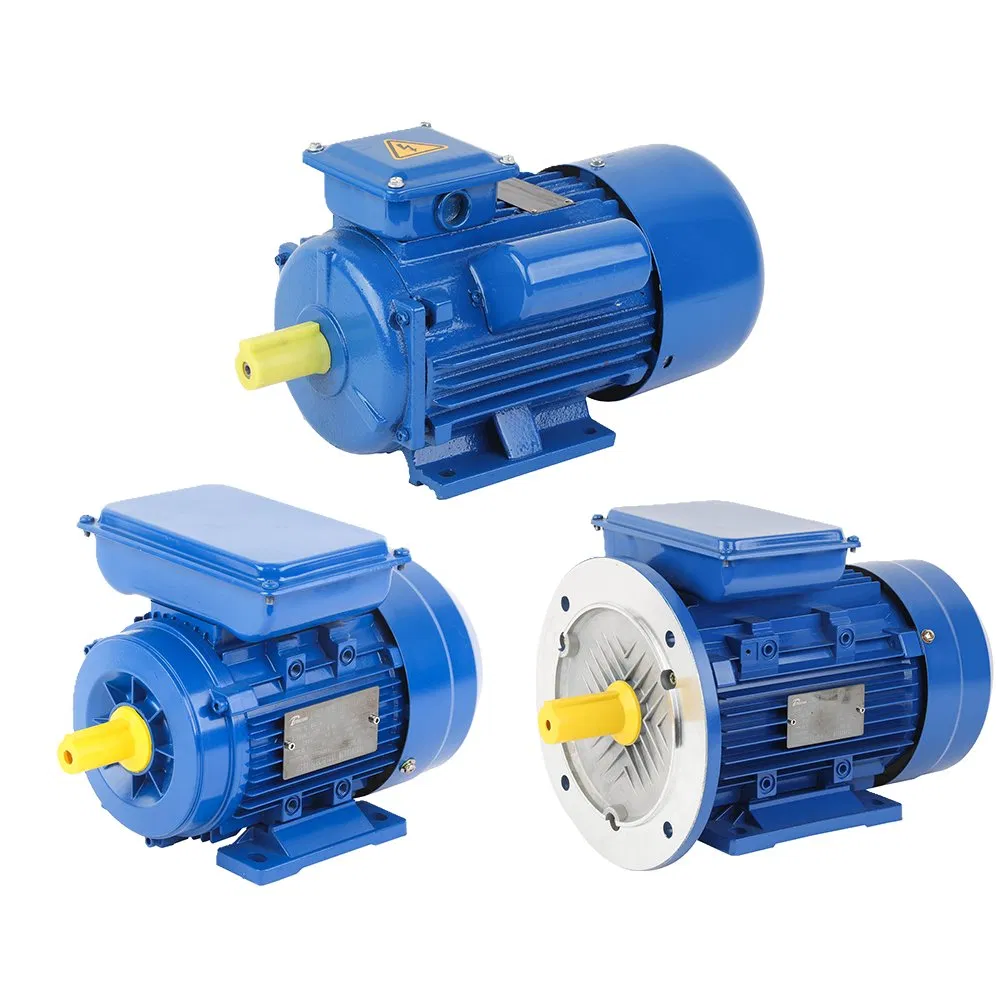

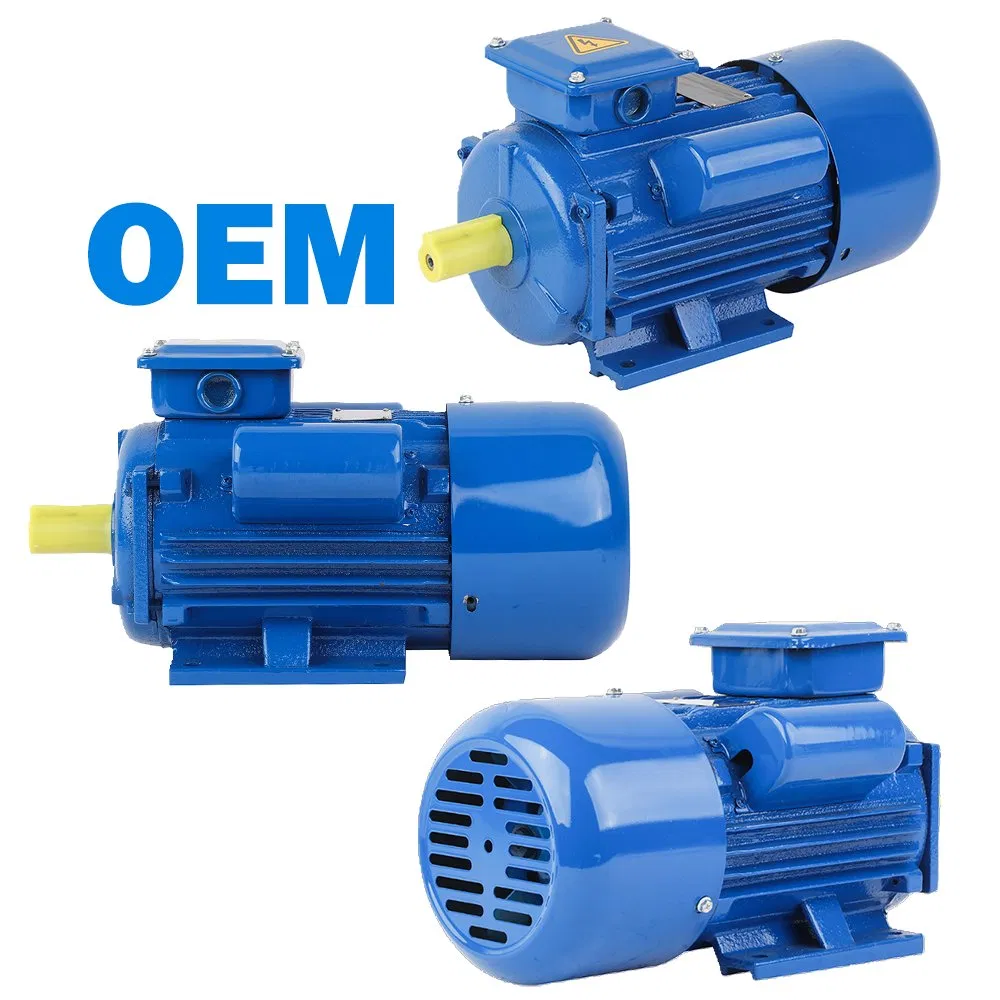

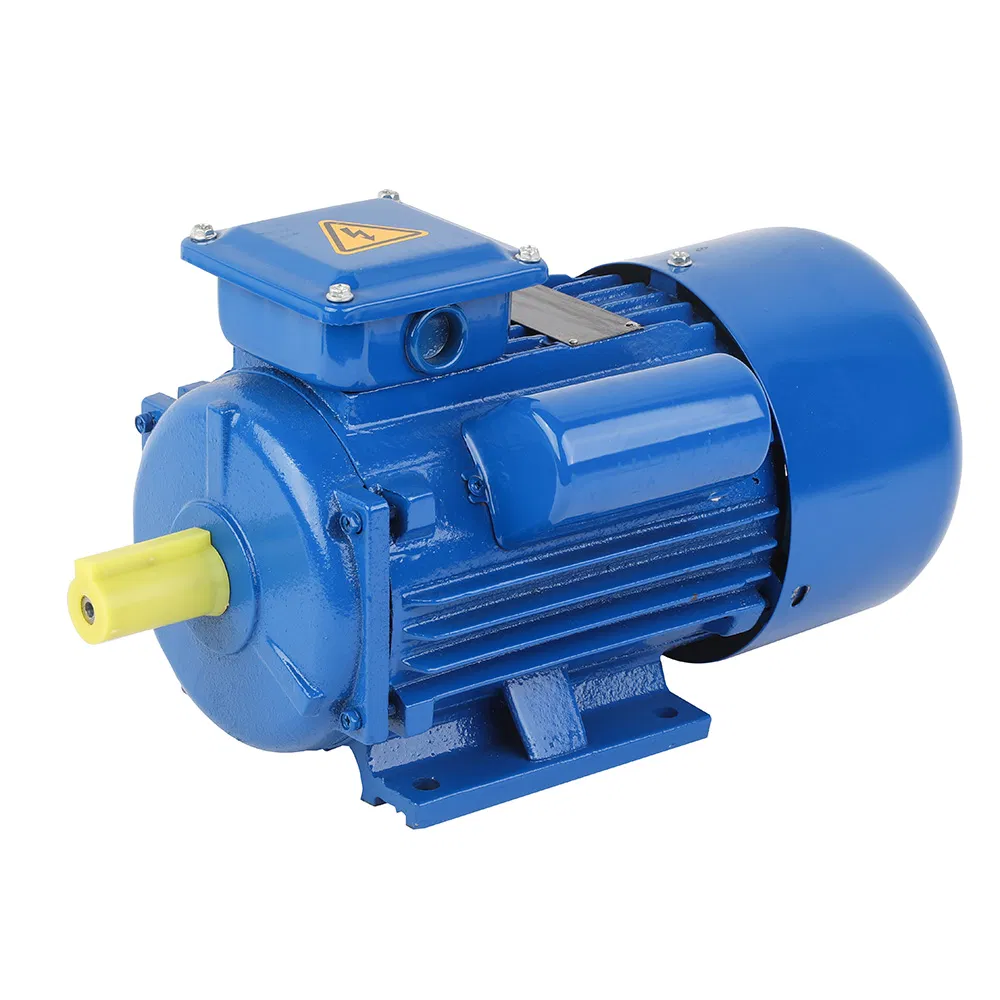

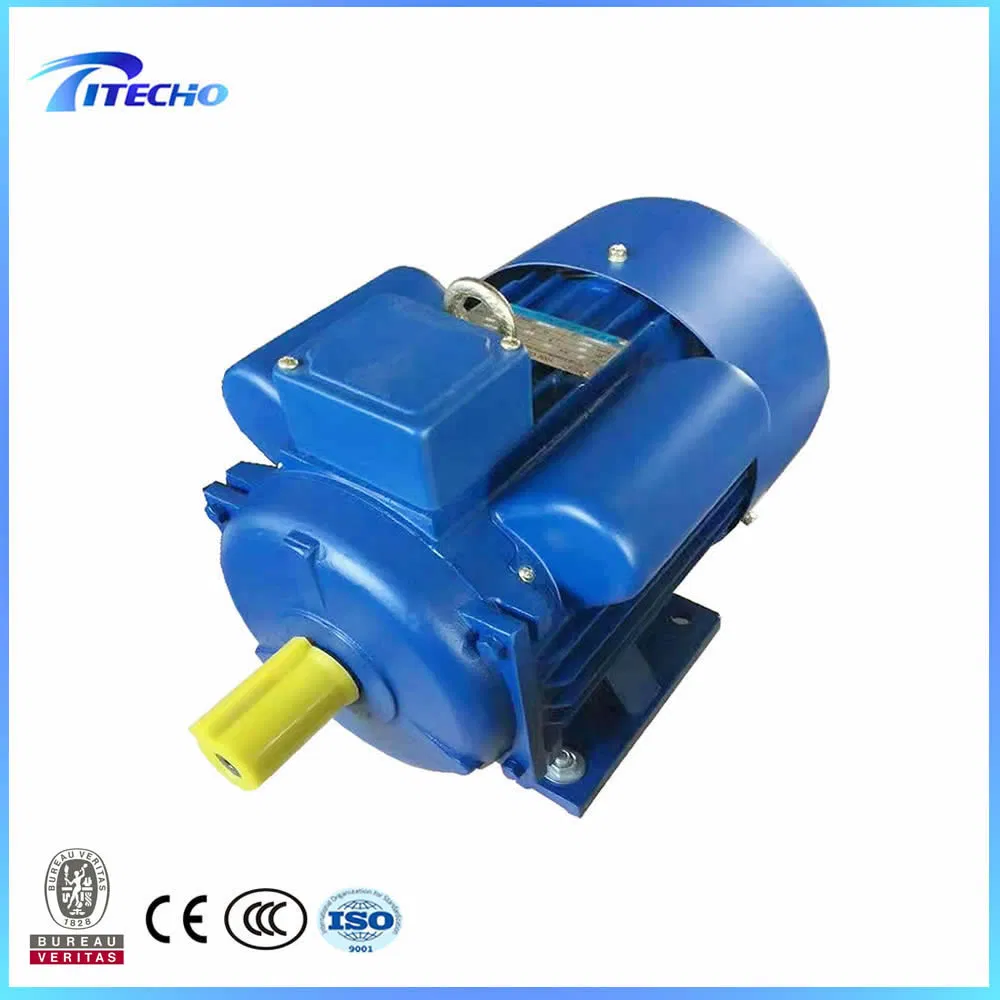

Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
1 / 5
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor
Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor

Ylycl 0.75/1/1.5/2/3/4/5.5/7/10HP 2800/1400rmp Electrical Big Castiron/Aluminum Induction Single Phase Monophase AC Motor

Customization: Available
Application: Industrial, Universal
Operating Speed: High Speed
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YL, YC
Number of Stator
Single-Phase
Species
Single Phase
Rotor Structure
Winding Type
Number of Poles
2, 4
Certification
CE
Power Range
0.25~7.5kw
Rated Voltage
220V (or Order)
Rated Frequency
50Hz (or 60Hz)
Cooling Method
IC 411
Insulation Class
F
Winding
100% Copper Wire
Mounting Type
B3, B35, B5
Material of Shell
Iron Cast
Protection Class
IP44
Duty Type
S1
⚙️ Product Description

YC, YL Series Single-Phase Induction Motor

The YC and YL series motors are designed and manufactured in strict accordance with the national JB/T9542 standard. They offer excellent starting performance, quiet operation, compact design, and easy maintenance. These motors are widely used in air compressors, reducers, gearboxes, pumps, and various other industrial machines, delivering outstanding performance in diverse applications.

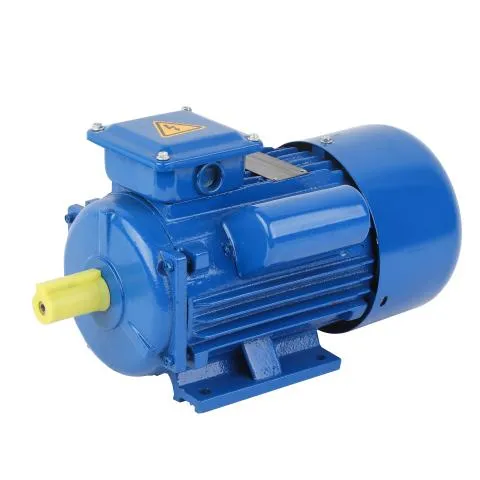

Induction Motor View 1
Induction Motor View 2
Induction Motor View 3
📊 Product Parameters

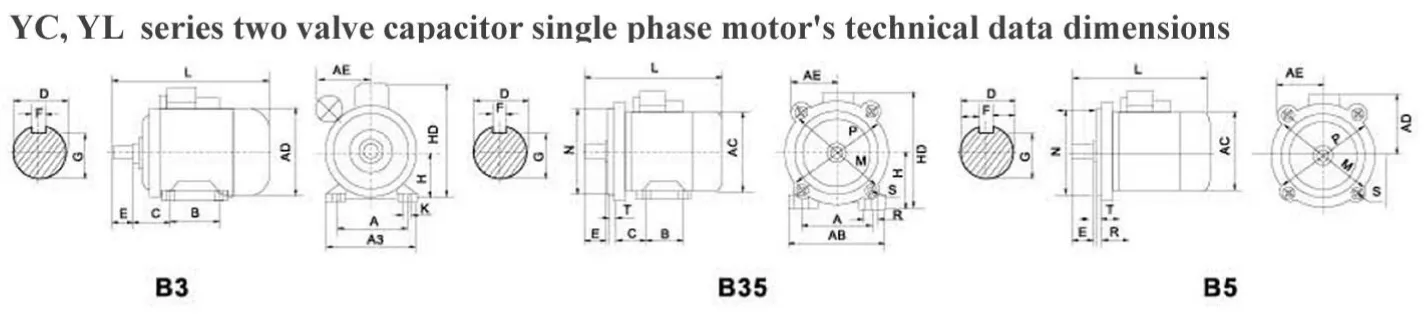

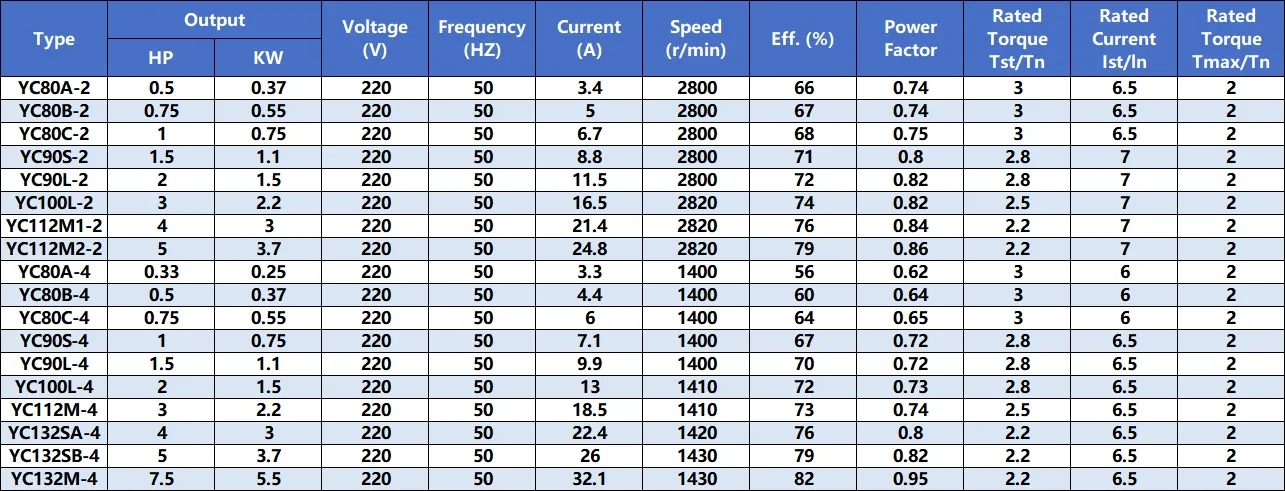

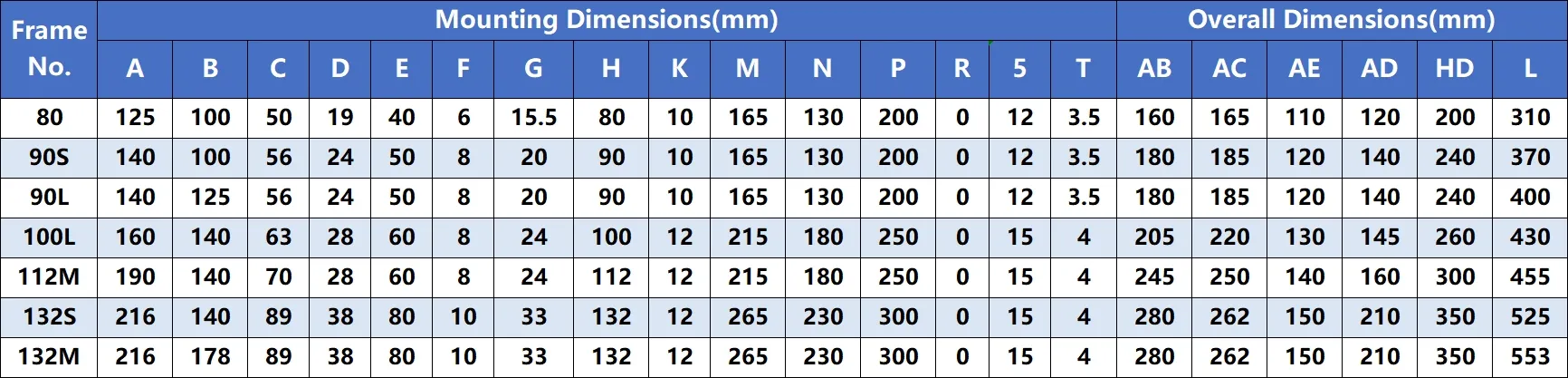

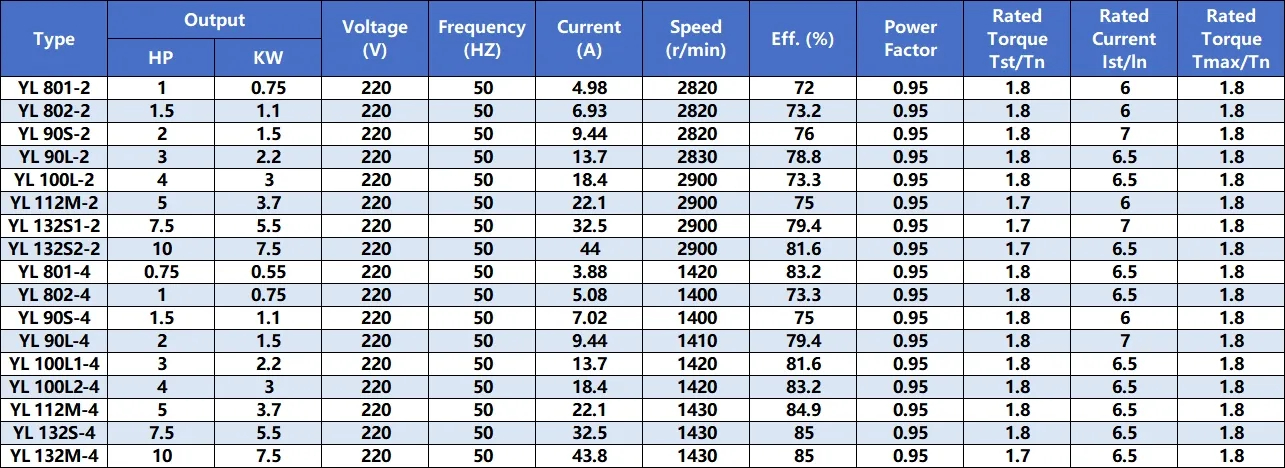

Motor Specs 1 Motor Specs 2 Motor Specs 3 Motor Specs 4
🔍 Product Showcase

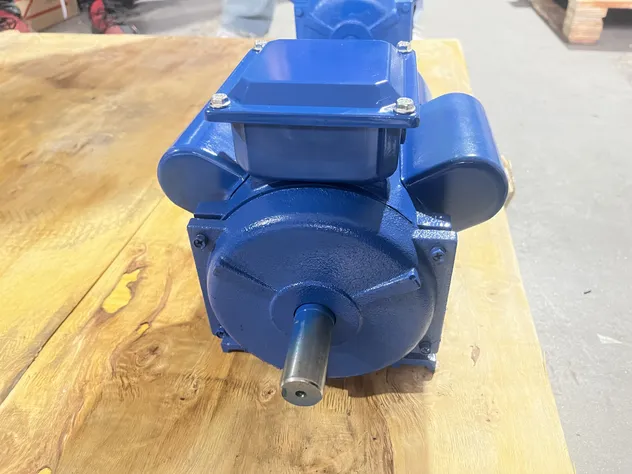

Showcase 1

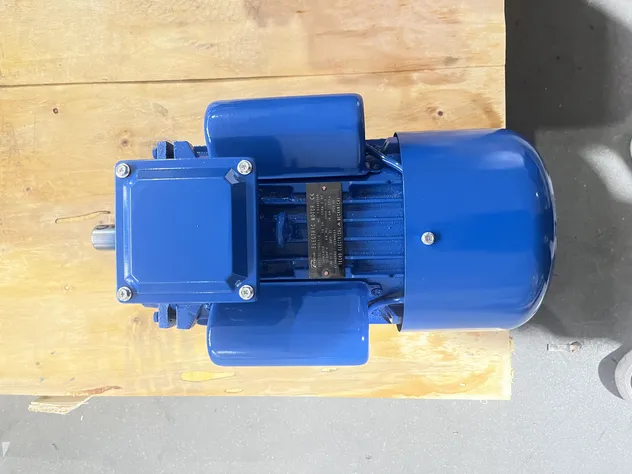

Showcase 2

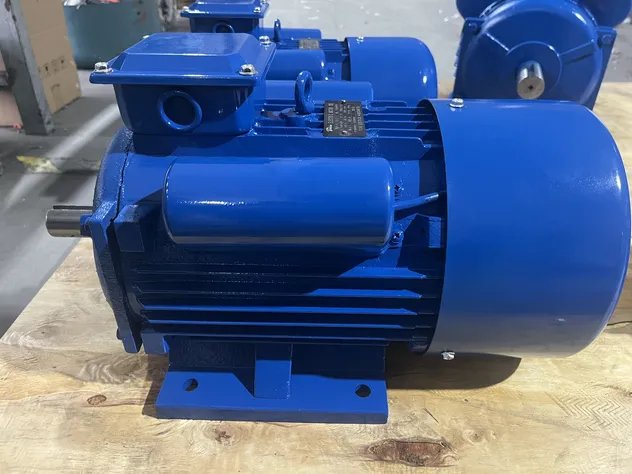

Showcase 3
Motor Exploded View Production Process 1 Production Process 2
📦 Packing & Delivery
Packing details
📜 Certifications
CE Certification ISO Certification
❓ Frequently Asked Questions
1. What kind of quality guarantee do you provide?
We always provide a pre-production sample before mass production and conduct a final inspection before shipment to ensure the highest standards are met.
2. What are the primary applications for YC and YL series motors?
These motors are widely used in air compressors, pumps, gearboxes, reducers, and various other industrial machinery requiring reliable single-phase power.
3. What materials are used in the construction of the motor?
Our motors feature 100% copper wire windings and durable iron cast shells to ensure longevity and optimal electrical performance.
4. Which certifications do your motors hold?
Our products are fully certified with CE and ISO9001, ensuring compliance with international quality and safety standards.
5. What is the available power range for these motors?
The power range typically spans from 0.25kw to 7.5kw, covering a wide variety of industrial and commercial needs.
6. What delivery and payment terms do you support?
We support various delivery terms including FOB, CFR, CIF, and EXW. Payment can be made via T/T, L/C, Credit Card, and other major international methods.
