Basic Specifications
Number of Stator
Three-Phase
Casing Protection
Closed Type
Number of Poles
2, 4, 6, 8, 10
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Protection Class
IP54 / IP55

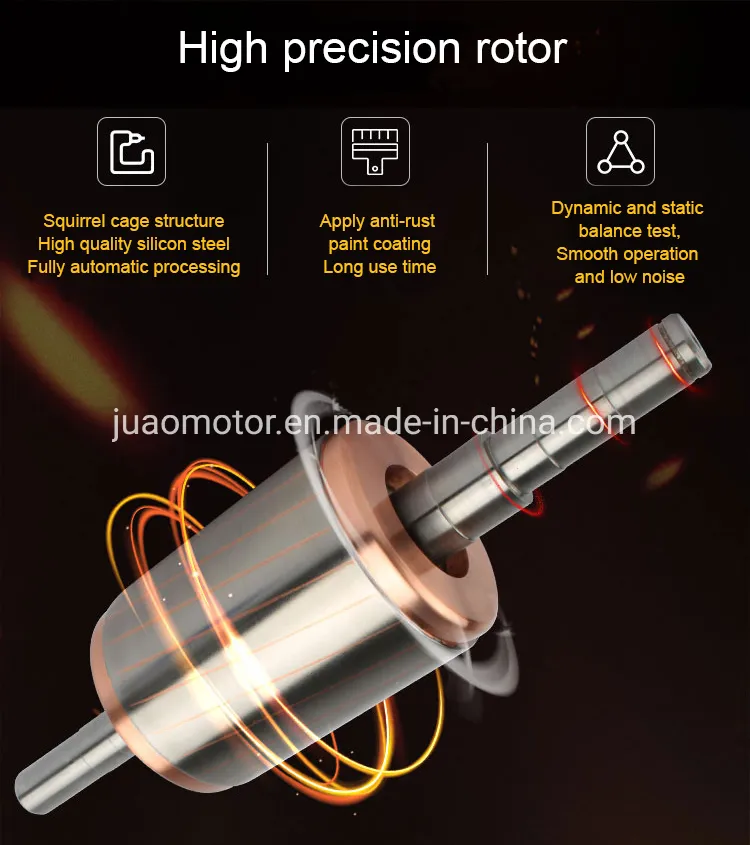

Rotor Structure
Squirrel-Cage
Production Capacity
10000PCS Per Month
Product Description & Features
◈
Versatile Frame Sizes: Electric motor frame from 56 - 355, output range from 0.17HP to 430HP.
◈
Mounting Types: Available in B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101).
◈
Voltage Options: 110V, 120V, 220V, 240V, 220/380V, 230V/400V, 380V/660V, at 50HZ or 60HZ.
◈

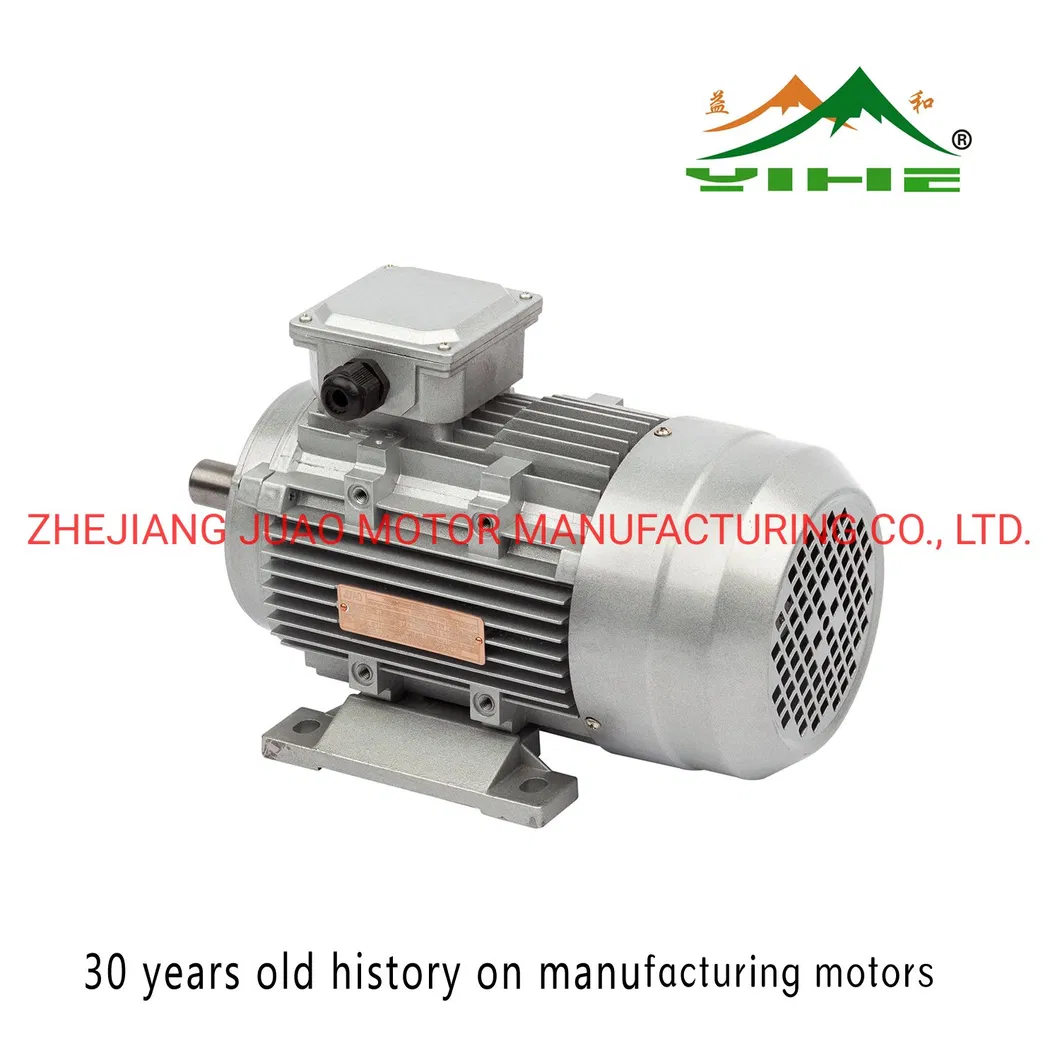

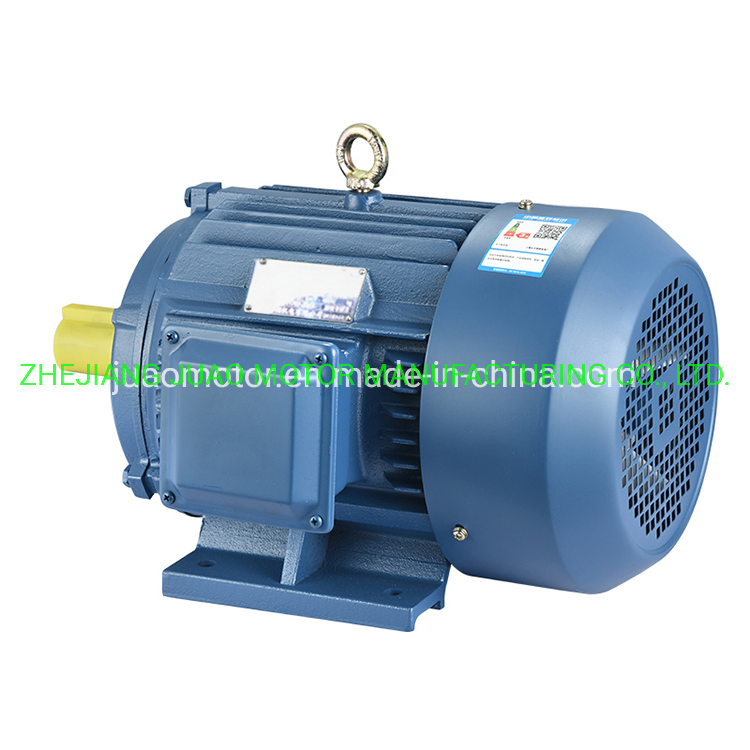

Durable Construction: Strong cast iron frame, high-strength cable, 45# steel or stainless steel shaft options.
◈
High Efficiency: High performance IE1, IE2, IE3 efficiency standards, compliant with GOST, RoHS, and IEC.
◈
Insulation: Vacuum impregnation for superior insulation; Class F standard, Class H optional.
Customer Benefits
✓ Electricity saving and quiet operation
✓ Resistance against water, dust, and vermin
✓ Easy installation and dependable corrosion resistance
✓ Long operational life with reliable performance
Manufacturing Process & Quality Control

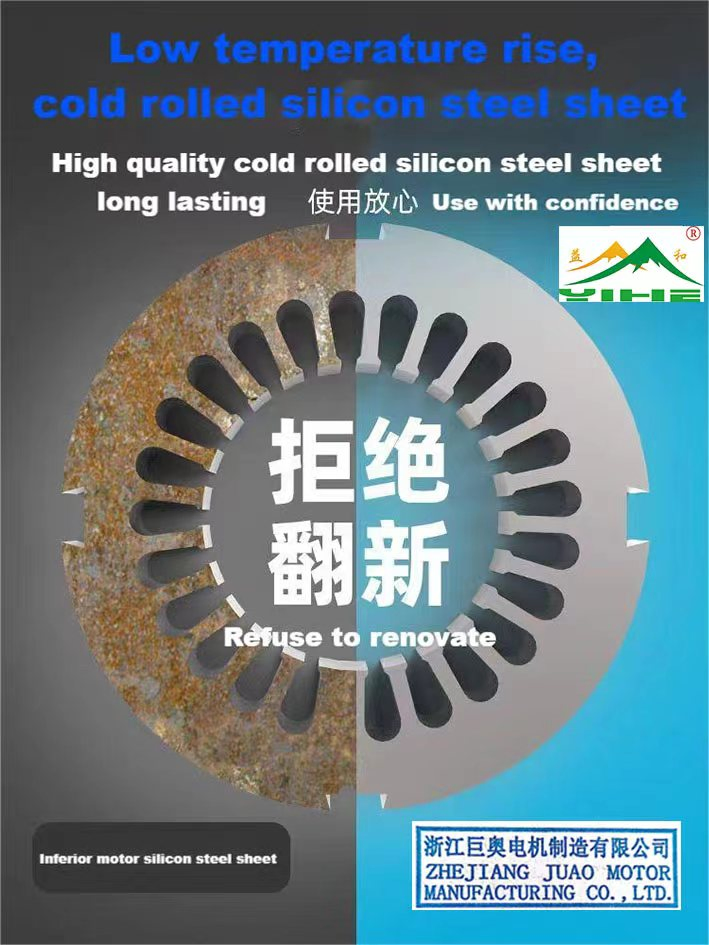

- Silicon steel DR510, 800, 600, 360 standard use stamping.

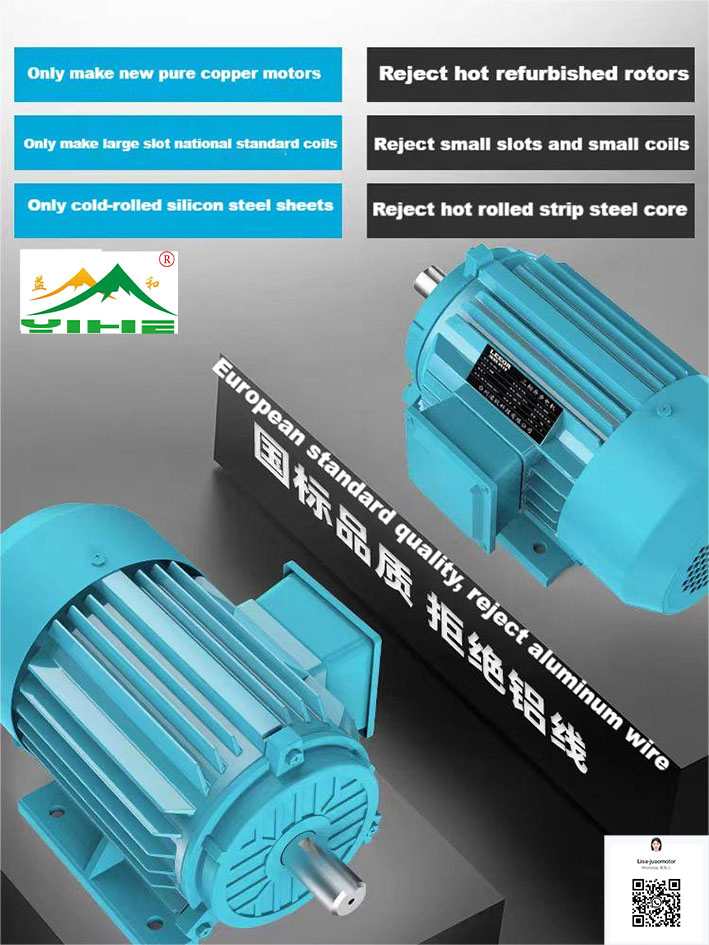

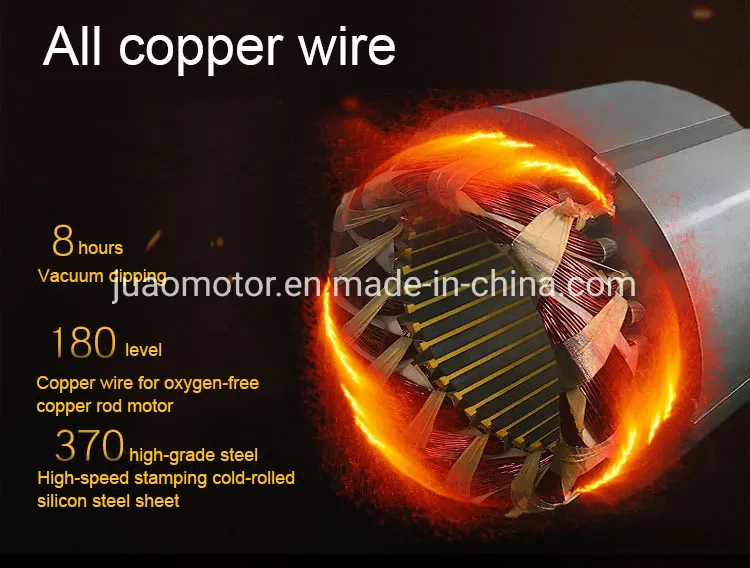

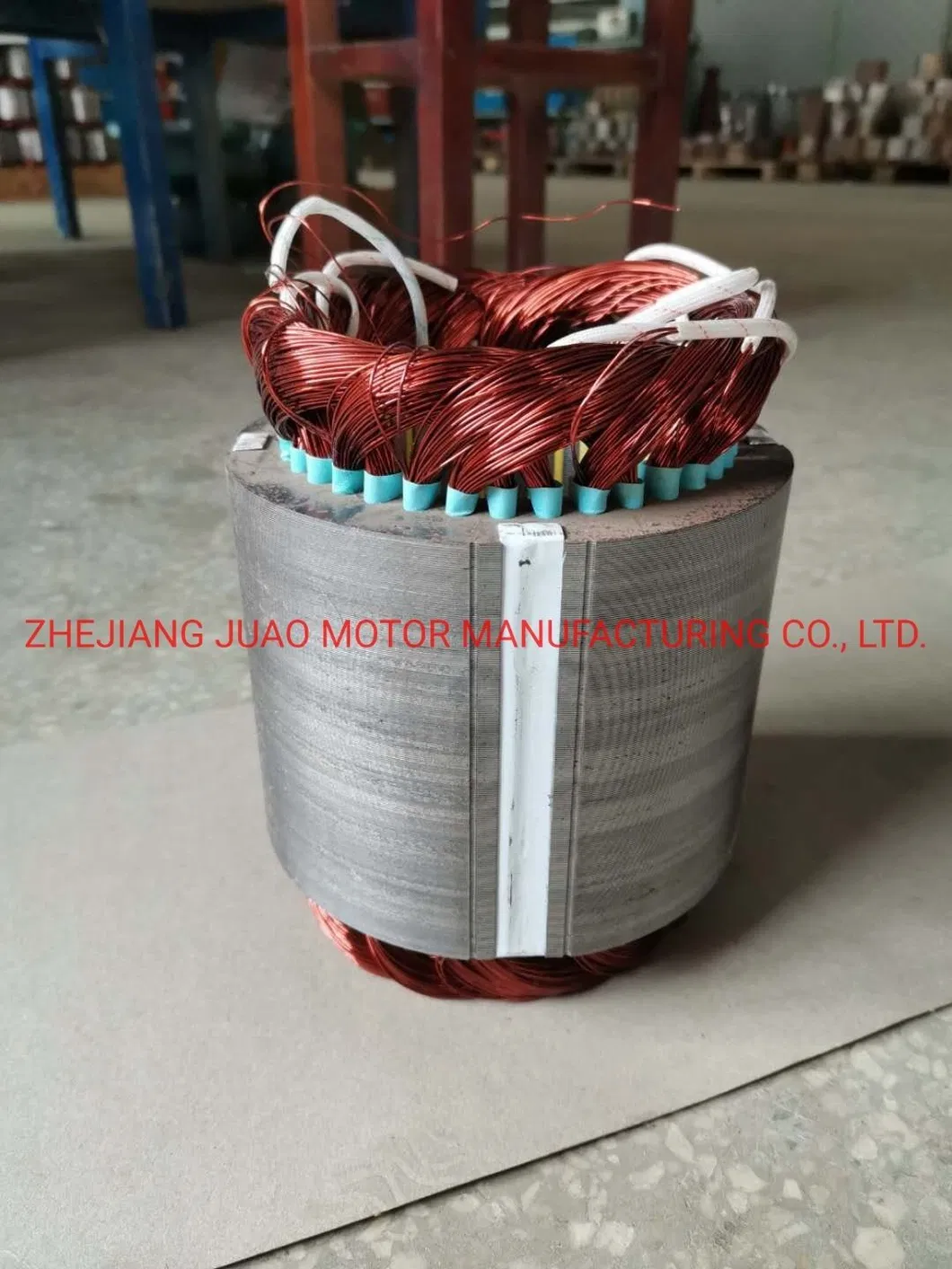

- 100% copper winding and stator insertion.
- Stator Vacuum impregnation and professional drying.
- Precision CNC machining for shaft, frame, and end shields.
- 100% testing of output power, voltage, and load performance before painting.
- Final inspection of nameplates and packaging before shipping.
Note: Efficiency is promised based on high-height cold-rolled steel stators. Optional stator heights available for different requirements.

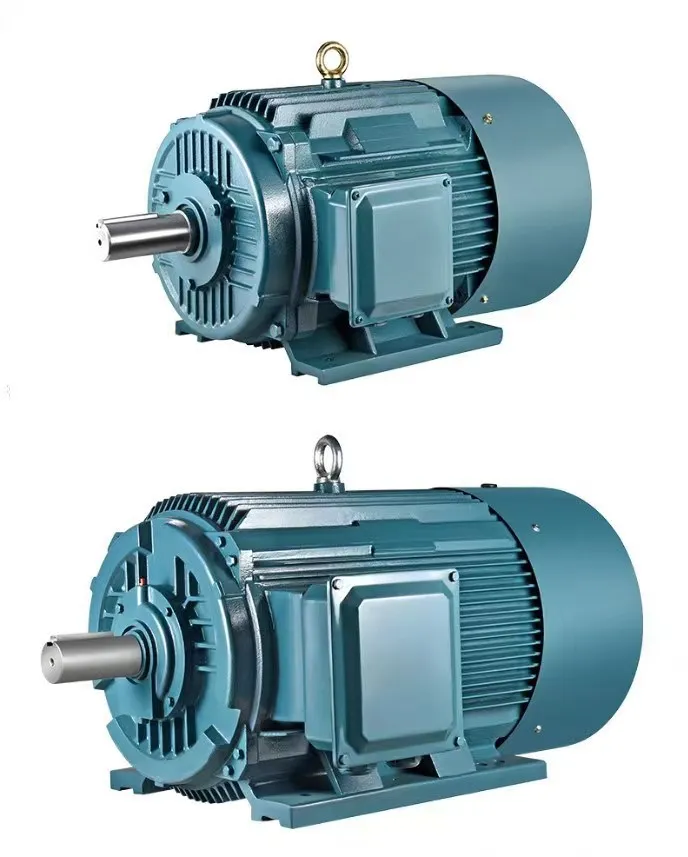

Product Details Gallery
YE3 Technical Parameters (3000 RPM)
| MODEL | POWER(KW) | CURRENT(A) | SPEED(RPM) | EFF | FACTOR | TORQUE | NOISE dB(A) |
| YE3-801-2 | 0.75kw | 1.8 | 2830 | 80.7 | 0.83 | 2.5 | 62 |
| YE3-90S-2 | 1.5kw | 3.4 | 2840 | 84.2 | 0.84 | 4.97 | 67 |
| YE3-112M-2 | 4kw | 8.2 | 2890 | 88.1 | 0.88 | 13.1 | 77 |
| YE3-160M1-2 | 11kw | 21.3 | 2930 | 91.2 | 0.89 | 35.6 | 81 |
| YE3-180M-2 | 22kw | 41.2 | 2940 | 92.7 | 0.89 | 71.2 | 83 |
YE3 Technical Parameters (1500 RPM)
| MODEL | POWER(KW) | CURRENT(A) | SPEED(RPM) | EFF | FACTOR | TORQUE | NOISE dB(A) |
| YE3-8002-4 | 0.75kw | 1.9 | 1390 | 82.5 | 0.75 | 5.01 | 56 |
| YE3-100L2-4 | 3kw | 6.6 | 1430 | 87.7 | 0.82 | 19.9 | 64 |
| YE3-160L-4 | 15kw | 29.3 | 1460 | 92.1 | 0.86 | 97.4 | 73 |
| YE3-225M-4 | 45kw | 84.5 | 1480 | 94.2 | 0.86 | 290 | 78 |
| YE3-280M-4 | 90kw | 166.9 | 1485 | 95.2 | 0.88 | 577 | 80 |
Frequently Asked Questions
What are the available shipping methods?
For urgent or light orders, we support UPS, FedEx, TNT, DHL, and EMS. For heavy shipments, delivery by air or sea is recommended to optimize costs.
Which payment methods do you accept?
We accept T/T and L/C for large transactions. For smaller amounts, PayPal and Western Union are also supported.
What is the standard delivery time?
Typically, the production cycle takes 25-30 days after the payment is successfully processed.
Is customization or OEM service available?
Yes, we provide full OEM services and can customize products according to your special technical requirements.
Can I print a logo or series number on the motor?
Absolutely. We can print your specific logo, code, or series number directly on the motor as per your request.
Do you offer samples for testing?
Yes, samples can be ordered for quality testing purposes, though they involve specific sample expenses.
KPR Motor
