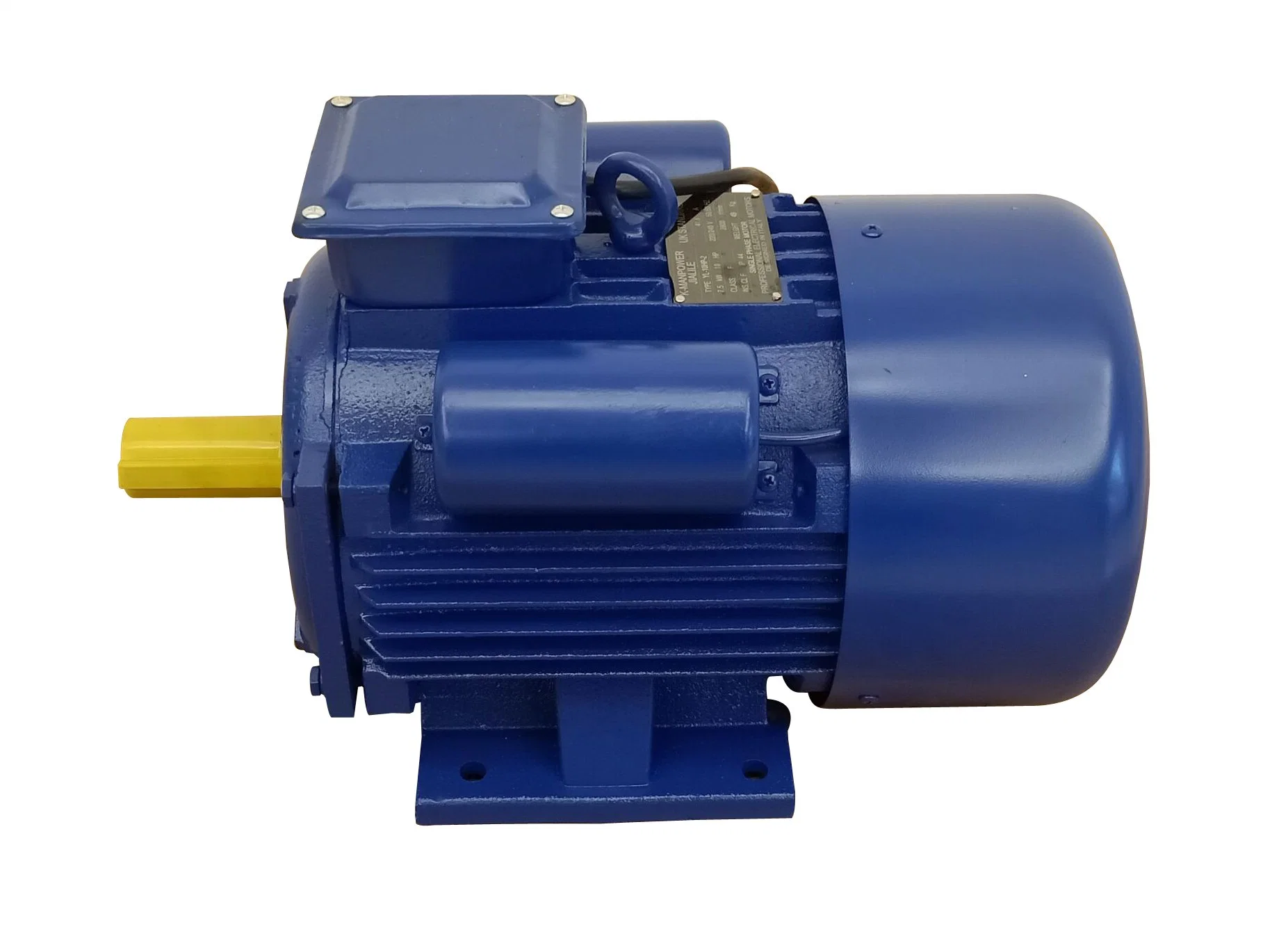

Yc Series Single Phase Capacitor Start Induction AC Electric Motor

1 / 1

Yc Series Single Phase Capacitor Start Induction AC Electric Motor

Customization:	Available
Application:	Industrial, Household Appliances, Power Tools
Operating Speed:	Constant Speed

Send Inquiry

Product Description

Basic Information

Model NO.

YC MOTOR

Number of Stator

Single-Phase

Rotor Structure

Squirrel-Cage

Casing Protection

Closed Type

Number of Poles

2/4

Starting Mode

Direct on-line Starting

Certification

ISO9001, CCC

Brand

Jiawo

Mounting

B3, B5, B14, B35, B34

Insulation Class

B.F

Transport Package

Carton/Wooden Box

Trademark

JIAWO

Origin

China

Production Capacity

500

Product Description

YC asynchronous motor is a kind of low-voltage 1-phase cage induction electric motor, which is a basic series for general uses with frame range 80-132 and it's a new product with the national unified design.

This motor series features high efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, and big breakaway torque. The fixing measurement and power grade completely conform to IEC standards. It employs Grade F insulation, IP54 or IP55 class for shell protection and IC411 cooling mode.

Technical Data

Model	Rated Output		Speed (r.p.m)	Current (A)	Eff. (%)	Power Factor (cosφ)	lst/ln	Tst/Tn	Tmax/Tn
Model	kW	HP	Speed (r.p.m)	Current (A)	Eff. (%)	Power Factor (cosφ)	lst/ln	Tst/Tn	Tmax/Tn
YC711-2	0.18	1/4	2800	1.9	63.0	0.7	6.5	3.0	1.8
YC712-2	0.25	1/3	2800	2.4	65.0	0.72	6.5	3.0	1.8
YC80A-2	0.37	1/2	2840	3.5	66.0	0.74	6.5	3.0	1.8
YC80B-2	0.55	3/4	2850	5.04	67.0	0.74	6.5	3.0	1.8
YC80C-2	0.75	1	2850	6.68	68.0	0.75	6.5	3.0	1.8
YC90S-2	1.10	1.5	2850	8.93	70.0	0.8	7.0	2.5	1.8
YC90L-2	1.50	2	2870	11.4	73.0	0.82	7.0	2.5	1.8
YC100L-2	2.20	3	2900	16.50	74.0	0.82	7.0	2.5	1.8
YC112M1-2	3.00	4	2900	21.4	76.0	0.84	7.0	2.2	1.8
YC112M2-2	3.70	5	2900	24.8	79.0	0.86	7.0	2.2	1.8
YC711-4	0.12	1/6	1450	1.9	48.0	0.58	6.0	3.0	1.8
YC712-4	0.18	1/4	1450	2.70	50.0	0.6	6.0	3.0	1.8
YC80A-4	0.25	1/3	1450	3.52	52.0	0.62	6.0	3.0	1.8
YC80B-4	0.37	1/2	1450	4.69	56.0	0.64	6.0	3.0	1.8
YC80C-4	0.55	3/4	1450	6.0	60.0	0.65	6.0	3.0	1.8
YC90S-4	0.75	1	1450	7.50	63.0	0.72	6.5	2.5	1.8
YC90L-4	1.1	1.5	1450	10.4	67.0	0.72	6.5	2.5	1.8
YC100L-4	1.5	2	1450	13.0	72.0	0.73	6.5	2.5	1.8
YC112M-4	2.2	3	1450	18.5	73.0	0.74	6.5	2.5	1.8
YCL132SA-4	3.0	4	1450	22.4	76.0	0.8	6.5	2.2	1.8
YCL132SB-4	3.7	5	1450	26.0	79.0	0.82	6.5	2.2	1.8
YCL132M1-4	5.5	7.5	1450	32.5	85.0	0.9	6.5	2.0	1.8
YCL132M2-4	7.5	10	1450	40.0	85.0	0.9	6.5	2.0	1.8

Frequently Asked Questions

What are the main applications for the YC asynchronous motor?

YC series motors are designed for general-purpose use. They are ideal for driving small-scale machinery and equipment that require a single-phase cage induction motor with high starting torque.

What are the protection and insulation ratings?

These motors employ Grade F insulation for thermal resistance. The shell protection class is rated at IP54 or IP55, providing significant protection against dust and water ingress.

How does the cooling system work in this motor?

The YC series uses the IC411 cooling mode, which is a standard totally enclosed fan-cooled (TEFC) method to ensure efficient heat dissipation during continuous operation.

Does this motor meet international performance standards?

Yes, the fixing measurements and power grades of the YC motor series completely conform to IEC (International Electrotechnical Commission) standards and have passed CCC and ISO9001 certifications.

What makes the YC series energy-efficient?

The motor features a national unified design that focuses on high efficiency and energy saving, offering fine operation performance with small vibration and low noise levels.

What mounting options are available for these motors?

The motors support various mounting configurations including B3, B5, B14, B35, and B34, making them versatile for different installation requirements.
