Basic Information
Certification
ISO9001, CCC, CE
Power
Variable Speed Drive 250HP
Plant Use
Cement/Steel/Sugar Mill
Bearing
ZWZ/ SKF / FAG / NSK
Product Description

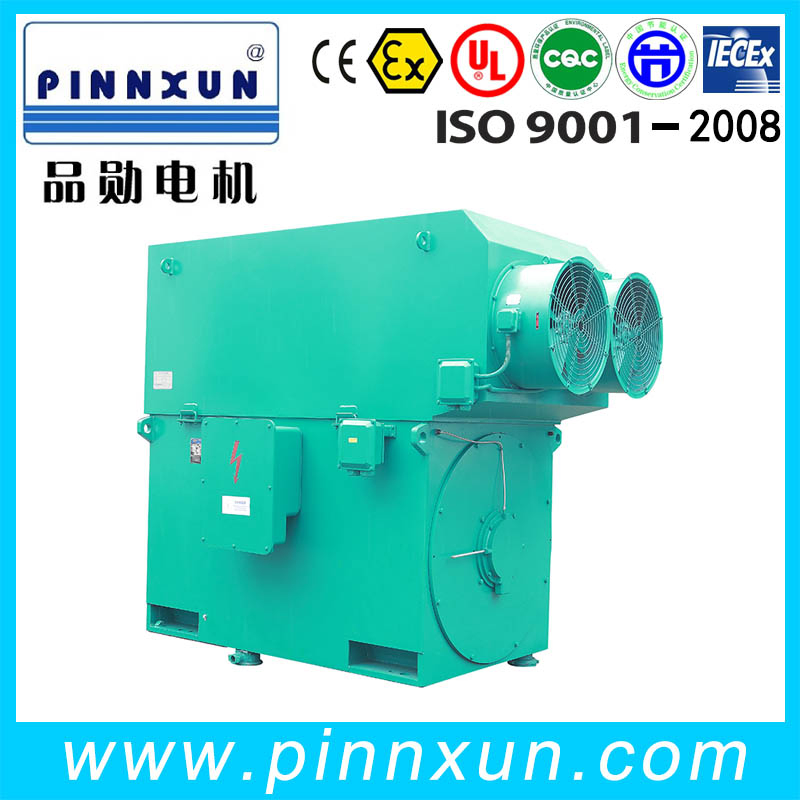

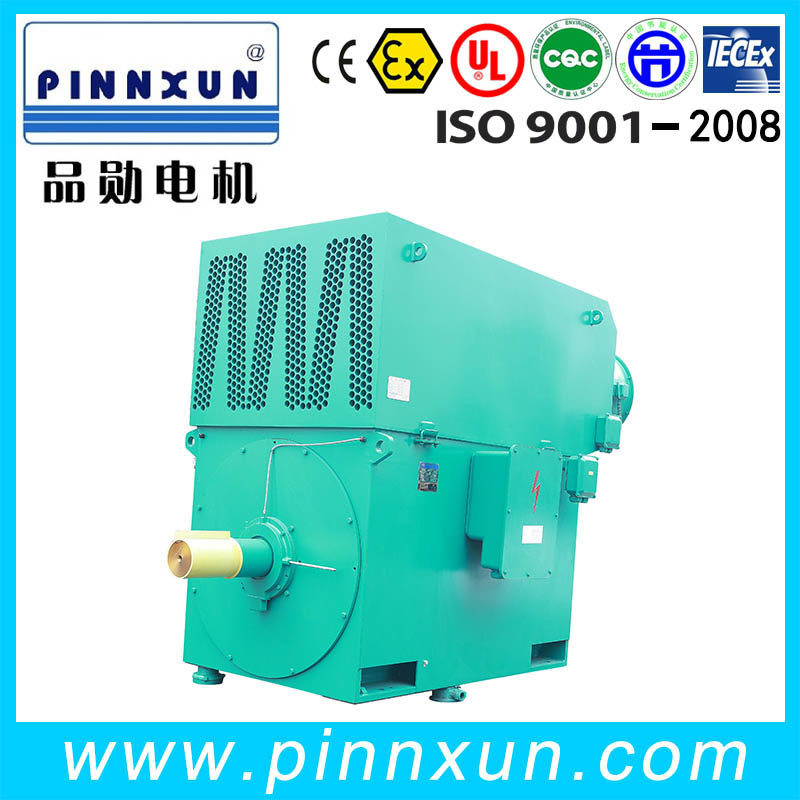

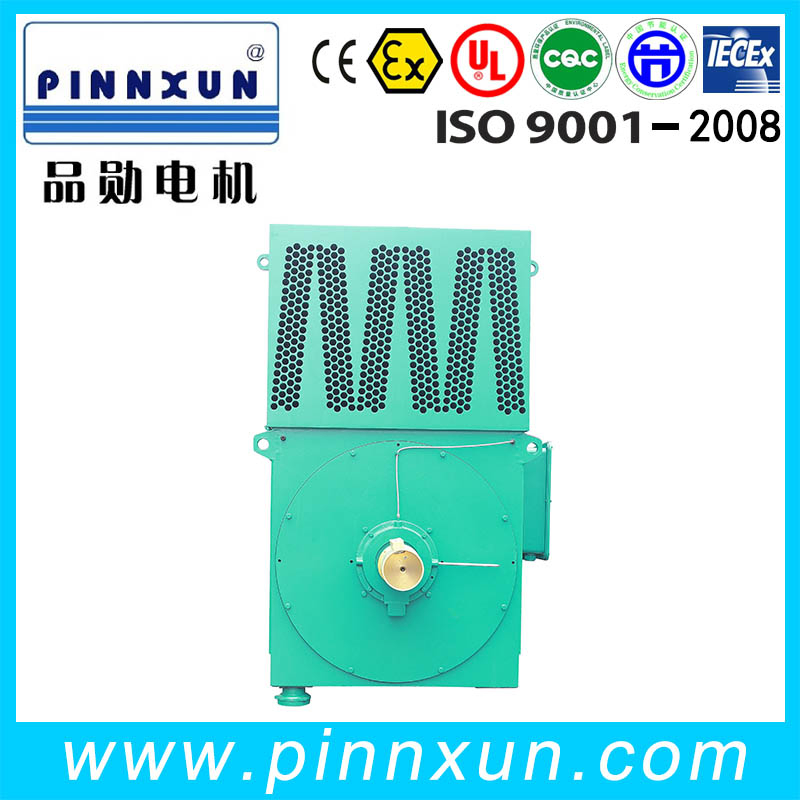

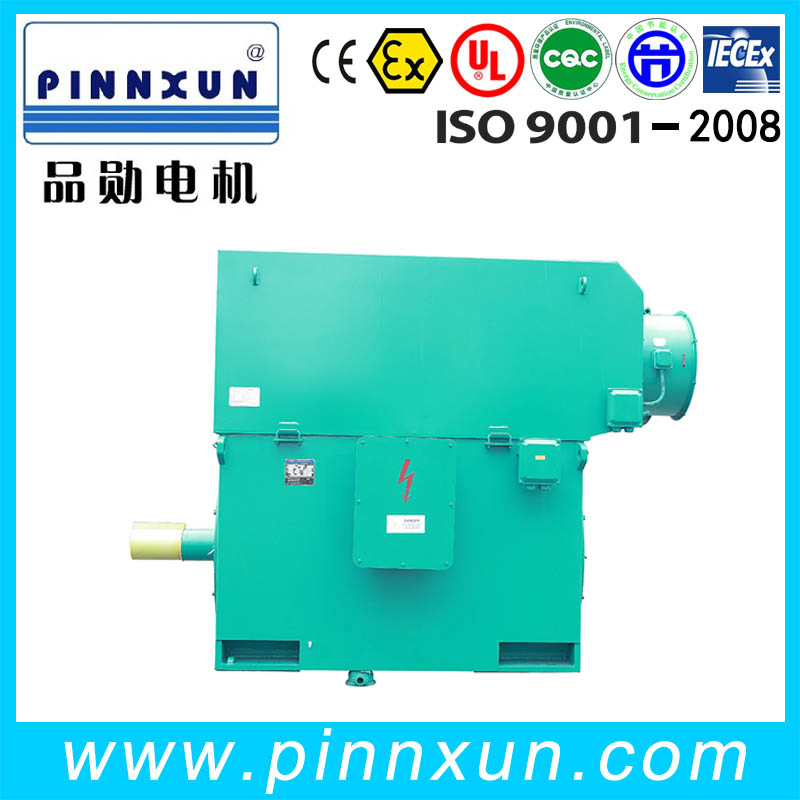

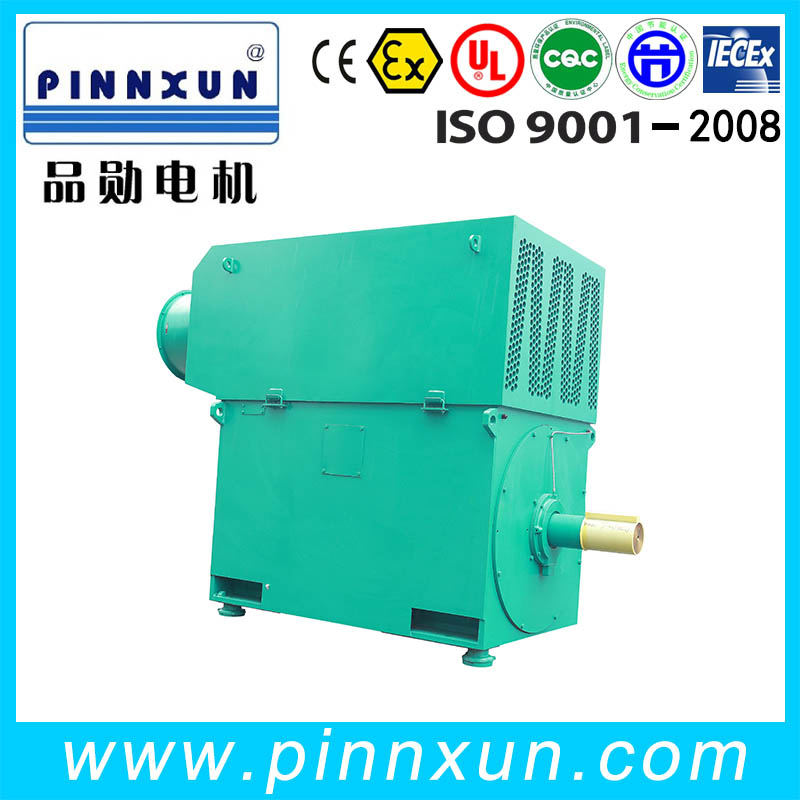

The motors feature a box-section construction, with a frame welded using steel plates for a lightweight yet highly rigid structure. Both sides and the top of the frame include windows, facilitating maintenance and allowing for the installation of various coolers. This flexibility enables different cooling methods and protection degrees based on requirements.
| Power Range | 180kw ~ 6000kw |
| Insulation Class | F / B, H / B |
| Voltage & Frequency | 3.3kv / 6kv / 6.6kv / 10kv / 11kv / 13.8kv (50 / 60HZ) |
| Rated Speed | 3000 / 1500 / 1000 / 750 / 600 rpm |
| Mounting Type | IMB3 / IMV1 |
| Cooling & Ventilation | IC616 |
| Winding Material | 100% Copper Wire |
| Protection Class | IP54 / IP55 |
| Vibration Grade | Class A (Class B available on request) |
| Quality Standards | ISO9001 Documented System |
| Site Conditions | -15°C to +40°C, Altitude below 1000m |
This series of motors is suitable for driving general machinery such as compressors, ventilation fans, water pumps, stock-removing machines, and other mechanical equipment. It is widely applied in industries including mining, machinery, petrochemicals, and power plants. For applications with high inertia (blowers, coal grinders, crushers), specific technical data is required for customized motor design.

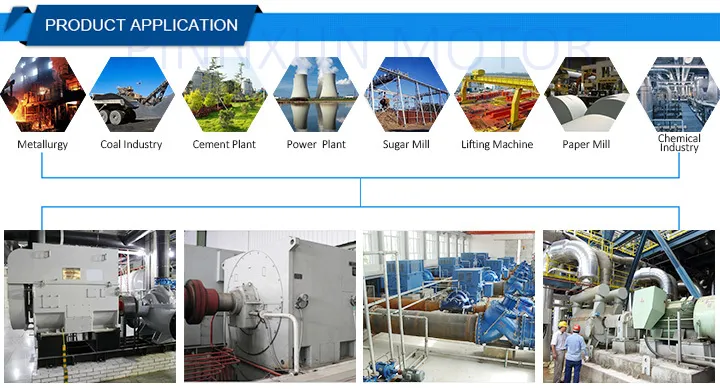

Applications & Added Value
Providing optimal solutions for various industrial applications, bringing innovation and added value to operations. We formulate special solutions according to specific customer needs.

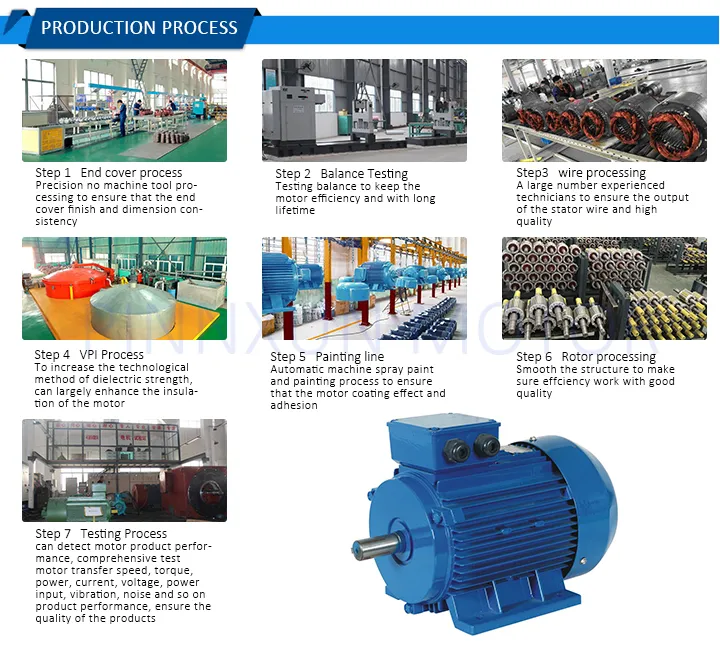

Product Manufacturing Process
Management philosophy centers on good faith, responsibility, and excellence. Every step in the manufacturing process receives full attention to ensure superior quality.
Certifications & Standards
- ISO9001-2008 Quality Management System
- ISO14001 Environmental Management System
- CE European Certification
- IECEX Worldwide Ex Certification for Motors
- ATEX European Ex Certification
- EAC Russia GOST Standard Certification
- CQC China Quality Center Energy Conservation
Global Marketing & Service
The marketing service network spans over 60 countries and regions including South America, North America, Europe, Asia, the Middle East, and Africa. Segmented customer needs ensure performance, stability, and safety across global industries.
Frequently Asked Questions
What is the power range for the YPKK series motors?
The power range for this series spans from 180kw to 6000kw, making it suitable for a wide variety of heavy-duty industrial applications.
What cooling methods are available for these motors?
The standard cooling method is IC616. The box-type construction allows for different coolers to be mounted on top, offering flexibility in cooling methods.
Which industries typically use the Variable Speed Drive 250HP motor?
These motors are widely used in cement factories, steel mills, sugar mills, petrochemical industries, and power plants for driving compressors, fans, and pumps.
What is the protection and insulation class?
The motors offer IP54 or IP55 protection ratings and utilize Class F or Class H insulation to ensure reliable performance in industrial environments.
What type of bearings and wire are used?
We use 100% copper wire for superior conductivity and high-quality bearings from brands like ZWZ, SKF, FAG, or NSK to ensure longevity.
Does the motor meet international safety standards?
Yes, the motors comply with multiple international standards including CE (Europe), IECEX (Worldwide), ATEX (Ex motors), and ISO9001 quality management systems.
