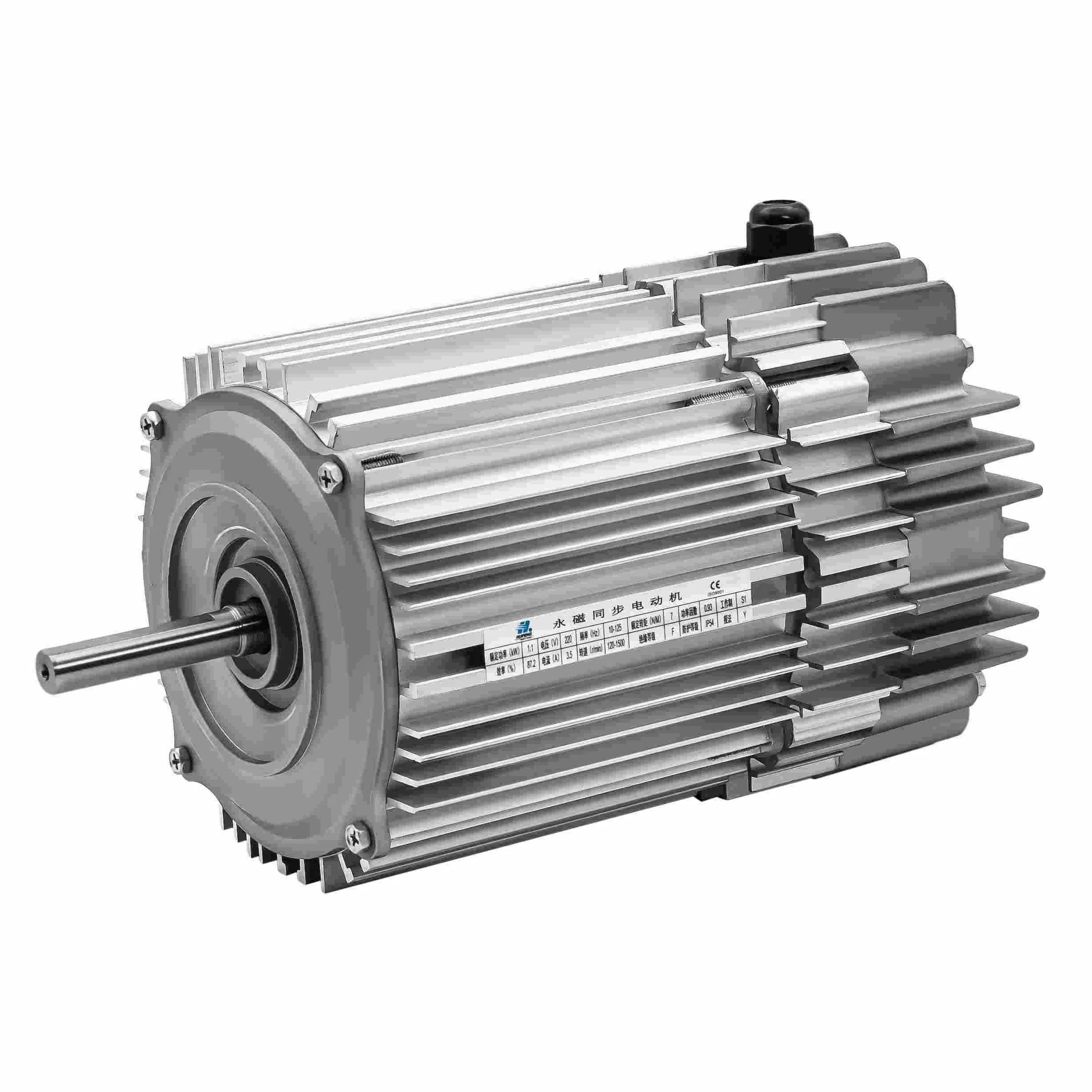

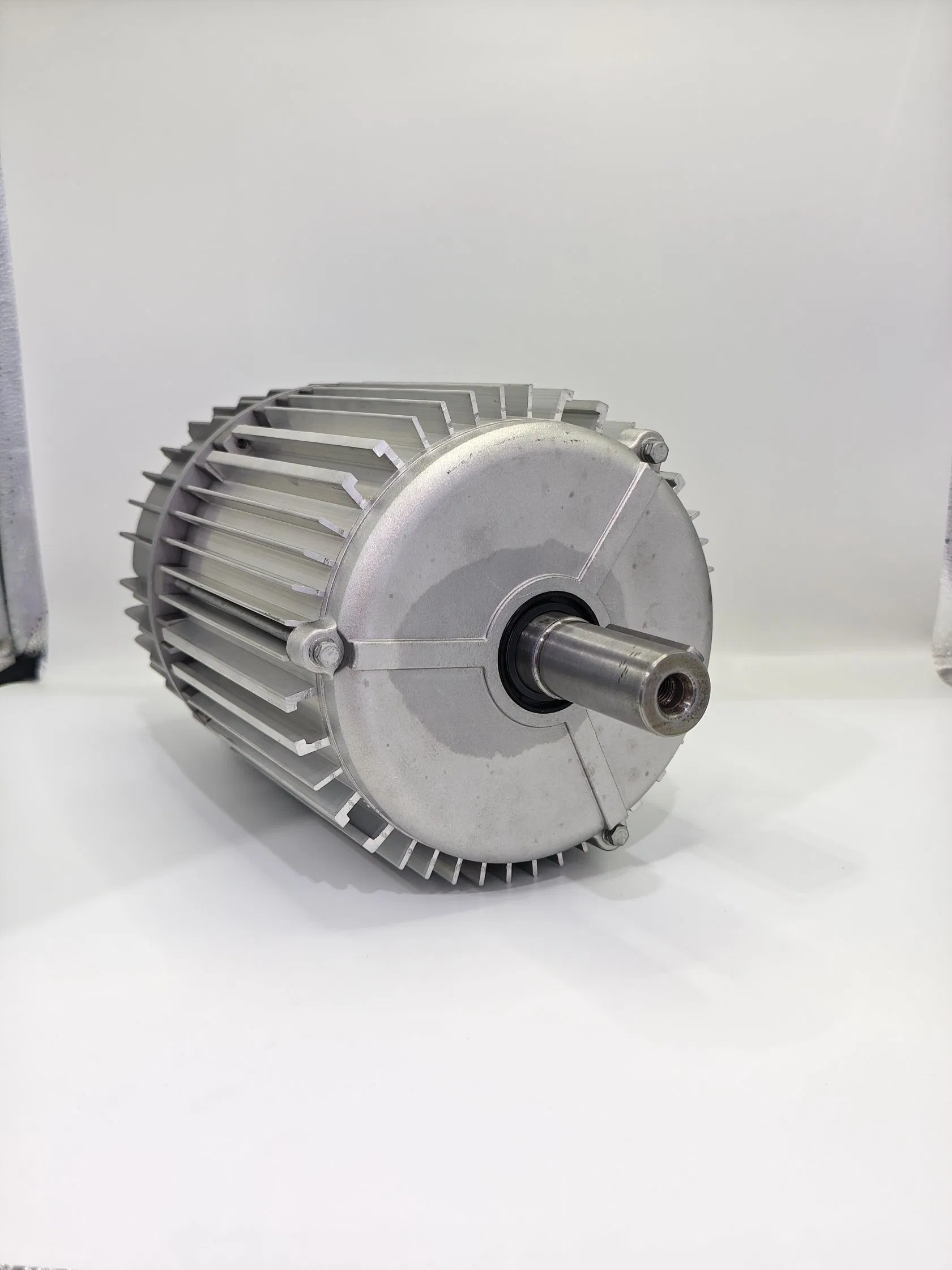

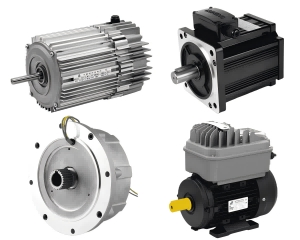

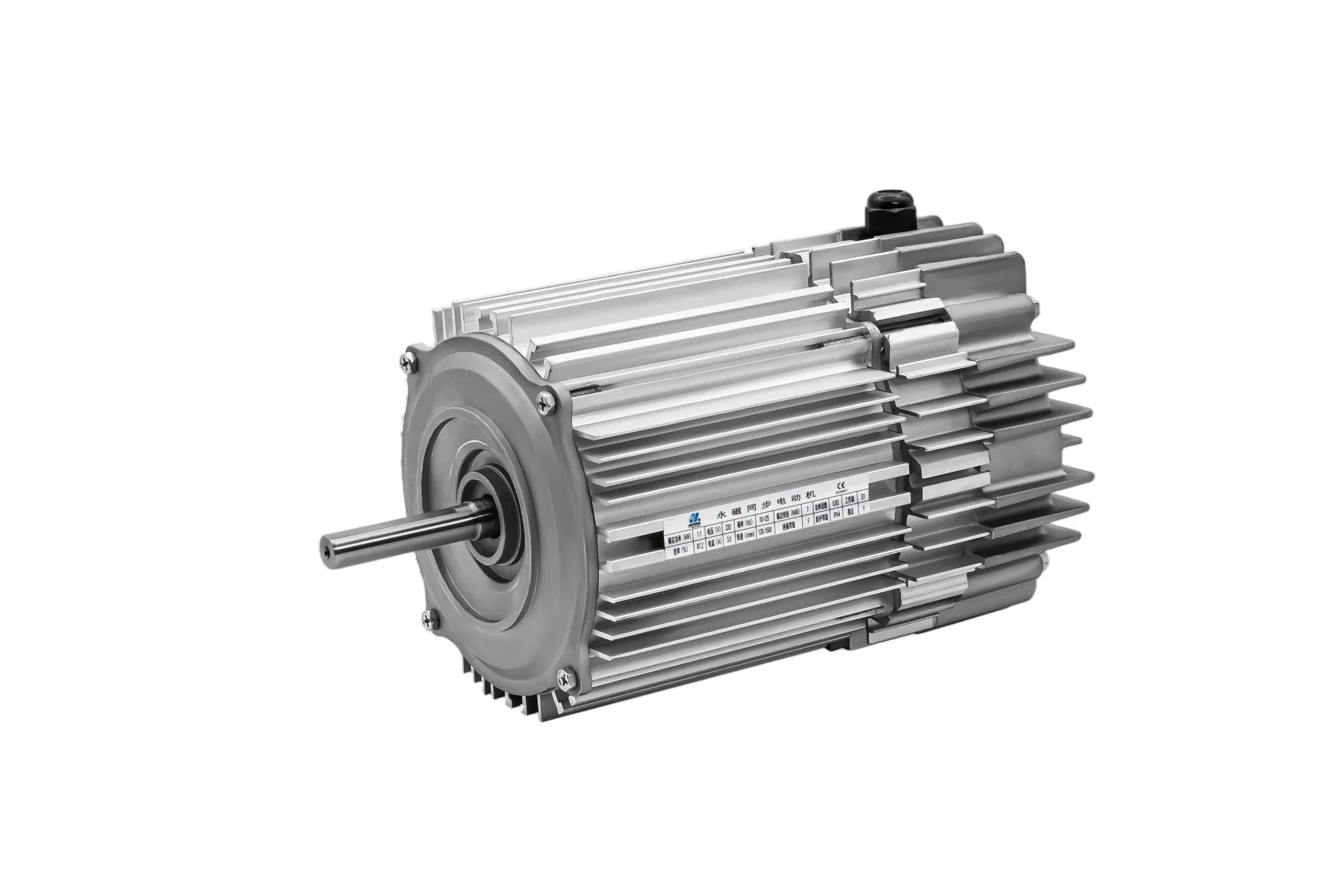

We are a premier manufacturer of heavy-duty industrial permanent magnet fan motors, offering 3-phase variable speed 240V EC (electronically commutated) permanent magnet synchronous motors (PMSM) for high-efficiency fan and blower applications. Our motors deliver IE4/IE5 ultra-premium efficiency, featuring TEAO (IC418) air-over cooling and lightweight aluminum alloy housing.
| Model | Rated Output | Voltage | Current | Speed | Efficiency | Torque | |
|---|---|---|---|---|---|---|---|
| HP | KW | V | A | r/min | % | N.m | |
| HCF130-0.75 | 1 | 0.75 | 400 | 1.4 | 19500 | 93.5 | 0.4 |
| HCF130-1.1 | 1.5 | 1.1 | 400 | 2 | 19500 | 94.2 | 0.5 |
| HCF130-1.5 | 2 | 1.5 | 400 | 2.8 | 19500 | 94.1 | 0.7 |
| HCF130-2.2 | 3 | 2.2 | 400 | 4.1 | 19500 | 94.6 | 1.1 |
| HCF150-4.0 | 5.5 | 4 | 400 | 7.5 | 18900 | 94 | 2 |
| HCF160-11 | 15 | 11 | 400 | 20.6 | 17400 | 94 | 6 |
| HCF160-22 | 30 | 22 | 400 | 40 | 17400 | 95.1 | 12.1 |

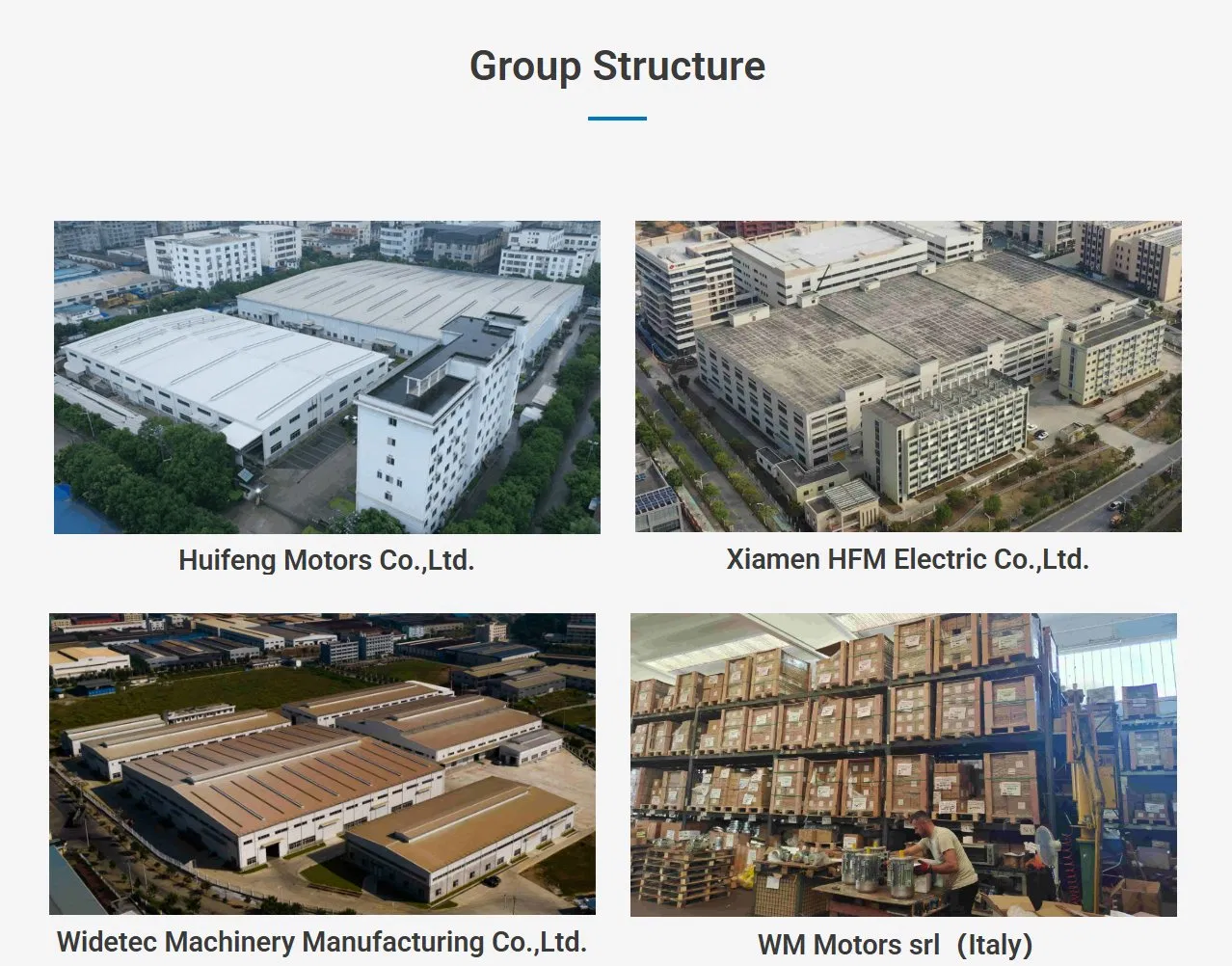

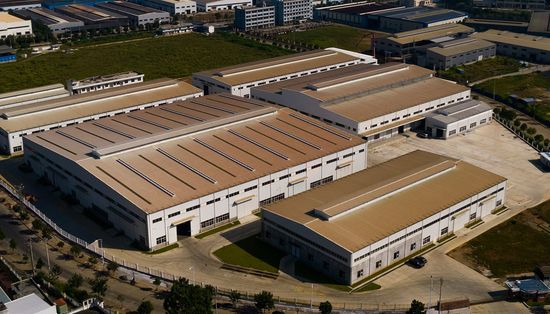

Founded in 1989, our facility spans 130,000 sqm with 500 dedicated employees, including a strong team of 30 engineers holding 55 national patents. We maintain strict compliance with CE and ISO standards to provide high-quality industrial solutions.
