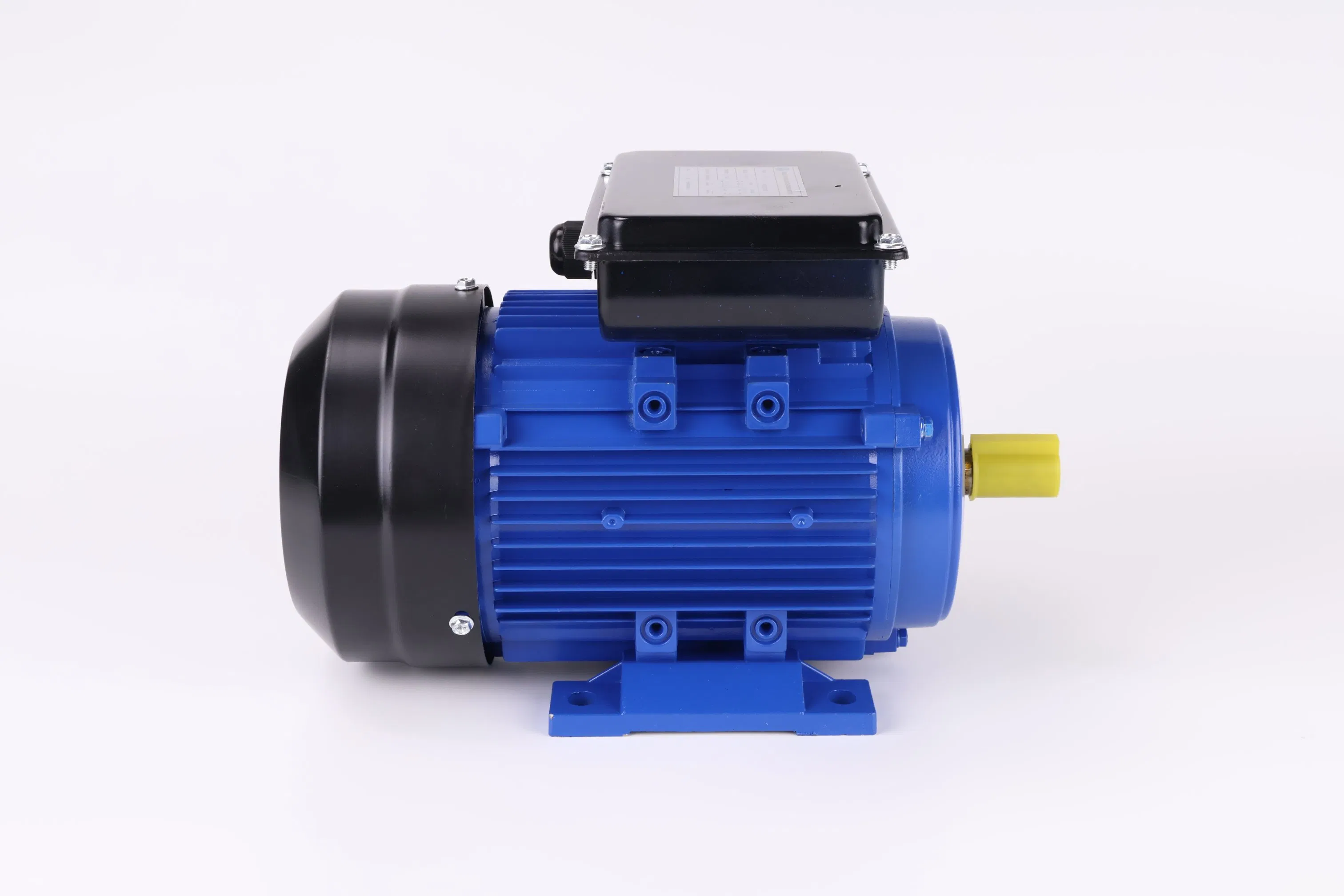

Two Capacitors Single Phase AC Induction Electric Motor

Customization:	Available
Application:	Industrial,Universal,Household Appliances,etc
Speed:	Constant Speed

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

YL-B3

Number of Stator

Single-Phase

Function

Driving, Control

Frame No.

71-132

Power

0.25~5.5kw

Rated Voltage

220V, as Customized

Protection Class

IP44

Insulation Class

Winding

100% Copper Wire

⚙️ Product Description

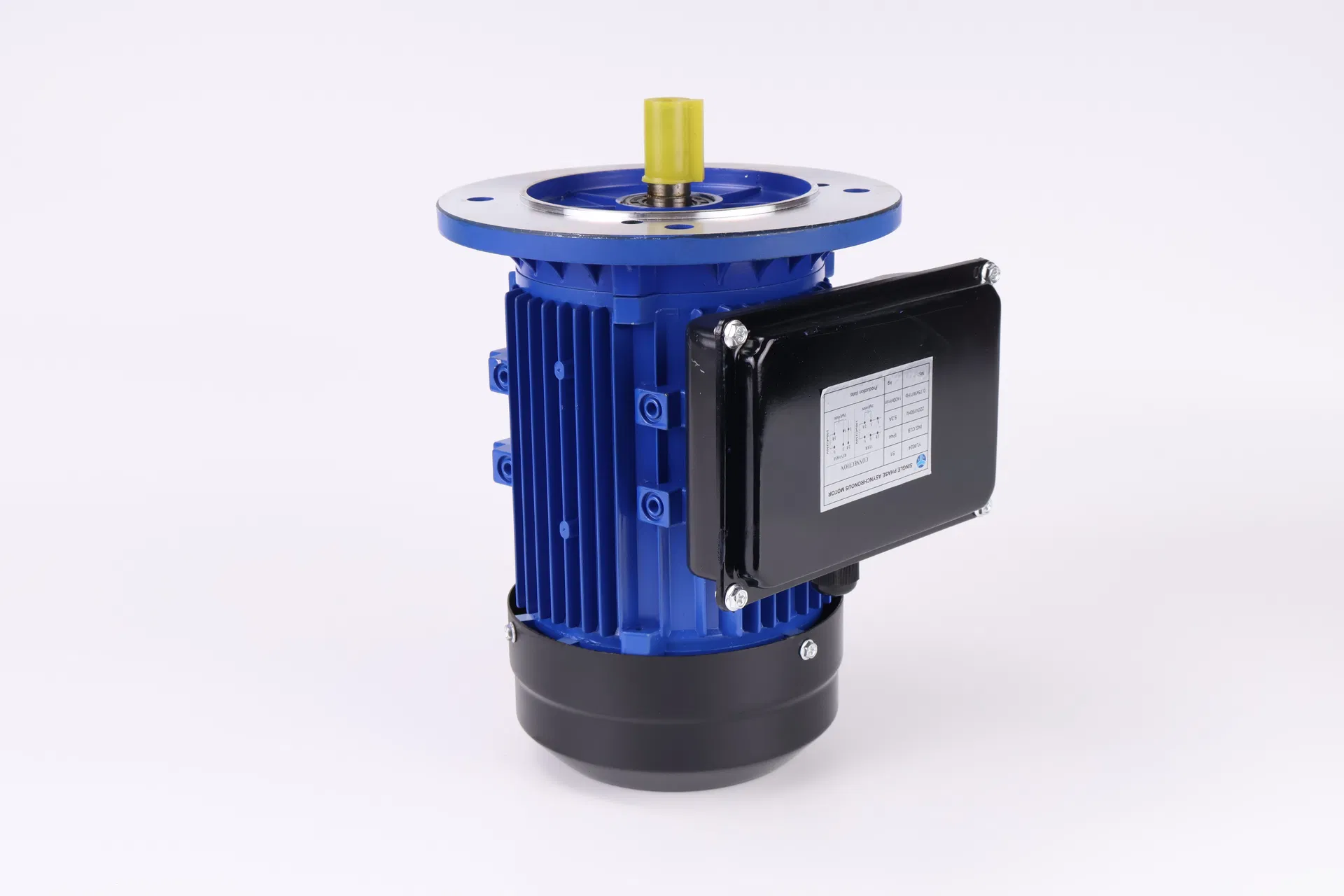

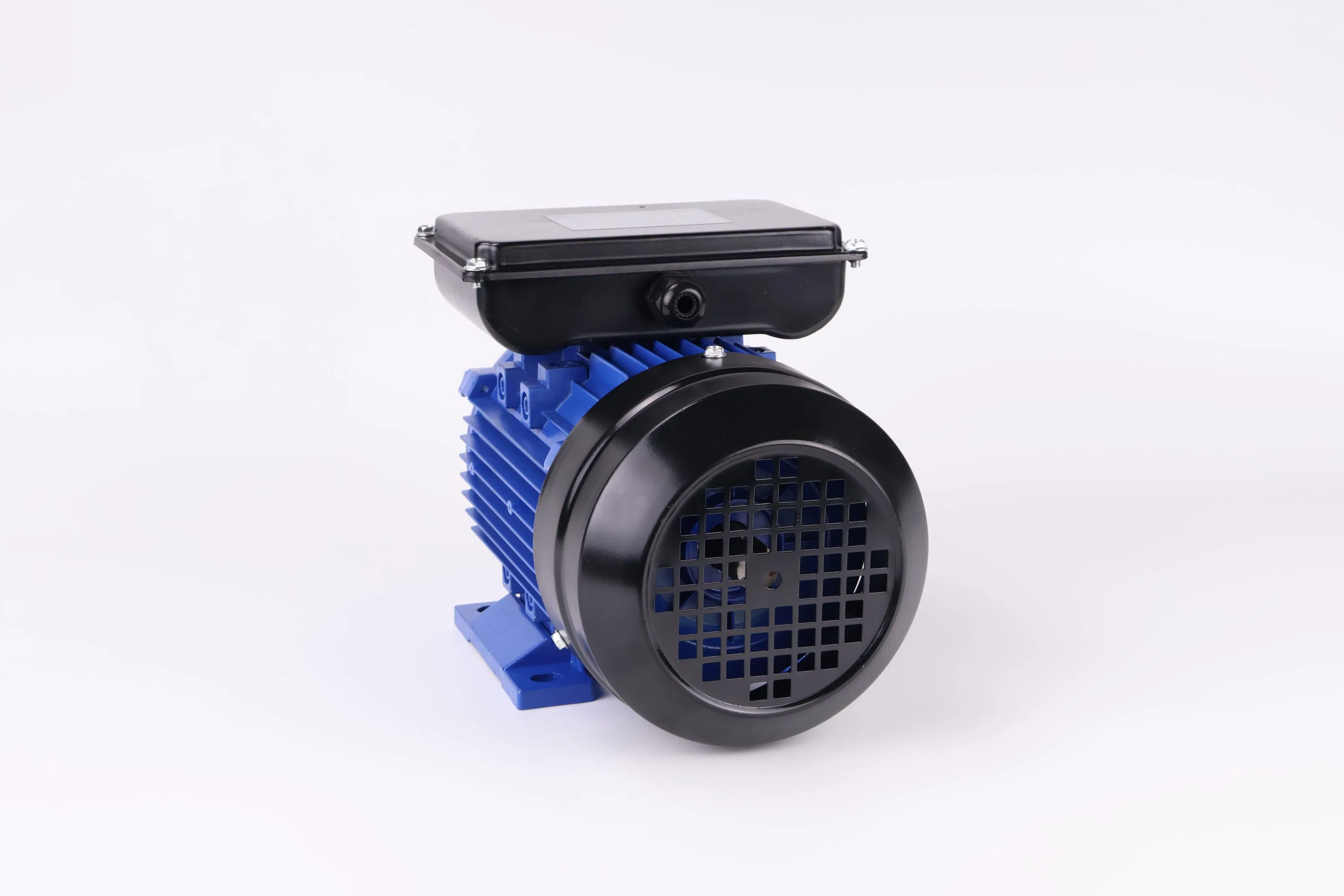

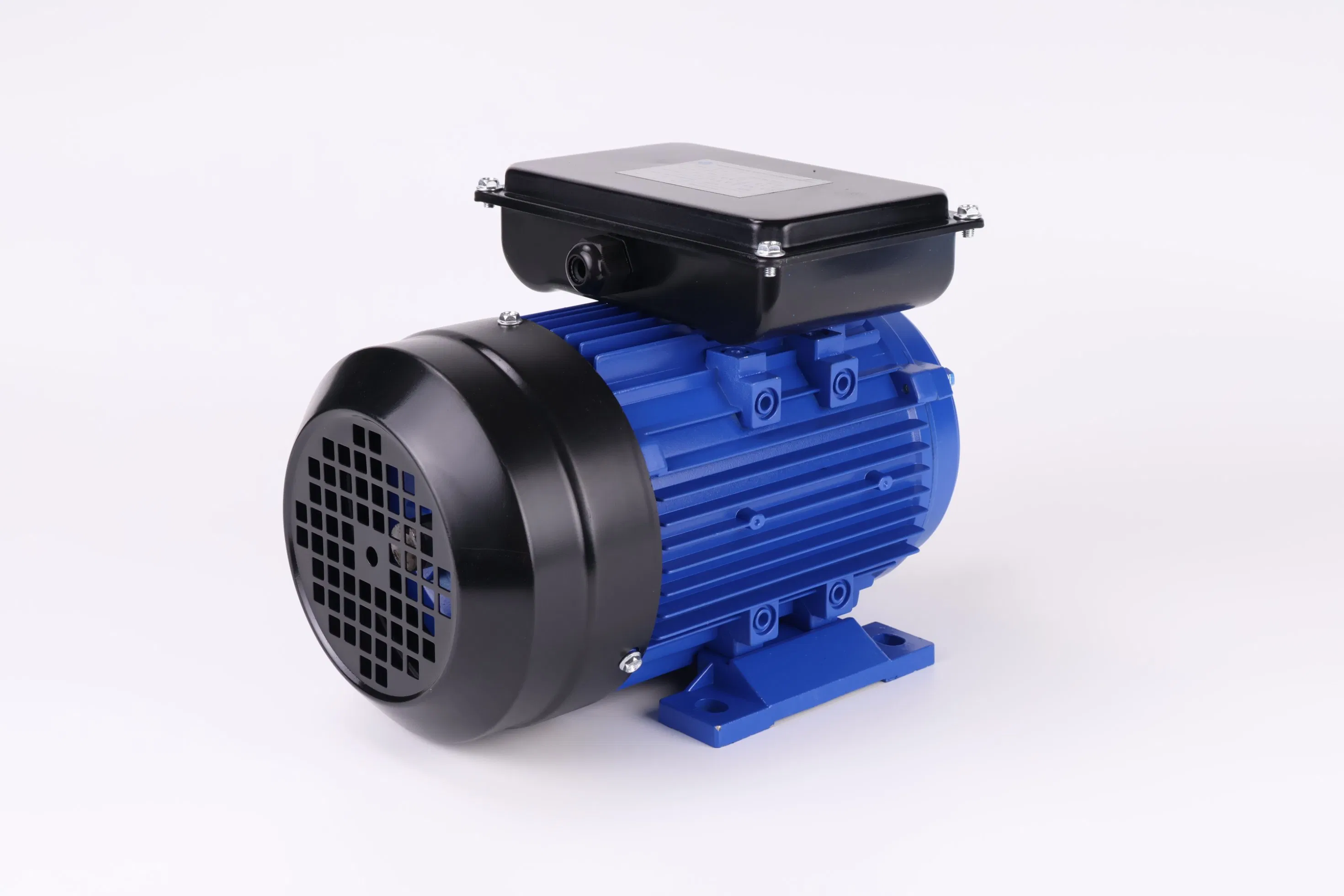

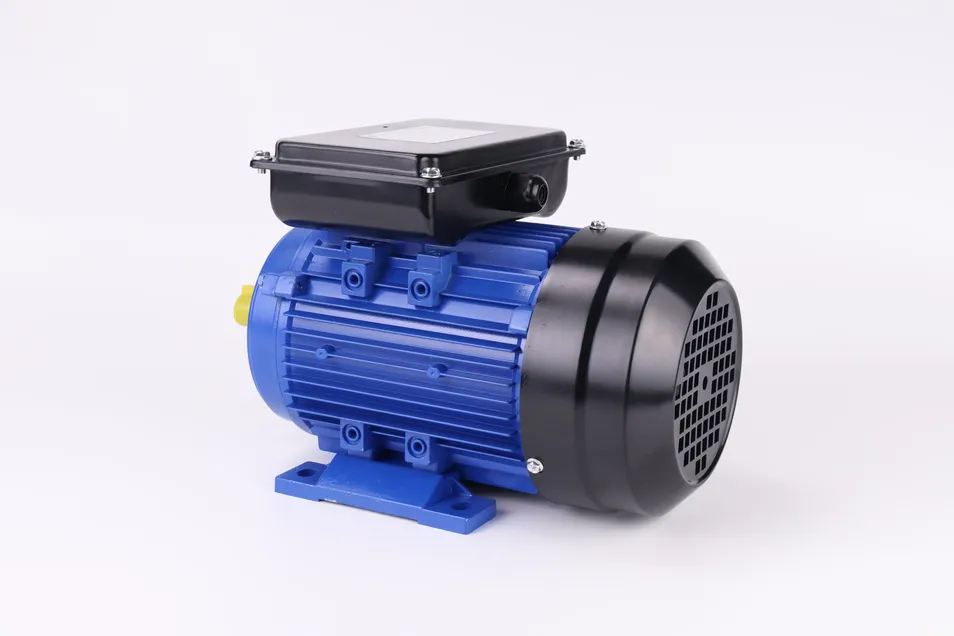

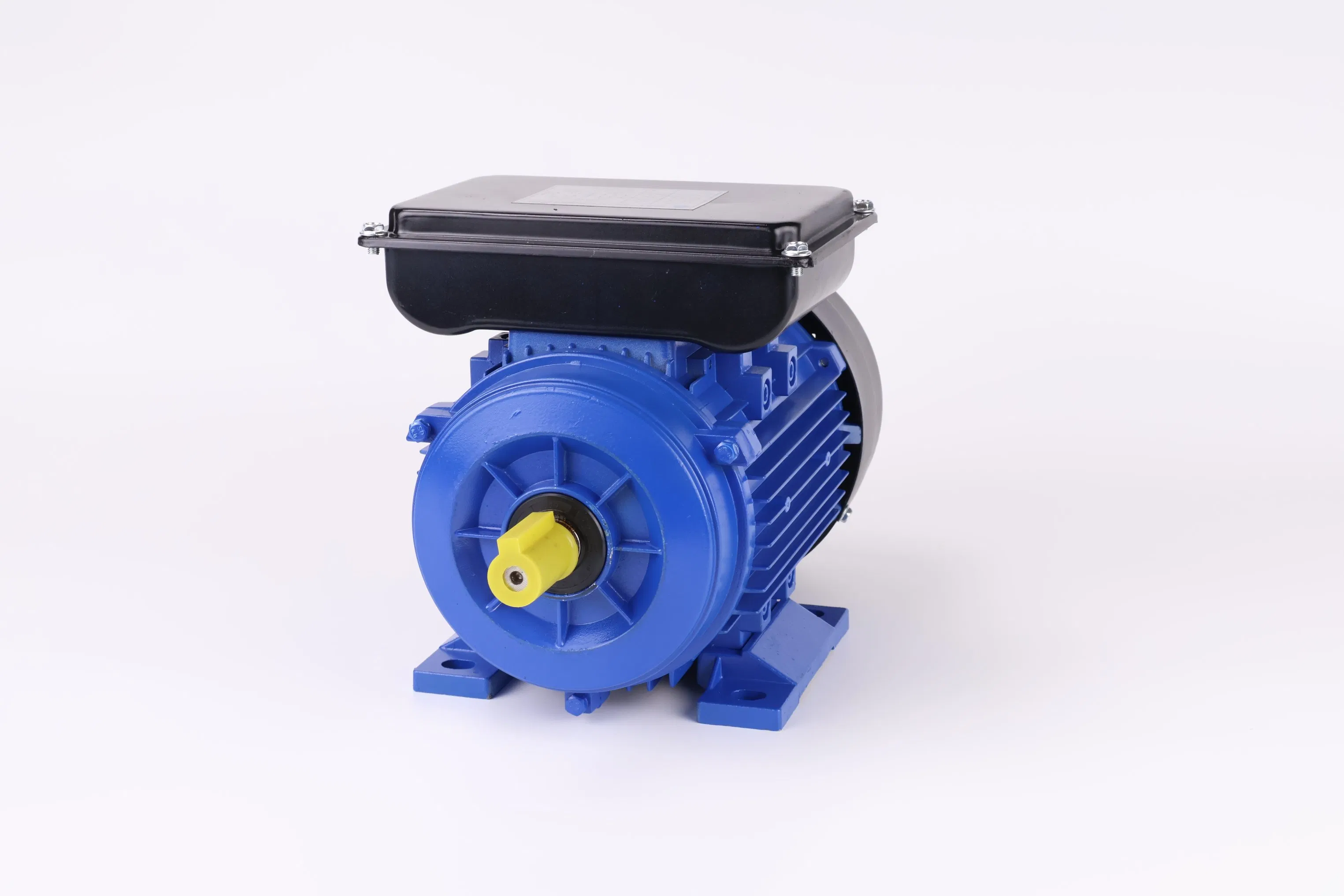

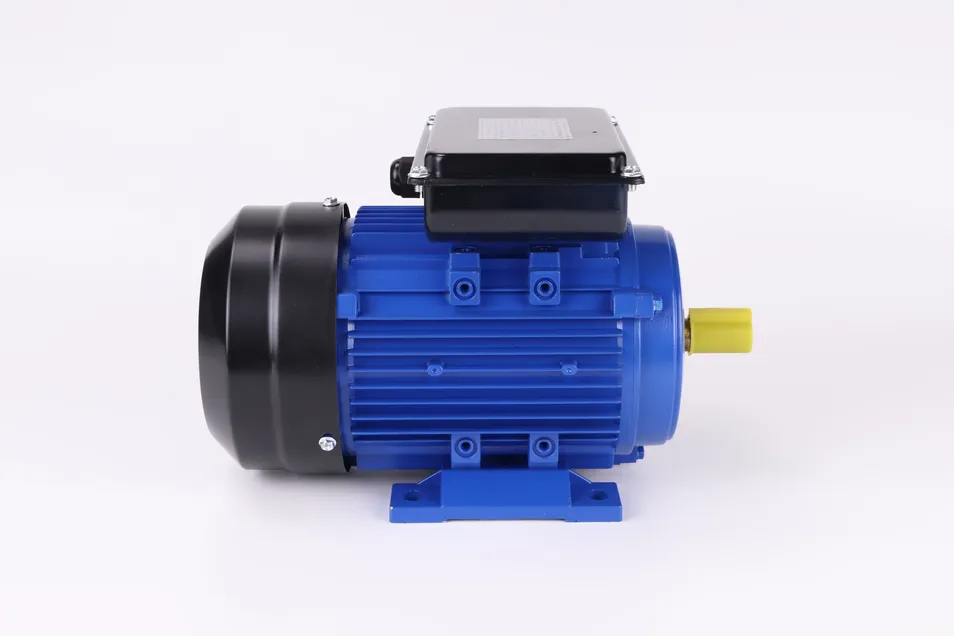

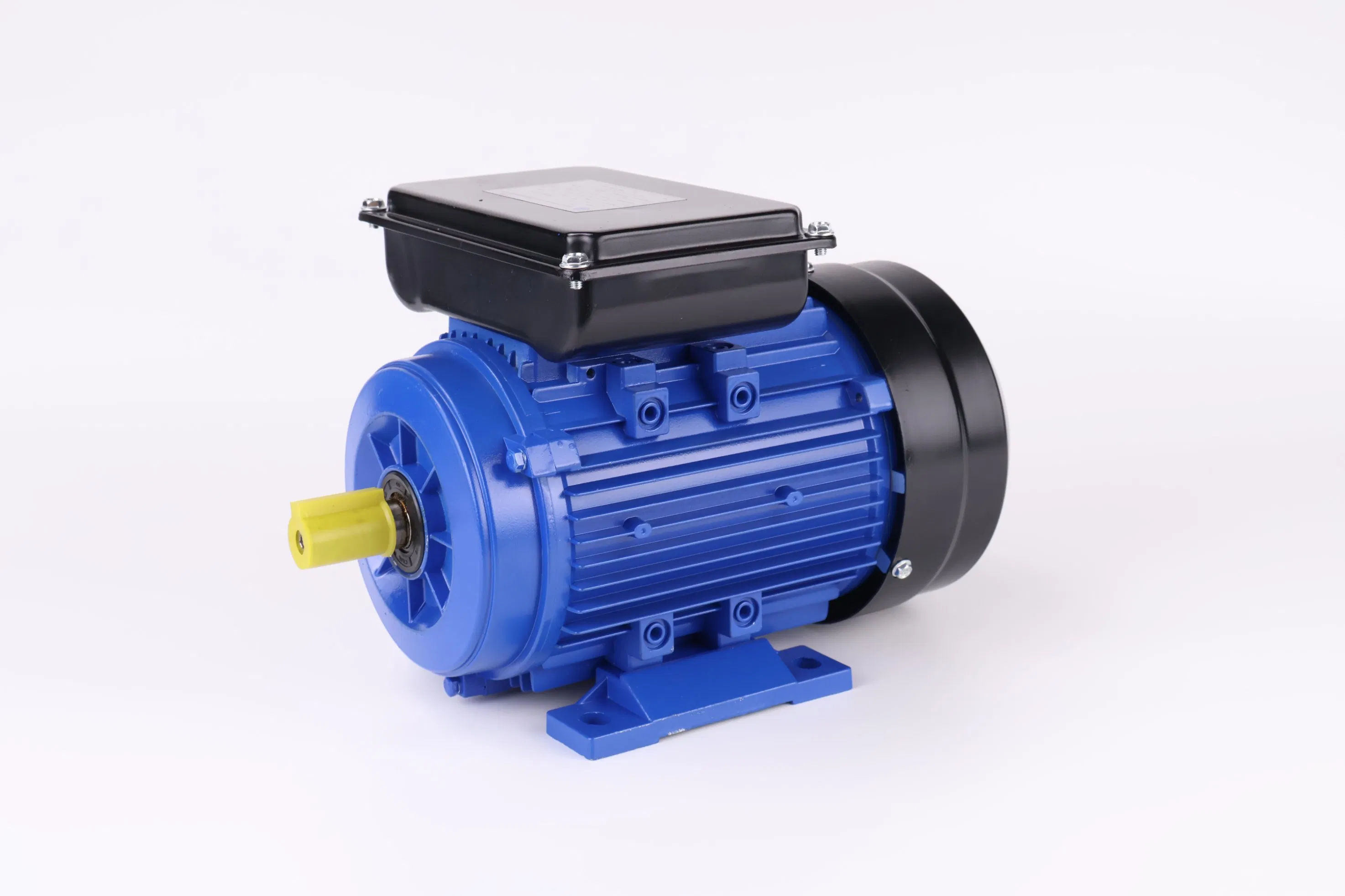

Single Phase AC Induction Electric Motor

YL Series Single Phase Electric Motor

Designed and manufactured to national standard, the YL series single phase electric motor with two capacitors delivers a sleek design, low noise, and minimal vibration. Its simple and reliable construction ensures safe operation and easy maintenance. This versatile motor is ideal for household appliances, air compressors, pumps, medical equipment, and various other machines.

Key Features:

✓ Two Capacitors

✓ High Performance

✓ Safe & Reliable

✓ Easy Maintenance

✓ Low Noise

✓ Low Vibration

✓ Light Weight

✓ 100% Copper Winding

📊 Product Parameters

Model	Power		Current	Speed	Eff	Factor	Start/Rated Torque	Start/Rated Current
Model	HP	KW	A	r/min	%	cos	Tst/Tn	Ist/In
220V - 50Hz - 2P
YL7112	0.5	0.37	1.53	2800	67	0.93	1.8	9.9
YL8012	1	0.75	4.98	2800	72	0.95	1.8	27
YL90S-2	2	1.5	9.56	2800	75	0.95	1.8	53
YL100L-2	4	3	18.4	2800	78	0.95	1.8	110
220V - 50Hz - 4P
YL7114	1/3	0.25	1.29	1400	63	0.92	1.7	7.4
YL8024	1	0.75	5.13	1400	70	0.95	1.8	26
YL112M-4	5	3.7	22.4	1400	78	0.95	1.8	138
YL132M-4	7.5	5.5	32.9	1400	79	0.95	1.7	227

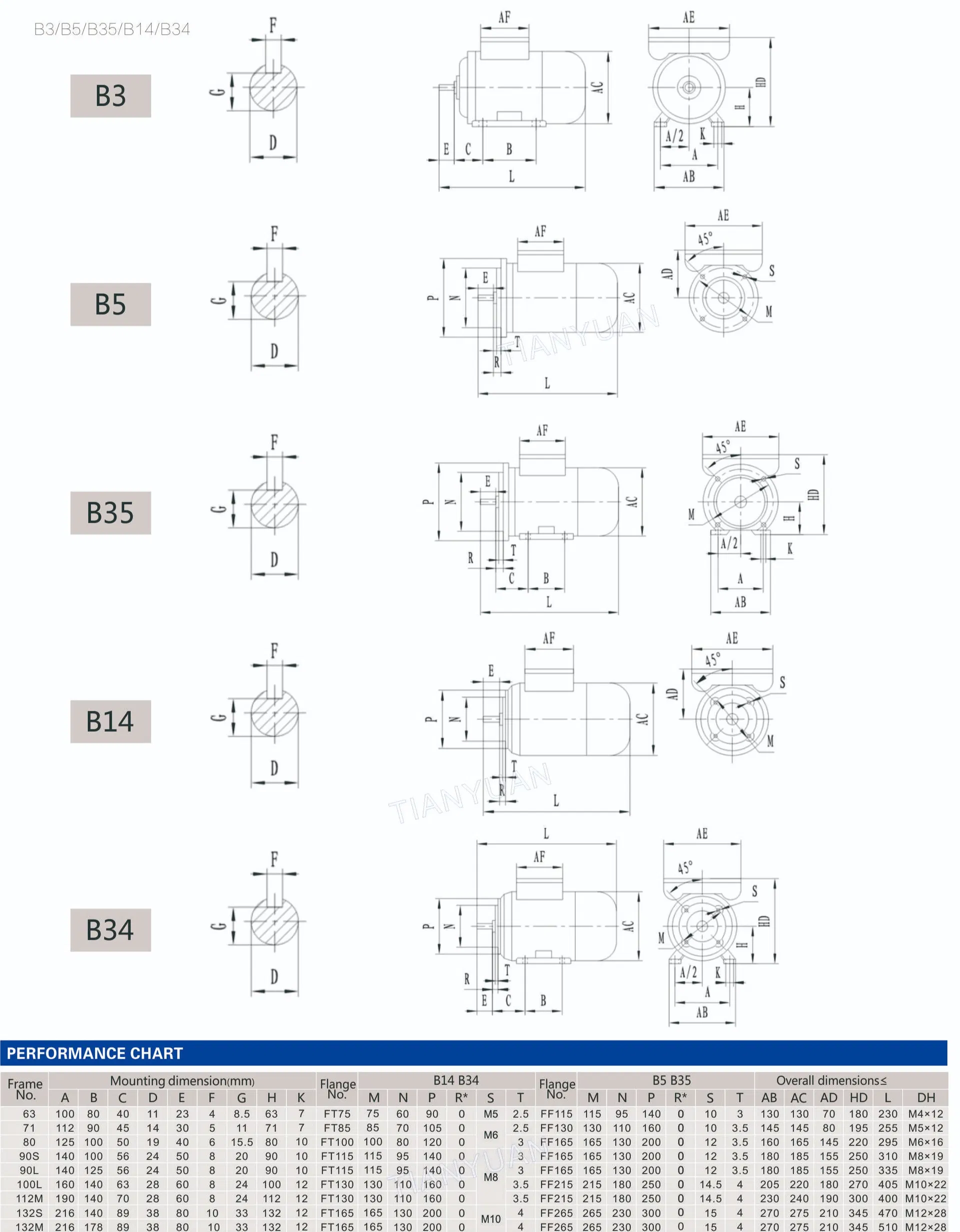

📏 Dimensions (mm)

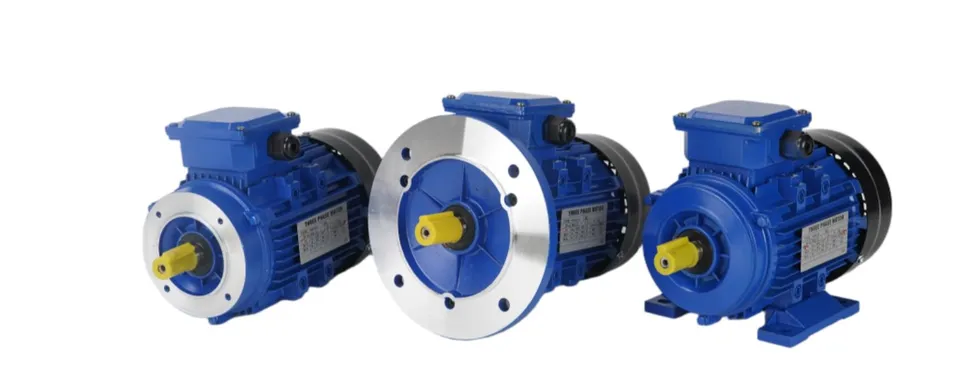

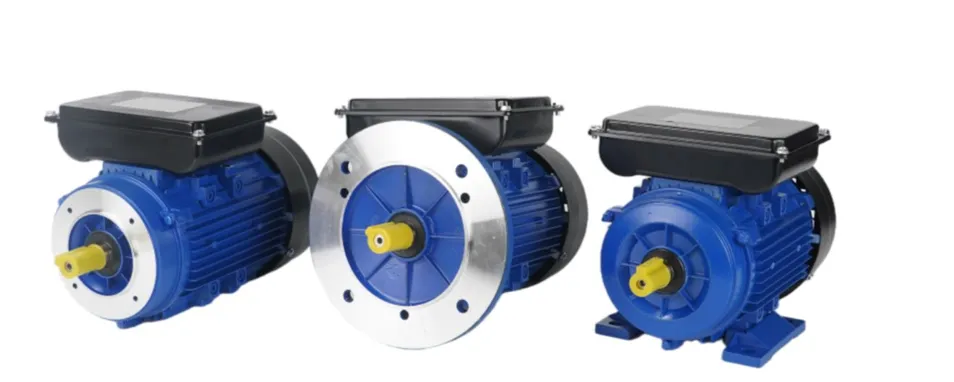

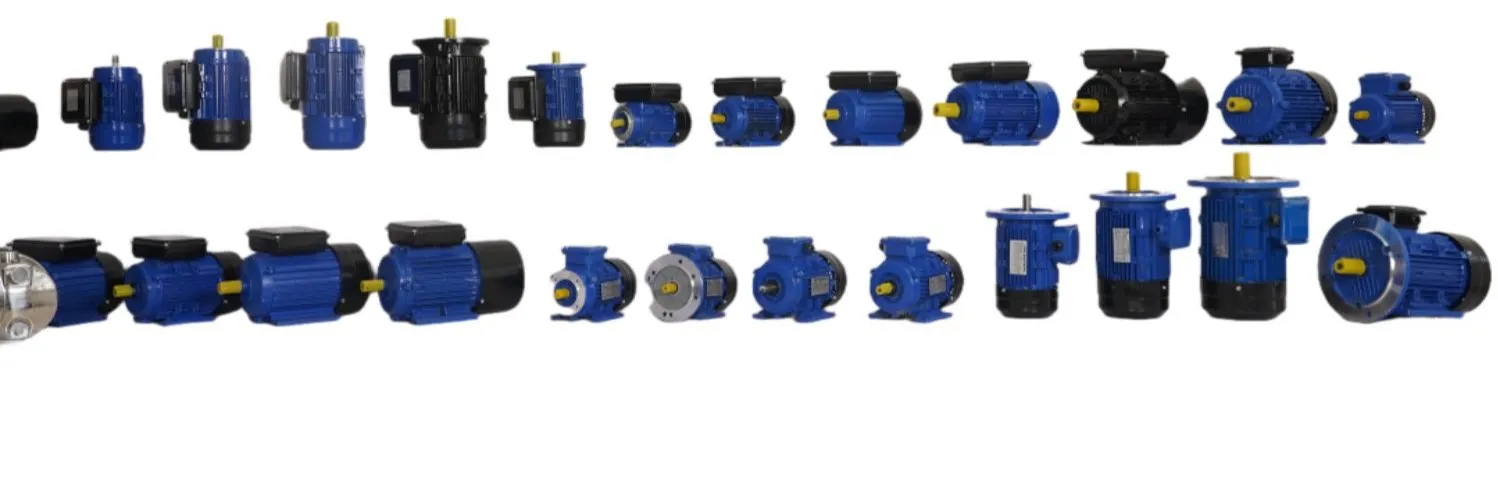

🌟 Main Products

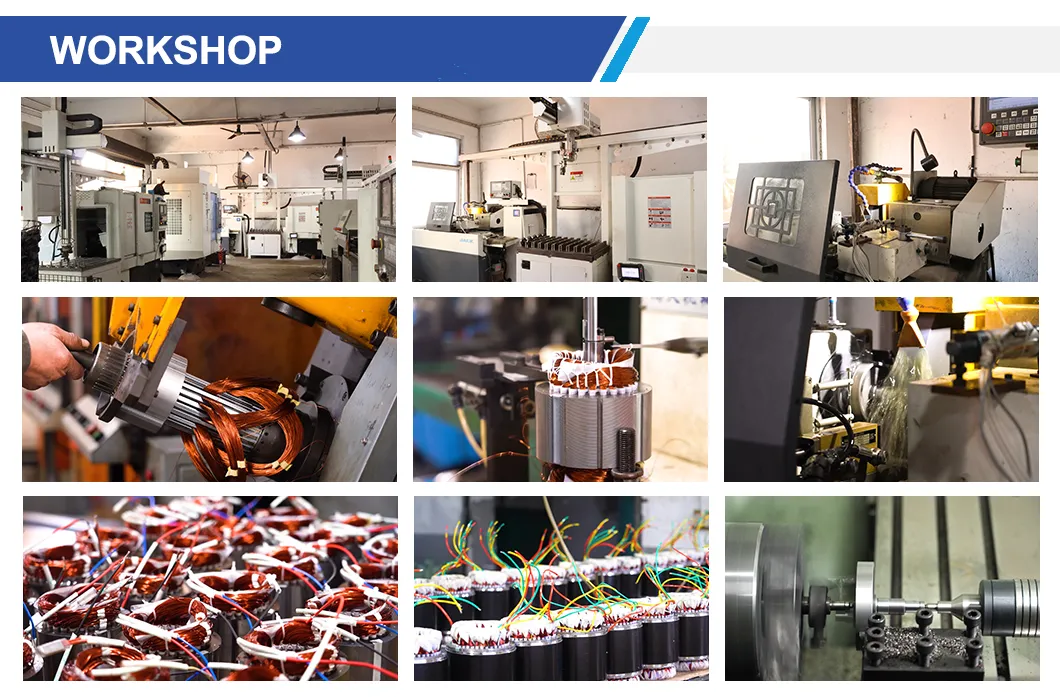

🏢 Specialized Production

Specialized in the production of various water pumps, including Peripheral pump QB60 series, WZB series, PKM series, Self-priming pump, JET series, JSW series, Centrifugal Pump CPM Series, and Submersible pumps Q(D)X/WQ(D) Series.

Over the decades, products have been widely exported to Europe, the Middle East, Southeast Asia, the United States, Africa, and other international markets. Continuous investment in technology and manufacturing excellence ensures products meet the highest standards of efficiency and durability.

📜 Certifications

📦 Packaging & Shipping

Frequently Asked Questions

What is the advantage of the two-capacitor design in the YL series?

The two-capacitor design provides high starting torque and high efficiency during operation, making it suitable for heavy-duty applications like air compressors and pumps.

Is the motor winding made of pure copper?

Yes, all motors use 100% copper wire winding to ensure optimal conductivity, durability, and longer service life.

What is the protection rating for these motors?

The standard protection class is IP44, which provides protection against solid objects larger than 1mm and water splashes from any direction.

Can the rated voltage and frequency be customized?

Yes, while the standard is 220V/50Hz, we can provide customized voltage and frequency (such as 60Hz) based on specific regional requirements.

What are the common mounting options available?

We offer multiple mounting configurations including B3, B5, B35, B14, and B34 to fit different mechanical installation needs.

What certifications do these electric motors hold?

The motors are manufactured to national standards and have passed CE certification, ensuring compliance with international safety and quality requirements.
