KPR Motor
1 / 5

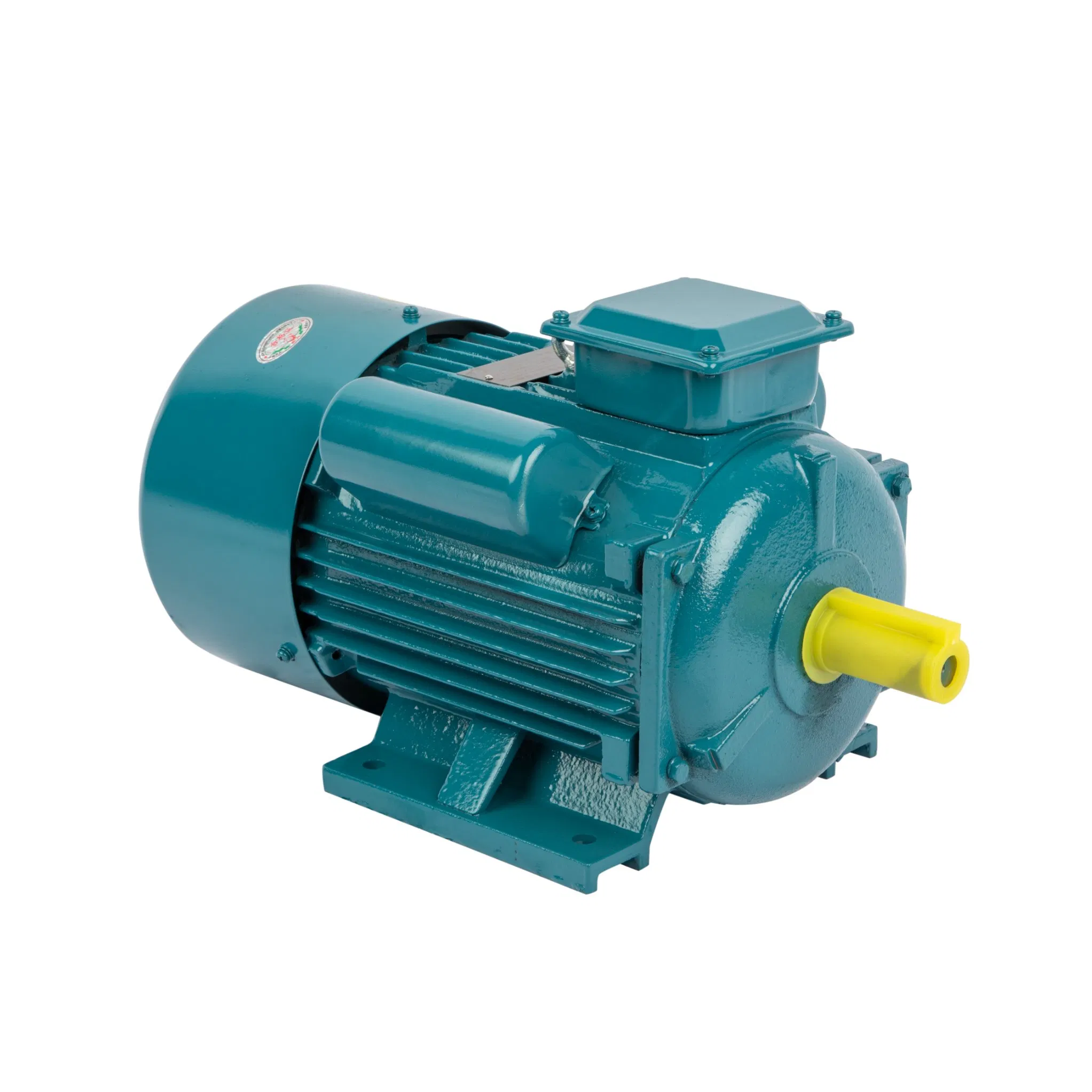

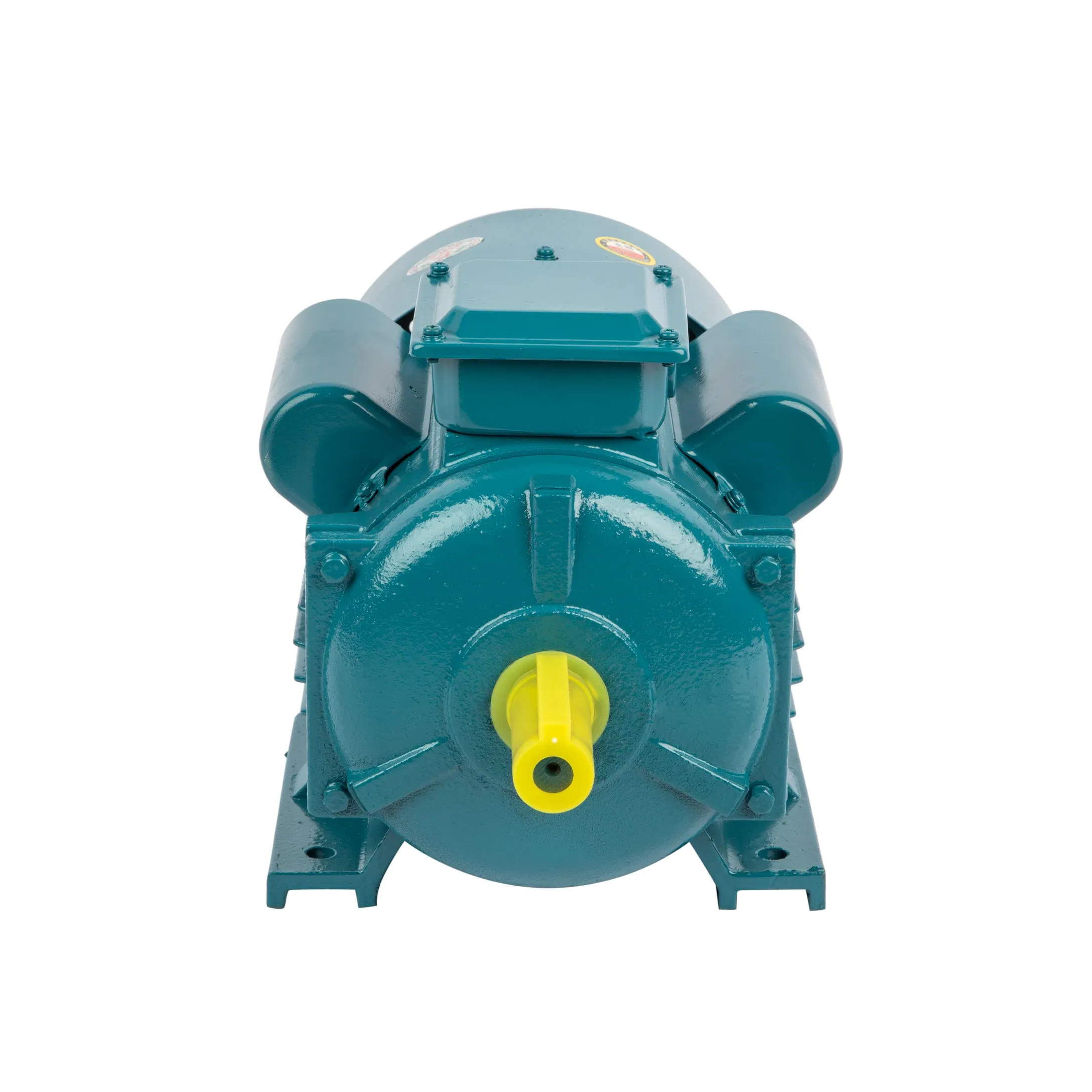

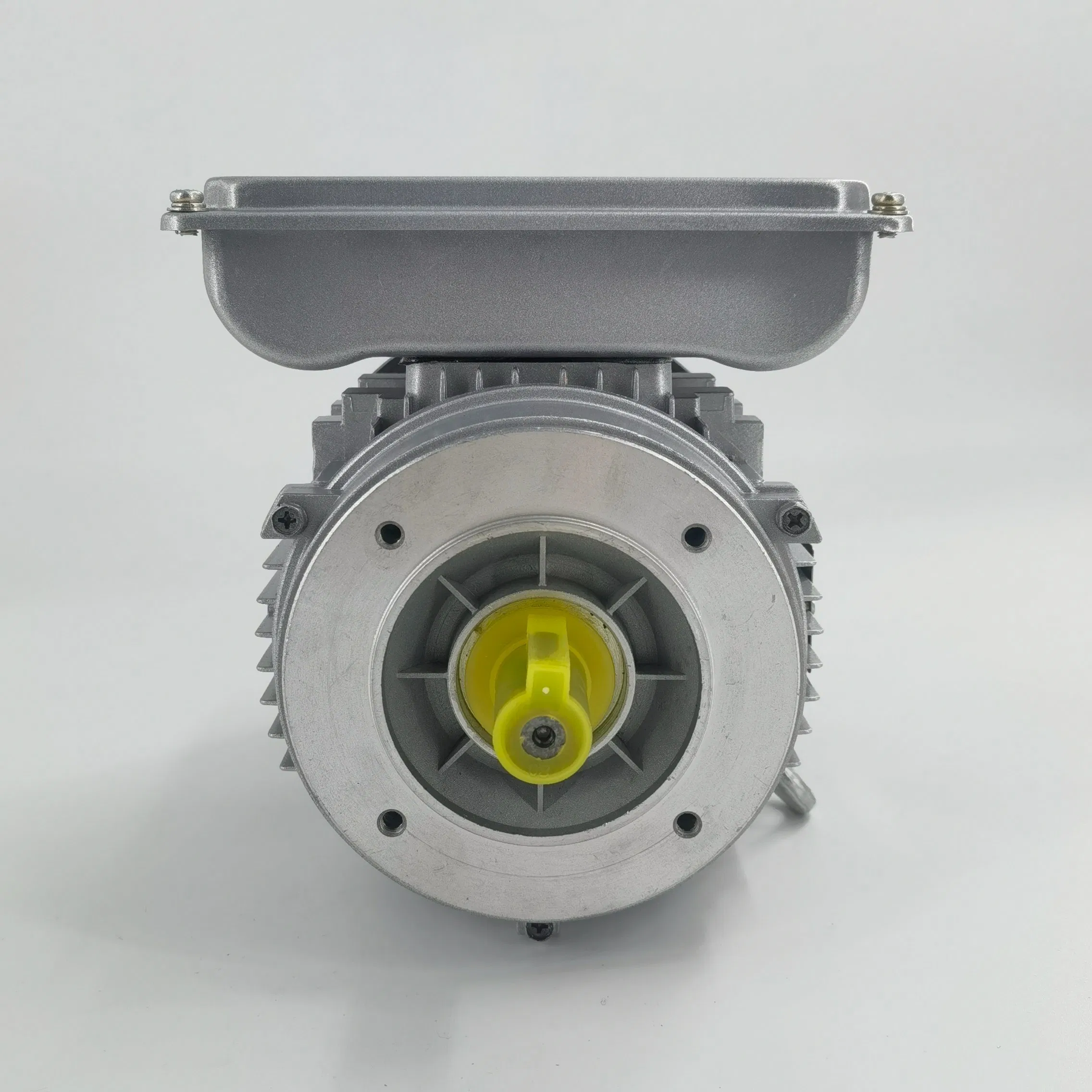

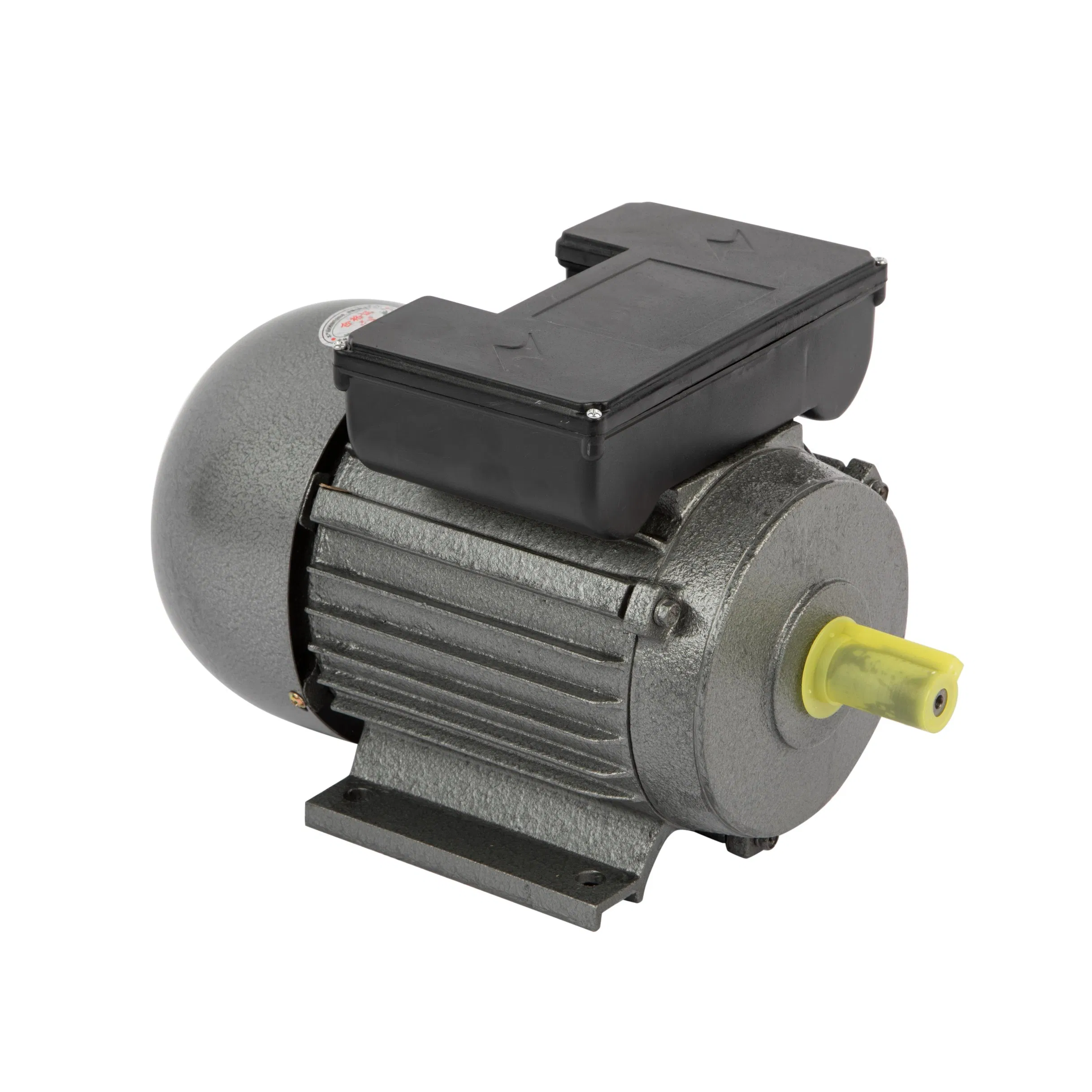

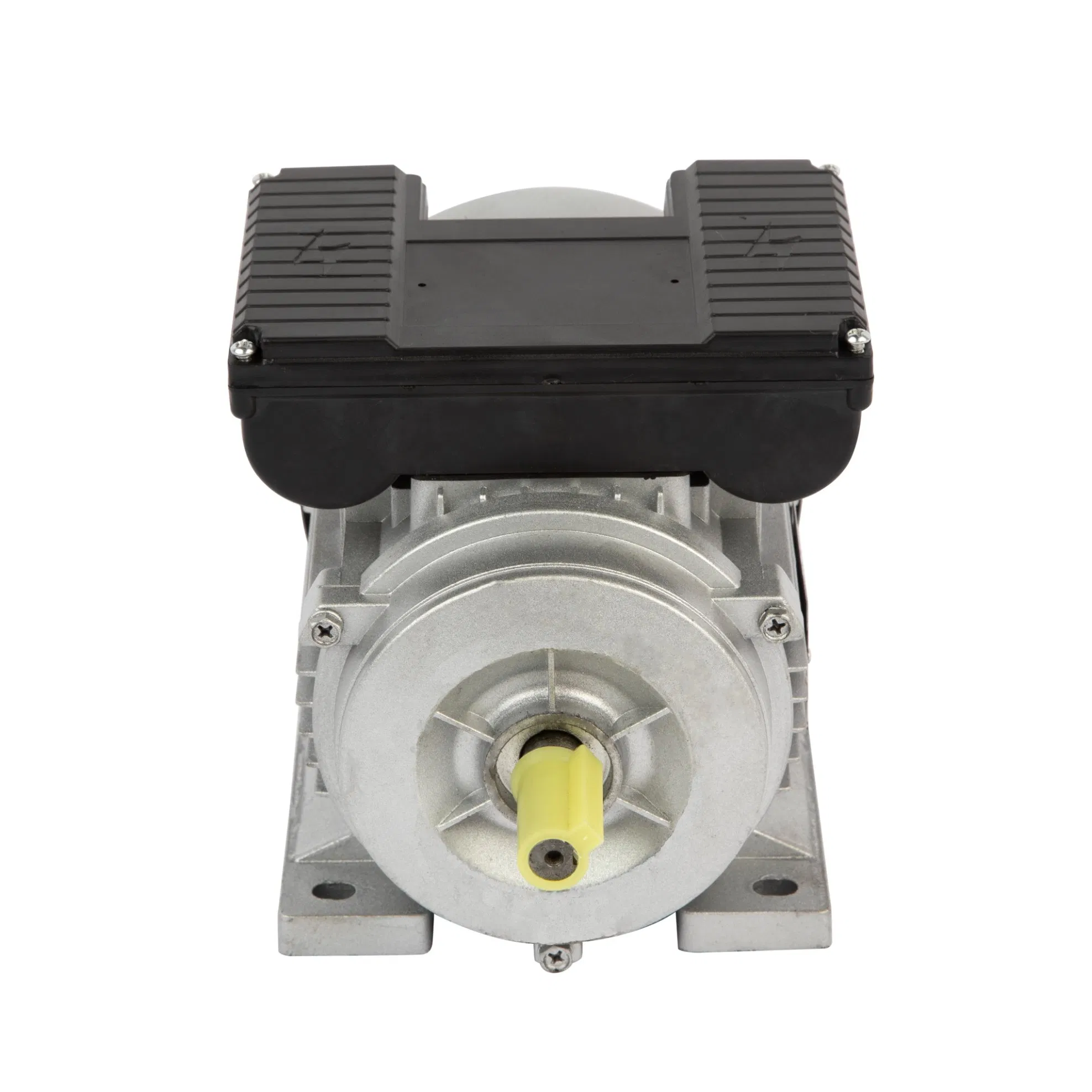

| Motor Model | YCL Series Single-Phase Asynchronous Motor |
|---|---|
| Material | Iron Shell |
| Installation | Horizontal |
| Power Range | 1HP - 8HP |
| Applicable Scope | Vacuum pump, mixer, meat grinder, and other mechanical equipment |
YC Series single-phase Electric Motors are manufactured with high-quality materials conforming to IEC standards. These motors deliver excellent performance with low noise, minimal vibration, and reliable operation. Maintenance is designed to be highly convenient.
| TYPE | POWER(KW) | Rated Current(A) | SPEED(r/min) | η(%) | Power Factor | Tst/Tn |
|---|---|---|---|---|---|---|
| YCL80-2 | 0.37 | 3.7 | 2800 | 62 | 0.73 | 2.8 |
| YCL8012 | 0.75 | 6.7 | 2800 | 68 | 0.75 | 2.8 |
| YCL90S-2 | 1.1 | 9.1 | 2800 | 71 | 0.77 | 2.4 |
| YCL100L-2 | 2.2 | 17.1 | 2800 | 74 | 0.79 | 2.1 |
| YCL112M2-2 | 3.7 | 24.8 | 2800 | 79 | 0.86 | 2.2 |
| YCL90L-4 | 1.1 | 10.5 | 1400 | 70 | 0.68 | 2.4 |
| YCL132M-4 | 5.5 | 32.5 | 1400 | 81 | 0.95 | 2.1 |

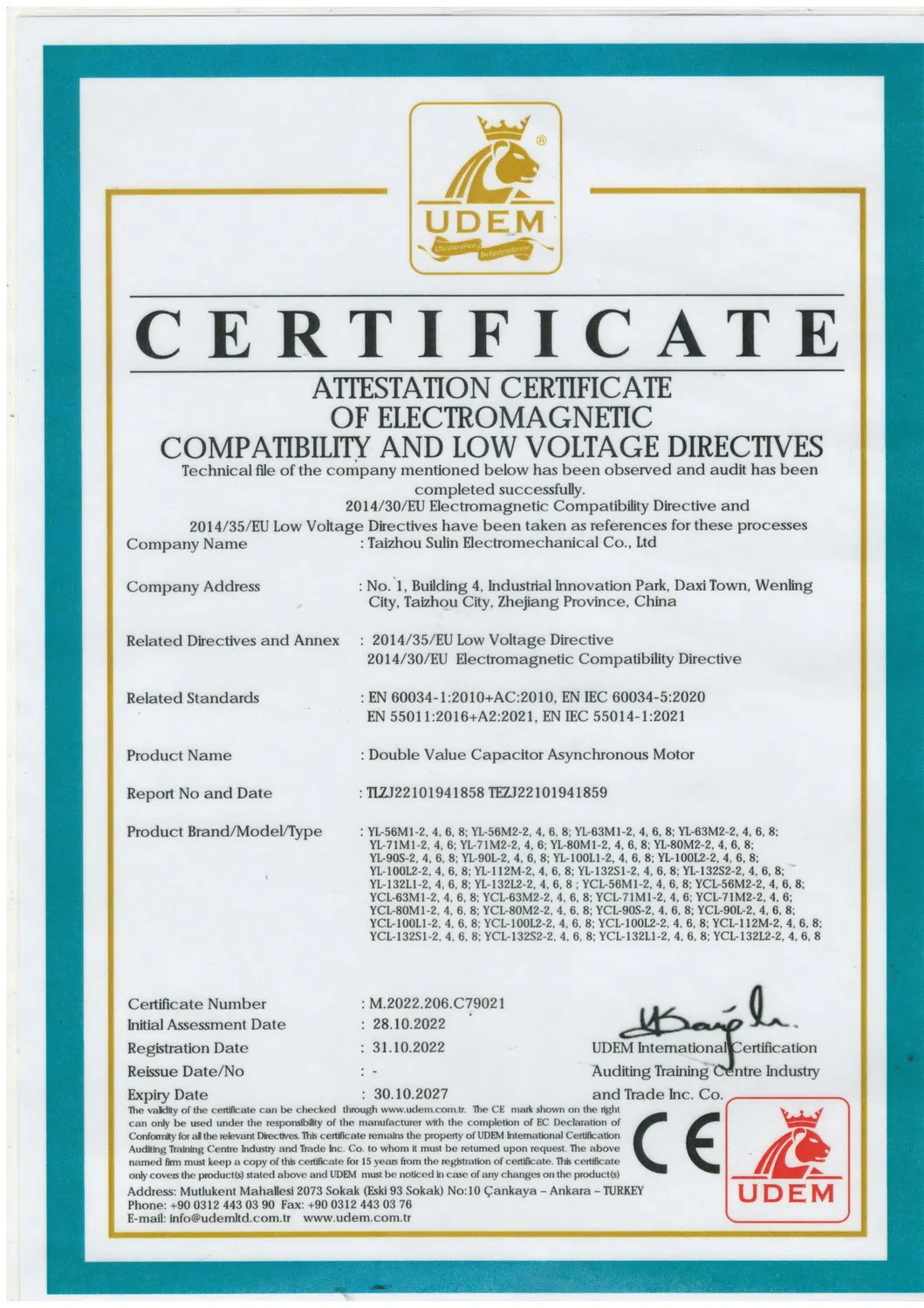

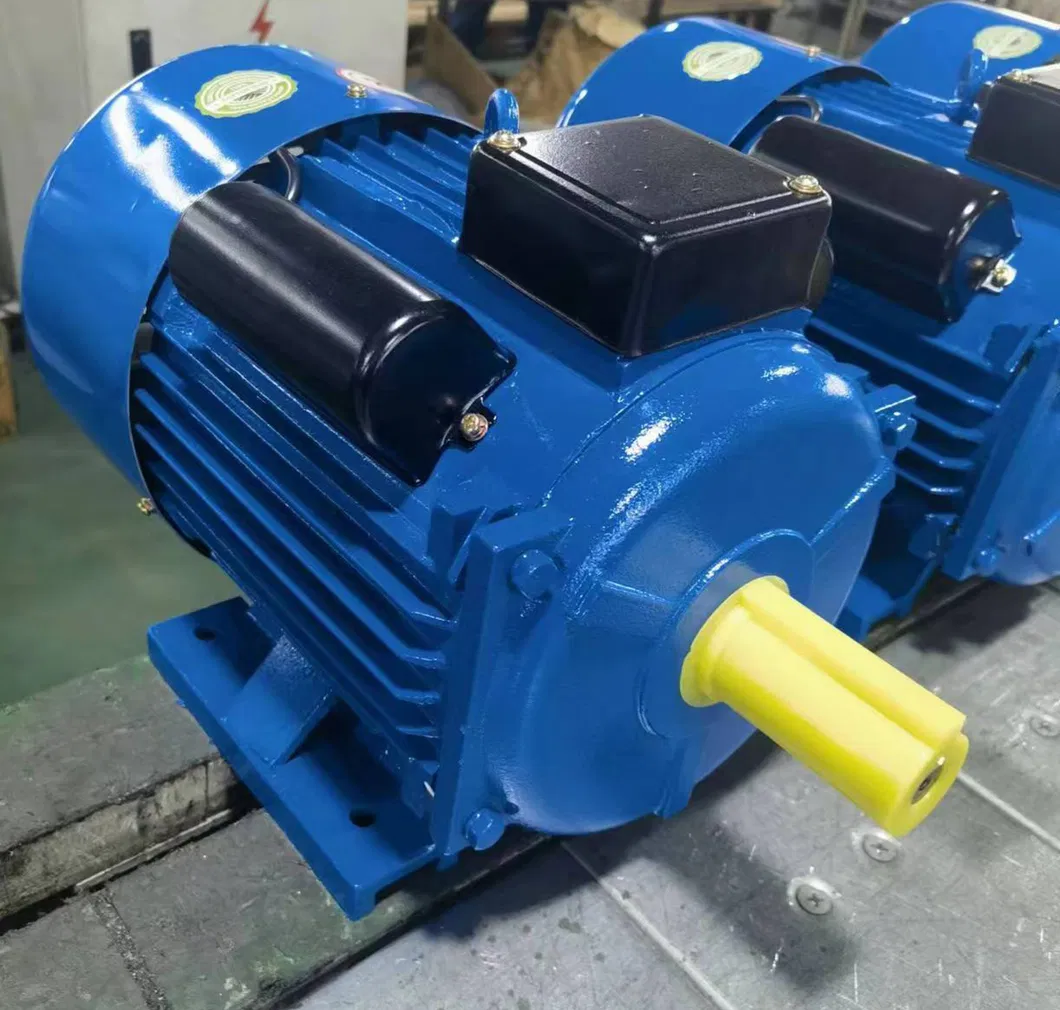

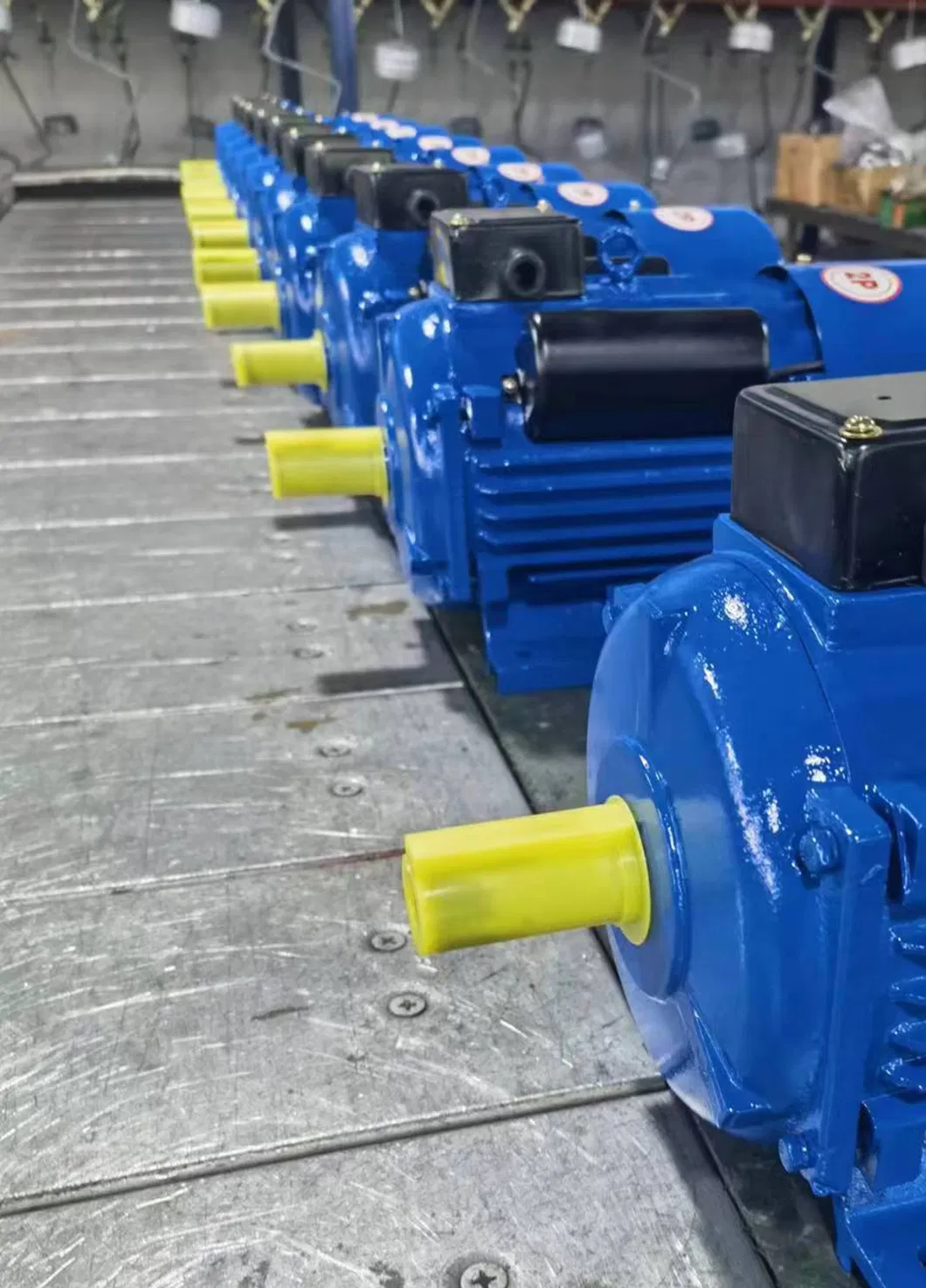

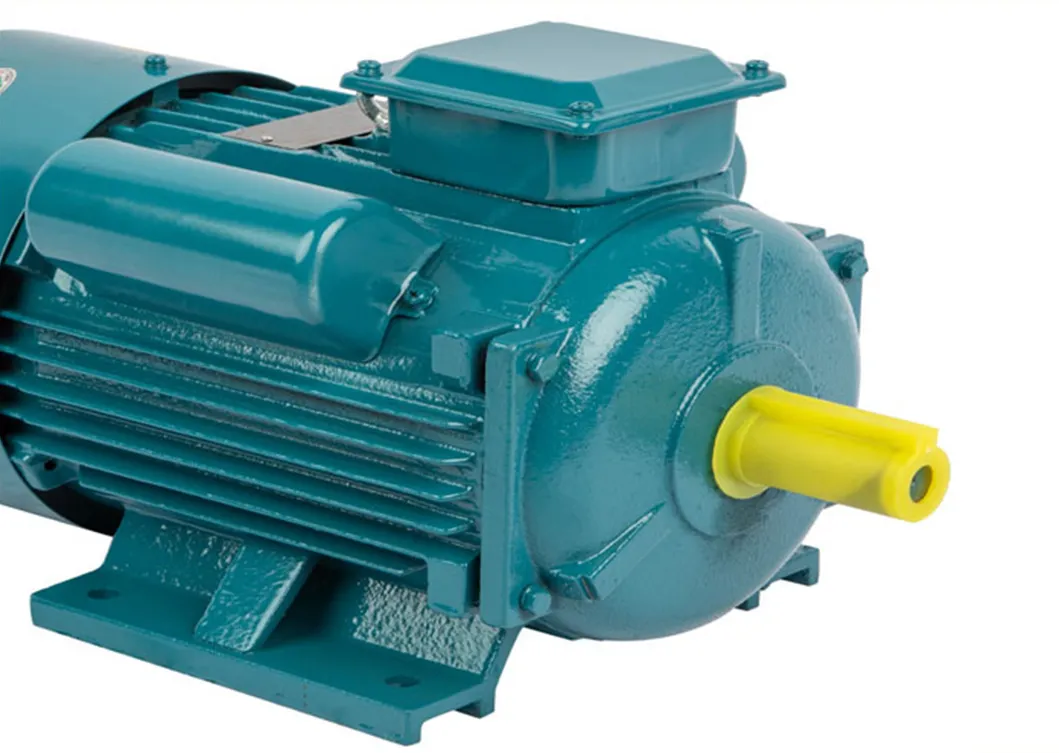

Our products have passed the national compulsory product CCC certification and the European Union CE safety certification. We utilize advanced motor automatic computer testing lines and precision assembly manufacturing to ensure high performance and safety.
