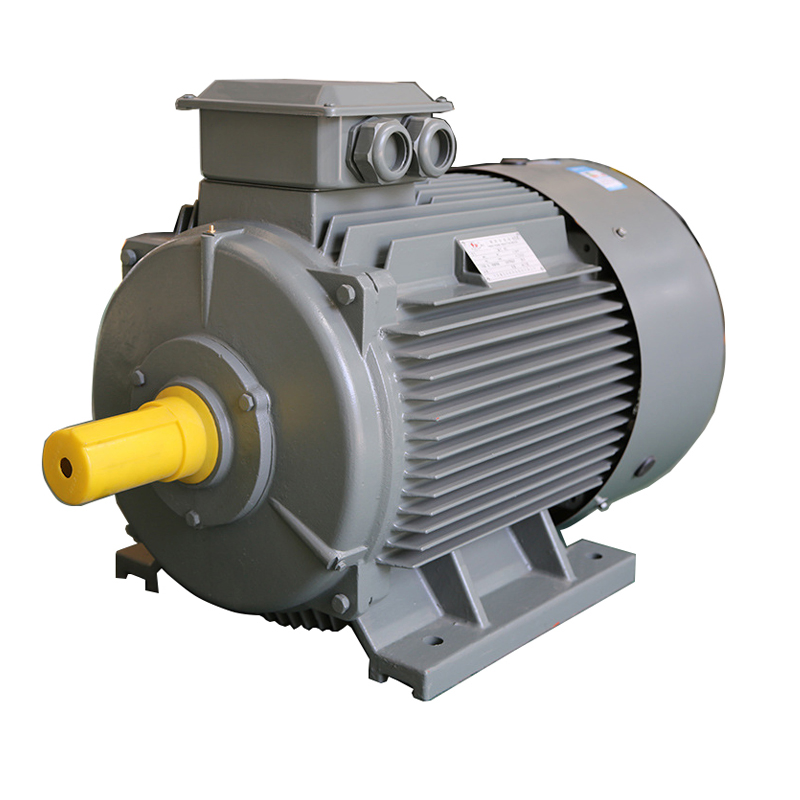

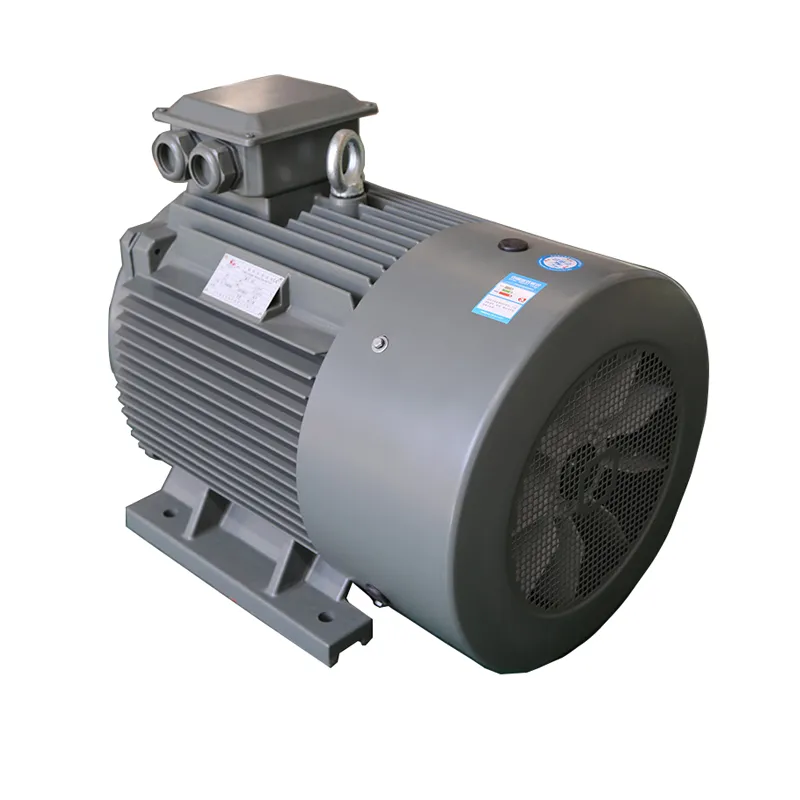

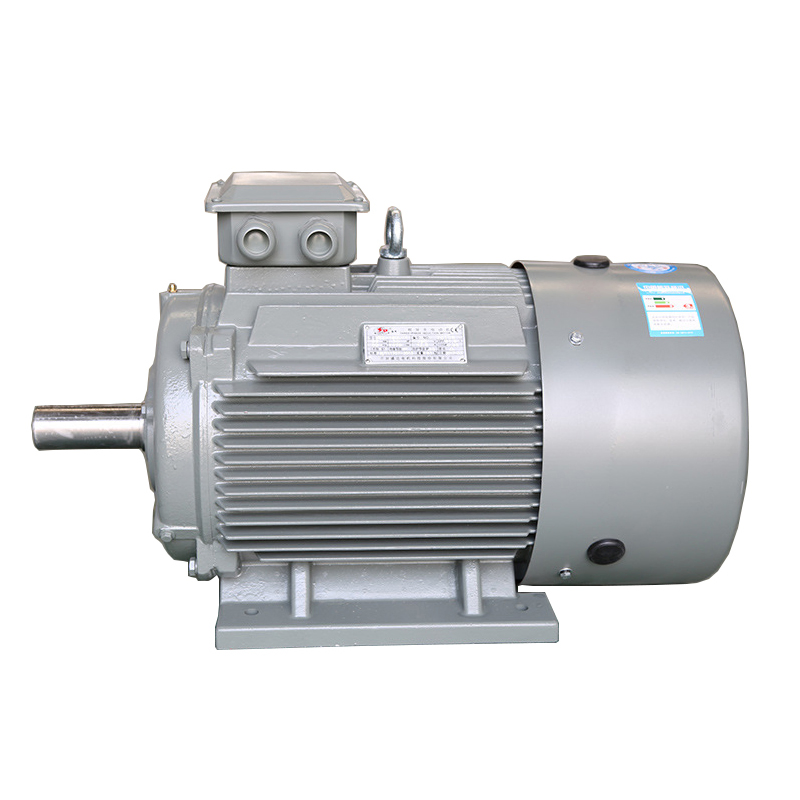

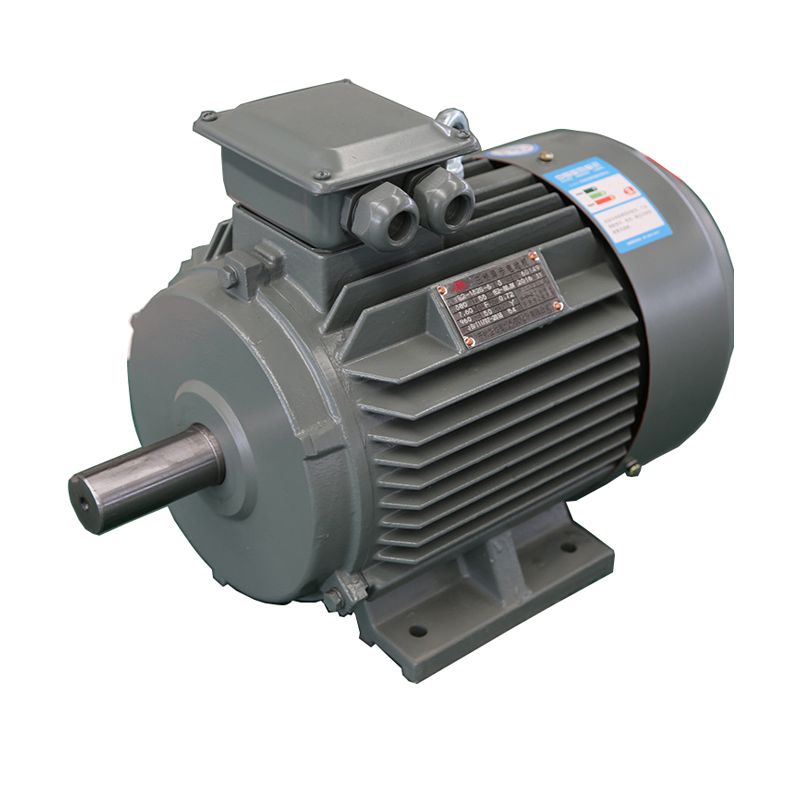

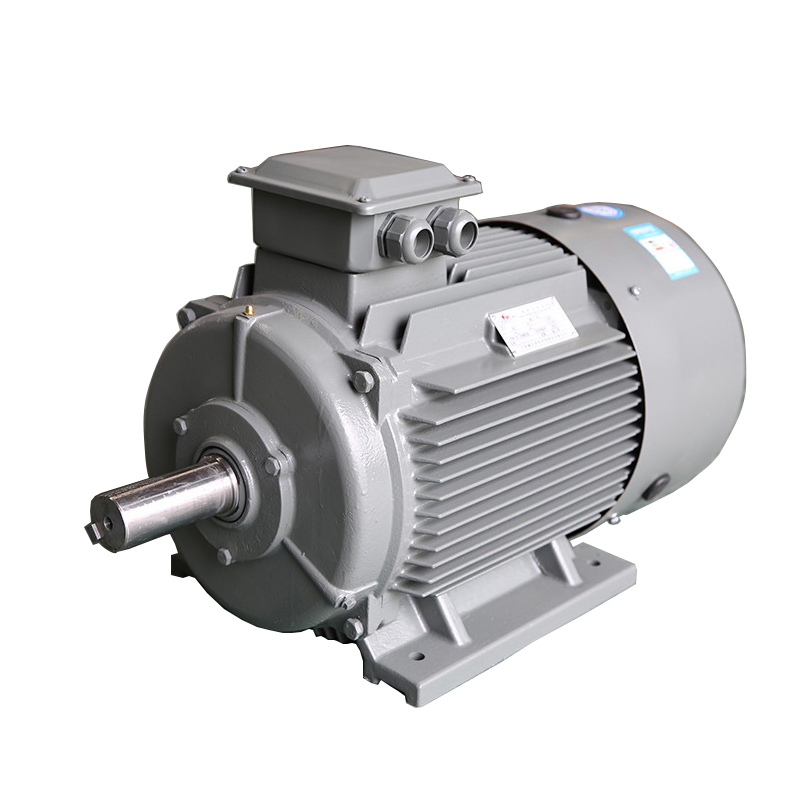

Ie3 High Efficiency 3 Phase Induction AC Electric Motor Ye3-315L1-4-160kw

Customization: Available
Application: Industrial
Operating Speed: Constant Speed

Product Description

⚙️ Basic Information
Model NO.
YE3-315L1-4-160KW
Number of Stator
Three-Phase
Species
Ye3
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2.4.6.8.10.12
Starting Mode
Soft Starter
Certification
ISO9001, CCC, CE
Installation
B3/ B35/ B5/ B34/ B14
Voltage
220/380V, 230/400V, 415V, 460V, 690V, etc
Insulation Class
F
Output Power
3kw--315kw
Cooling Method
IC411
Protection
IP44, IP54, IP55
Frequency
S1
Frame Size
H100--315
Ambient Temperature
-15℃~+40℃
Transport Package
Plywood Case
📄 Product Description
YE3 Series Overview

YE3 are the high-efficiency series developed by combining many years of experiences in the production of special motors and adopting new technologies, processes and materials, in line with the newest energy efficiency rate standards in IEC60034-30 & GB/T18613-2012 and in accordance with "Test Determination for Rotating Motor's Loss and Efficiency" in the second part of IEC60034-2 Rotating Motor. Adopting a squirrel-cage structure and insulation class F, the series has such advantages as reliable operation and maintenance convenience, whose mounting dimension and power level both meet standards of IEC.

Technical Specs Header
Rated Power
3~315KW
Rated Voltage
380V-690V
Reference Frequency
50Hz, 60Hz
Altitude
No more than 1,000m
Advantages Title
  • ✨ Novel design
  • 🚀 Excellent starting performance
  • 💪 High starting torque
  • 🤫 Low noise
  • 📉 Little vibration
  • 🛡️ Safe operation
  • 🔧 Easy maintenance
Certification

The motor products have obtained the ISO9001 quality management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The quality and efficient motor products and services are provided in strict accordance with the requirements of relevant product standards.

Product View 1
Production Line

Our manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, and selects high-quality energy-saving materials to ensure the quality of motor products.

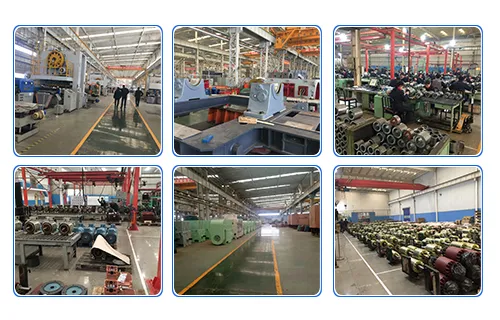

Motor Production
Quality Control
Global Reach

We are mainly engaged in the manufacture, research, development, and sales of motor products, including IEC standard motors. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East, and other regions, and the products are exported to all over the world.

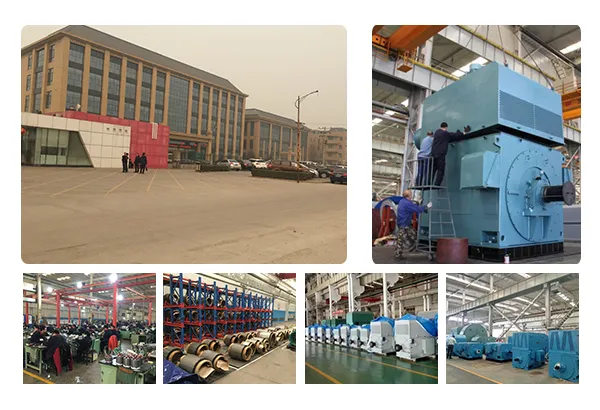

Final Product
Contact Us Banner
❓ Frequently Asked Questions
What are the key features of YE3 series motors?
YE3 series motors are high-efficiency three-phase induction motors featuring a squirrel-cage structure, Class F insulation, and excellent starting performance with high torque and low vibration.
Which energy efficiency standards do these motors meet?
They comply with the newest energy efficiency standards in IEC60034-30 and GB/T18613-2012, ensuring high-performance operation and energy savings.
What are the available protection and insulation classes?
These motors offer IP54 or IP55 protection classes and utilize Insulation Class F to ensure reliable operation in various industrial environments.
Can these motors operate in extreme temperatures?
Yes, the motors are designed to operate efficiently within an ambient temperature range of -15ºC to 40ºC at altitudes no more than 1,000m.
What mounting configurations are supported?
The YE3 series supports various basic structural forms, including B3, B5, B35, B14, and B34, to suit different installation requirements.
What international certifications have these motors passed?
Our motors have obtained ISO9001, CCC, CE, UL, IRIS, and CAS certifications, meeting the rigorous quality standards of Europe, America, and the Middle East.
