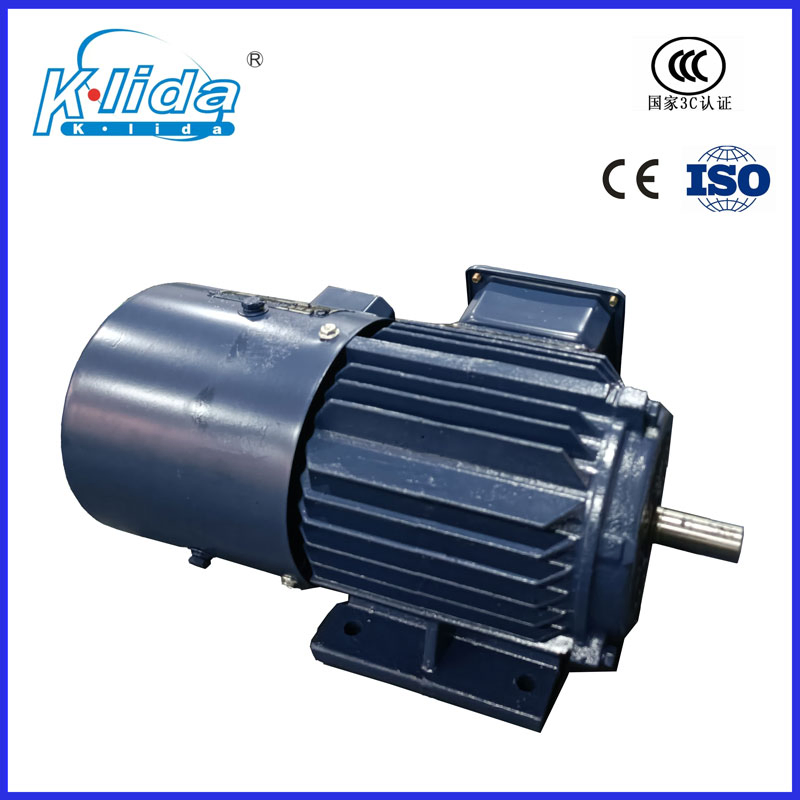

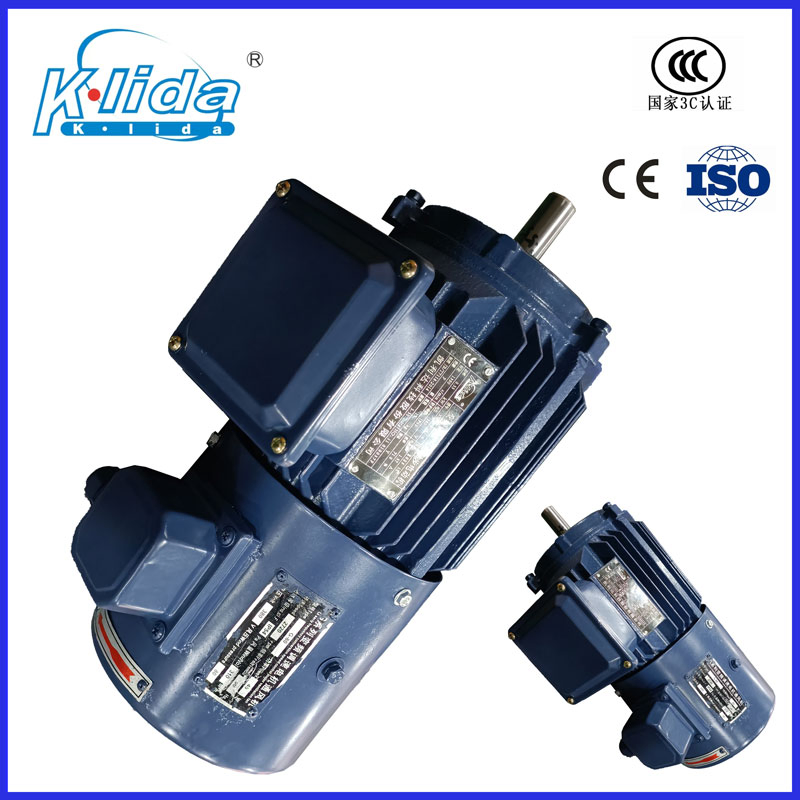

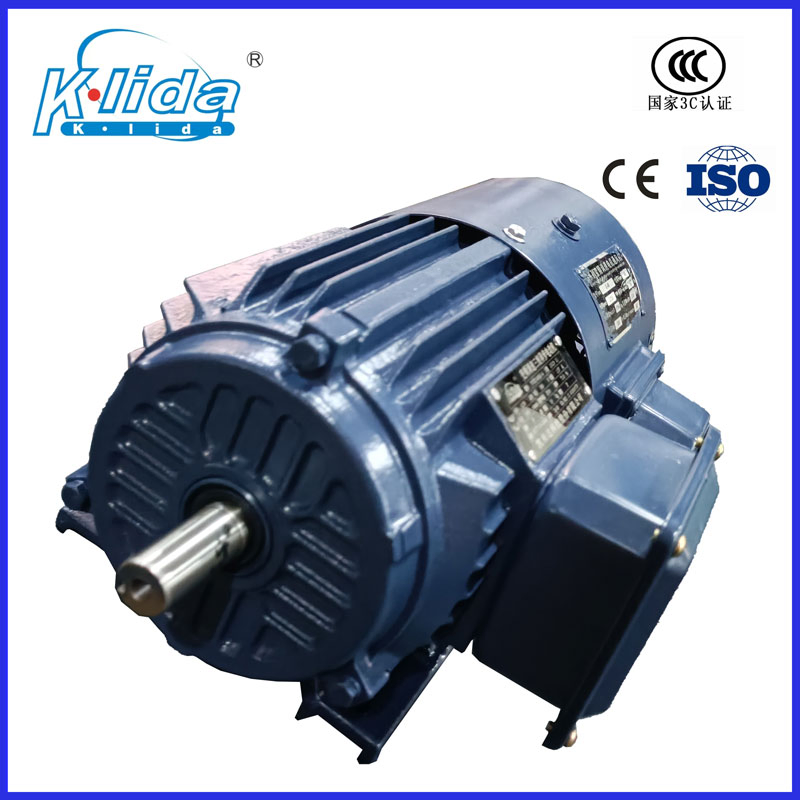

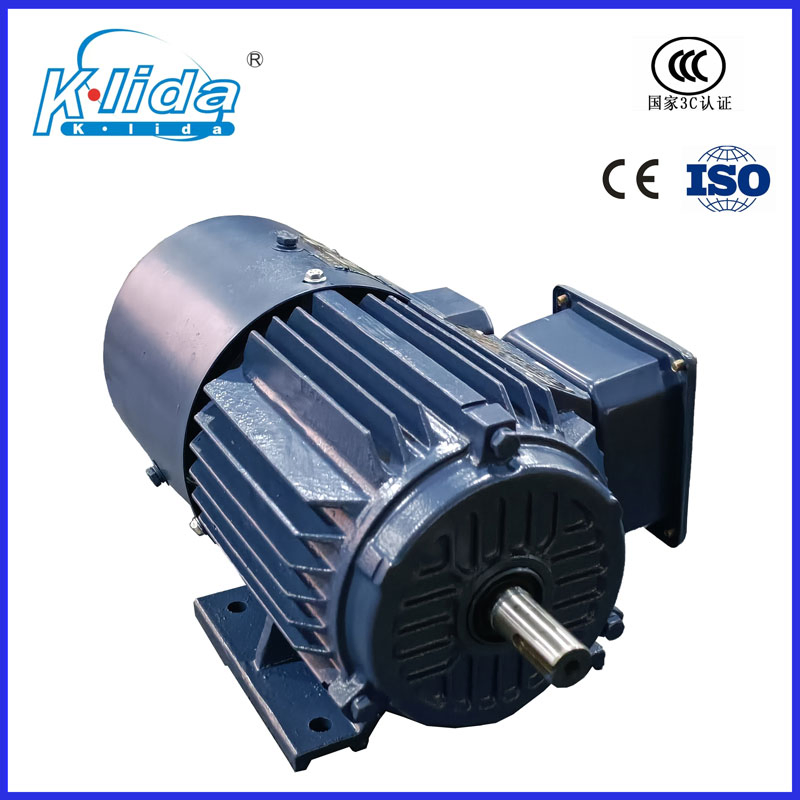

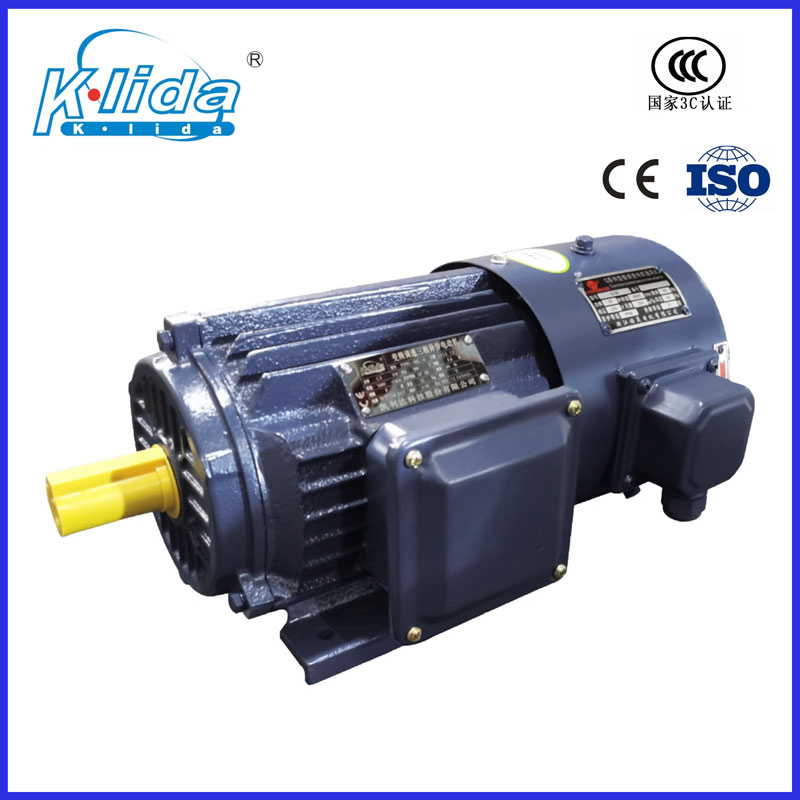

Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
1 / 5
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw
Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw

Kailida Yvf2 Series Variable Frequency and Speed Three Phase Electric Motor 6poles 0.55kw

Customization: Available
Application: Industrial
Operating Speed: High Speed
Send Inquiry

Product Description

⚙️ Basic Information

Model NO.:YVF-80M2-6
Number of Stator:Three-Phase
Species:YVP Series Frequency Control
Rotor Structure:Squirrel-Cage
Casing Protection:Closed Type (IP55)
Number of Poles:2/4/6/8
Starting Mode:Direct on-line Starting
Certification:ISO9001, CCC, CE
Insulation Class:F
HS Code:8501520000

📘 Product Description

Variable Frequency Motor

YVF2 series variable frequency adjustable speed three-phase asynchronous motor is designed for high-performance speed regulation. It maintains the same power rating and installation dimensions as the standard YVF series while optimizing the overall housing length for better thermal management.

Equipped with a single axial fan for independent cooling, this series ensures stable temperature control even at low-frequency operations. It is compatible with various global frequency conversion devices, offering significant energy savings and strong overload capacity.

🛠️ Conditions of Use

Rated Voltage380V
Rated Frequency50Hz
Working ModeS1 (Continuous Working System)
AltitudeNot exceeding 1000m above sea level
Ambient Temperature-20°C to 40°C
Relative HumidityMax 95% (at 25°C)

📊 Specifications

  • Protection Level: IP55
  • Cooling Mode: IC416
  • Frequency Range: H80-H225 (5-100Hz), H250-H355 (3-100Hz)

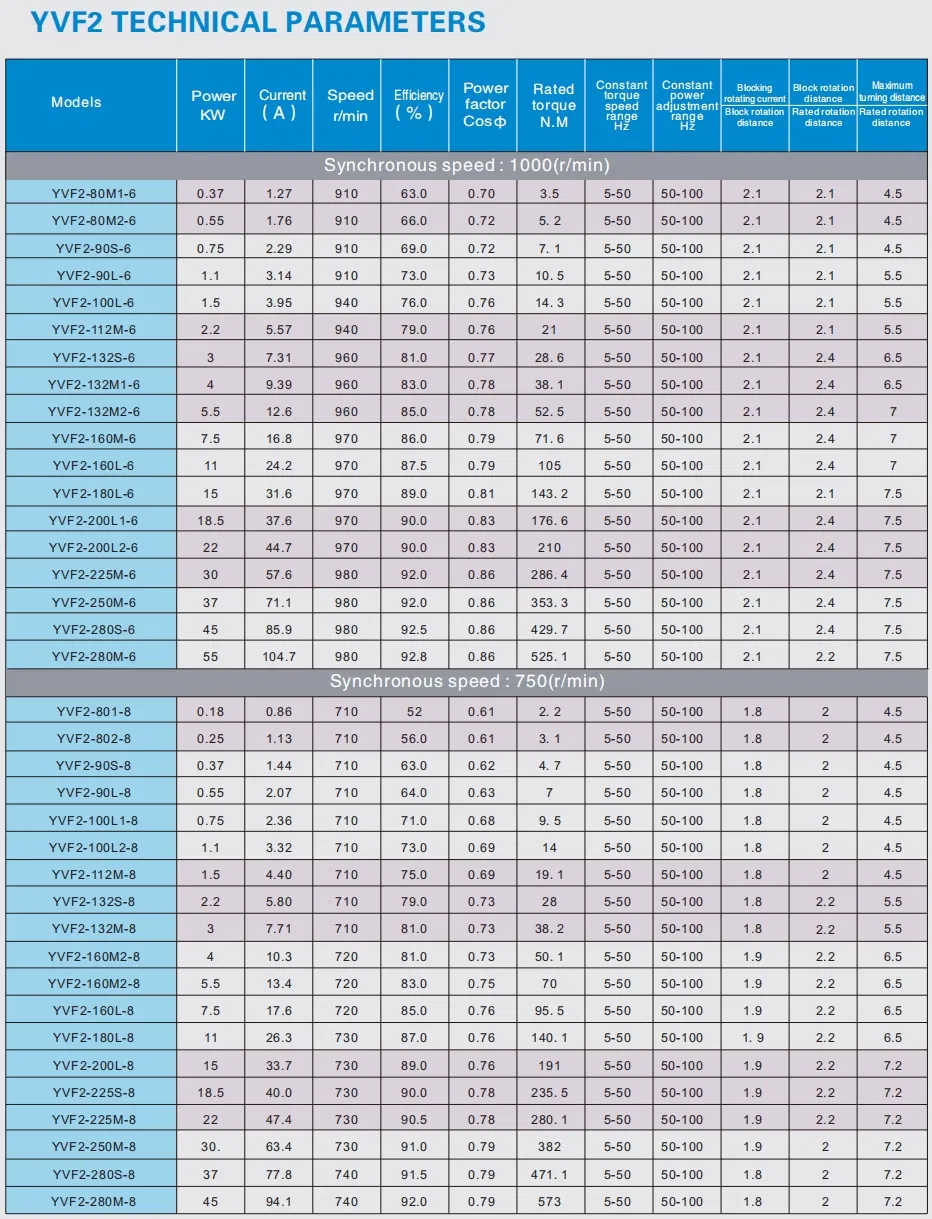

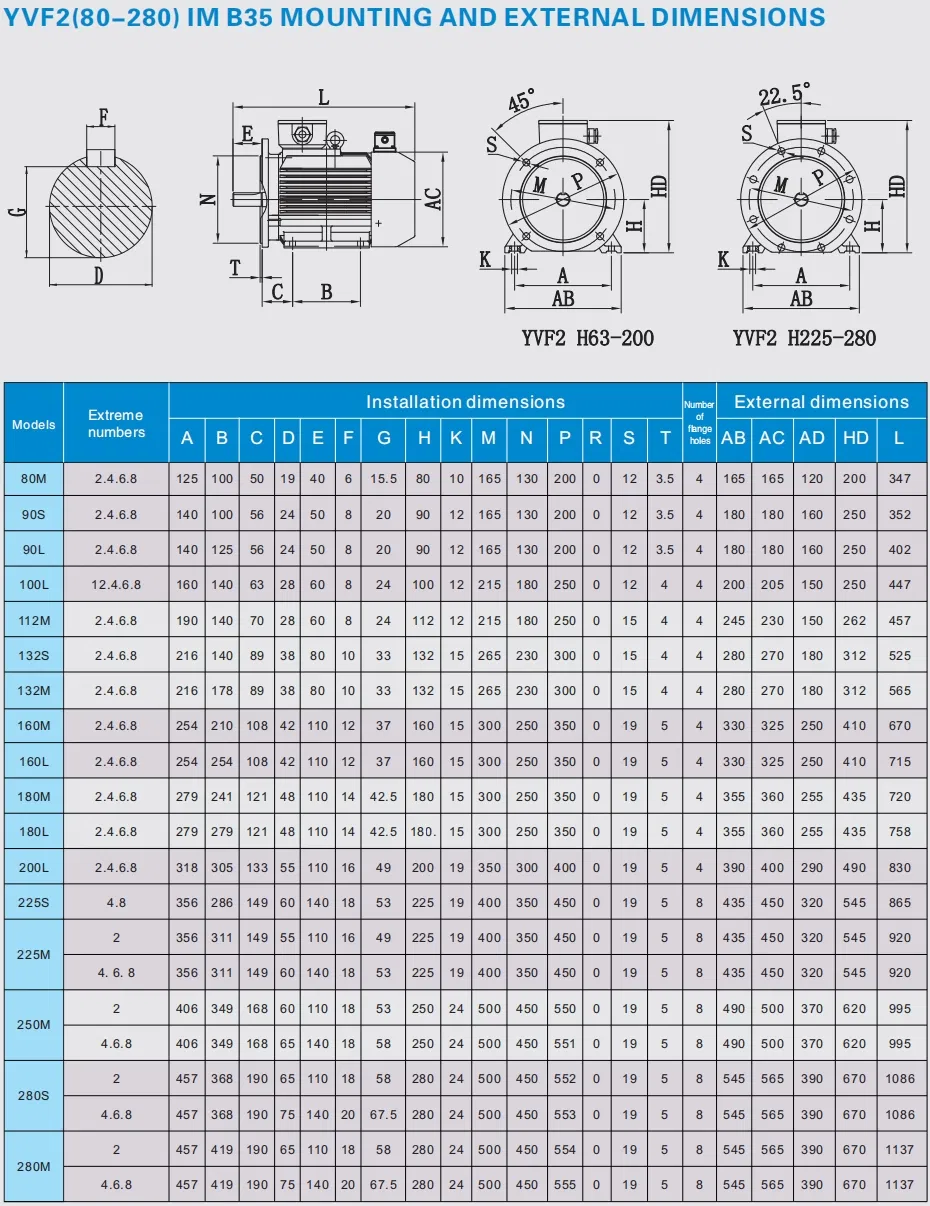

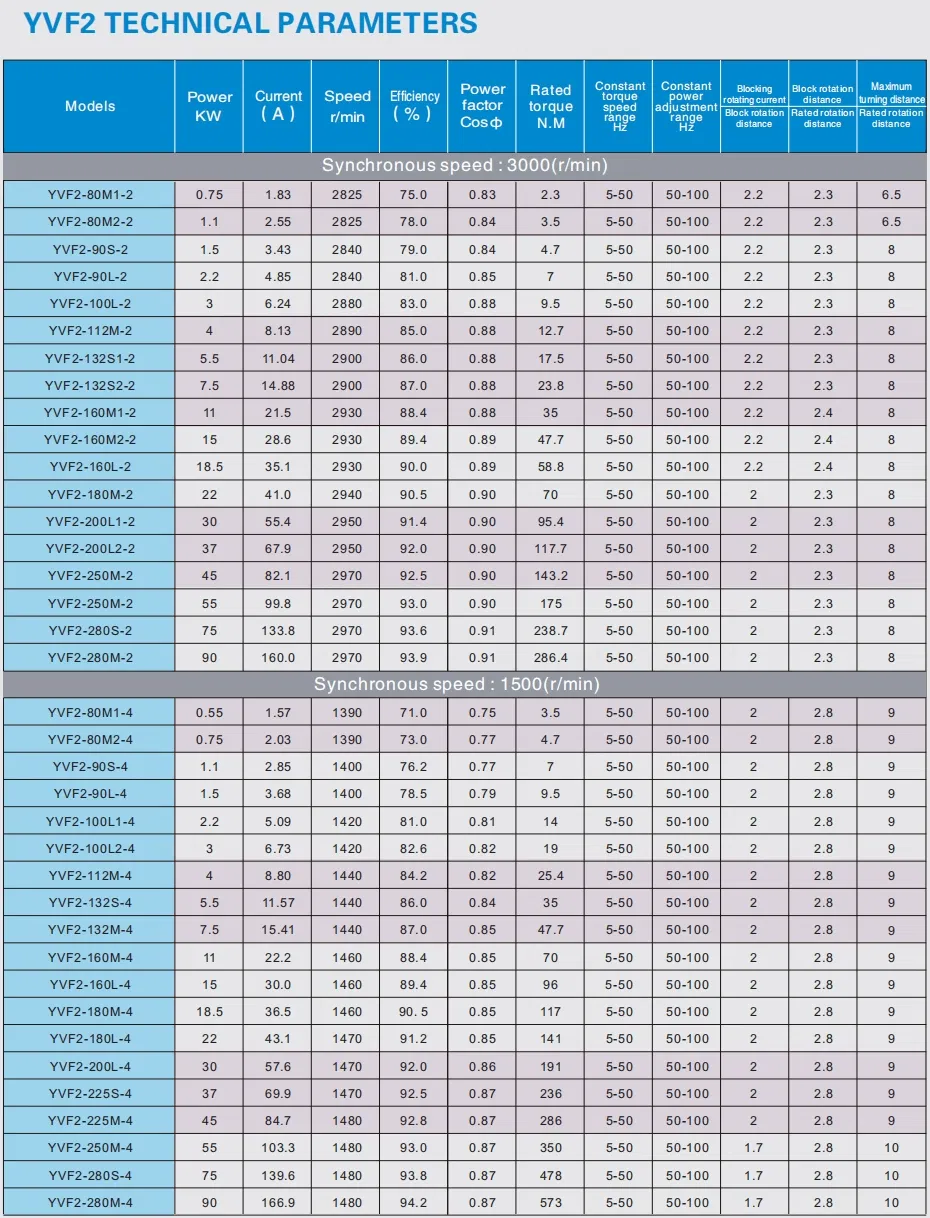

Specification Chart 1 Specification Chart 2 Specification Chart 3

🏗️ Structure & Appearance

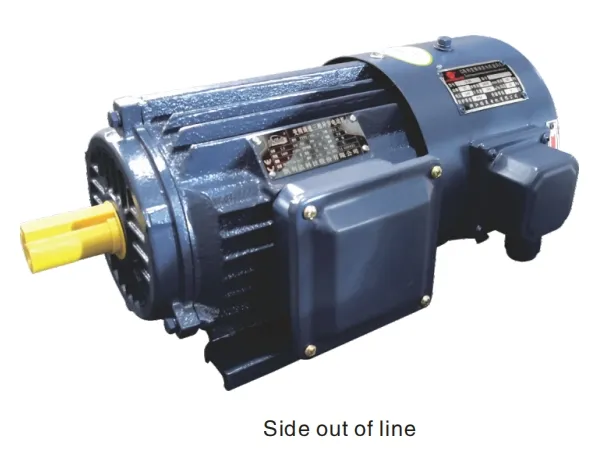

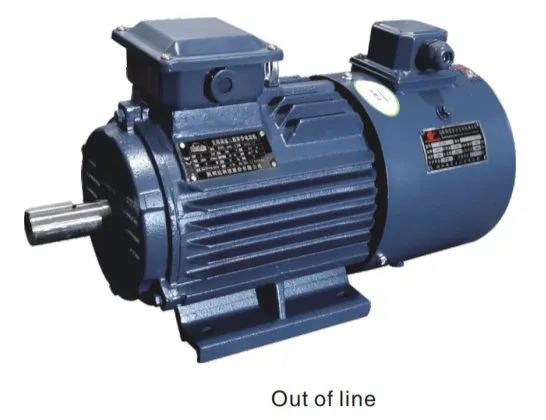

Motor Side View Motor Detail

📜 Certifications

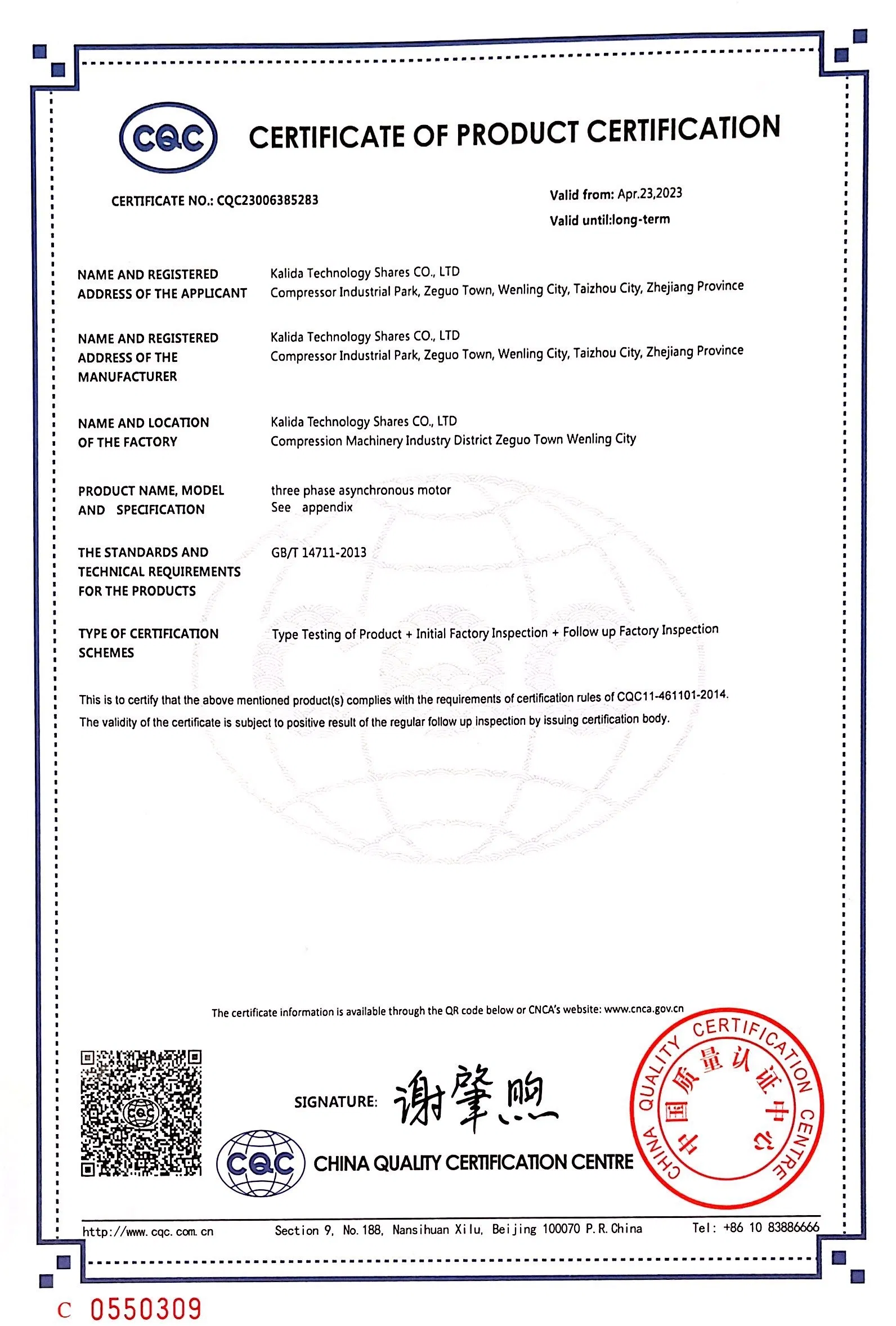

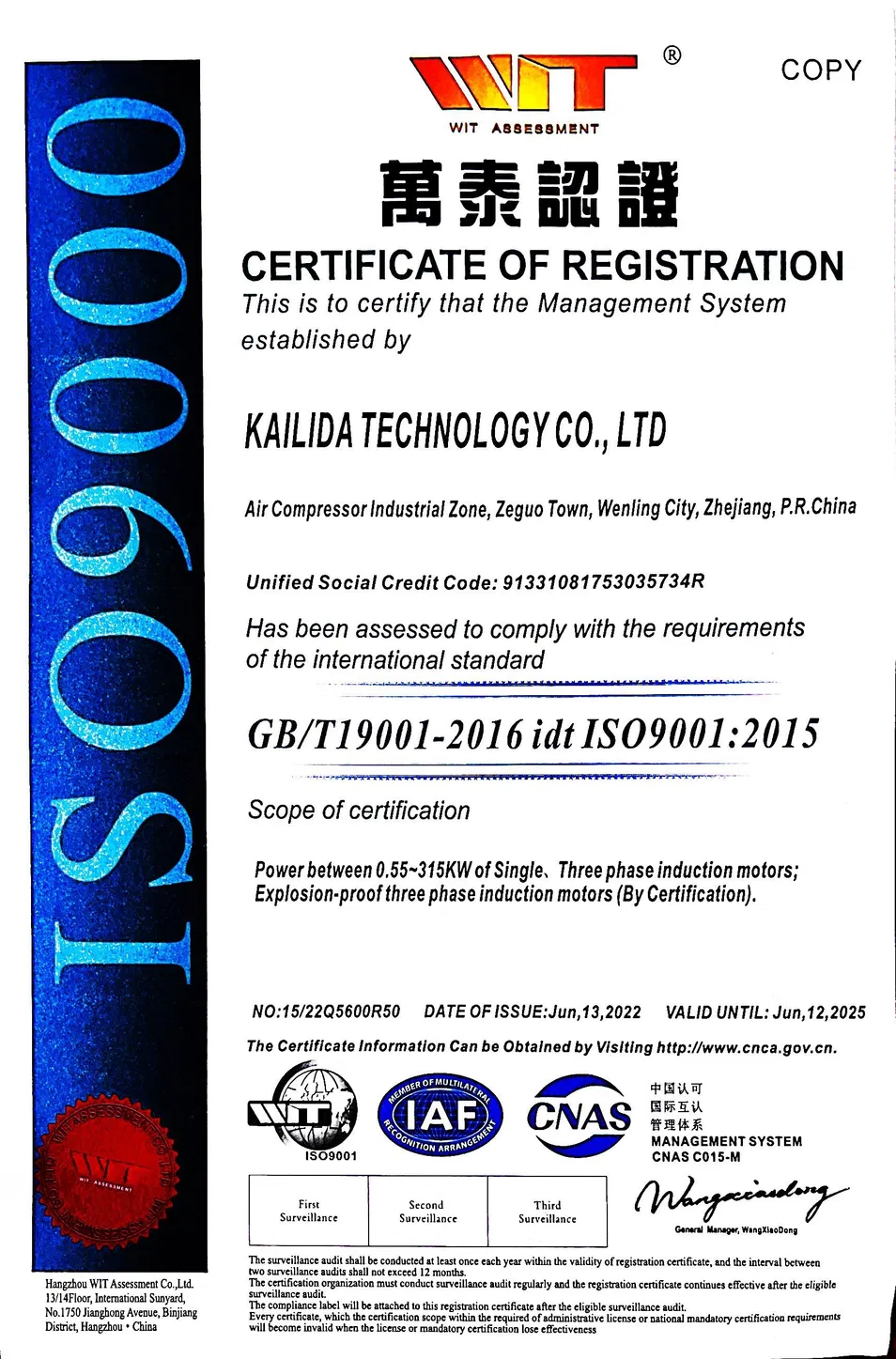

ISO Certification CE Certification

📦 Packaging & Shipping

Packaging Process 1 Packaging Process 2 Shipping Ready

🏭 Workshop & Production

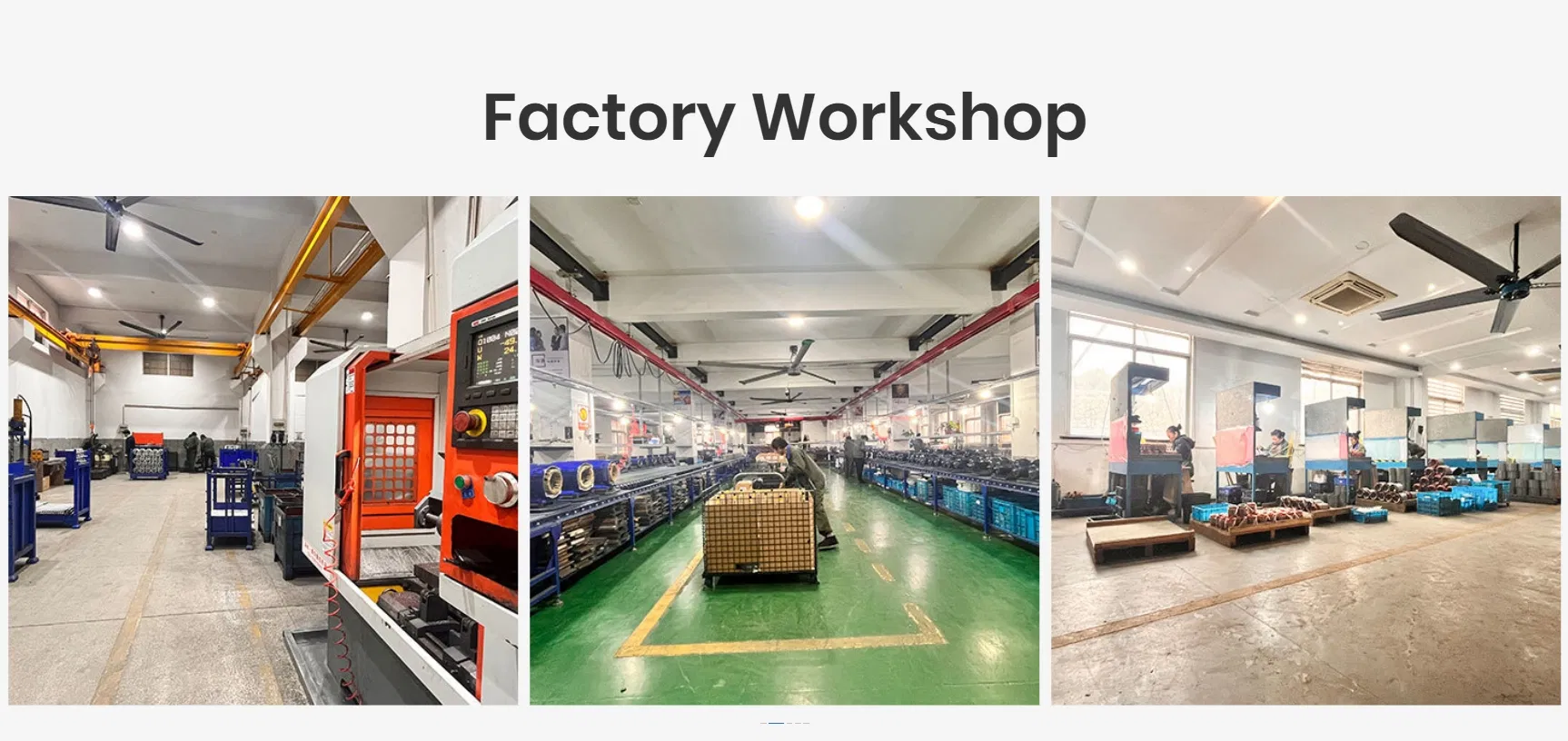

Factory Workshop Production Line

❓ Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer with extensive experience in the development and production of electric motors and industrial fans.
Q2: Do you provide OEM or ODM services?
A2: Yes, we provide both OEM and ODM customized services to meet specific client requirements.
Q3: How can I receive a quotation?
A3: You can leave a message with your purchase requirements, and our team will respond within one business hour.
Q4: Is it possible to purchase a sample?
A4: Yes, sample orders are available for quality verification.
Q5: How do you handle quality control?
A5: Our professional QC team inspects the quality throughout the entire production process and conducts rigorous testing before shipment.
Q6: What is the warranty period for the motors?
A6: We offer a one-year warranty. During this period, we provide free replacement parts for any issues arising from standard operation.
