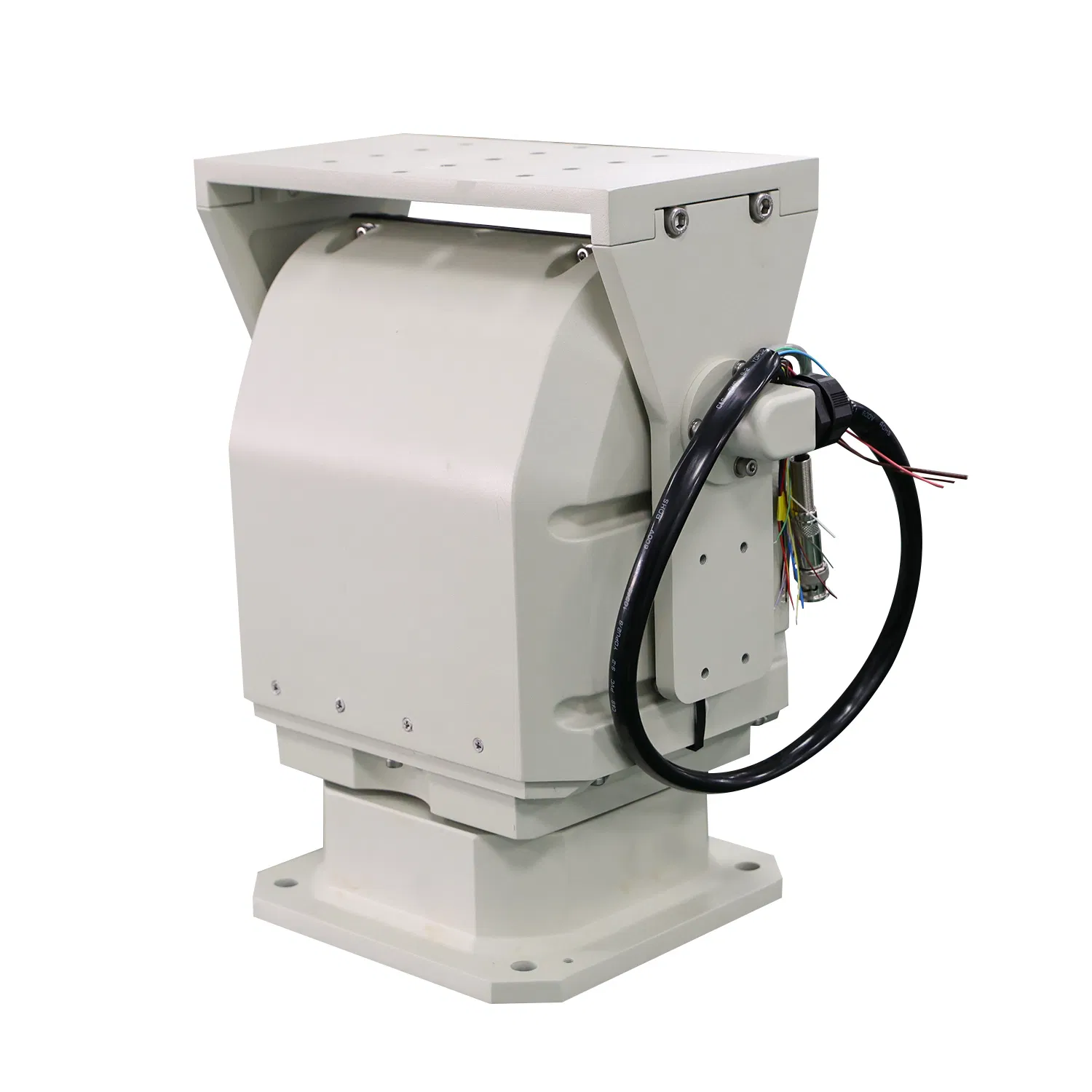

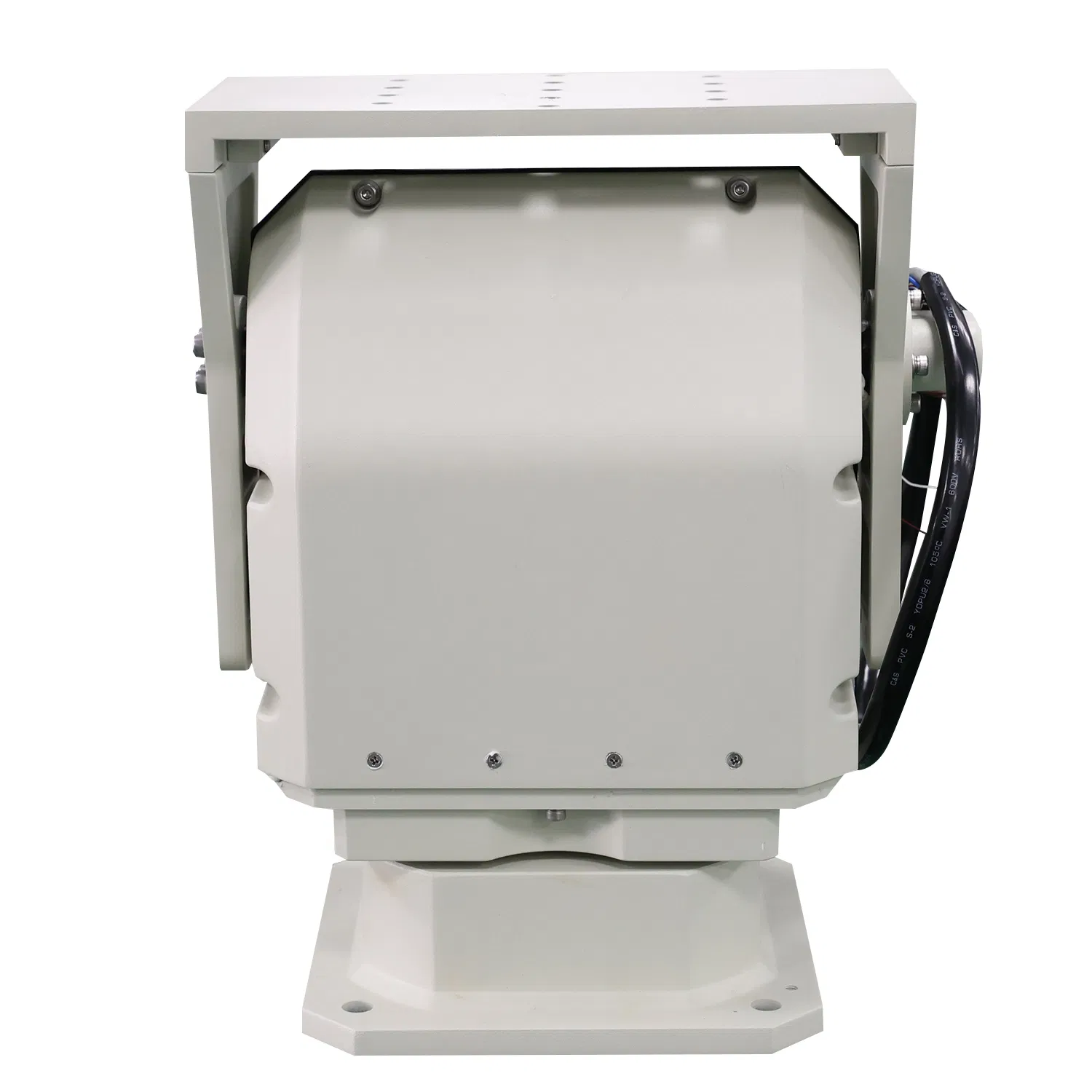

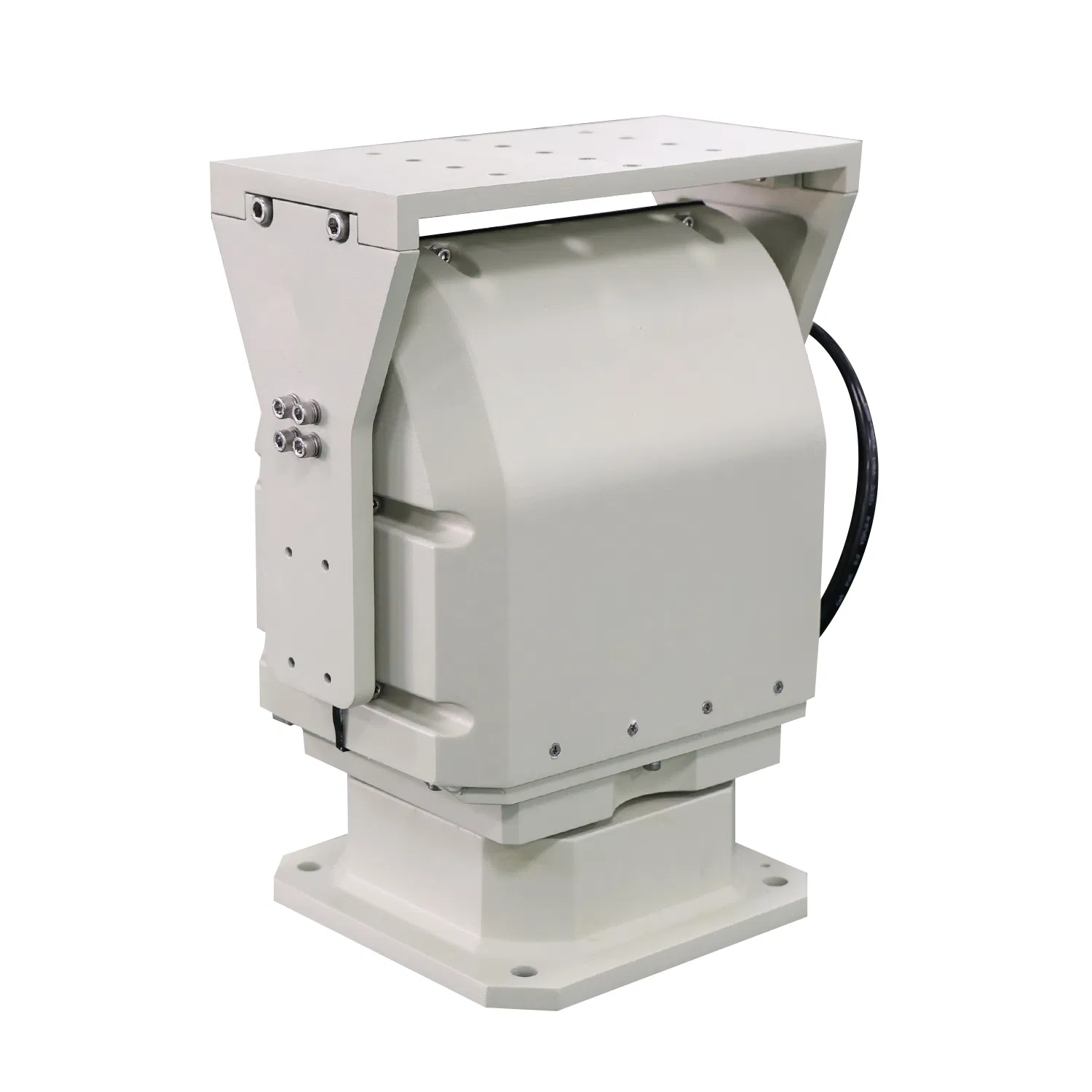

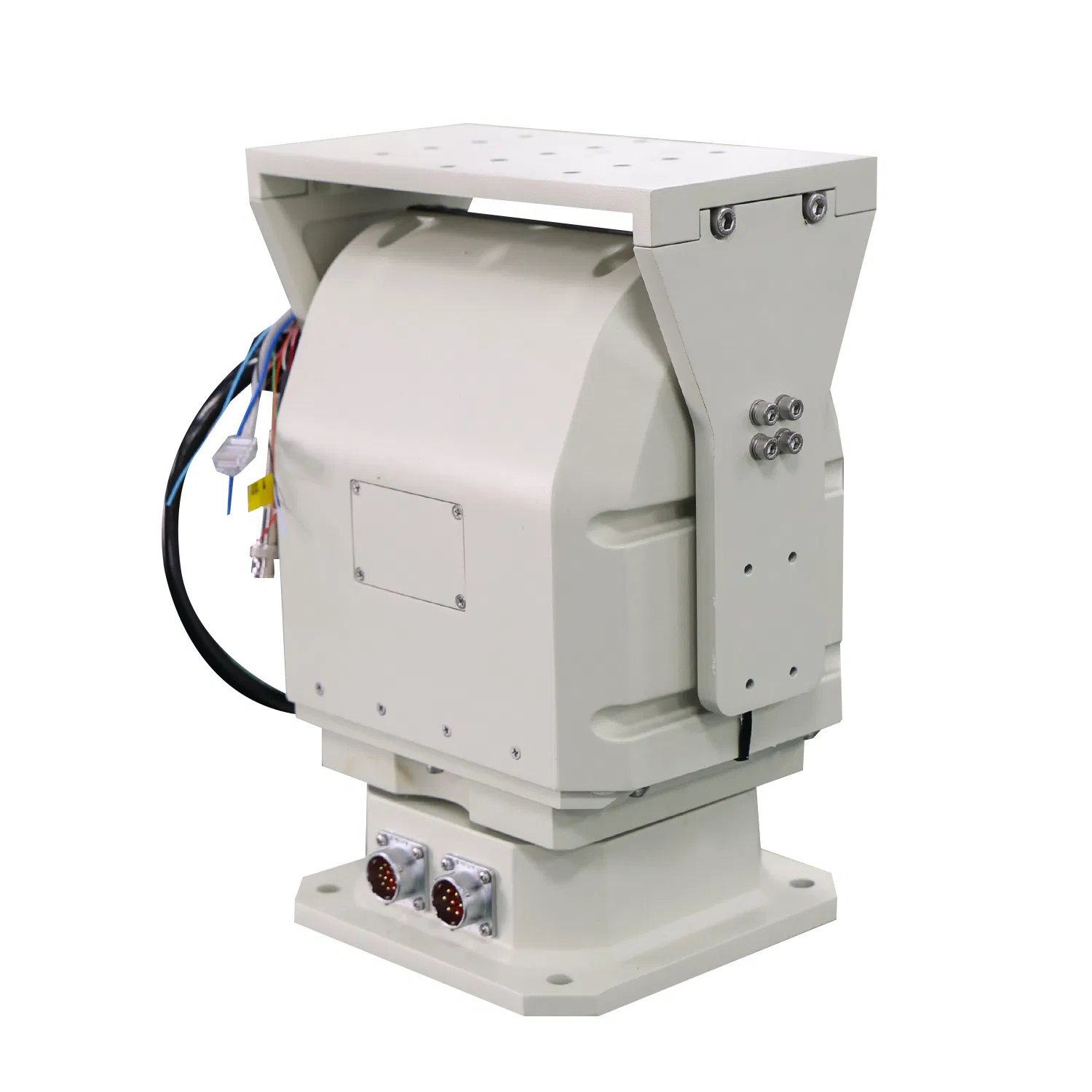

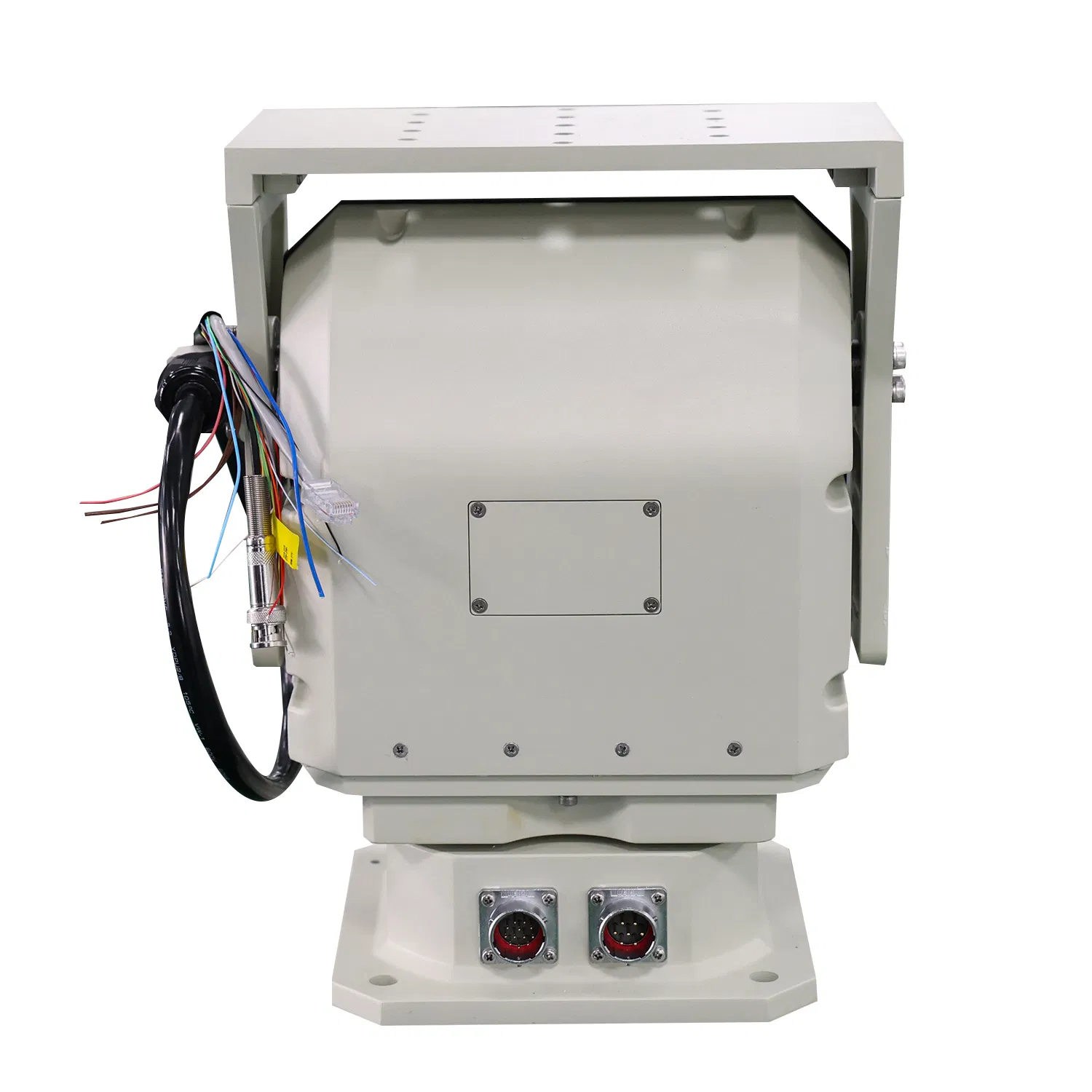

10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
1 / 5
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized

10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SHR-SP2510
Type
IP Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
420tvl
Kind
Autofocus Lens
Certification
CE, FCC, ISO9001: 2000
Feature
Waterproof, High Definition
Effective Distance
≧30m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Resolution
324*256(640*512 Optional)
Interface
RS485
Operation Temp
-25 ~+65 Celcius
Protection Class
IP66
Max Load
35kg
Dimensions
265mm*180mm*315mm
Power
≤70W
🔍 Product Description

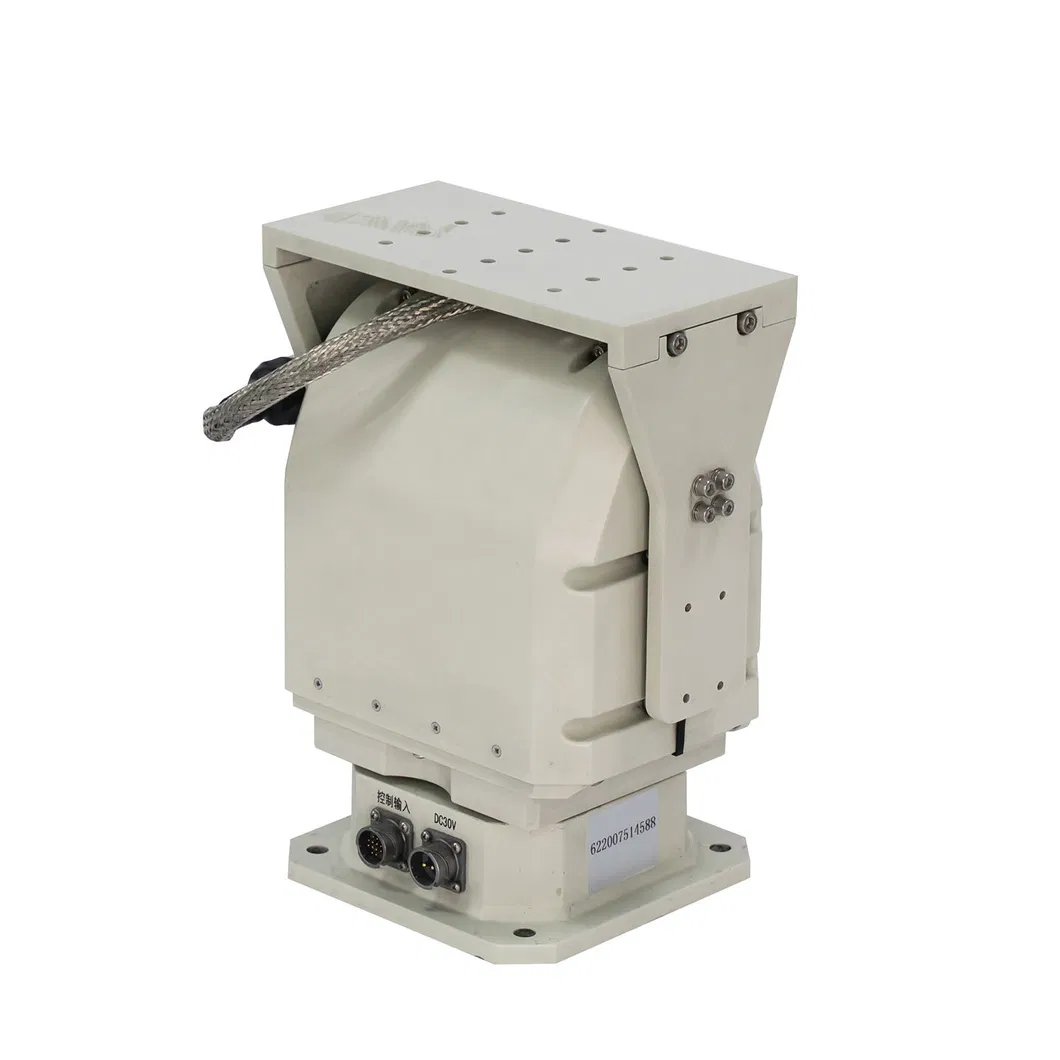

Heavy Duty Pantilt Motorized

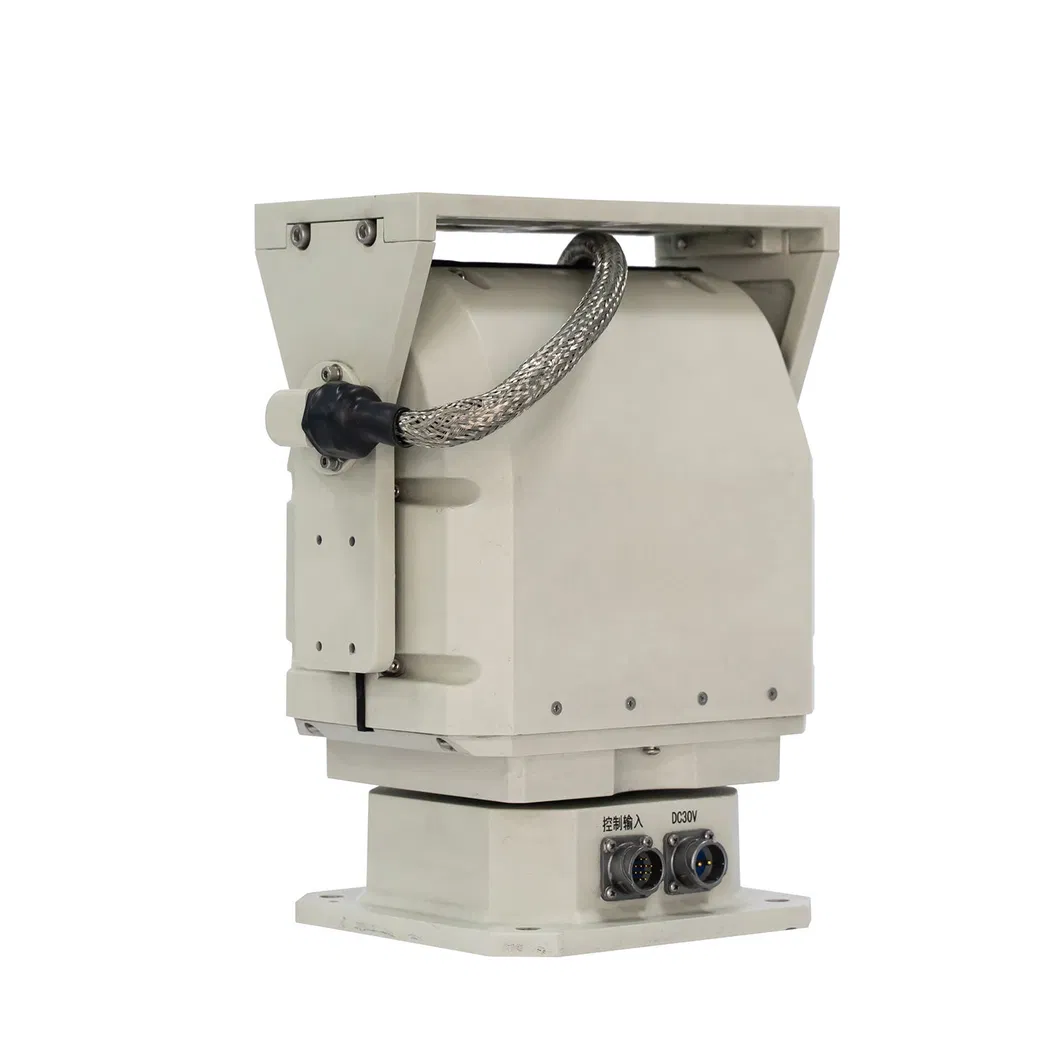

Outdoor Waterproof Pantilt
✔
Flexible Load Capacity: Supports maximum loads of 10kg, 15kg, and 20kg.
✔
Preset Functions: Supports various Lens preset functions for efficient monitoring.
✔
High-Speed Movement: Pan tilt speed reaches up to 60º/s.
✔
Precision Engineering: High resetting accuracy up to ±0.1º with die-cast aluminum alloy.
✔
Durable Build: IP66 protection class with high-strength gear-driven, self-locking mechanism.
Technical Specifications Details
ModelSP2510SP2515SP2520
Rotating SpeedPan: 0.01º~60º/sPan: 0.01º~45º/sPan: 0.01º~20º/s
Rotation AnglePan: 0º~360º continuous, Tilt: +20º~-60º
Preset Accuracy±0.1º (200 Presets)
InterfaceRS485, supporting angle query returns
Input VoltageAC24V±20%, 50/60HZ; DC28V±20%
Max Load10kg15kg20kg
Protection ClassIP66
🏭 Manufacturing Excellence

Founded in 2004, the facility is a leading provider of night vision and rugged information equipment. Adhering to independent innovation, it developed the world's first laser night vision camera and uncooled continuous zoom infrared thermal imaging cameras. With synchronous zoom laser technology and continuous zoom thermal imaging expertise, the products meet international advanced standards and hold significant market share globally.

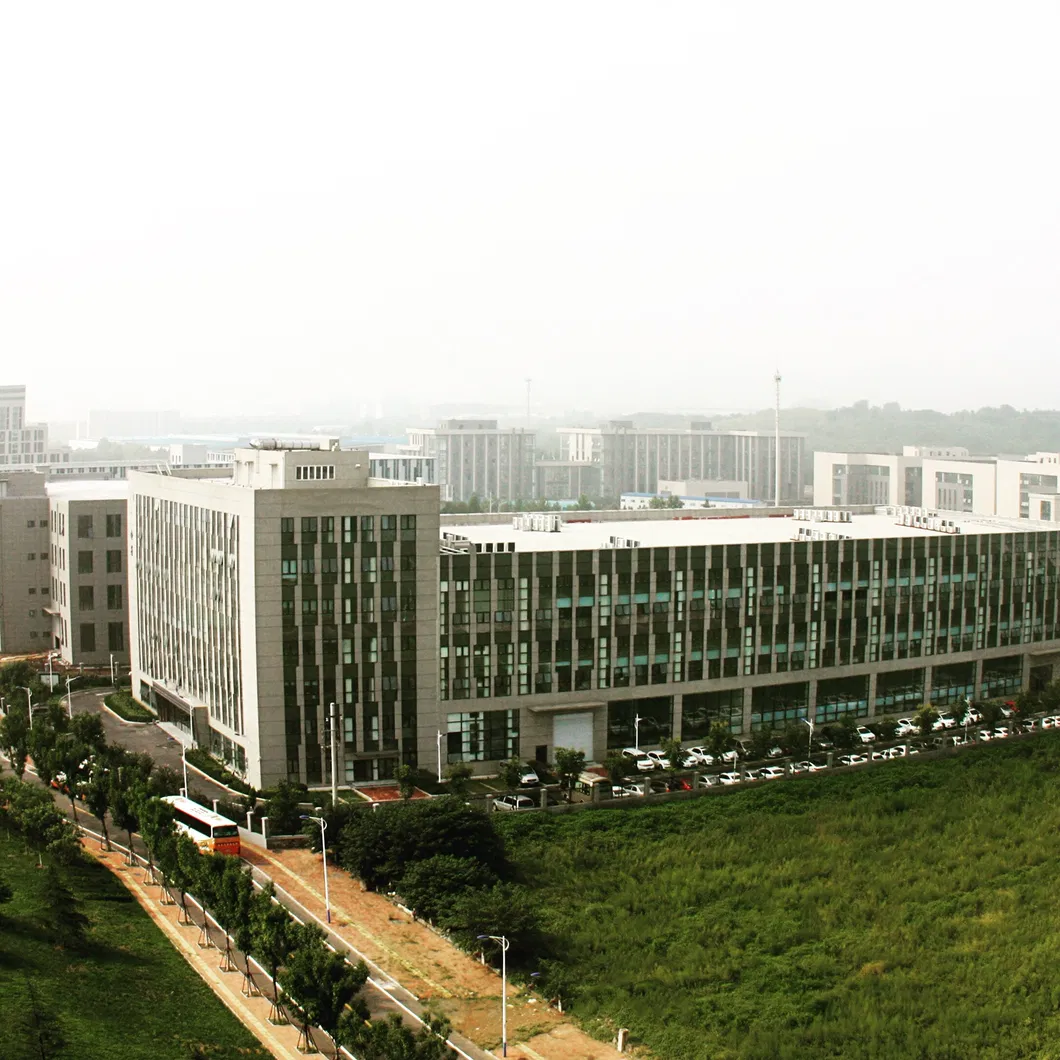

Manufacturing Facility
Banner
❓ Frequently Asked Questions
➤ What is the maximum weight capacity for these pan-tilt motors?
The series offers models with different load capacities, specifically 10kg, 15kg, and up to 20kg for heavy-duty applications.
➤ Are these units suitable for extreme outdoor weather?
Yes, they are rated with an IP66 protection class and can operate in temperatures ranging from -25°C to +65°C, making them ideal for outdoor environments.
➤ How accurate is the positioning of the pan-tilt head?
These units feature high resetting accuracy of ±0.1º, ensuring precise monitoring and target tracking.
➤ What control protocols do these devices support?
They primarily support Pelco-D and Pelco-P protocols via an RS485 interface, with options for RS422 real-time returns.
➤ Can I preset specific monitoring points?
Yes, the system supports up to 200 presets and 8 cruising tracks, with each track holding up to 10 presets.
➤ What is the power requirement for the SP25 series?
The units operate on AC24V ±20% (50/60HZ) or DC28V ±20%, with a maximum power consumption of ≤70W.
