Basic Information
| Model NO. | MY-712-4 |
| Number of Stator | Single-Phase |
| Rotor Structure | Squirrel-Cage |
| Casing Protection | Closed Type |
| Number of Poles | 4 |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC |
| Motor Power | 0.37kw |
| Voltage/Frequency | 220-240V 50/60Hz |
| Cooling Method | IC411 |
| Mounting Arrangement | B3, B35, B5, V1 |
| Protection Class | IP55 IP56 |
| Ambient Temp. | -10℃~40℃ |
| Standard | IEC/GB/DIN En |
| Duty | S1 |
| Altitude | ≤1000m |
| Air Humidity | ≤60% at 40℃ |
| HS Code | 8501520090 |
Product Description

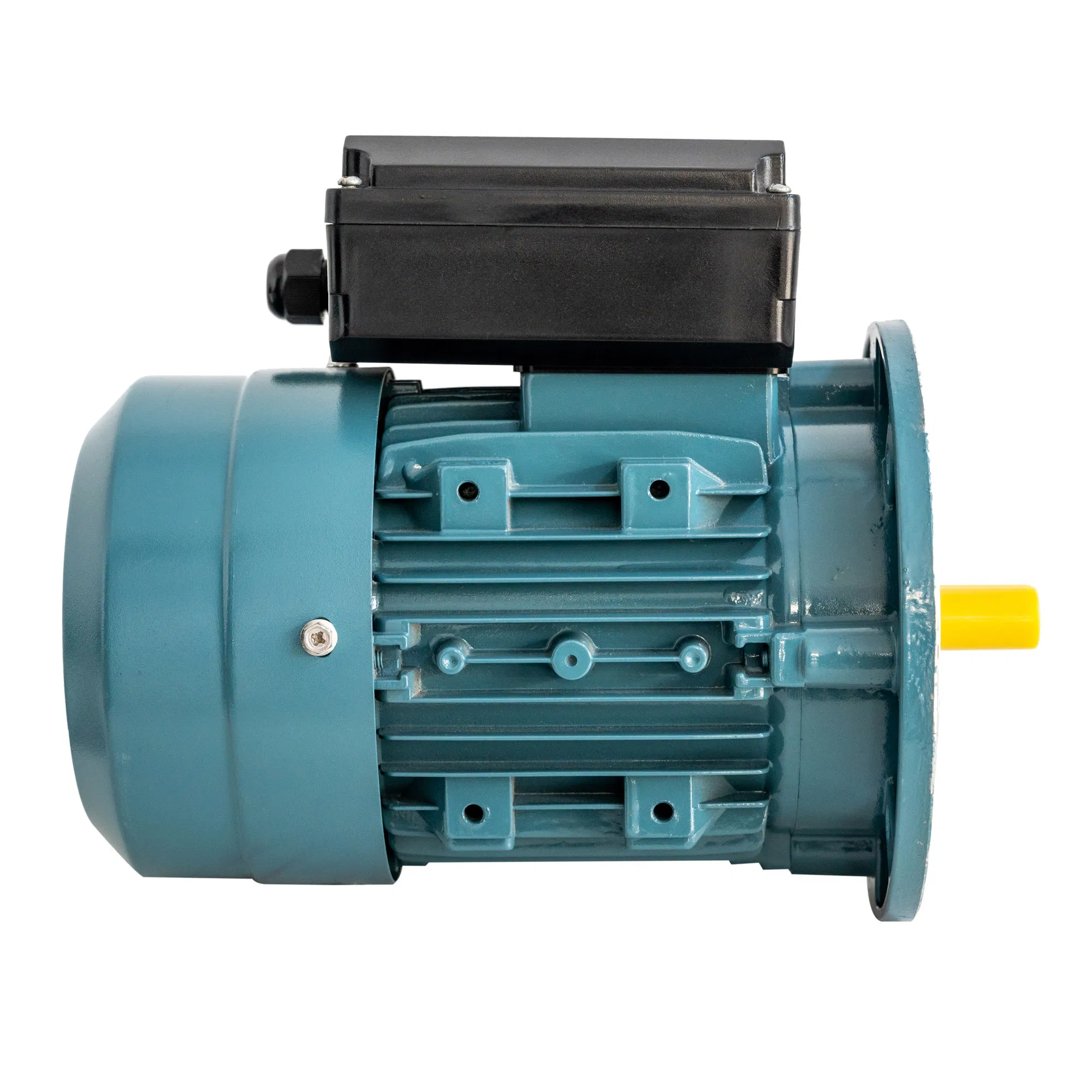

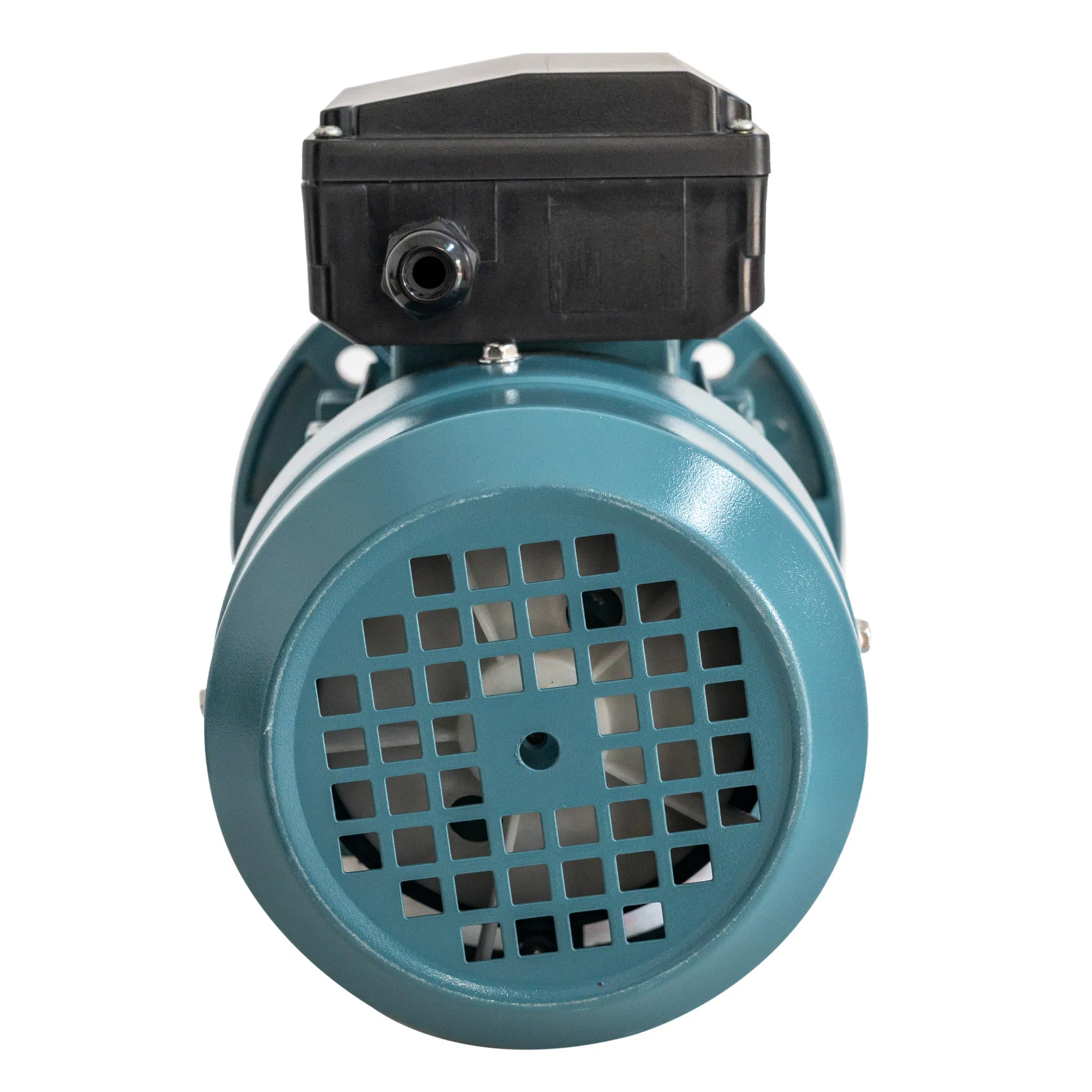

Single-Phase Asynchronous Motor
The aluminum-shell series single-phase asynchronous motors are totally-enclosed self-fan-cooled squirrel-cage AC asynchronous motors. They can operate with a single capacitor or start with a double-capacitor and are equipped with an electronic centrifugal switch. The motor body is entirely formed by aluminum alloy die-casting, which makes it lightweight. The feet are detachable, offering convenience in use and presenting an aesthetic appearance.

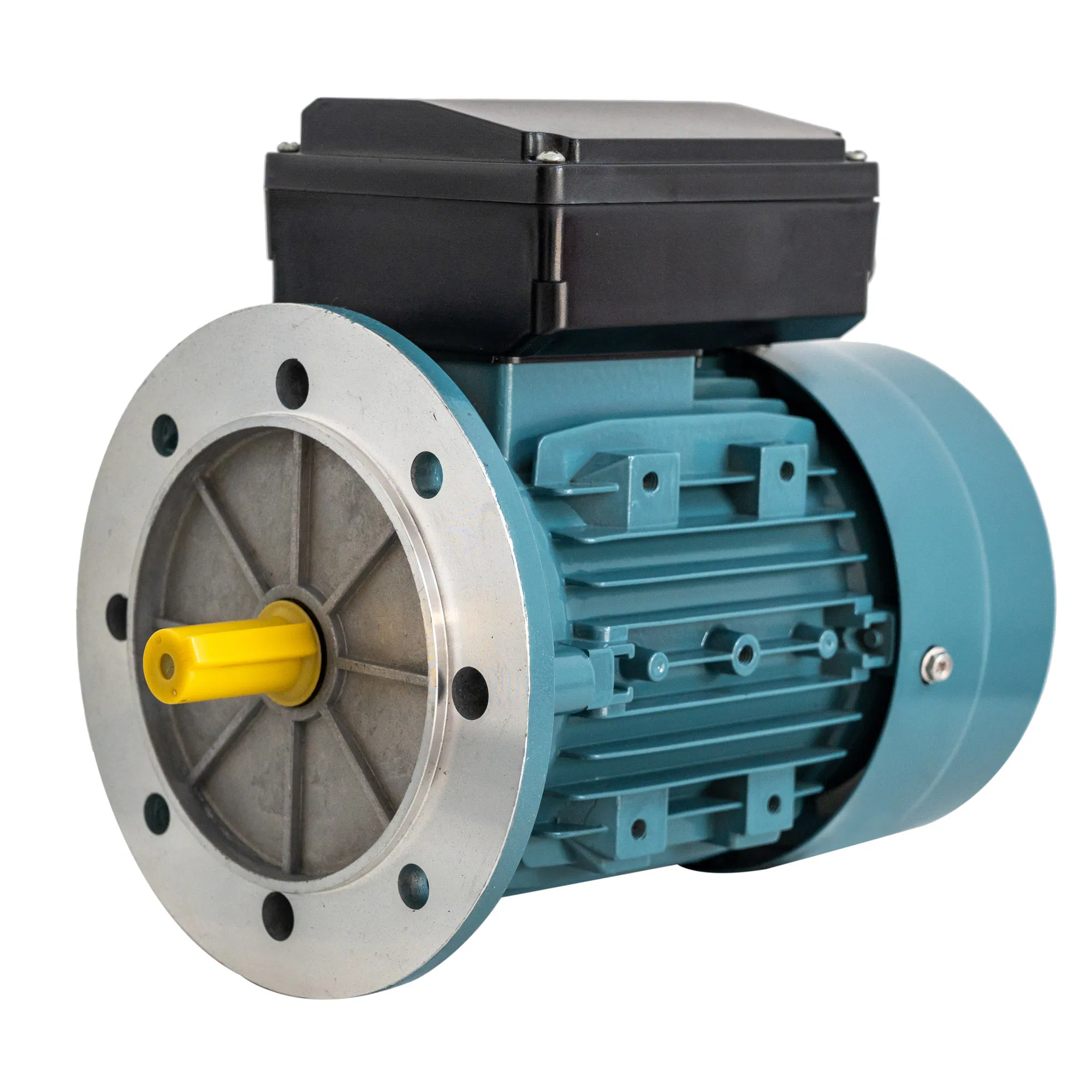

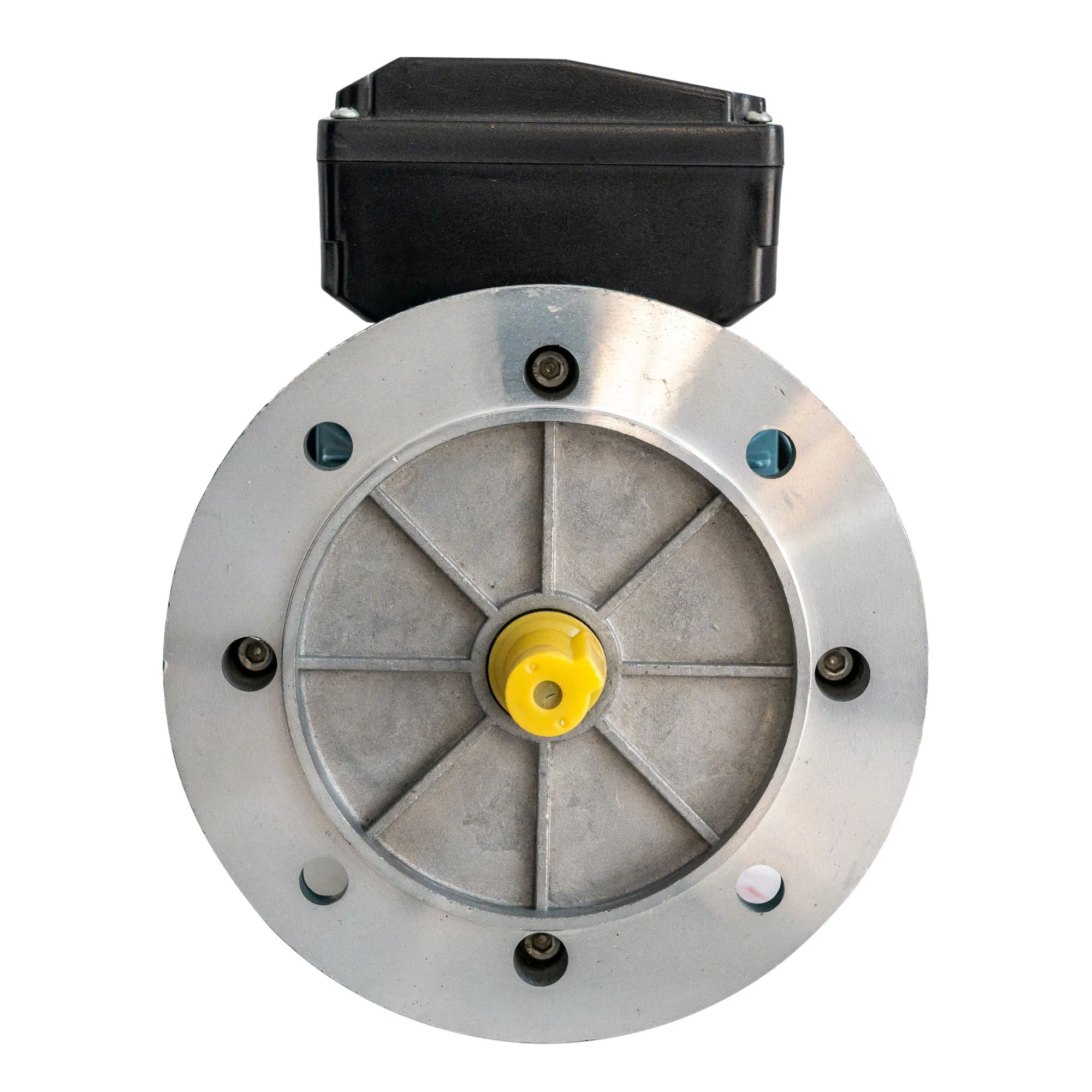

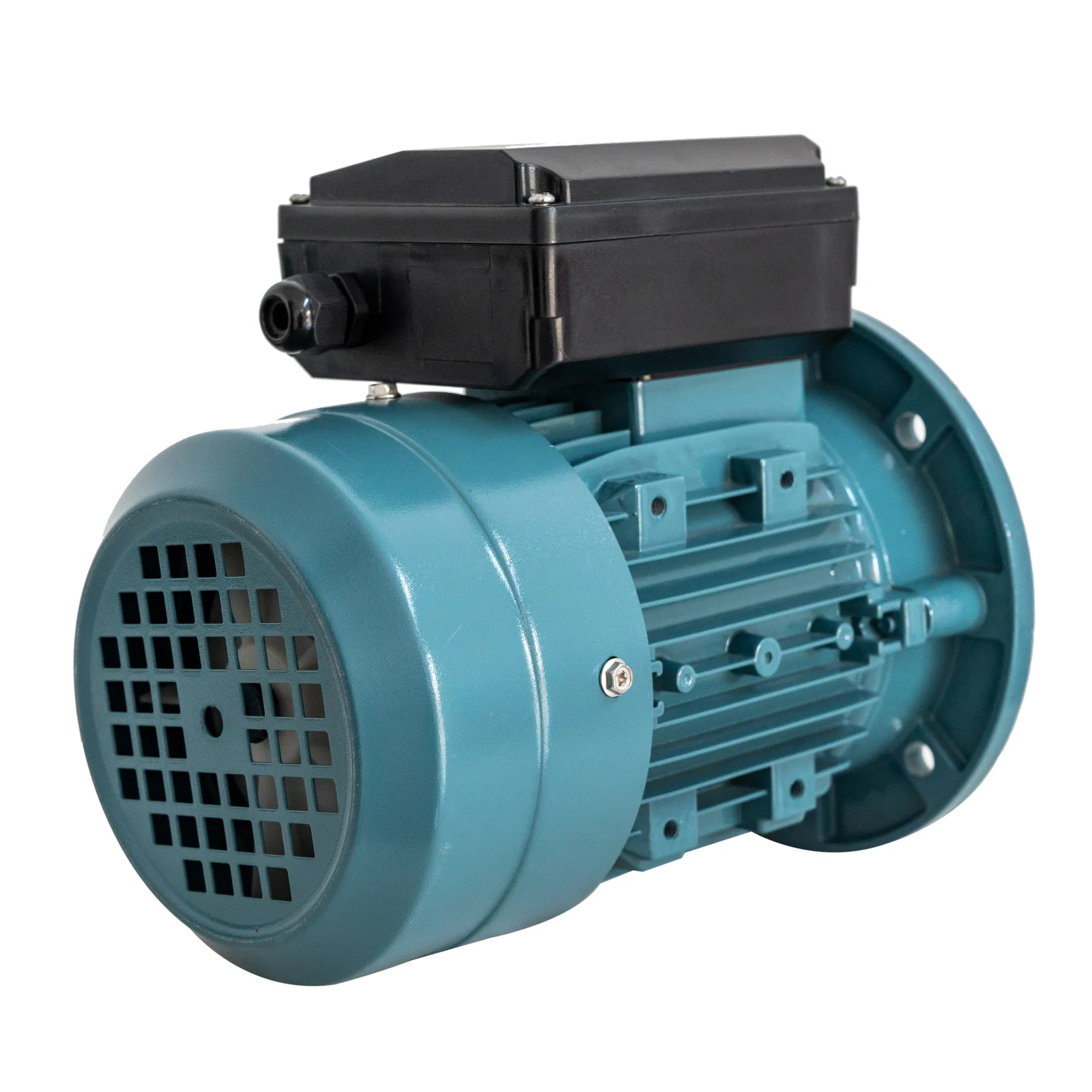

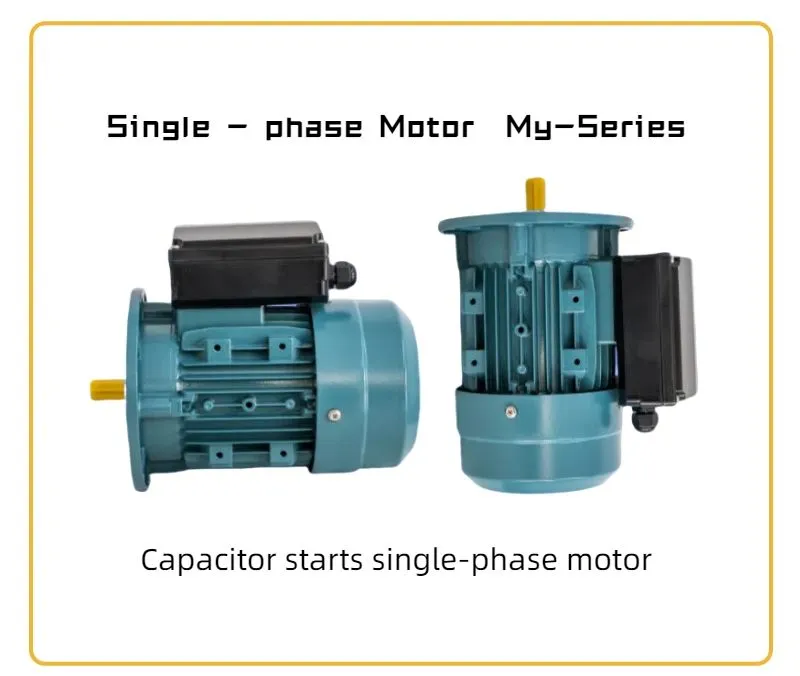

Detailed Photos
Product Parameters
- Power range: 0.12 - 2.2kW
- Frame size: 63 - 100
- Voltage and frequency: 220V/50Hz (Customizable)
- Cooling method: IC411
- Protection level: IP55
- Insulation class: Class 155 (F)
- Ambient temperature: -15°C to +40°C
- Altitude: Not exceeding 1000 meters above sea level
Industrial Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipment.

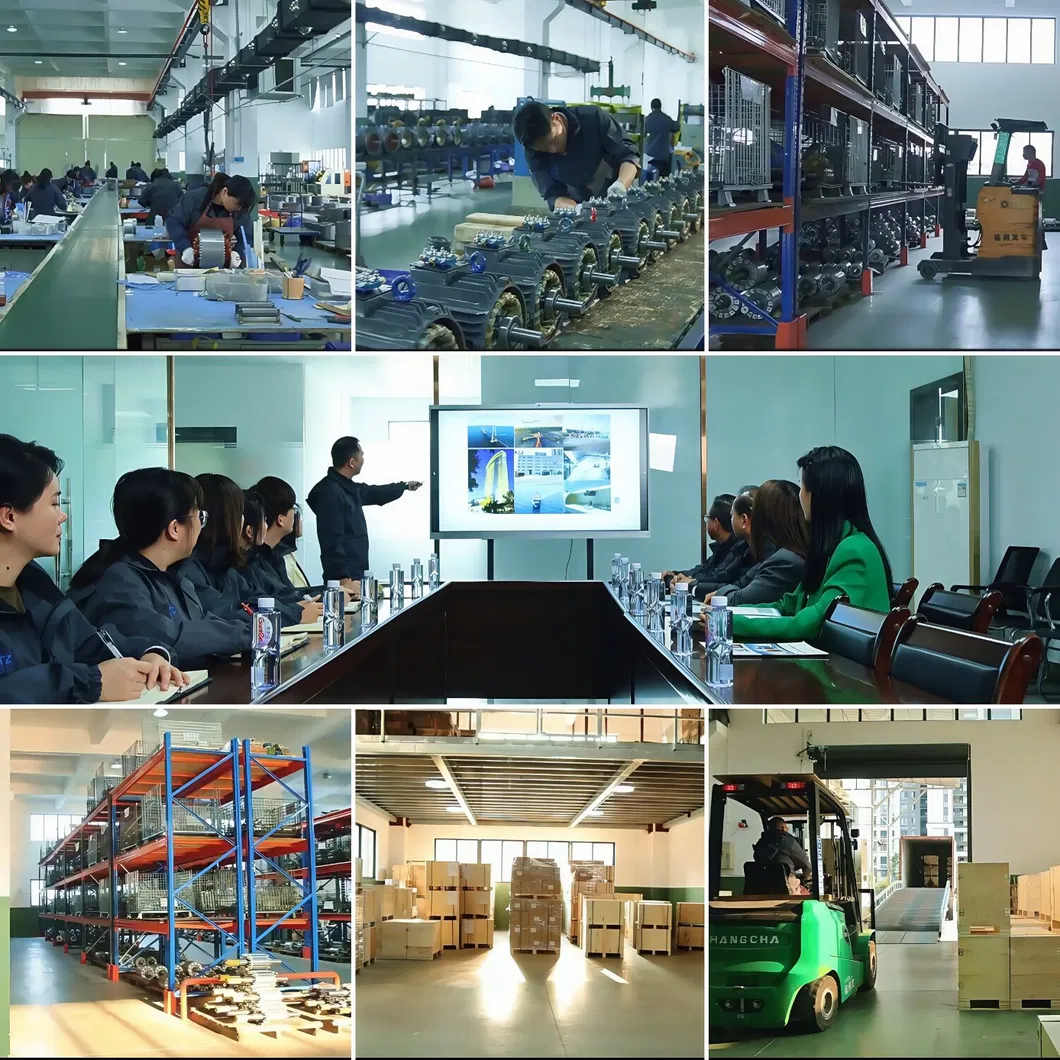

Our Service & Quality Control

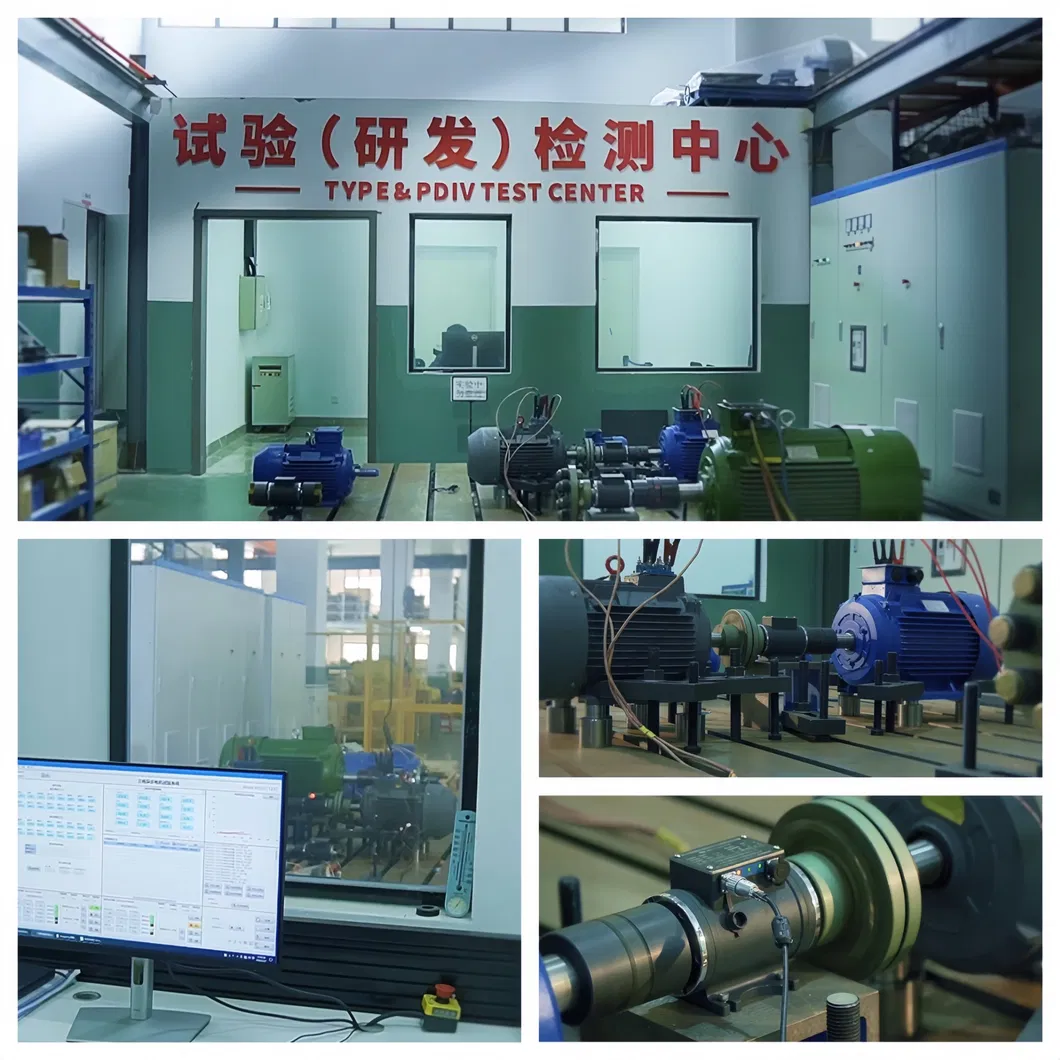

Test Center & Laboratory
Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, and single-phase asynchronous motor. Power range: 0.25-500KW, frequency: 0-500Hz.
Certifications
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer specializing in motor production.
Do you provide special custom motors?
Yes, we offer customization services according to your specific technical requirements.
What is your standard delivery time?
Normally, we deliver within one month. For urgent orders, we can expedite delivery to within 7-15 days.
What is the minimum order quantity (MOQ)?
The minimum order starts from just 1 set.
How long is the product shelf life or warranty?
Our products come with a 12-month quality guarantee.
Can I get a better price for large quantity orders?
Yes, we offer more competitive pricing for bulk orders and long-term partnerships.
