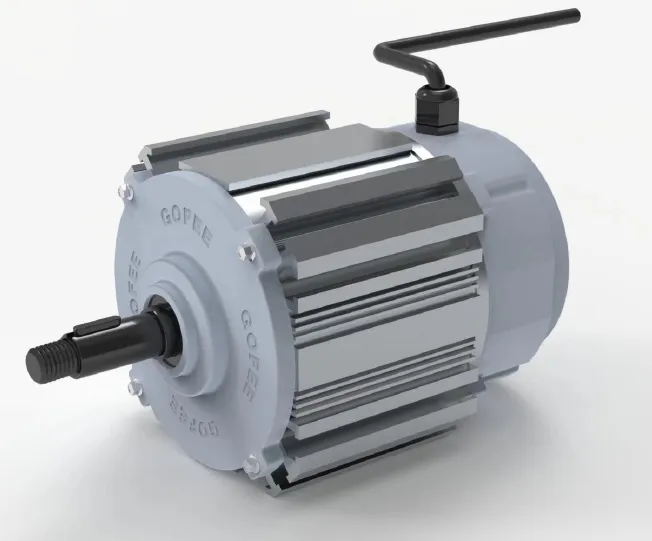

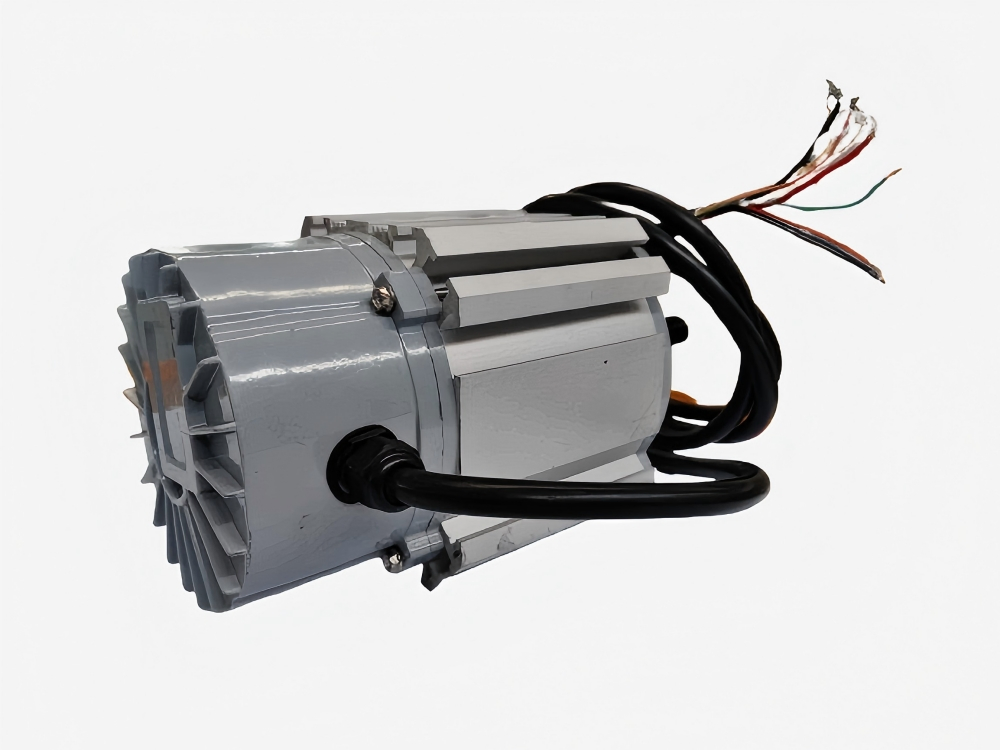

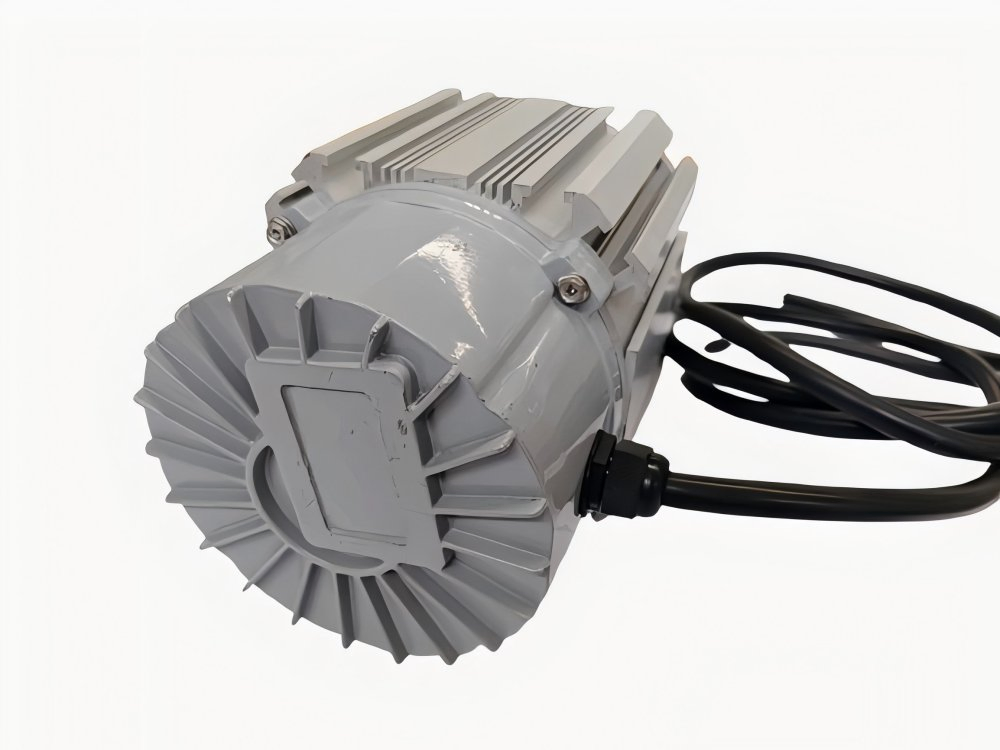

The Electronically Commutated Motor (ECM) represents a significant technological advancement in the field of fan motors, specifically engineered for superior performance, remarkable energy efficiency, and intelligent control.
An ECM is a type of brushless, DC-based motor that integrates advanced solid-state electronics for commutation and control. Unlike traditional AC induction motors, an ECM is a variable-speed motor that intelligently adjusts its output to precisely match the demand of the system.
1. Energy Efficiency: Massive reduction in energy consumption and lower operating costs.
2. Variable Speed Control: Demand-based operation with constant airflow regulation.
3. Reliability: Features Soft Start technology, quiet operation, and integrated electronics.
4. Durability: Reduced system stress ensures a longer service life.

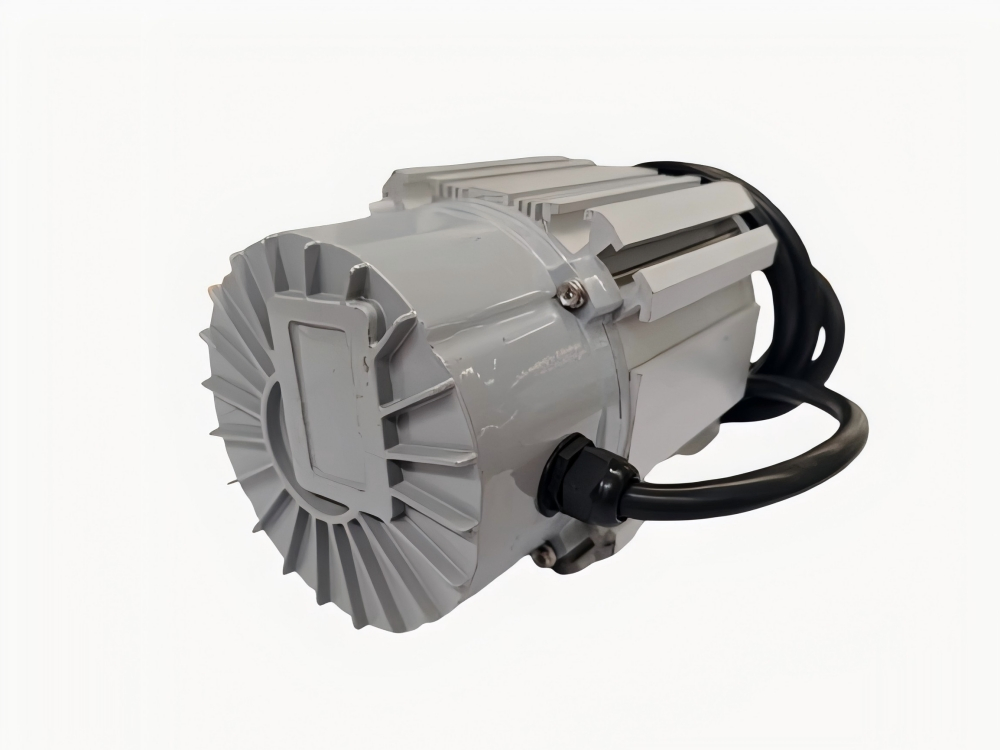

Right Elevation

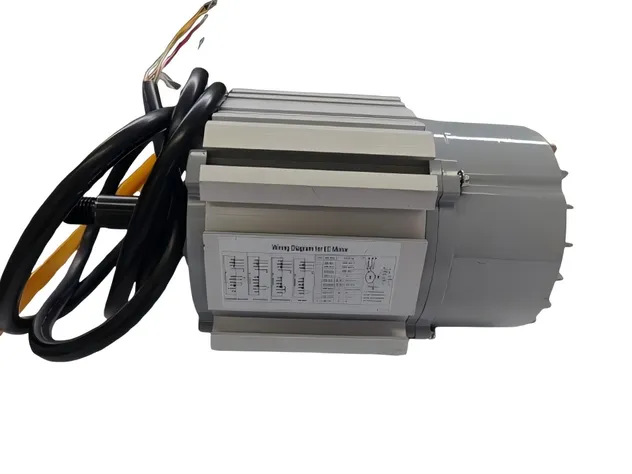

Left Elevation

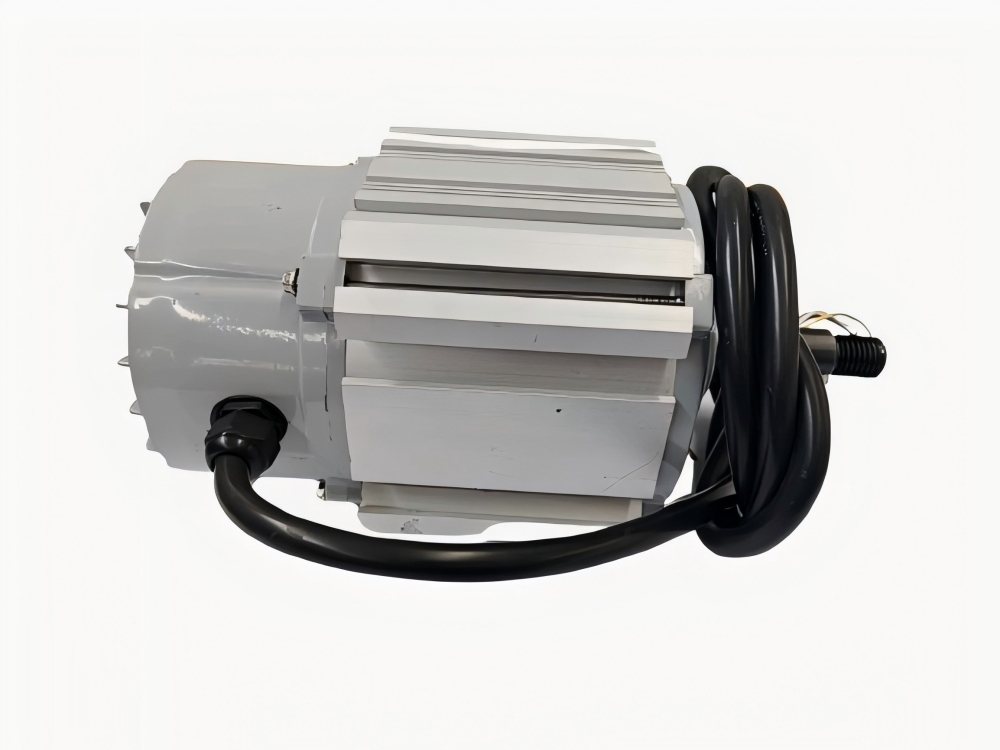

Front Elevation
| Model | Power (W) | Voltage (V) | Efficiency (%) | Current (A) | Weight (KG) |
|---|---|---|---|---|---|
| GFPM 370-720-380T | 370 | 380 | 78.4 | 0.78 | 9.8 |
| GFPM 550-800-380T | 550 | 380 | 81.9 | 1.11 | 10.2 |
| GFPM 750-1000-380T | 750 | 380 | 83.2 | 1.49 | 10.8 |
| GFPM 1100-650-380T | 1100 | 380 | 85.1 | 2.9 | 13.2 |
| GFPM 2200-750-380T | 2200 | 380 | 88.1 | 4.17 | 19.3 |

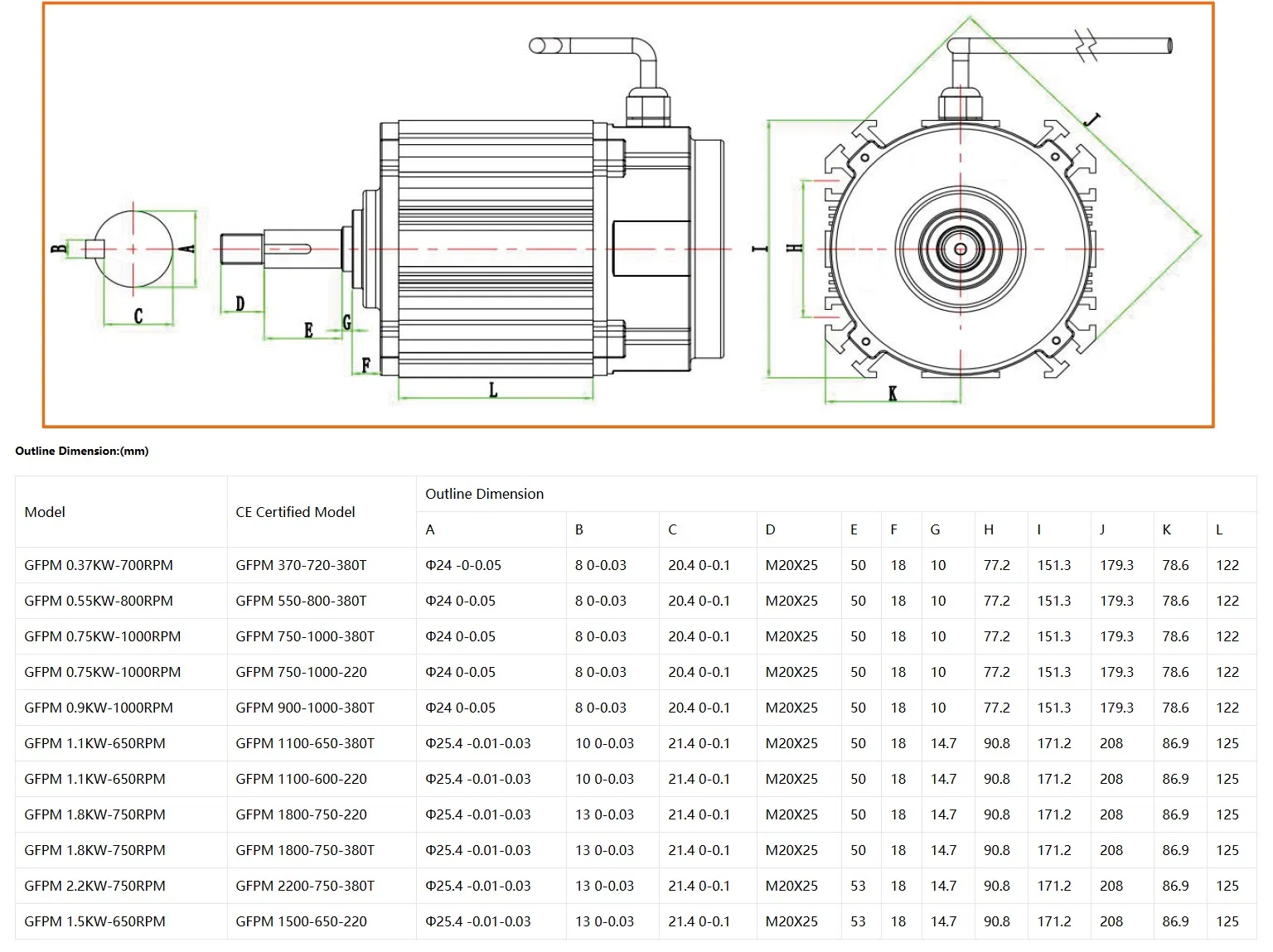

Note: Custom configurations are available upon request including detailed CAD drawings.
Standard Warranty: 12 months or 2,000 operating hours.
Extended Warranty: Optional coverage available up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: Comprehensive on-site or remote maintenance training.
