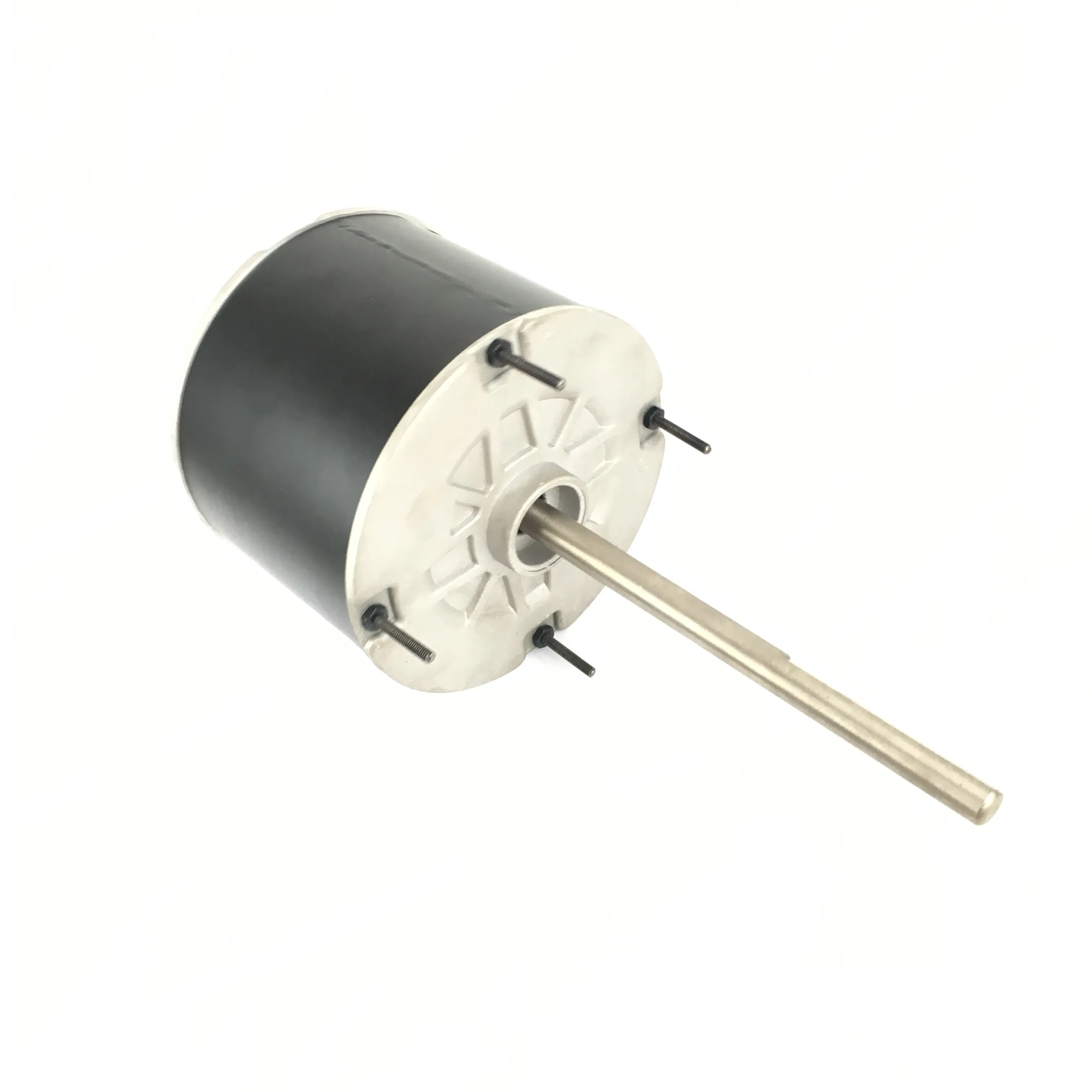

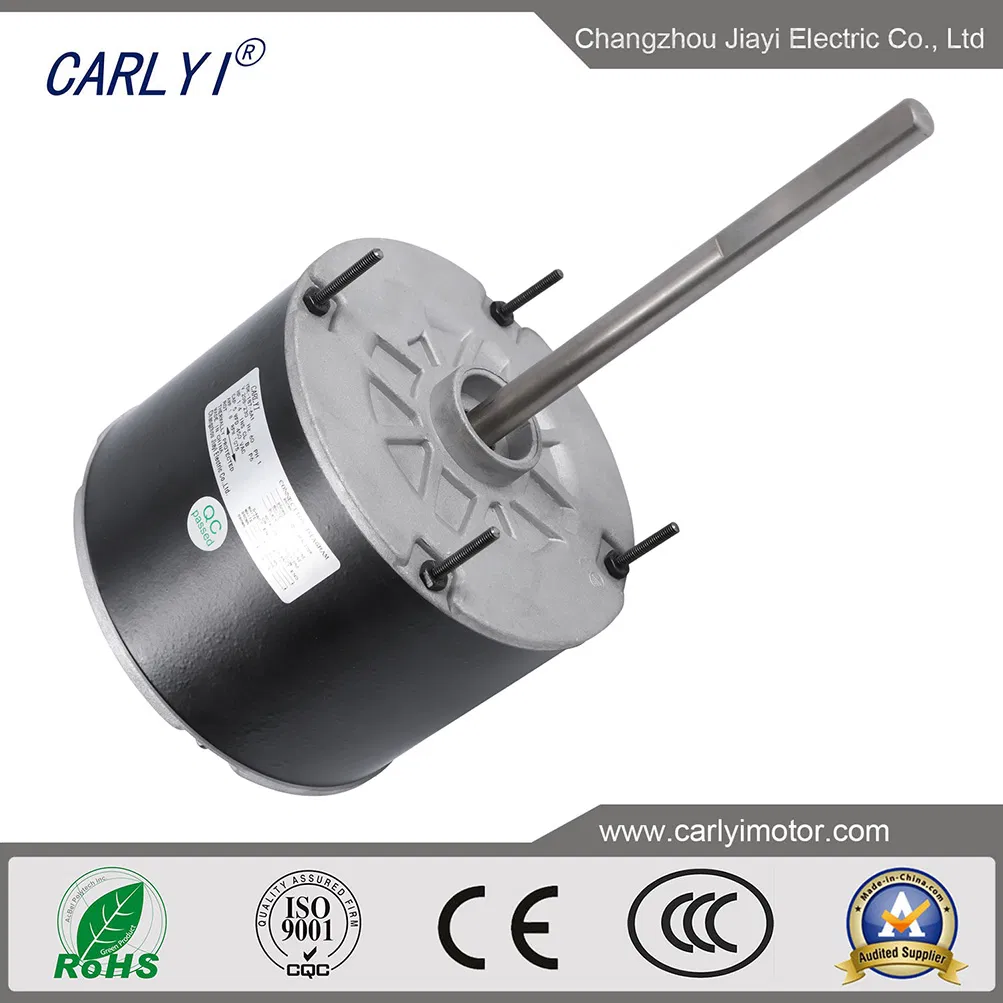

KPR Motor
1 / 5
| Model | Voltage (V) | Frequency (Hz) | Output | Speed (RPM) | ROT | CAP (MDF/VAC) | OEM Model Reference |
|---|---|---|---|---|---|---|---|
| YDK-120-6A | 208-230 | 60 | 1/6HP | 1075/2 | REVERSIBLE | 5/370 | PM310668 |
| YDK-120-6A5 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 | 5KCP39DGS375S |
| YDK-120-6A6 | 208-230 | 60 | 1/6HP | 1075 | REVERSIBLE | 5/370 | FSE1016SV1 |
| YDK-120-6A7 | 115 | 60 | 1/6HP | 1075/3 | REVERSIBLE | 5/370 | 5KCP39DGP729S |
| YDK-120-6A8 | 115 | 60 | 1/6HP | 1075/3 | REVERSIBLE | 5/370 | A.O.SMITH 9647 |
| YDK-150-6A | 208-230 | 60 | 1/5HP | 1075/2 | REVERSIBLE | 5/370 | PM310543 |
| YDK-150-6A2 | 220-240 | 50 | 1/5HP | 900 | CW-SE | 5/370 | PM310544 |
| YDK-185-6A3 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | 5KCP39EGP697T |
| YDK-185-6A6 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | FASCO D725 |
| YDK-185-6A7 | 208-230 | 60 | 1/4HP | 1075/3 | REVERSIBLE | 7.5/370 | FASCO D7909 |
| YDK-185-6A8 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | FASCO D904 |
| YDK-185-6A9 | 115 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | A.O.SMITH 130 |
| YDK-185-6A10 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | 5KCP39FGM599T |
| YDK-185-6A11 | 208-230 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | PM3104160 |
| YDK-185-6A12 | 460 | 60 | 1/4HP | 1075 | REVERSIBLE | 5/370 | PM3104159 |
| YDK-185-6A13 | 220/240 | 50 | 1/4HP | 1050 | REVERSIBLE | 10/370 | PM3104161 |
| YDK-185-6A15 | 208-230 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 | FASCO D783 |
| YDK-185-6A16 | 115 | 60 | 1/4HP | 1625 | REVERSIBLE | 5/370 | FASCO D782 |
| YDK-245-6A2 | 208-230 | 60 | 1/3HP | 1075/3 | REVERSIBLE | 7.5/370 | FASCO D923 |
| YDK-245-6A3 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 | FASCO D7908 |
| YDK-245-6A4 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 | 5KCP39HGP698T |
| YDK-245-6A9 | 208-230 | 60 | 1/3HP | 1075/3 | REVERSIBLE | 7.5/370 | A.O.SMITH 132 |
| YDK-245-6A10 | 208-230 | 60 | 1/3HP | 1075 | REVERSIBLE | 7.5/370 | 5KCP39MGG403ET |
Low noise, Quiet operation,
Little vibration
IP 20 protection level,
Automatic overload,
Thermal protection
High efficiency,
Wide speed adjustment range
Ball bearing,
Reversible plug for easy rotation,
Quick installation

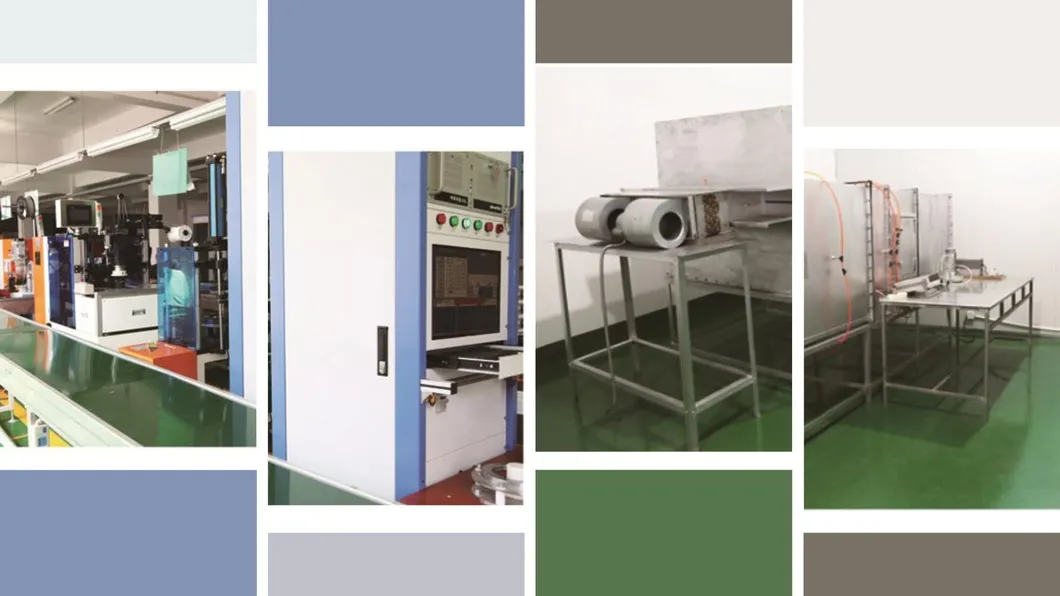

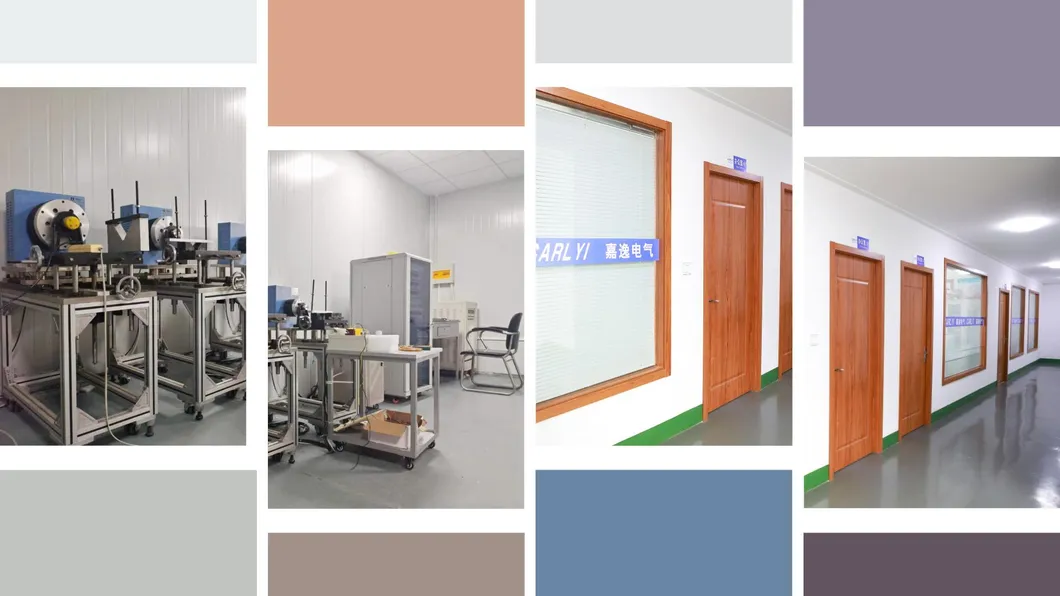

We are a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. With more than 10 years of motor research and development, design, production and sales experience, we maintain an annual output of 1 million motor production capacity.
Our new generation of BLDC and EC motors use a unique high flux and shock absorption design, coupled with high-quality bearings for increased torque. Our motors have been approved by CCC, ISO9001, CE, and RoHS certifications.
