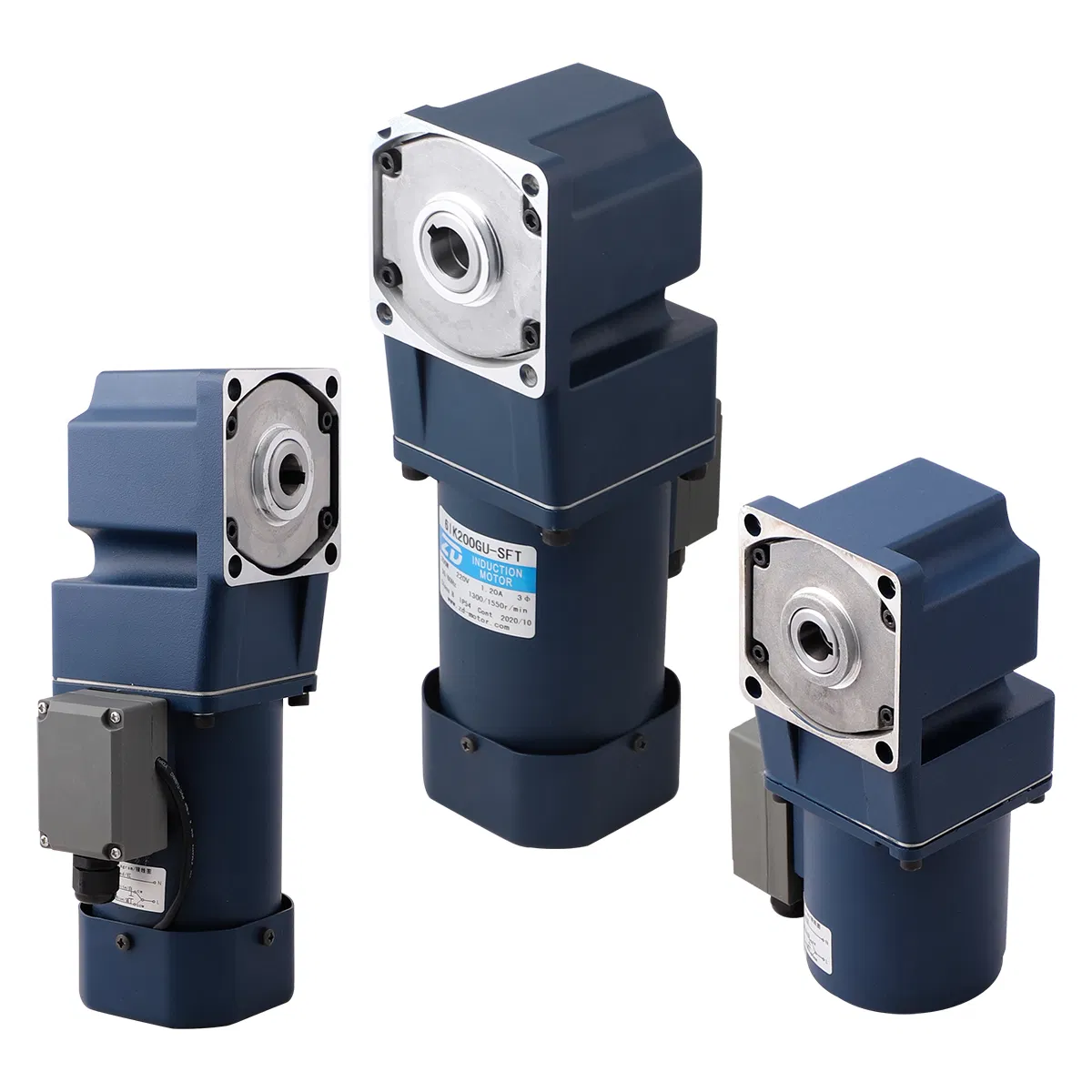

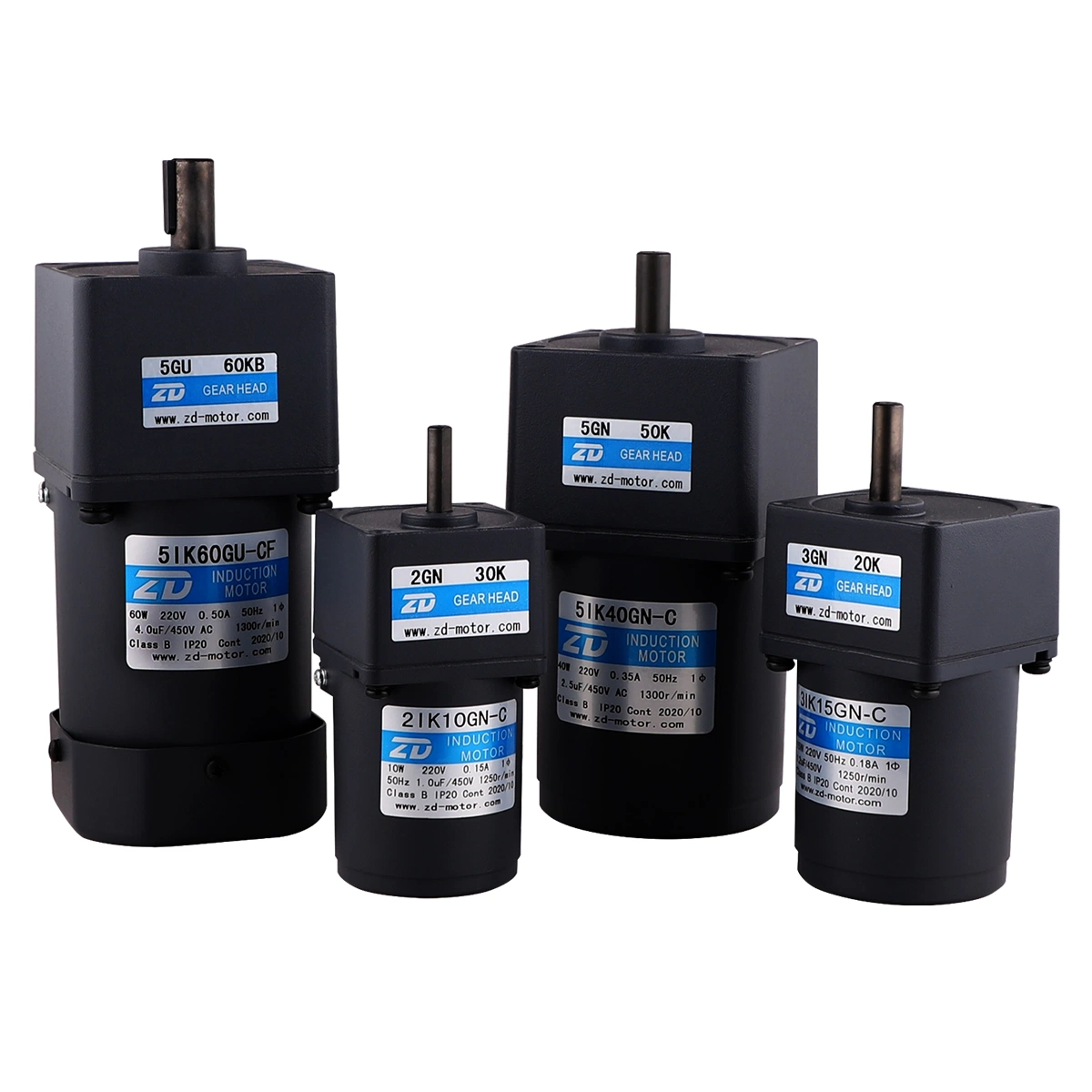

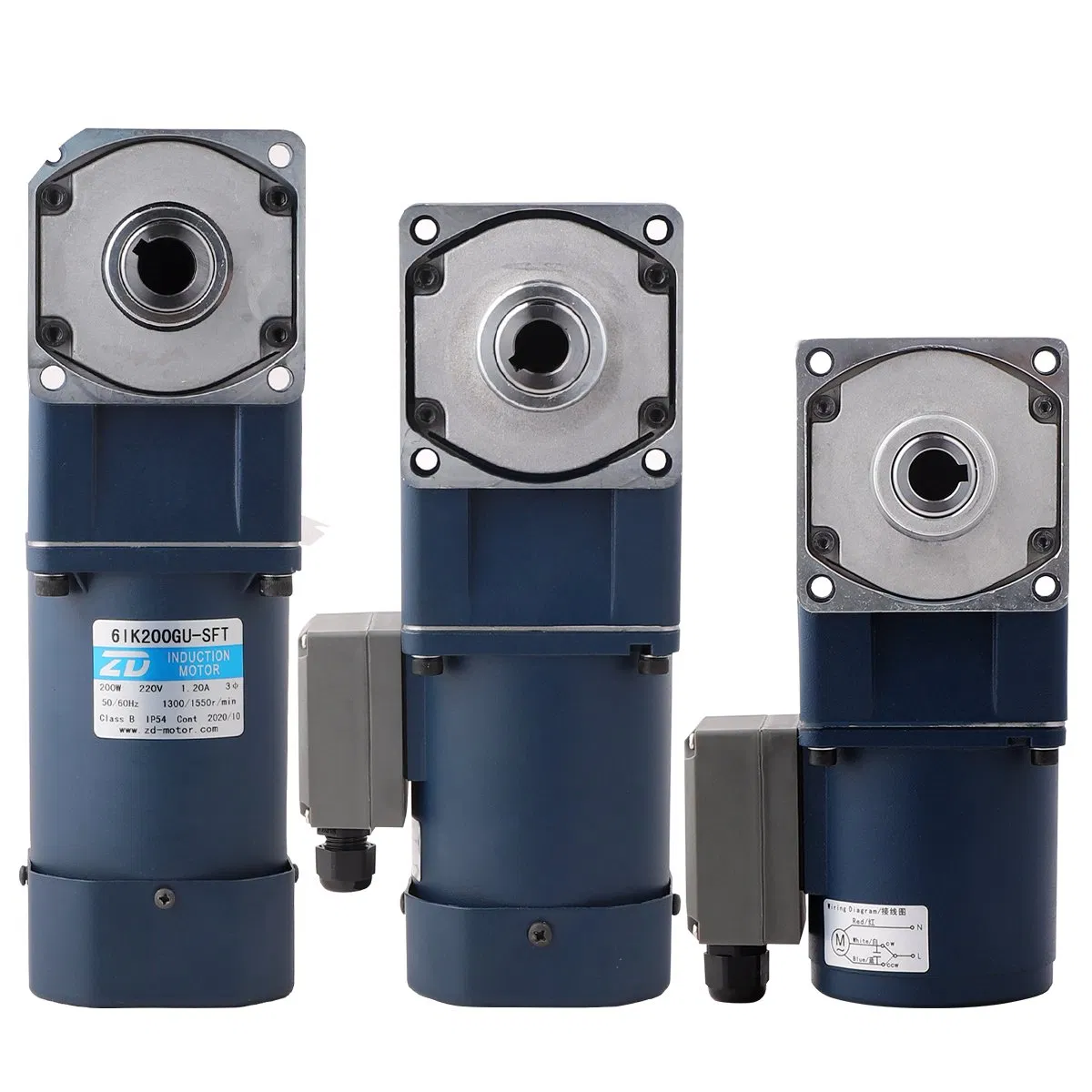

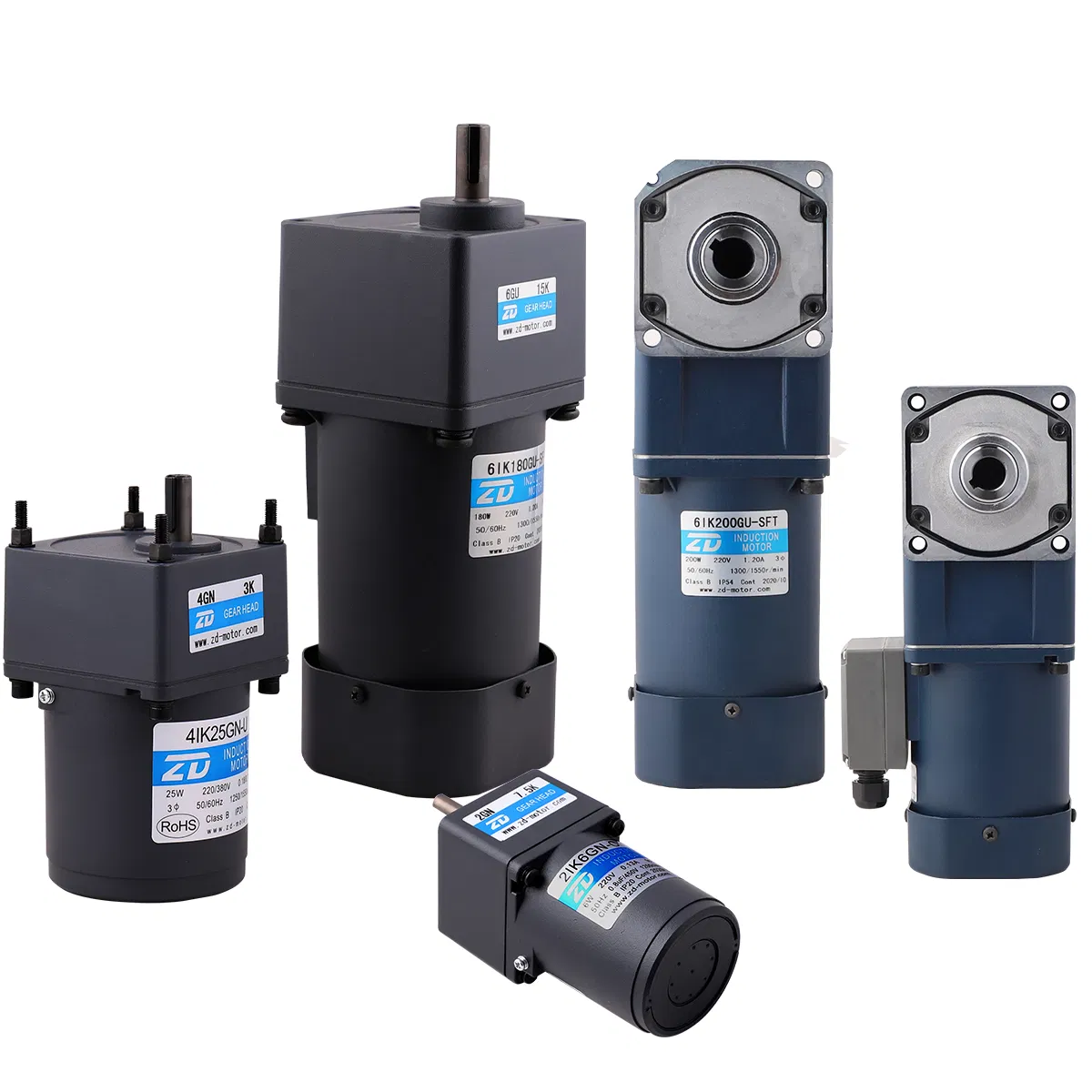

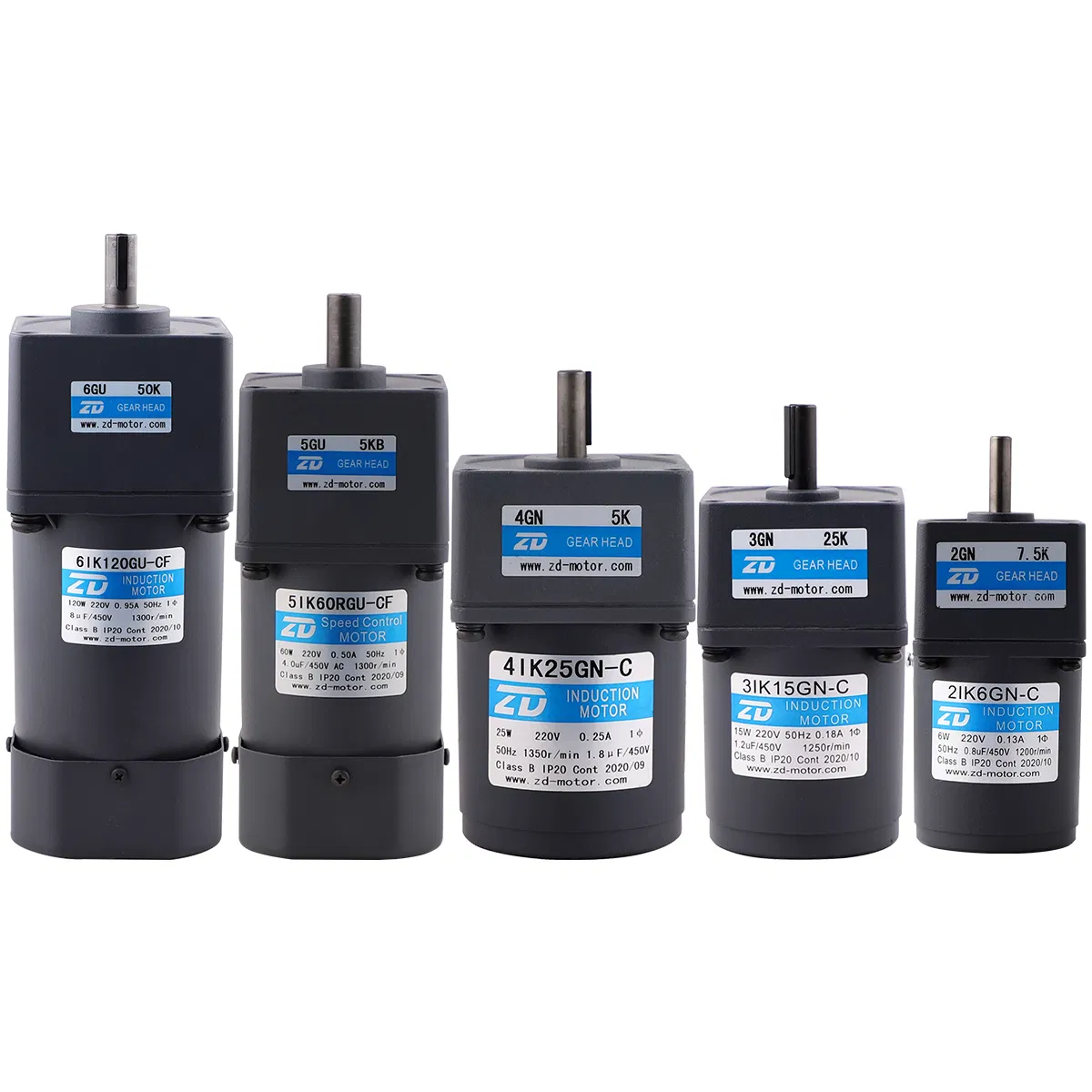

ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
1 / 5
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor
ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor

ZD Flange Size 60mm to 104mm  10W 25W 40W 60W 90W 120W 200W 110V 220V Single Phase Three Phase Speed Control AC Induction Gear Motor

Customization: Available
Application: Industrial
Speed: 1350rpm
Send Inquiry

Product Description

Overview - Basic Info
Model NO.
2IK/3IK/4IK/5IK/6IK
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2-4
Starting Mode
Direct on-line Starting
Size
60mm, 70mm, 80mm, 90mm, 104mm
Power
6W-200W+
Voltage
110V, 220V, 380V, 415V
Reduction Ratio
3K ~ 750K
Shaft Type
GN, GU, RC, RT
Package
CTN (25.00cm * 20.00cm * 20.00cm)
Specification
UL, CE, ISO9001, CCC, RoHS
Production Capacity
30000PCS/Month
Model Selection

Our micro motor production lines include DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox. Through technical innovation and customization, we provide flexible solutions for various industrial automation situations.

AC Induction Gear Motor
✓
Professional Selection: Our technical team will choose the right model and transmission solutions based on your specific parameters.
✓
Drawing Request: If you need CAD or 3D drawings, catalogs, or additional parameters, please contact us.
✓
Customization: We can modify standard products or customize them to meet your specific needs.
Product Parameters
AC Gear Motor Specification
MOTOR FRAME SIZE60 mm / 70mm / 80mm / 90mm / 104mm
MOTOR TYPEInduction Motor / Reversible Motor / Torque Motor / Speed Control Motor
OUTPUT POWER10W to 300W (Can Be Customized)
OUTPUT SHAFT8mm / 10mm / 12mm / 15mm (Round, D-Cut, Key-Way)
VOLTAGE TYPE1ph 100-120V; 3ph 200-240V; 3ph 440-480V 50/60Hz
ACCESSORIESElectric Brake / Fan / Speed Controller / Terminal Box / Thermal Protector
GEARBOX SIZE60 mm / 70mm / 80mm / 90mm / 104mm
GEAR RATIO3K-200K
PINION TYPEGN Type / GU Type
GEARBOX TYPERegular Square Case / Right Angle / L Type
Type Of AC Gear Motor

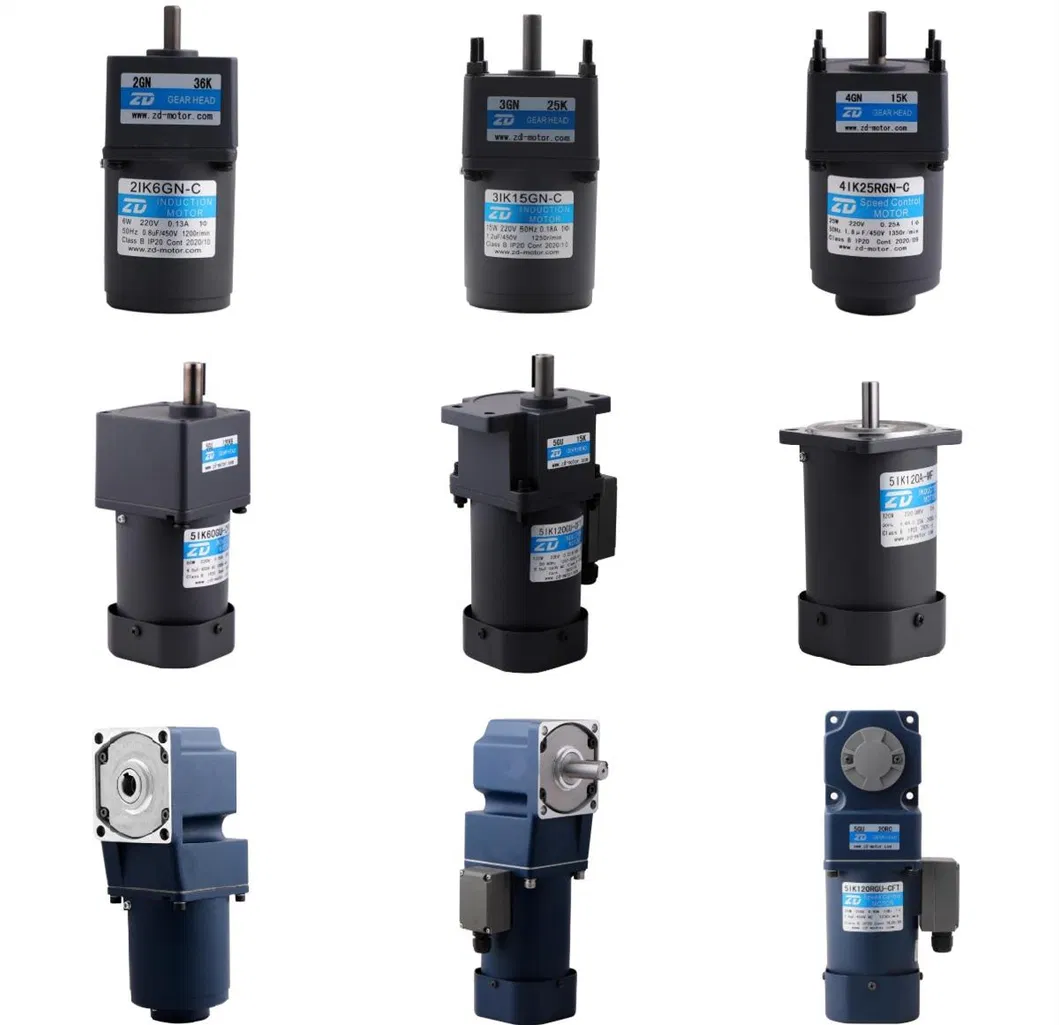

Types of AC Gear Motors
Other Related Products

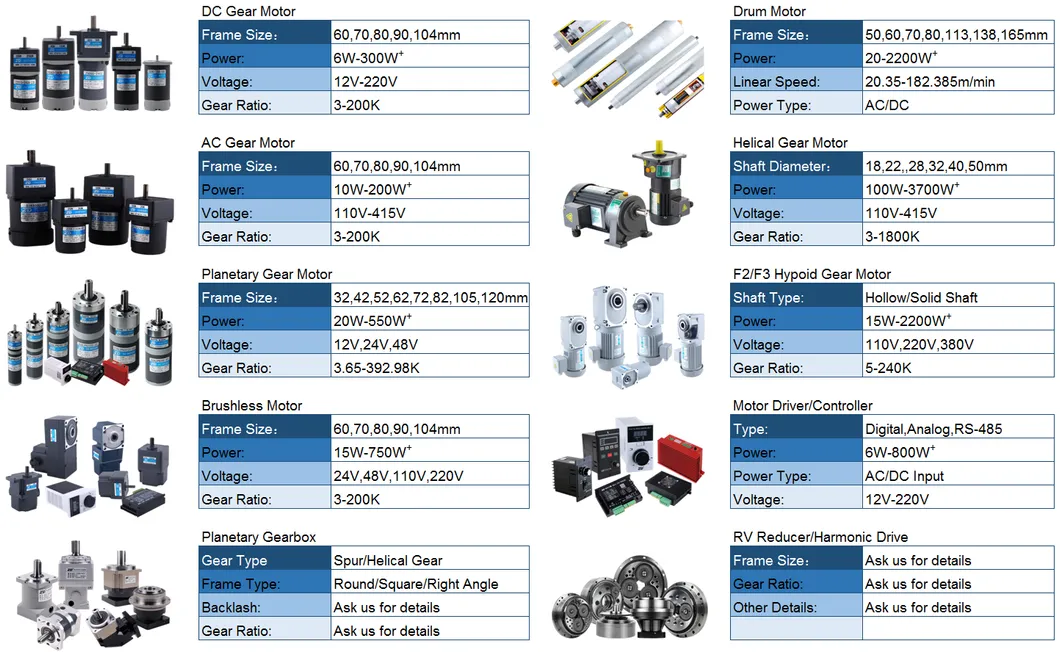

Other Micro Motor Products
Production & Quality Control
Production Facility
Quality Inspection
Manufacturing Process
Frequently Asked Questions
How do I choose the correct AC Gear Motor model?
Model selection depends on your specific requirements for frame size (60mm to 104mm), output power (10W-300W), required torque, and gear ratio (3K to 200K). Our technical team can provide professional transmission solutions based on your parameters.
What voltage options are available for these motors?
We offer Single-phase 100-120V 50/60Hz, Three-phase 200-240V 50/60Hz, and Three-phase 440-480V 60Hz configurations to meet global power standards.
Can the output shaft be customized?
Yes. We provide standard Round shafts, D-Cut shafts, and Key-Way shafts in diameters of 8mm, 10mm, 12mm, and 15mm. Custom dimensions are available upon request.
What types of gearboxes are compatible with these motors?
Our motors can be equipped with Regular Square Case gearboxes, Right Angle gearboxes, or L-Type gearboxes depending on your installation space and orientation needs.
Are there additional accessories available for these motors?
Yes, we offer various integrated options including electromagnetic brakes for instant stopping, cooling fans, speed controllers, terminal boxes, and thermal protectors for safety.
What certifications do your AC Gear Motors hold?
Our products are manufactured according to international standards and hold certifications including UL, CE, ISO9001, CCC, and RoHS compliance.
