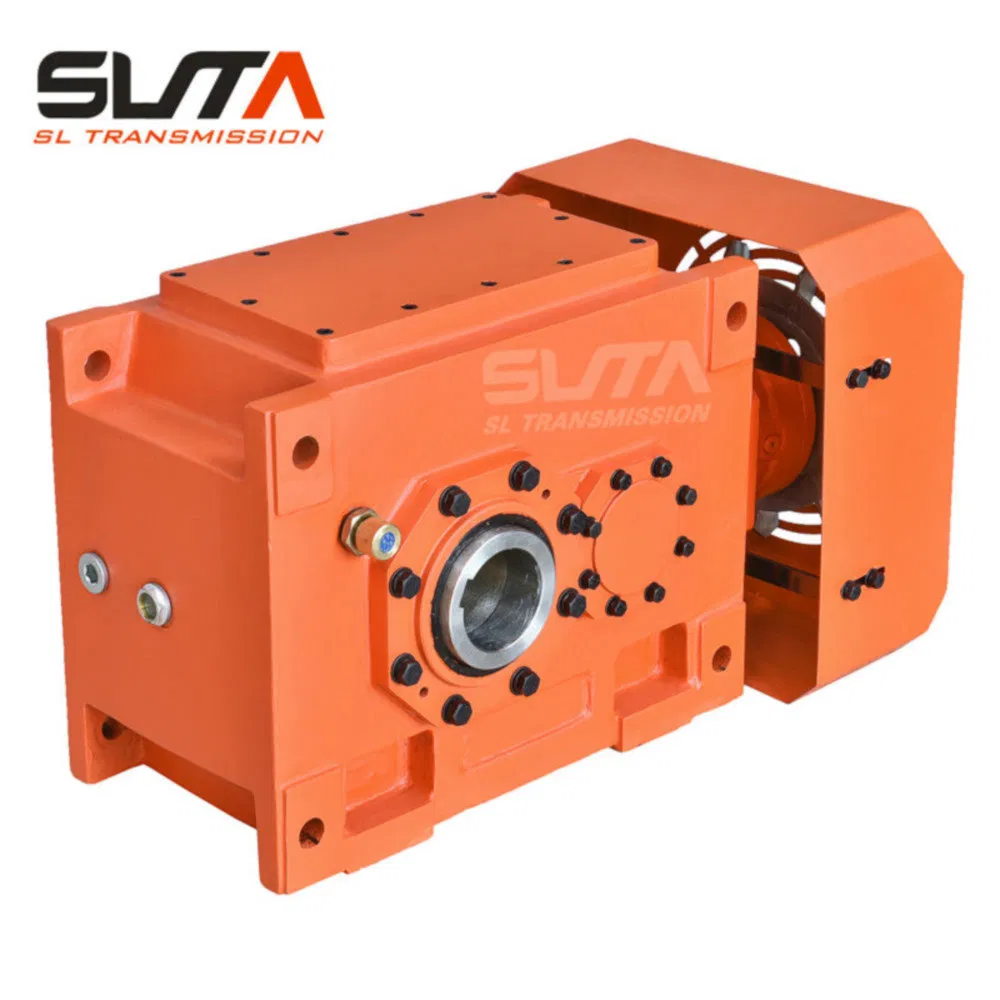

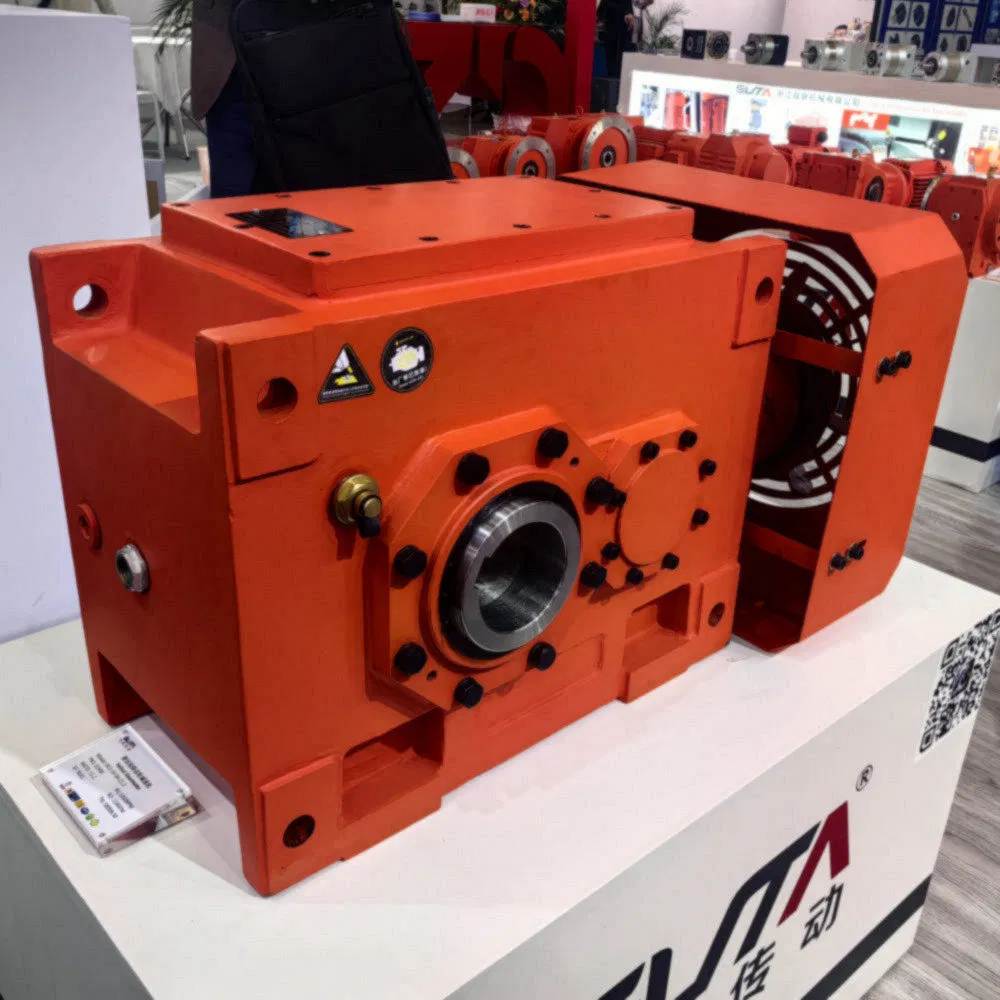

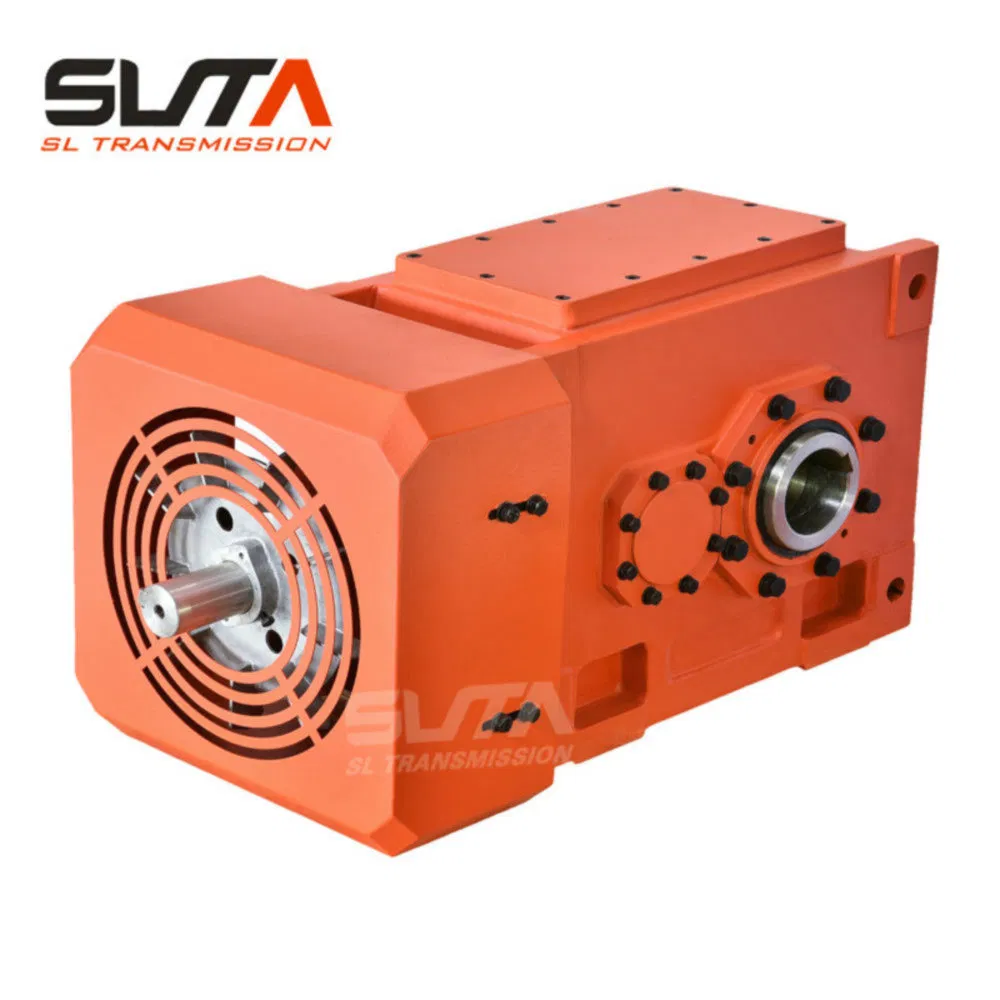

PREMIUM GEAR BOX DESIGN: This premium helical bevel gearbox adopts an advanced K series design, combining helical gears with spiral bevel gears for superior power transmission. The right-angle shaft configuration delivers exceptional torque output with high efficiency up to 98%.
Precision-ground hardened gears ensure smooth, quiet operation, making this industrial gear reducer ideal for continuous heavy-duty applications in mining, petrochemical, and metallurgy fields.
| TECHNICAL PARAMETERS | |
|---|---|
| Transmission Stage | BC2 (Ratio 5-18), BC3 (Ratio 12.5-90), BC4 (Ratio 80-400) |
| Housing Material | HT250 High-strength Cast Iron (HBS190-240) |
| Gear Material | 20CrMnTi Alloy Steel (HRC58°~62°) |
| Shaft Material | 42CrMo Alloy Steel (HRC25~30) |
| Machining Precision | Accurate Grinding, 6~5 Grade |
| Lubricating Oil | GB L-CKC220-460 / Shell Omala 220-460 |
| Noise Level | 60 ~ 68dB (Ultra-Quiet) |
| Vibration | ≤20µm |
| Backlash | ≤20 Arcmin |
Achieves exceptional transmission efficiency through precision helical bevel gear meshing technology, significantly reducing power consumption and lowering operational expenses.
Minimized vibration and noise levels below 65dB thanks to optimized tooth profile design, creating a safer and more comfortable working environment.

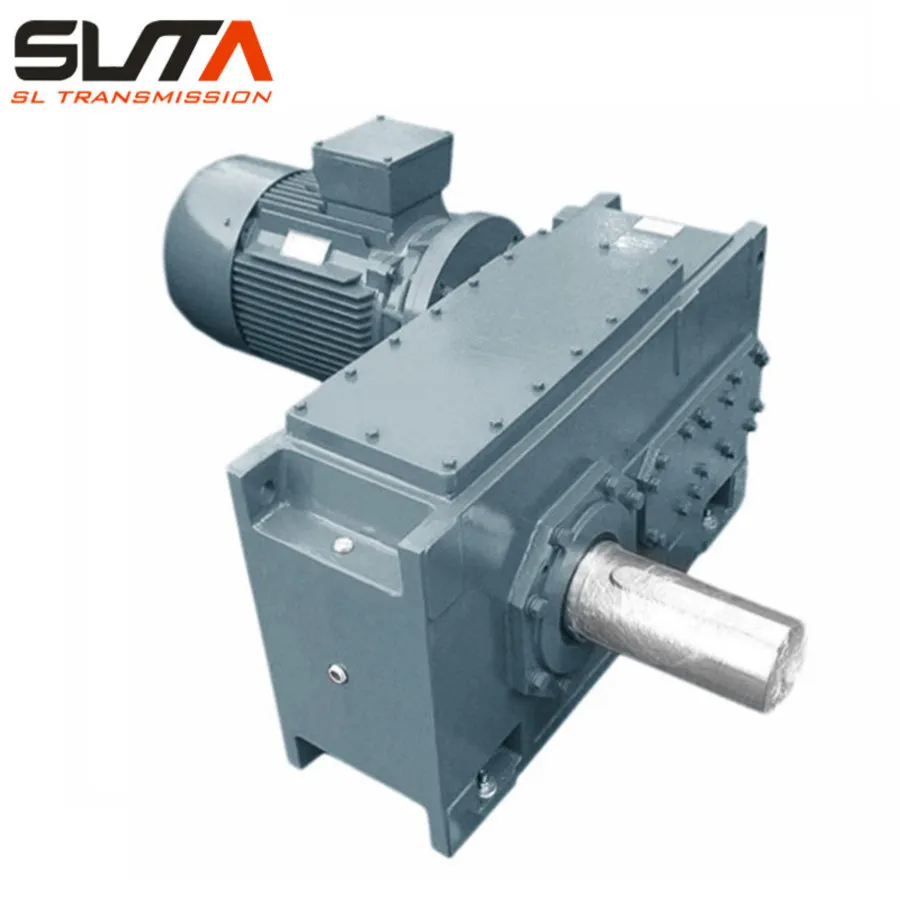

Premium sealed bearings combined with a superior lubrication system dramatically extend maintenance intervals, reducing costly downtime.
