Customization: Available
Application: Industrial
Speed: High Speed
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
CH32
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
Auto-induction Voltage-reduced
Certification
ISO9001, CCC
MOQ
1PCS
Delivery Time
3-5 Days
Warranty
12 Months
AC Voltage
220V/380V/415V/440V
HS Code
8483409090
📦

Packaging & Delivery

Package Size
60.00cm * 40.00cm * 10.00cm
Lead Time
7 days (1-300 Pcs), 20 days (301-3000 Pcs)
⚙️

Product Highlights

Horizontal Speed Motor AC Gear Motor GH22 (Single/Three-Phase)

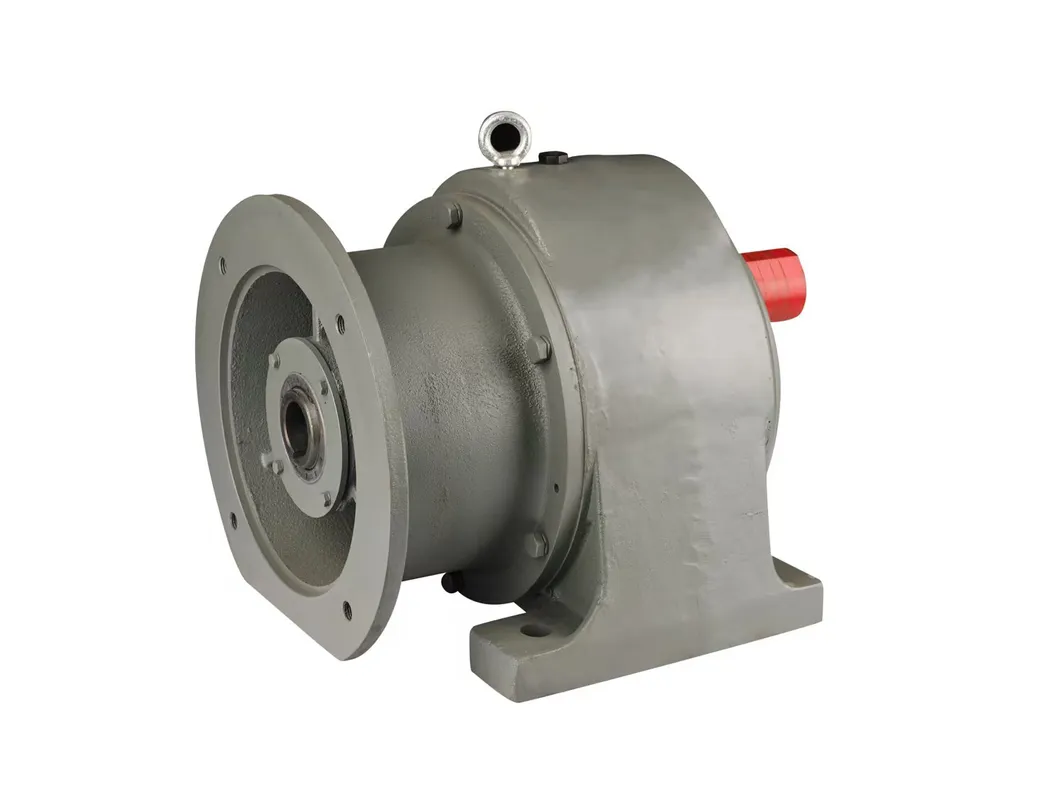

AC Gear Motor GH22 Display
AC Gear Motor GH22 Detail 1

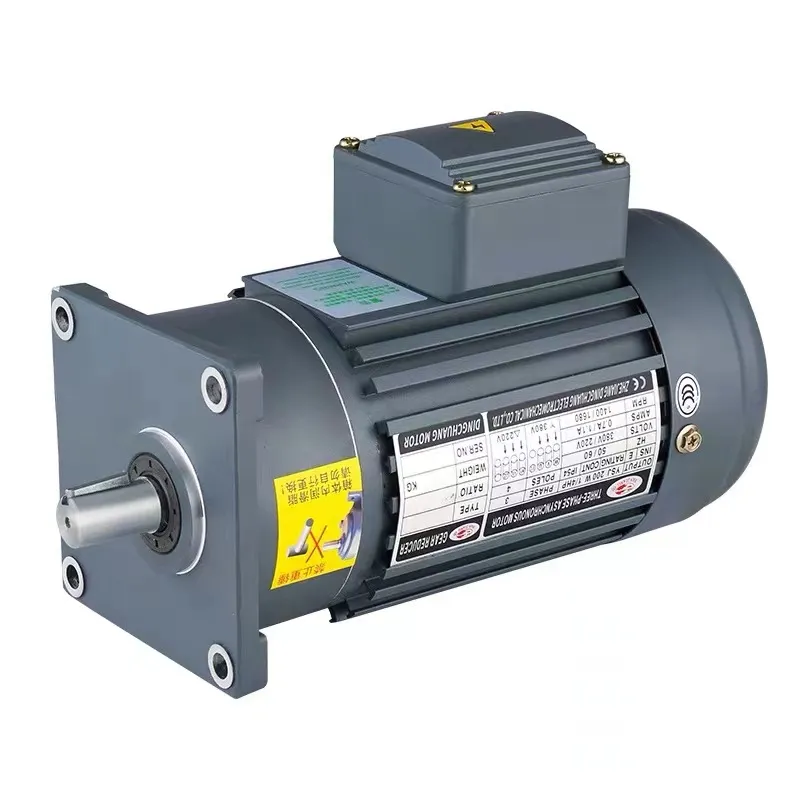

AC Gear Motor GH22 Detail 2
Rated Power
100W-7.5KW
Rated Speed
1400/1680rpm
Efficiency Class
IE 4
Insulation Class
F/B
Protect Feature
Drip-proof
Duty
Continuous Running

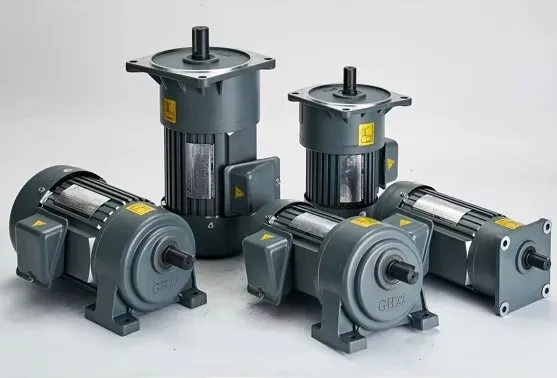

Small type AC Gear Motor: Available in Three-phase asynchronous and Single-phase capacitor running versions directly connected with high-precision gearboxes.

Asynchronous Motor Structure

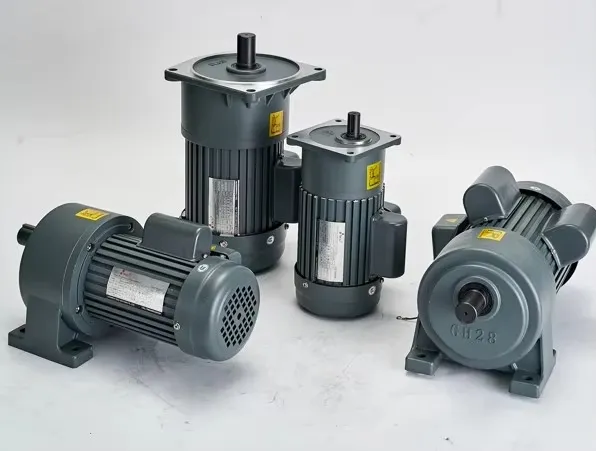

Capacitor Running Motor

Core Characteristics:

Full Copper Coil: Electromagnetic system optimized by computer for high efficiency and low temperature rise.
Precision Rotor: Low loss silicon steel sheet with precision integrated stamping technology.
Aluminum Housing: High-grade alloy construction for superior heat dissipation.
Compact Design: Small size with high torque, low noise, and long service life.
Dimensions
Mounting Type
Technical Specifications Sheet
❓

Frequently Asked Questions

What is the standard warranty for the AC Gear Motor?
The standard warranty period is 12 months, ensuring reliable performance and peace of mind for your operations.
Can this motor be used for continuous 24/7 operation?
Yes, the motor is designed for continuous running (S1 duty cycle) with an optimized cooling system and high-efficiency copper coils.

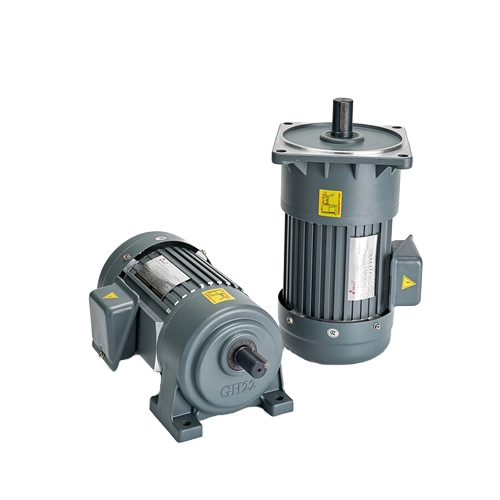

What mounting options are available?
We provide both GH (Horizontal) and GV (Vertical) mounting types to suit different machinery configurations.
Does the motor support different global voltages?
Absolutely. While standard options include 220V, 380V, and 415V, other voltages like 110V or 440V are available upon request.
What are the main advantages of the aluminum housing?
The aluminum alloy housing significantly improves heat dissipation, reduces the overall weight of the motor, and provides excellent corrosion resistance.
What is the typical lead time for a standard order?
For orders between 1 to 300 pieces, the typical lead time is approximately 7 days. Larger orders are subject to negotiation.
