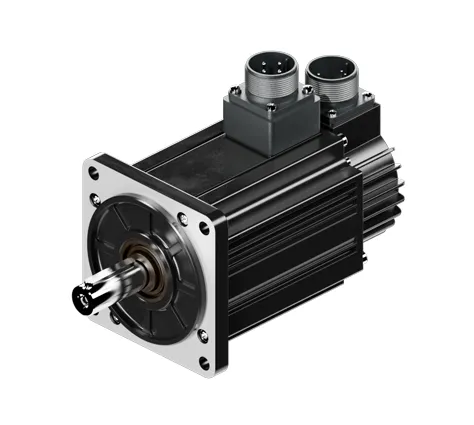

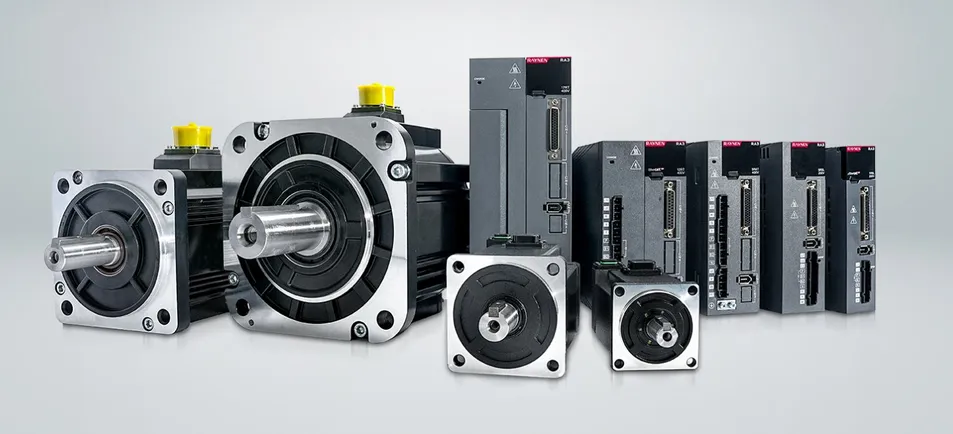

The MA3 series servo motors are developed based on the third-generation R&D technology platform. They feature improved manufacturing processes, miniaturization, high protection, and greater energy efficiency. With a speed bandwidth of 3kHz, they offer faster EtherCAT communication response and current loop response, shorter positioning time, and better followability.
Rated torque fluctuation < 0.5%, speed fluctuation ±1 rpm. Reduces inductive interference and ensures smooth operation.
Supports STO and full closed-loop functions, covering a wider power range for various industrial application scenarios.
The servo system helps create high-precision, reliable system solutions for various industries:
| Series | Inertia | Frame (mm) | Power (kW) | Rated Speed (rpm) | Voltage | Rated Torque (N·m) |
|---|---|---|---|---|---|---|
| MA3S | Low | 40 | 0.1 | 3000 | 220V | 0.32 |
| MA3S | Low | 60 | 0.4 | 3000 | 220V | 1.27 |
| MA3S | Low | 80 | 1.0 | 3000 | 220V | 3.18 |
| MA3S | Low | 130 | 5.0 | 3000 | 220V | 15.9 |
| MA3D | Medium | 80 | 1.0 | 3000 | 220V | 3.18 |
| MA3H | High | 130 | 2.9 | 1500 | 380V | 18.46 |
SUPPLIES TO THE WORLD: Zero-Damage Global Delivery
√ Custom Shockproof Wooden Crates | √ Anti-Static Sealing | √ Ocean-Proof Anti-Corrosion
Standard 12-month warranty. Global 24/7 technical assistance and spare parts supply available.
Competitive pricing, fast shipping, turnkey project solutions, and strict Quality Assurance.
