KPR Motor
1 / 5

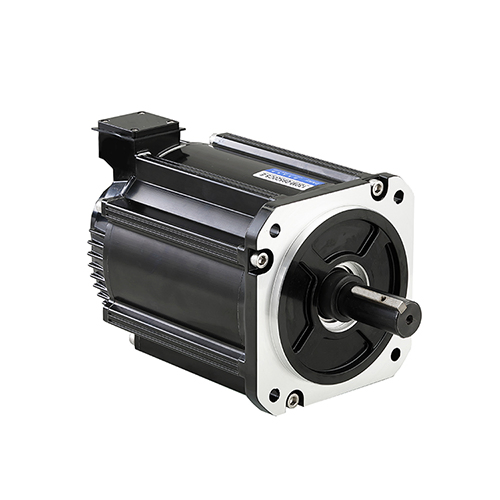

| Model Parameter | 130M-07520C5-X | 130M-07520E5-X | 130M-07530C5-X | 130M-07530E5-X |
|---|---|---|---|---|
| Rated Output (W) | 1570 | 1570 | 2350 | 2350 |
| Rated Voltage (VDC) | 48VDC | 72VDC | 48VDC | 72VDC |
| Rated Torque (N.M) | 7.5 | 7.5 | 7.5 | 7.5 |
| Rated Speed (rpm) | 2000 | 2000 | 3000 | 3000 |
| Rated Current (Arms) | 40±10% | 26±10% | 60±10% | 41±10% |
| Torque Coefficient (N.m/A) | 0.18±10% | 0.28±10% | 0.13±10% | 0.19±10% |

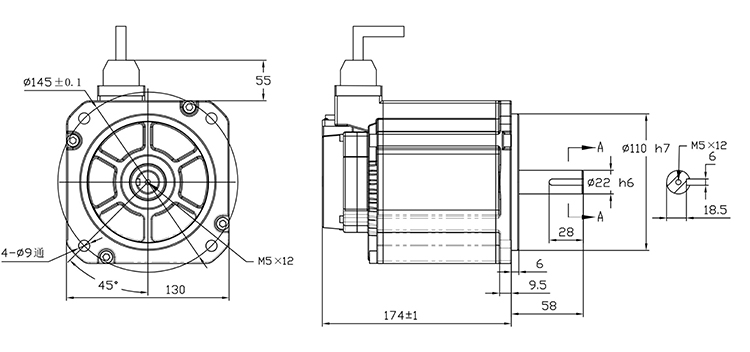

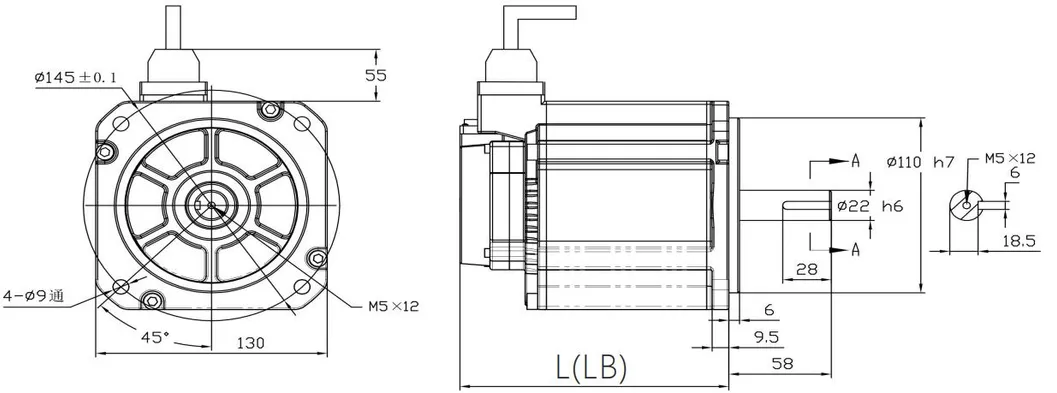

| Motor Length (mm) | 174MM | 174MM | 174MM | 174MM |
| Weight (KG) | 11/12.8 | 11/12.8 | 11/12.8 | 11/12.8 |
| Protection Level | IP65 | |||

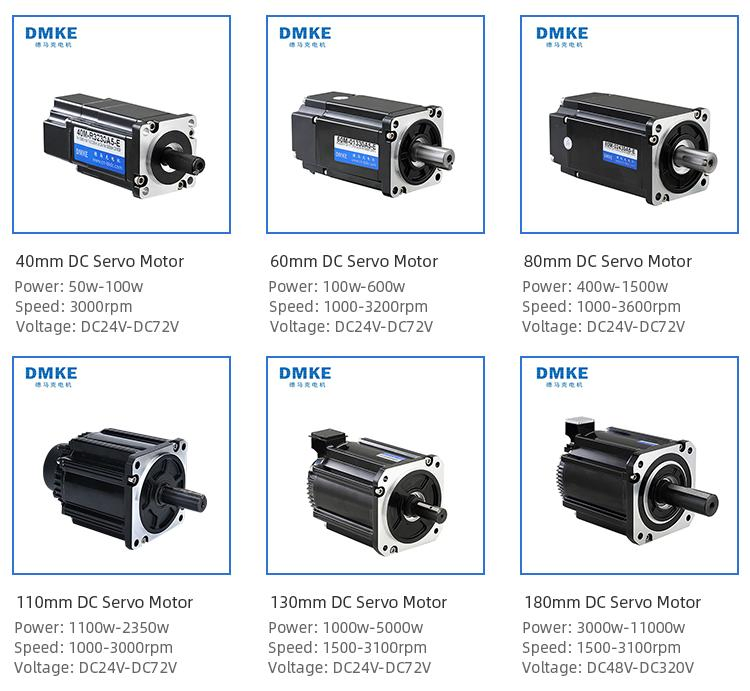

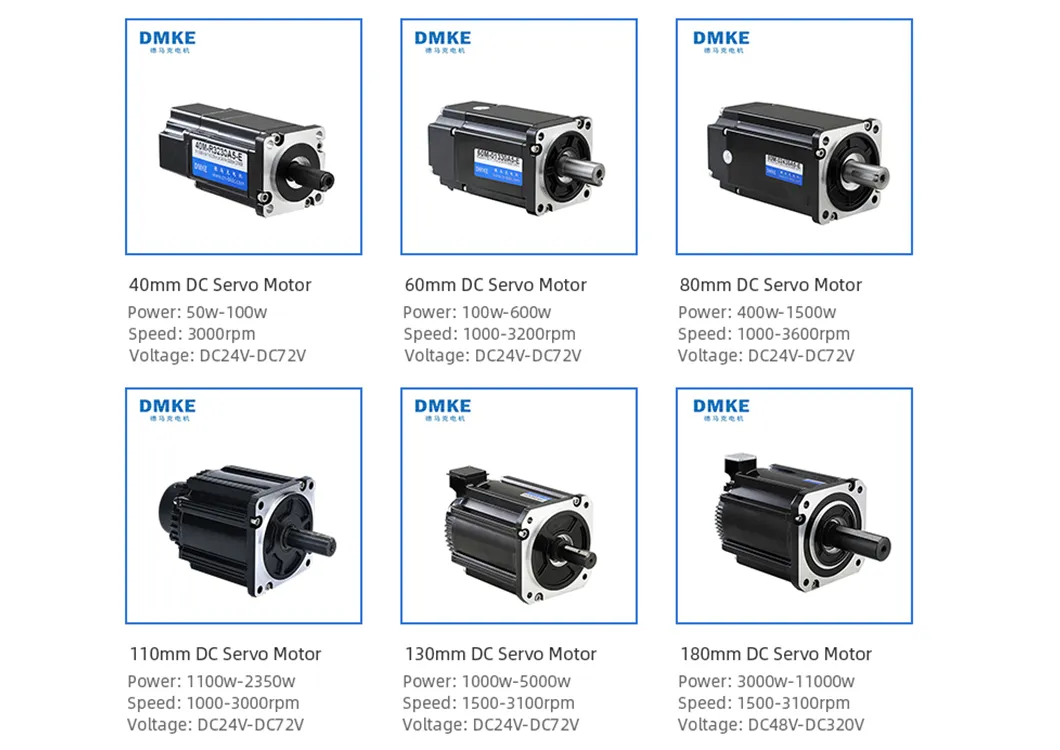

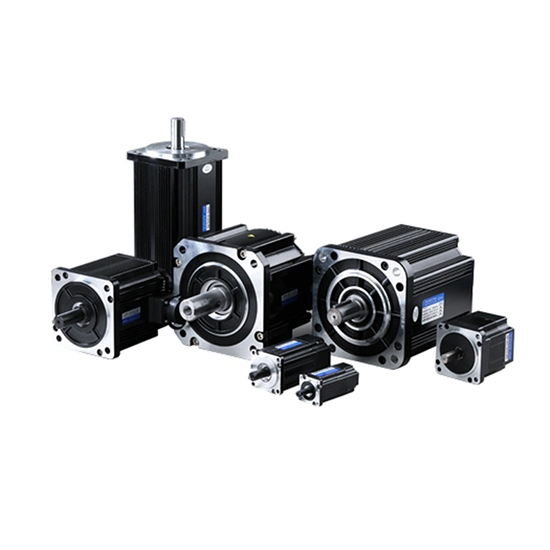

Available Sizes: 60mm, 80mm, 110mm, 130mm, 180mm
Power Range: 200W - 10KW
Voltage: 24V, 48V, 72V, 96V
Available Sizes: 60mm, 80mm, 110mm
Power Range: 200W - 2.35KW
Voltage: 24V, 48V, 72V, 96V

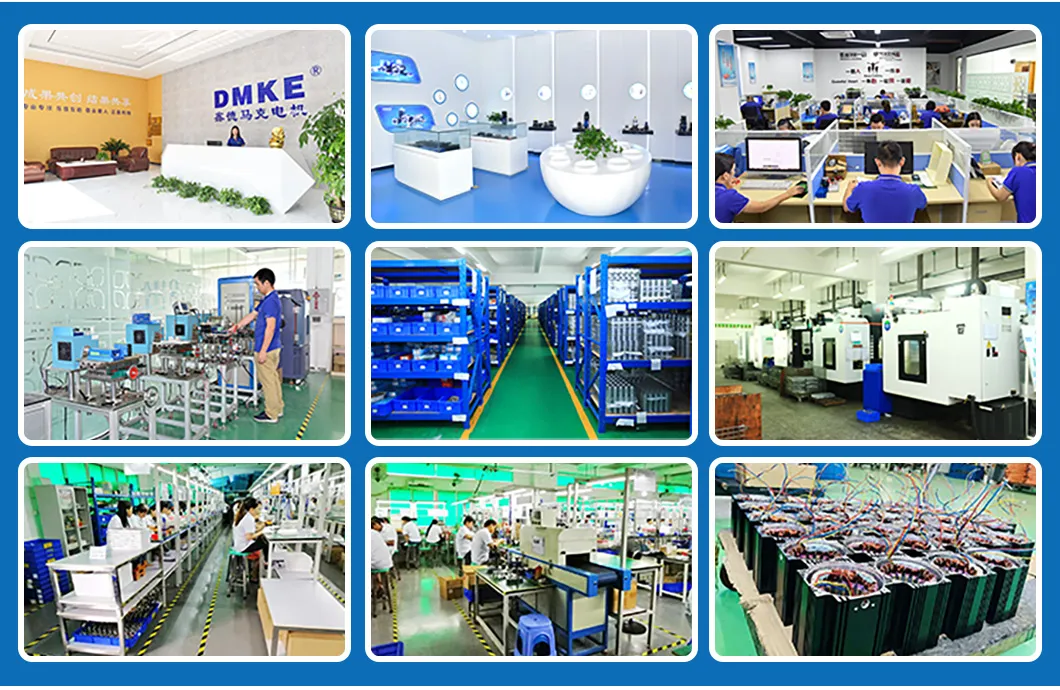

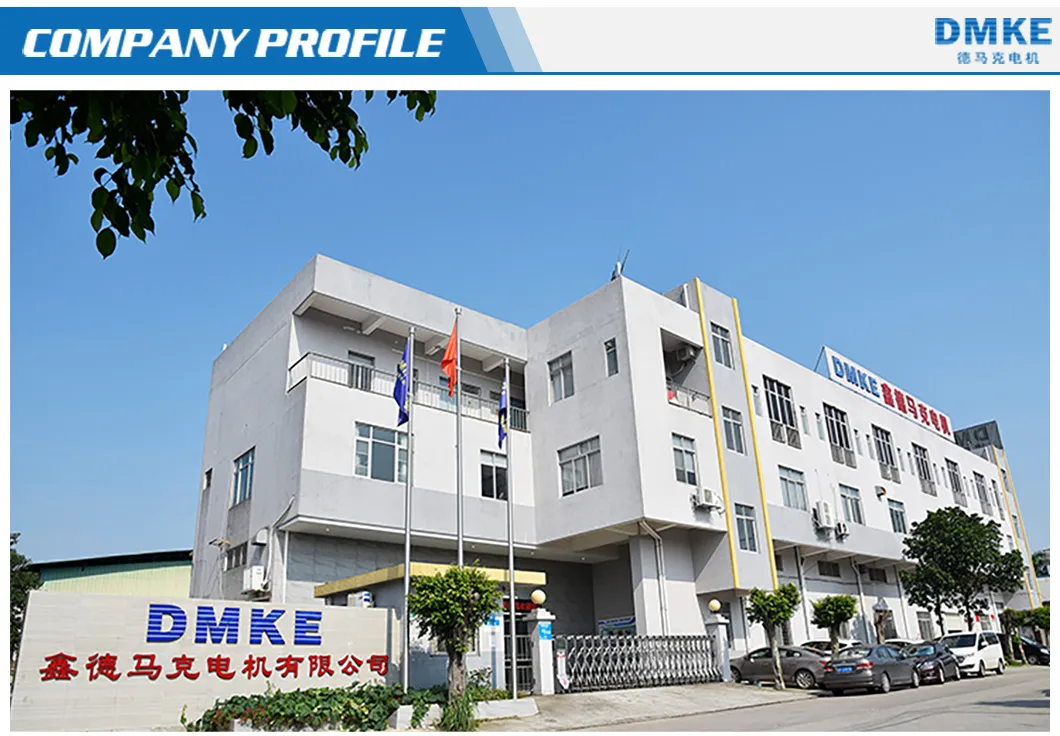

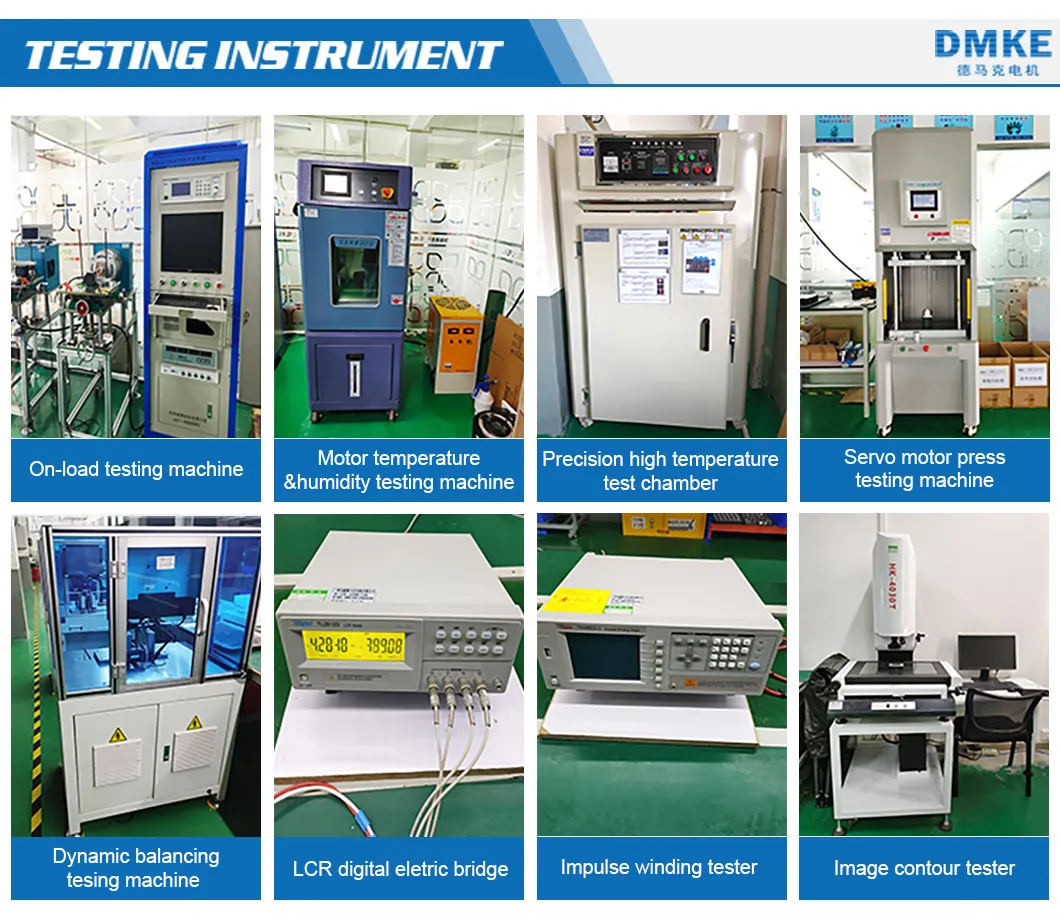

Our team specializes in high-precision micro DC gear motors, brushless motors, and advanced controllers. With a plant area of 4,000 square meters and ISO9001 certification, we maintain strict quality control standards across our entire supply chain.
Equipped with professional engineers for R&D, we offer strong independent design capabilities for customized motor solutions. Our products are widely used in AGVs, robots, medical equipment, and industrial automation worldwide.
