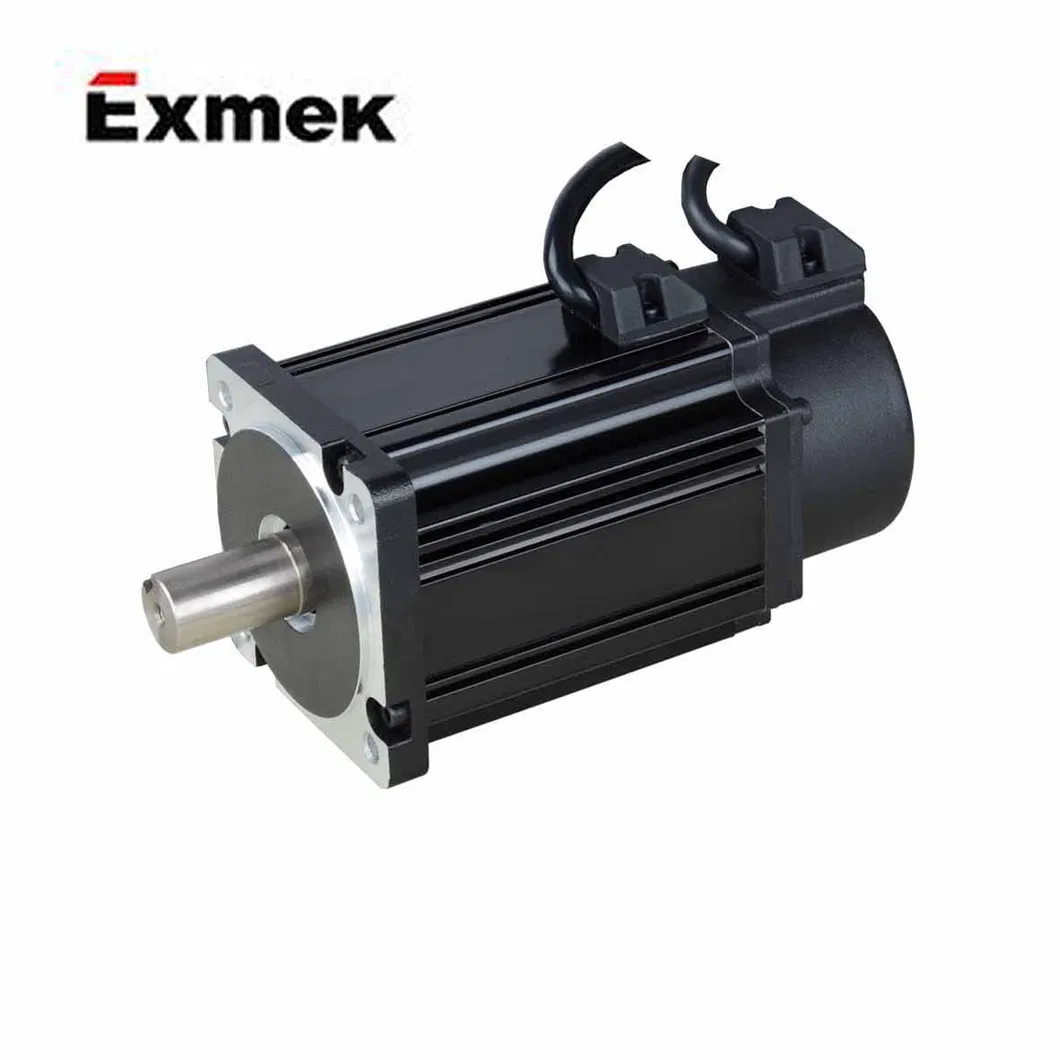

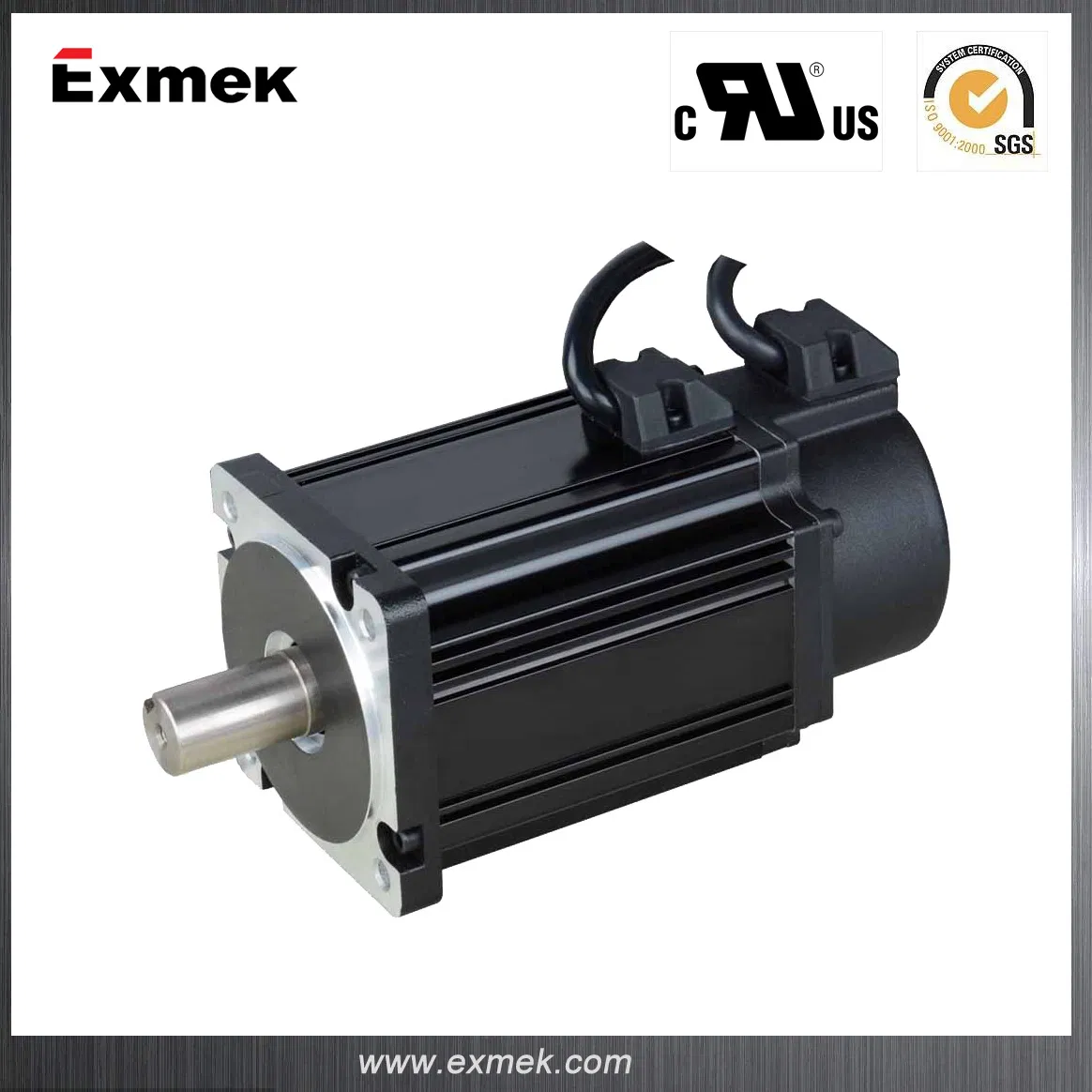

Product General Information
- 8 poles with three phases
- 18 slots distribution winding, skew stator design for low cogging
- High-efficiency Insulation class F
- Higher resolution encoder available for precision control
- Adaptable higher voltage options
- IP65 protection class available for harsh environments
Technical Specifications
| Specification | SE080AS200 |
| Supply Voltage (reference) | 48 (VDC) |
| Rated Continuous Torque | 2.44 (Nm) |
| Rated Speed at Cont. Torque | 3000 (rpm) |
| Rated Continuous Stall Current | 31.52 (A) |
| Rated Continuous Output Power | 765 (W) |
| Motor Constant | 0.2449 (Nm/√W) |
| Torque Constant | 0.0812 (Nm/A) |
| Voltage Constant | 8.5 (V/krpm) |
| Terminal Resistance | 0.11 (Ω) |
| Inductance | 0.29 (mH) |
| Rated Peak Current | 104.21 (A) |
| Rated Peak Torque | 8.1 (Nm) |
| Coulomb Friction Torque | 0.061 (Nm) |
| Insulation Class | F |
| Rotor Inertia | 4.96E-03 (Kg.m²) |
| Motor Weight | 2.72 (Kg) |
| Feedback Device | 2500p/rev incremental encoder |
| Motor Length | 153 (mm) |

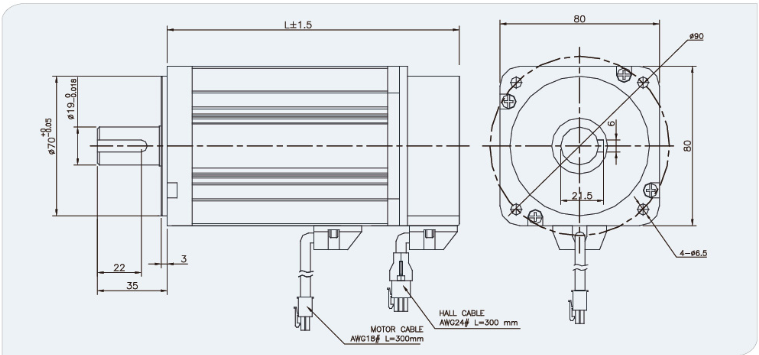

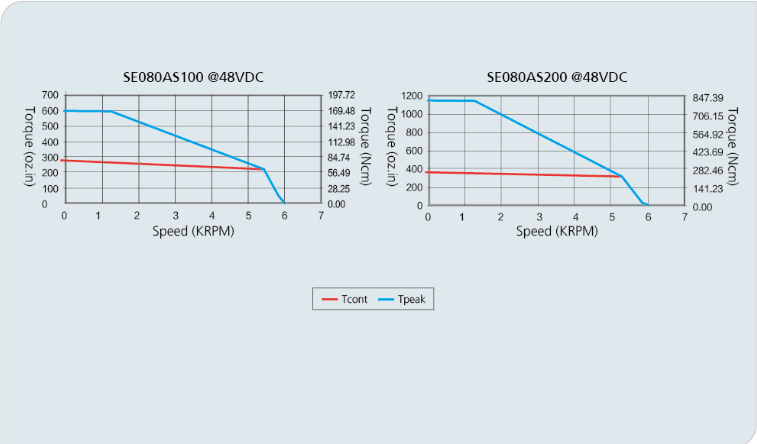

Mechanical Drawings & Performance
Professional Capabilities
Design & Manufacturing
Modern motor design and manufacturing using advanced Magnetic Design Software (Motorsolver). Expert part set design and in-house molding capabilities.
Quality Assurance
Operations are governed by ISO 9001 and ISO 14000 standards. Products carry UL, CE, and RoHS certifications ensuring global compliance.
Strategic Advantages
One-stop supplier for complete sub-systems. Competitive low-cost production with a talented engineering team providing innovative technical solutions.
Wide Range of Applications
This high-performance brushless servo motor is suitable for a variety of industries:
- Industrial Automation & Robotics
- Medical & Chemical Equipment
- Automotive & Semiconductor Industries
- Swimming Pool & Office Automation
- Power Tools & Measuring Instruments
- Custom OEM Applications
We are open for general discussion and questions. Contact us now!
Frequently Asked Questions (FAQ)
Q1: What is the benefit of the 18 slots skew stator design?
The skew stator design is specifically engineered to achieve low cogging, which ensures smoother rotation and higher precision in motion control applications.
Q2: Can the motor handle harsh environmental conditions?
Yes, an IP65 protection class version is available, providing excellent resistance against dust and low-pressure water jets.
Q3: What feedback devices are supported?
The standard model comes with a 2500p/rev incremental encoder, and higher resolution encoders are available upon request for more demanding accuracy requirements.
Q4: Are there options for custom mechanical features?
Absolutely. We offer optional special shafts and other mechanical characteristic modifications to meet specific OEM integration needs.
Q5: What is the insulation rating for this motor?
The motor features Insulation Class F, which allows for a high maximum operating temperature, ensuring reliability during continuous heavy-duty use.
Q6: What power supply is required for the SE080AS200?
The reference supply voltage for this model is 48 VDC, making it ideal for various industrial and battery-powered applications.
